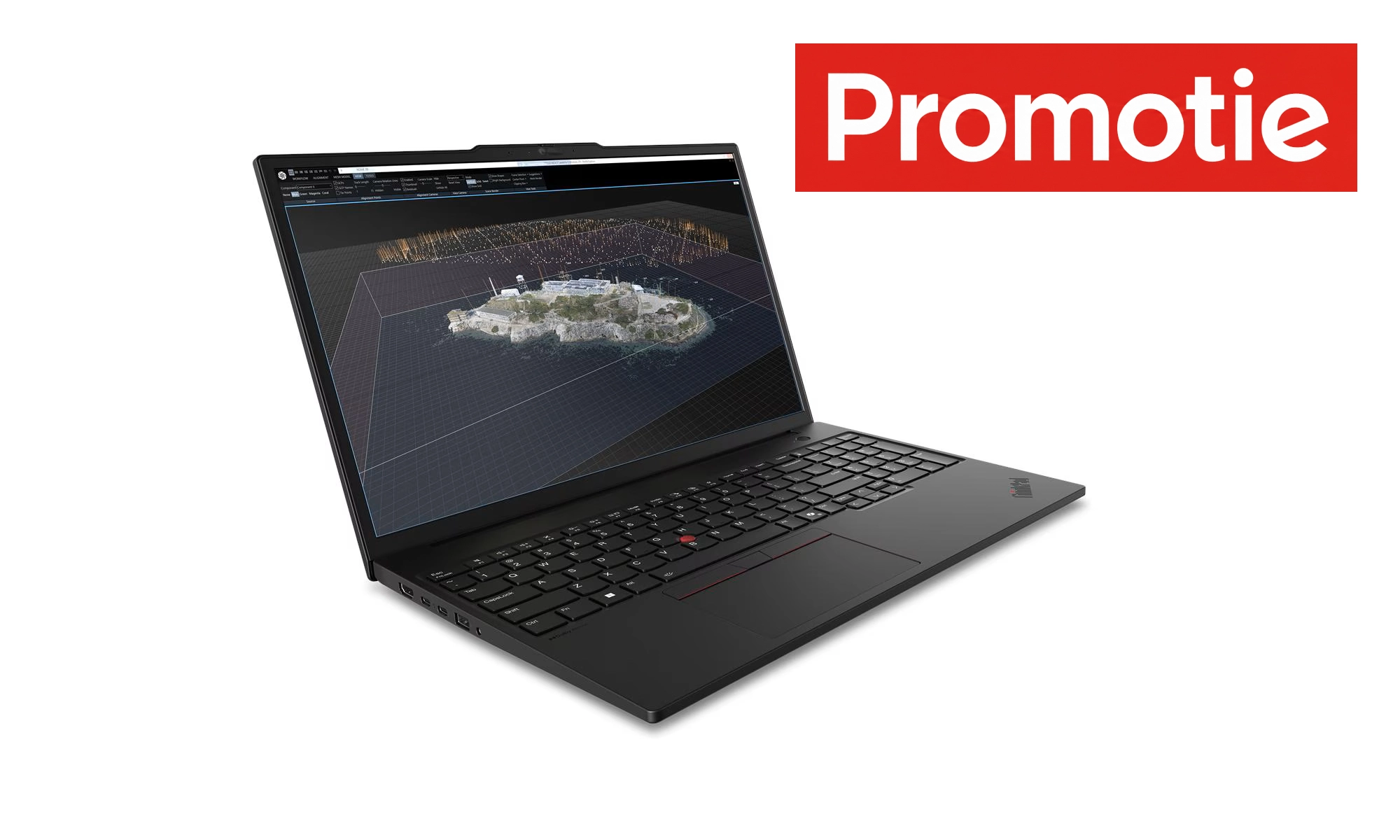

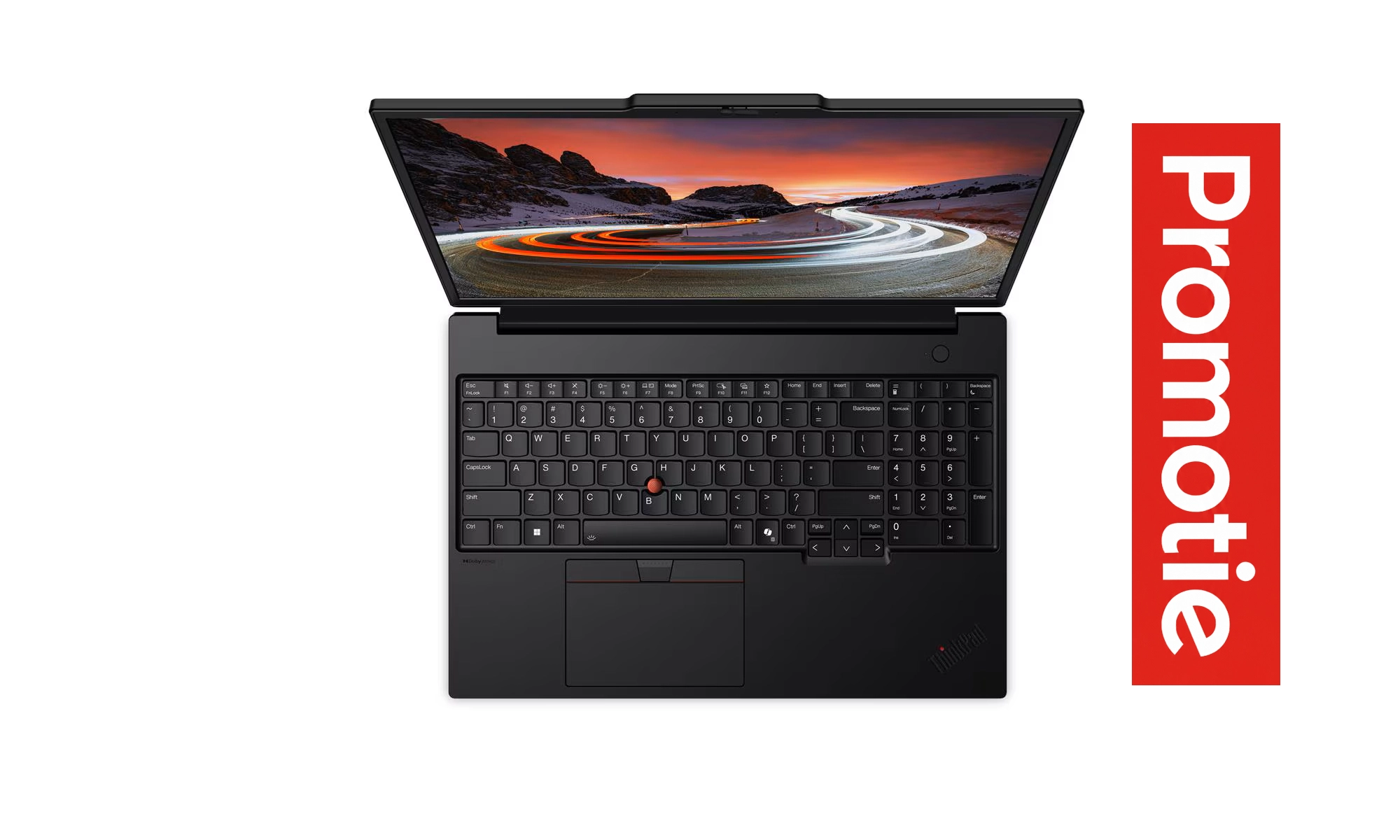

Lenovo ThinkPad P16s Gen 4 (Intel). Product type: Mobile workstation, Form factor: Clamshell. Processor family: Intel Core Ultra 7, Processor model: 255H. Display diagonal: 40.6 cm (16"), HD type: WUXGA, Display resolution: 1920 x 1200 pixels. Internal memory: 32 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel Arc 140T, Discrete graphics card model: NVIDIA RTX PRO 500 Blackwell. Operating system installed: Windows 11 Pro. Product colour: Black

Specification

Product
Product id	1006676
Brand	Lenovo
Partnr	21QV000BMH
EAN/UPC code	199271708286
Design
Product type	Mobile workstation
Product colour	Black
Form factor	Clamshell
Housing material	Aluminium
Display
Display diagonal	16 inch
Display resolution	1920 x 1200 Pixels
Touchscreen	N
Panel type	IPS
HD type	WUXGA
LED backlight	Y
Native aspect ratio	16:10
Anti-glare screen	Y
Display brightness	400 cd/m²
Colour gamut	45 procent
RGB colour space	NTSC
Maximum refresh rate	60 Hz
Processor
Processor manufacturer	Intel
Processor family	Intel Core Ultra 7
Processor model	255H
Processor generation	Intel Core Ultra (Series 2)
Processor boost frequency	5.1 GHz
Processor cores	16
Processor threads	16
Low Power Efficient-cores	2
Efficient-core base frequency	1.5 GHz
Efficient-core Max Turbo Frequency	4.4 GHz
Low Power Efficient-core Max Turbo Frequency	2.5 GHz
Processor cache	24 MB
Performance-core base frequency	2 GHz
Performance-core Max Turbo Frequency	5.1 GHz
Low Power Efficient-core Base Frequency	700 MHz
Motherboard chipset	Intel SoC
Processor base power	28 W
Maximum turbo power	115 W
Performance cores	6
Efficient cores	8
Memory
Internal memory	32 GB
Internal memory type	DDR5-SDRAM
Memory clock speed	5600 MHz
Memory form factor	SO-DIMM
Memory layout (slots x size)	2 x 16 GB
Memory slots	2x SO-DIMM
Maximum internal memory	96 GB
Neural processor unit (NPU)
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Y
Windows Studio effects support	Y
AI software frameworks supported by NPU	DirectML, ONNX RT, OpenVINO, Windows ML
Total processor performance (up to)	96 TOPs
NPU performance up to	13 TOPs
GPU performance up to	74 TOPs
Storage
Total storage capacity	512 GB
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express 5.0
NVMe	Y
SSD form factor	M.2
Optical drive type	N
Card reader integrated	N
Graphics
On-board graphics adapter	Y
Discrete graphics adapter	Y
Discrete GPU manufacturer	NVIDIA
Discrete graphics adapter model	NVIDIA RTX PRO 500 Blackwell
On-board graphics adapter family	Intel Arc Graphics
On-board GPU manufacturer	Intel
On-board graphics adapter model	Intel Arc 140T
Discrete graphics adapter memory	6 GB
Discrete graphics memory type	GDDR7
Audio
Audio chip	Realtek ALC3287
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Y
Number of microphones	2
Camera
Front camera resolution (numeric)	5 MP
Infrared (IR) camera	Y
Privacy camera	Y
Privacy type	Privacy shutter
Network
Bluetooth	Y
Mobile network connection	N
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi standards	Wi-Fi 7 (802.11be)
Antenna type	2x2
WLAN controller manufacturer	Intel
Ethernet LAN	Y
Ethernet LAN data rates	100, 1000 Mbit/s
Bluetooth version	5.4
Near Field Communication (NFC)	N
WWAN	Not installed
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.1
Intel® Thunderbolt 4	Y
Combo headphone/mic port	Y
Thunderbolt 4 ports quantity	2
USB Power Delivery	Y
USB Sleep-and-Charge	Y
Keyboard
Pointing device	ThinkPad UltraNav
Keyboard language	English
Keyboard backlit	Y
Numeric keypad	Y
Software
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit
Operating system language	ENG, FRE, DEU, DUT, ITA
Bundled software	Lenovo AI Now
Battery
Battery technology	Lithium-Ion (Li-Ion)
Battery capacity (Watt-hours)	75 Wh
Power
AC adapter power	100 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
USB Type-C charging port	Y
Security
Cable lock slot	Y
Cable lock slot type	Kensington
Fingerprint reader	Y
Smart card reader	N
Windows Hello	Y
Trusted Platform Module (TPM)	Y
Trusted Platform Module (TPM) version	2.0
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	5 - 43 °C
Operating relative humidity (H-H)	8 - 95 procent
Storage relative humidity (H-H)	5 - 95 procent
Certificates
Certification	ENERGY STAR, TCO, EPEAT Gold, RoHS
Weight & dimensions
Weight	1820 g
Width	361.5 mm
Depth	248.6 mm
Height (front)	12.6 mm
Height (rear)	18.17 mm
Other features
AC adapter included	Y
