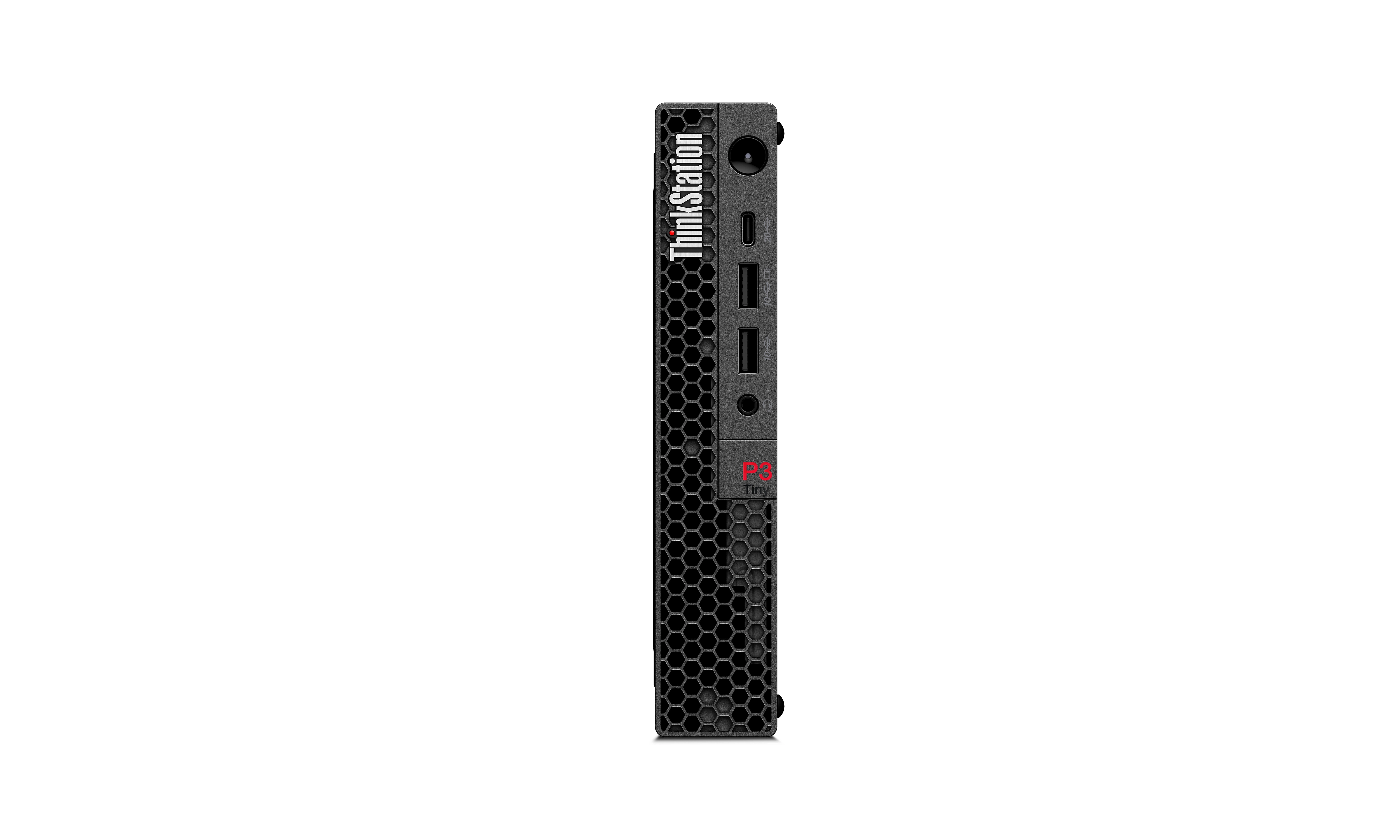

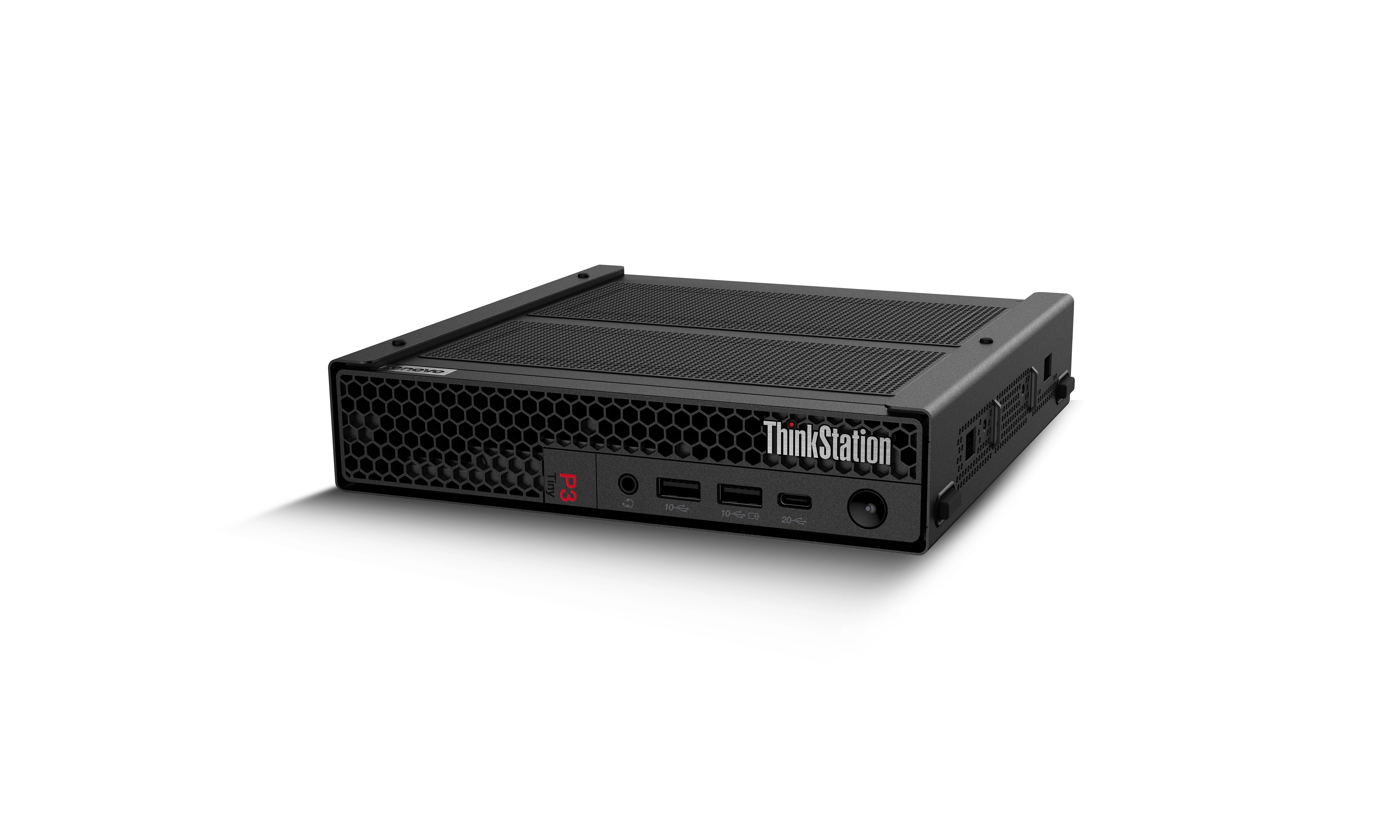

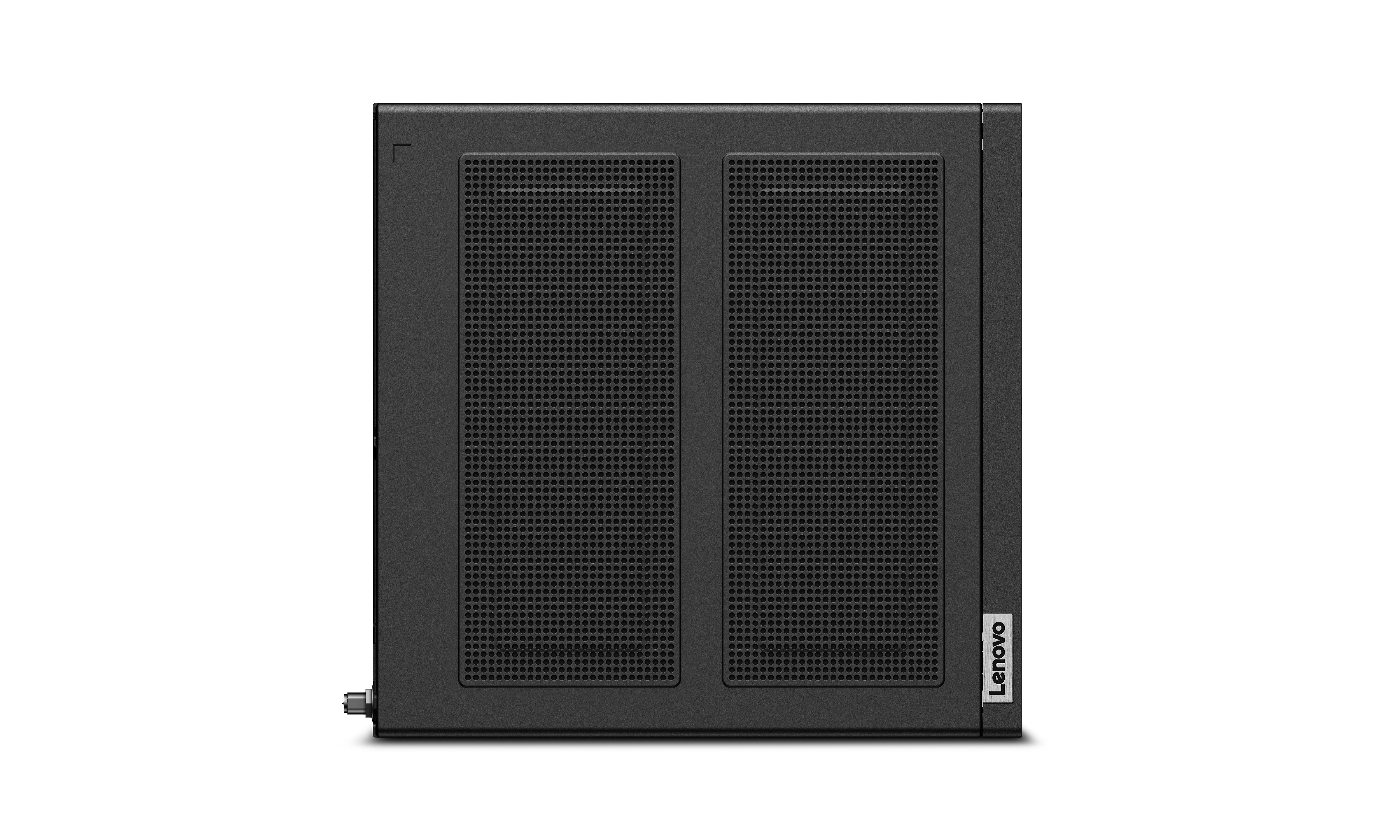

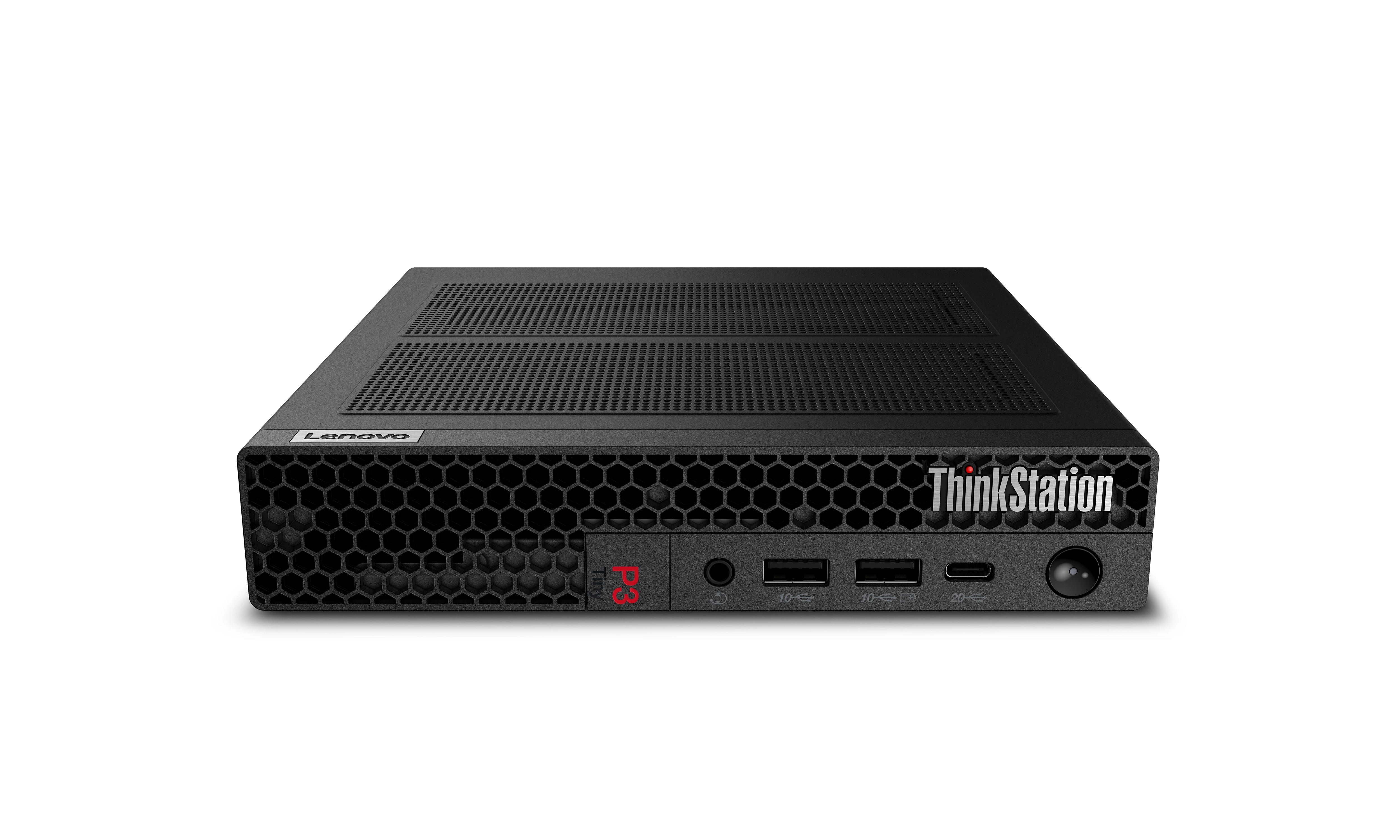

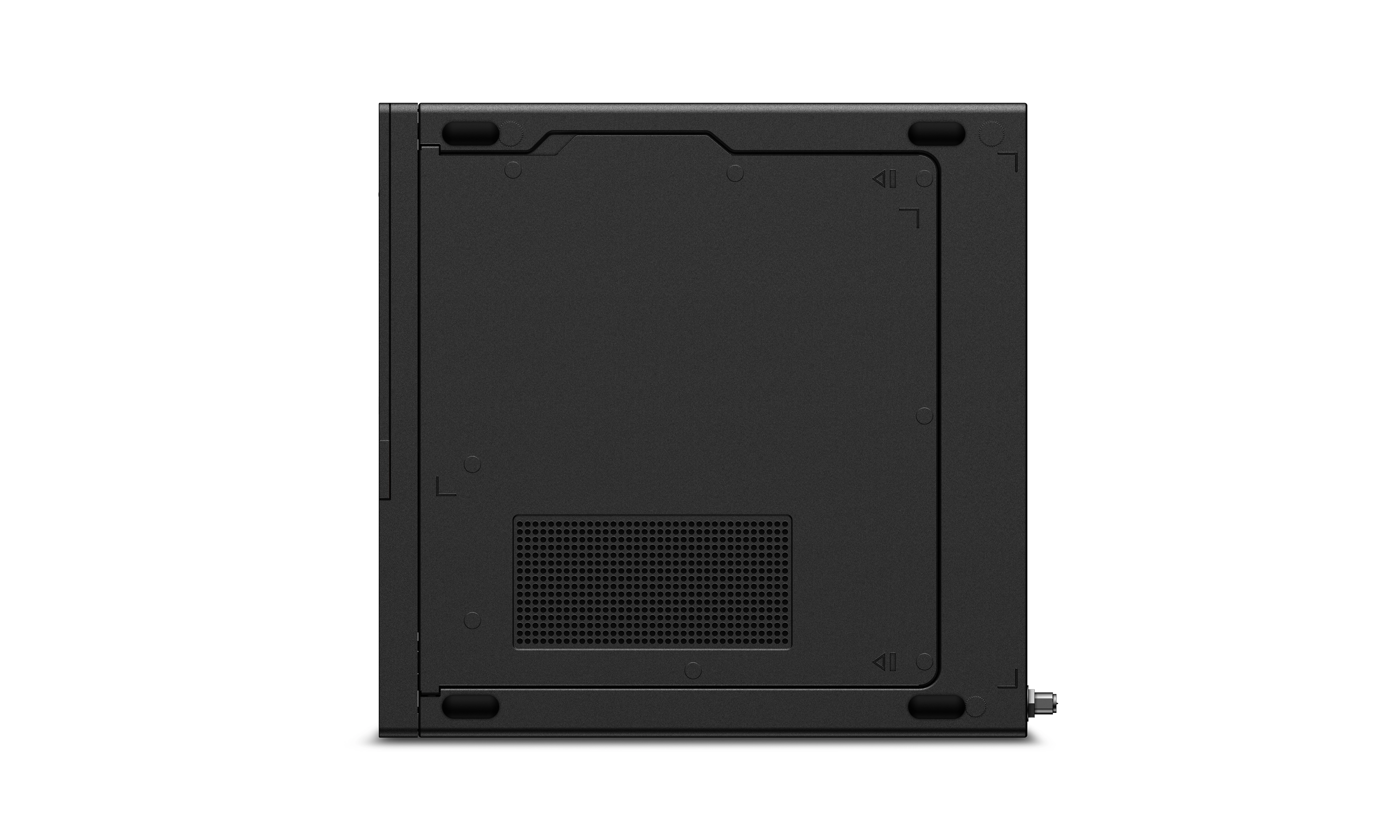

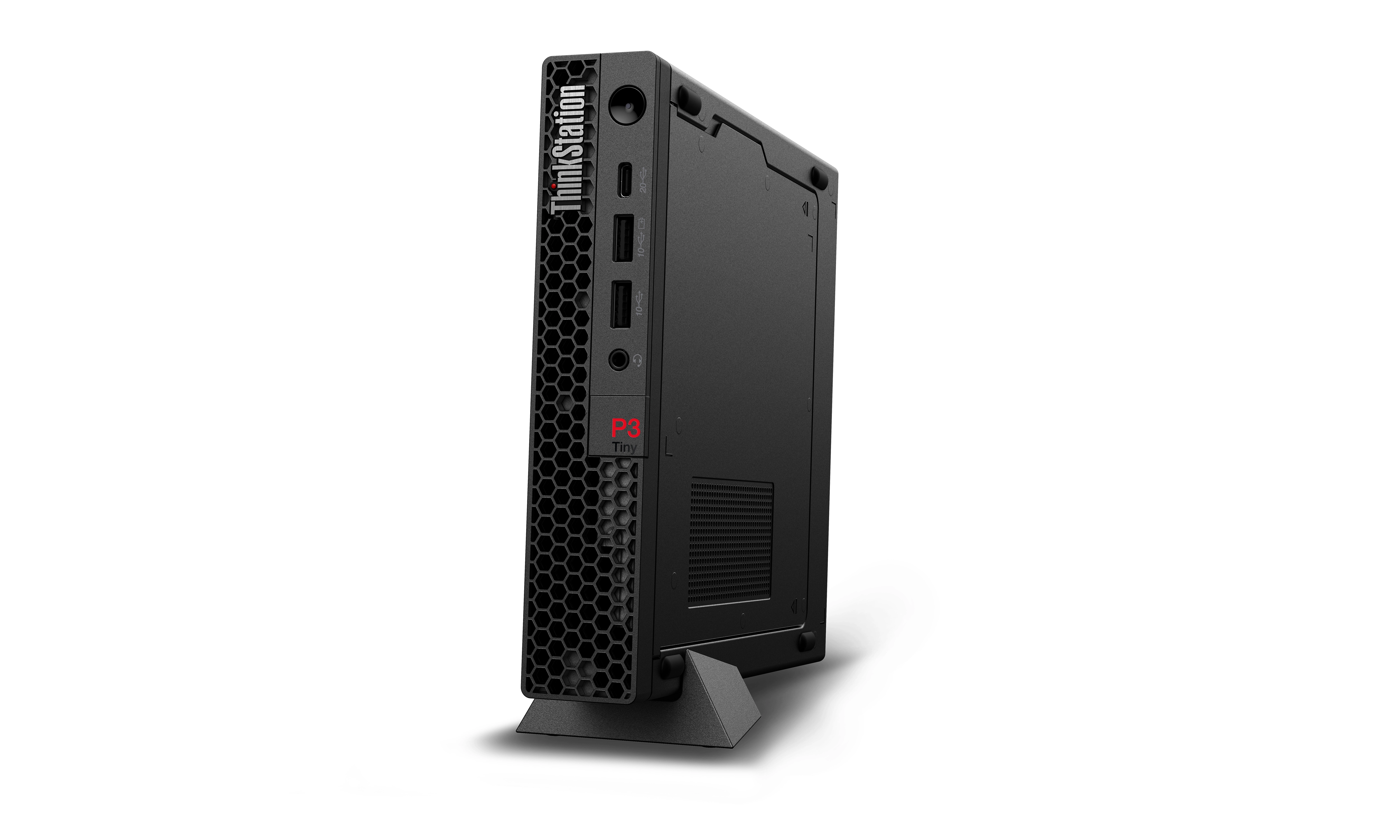

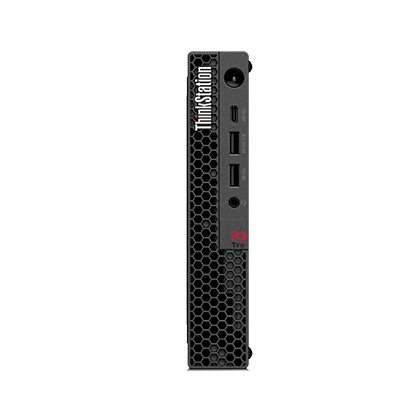

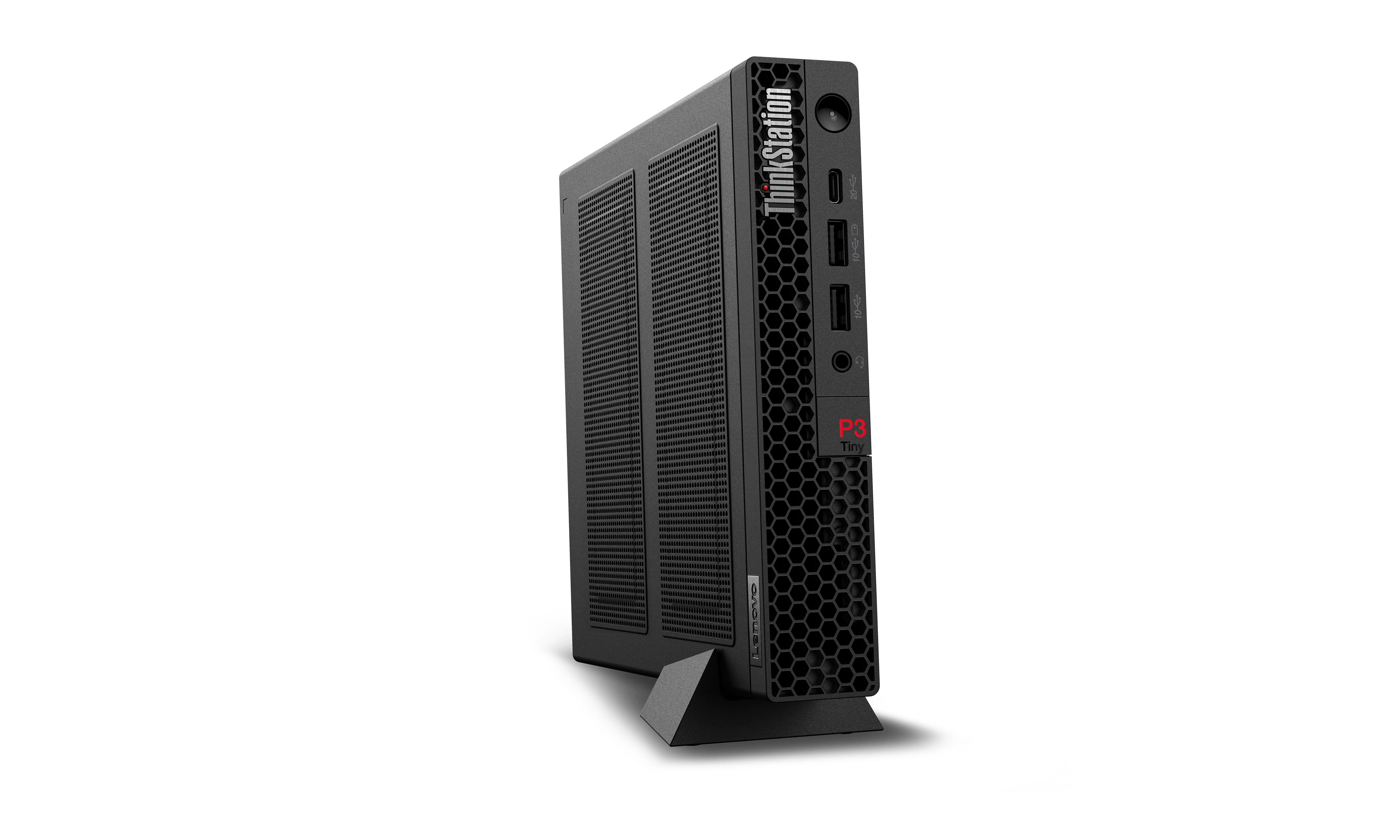

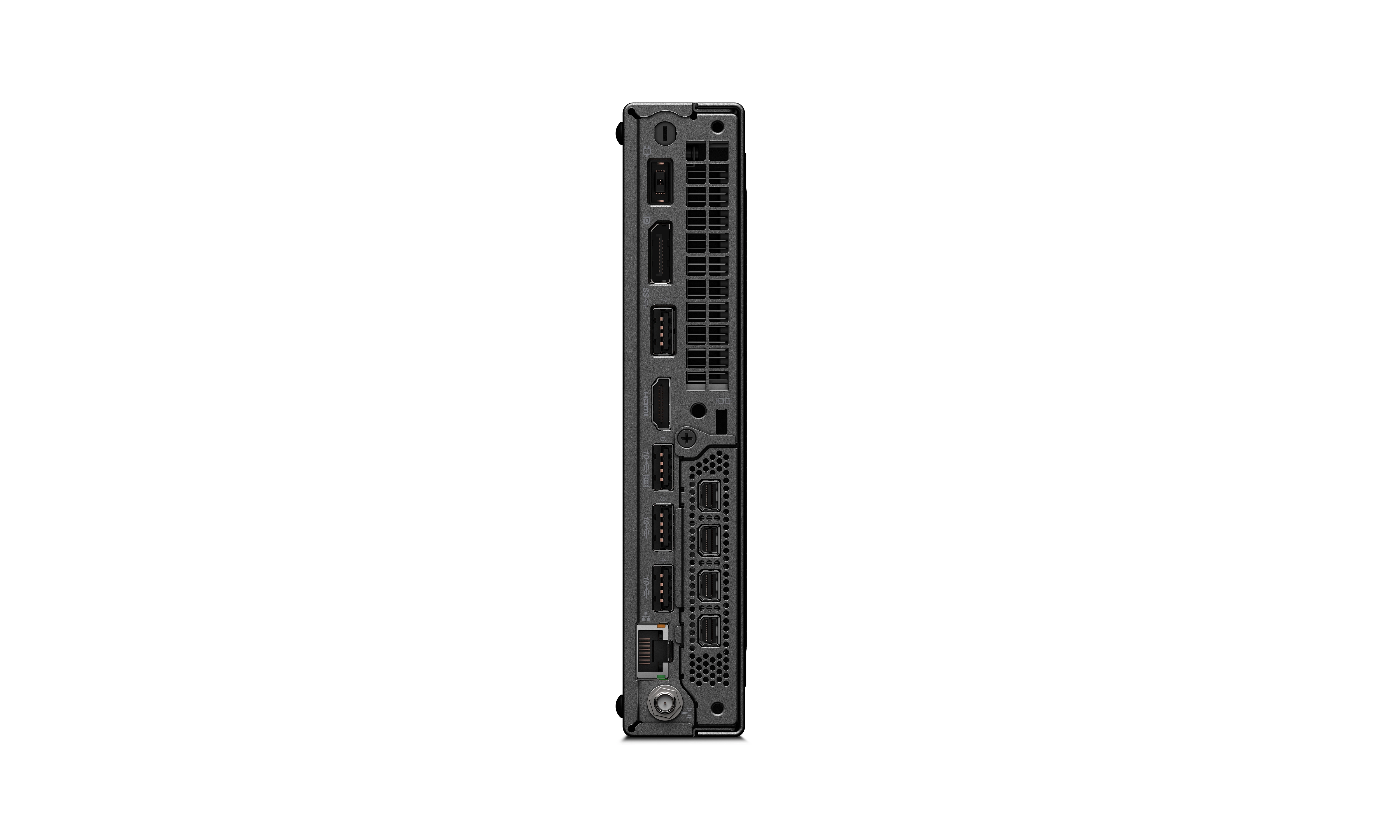

LENOVO THINKSTATION P3 TINY GEN 2
Big Performance From a Tiny Workstation
Engineered to go where others can’t, the ThinkStation P3 Tiny Gen 2 workstation offers uncompromising performance while being 96% smaller than a traditional desktop. At 1L in volume, the industry’s smallest workstation combines the power of Intel® Core™ Ultra (Series 2) with Intel vPro® processors and NVIDIA RTX™ graphics in a simple, efficient design.

Accelerate AI Workflows with Integrated NPU and Professional Graphics
The built-in NPU, CPU, and iGPU deliver up to 36 TOPS for AI inferencing, while NVIDIA RTX™ A1000 graphics adds another 108 TOPS for advanced ray tracing and AI acceleration to enhance compute tasks. Together, they provide a dependable solution for tasks like computer vision, real-time data insights, and more — right at your desk or on location.

CREDIBILITY & COLLABORATION
Sustainability
Our goal is to provide smarter technology that builds a brighter, more sustainable future for our customers, communities, and the planet. That's why we pursue industry leading labels and certifications that demonstrate our commitment to sustainability in product design. Together, we can build a smarter future for all.

Specification

Product
Product id	1002962
Brand	Lenovo
Partnr	30K5004WBF
EAN/UPC code	199272559931
Warranty (months)	3-year, Onsite; 1Y Premier Support from 3Y Onsite Windchill bundles (CPN)
Processor
Processor manufacturer	Intel
Processor family	Intel Core Ultra 7
Processor generation	Intel Core Ultra (Series 2)
Processor model	265T
Processor cores	20
Processor boost frequency	5.3 GHz
Performance cores	8
Efficient cores	12
Processor cache	30 MB
Processor cache type	Smart Cache
Performance-core base frequency	1.5 GHz
Processor threads	20
Efficient-core base frequency	1.2 GHz
Efficient-core Max Turbo Frequency	4.6 GHz
Performance-core Max Turbo Frequency	5.2 GHz
Processor base power	35 W
Maximum turbo power	112 W
Memory
Internal memory	32 GB
Internal memory type	DDR5-SDRAM
Maximum internal memory	128 GB
Memory layout (slots x size)	2 x 16 GB
Memory slots	2x SO-DIMM
Memory clock speed	5600 MHz
Memory channels	Dual-channel
Non-ECC	Y
Neural processor unit (NPU)
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Y
Windows Studio effects support	Y
AI software frameworks supported by NPU	DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance (up to)	33 TOPs
NPU performance up to	13 TOPs
GPU performance up to	8 TOPs
Storage
Total storage capacity	512 GB
Optical drive type	N
Storage media	SSD
Number of storage drives installed	1
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express 4.0
NVMe	Y
SSD form factor	M.2
M.2 SSD size	2280 (22 x 80 mm)
Graphics
Discrete graphics adapter	Y
On-board graphics adapter	Y
Discrete GPU manufacturer	NVIDIA
Discrete graphics adapter model	NVIDIA RTX A400
Discrete graphics memory type	GDDR6
Discrete graphics adapter memory	4 GB
Number of discrete graphics adapters	1
On-board graphics adapter family	Intel Graphics
On-board GPU manufacturer	Intel
On-board graphics adapter model	Intel Graphics
Graphics card Mini DisplayPort ports quantity	4
Network
Ethernet LAN	Y
Ethernet LAN data rates	10, 100, 1000 Mbit/s
LAN controller	Intel I219-LM
Wi-Fi	Y
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
WLAN controller manufacturer	Intel
Wi-Fi standards	Wi-Fi 7 (802.11be)
WLAN controller model	Intel Wi-Fi 7 BE200
Antenna type	2x2
Bluetooth	Y
Bluetooth version	5.4
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	5
USB 3.2 Gen 2x2 Type-C ports quantity	1
HDMI ports quantity	1
HDMI version	2.1
DisplayPorts quantity	1
Ethernet LAN (RJ-45) ports	1
Combo headphone/mic port	Y
Design
Chassis type	Mini PC
Volume	1 l
Cable lock slot	Y
Cable lock slot type	Kensington
Product colour	Black
Performance
Product type	Workstation
Motherboard chipset	Intel Q870
Audio chip	Realtek ALC233VB
Audio system	High Definition Audio
Built-in speaker(s)	Y
Number of speakers	1
Password protection type	BIOS, HDD, Power on
Trusted Platform Module (TPM)	Y
Software
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit
Operating system language	DEU, DUT, ENG, FRE, ITA
Power
Power supply	230 W
Power supply input voltage	100 - 240
Power supply input frequency	50/60 Hz
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	20 - 80 procent
Storage relative humidity (H-H)	10 - 90 procent
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 12192 m
Certificates
Certification	MIL-STD-810H TCO Certified, generation 10
Compliance certificates	RoHS
Weight & dimensions
Width	179 mm
Depth	182.9 mm
Height	37 mm
Weight	1400 g
Packaging content
Display included	N
Mouse connectivity	Wired
Mouse included	Y
Keyboard included	N
