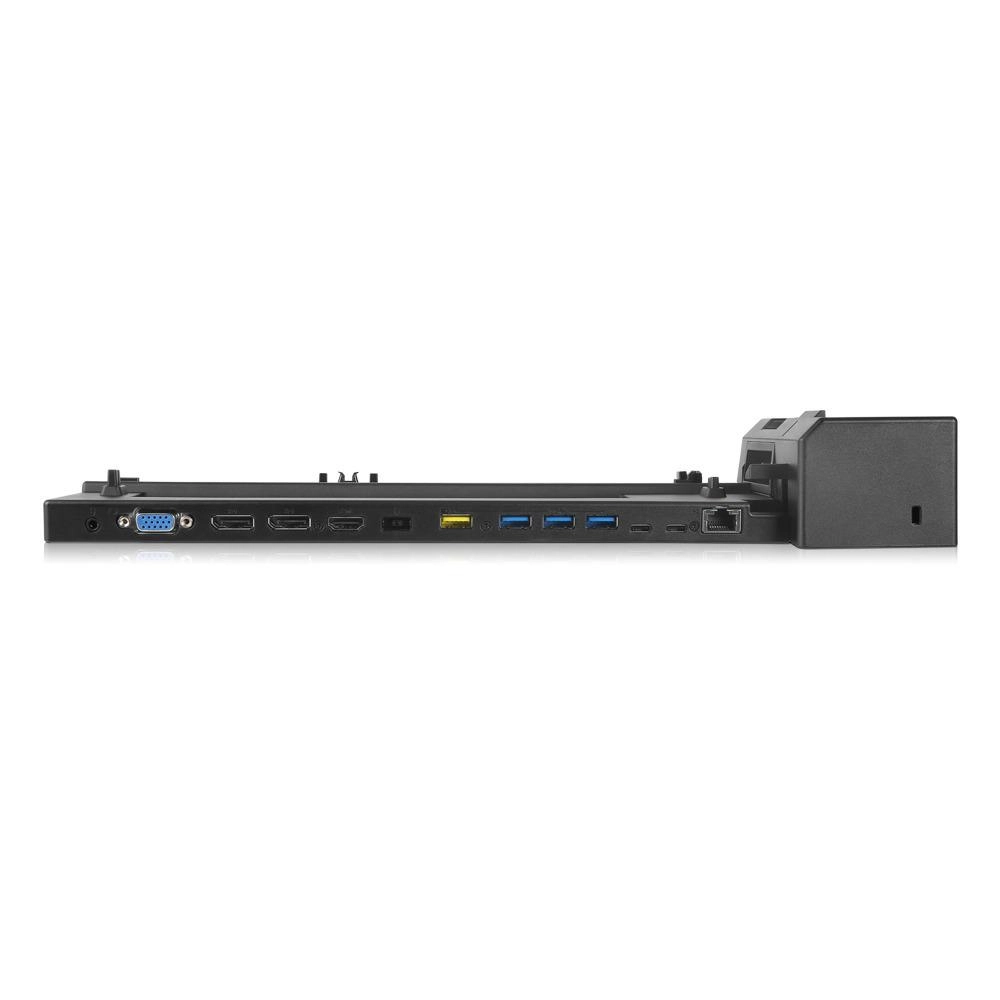

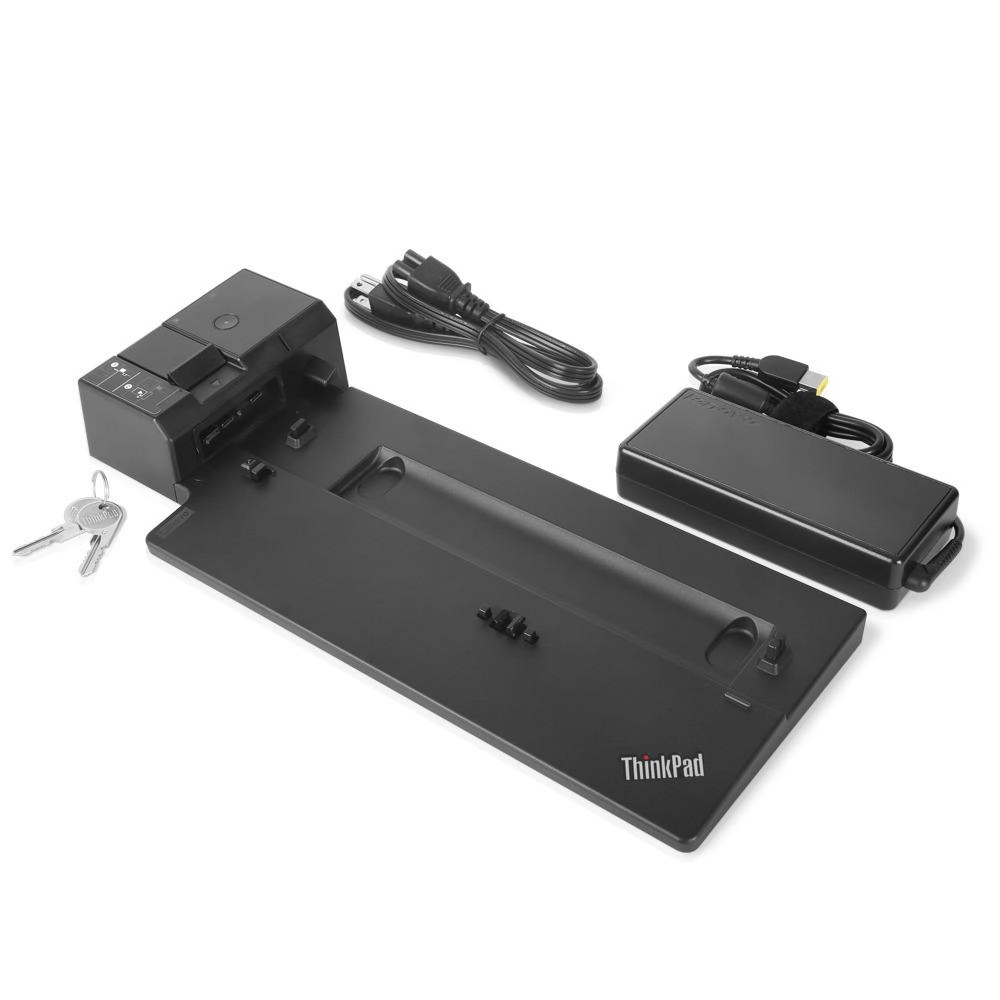

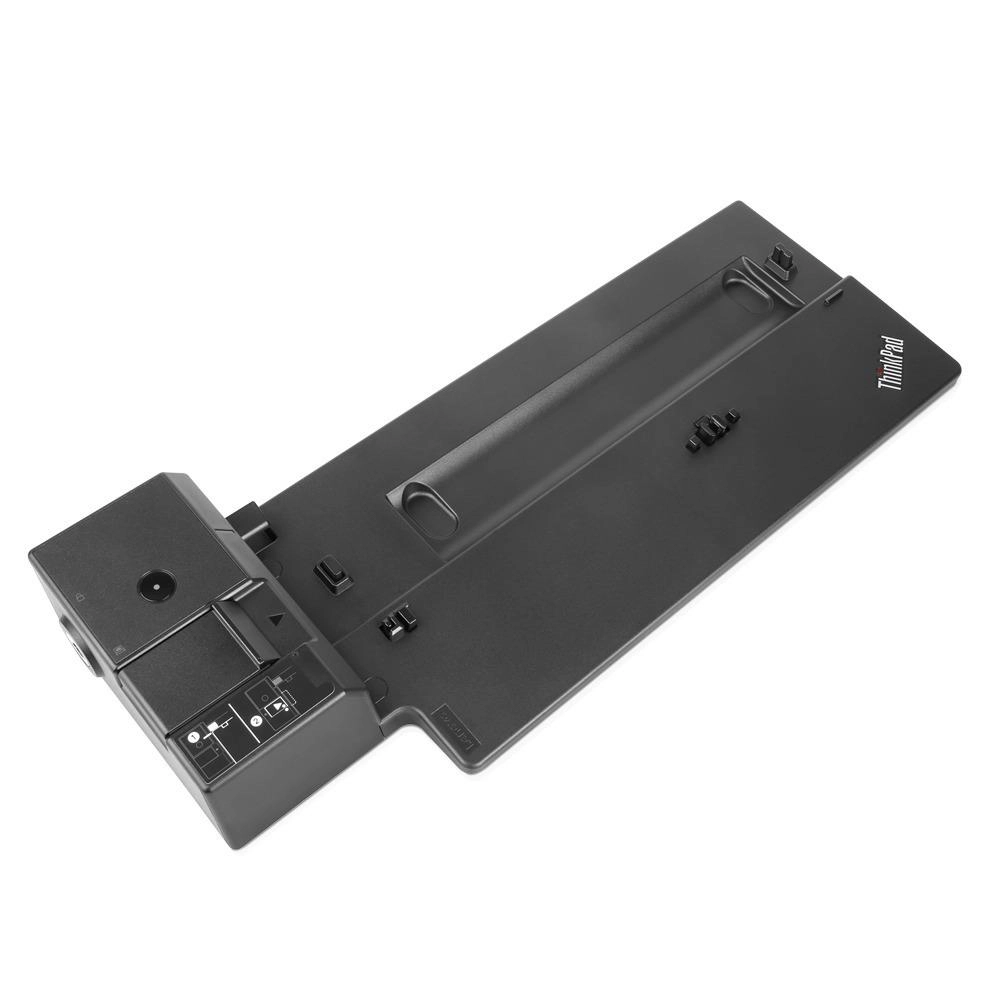

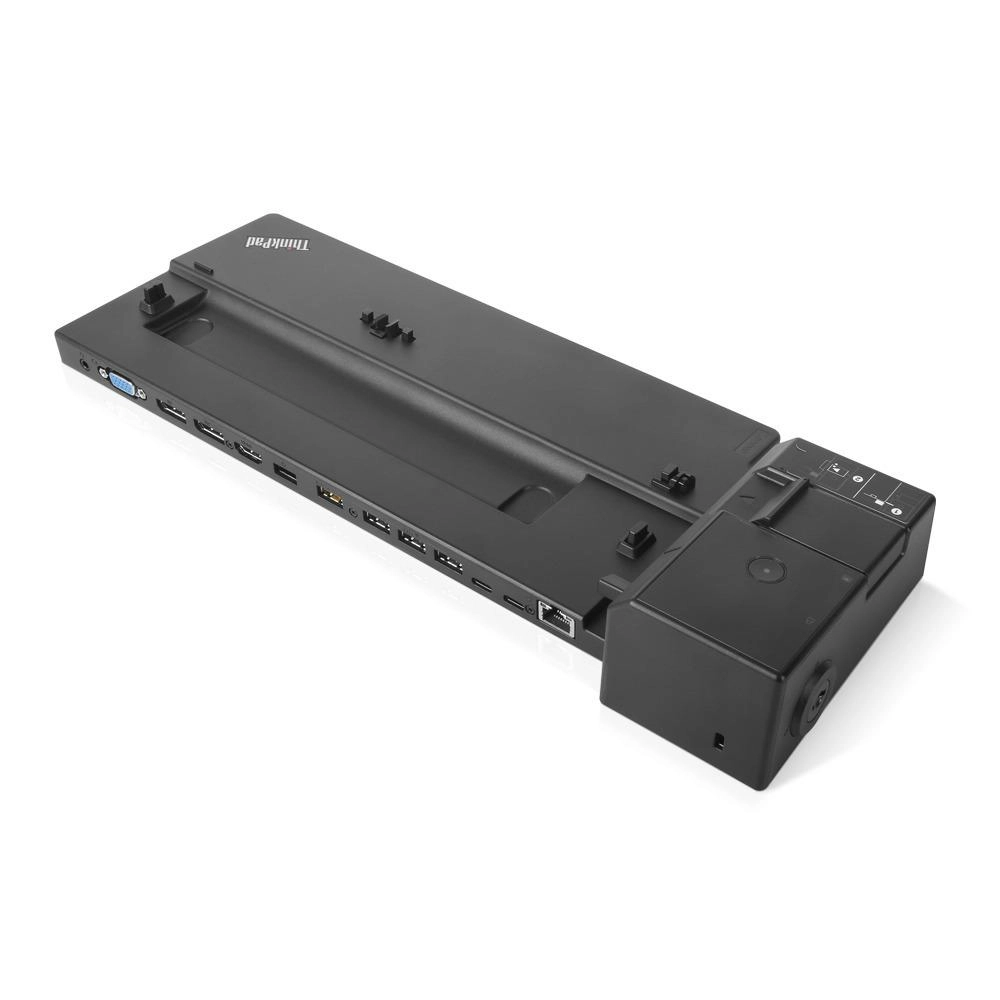

Ultra Dock - 135 W (CH)


The ThinkPad Ultra Docking Station provides the best docking experience for large enterprise ThinkPad customers. The innovative side connector, designed exclusively for ThinkPad notebooks, provides a driver-free way to connect conveniently and securely to a range of USB accessories and external displays. Its rapid charging support and mirrored power button make it easy to unlock and go.

The ThinkPad Ultra Docking Station is built for today's demanding office work, too, delivering 10 Gbps data transfer through four USB 3.1 ports. Connect up to three UHD displays for maximum productivity gains. Designed for enterprise environments, ThinkPad Ultra Docking Stations support PXE book, wake on LAN, and MAC address pass-through, simplifying asset management for IT managers. Painstakingly designed and extensively tested, ThinkPad Ultra Docks provide seamless docking in a minimized form factor.

- Enterprise-class universal docking for 2018 T, L, X, and X1 Series ThinkPad notebooks
- Innovative side connector minimizes desk space
- Intel vPro, PXE boot, Wake-on LAN, and MAC address pass-through
- Supports ThinkPad RapidCharge
- Mirrored power button and mechanical unlock
- Optional master key lock

Specification

Product
Product id 645390
Brand Lenovo
Partnr 40AJ0135CH
EAN/UPC code 192076019700
Warranty (months) 3 years
Ports & interfaces
Connectivity technology Docking
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 2
HDMI ports quantity 1
HDMI version 2.0
VGA (D-Sub) ports quantity 1
DisplayPorts quantity 2
Combo headphone/mic port Y
Headphone outputs 1
Headphone connectivity 3.5 mm
Network
Ethernet LAN Y
Ethernet LAN (RJ-45) ports 1
Ethernet LAN data rates 10, 100, 1000 Mbit/s
Wake-on-LAN ready Y
10G support N
Performance
Product colour Black
Card reader integrated N
Data transfer rate 10 Gbit/s
Cable lock slot Y
Cable lock slot type Kensington
Brand compatibility Lenovo
Compatibility P52s, L580, L480, T580, P580p, T480s, T480, X1 Carbon Gen 6, X280
Certification AS/NZS S-DOC, BSMI, CB, CE, EAC, EU DOC, FCC, ICES, KCC, NOM, UL/cUL, Ukr SEPRO, VCCI
Power
Compatible power plug types CH
Software
Windows operating systems supported Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64
Linux operating systems supported Y
Weight & dimensions
Width 378 mm
Depth 159 mm
Height 54.1 mm
Packaging content
Warranty card Y
User guide Y
AC adapter included Y
Cables included AC
Operational conditions
Operating temperature (T-T) 0 - 35 °C
