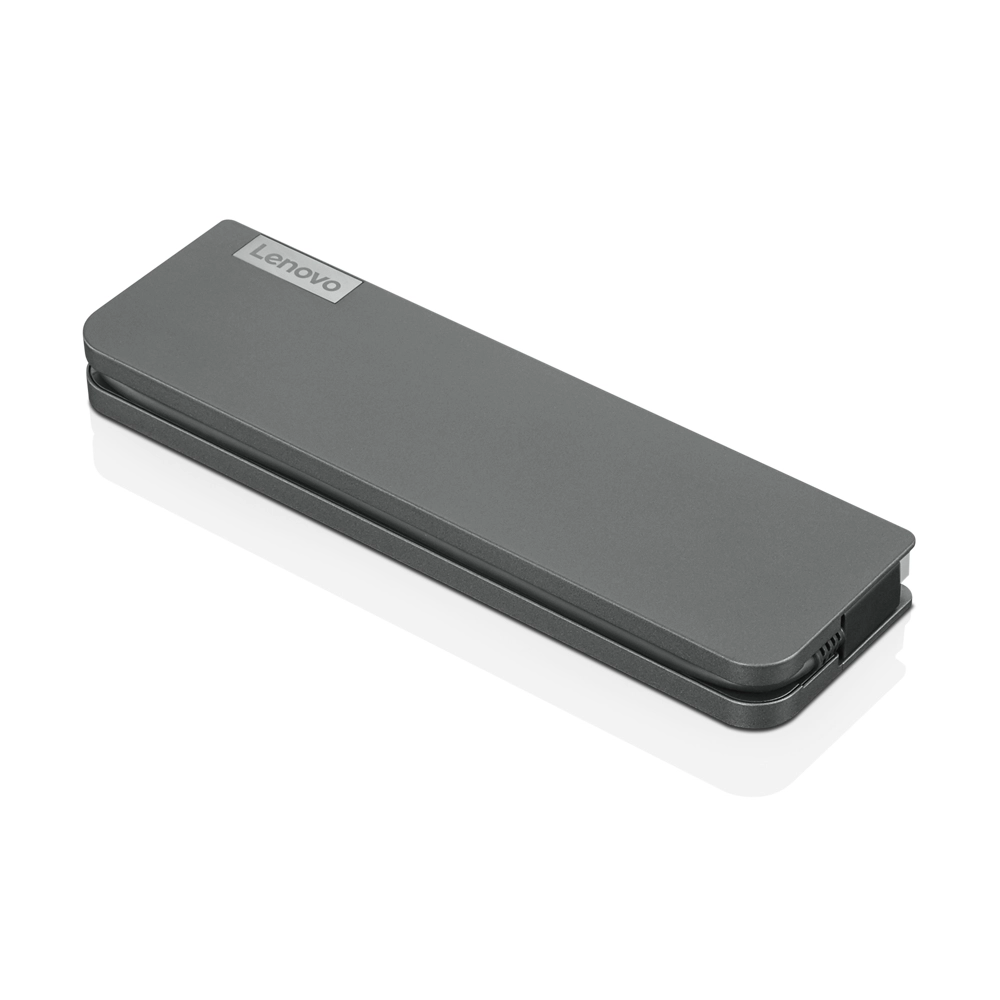

The Lenovo Mini USB-C dock lets you expand your options and add powerful capabilities with just a single USB-C connection. Charge any legacy device with USB-A ports and effortlessly add an extra 4K or HD display, enterprise networking, and an external 3.5mm combo audio jack. Depending on many factors such as the processing capability of peripheral devices, file attributes, and other factors related to system configuration and operating environments, the actual transfer rate using the various USB connectors on this device will vary and is typically slower than the data rates as defined by the respective USB specifications: - 5 Gbit/s for USB 3.1 Gen 1; 10 Gbit/s for USB 3.1 Gen 2 and 20 Gbit/s for USB 3.2.

Docks support additional features such as MAC address passthrough, WOL and mirrored power button, on most Lenovo ThinkPad laptops, but such features may not be available on certain other Lenovo laptops or non-Lenovo branded laptops.

Specification

Product
Product id	667807
Brand	Lenovo
Partnr	40AU0065EU
EAN/UPC code	193386926139
Ports & interfaces
Connectivity technology	Wired
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	2
HDMI ports quantity	1
HDMI version	2.0
VGA (D-Sub) ports quantity	1
Microphone in	N
Combo headphone/mic port	Y
Headphone connectivity	3.5 mm
Network
Ethernet LAN	Y
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Performance
Product colour	Grey
Card reader integrated	N
Certification	CB, BSMI, SII, CU, Ukraine, Kvalitet, LOA, NOM, cULus, FCC, ICES, CE, RCM, VCCI, KCC, EAC
Power
Power source type	AC
Power supply	65 W
Software
Windows operating systems supported	Windows 10
Weight & dimensions
Width	180 mm
Depth	53 mm
Height	17 mm
Weight	156 g
Packaging data
Quantity per pack	1 stuk(s)
Package width	215 mm
Package depth	210 mm
Package height	65 mm
Package weight	565 g
Packaging content
Warranty card	Y
User guide	Y
AC adapter included	Y
Operational conditions
Operating temperature (T-T)	-5 - 40 °C
Operating relative humidity (H-H)	20 - 95 procent
