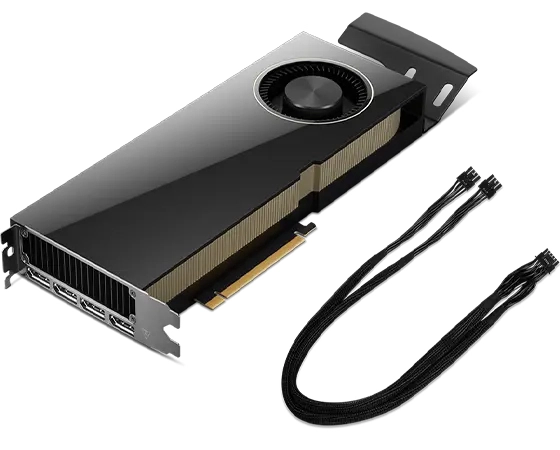

The NVIDIA RTX 6000 Ada Generation delivers the highest level of graphics, ray tracing and Al performance to enable the most intense graphics applications with improved streaming multiprocessor cores, 3rd generation ray tracing cores, and 4th generation tensor cores. NVIDIA RTX 6000 Ada Generation supports the industry's most expansive single GPU graphics memory footprint consisting of 48 GB of GDDR6 memory. It is fully qualified on selected ThinkStation Machines and is the world's most powerful visual computing GPU for desktop workstations.

Specification

Product
Product id	905368
Brand	Lenovo
Partnr	4X61L84590
EAN/UPC code	195892085973
Warranty (months)	36 months
Processor
Graphics processor family	NVIDIA
Graphics processor	RTX 6000 Ada
Maximum resolution	7680 x 4320 Pixels
CUDA	Y
Maximum displays per videocard	4
Memory
Discrete graphics adapter memory	48 GB
Graphics adapter memory type	GDDR6
Memory bus	384 Bit
Memory bandwidth (max)	960 GB/s
Ports & interfaces
Interface type	PCI Express x16 4.0
DisplayPorts quantity	4
DisplayPort version	1.4a
Performance
TV tuner integrated	N
DirectX version	12.0
Shader model version	6.6
OpenGL version	4.6
Virtual Reality (VR) ready	Y
Dual Link DVI	N
Design
Cooling type	Active
Form factor	Full-Height/Full-Length (FH/FL)
Certification	RCM, BSMI, CE, FCC, ICES, KCC, UL, cUL, VCCI
Power
Minimum system power supply	300 W
Supplementary power connectors	1x 16-pin
Operational conditions
Operating relative humidity (H-H)	5 - 95 procent
System requirements
Windows operating systems supported	Windows 11
Weight & dimensions
Weight	1275 g
Depth	51.29 mm
Length	266.7 mm
Height	104.6 mm
Packaging data
Package width	490 mm
Package depth	220 mm
Package height	92 mm
Package weight	1400 g
Package type	Box
