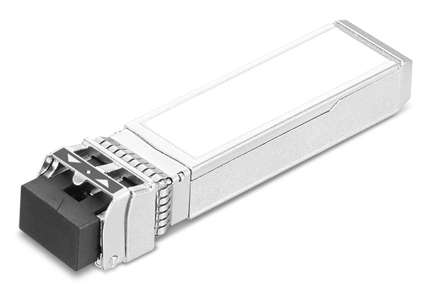

The ThinkStation Dual Rate 10G/25G SR SFP28 Transceiver is a dual rate optical module that provides up to 25 Gigabit per second bi-directional links over multimode fiber. This hot-pluggable transceiver with SFP (Small Form Factor Pluggable)28 footprint and 850nm Oxide VCSEL laser transmitter truely extends the range of your network.

Specification

Product
Product id	996391
Brand	Lenovo
Partnr	4XC1S00743
EAN/UPC code
Warranty (months)	1 Year
Network
SFP transceiver type	Fiber optic
Technical details
Fiber cable diameters supported (core/cladding)	50/125 µm
Compliance certificates	RoHS
Packaging data
Package width	135 mm
Package depth	135 mm
Package height	35 mm
Package weight	185 g
Package type	Box
Performance
Maximum data transfer rate	25000 Mbit/s
Interface type	SFP28
Maximum transfer distance	100 m
Wavelength	850 nm
Digital Diagnostics Monitoring (DDM)	Y
Features
Product colour	Stainless steel
Hot-Plug support	Y
Certification	BSMI EMC FCC sDoC CE EMC
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Operating relative humidity (H-H)	5 - 95 procent
Weight & dimensions
Width	566 mm
Depth	85 mm
Height	137 mm
