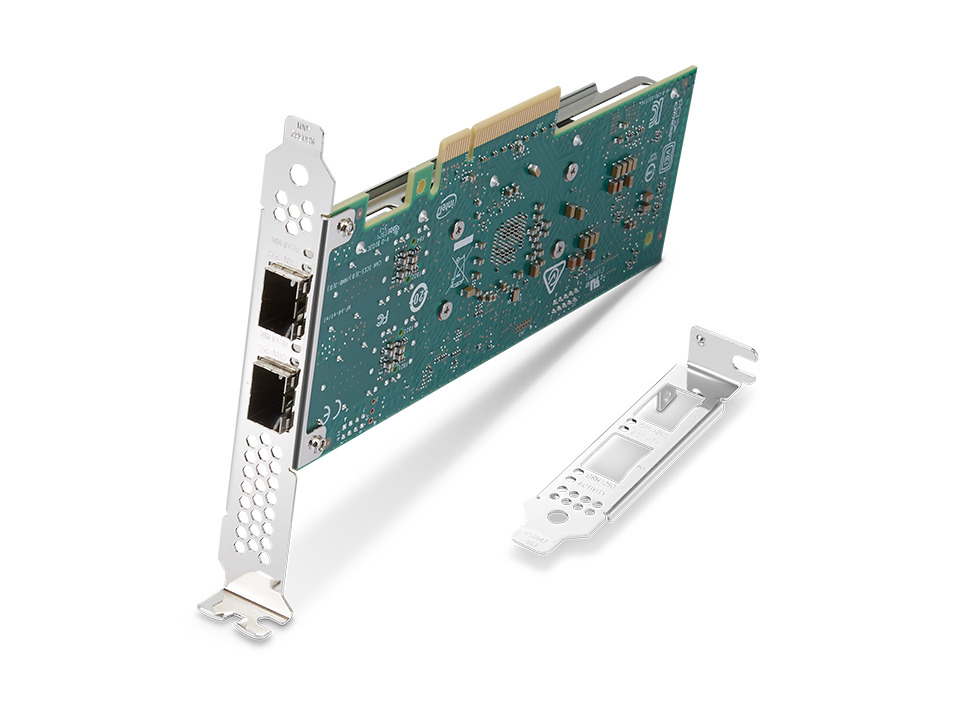

Intel E810-DA2 10/25GbE SFP28 2-Port PCIe Ethernet Adapter is a PCI Express low-profile, half-length network adapter. It consists of a single E810 Media Access Controller/Physical Layer (MAC/PHY) with two SFP28 connectors for 25 Gigabit Ethernet connectivity and a PCIe Gen 4.0 x8 connection to the host platform. It provides you the first class performance for network with SFP connectivity. This product has been proven reliable on ThinkStation systems.

Specification

Product
Product id	1030467
Brand	Lenovo
Partnr	4XC1U87489
EAN/UPC code
Warranty (months)	1 Year
Ports & interfaces
Connectivity technology	Wired
Host interface	PCI Express
Interface	Ethernet
Ethernet LAN	Y
Fiber optic connector	SFP28
Fiber ports quantity	2
PCI version	4.0
Network
Maximum data transfer rate	25 Mbit/s
Networking standards	IEEE 802.3, IEEE 802.3ae
Ethernet interface type	10 Gigabit Ethernet, 25 Gigabit Ethernet
Ethernet LAN data rates	10000, 25000 Mbit/s
Design
Internal	Y
Component for	Server/Workstation
Product colour	Green
Certification	FCC BSMI ICES-003 CE VCCI KCC RCM EMC CB
Operational conditions
Operating temperature (T-T)	0 - 55 °C
Operating relative humidity (H-H)	50 - 80 procent
Packaging data
Package width	240 mm
Package depth	145 mm
Package height	52 mm
Package weight	268 g
Weight & dimensions
Width	120.02 mm
Depth	169.28 mm
Height	12.446 mm
Weight	164 g
