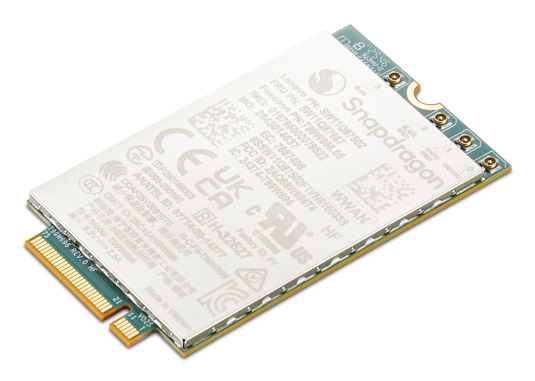

ThinkPad Foxconn SDX61 5G Sub6 PCIE M.2 3052 WWAN module for X13 G1&T14s G7 is a wireless communication module with receive diversity. It helps provide data connectivity and network with standard PCIe Gen3.0 interface. Supporting 5G, this SDX61 WWAN Module enhances the network reliability and availability of your ThinkPad, and provides a great cellular solution for travelers to sustain mobility while using PC devices.

Specification

Product
Product id	1028202
Brand	Lenovo
Partnr	4XC1V60971
EAN/UPC code
Warranty (months)	1 Year
Ports & interfaces
Connectivity technology	Wireless
Host interface	M.2
Interface	WWAN
PCI version	3.0
Network
Networking standards	IEEE 802.3
Mobile network generation	5G
Design
Internal	Y
Component for	Notebook
Certification	ENACOM, RCM, CE, TRA, ANATEL, ISED, SRRC, CTA, CCC, NTRA, SDPPI, TELEC, JATE, SIRIM, ANRT, MTC, NTC, IMDA, ICASA, KCC, NCC, NBTC, TDRA, FCC, URSEC, UCRT, CA
Operational conditions
Operating temperature (T-T)	-30 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
System requirements
Windows operating systems supported	Windows 11
Weight & dimensions
Width	52 mm
Depth	30 mm
Height	2.3 mm
Weight	65 g
