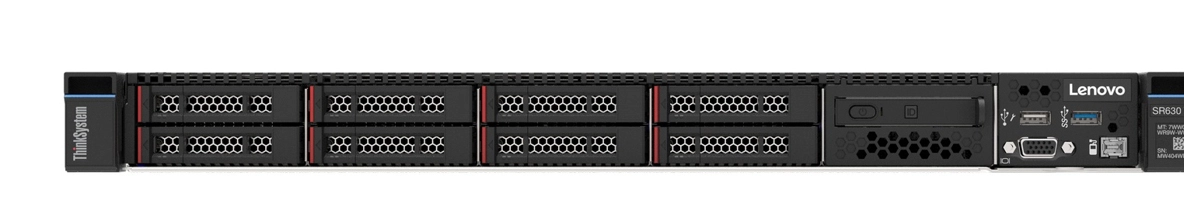

The Lenovo ThinkSystem SR630 V3 is an ideal 2-socket 1U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The SR630 V3 is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), infrastructure security, systems management, enterprise applications, collaboration/email, streaming media, web, and HPC.

This product guide provides essential pre-sales information to understand the ThinkSystem SR630 V3 server, its key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SR630 V3 and consider its use in IT solutions.

Specification

Product
Product id	895906
Brand	Lenovo
Partnr	7D73A01EEA
EAN/UPC code
Processor
Processor manufacturer	Intel
Processor family	Intel Xeon Gold
Processor model	5416S
Processor frequency	2 GHz
Processor boost frequency	4 GHz
Processor cores	16
Processor cache	30 MB
Motherboard chipset	Intel C741
Number of processors installed	1
Processor threads	32
Memory
Internal memory	64 GB
Internal memory type	DDR5-SDRAM
ECC	Y
Memory clock speed	5600 MHz
Memory slots	32x DIMM
Memory layout (slots x size)	1 x 64 GB
Maximum internal memory	8192 GB
Storage
Number of HDDs supported	8
Supported HDD sizes	2.5 "
RAID support	Y
RAID levels	0, 1, 5, 6, 10, 50, 60
Supported RAID controllers	940-8i 4GB
Hot-swap	Y
Optical drive type	N
Internal drive bays	8
Graphics
On-board graphics adapter	Y
Maximum graphics adapter memory	16 MB
Network
Ethernet LAN	Y
Cabling technology	10/100/1000Base-T(X)
Ethernet interface type	Gigabit Ethernet
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
VGA (D-Sub) ports quantity	1
Design
Chassis type	Rack (1U)
Product colour	Black, Steel
Cooling type	Active
Rack mounting	Y
Performance
Performance management	XClarity Controller Platinum
Trusted Platform Module (TPM) version	2.0
Trusted Platform Module (TPM)	Y
Software
Compatible operating systems	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi, Ubuntu Server
Power
Redundant power supply (RPS) support	Y
Power supply	1100 W
Number of redundant power supplies supported	1
Weight & dimensions
Width	440 mm
Depth	773 mm
Height	43 mm
Weight	20800 g
