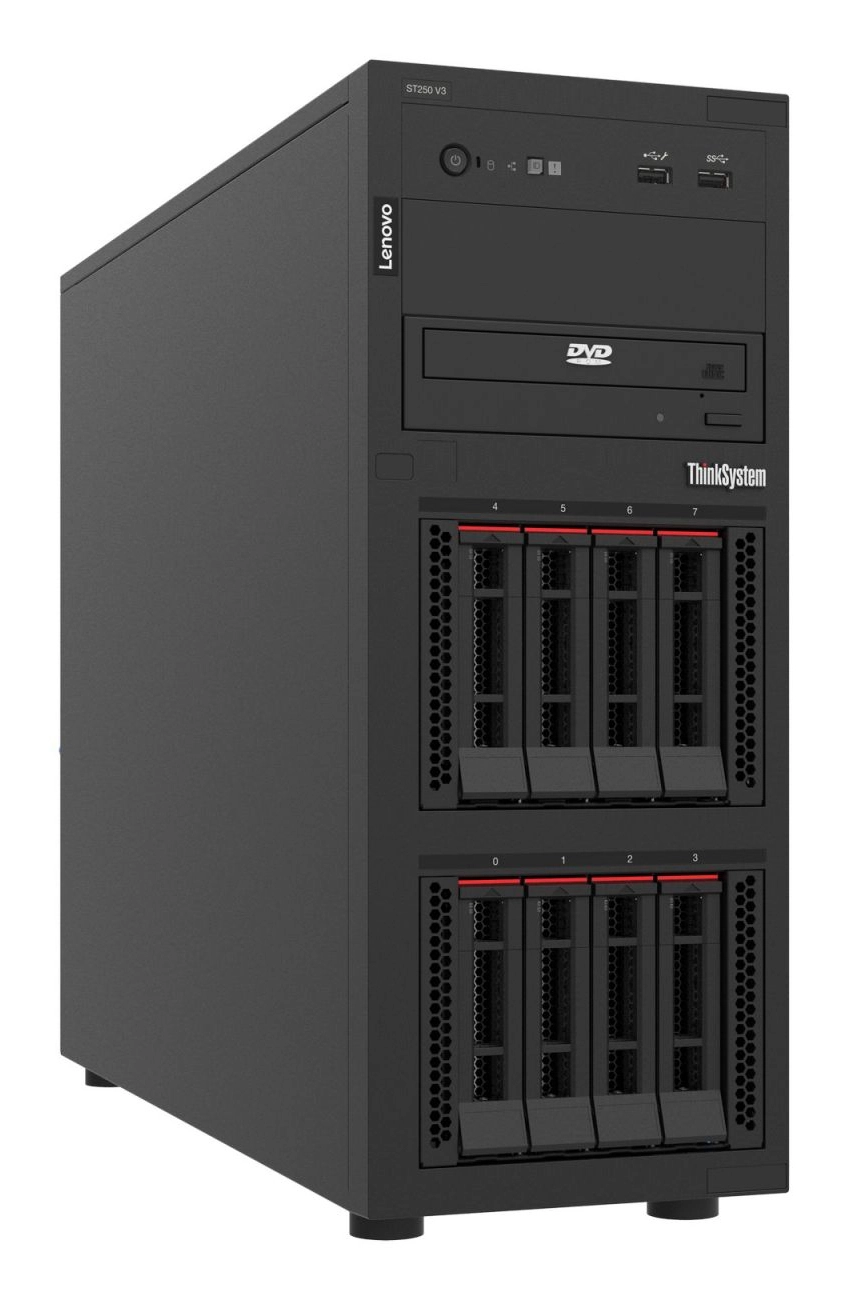

The Lenovo ThinkSystem ST250 V3 is a mainstream 1-socket tower server that also be rack mounted as a rack server. It is ideal for small-to-medium businesses, remote offices, branch offices, banking and public sector. The server supports the new Intel Xeon E-2400 Series processors, formerly codenamed "Raptor Lake".

This product guide provides essential presales information to understand the ThinkSystem ST250 V3 server, its key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the ST250 V3 and consider its use in IT solutions.

Specification

Product
Product id	1027464
Brand	Lenovo
Partnr	7DCEA04WEA
EAN/UPC code
Processor
Processor manufacturer	Intel
Processor family	Intel Xeon
Processor model	6353P
Processor frequency	2.7 GHz
Processor boost frequency	5.4 GHz
Processor cores	8
Processor cache	24 MB
Number of processors installed	1
Performance cores	8
Memory
Internal memory	16 GB
Internal memory type	DDR5-SDRAM
ECC	Y
Memory clock speed	4800 MHz
Memory slots	4x DIMM
Memory layout (slots x size)	1 x 16 GB
Maximum internal memory	128 GB
Storage
Hot-swap	Y
Supported storage drive interfaces	SAS, Serial ATA
Internal drive bays	4
Graphics
On-board graphics adapter	Y
Maximum graphics adapter memory	16 MB
Network
LAN controller	Broadcom 5720
Ethernet LAN	Y
Cabling technology	10/100/1000Base-T(X)
Ethernet interface type	Gigabit Ethernet
Ports & interfaces
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	5
Serial ports quantity	1
VGA (D-Sub) ports quantity	1
Design
Chassis type	Tower
Product colour	Black
Performance
Performance management	XCC Platinum
Trusted Platform Module (TPM) version	2.0
Trusted Platform Module (TPM)	Y
Software
Compatible operating systems	Microsoft Windows Server Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi
Power
Redundant power supply (RPS) support	Y
Power supply	800 W
Number of redundant power supplies supported	1
Operational conditions
Operating temperature (T-T)	5 - 45 °C
Storage temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	8 - 90 procent
Storage relative humidity (H-H)	8 - 90 procent
Operating altitude	0 - 3050 m
Certificates
80 PLUS certification	80 PLUS Platinum
Weight & dimensions
Width	176 mm
Depth	578 mm
Height	444 mm
Technical details
Supported storage drives form factor (rear)	3.5"
