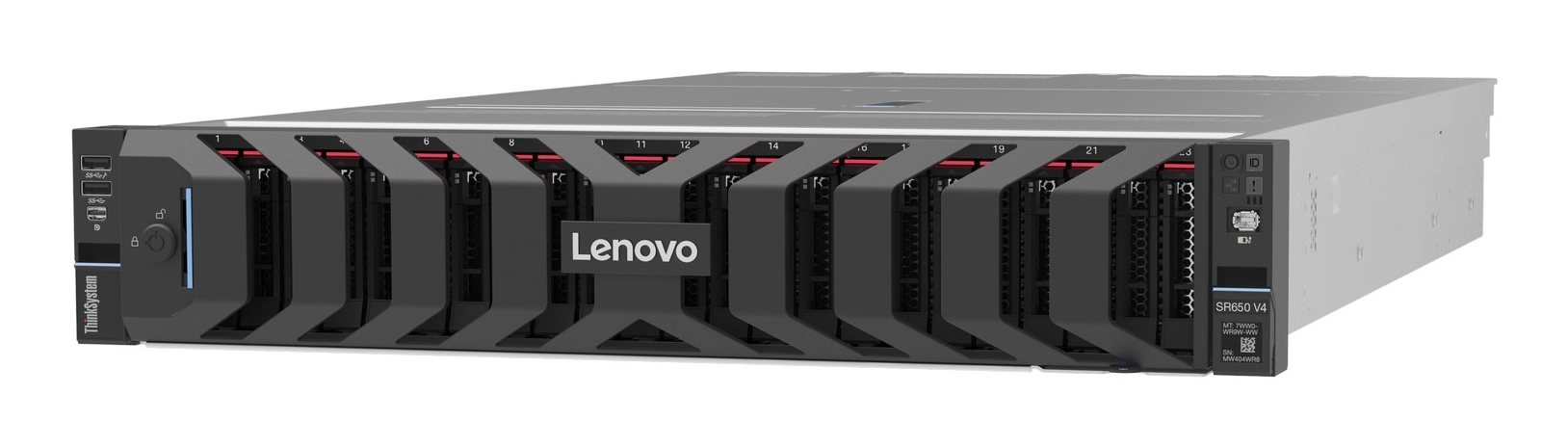

The Lenovo ThinkSystem SR650 V4 is an ideal 2-socket 2U rack server for customers that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. With two Intel Xeon 6700-series or 6500-series processors, the SR650 V4 is designed for high density and scale-out workloads in various customer segments.

This product guide provides essential pre-sales information to understand the ThinkSystem SR650 V4 server, its key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SR650 V4 and consider its use in IT solutions.

Specification

Product
Product id	993527
Brand	Lenovo
Partnr	7DGDA00MEA
EAN/UPC code	7DGDA00MEA
Processor
Processor manufacturer	Intel
Processor family	Intel Xeon 6
Processor frequency	3.2 GHz
Processor boost frequency	4.2 GHz
Processor cores	16
Processor cache	72 MB
Number of processors installed	1
Processor threads	32
Memory
Internal memory	32 GB
Internal memory type	DDR5-SDRAM
ECC	Y
Memory slots	32x DIMM
Memory layout (slots x size)	1 x 32 GB
Maximum internal memory	8192 GB
Storage
Number of HDDs supported	8
Supported HDD sizes	2.5 "
RAID support	Y
RAID levels	0, 1, 5, 6, 10, 50, 60
Supported RAID controllers	9350-8i
Hot-swap	Y
Optical drive type	N
Internal drive bays	8
Graphics
On-board graphics adapter	Y
Maximum graphics adapter memory	16 MB
Network
Ethernet LAN	Y
Cabling technology	10/100/1000Base-T(X)
Ethernet interface type	Gigabit Ethernet
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
VGA (D-Sub) ports quantity	1
Design
Chassis type	Rack (2U)
Product colour	Black, Steel
Cooling type	Active
Rack mounting	Y
Performance
Performance management	XClarity Controller Platinum
Trusted Platform Module (TPM) version	2.0
Trusted Platform Module (TPM)	Y
Software
Compatible operating systems	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi, Ubuntu Server
Power
Redundant power supply (RPS) support	Y
Power supply	800 W
Number of redundant power supplies supported	1
Weight & dimensions
Width	445 mm
Depth	796 mm
Height	43 mm
Technical details
Compliance certificates	CCC, CE, CECP, Federal Communications Commission (FCC), RoHS, UKCA, UL
