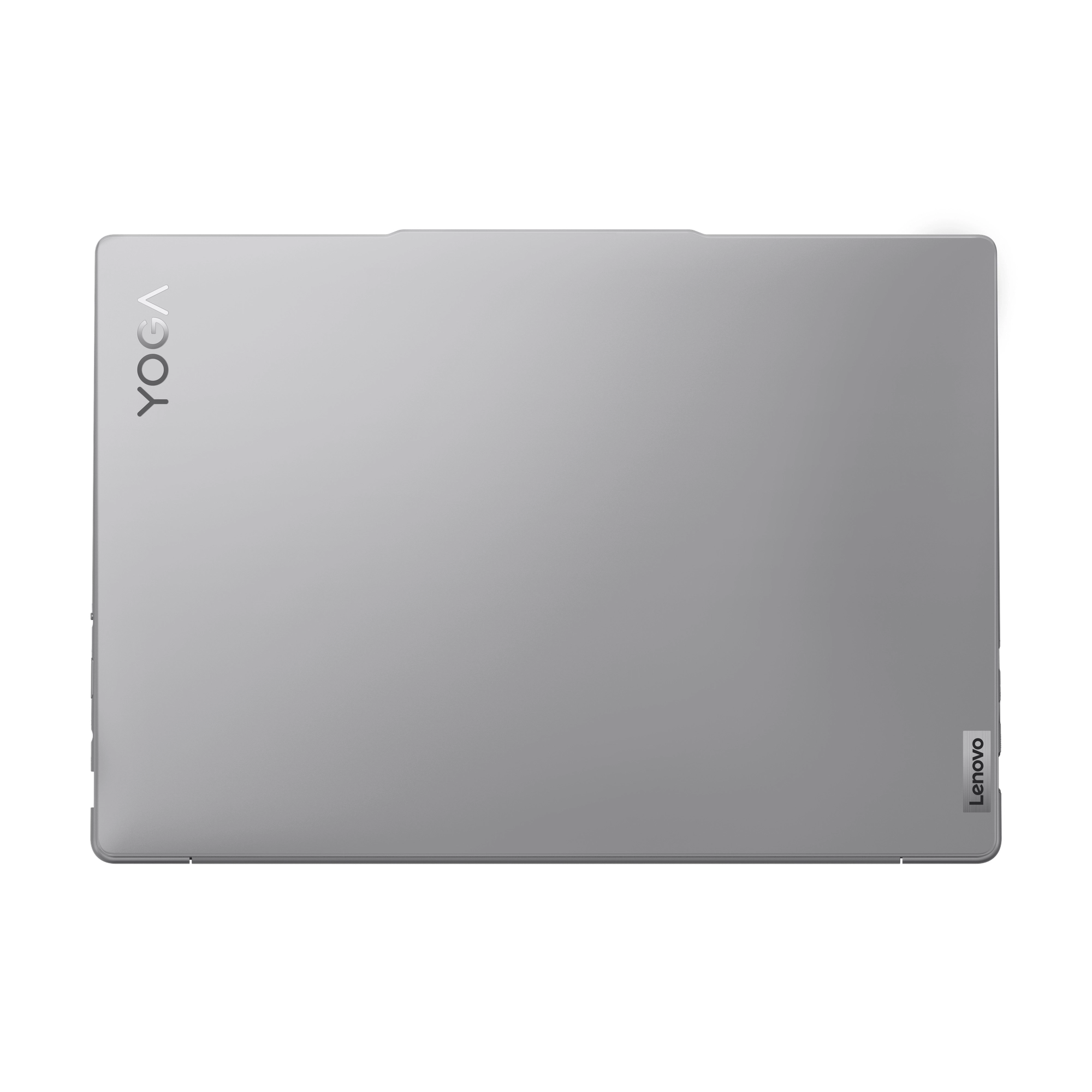

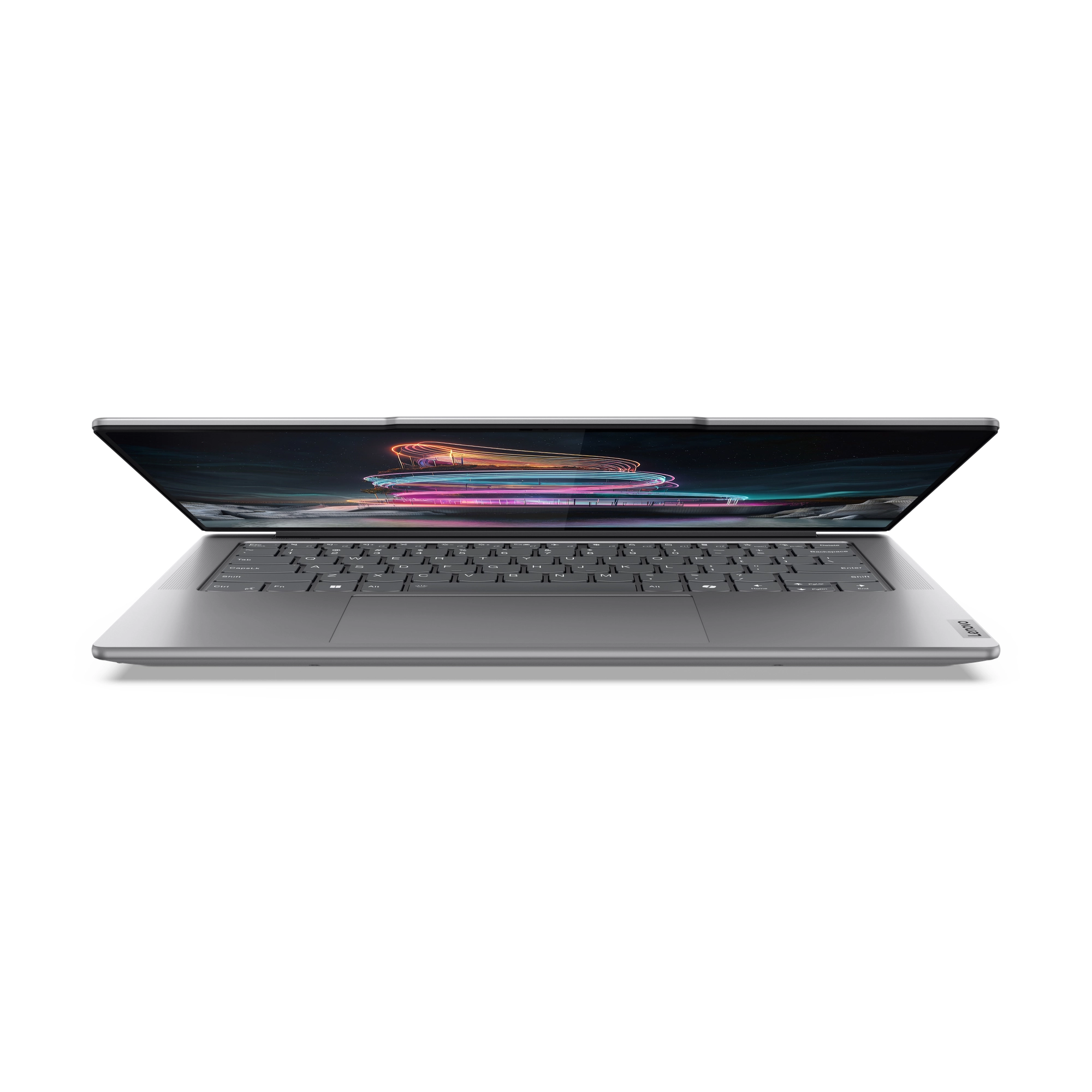

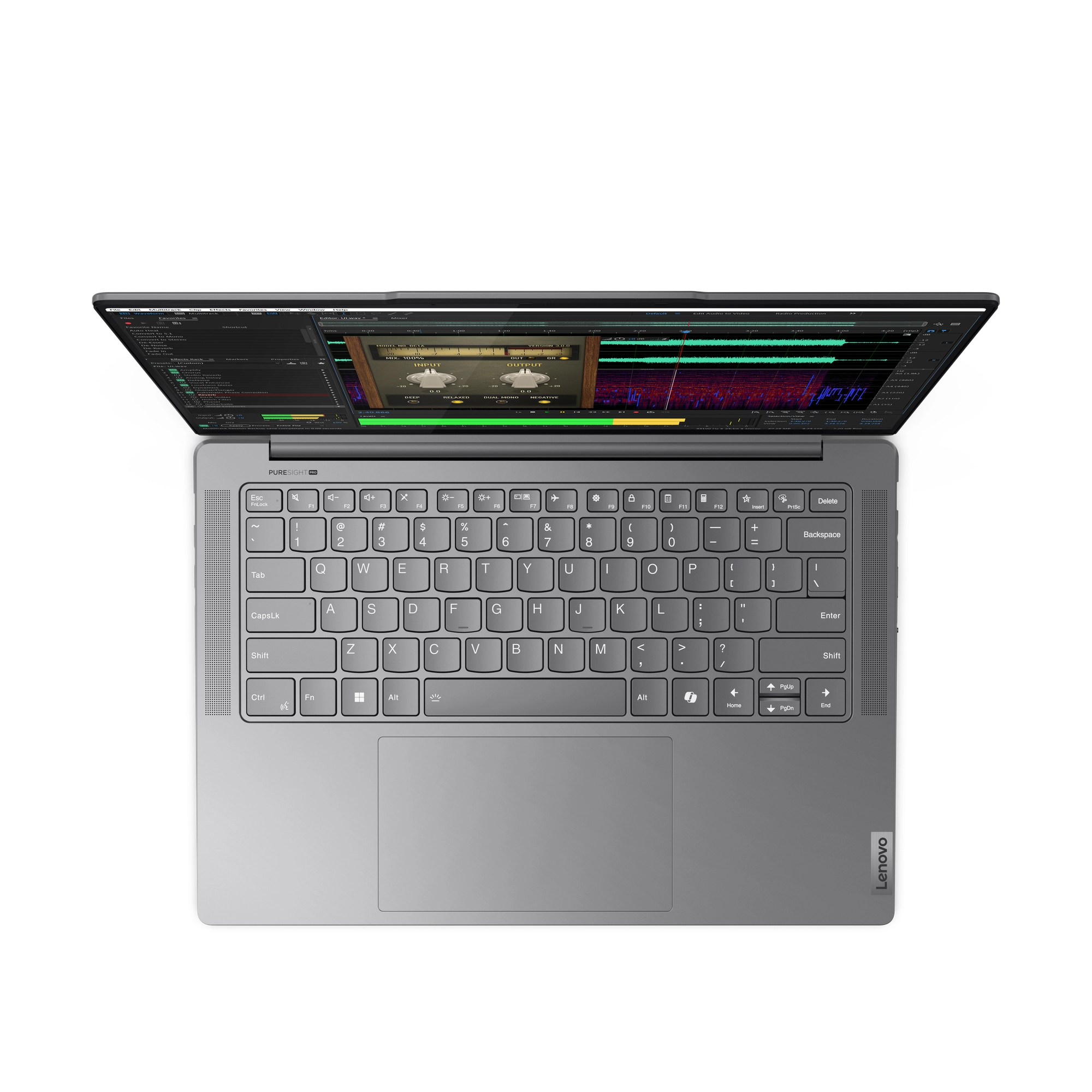

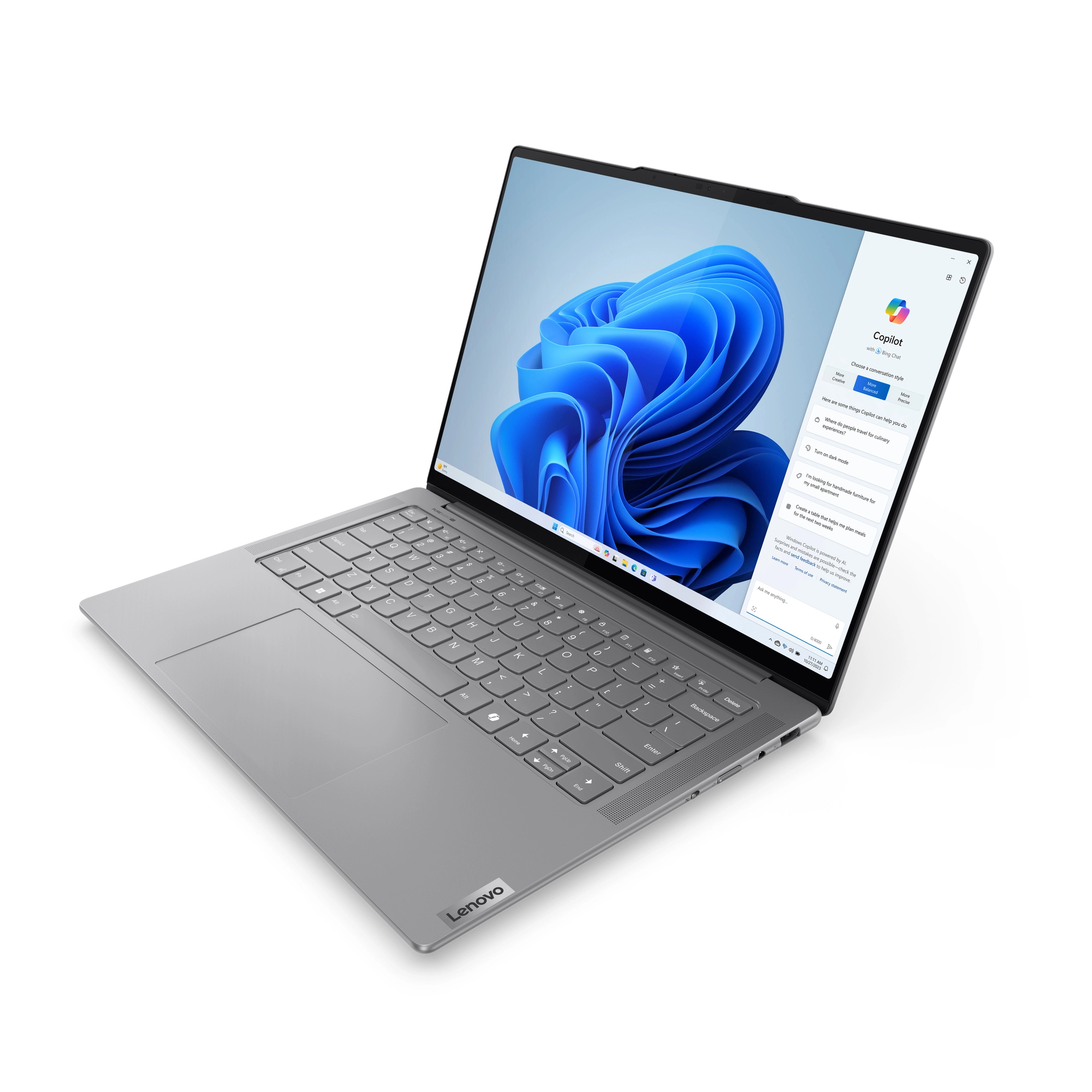

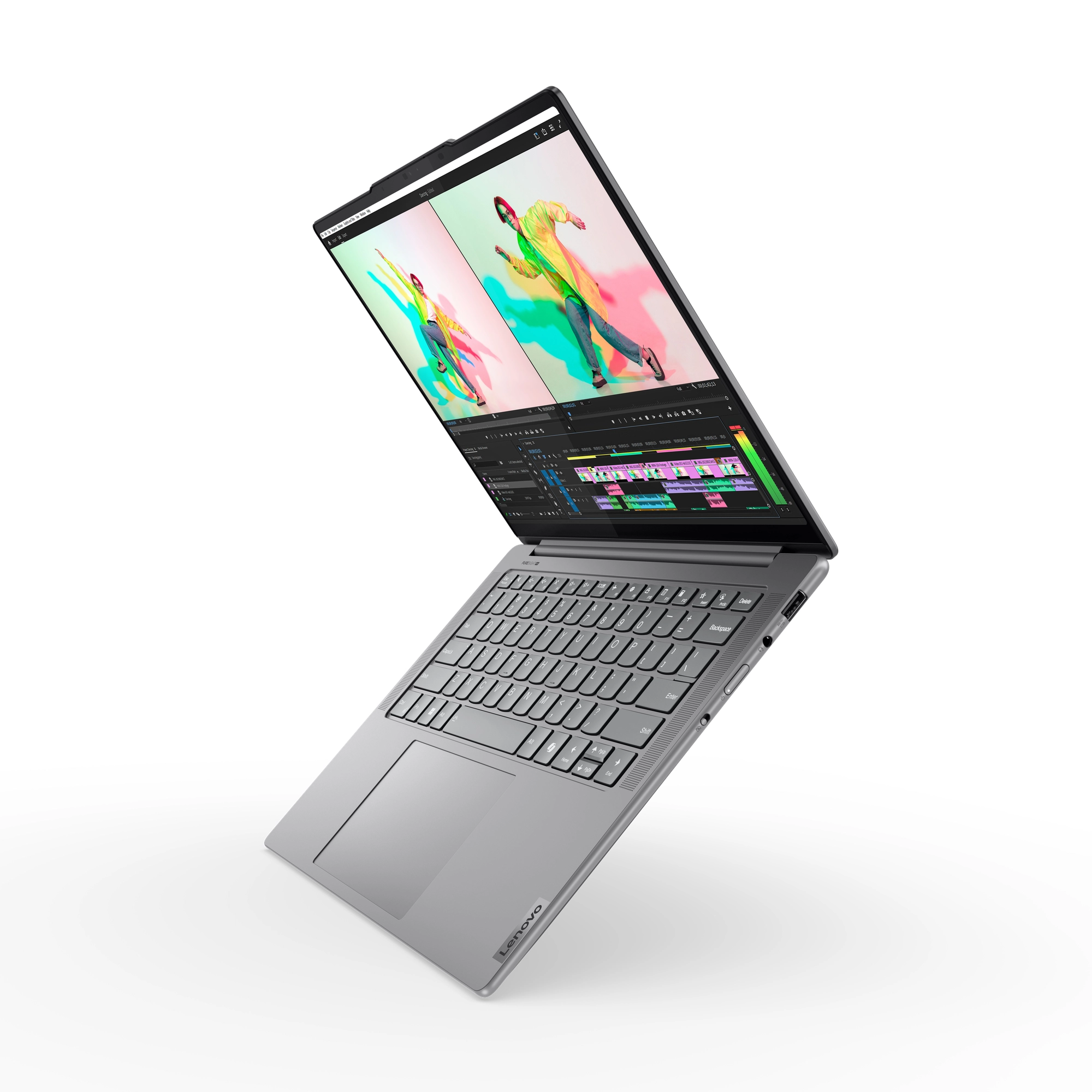

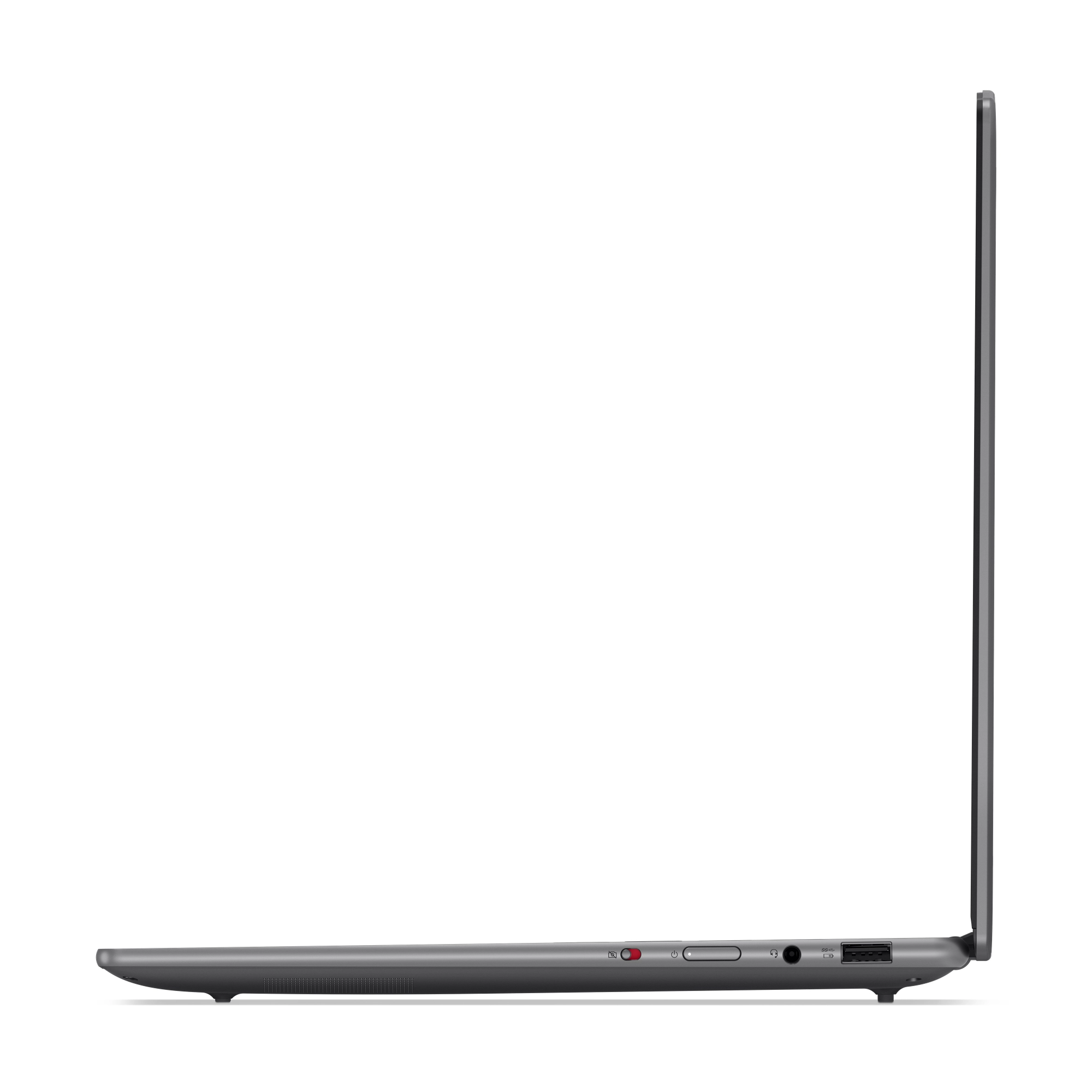

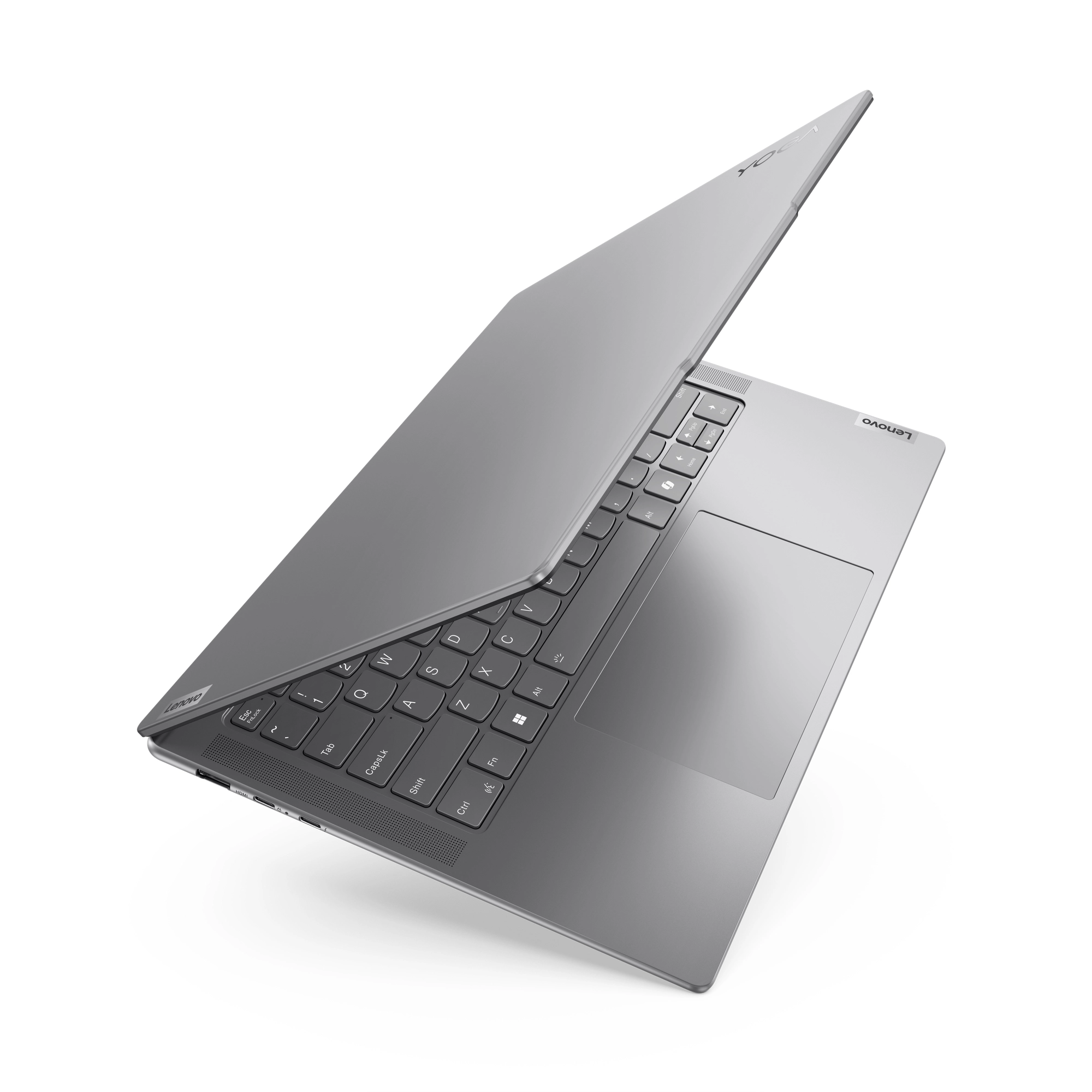

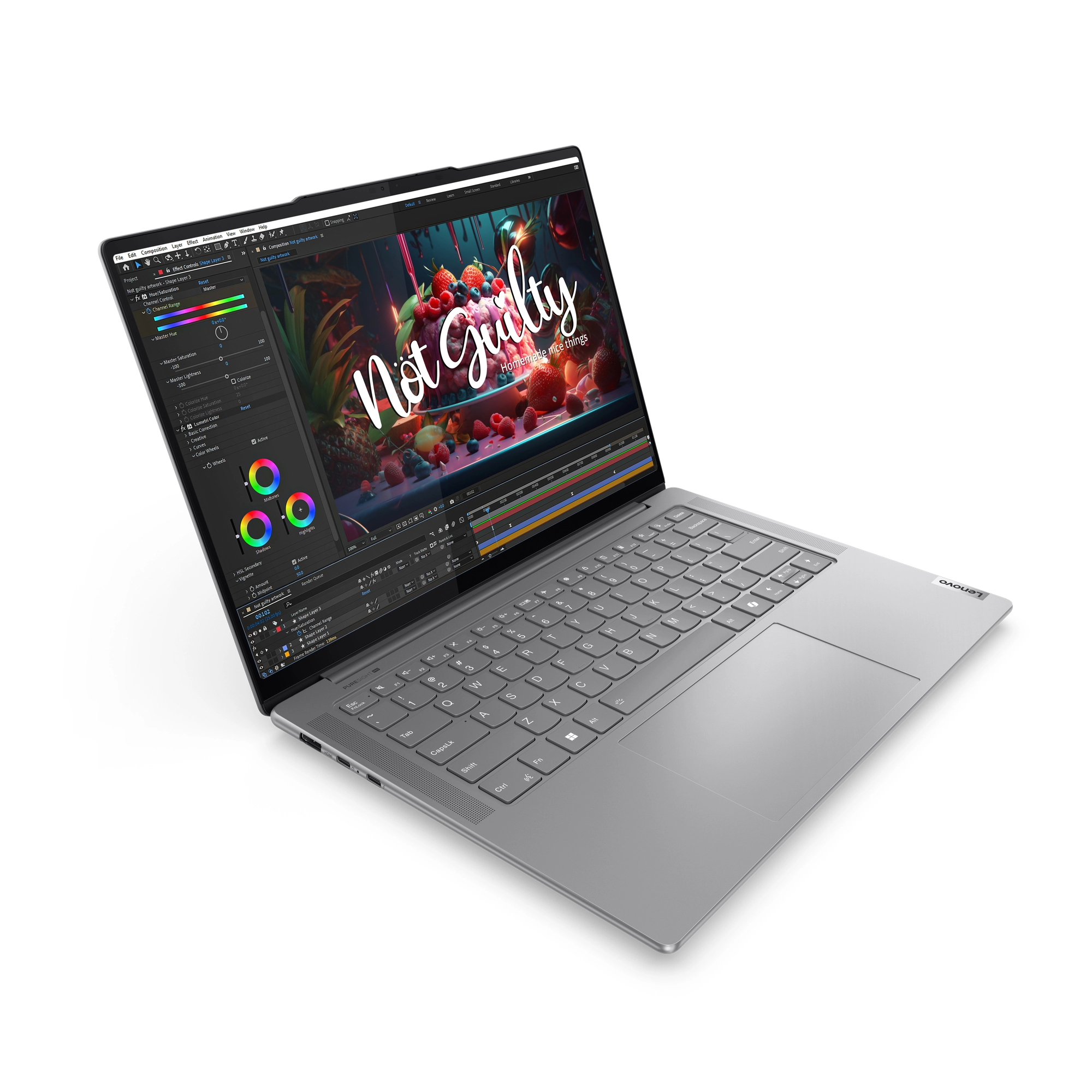

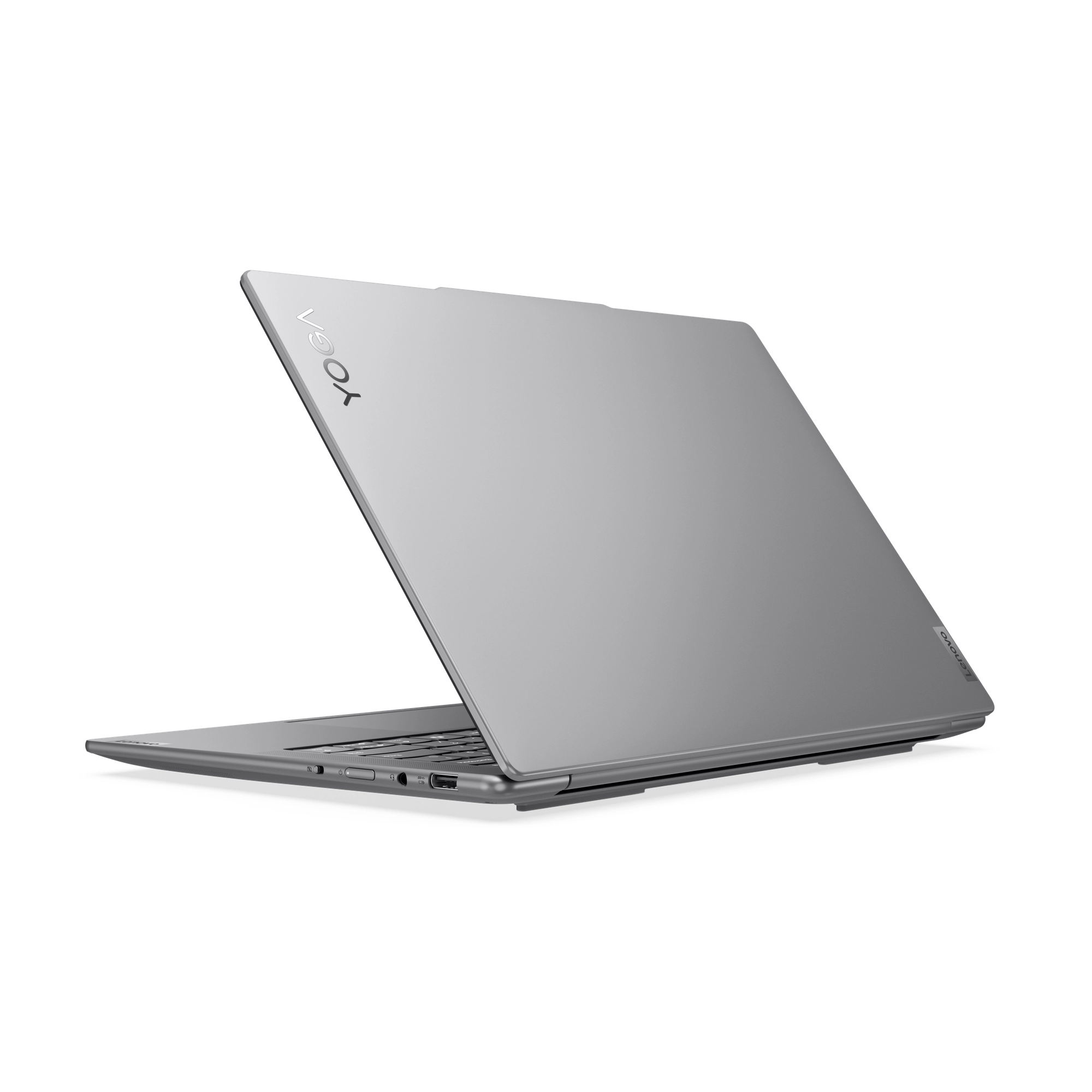

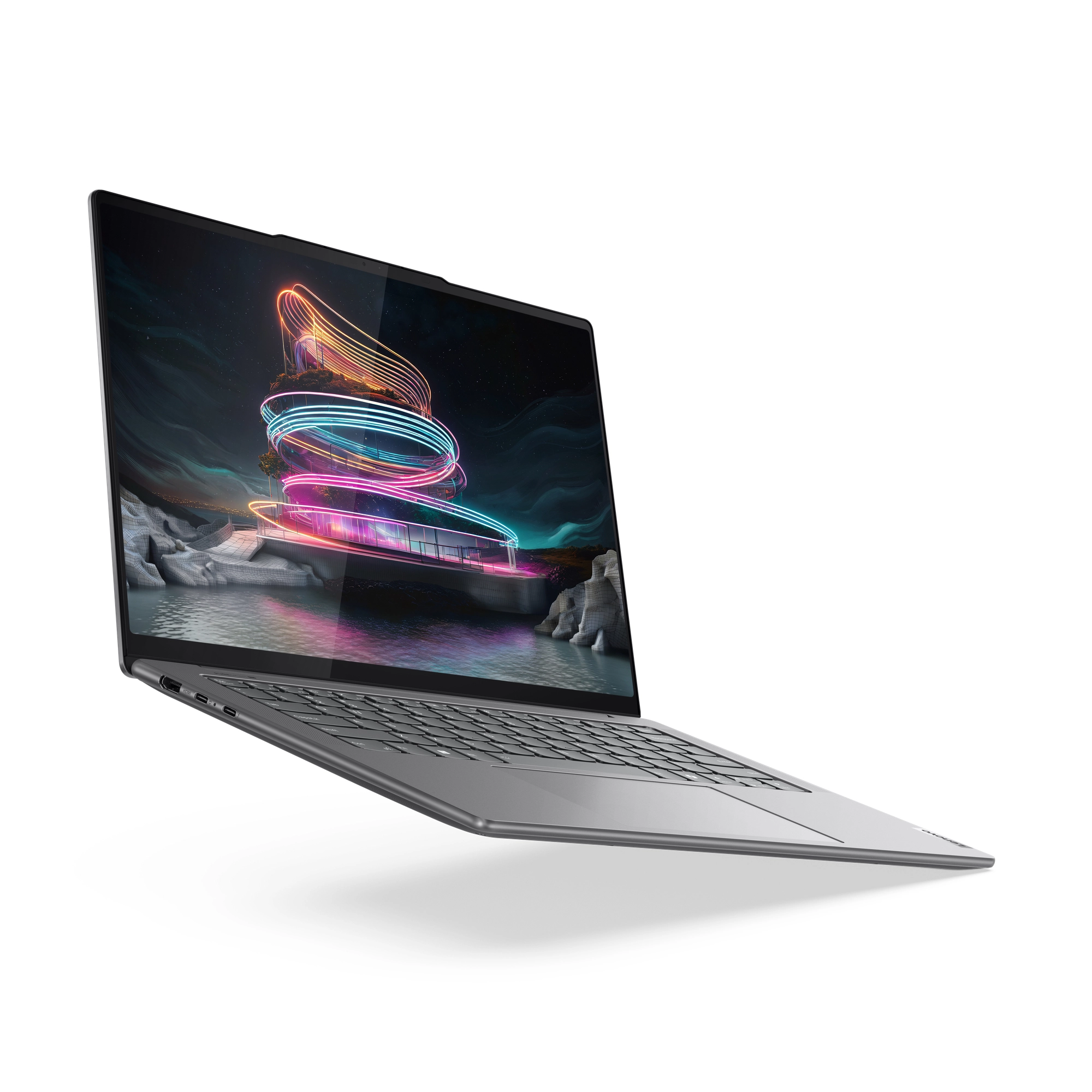

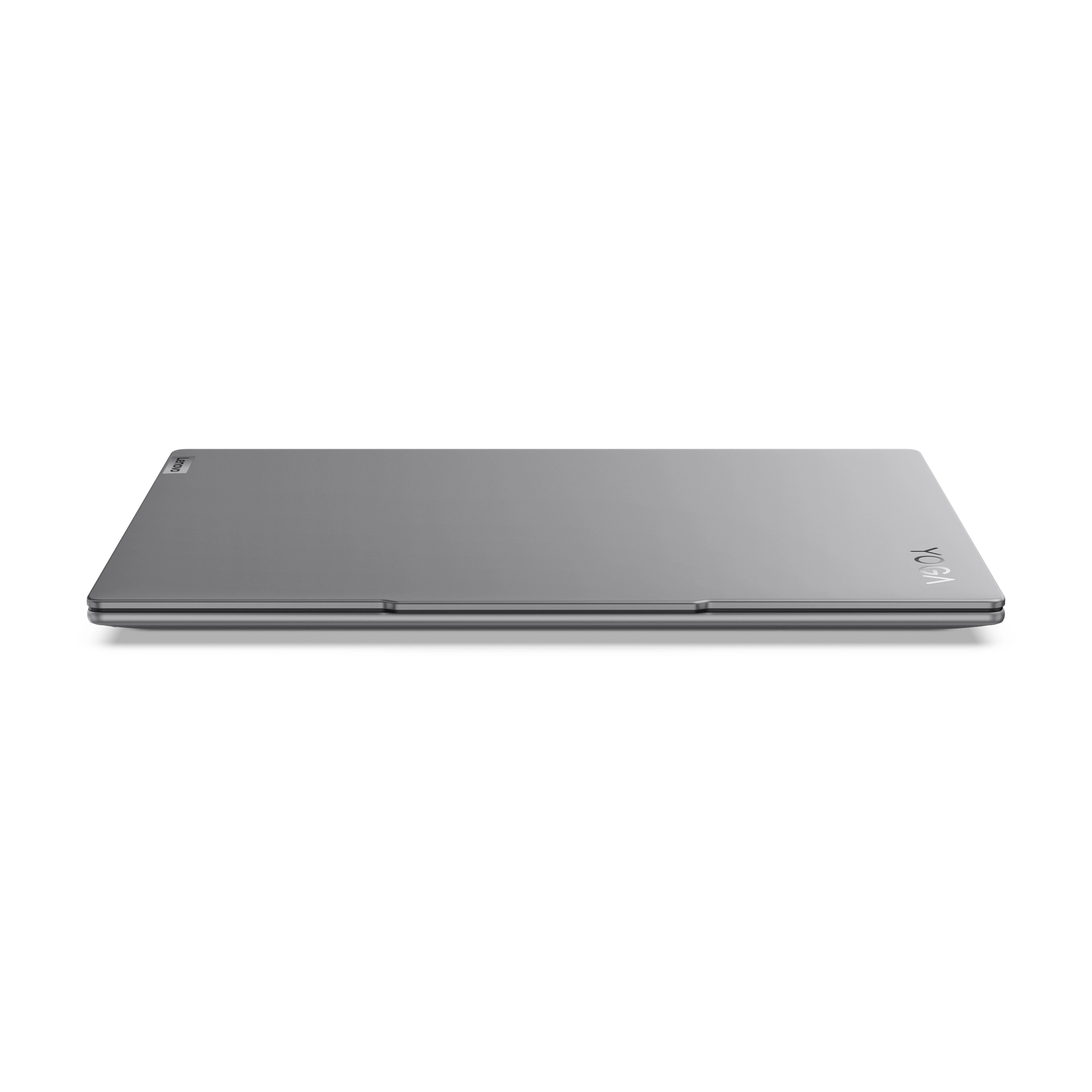

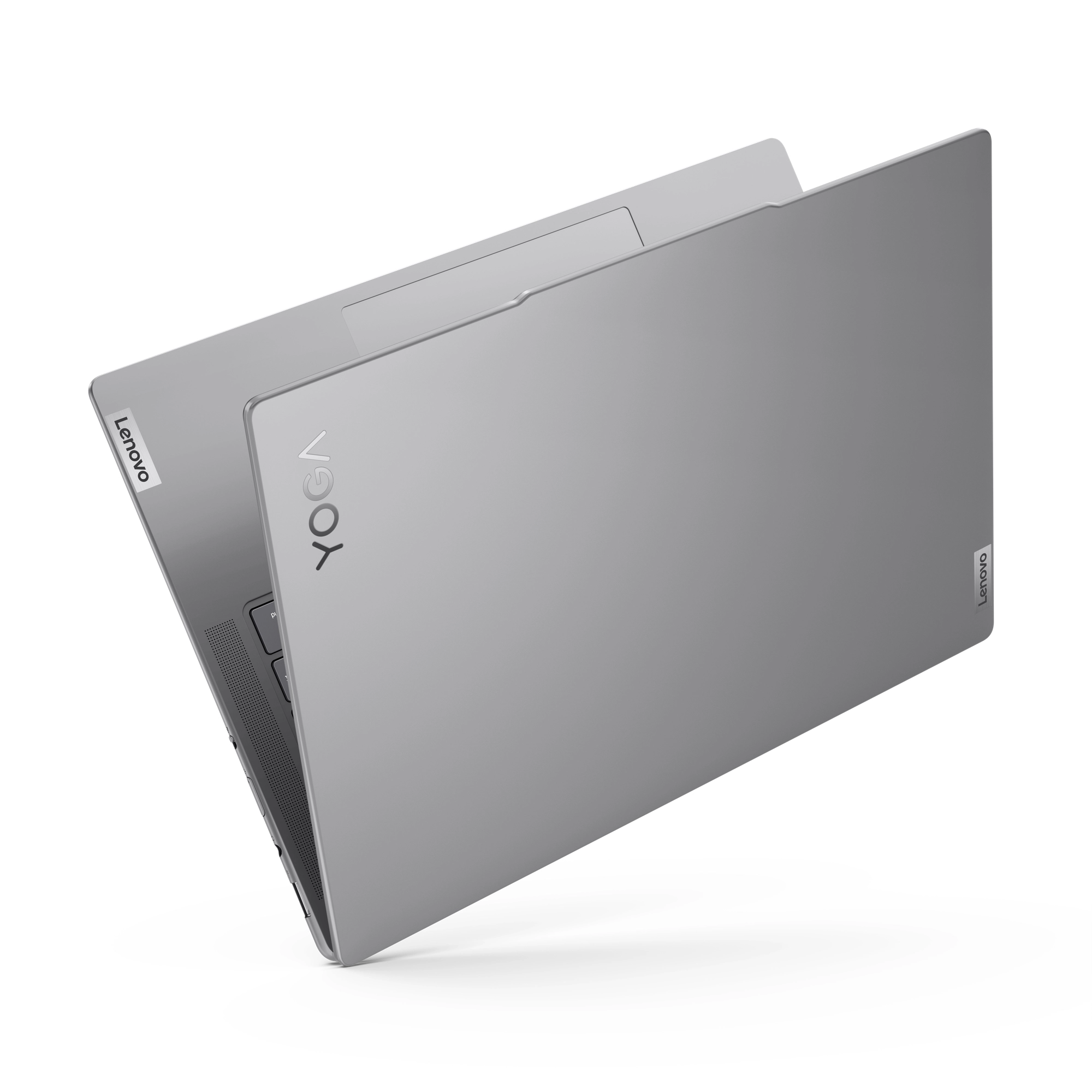

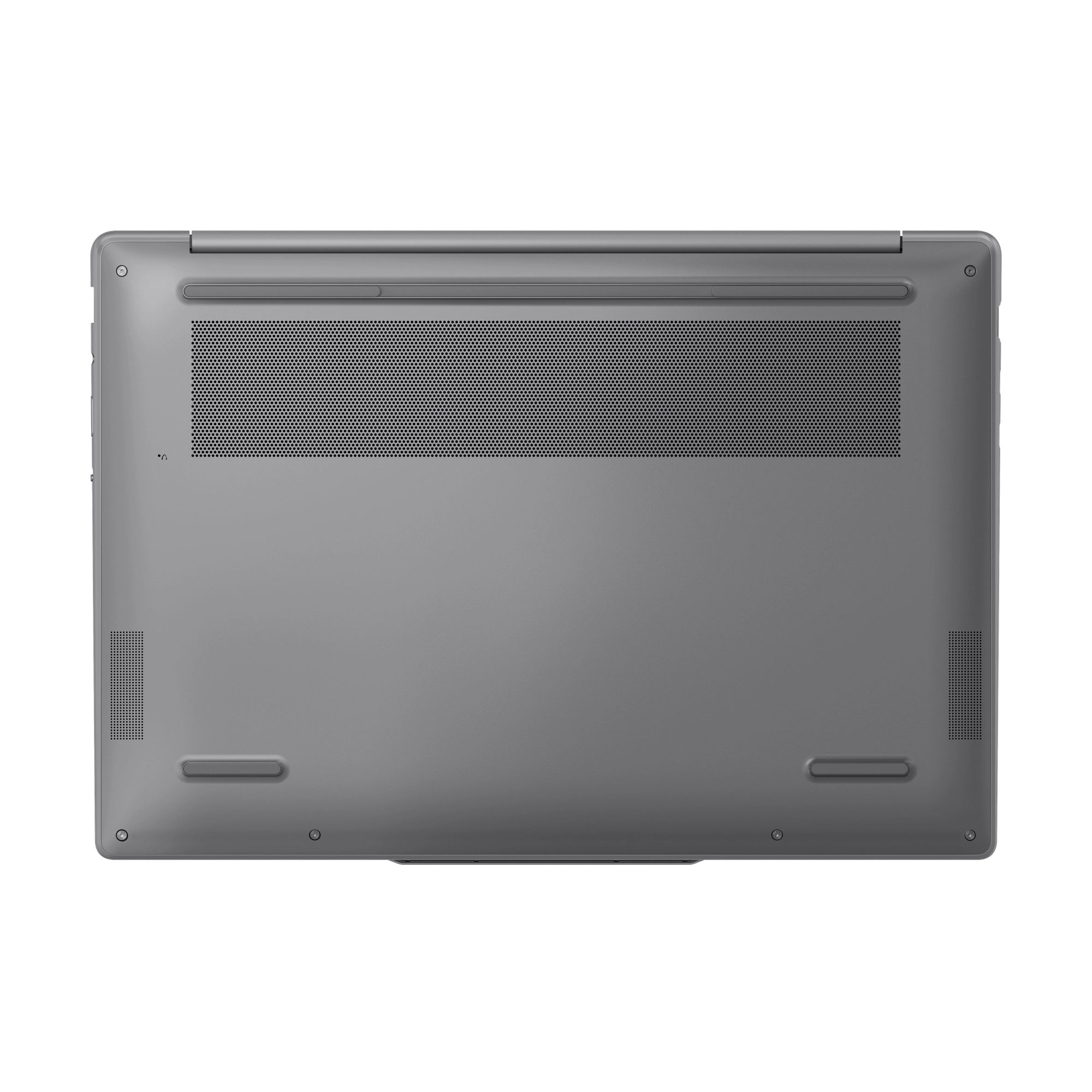

Lenovo Yoga Pro 7 14IMH9. Product type: Laptop, Form factor: Clamshell. Processor family: Intel Core Ultra 9, Processor model: 185H. Display diagonal: 36.8 cm (14.5"), HD type: 3K, Display resolution: 3072 x 1920 pixels, Touchscreen. Internal memory: 32 GB, Internal memory type: LPDDR5x-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel Arc Graphics. Operating system installed: Windows 11 Home. Product colour: Grey

Specification

Product
Product id	966991
Brand	Lenovo
Partnr	83E20079MB
EAN/UPC code	198153176519
Warranty (months)	24 months
Design
Product type	Notebook
Product colour	Grey
Colour name	Luna Grey
Form factor	Clamshell
Housing material	Aluminium

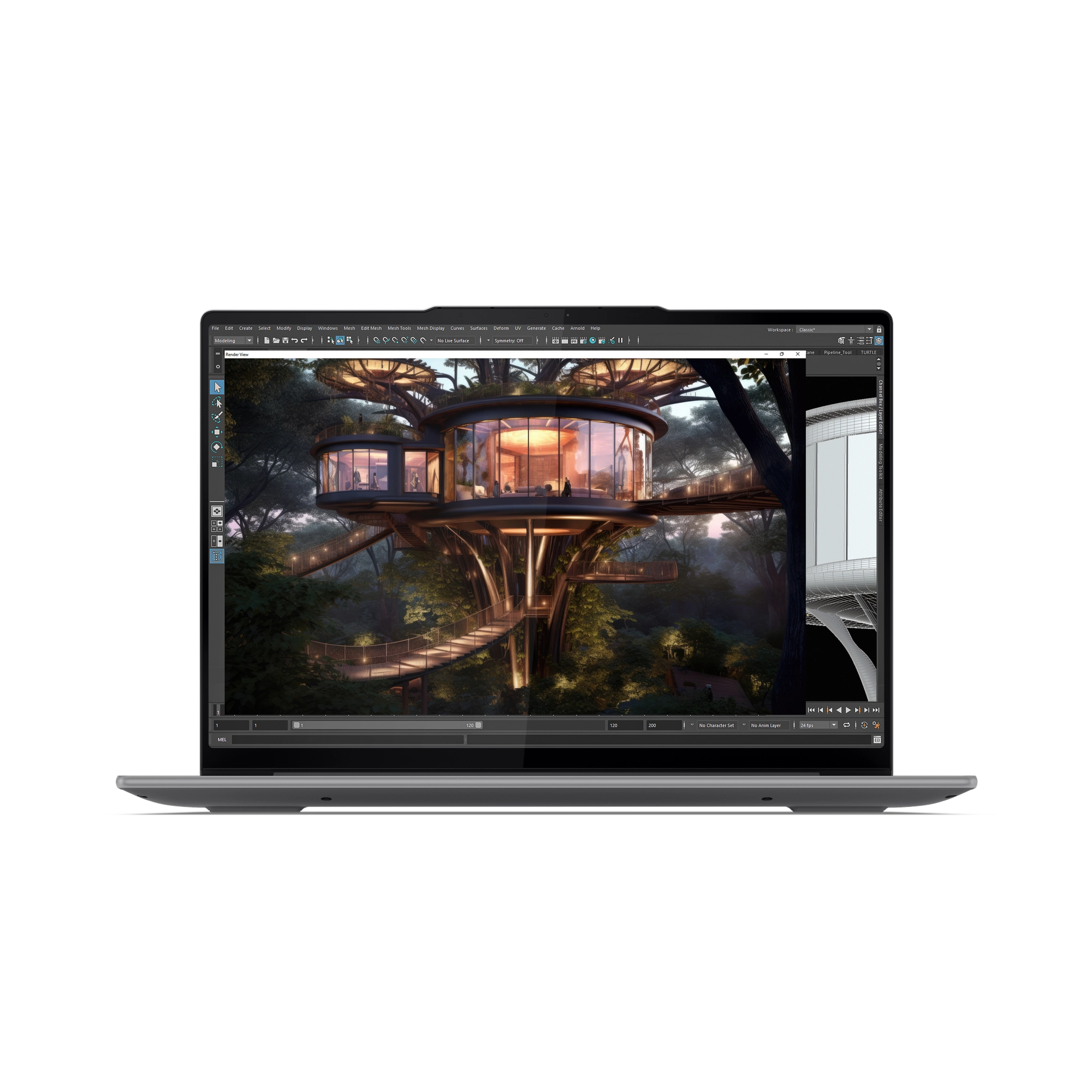

Display
Display diagonal	14.5 inch
Display resolution	3072 x 1920 Pixels
Touchscreen	Y
Panel type	IPS
HD type	3K
LED backlight	Y
Native aspect ratio	16:10
Display surface	Gloss
Display brightness	400 cd/m²
Colour gamut	100 procent
RGB colour space	sRGB
High Dynamic Range (HDR) technology	Dolby Vision
Maximum refresh rate	120 Hz
Contrast ratio (typical)	1500:1
High Dynamic Range (HDR) supported	Y
Processor
Processor manufacturer	Intel
Processor family	Intel Core Ultra 9
Processor model	185H
Processor generation	Intel Core Ultra (Series 1)
Processor boost frequency	5.1 GHz
Processor cores	16
Processor threads	22
Performance-core boost frequency	1.4 GHz
Low Power Efficient-cores	2
Efficient-core base frequency	1.8 GHz
Efficient-core Max Turbo Frequency	3.8 GHz
Low Power Efficient-core Max Turbo Frequency	2.5 GHz
Processor cache	24 MB
Performance-core base frequency	2.3 GHz
Performance-core Max Turbo Frequency	5.1 GHz
Low Power Efficient-core Base Frequency	1000 MHz
Processor cache type	Smart Cache
Motherboard chipset	Intel SoC
Processor base power	45 W
Maximum turbo power	115 W
Performance cores	6
Efficient cores	8
Memory
Internal memory	32 GB
Internal memory type	LPDDR5x-SDRAM
Memory clock speed	7467 MHz
Memory form factor	On-board
Maximum internal memory	32 GB
Memory channels	Dual-channel
Neural processor unit (NPU)
Neural processor unit (NPU)	Intel AI Boost
Maximum frequency NPU	1.4 GHz
Sparsity support	Y
Windows Studio effects support	Y
AI datatype support on NPU	FP16, FP32, Int8
AI software frameworks supported by NPU	DirectML, ONNX RT, OpenVINO, Windows ML
Storage
Total storage capacity	1000 GB
Storage media	SSD
Total SSDs capacity	1000 GB
Number of SSDs installed	1
SSD capacity	1000 GB
SSD interface	PCI Express 4.0
NVMe	Y
SSD form factor	M.2
Optical drive type	N
Card reader integrated	N
Graphics
On-board graphics adapter	Y
Discrete graphics adapter	N
Discrete graphics adapter model	Not available
On-board graphics adapter family	Intel Arc Graphics
On-board GPU manufacturer	Intel
On-board graphics adapter model	Intel Arc Graphics
Audio
Audio chip	Realtek ALC3306
Audio system	Dolby Atmos
Number of built-in speakers	4
Speaker power	2 W
Built-in microphone	Y
Number of microphones	4
Camera
Front camera	Y
Front camera resolution	1920 x 1080 Pixels
Front camera HD type	Full HD
Infrared (IR) camera	Y
Privacy camera	Y
Privacy type	Privacy shutter
Network
Bluetooth	Y
Mobile network connection	N
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Antenna type	2x2
Ethernet LAN	N
Bluetooth version	5.3
WWAN	Not installed

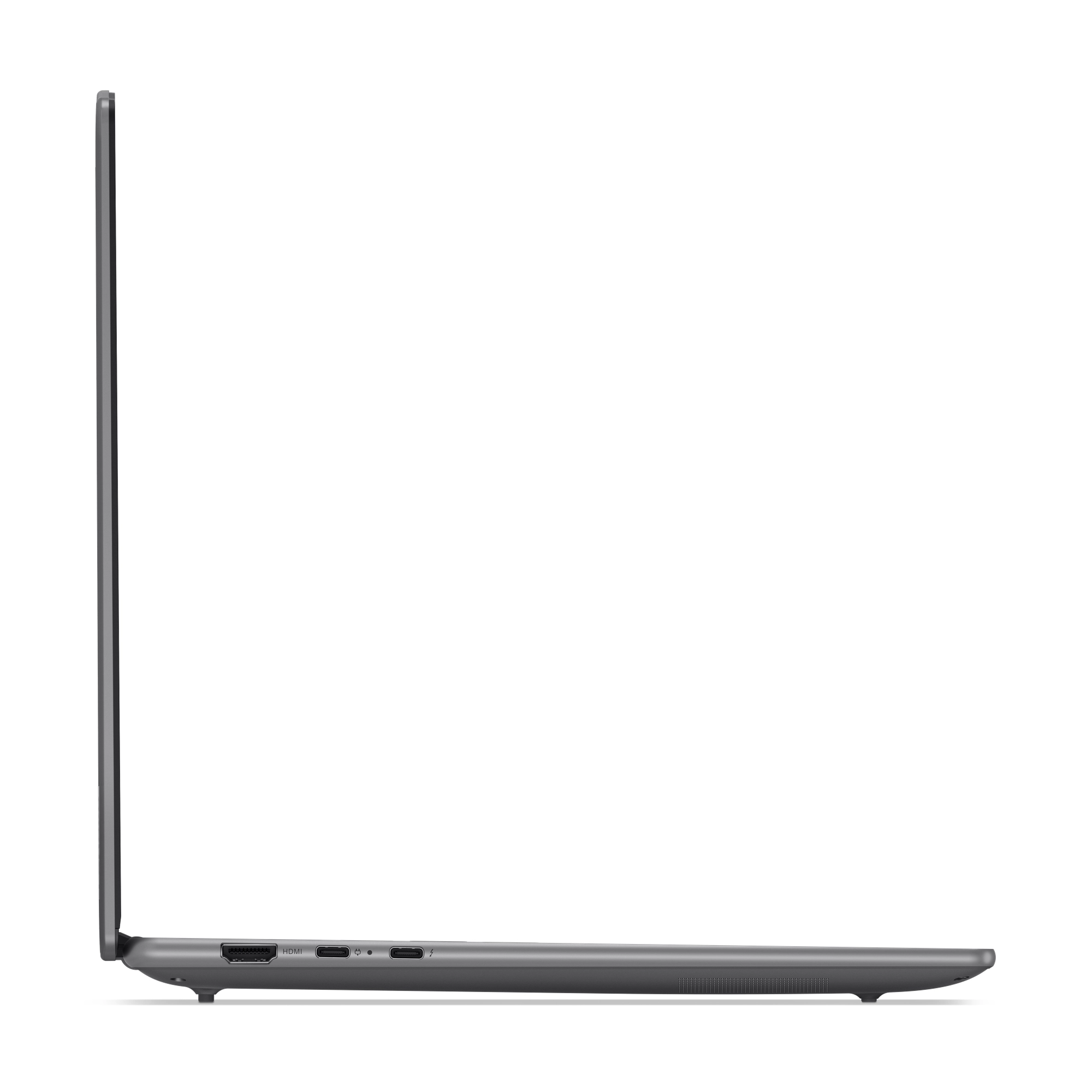

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
HDMI ports quantity	1
HDMI version	2.1
Intel® Thunderbolt 4	Y
Combo headphone/mic port	Y
Thunderbolt 4 ports quantity	1
USB Type-C DisplayPort Alternate Mode	Y
USB Power Delivery	Y
USB Sleep-and-Charge	Y
USB Sleep-and-Charge ports	1
Performance
Hall sensor	Y
Keyboard
Pointing device	Touchpad
Keyboard language	Belgian
Keyboard backlit	Y
Numeric keypad	N
Software
Operating system installed	Windows 11 Home
Operating system architecture	64-bit
Operating system language	DEU, DUT, ENG, FRE
Trial software	Office
Battery
Battery technology	Lithium Polymer (LiPo)
Battery capacity (Watt-hours)	73 Wh
Battery life (max)	10.4 uur
Continuous video playback time	20.8 uur
Quick charge	Y
Power
AC adapter power	100 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
USB Type-C charging port	Y
Security
Fingerprint reader	N
Windows Hello	Y
Trusted Platform Module (TPM)	Y
Trusted Platform Module (TPM) version	2.0
Password protection	Y
Password protection type	BIOS, HDD, Supervisor, User
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	5 - 43 °C
Operating relative humidity (H-H)	8 - 95 procent
Storage relative humidity (H-H)	5 - 95 procent
Maximum shipping altitude	3048 m
Certificates
Certification	ENERGY STAR 8.0 EPEAT Gold Registered ErP Lot 6 ErP Lot 26 RoHS compliant Intel Evo Platform Eyesafe Certified 2.0 TÜV Rheinland Low Blue Light (Hardware Solution) MIL-STD-810H
Weight & dimensions
Weight	1590 g
Width	325.5 mm
Depth	226.49 mm
Height	16.6 mm
Other features
AC adapter included	Y
