86inch 3840x2160 UHD VA panel 800cd/m2 1200:1 Static Contrast 8ms Landscape or Portrait mode



iiyama
Limited stock
€ 1.796,12
€ 2.173,30 incl 21% VAT
iiyama LH8665UHSB-B1. Product design: Kiosk design. Display diagonal: 2.18 m (86"), Display technology: LED, Display resolution: 3840 x 2160 pixels, Display brightness: 800 cd/m², HD type: 4K Ultra HD. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Android 11. Product colour: Black

Specification

Product
Product id 956995
Brand iiyama
Partnr LH8665UHSB-B1
EAN/UPC code 4948570123605
Warranty (months) 36 months
Display
Display diagonal 86 inch
Display resolution 3840 x 2160 Pixels
Display brightness 800 cd/m²
HD type 4K Ultra HD
Touchscreen N
Native aspect ratio 16:9
Response time 8 ms
Contrast ratio (typical) 1200:1
Viewing angle, horizontal 178 °
Viewing angle, vertical 178 °
Display number of colours 1.07 billion colours
Pixel pitch 0.315 x 0.315 mm
Active display area (W x H) 1209.6 x 680.4 mm
Display diagonal (metric) 217 cm
Native refresh rate 60 Hz
Haze rate 1 procent
Horizontal scan range 28 - 160 kHz
Panel type IPS
Ports & interfaces
HDMI ports quantity 2
HDMI version 2.0
DisplayPorts quantity 1
USB port Y
USB ports quantity 2
USB version 2.0
Ethernet LAN Y
Ethernet LAN (RJ-45) ports 1
Wi-Fi Y
Audio (L/R) in 1
RS-232 interface Y
RS-232C Y
Audio
Built-in speaker(s) Y
Number of built-in speakers 2
RMS rated power 20 W
Design
Design Kiosk design
Product colour Black
Placement supported Indoor/outdoor
VESA mounting Y
Panel mounting interface 600 x 400 mm
Bezel width (top) 16.25 mm
Bezel colour black
Bezel width (side) 16 mm
Bezel width (bottom) 16.25 mm
Performance
Purpose Commercial
Number of OSD languages 8
On Screen Display (OSD) languages CHI (SIMPL), CZE, DEU, ENG, ESP, FRE, ITA, JPN, POL, RUS
Operating hours (hours/days) 24/7
HDCP Y
HDCP version 2.2
Mean time between failures (MTBF) 50000 uur
Power
Power consumption (typical) 159 W
Power consumption (standby) 0.5 W
Power consumption (off) 0.3 W
Energy efficiency class (SDR) E
AC input voltage 100 - 240 V
AC input frequency 50/60 Hz
Energy consumption (SDR) per 1000 hours 159 kWu
Computer system
Computer system Y
Built-in processor Y
Processor manufacturer ARM
Processor family ARM Cortex
Processor architecture ARM Cortex-A53+Cortex-A73
Processor cores 8
Internal memory 4 GB
Internal storage capacity 32 GB
On-board graphics adapter model ARM Mali-G52
Operating system installed Android 11
Weight & dimensions
Width (with stand) 1927 mm
Depth (with stand) 57 mm
Height (with stand) 1098.5 mm
Weight (with stand) 49000 g
Packaging data
Package width 2123 mm
Package depth 225 mm
Package height 1247 mm
Package weight 64000 g
Packaging content
Handheld remote control Y

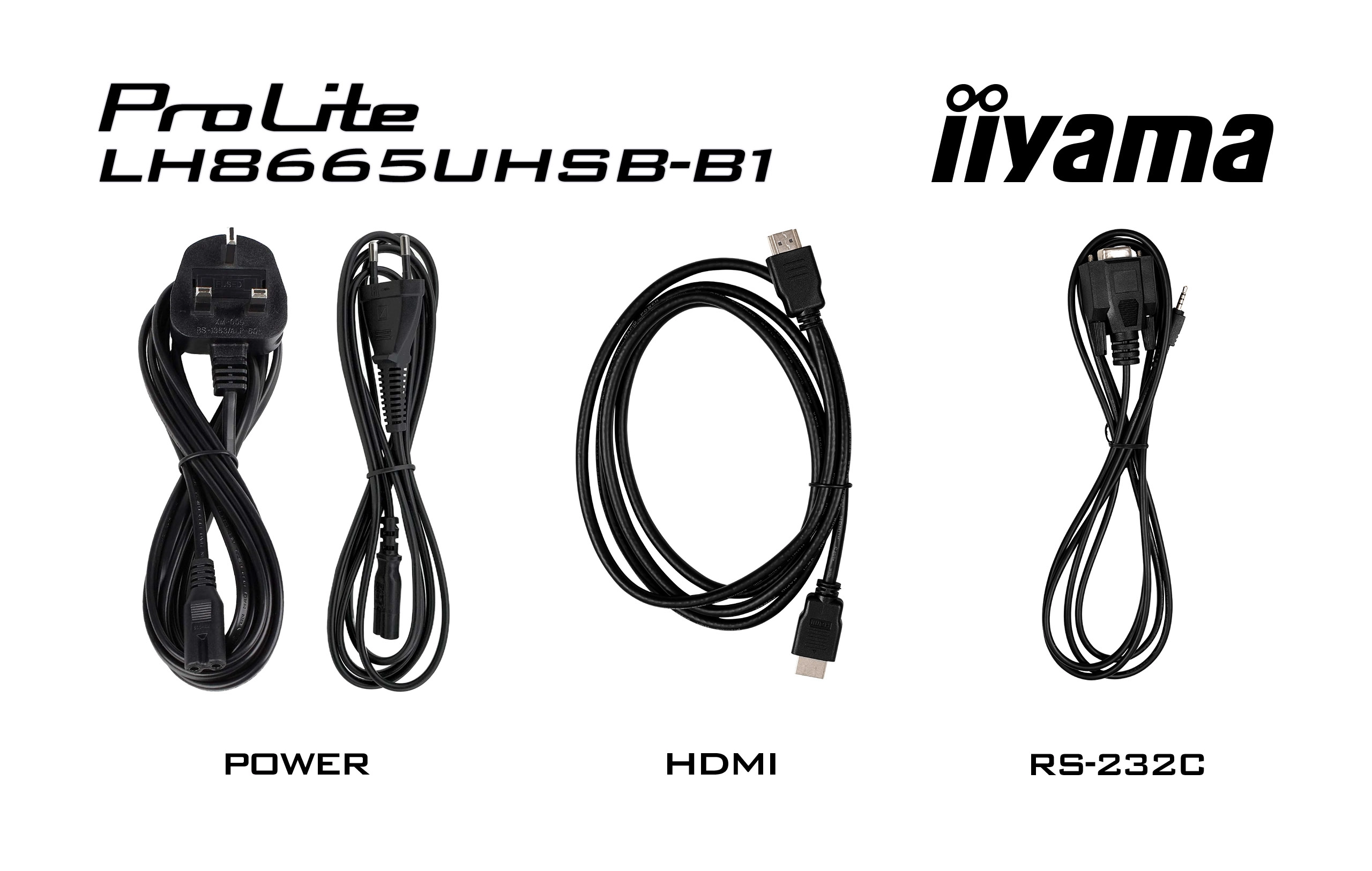

Cables included HDMI, Power, RS-232
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Operating relative humidity (H-H) -20 - 60 procent
Other features
DisplayPort version 1.2
Wi-Fi standards Wi-Fi 5 (802.11ac)
Display technology LED
