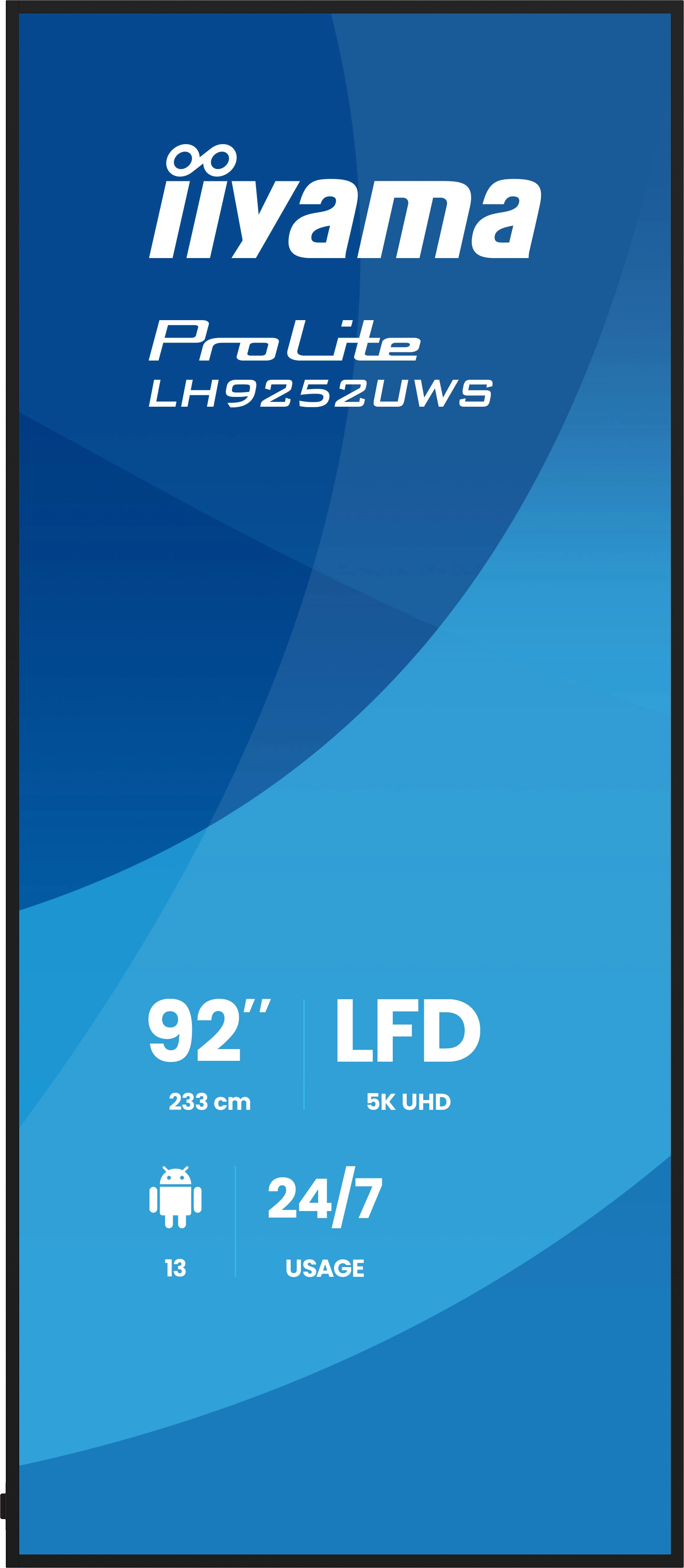

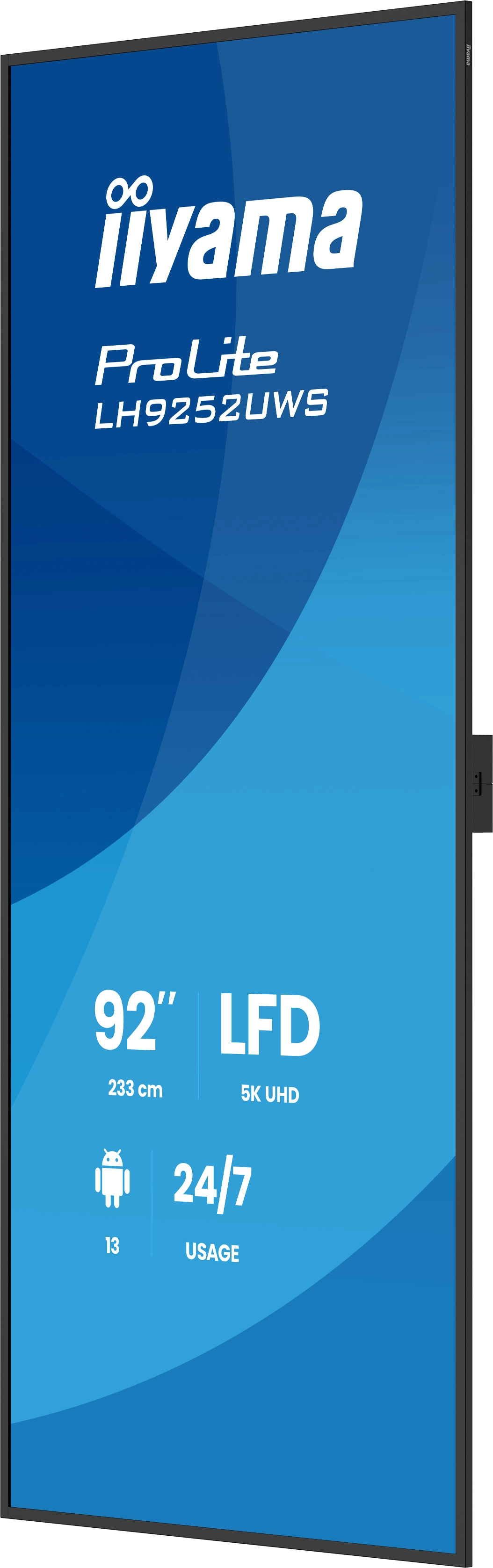

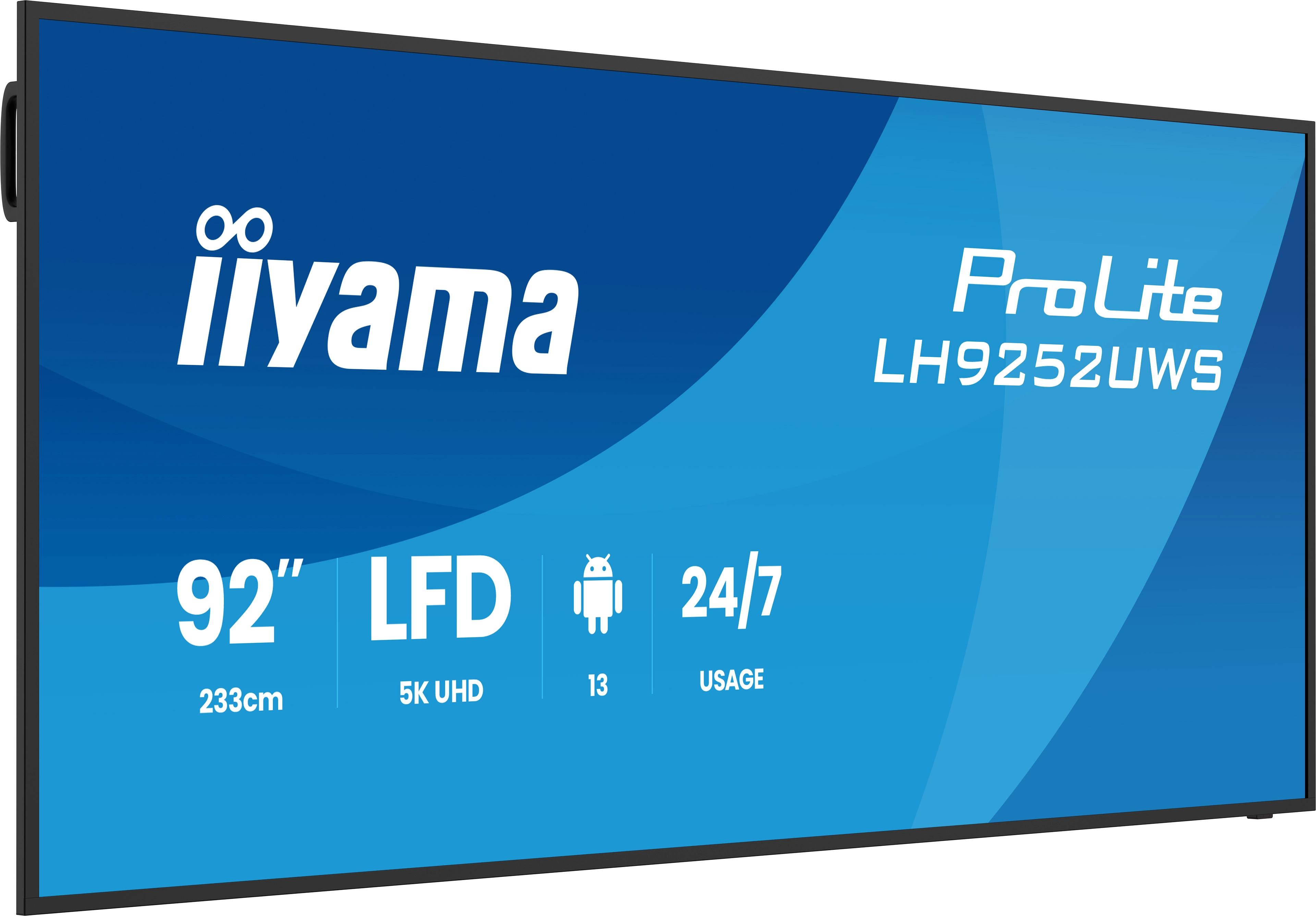

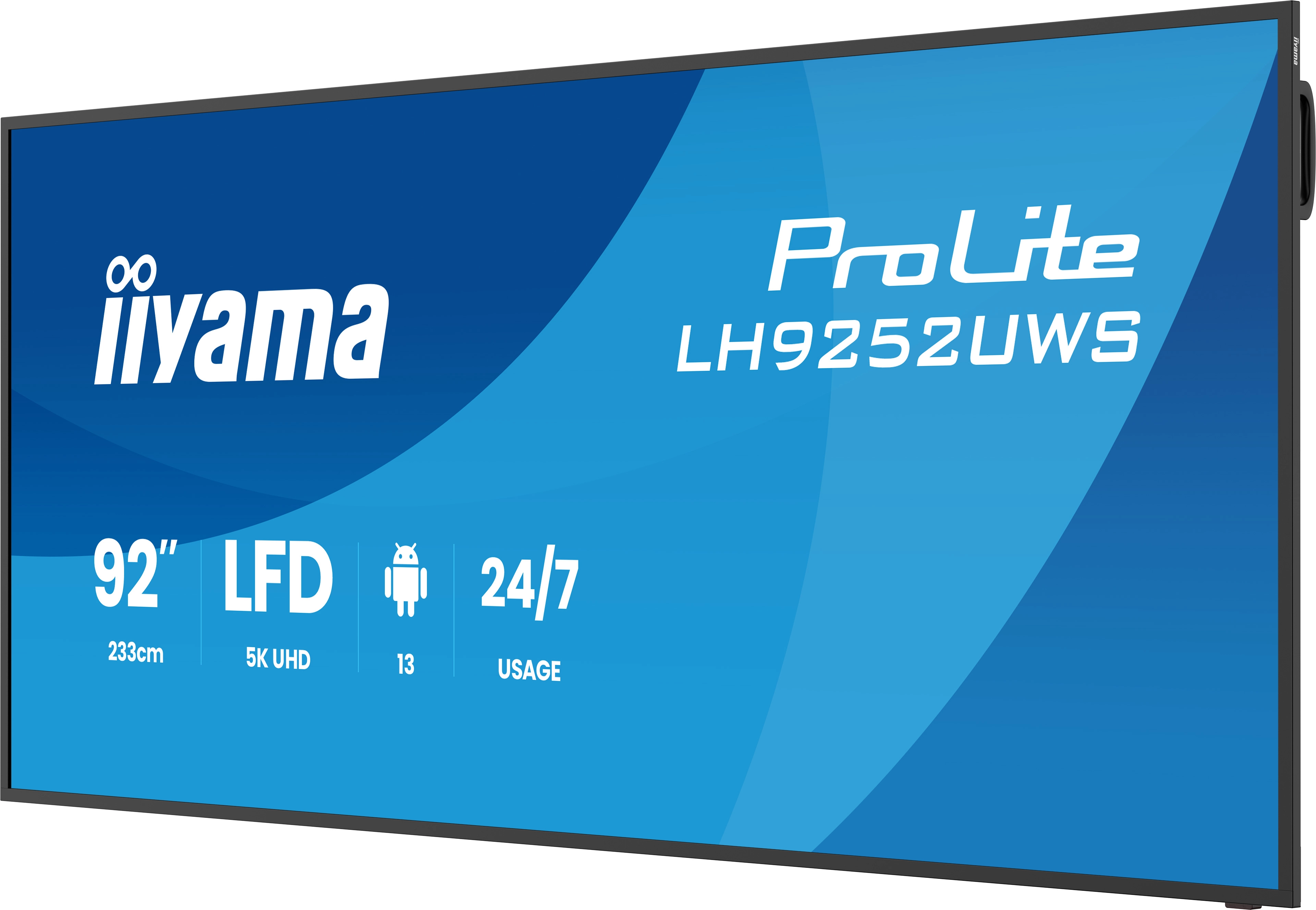

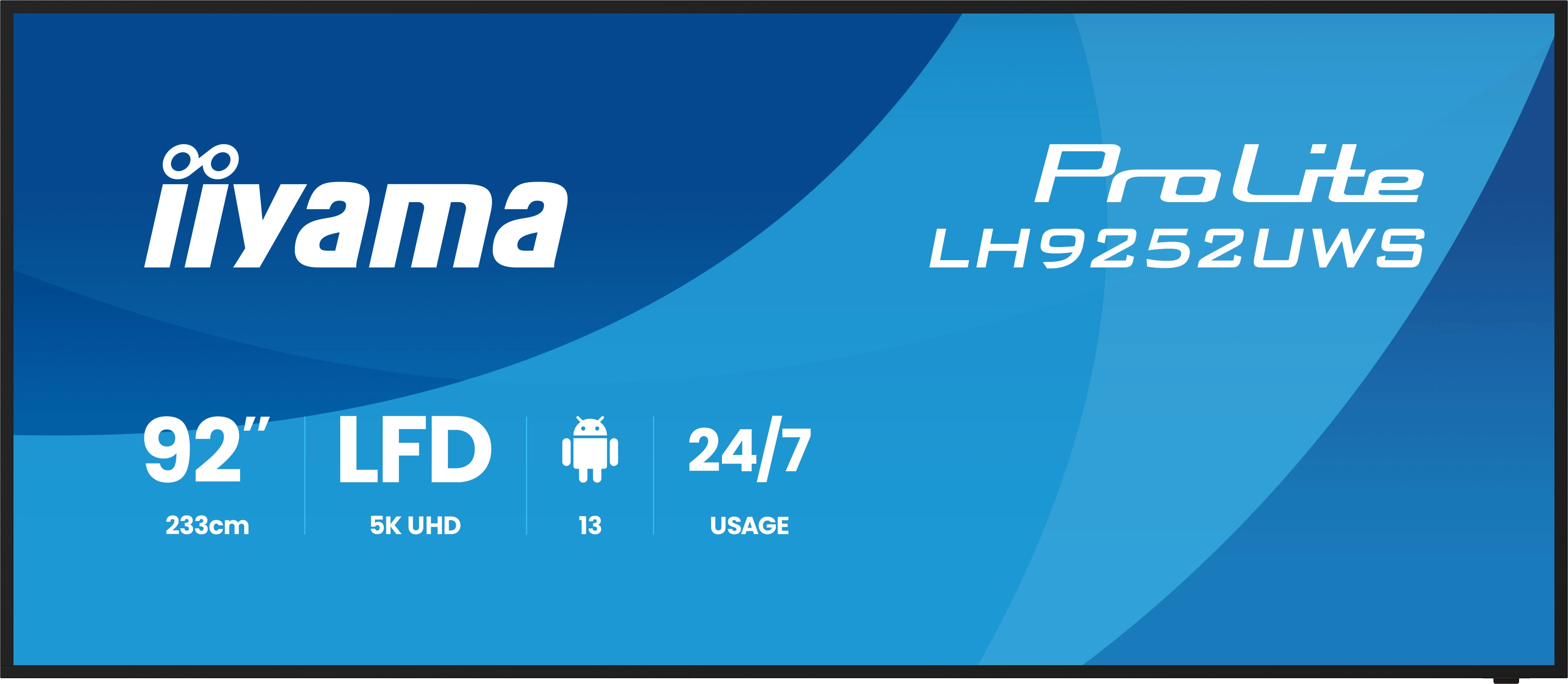

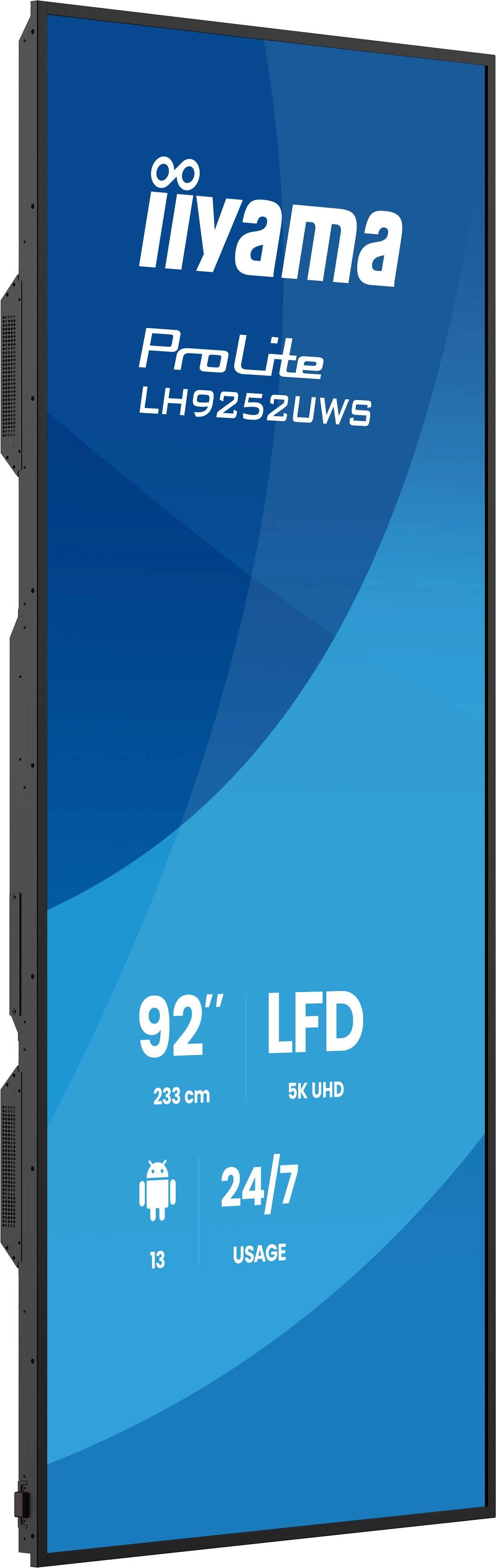

The ProLite LH9252UWS-B1AG features an impressive 92" 5K UltraWide VA panel with USB-C connectivity, Android OS and integrated speakers with subwoofer, making it an ideal solution for collaborative workspaces, digital signage and immersive presentation environments.

Specification

Product
Product id	1023114
Brand	iiyama
Partnr	LH9252UWS-B1AG
EAN/UPC code	4948570128051
Warranty (months)	36 months
Display
Display diagonal	92 inch
Display resolution	5120 x 2160 Pixels
Display brightness	500 cd/m²
HD type	UltraWide 5K HD
Touchscreen	N
Native aspect ratio	21:9
Response time	6.5 ms
Contrast ratio (typical)	5000:1
Contrast ratio (dynamic)	5000:1
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Display number of colours	1.07 billion colours
Pixel pitch	0.13945 x 0.41835 mm
Active display area (W x H)	2141.952 x 903.636 mm
Display diagonal (metric)	233 cm
Native refresh rate	60 Hz
Haze rate	25 procent
Horizontal scan range	30 - 135 kHz
Panel type	VA

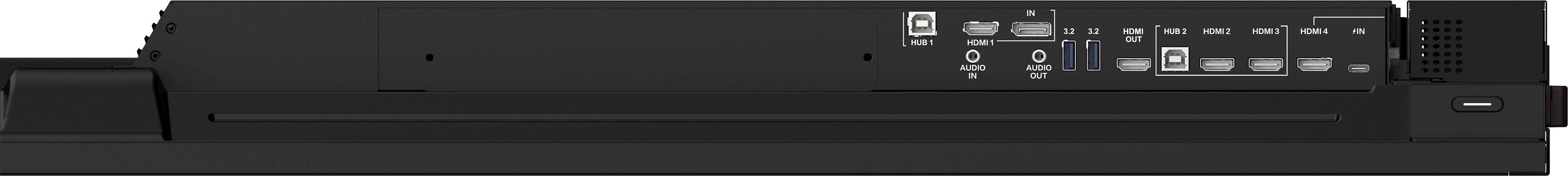

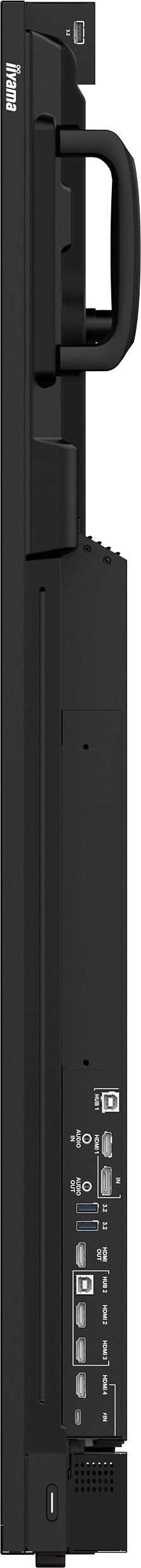

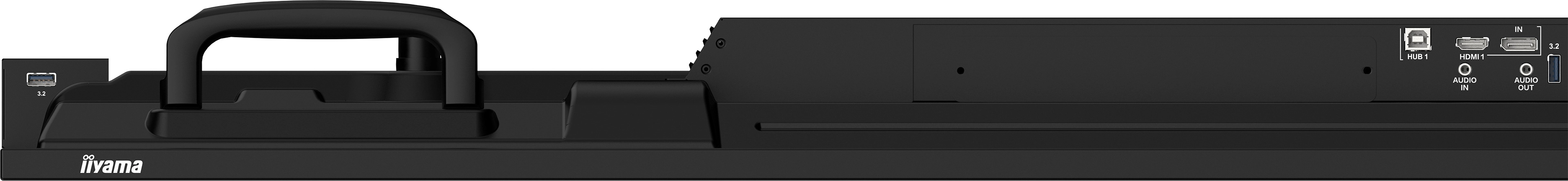

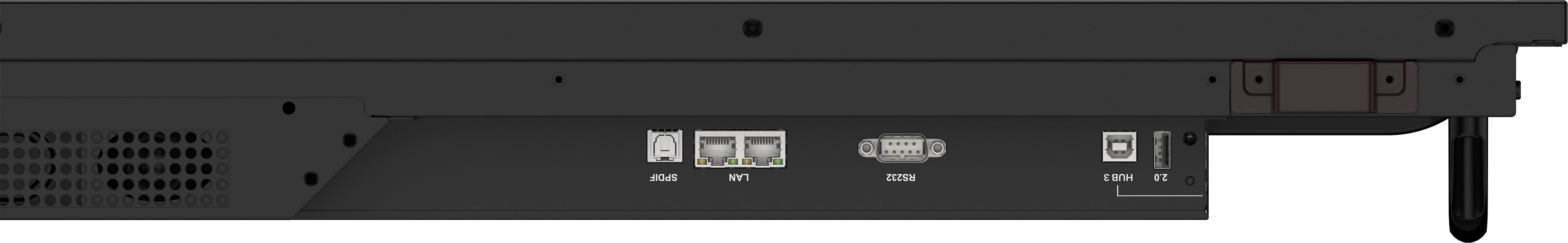

Ports & interfaces
HDMI ports quantity	1
HDMI version	2.0
HDMI input ports quantity	1
DVI port	N
Consumer Electronics Control (CEC)	Yes
DisplayPorts quantity	1
USB port	Y
USB ports quantity	3
Ethernet LAN	Y
Ethernet LAN (RJ-45) ports	2
Ethernet LAN data rates	1000 Mbit/s
Wi-Fi	Y
RS-232C	Y
OPS module slot	Y
Audio
Built-in speaker(s)	Y
Number of built-in speakers	2
RMS rated power	20 W
Design
Design	Kiosk design
Product colour	Black
Placement supported	Indoor/outdoor

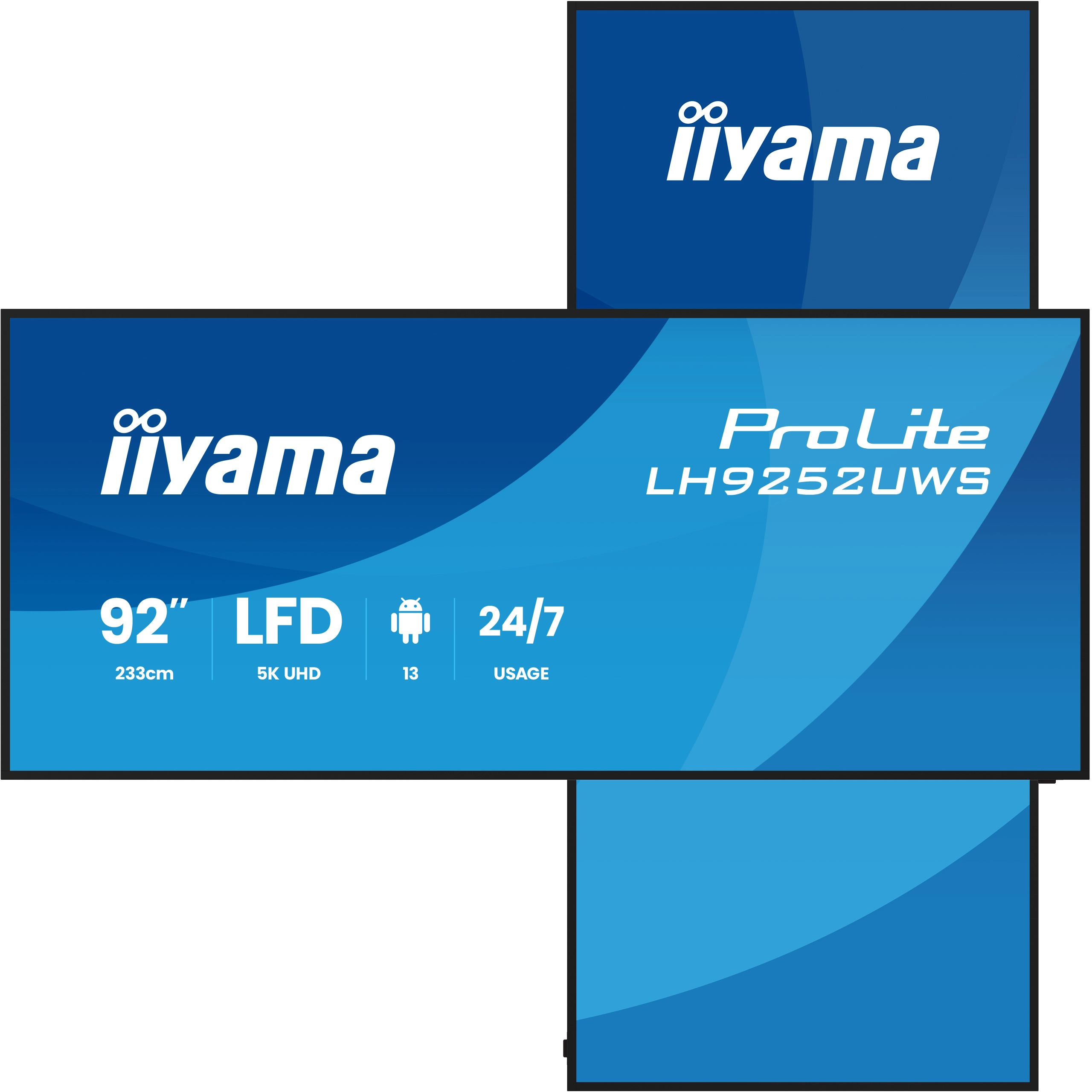

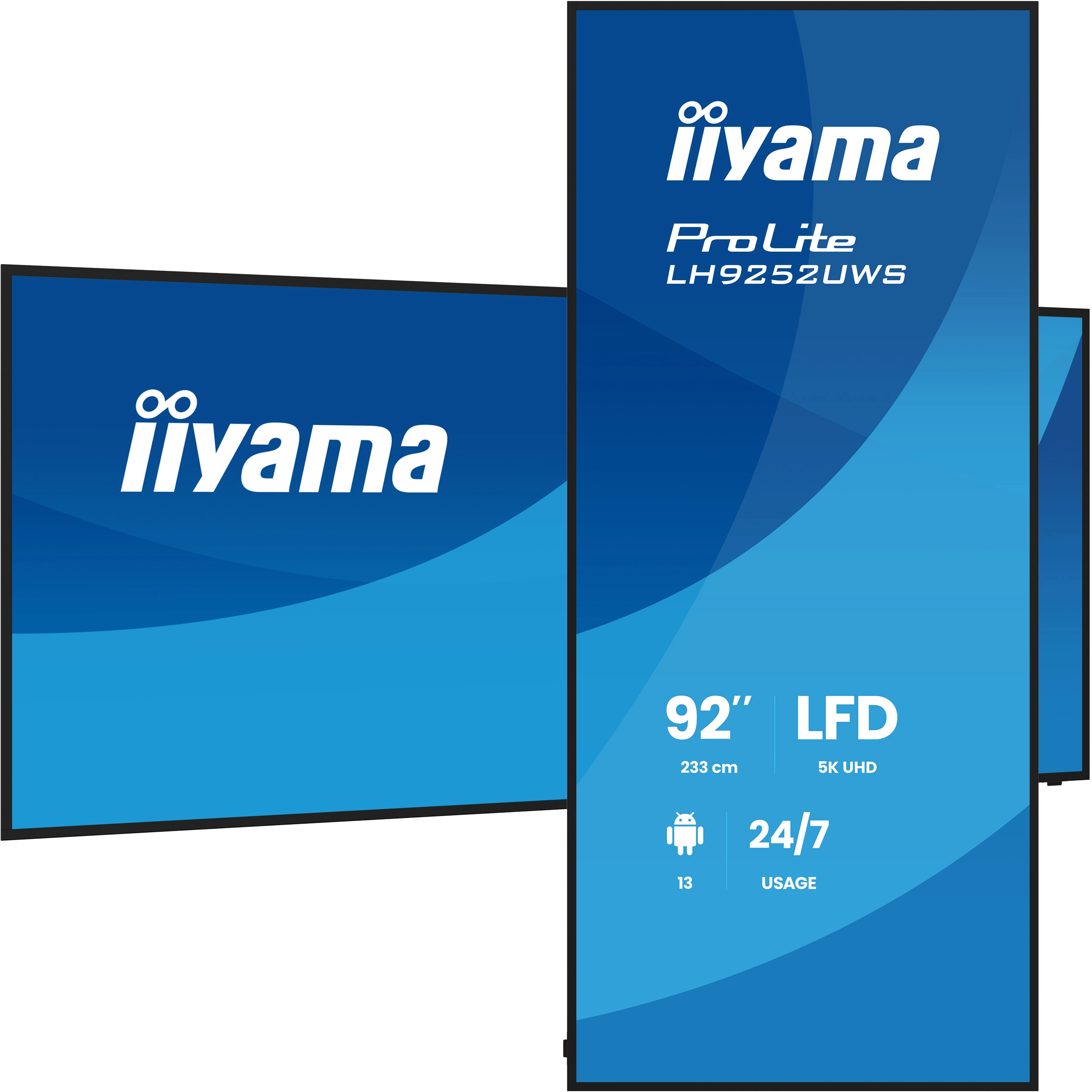

Orientation	Horizontal/Vertical

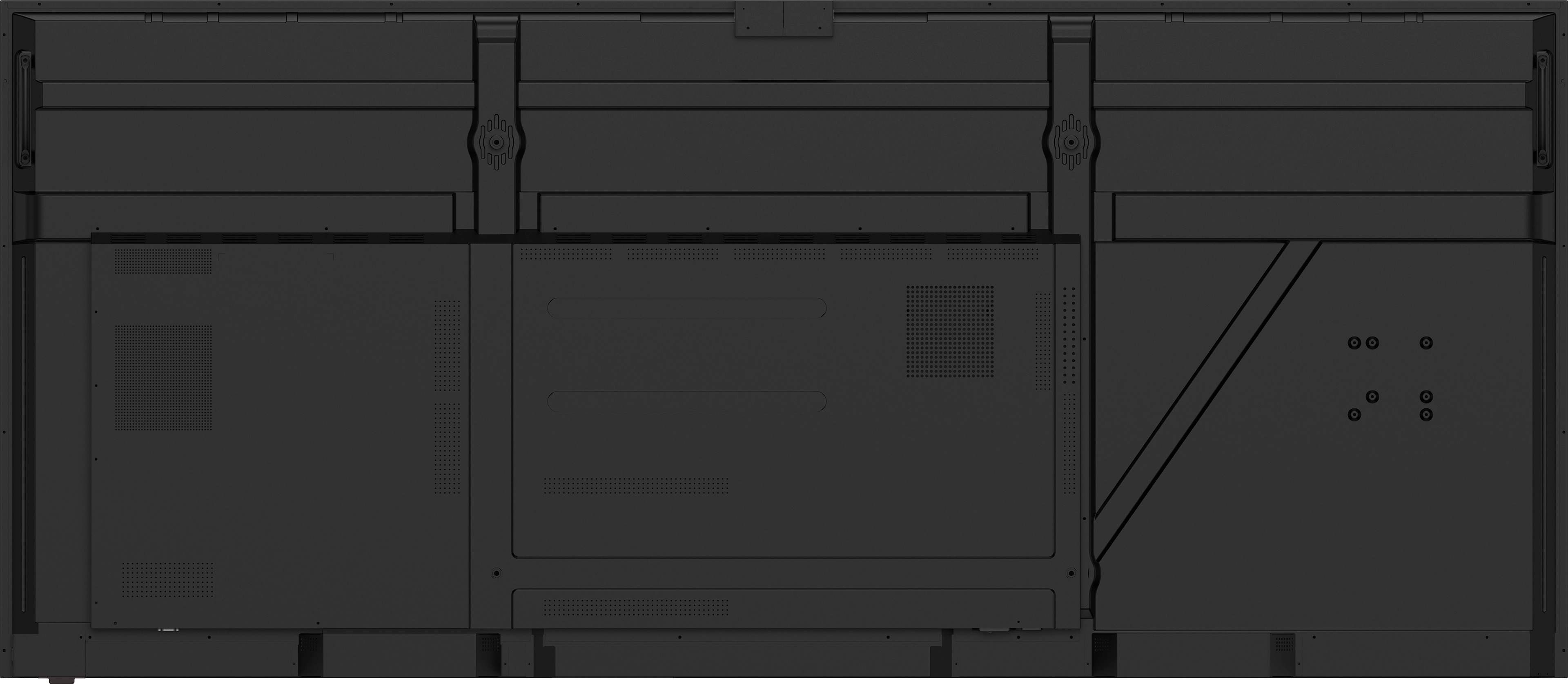

VESA mounting	Y
Panel mounting interface	800 x 600 mm
Anti-glare screen	Y
Bezel width (top)	14.9 mm
Bezel width (side)	14.9 mm
Bezel width (bottom)	14.9 mm
Performance
Purpose	Commercial
On Screen Display (OSD)	Y
Number of OSD languages	18
On Screen Display (OSD) languages	CAT, CHI (TR), CZE, DAN, DEU, ENG, ESP, EST, FIN, FRE, HUN, ITA, JPN, LIT, LAT, DUT, POL, RUS
Operating hours (hours/days)	24/7
HDCP	Y
HDCP version	1.4
Power
Power consumption (typical)	201 W
Power consumption (standby)	0.5 W
Power consumption (off)	0.3 W
Energy efficiency class (SDR)	G
AC input voltage	100 - 240 V
Energy efficiency class (HDR)	Not available
AC input frequency	50/60 Hz
Computer system
Built-in processor	Y
Processor model	RK3588
Processor architecture	ARM Cortex-A76+Cortex-A55
Processor cores	8
Internal memory	8 GB
Internal storage capacity	128 GB
On-board graphics adapter model	Mali-G640 MP4
Operating system installed	Android
Operating system version	13
Weight & dimensions
Display width	2182 mm

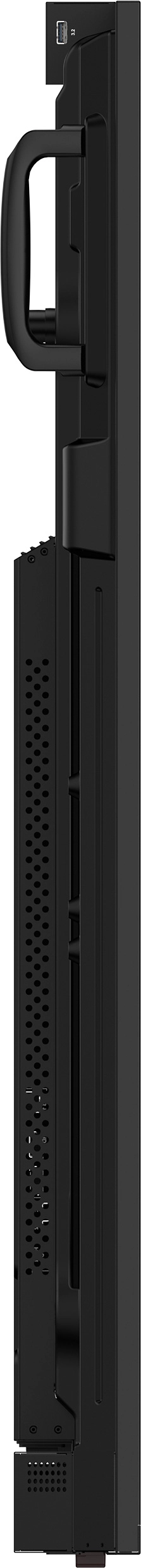

Display depth	85.2 mm
Display height	943.8 mm
Display weight	44000 g
Width	2182 mm
Depth	85.2 mm
Height	943.8 mm
Weight	44000 g
Packaging data
Package width	2360 mm
Package depth	225 mm
Package height	1072 mm
Package weight	63000 g
Packaging content
Handheld remote control	Y
Batteries included	Y

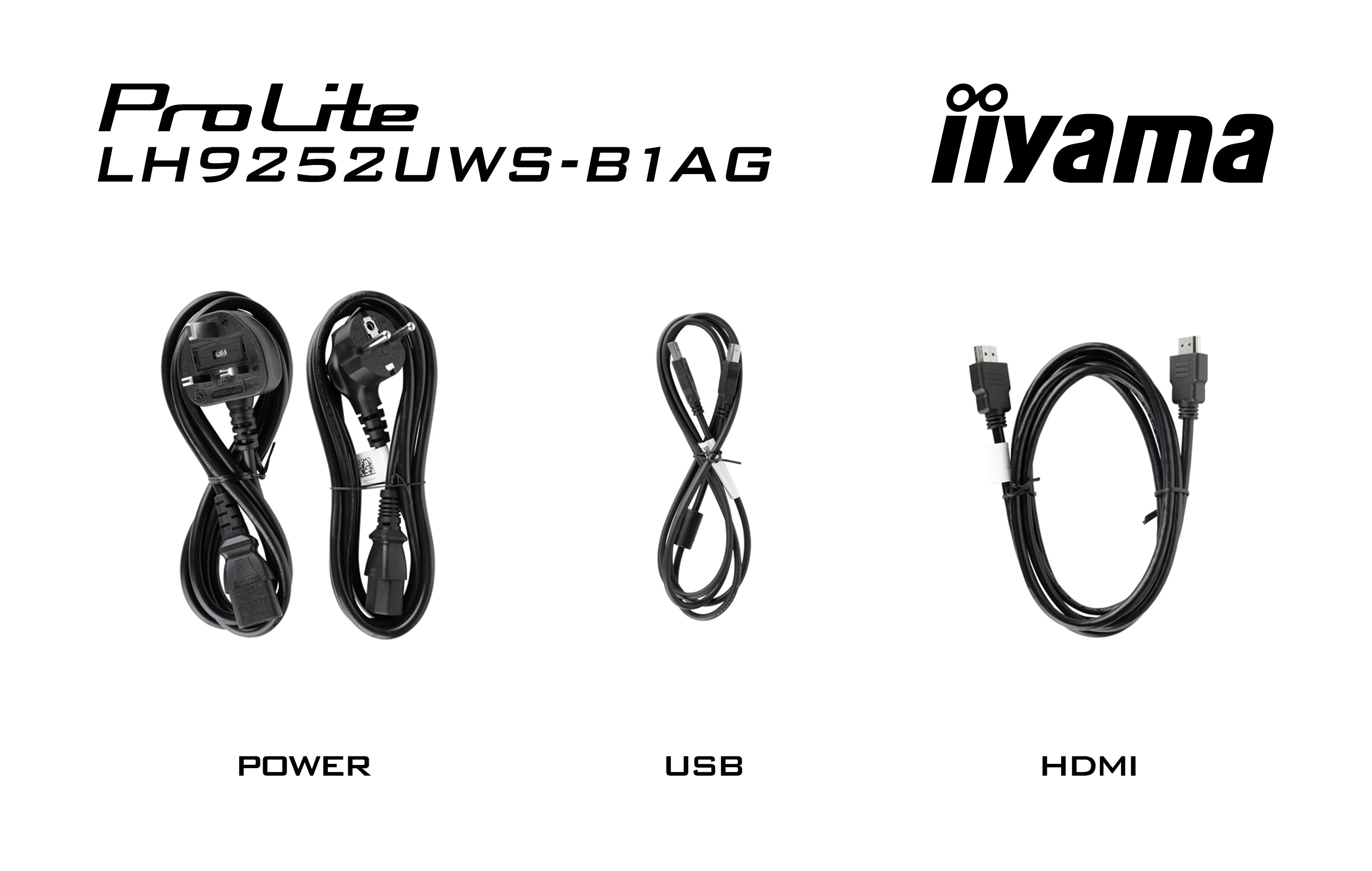

Cables included	AC, HDMI, DisplayPort, RS-232
Wi-Fi module included	Y
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Logistics data
Quantity per pallet	50 stuk(s)
Technical details
Pallet net depth	120 mm
Pallet net width	2380 mm
Compliance certificates	CB, CE, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE
Sustainability certificates	ErP
Pallet net height	1140 mm
OPS slot	1
User controls	Wireless & Network(Ethernet, Wi-Fi, Hotspot, VPN, Share Network), Personal(Wallpaper), Input & Output(Sound Output Settings, Input Naming Settings, HDMI OUT Format, CEC), System(Date & Time, Language & Keyboard, Startup & Shutdown, Screen orientation, Pixel Shift, Storage, System Update, Advance Settings, Security, User Experience Improvement), About(Legal Information, Module Number, Android Version, Kernel Version, Build Number, Firmware Version, Serial Number)
Audio in (mini jack)	Y
Other features
Power supply type	Internal
Quick start guide	Y
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Display technology	LCD
