An Intel i5 OPS slot PC with Windows 10 IoT Enterprise and TPM 2.0 (Trusted Platform Module)

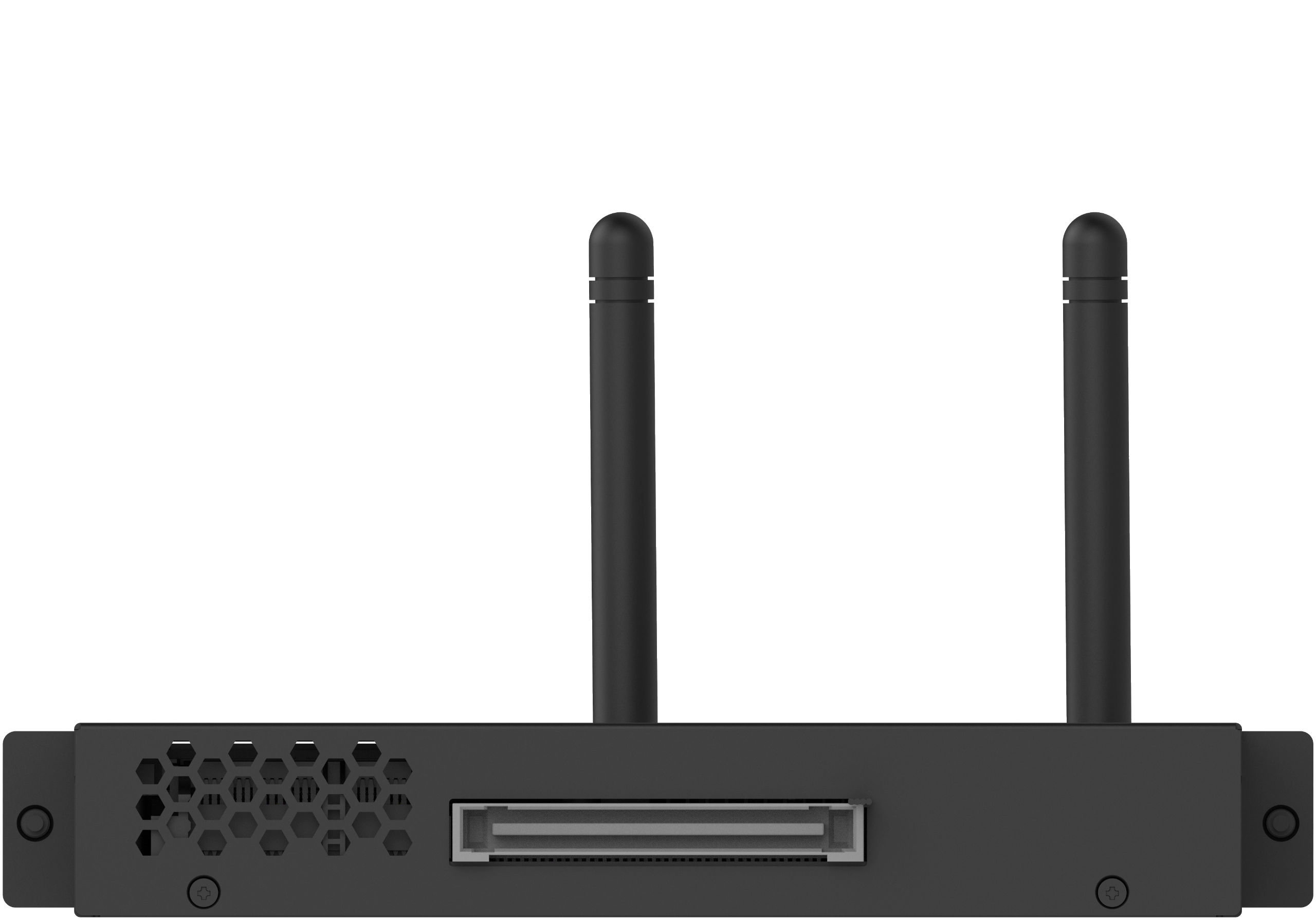

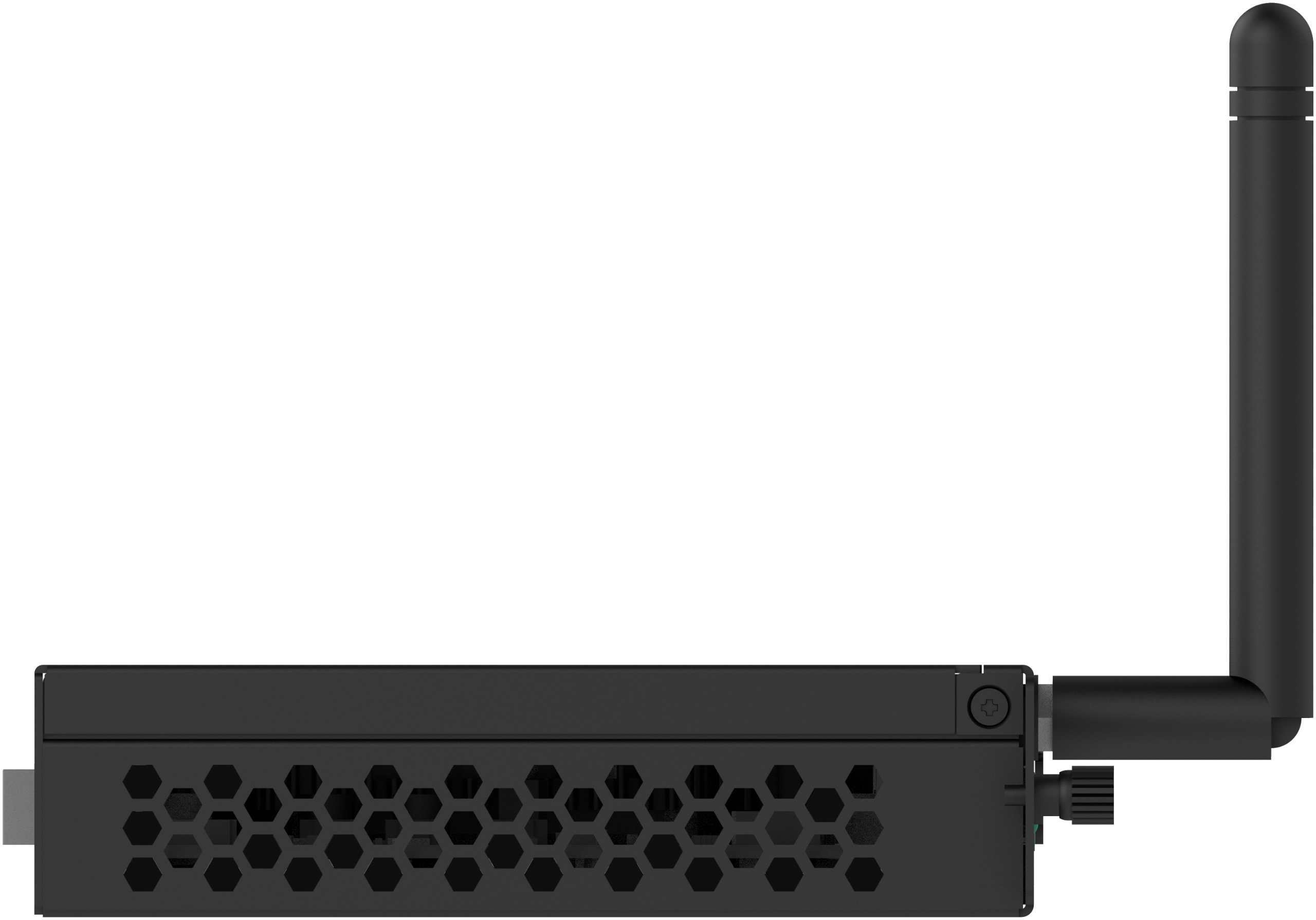

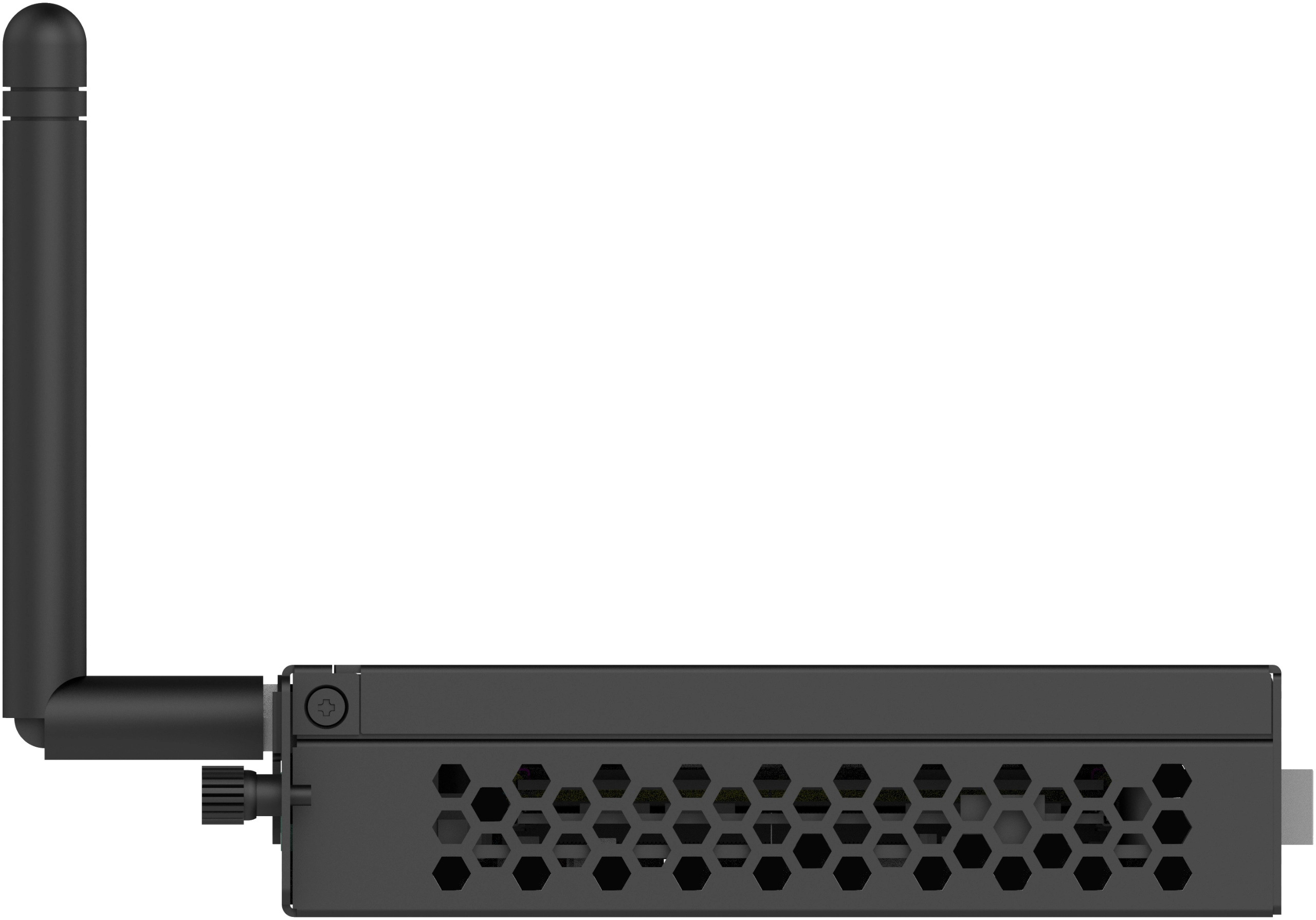

This mini OPS PC with Intel Core i5 inside turns your iiyama interactive large format display into a stand-alone solution. It comes equipped with a powerful Intel® processor with integrated Ultra HD graphics and a fast SSD drive. No hassle with cables and having to mount a PC at the back of the monitor or on a floor lift. Simply slide in the iiyama OPS slot PC and get started right away.

The module is standard Intel OPS compatible, including the following iiyama displays: 65'': TE6502MIS-B1AG, 75": TE7502MIS-B1AG, 86'': TE8602MIS-B1AG and the 55": TE5504MIS-B3AG, 98": TE9804MIS-B1AG

Specification

Product
Product id	840101
Brand	iiyama
Partnr	OPC51103BC
EAN/UPC code	4948570032822
Warranty (months)	36 months
Processor
Processor manufacturer	Intel
Processor family	Intel Core i5
Processor generation	Intel Core i5-11xxx
Processor model	i5-1135G7
Processor cores	4
Processor boost frequency	4.2 GHz
Processor socket	FCBGA1449
Processor cache	8 MB
Processor cache type	Smart Cache
Configurable TDP-up frequency	2.4 GHz
Configurable TDP-up	28 W
Configurable TDP-down	12 W
Configurable TDP-down frequency	0.9 GHz
Memory
Internal memory	8 GB
Internal memory type	DDR4-SDRAM
ECC	N
Storage
Total storage capacity	256 GB
Optical drive type	N
Storage media	SSD
Total SSDs capacity	256 GB
Number of SSDs installed	1
SSD capacity	256 GB
SSD interface	M.2
Graphics
Discrete graphics adapter	N
On-board graphics adapter	Y
Discrete graphics adapter model	Not available
On-board graphics adapter family	Intel Iris Xe Graphics
On-board graphics adapter model	Intel Iris Xe Graphics
On-board graphics adapter DirectX version	12.1
On-board graphics adapter OpenGL version	4.6
Number of execution units	80
Network
Ethernet LAN	Y
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Wi-Fi	Y
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Bluetooth	Y
Bluetooth version	4.2

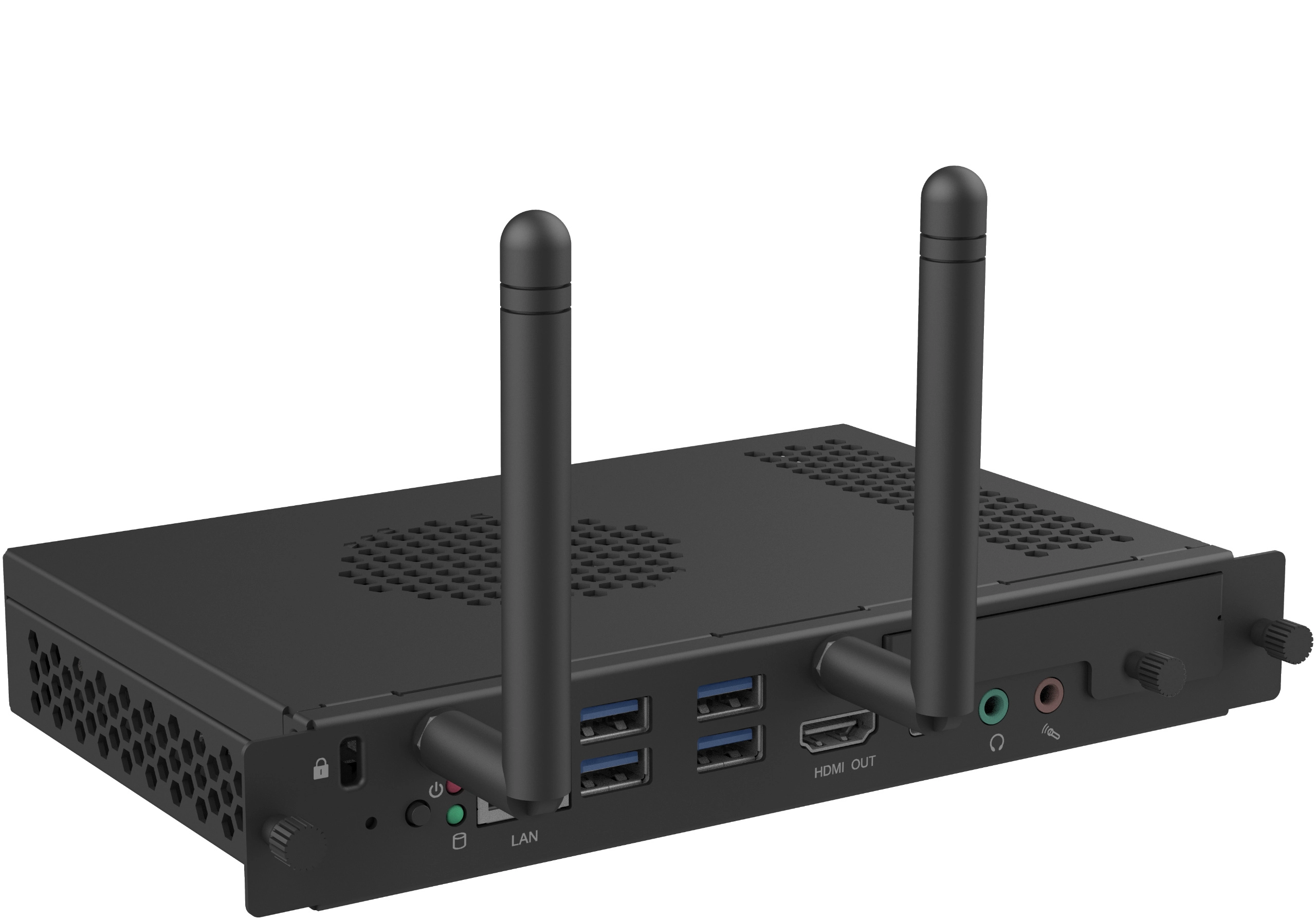

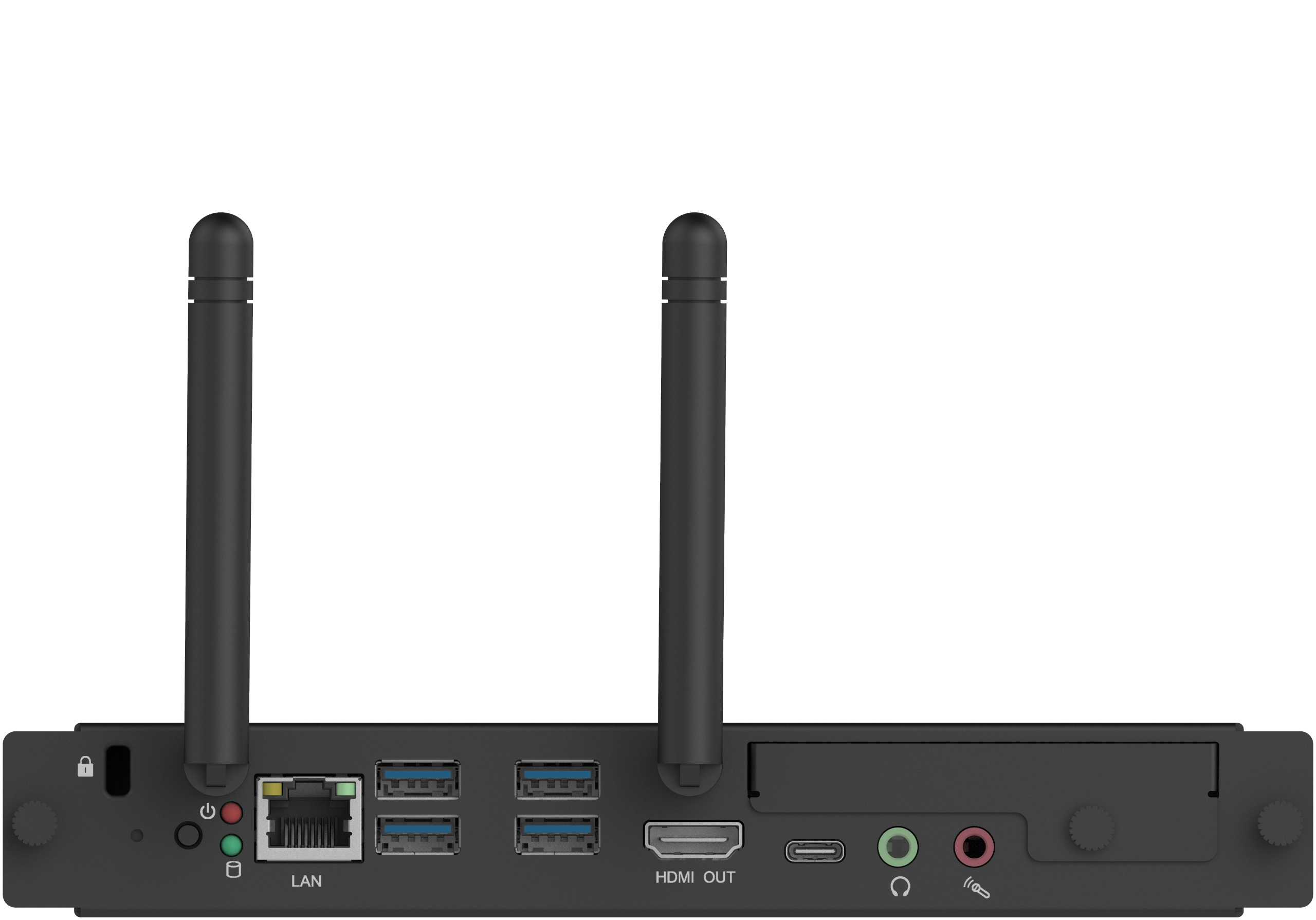

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Intel® Thunderbolt 4	Y
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
Microphone in	Y
Headphone outputs	1
Design
Chassis type	Mini PC
Product colour	Black
Performance
Product type	Mini PC (<= 3L)
Trusted Platform Module (TPM)	Y
Status	Launched
Software
Operating system installed	Windows 10 IoT Enterprise
Operating system architecture	64-bit
Processor special features
Intel® vPro™ Platform Eligibility	N
CPU configuration (max)	1
Supported instruction sets	AVX 2.0, AVX-512, SSE4.1, SSE4.2
Intel Software Guard Extensions (Intel SGX)	N
Intel Virtualization Technology for Directed I/O (VT-d)	Y
Intel® Smart Sound Technology	Y
Intel Virtualization Technology (VT-x)	Y
Intel® High Definition Audio (Intel® HD Audio)	Y
Intel® Clear Video HD Technology (Intel® CVT HD)	Y
Intel Trusted Execution Technology	N
Intel® OS Guard	Y
Intel® AES New Instructions (Intel® AES-NI)	Y
Intel Stable Image Platform Program (SIPP)	N
Thermal Monitoring Technologies	Y
Embedded options available	N
Intel VT-x with Extended Page Tables (EPT)	Y
Idle States	Y
Intel® Turbo Boost Technology	2.0
Intel® Quick Sync Video Technology	Y
Power
Power consumption (typical)	65 W
Power consumption (standby)	1.5 W
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	10 - 90 procent
Storage relative humidity (H-H)	10 - 90 procent
Weight & dimensions
Width	133.5 mm
Depth	202 mm
Height	30 mm
Weight	750 g
Package width	192 mm
Package depth	267 mm
Package height	72 mm
Package weight	970 g
Packaging content
Display included	N
Mouse included	N
Keyboard included	N
