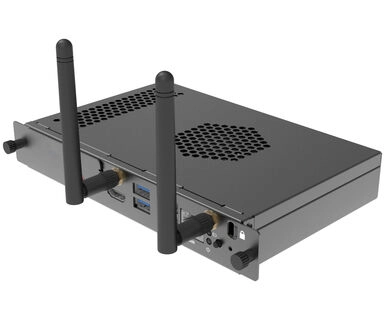

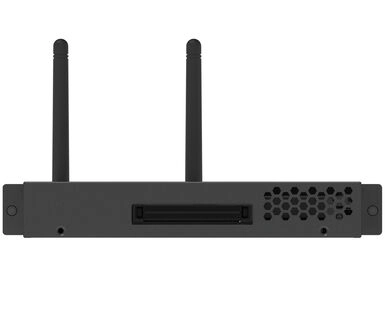

This mini OPS PC with Intel® Core™ i5 inside turns your iiyama interactive large format display into a stand-alone solution. It comes equipped with a powerful Intel® processor with integrated Ultra HD graphics and a fast SSD drive. No hassle with cables and having to mount a PC at the back of the monitor or on a floor lift. Simply slide in the iiyama OPS slot PC and get started right away.

Specification

Product
Product id	789803
Brand	iiyama
Partnr	OPC5801BC
EAN/UPC code	4948570032884
Warranty (months)	36 months
Processor
Processor manufacturer	Intel
Processor family	Intel Core i5-8xxx
Processor model	i5-8265U
Bus type	OPI
Configurable TDP-up frequency	1.8 GHz
Configurable TDP-up	25 W
Configurable TDP-down	10 W
Configurable TDP-down frequency	0.8 GHz
Memory
Internal memory	8 GB
Internal memory type	DDR4-SDRAM
Storage
Total storage capacity	256 GB
Optical drive type	N
Graphics
On-board graphics adapter	Y
On-board graphics adapter model	Intel UHD Graphics 620
Network
Ethernet LAN	Y
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Wi-Fi	Y
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Bluetooth	Y
Bluetooth version	5.0

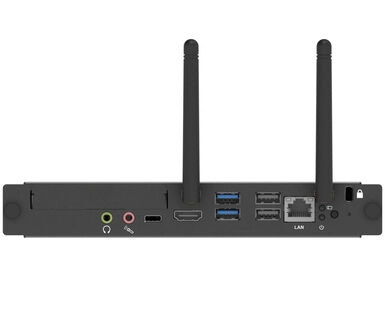

Ports & interfaces
USB 2.0 ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB Type-C DisplayPort Alternate Mode	N
VGA (D-Sub) ports quantity	1
HDMI ports quantity	1
DisplayPorts quantity	1
Ethernet LAN (RJ-45) ports	1
Microphone in	Y
Headphone outputs	1
Design
Chassis type	Mini PC
Product colour	Black
Performance
Product type	Mini PC (<= 3L)
Software
Operating system installed	Windows 10 IoT Enterprise
Operating system architecture	64-bit
Processor special features
CPU configuration (max)	1
Intel Software Guard Extensions (Intel SGX)	Y
Intel Enhanced Halt State	Y
Intel Virtualization Technology for Directed I/O (VT-d)	Y
Intel TSX-NI version	0.00
Intel Smart Response Technology version	1.00
Intel Virtualization Technology (VT-x)	Y
Intel Secure Key Technology version	1.00
Intel Stable Image Platform Program (SIPP) version	0.00
Intel Identity Protection Technology version	1.00
Intel Flex Memory Access	Y
Enhanced Intel SpeedStep Technology	Y
Intel 64	Y
Execute Disable Bit	Y
Intel Trusted Execution Technology	N
Intel Stable Image Platform Program (SIPP)	N
Embedded options available	N
Intel Clear Video Technology	Y
Intel VT-x with Extended Page Tables (EPT)	Y
Intel TSX-NI	N
Idle States	Y
Power
Power supply	60 W
Power consumption (typical)	60 W
Power consumption (standby)	1.2 W
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	10 - 90 procent
Storage relative humidity (H-H)	10 - 90 procent
Weight & dimensions
Width	202 mm
Depth	133 mm
Height	30 mm
Weight	740 g
Package width	267 mm
Package depth	192 mm
Package height	72 mm
Packaging content
Display included	N
