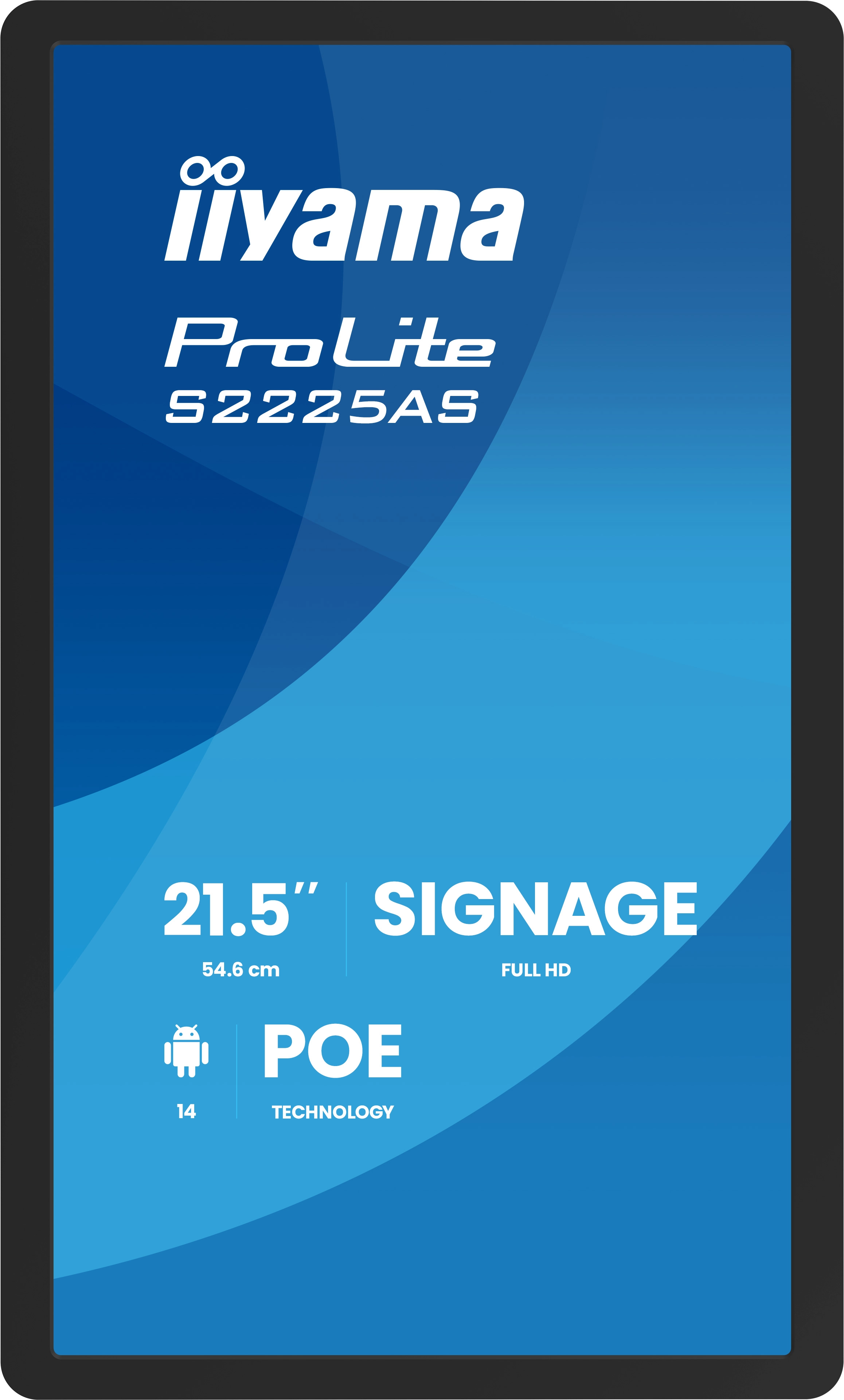

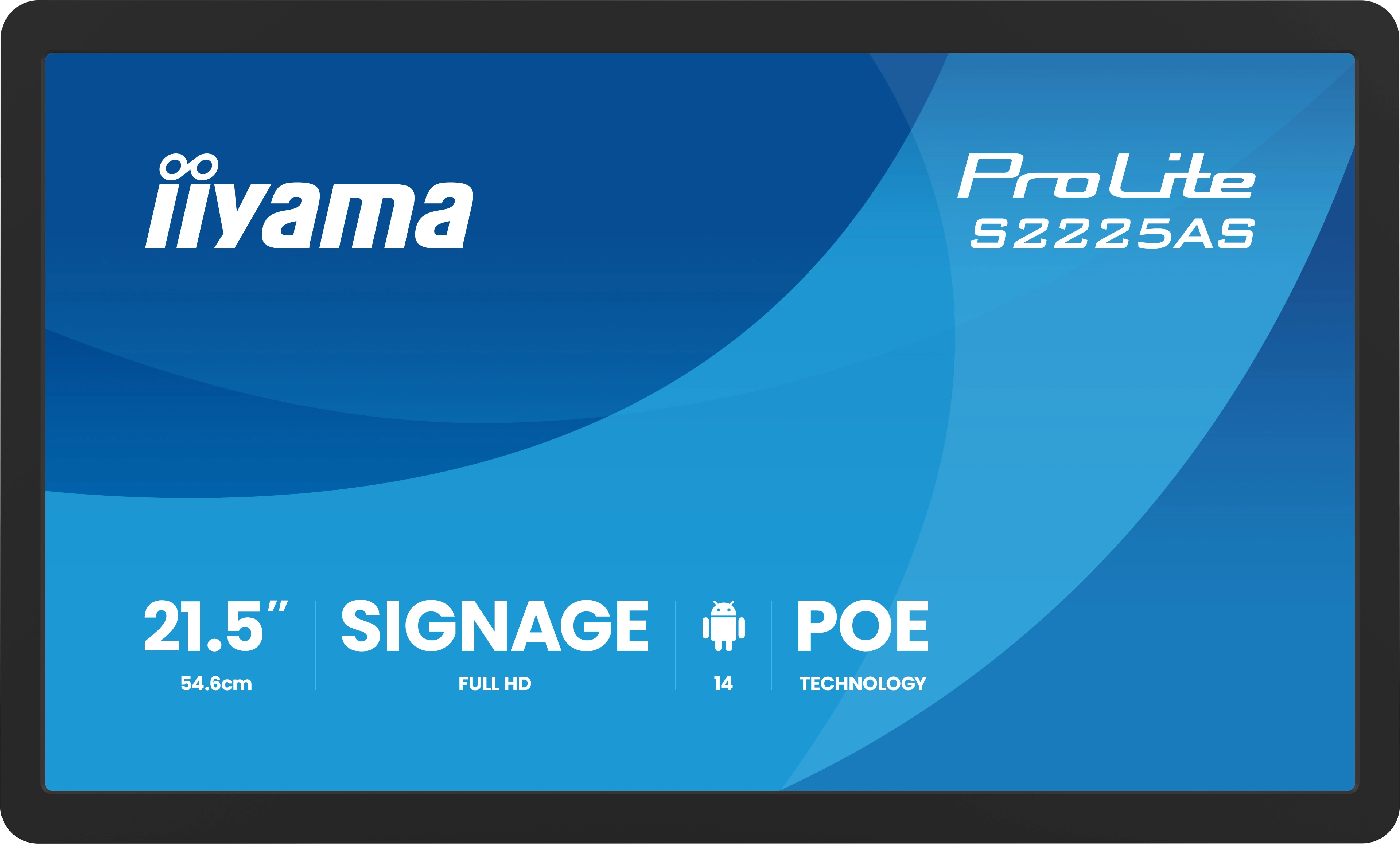

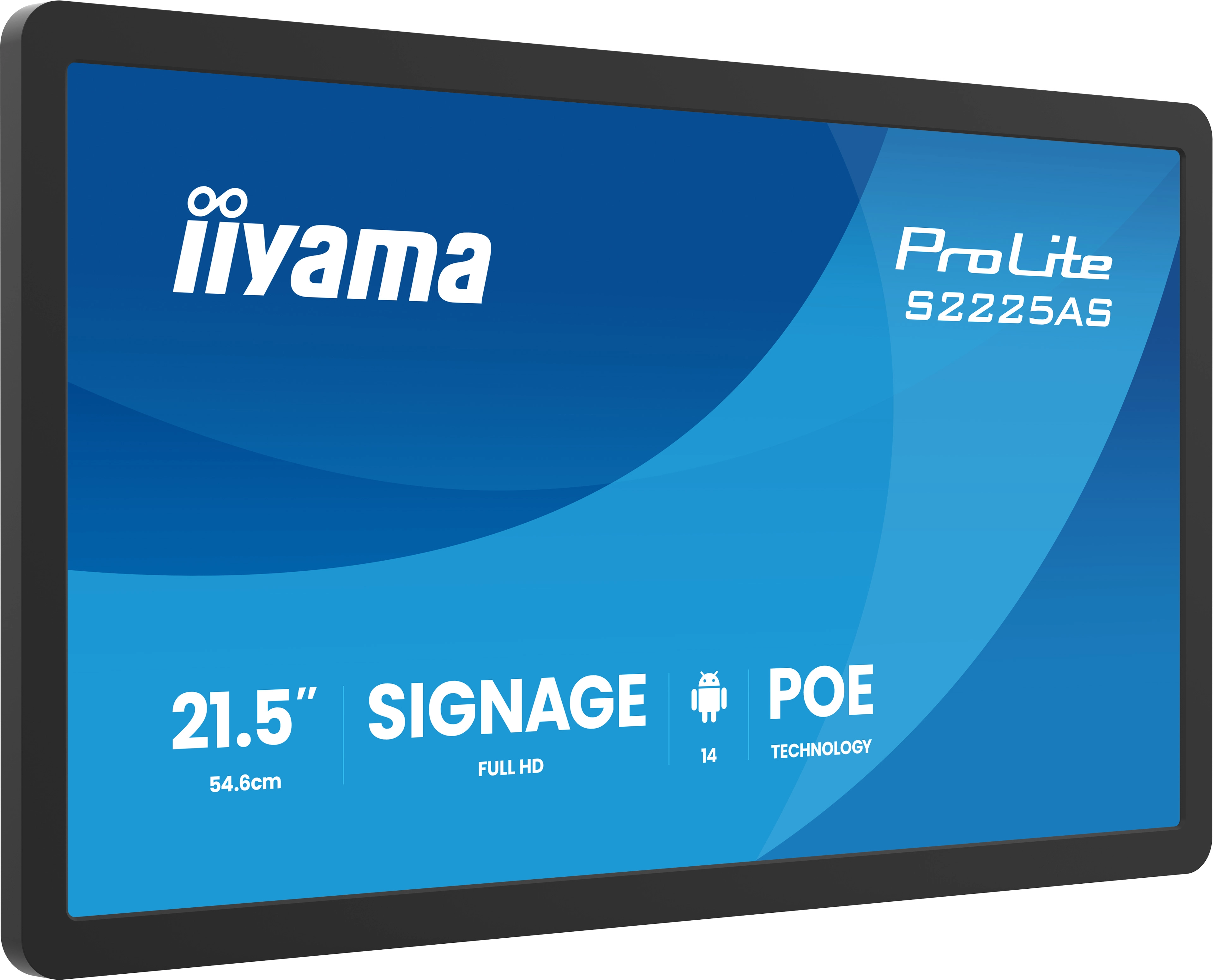

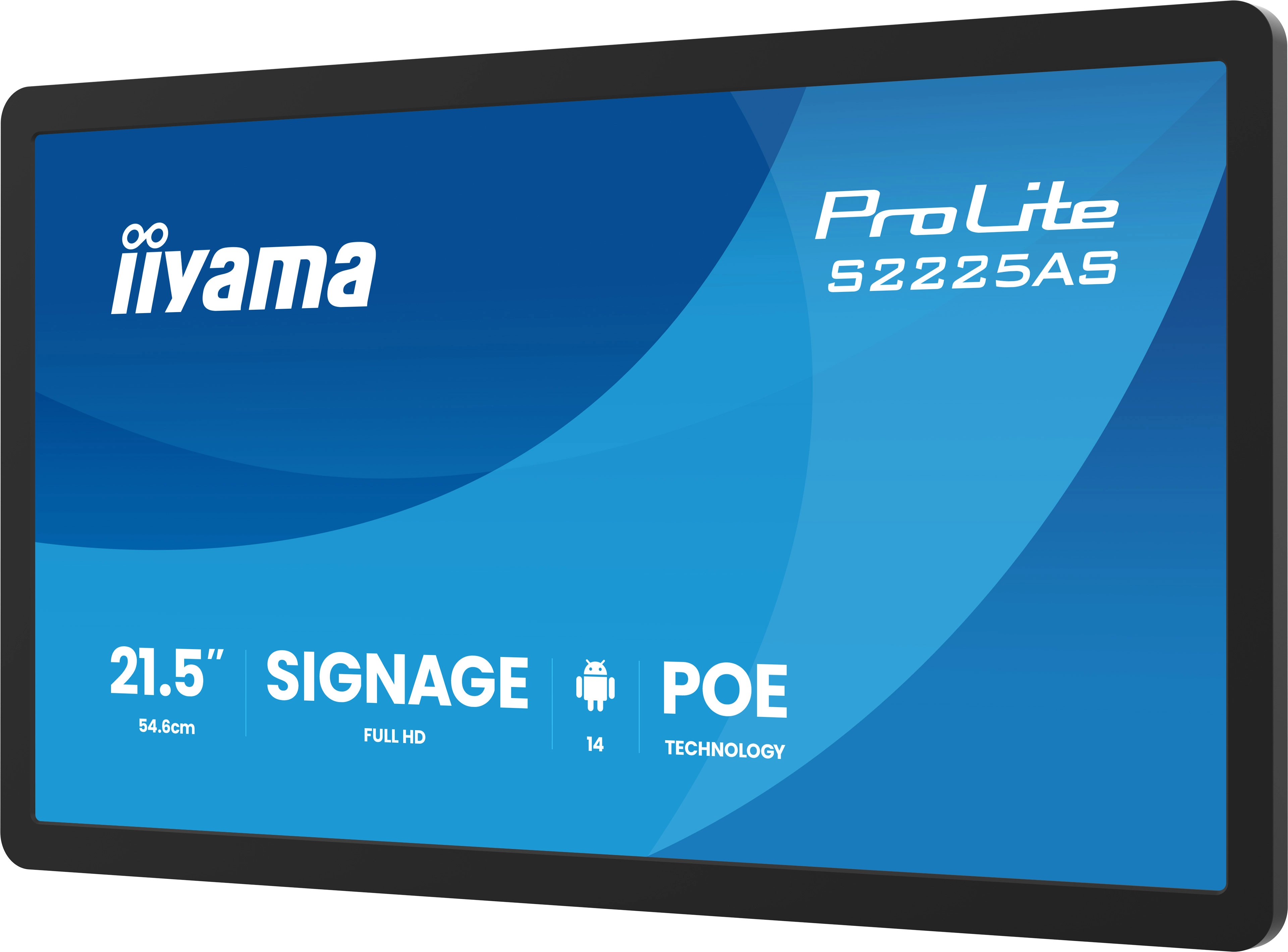

The ProLite S2225AS-B1P is a 21.5” Android-based display created specifically for reliable content playback in professional environments. This specialist signage display is ideal for supermarkets, retail stores and public spaces where clear, continuous visual communication is required. The Full HD IPS panel with 500cd/m² brightness ensures excellent visibility, while Power over Ethernet (PoE) allows for a simple and efficient installation using a single cable for power and data. iiyama guarantees compatibility with this platform for a minimum of 5 years, ensuring long-term reliability and peace of mind for professional installations.

Specification

Product
Product id	1010436
Brand	iiyama
Partnr	S2225AS-B1P
EAN/UPC code	4948570127177
Warranty (months)	36 months
Display
Display diagonal	21.5 inch
Display resolution	1920 x 1080 Pixels
Display brightness	500 cd/m²
HD type	Full HD
Touchscreen	N
Native aspect ratio	16:9
Response time	14 ms
Contrast ratio (typical)	1500:1
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Display number of colours	16.7 million colours
Pixel pitch	0.284 x 0.284 mm
Active display area (W x H)	476.1 x 267.8 mm
Display diagonal (metric)	54.6 cm
Surface hardness	3H
Haze rate	25 procent
Horizontal scan range	31 - 83 kHz
Panel type	IPS
Ports & interfaces
HDMI ports quantity	1
DVI port	N
USB port	Y
USB ports quantity	2
USB version	2.0/3.2 Gen 1 (3.1 Gen 1)
Ethernet LAN	Y
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Ethernet LAN (RJ-45) ports	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
Ethernet LAN data rates	1000 Mbit/s
Wi-Fi	Y
Microphone in	Y
Audio
Built-in speaker(s)	Y
Number of built-in speakers	2
RMS rated power	10 W
Design
Design	Digital signage flat panel
Product colour	Black
Placement supported	Indoor
Orientation	Horizontal/Vertical
Screen shape	Flat screen
VESA mounting	Y
Panel mounting interface	100 x 100 mm
Anti-glare screen	Y
Bezel colour	Black
Performance
Purpose	Universal
Operating hours (hours/days)	24/7
Mean time between failures (MTBF)	50000 uur
Number of microphones	2
Power
Power consumption (typical)	17.5 W
Power consumption (standby)	14 W
Power consumption (off)	3.5 W
Computer system
Computer system	Y
Computer system type	System on Chip (SoC)
Built-in processor	Y
Processor manufacturer	Rockchip
Processor family	ARM Rockchip
Processor model	Rockchip RK3576
Processor cores	8
Internal memory	4 GB
Internal storage capacity	32 GB
On-board graphics adapter model	ARM Mali-G52
Operating system installed	Android
Operating system version	14
Weight & dimensions
Display width	510.5 mm
Display depth	33.5 mm
Display height	308.5 mm
Display weight	2800 g
Width	510.5 mm
Depth	33.5 mm
Height	308.5 mm
Weight	2800 g
Packaging data
Package width	578 mm
Package depth	123 mm
Package height	374 mm
Packaging content
Cables included	AC
Power adapter included	Y
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Technical details
Compliance certificates	CE, EAC, REACH, RoHS, UKCA, WEEE
Sustainability certificates	ErP
User controls	Power switch, Volume
Other features
USB connector type	USB Type-A, USB Type-C
Power supply type	External
Built-in microphone	Y
Bluetooth version	5.3
Bluetooth	Y
USB 2.0 ports quantity	2
Wi-Fi standards	Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11a, 802.11b
Display technology	LCD
