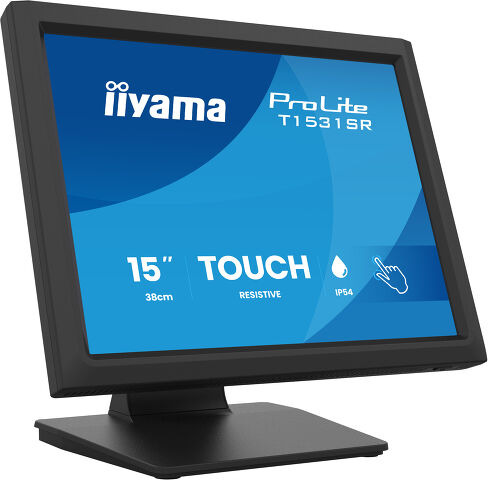

The ProLite T1531SR-B2S is designed for workplaces where touch interaction needs to be simple, reliable and practical. Its 5-wire resistive touch technology responds to almost any suitable input method, including a finger, glove, stylus or pen-like tool. This makes it ideal for environments where users work quickly, wear gloves or need dependable touch operation without relying on bare fingers. With its IP54-rated front surface, the display is protected against dust and splashing water from the front, making it a strong choice for retail counters, restaurants, workshops, warehouses and light industrial applications. The monitor also offers flexible analogue and digital inputs with USB touch support for easy integration. An adjustable ergonomic stand and integrated cable management help create a clean, comfortable and professional workspace.

Specification

Product
Product id	1030720
Brand	iiyama
Partnr	T1531SR-B2S
EAN/UPC code	4948570127665
Warranty (months)	24 months
Technical details
Brightness	270 cd/m²
Sustainability certificates	ErP
Compliance certificates	CE, cULus, EAC, REACH, RoHS, UKCA, VCCI, WEEE
Native refresh rate	75 Hz
Display
Display diagonal	15 inch
Display brightness	270 cd/m²
Display resolution	1024 x 768 Pixels
Native aspect ratio	4:3
Panel type	VA
Touchscreen technology	Resistive
Response time	18 ms
HD type	XGA
Screen shape	Flat screen
Contrast ratio (typical)	2500:1
Maximum refresh rate	75 Hz
Viewing angle, horizontal	176 °
Viewing angle, vertical	176 °
Display number of colours	16.2 million colours
Display diagonal (metric)	38 cm
Pixel pitch	0.297 x 0.297 mm
Horizontal scan range	31 - 60 kHz
Viewable size, horizontal	304 mm
Viewable size, vertical	228 mm
Performance
Compatible operating systems	All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Multimedia
Built-in speaker(s)	Y
Built-in camera	N
Number of speakers	2
RMS rated power	2 W
Design
Market positioning	Industrial
Product colour	Black
Front bezel colour	Black
International Protection (IP) code	IP54
Certification	CE, EAC, VCCI-B, RoHS podrška, ErP, WEEE, cULus, REACH, UKCA
Ports & interfaces
VGA (D-Sub) ports quantity	1
HDMI	Y
HDMI ports quantity	1
DisplayPorts quantity	1
Audio input	Y
USB Touch port	Y
HDCP	Y
Ergonomics
VESA mounting	Y
Panel mounting interface	100 x 100 mm
Cable lock slot	Y
Cable management	Y
Cable lock slot type	Kensington
Wall mountable	Y
Tilt adjustment	Y
On Screen Display (OSD)	Y
On Screen Display (OSD) languages	CHI (TR), DEU, ENG, ESP, FRE, ITA, JPN
Packaging data
Cables included	AC, USB, HDMI, DisplayPort, Audio
Power cable length	1.8 m
Audio cable length	1.8 m
DisplayPort cable length	1.8 m
HDMI cable length	1.8 m
USB cable length	1.8 m
Quick start guide	Y
Package width	425 mm
Package depth	160 mm
Package height	410 mm
Package weight	5900 g
Power
Energy efficiency class (SDR)	E
Energy consumption (SDR) per 1000 hours	11 kWu
Power consumption (typical)	16 W
Energy efficiency class (HDR)	Not available
Power consumption (standby)	1.5 W
Power consumption (off)	0.3 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Energy efficiency scale	A to G
Weight & dimensions
Width (with stand)	351 mm
Depth (with stand)	200 mm
Height (with stand)	306.5 mm
Weight (with stand)	4100 g
Width	351 mm
Depth	200 mm
Height	306.5 mm
Weight	4100 g
Other features
Active display area (W x H)	304 x 228 mm
Power supply type	Internal
Touchscreen	Y
Number of simultaneous touchpoints	1
Touchscreen type	Tabletop
Mean time between failures (MTBF)	50000 uur
Packaging content	Screwdriver
Touch method	stylus, finger, glove, glove (latex)
Control panel	Menu, Scroll up/ Brightness, Scroll down/ Mute, Select, Power
User controls	contrast, brightness, lock mode (power, OSD), auto adjust, OSD, H. position, V. position, H-size, fine, OSD H. position, OSD V. position, OSD timeout, reset, input select, OSD language, colour temperature, volume, mute
