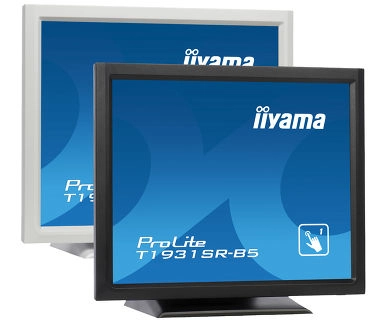

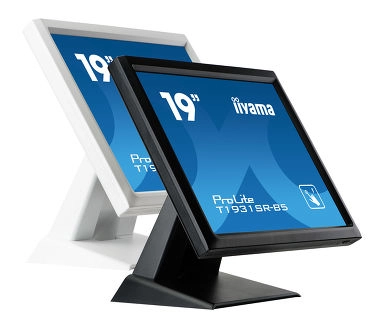

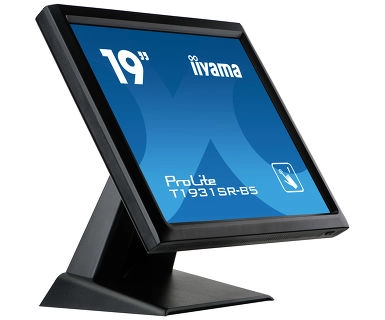

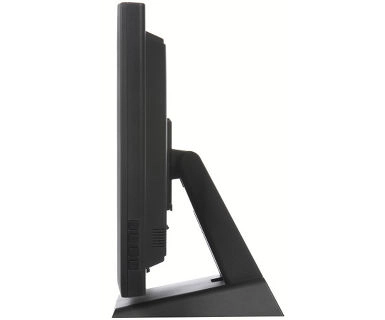

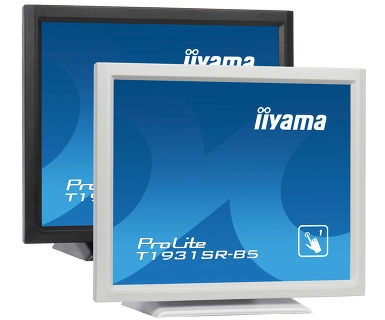

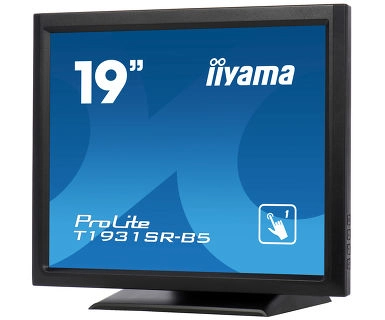

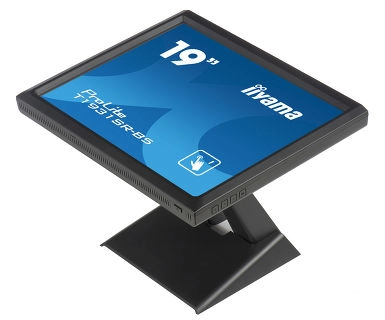

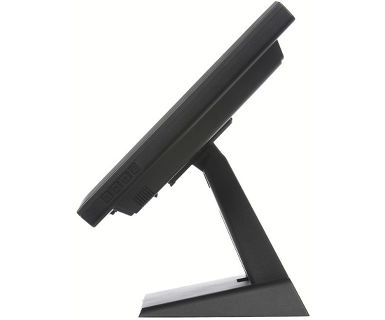

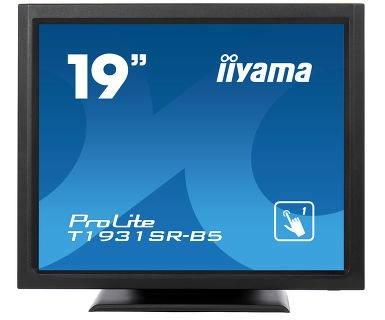

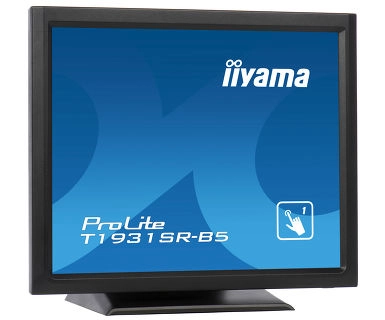

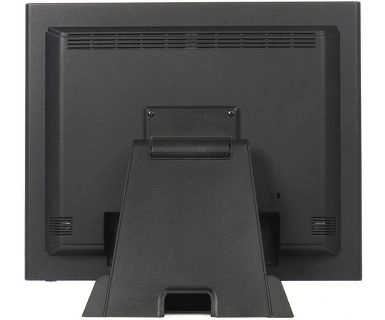

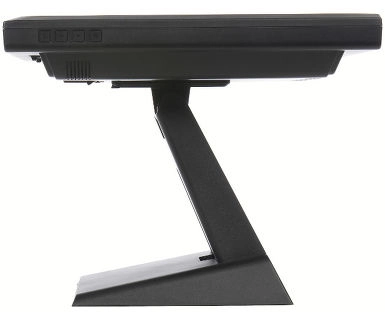

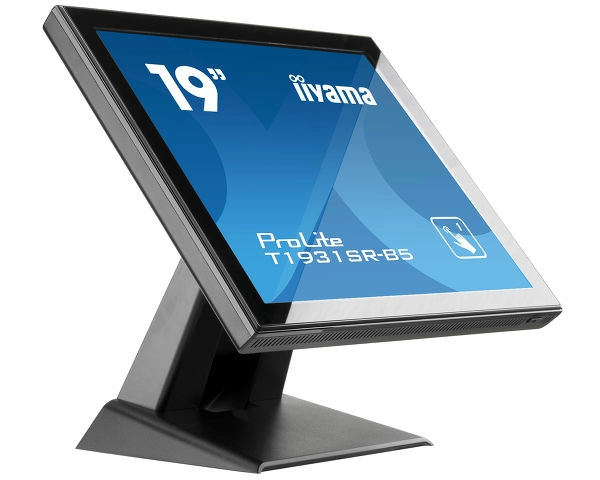

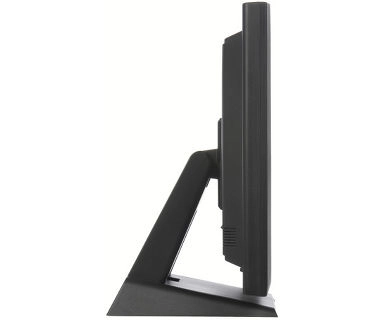

ProLite T1931SR-B5 is based on 5 wire resistive touch technology. The price / performance ratio is ideal for the budget conscious user while quality and performance are certainly not compromised. The display inputs include both analogue and digital (HDMI and DisplayPort) with touchscreen connectivity via USB offering great flexibility. A solid and steady base supports the touchscreen with an adjustable stand offering full 90-degree angles. The ProLite T1931SR-B5 can be used in a variety of environments, especially recommended for shops, restaurants and industrial purposes. Available in black and white.

Touch technology - Resistive

5-wire resistive touchscreens are very durable and can be used in a variety of environments. They are especially recommended for shops, restaurants and industrial purposes.

Specification

Product
Product id	603280
Brand	iiyama
Partnr	T1931SR-B5
EAN/UPC code	4948570116096
Warranty (months)	36 months
Display
Display diagonal	19 inch
Display brightness	200 cd/m²
Display resolution	1280 x 1024 Pixels
Display type	LED
Display technology	TN
Native aspect ratio	5:4
Aspect ratio	5:4
Viewable size, horizontal	376 mm
Viewable size, vertical	301 mm
Display number of colours	16.78 million colours
Display diagonal (metric)	48 cm
Contrast ratio (typical)	1000:1
Pixel pitch	0.294 x 0.294 mm
Horizontal scan range	31 - 80 kHz
Vertical scan range	50 - 75 Hz
Viewing angle, horizontal	170 °
Viewing angle, vertical	160 °
Viewable size diagonal	480 mm
Response time	5 ms
Design
Product colour	Black
Performance
Touch technology	Single-touch
Touchscreen technology	Resistive
Number of simultaneous touchpoints	1
RMS rated power	2 W
Built-in speaker(s)	Y
Number of speakers	2
Built-in camera	N
Built-in microphone	N
On Screen Display (OSD) languages	DEU, ENG, ESP, FRE, ITA, JPN
Number of OSD languages	7
Card reader integrated	N
HDCP	Y
Windows operating systems supported	Y
Linux operating systems supported	Y
Plug and Play	Y
Network
Ethernet LAN	N
Ports & interfaces
HDMI	Y
HDMI ports quantity	1
VGA (D-Sub) ports quantity	1
DisplayPorts quantity	1
Ergonomics
Tiltable	Y
Tilt angle range	-5 - 90 °
Cable lock slot type	Kensington
VESA mounting	Y
LED indicators	Y
Panel mounting interface	100 x 100 mm
Cable lock slot	Y
Wall mountable	Y
Power
Power supply type	AC
Energy efficiency class (SDR)	E
Power consumption (typical)	20 W
Power consumption (standby)	2 W
Energy consumption (SDR) per 1000 hours	14 kWu
AC input voltage	100 - 240 V
AC input frequency	50 / 60 Hz
Energy efficiency scale	A to G
Certificates
Certification	CB, CE, TÜV, VCCI, GOST
Weight & dimensions
Width (without stand)	432 mm
Depth (without stand)	28 mm
Height (without stand)	390 mm
Weight (without stand)	6600 g
Packaging content
Cables included	AC, Audio (3.5mm), DisplayPort, HDMI, USB
Quick start guide	Y
Other features
Megapixel	1.3 MP
Full HD	N
Power management	Y
