24i LCD 1920 x 1080. VA panel. LED Bl. Speakers. DVI-D. HDMI. DisplayPort. 215 cd/m*2. USB-Hub (2xOut). 3000:1 Static Contr. 6ms. USB 10p Multi-Touch. Web+Mic.

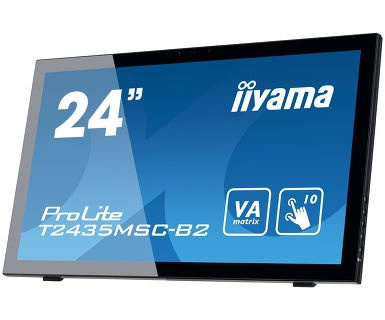

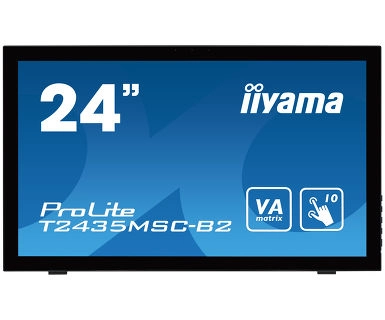

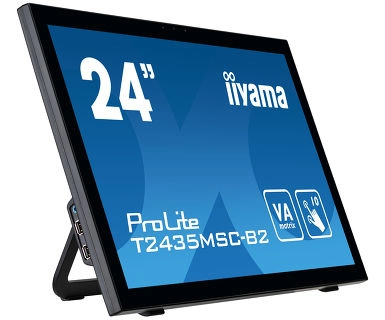

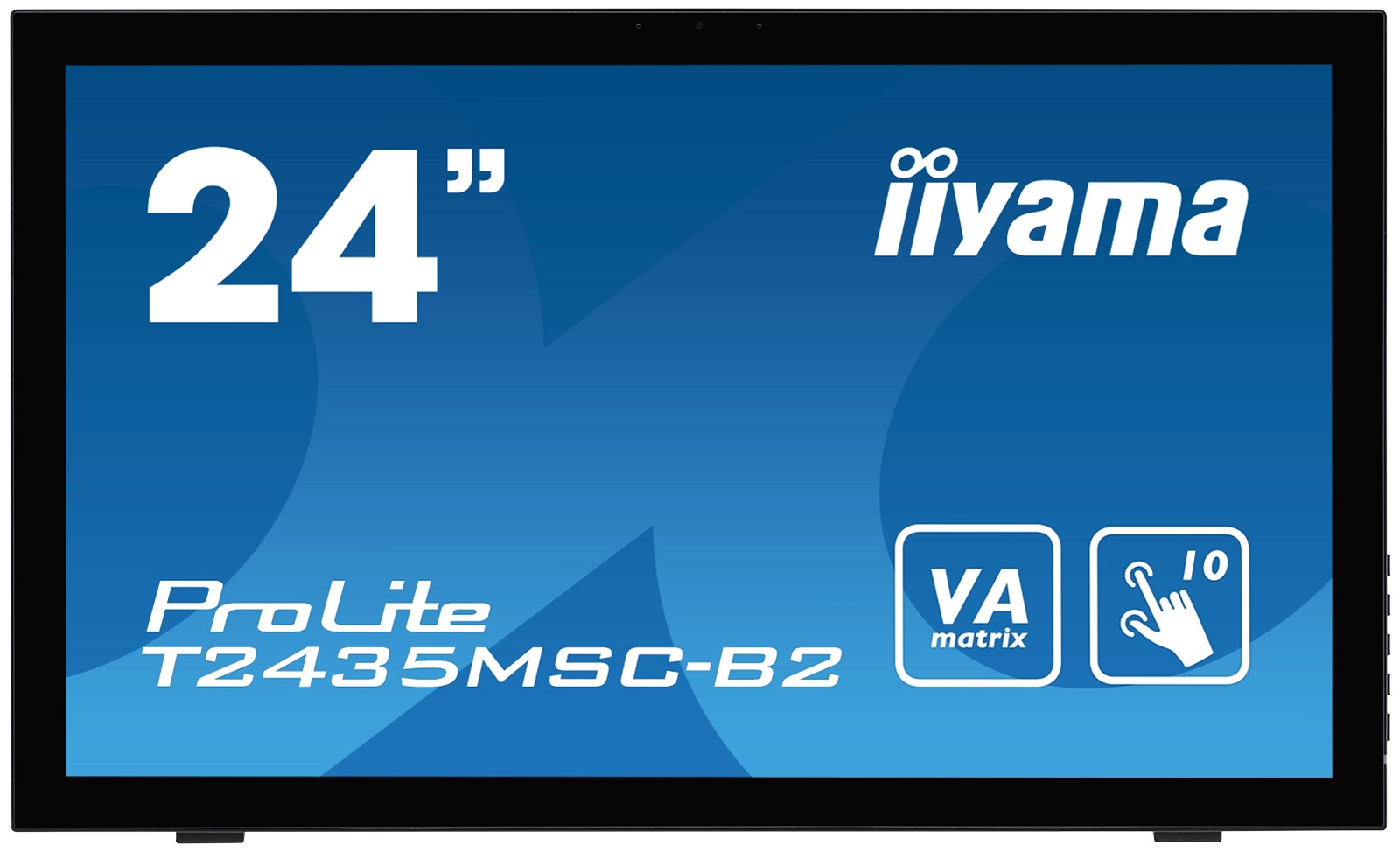

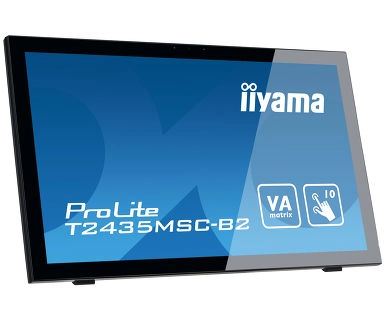

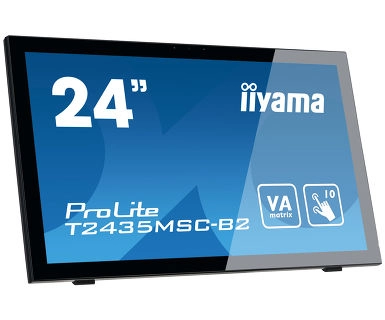

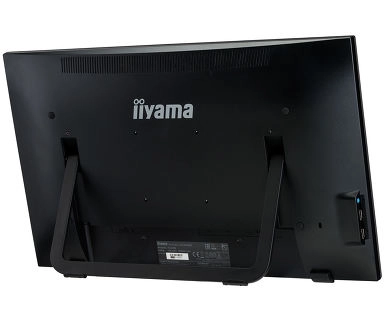

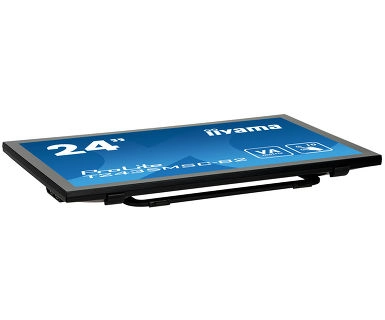

With 1920x1080 Full HD resolution and Projective Capacitive 10 point touch technology, the ProLite T2435MSC delivers seamless and accurate touch response. Featuring VA LED-backlit LCD screen technology, it offers exceptional colour performance and wide viewing angles, making it an excellent choice for a vast array of demanding interactive applications. Users can benefit from its hinged stand allowing the monitor to lay down completely flat for use as a giant tablet. The T2435MSC comes equipped with several video inputs and a USB 2.0 HUB as well as integrated stereo speakers delivering good quality sound. An ideal screen for Interactive Digital Signage, InStore Retail, Gaming and Interactive Presentations purposes.

TOUCH TECHNOLOGY - CAPACITIVE

This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (gloved or not) and magnetic ball.

SPEAKERS AND HEADPHONES

Playing with friends? Use the integrated high quality speakers. Don’t want to disturb anybody? Plug your headset to the headphone socket and turn the volume up.

SCRATCH RESISTANCE

Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.

BLUE LIGHT REDUCER

As we all know looking at a monitor screen for several hours per day, especially form a closer distance, causes eye fatigue. This effect is much stronger with computer screens than with TV equipment. One of the factors responsible for this phenomenon is the blue light emitted by the screen. Therefore reducing the amount of blue light ultimately allows our eyes to feel less tired while working long hours with a computer screen. We achieved it by adjusting the monitor's brightness and color temperature through a new feature called “Blue light reduction” easily accessible through the monitor’s OSD menu.

Specification

Product
Product id 540605
Brand iiyama
Partnr T2435MSC-B2
EAN/UPC code 4948570114467
Warranty (months) 3 year
Display
Display diagonal 23.6 inch
Display brightness 250 cd/m²
Display resolution 1920 x 1080 Pixels
Display type LED
HD type Full HD
Display technology LED
Native aspect ratio 16:9
Aspect ratio 16:9
Screen shape Flat screen
Display LED
Display number of colours 16.78 million colours
Display diagonal (metric) 59.8 cm
Contrast ratio (typical) 3000:1
Pixel pitch 0.272 x 0.272 mm
Horizontal scan range 30 - 80 kHz
Vertical scan range 55 - 75 Hz
Viewing angle, horizontal 178 °
Viewing angle, vertical 178 °
Viewable size diagonal 600 mm
Display viewable area (HxV) 521.28 x 293.22 mm
Digital horizontal frequency 30 - 80 kHz
Digital vertical frequency 55 - 75 Hz
Separate H/V sync Y
Contrast ratio (dynamic) 12000000:1
Response time 6 ms
Design
Product colour Black
Performance
Touch technology Multi-touch
Touchscreen type Tabletop
Touchscreen technology Projected capacitive system
RMS rated power 1 W
Built-in speaker(s) Y
Number of speakers 2

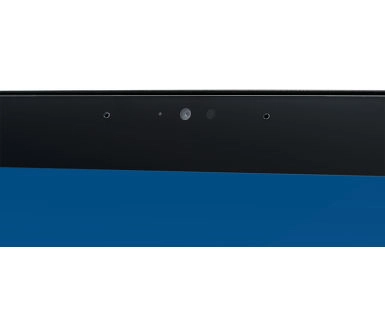

Built-in camera Y
Built-in microphone Y
On Screen Display (OSD) languages CHI (SIMPL), CHI (TR), DEU, DUT, ENG, FRE, JPN, POL, RUS
Number of OSD languages 9
Number of loudspeakers 2
OmniTapps Multitouch compatibility N
Windows operating systems supported Y
Mac operating systems supported Y
Linux operating systems supported Y
Plug and Play Y

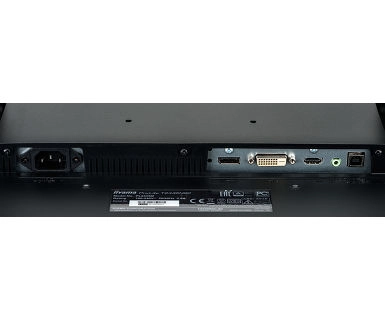

Ports & interfaces

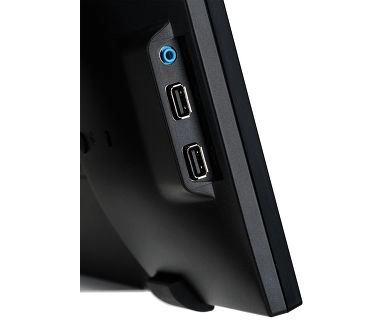

USB 2.0 ports quantity 3
USB Touch port Y
HDMI Y
HDMI ports quantity 1
DVI-D ports quantity 1
DisplayPorts quantity 1
Headphone outputs 1
Ergonomics

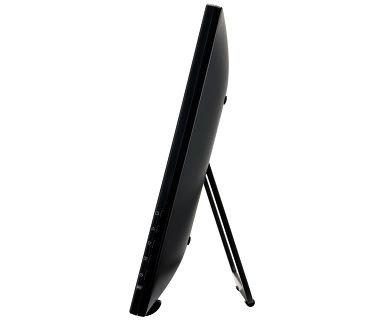

Tilt angle range 15 - 70 °
Cable lock slot type Kensington

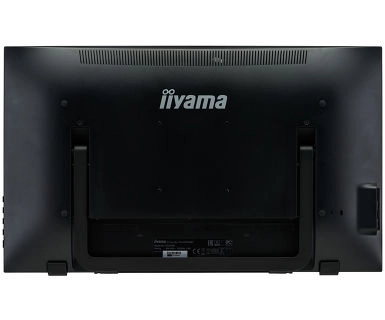

VESA mounting Y
Panel mounting interface 100 x 100 mm
Cable lock slot Y
Wall mountable Y
Tilt adjustment Y
Power
Power supply type AC
Energy efficiency class (SDR) F
Power consumption (typical) 23 W
Power consumption (standby) 0.5 W
Energy consumption (SDR) per 1000 hours 19 kWu
AC input voltage 100-240 V
AC input frequency 50/60 Hz
Energy Star certified N
Energy efficiency class A
Energy efficiency scale A to G
Certificates
Certification CE, TÜV-Bauart, VCCI-B, PSE, CU
Weight & dimensions
Width 571 mm
Height 44.5 mm
Depth 347.5 mm
Width (without stand) 571 mm
Depth (without stand) 44.5 mm
Height (without stand) 347.5 mm
Weight (without stand) 6200 g
Weight 6200 g
Packaging content
Cables included AC, Audio (3.5mm), DVI, DisplayPort, Mini DisplayPort, USB
Quick start guide Y
Other features
Power consumption (PowerSave) 0.5 W
Full HD Y
Touchscreen Y
NVIDIA G-SYNC N
Harmonized System (HS) code 85285210
AMD FreeSync N
Number of simultaneous touchpoints (writing) 10
