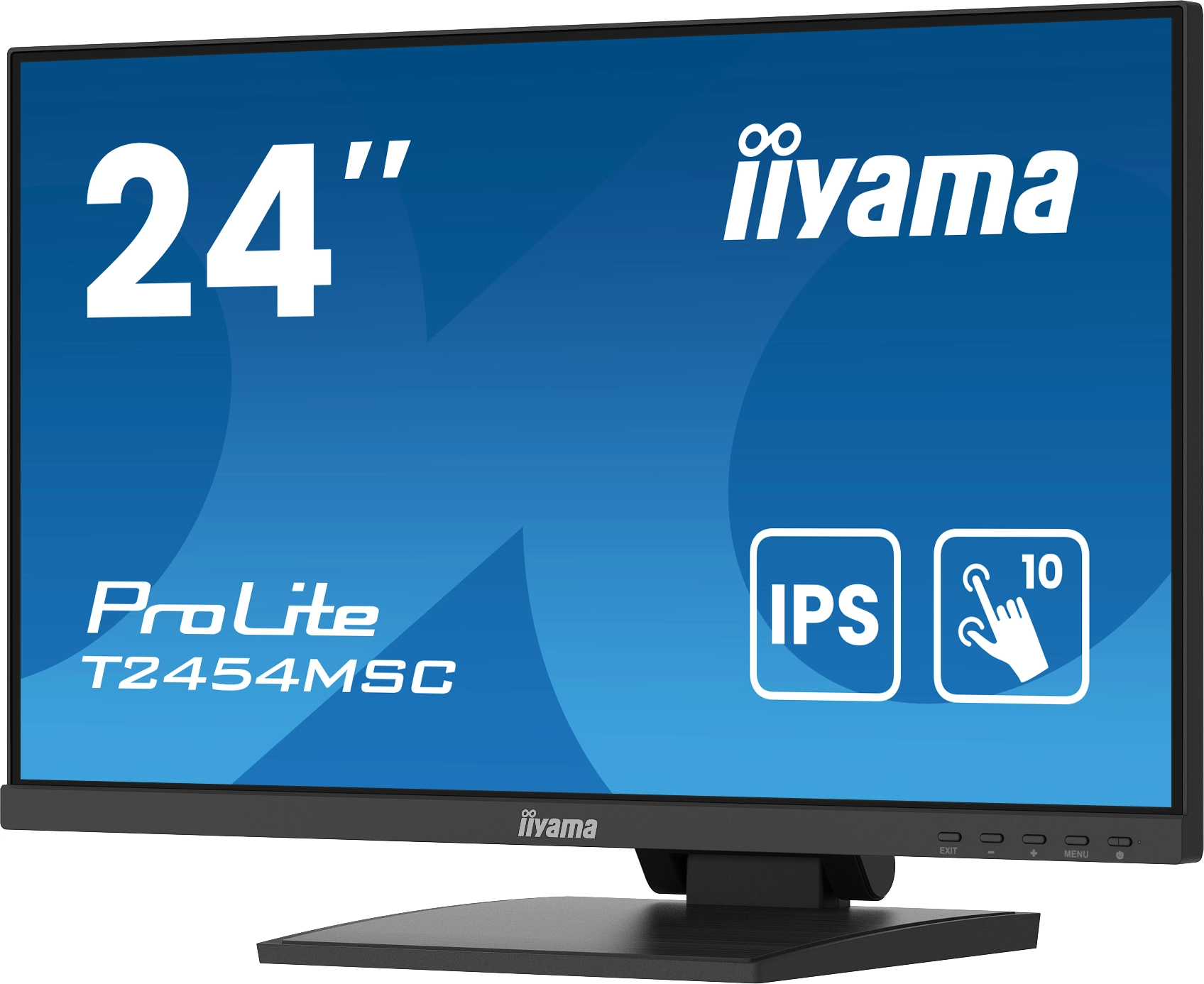

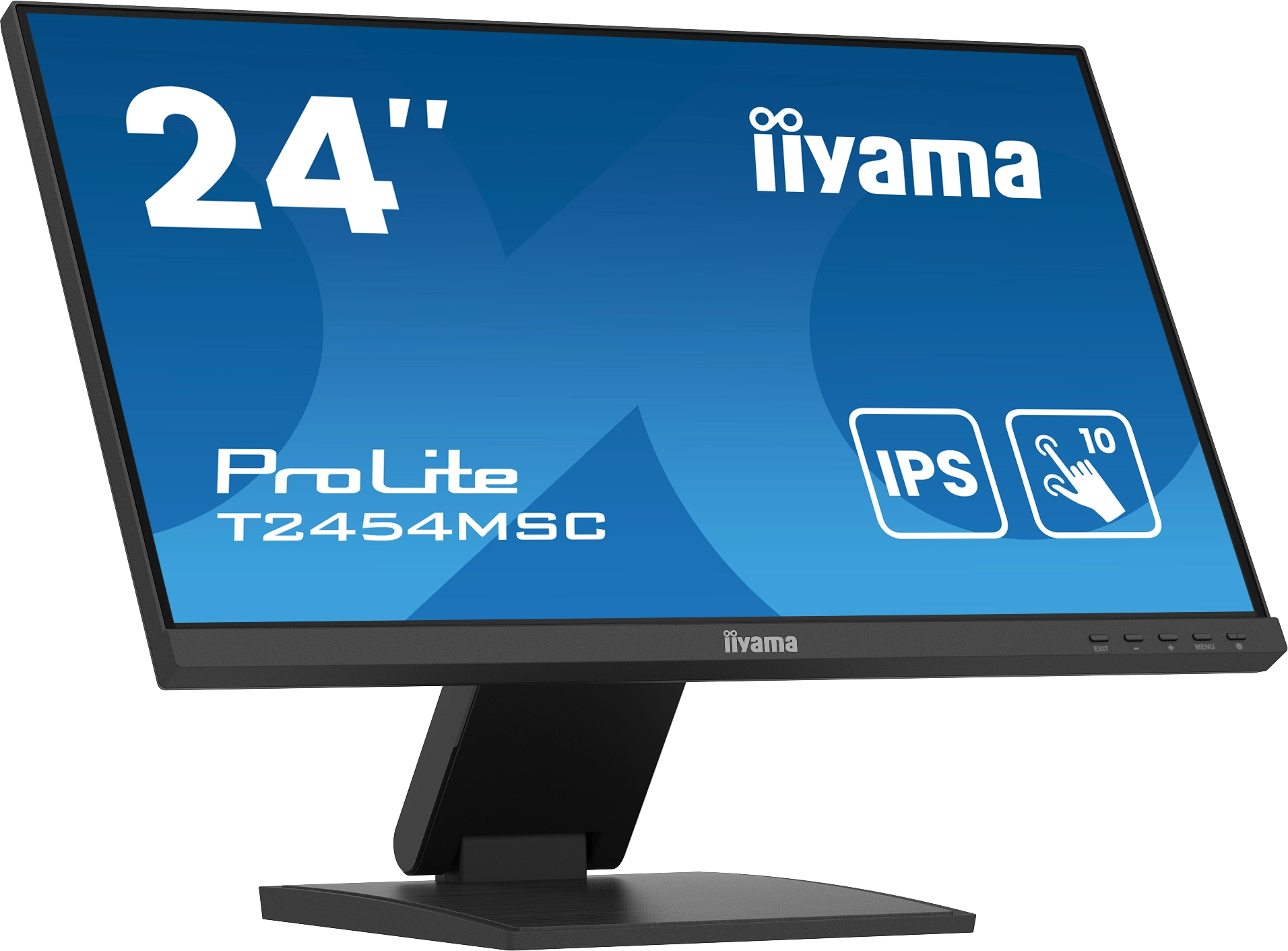

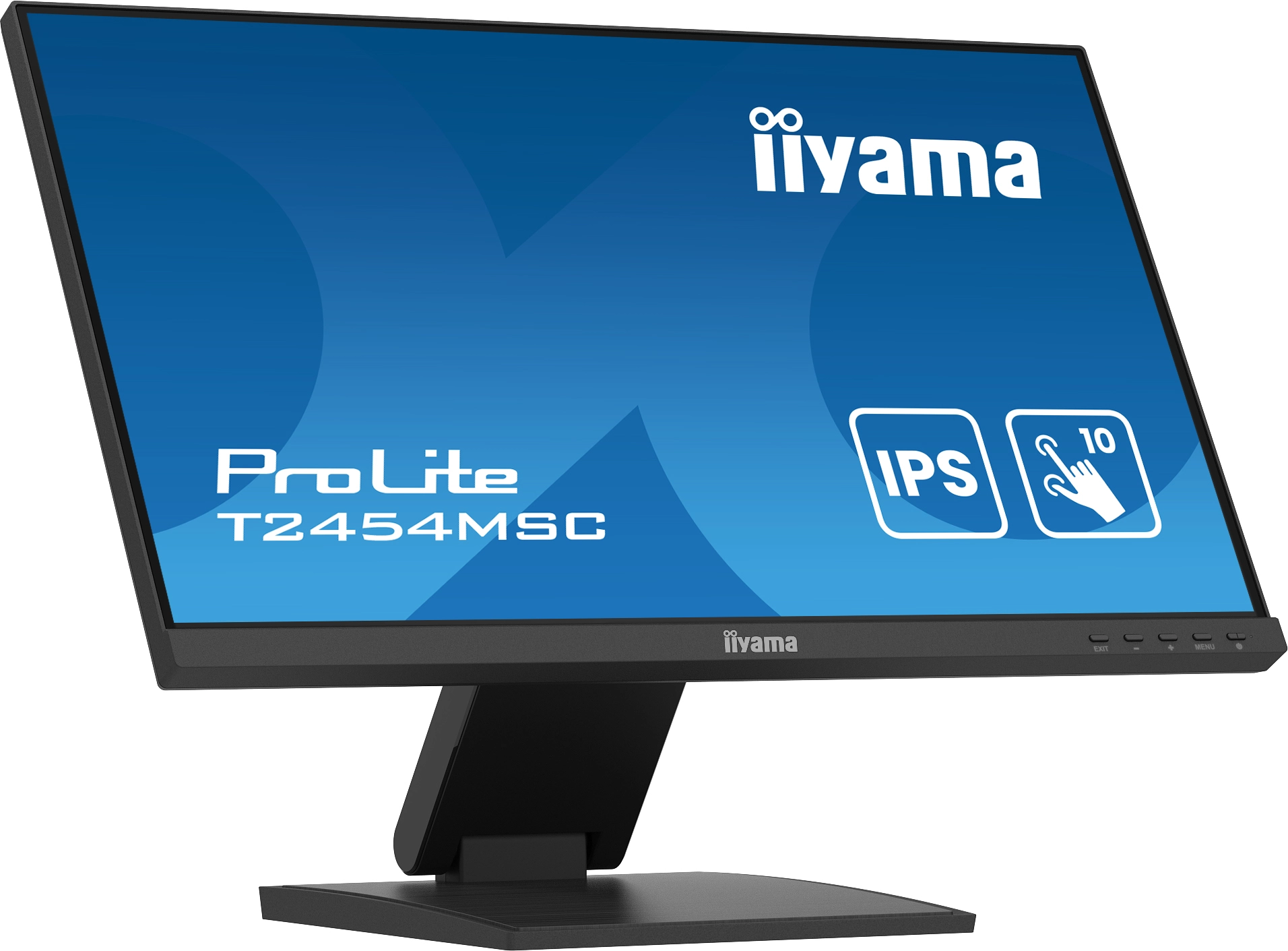

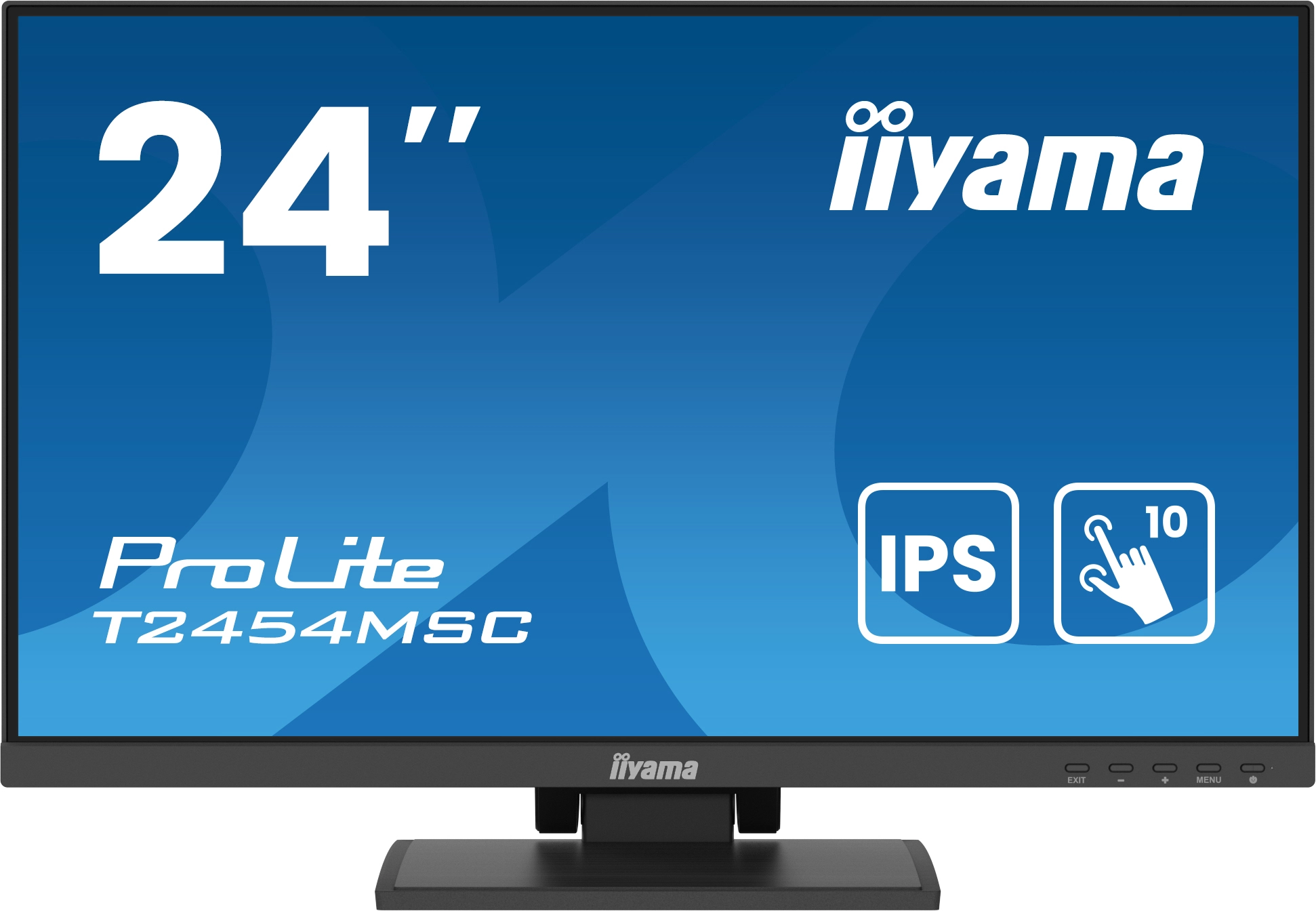

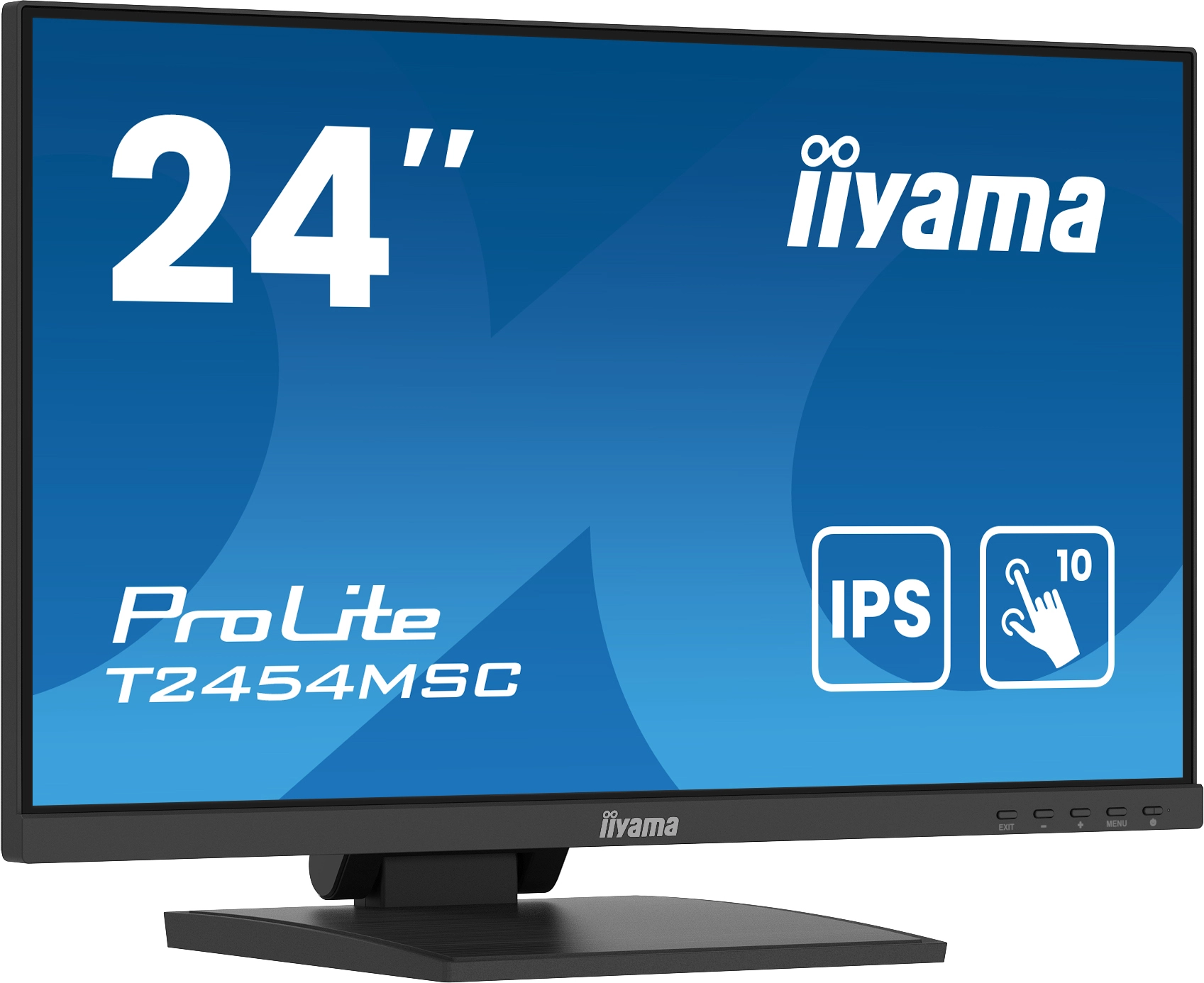

24” P-CAP 10pt touchscreen featuring IPS panel technology and Anti Glare coating

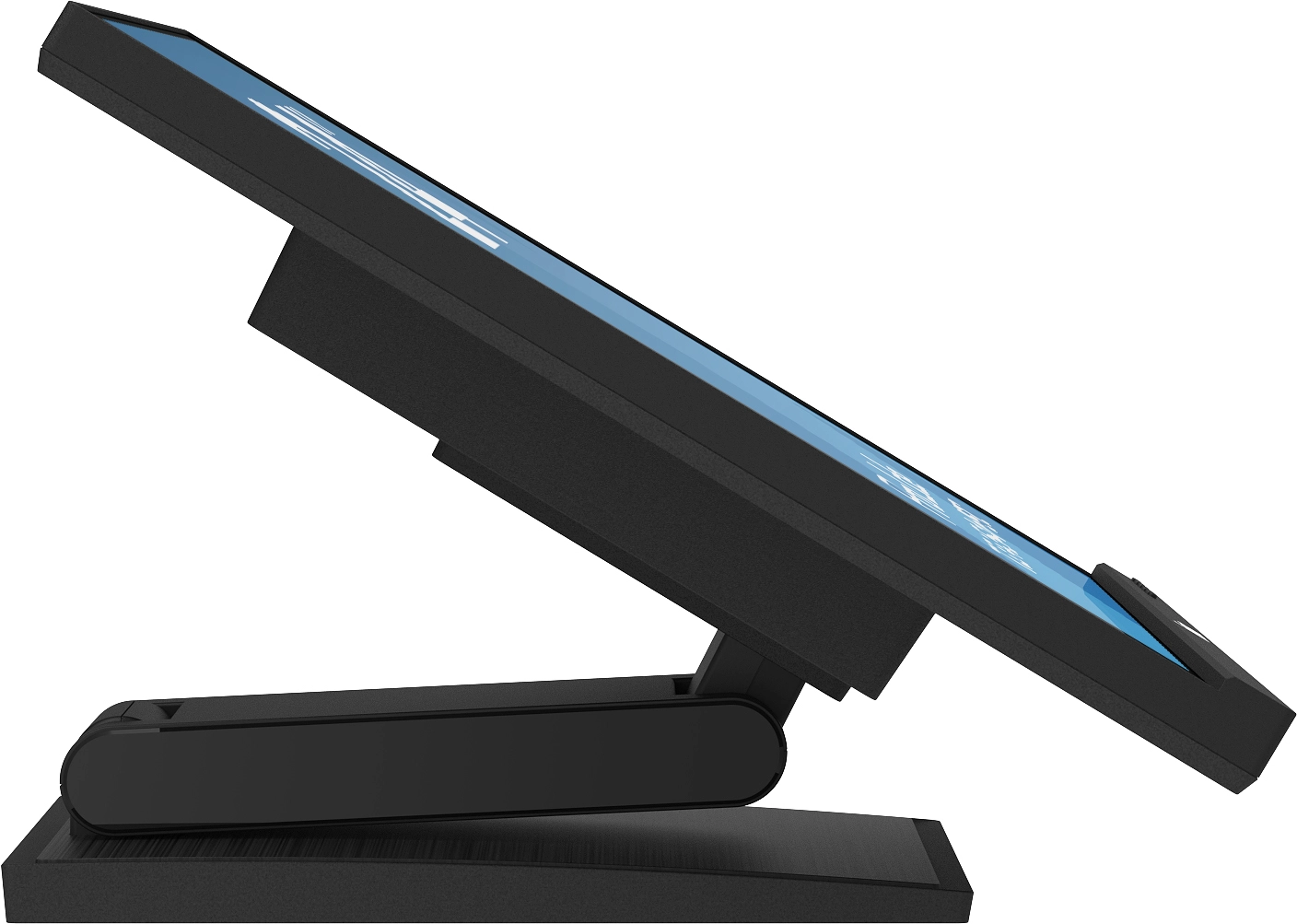

With its Full HD (1920x1080) resolution and accurate In-cell Projective Capacitive 10 point touch technology, the ProLite T2454MSC-B2AG delivers seamless and accurate touch response. Featuring IPS LCD screen technology, it offers exceptional colour performance and wide viewing angels, making it a perfect choice for a vast array of interactive applications. The Anti Glare coating helps to avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. Its flexible stand can be positioned at several angles creating a comfortable and ergonomic user experience. The ProLite T2454MSC-B2AG is the ideal solution for interactive signage, instore retail, POS and interactive presentations.

Touch technology - Capacitive
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

IPS Technology
IPS technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.

AG Coating
The anti-glare coating is used in professional-grade displays to help avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. It also makes the screen less susceptible to dust, grease and dirt marks.

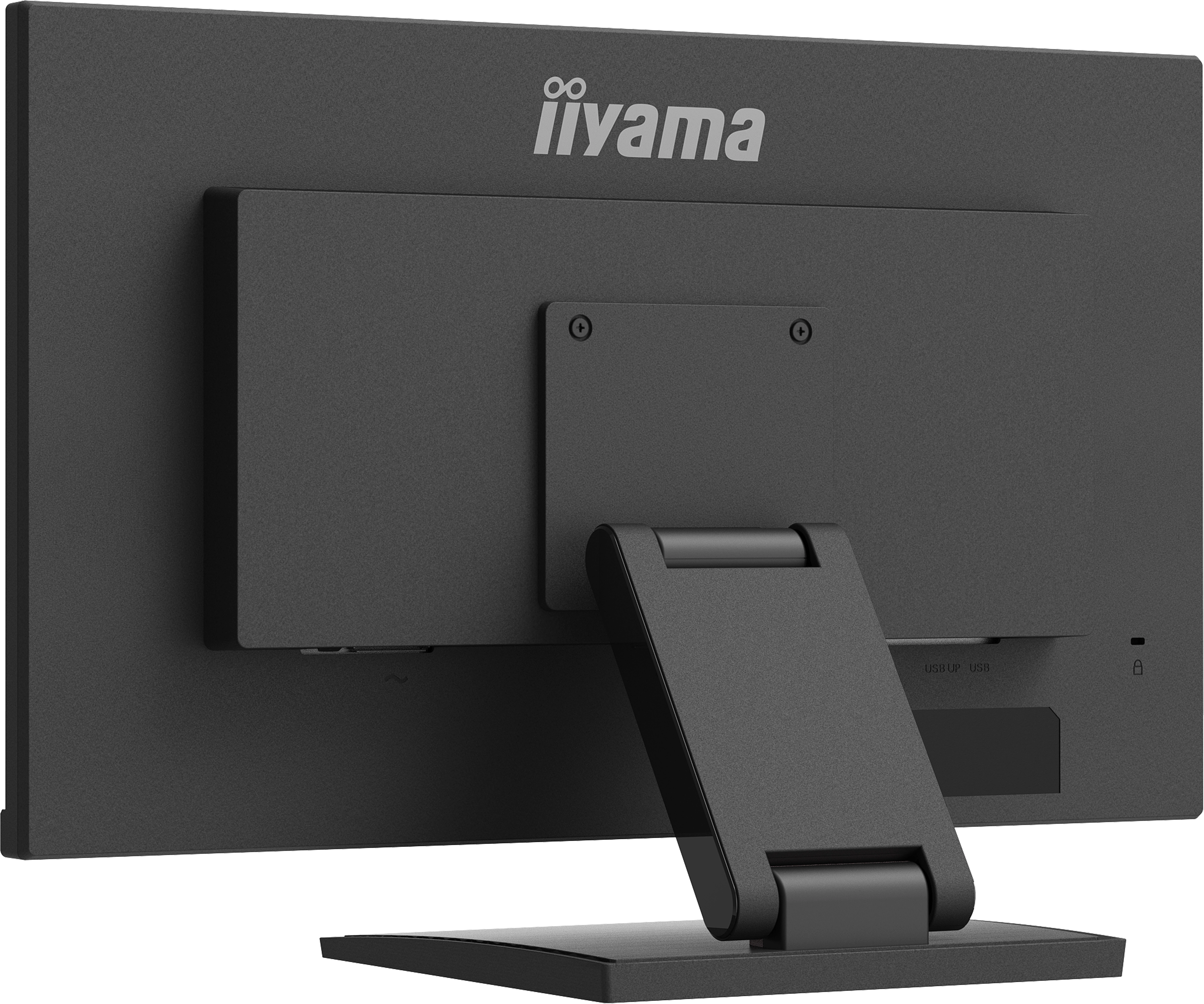

VESA
VESA mount compliance means you can easily mount the display to any mounting that complies with the VESA standard.

Specification

Product
Product id	983489
Brand	iiyama
Partnr	T2454MSC-B2AG
EAN/UPC code	4948570125210
Warranty (months)	3 year
Technical details
Compliance certificates	RoHS
Display
Display diagonal	23.8 inch
Display brightness	250 cd/m²
Display resolution	1920 x 1080 Pixels
Native aspect ratio	16:9
Panel type	IPS
Touchscreen technology	Projected capacitive system
Response time	4 ms
Touch technology	Multi-touch
HD type	Full HD
Display technology	LED
LED backlight	Y
Screen shape	Flat screen
Supported graphics resolutions	640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)
Aspect ratio	16:9
Contrast ratio (typical)	1000:1
Contrast ratio (dynamic)	5000000:1
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Display number of colours	16.78 million colours
Display diagonal (metric)	60.5 cm
Pixel pitch	0.274 x 0.274 mm
Horizontal scan range	30 - 80 kHz
Vertical scan range	56 - 75 Hz
Performance
NVIDIA G-SYNC	N
AMD FreeSync	N
Windows operating systems supported	Y
Linux operating systems supported	Y
OmniTapps Multitouch compatibility	N
Multimedia
Built-in speaker(s)	Y
Built-in camera	N
RMS rated power	4 W
Megapixel	2.1 MP
Built-in microphone	N
Design
Product colour	Black
International Protection (IP) code	IPX1
Certification	CE, TÜV-Bauart, VCCI-B, EAC, ErP, WEEE, REACH, CB

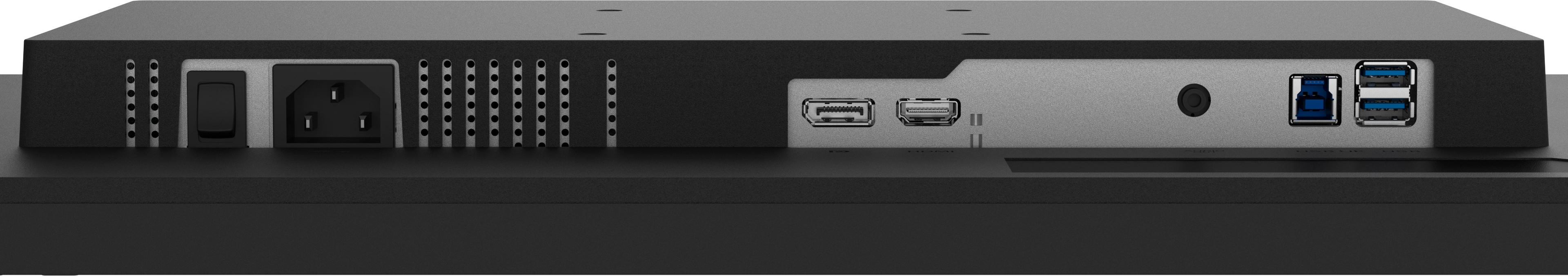

Ports & interfaces
Number of upstream ports	1
USB Type-A downstream ports quantity	1
VGA (D-Sub) ports quantity	1
HDMI	Y
HDMI ports quantity	1
USB Touch port	Y
HDCP	Y
Sustainability
European Product Registry for Energy Labelling (EPREL) code	366281
Ergonomics
VESA mounting	Y
Panel mounting interface	100 x 100 mm
Cable lock slot	Y
Cable lock slot type	Kensington
Adjustable height (max)	70 mm
Height adjustment	Y
Wall mountable	Y

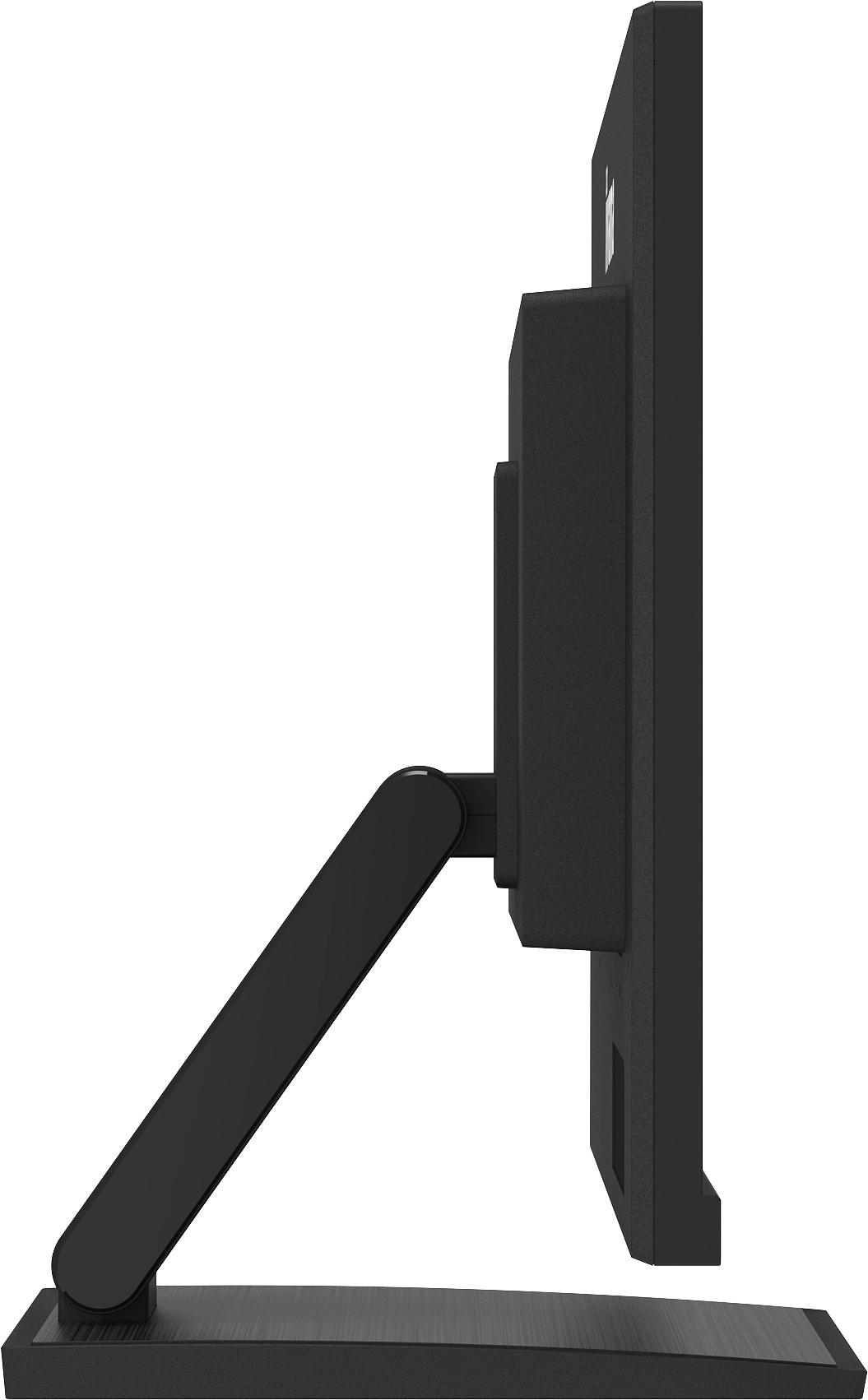

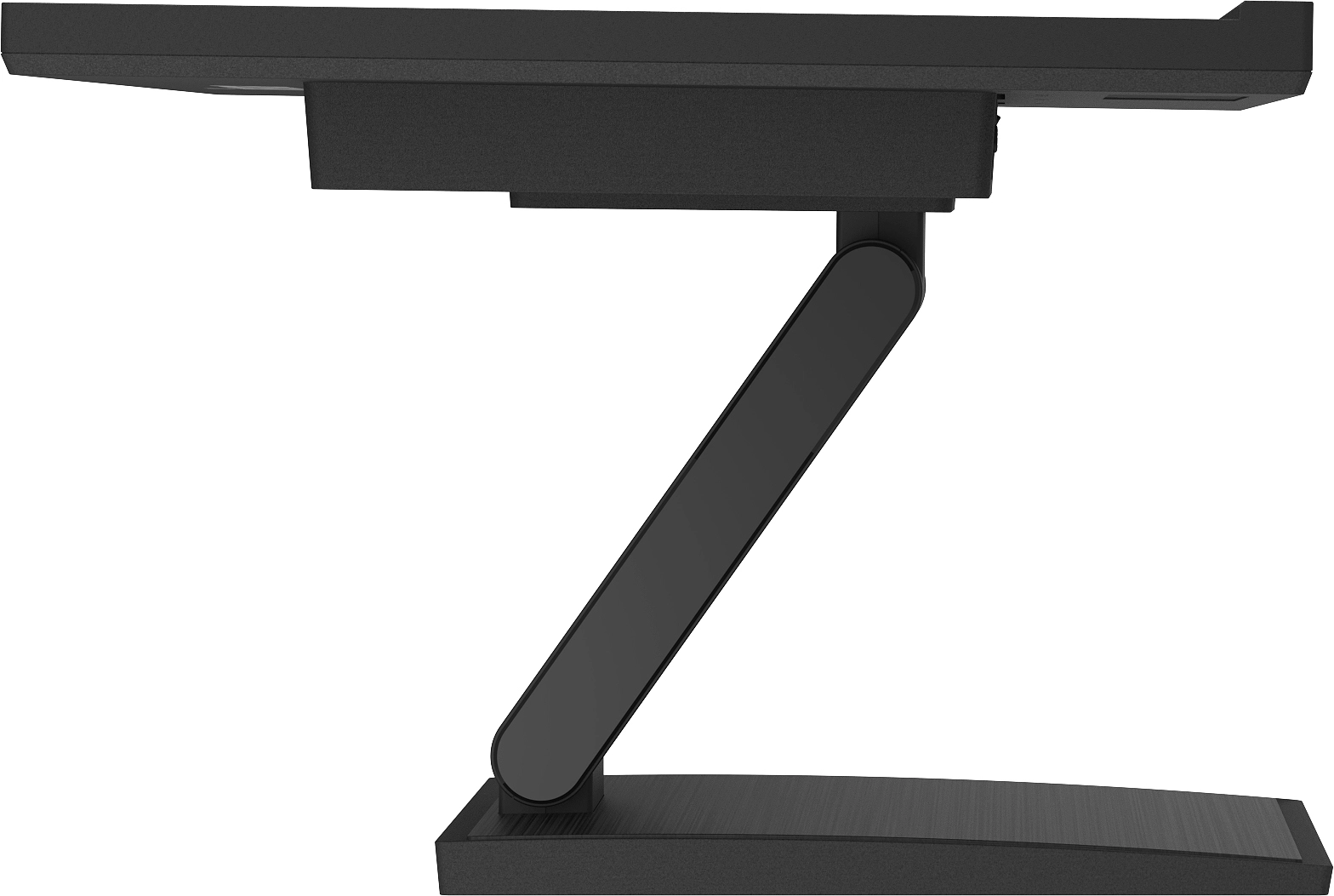

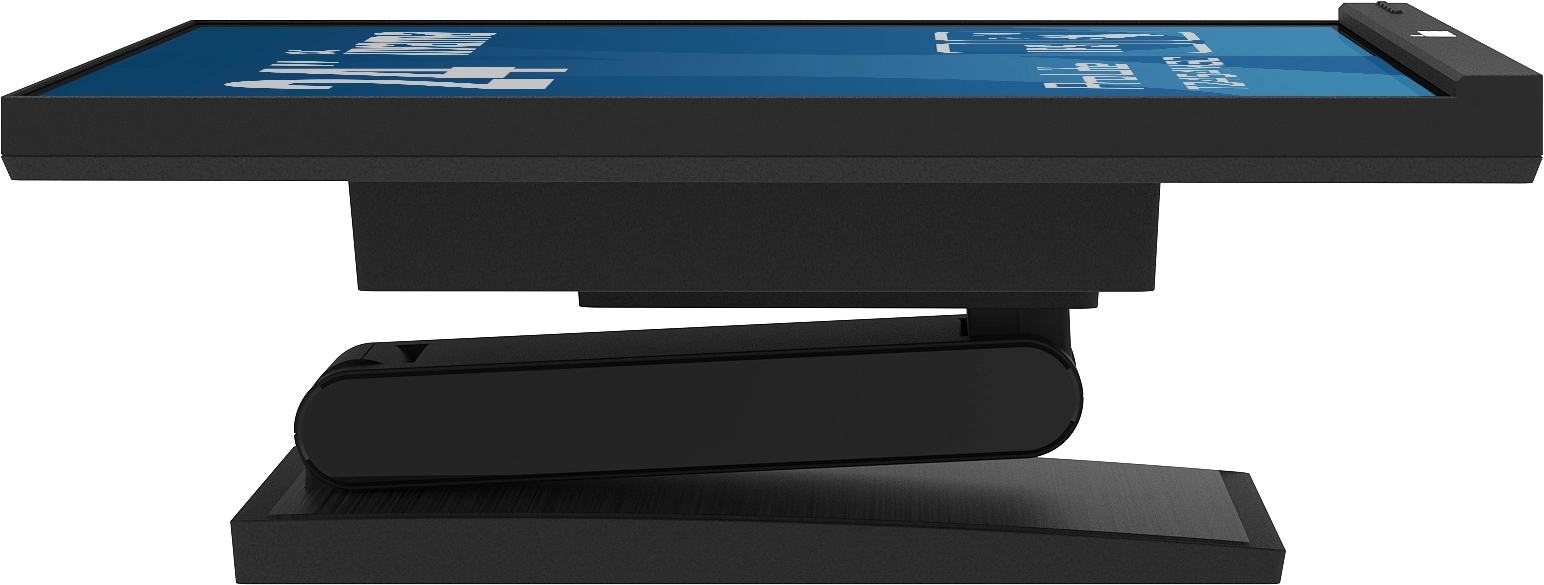

Tilt angle range	-5 - 90 °
Tilt adjustment	Y
On Screen Display (OSD) languages	DEU, DUT, ENG, ESP, FRE, ITA, JPN, POL, POR, RUS
Number of OSD languages	10
Plug and Play	Y
Packaging data
Cables included	AC, HDMI, USB, VGA
Quick start guide	Y
Power
Energy efficiency class (SDR)	F
Energy consumption (SDR) per 1000 hours	20 kWu
Power consumption (typical)	24 W
Power consumption (standby)	0.5 W
Energy efficiency scale	A to G
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80 procent
Storage relative humidity (H-H)	10 - 90 procent
Weight & dimensions
Width (with stand)	540.5 mm
Depth (with stand)	128 mm
Height (with stand)	388 mm
Weight (with stand)	5500 g
Width (without stand)	540.5 mm
Depth (without stand)	46.5 mm
Height (without stand)	322.5 mm
Logistics data
Harmonized System (HS) code	85285210
Other features
Dimensions (W x D x H) with stand	540.5 x 128 x 388 mm
Touchscreen	Y
Full HD	Y
Number of simultaneous touchpoints	10
Touchscreen type	Multi-user
Display viewable area (HxV)	527.04 x 296.46 mm
Placement supported	Horizontal/Vertical
Mean time between failures (MTBF)	30000 uur
