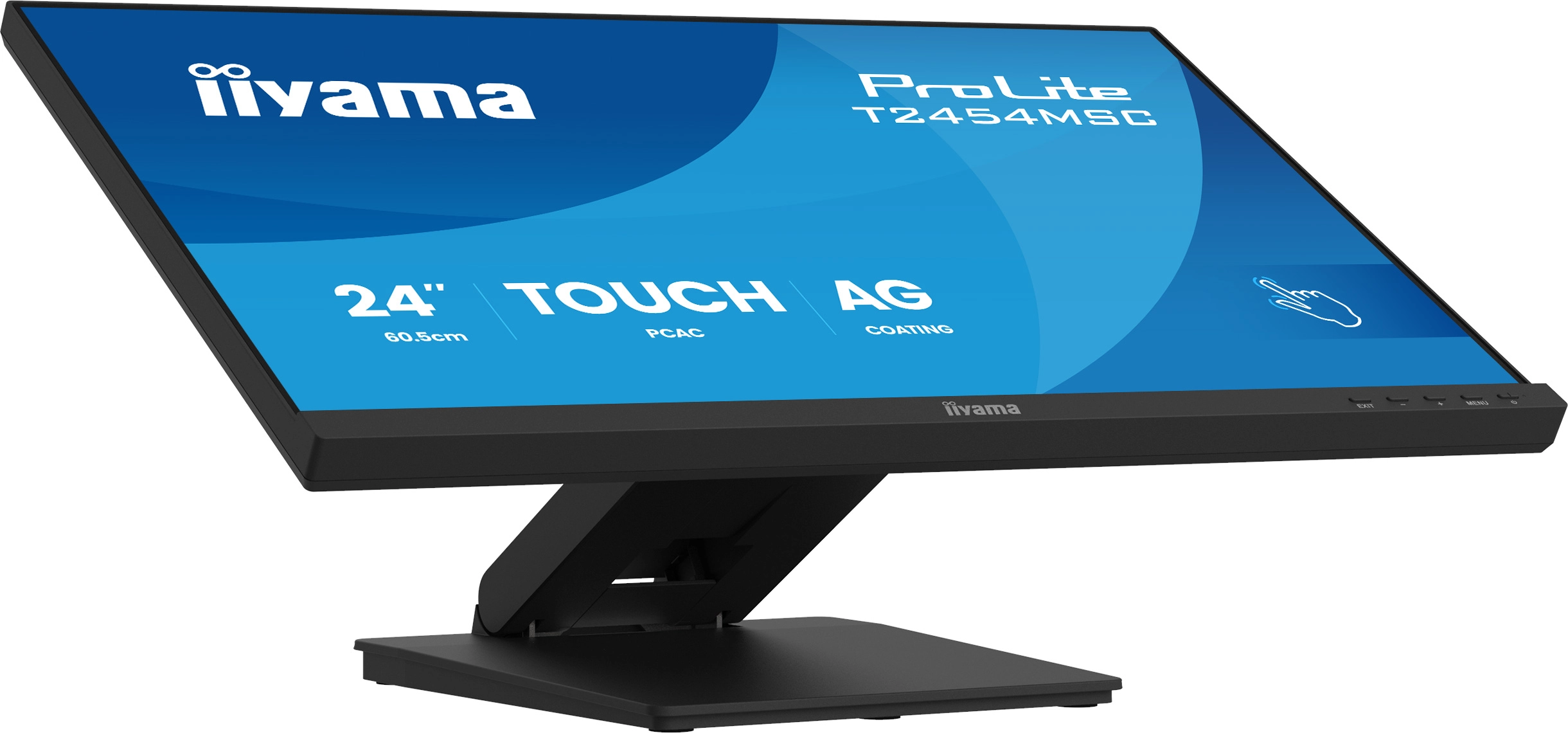

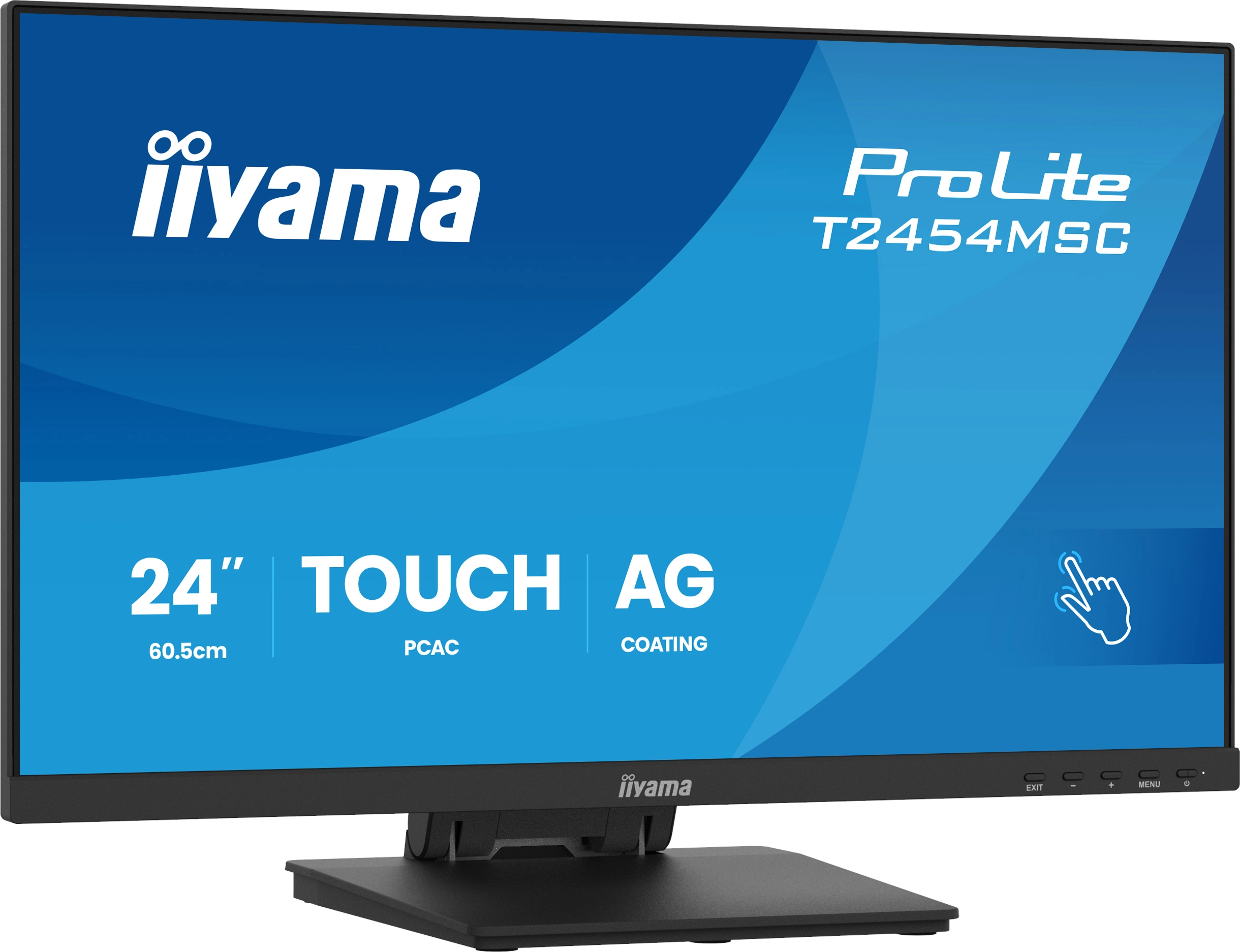

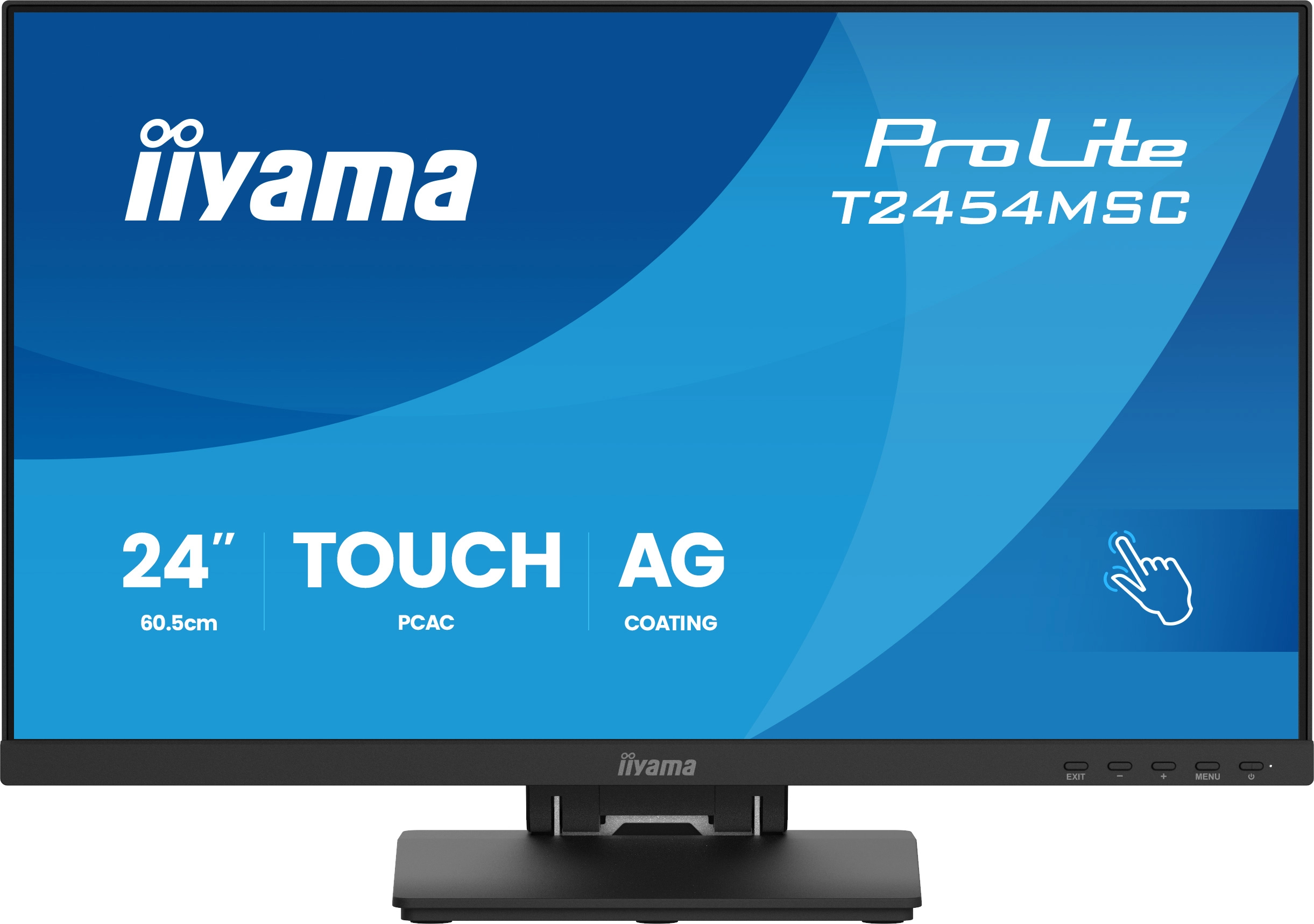

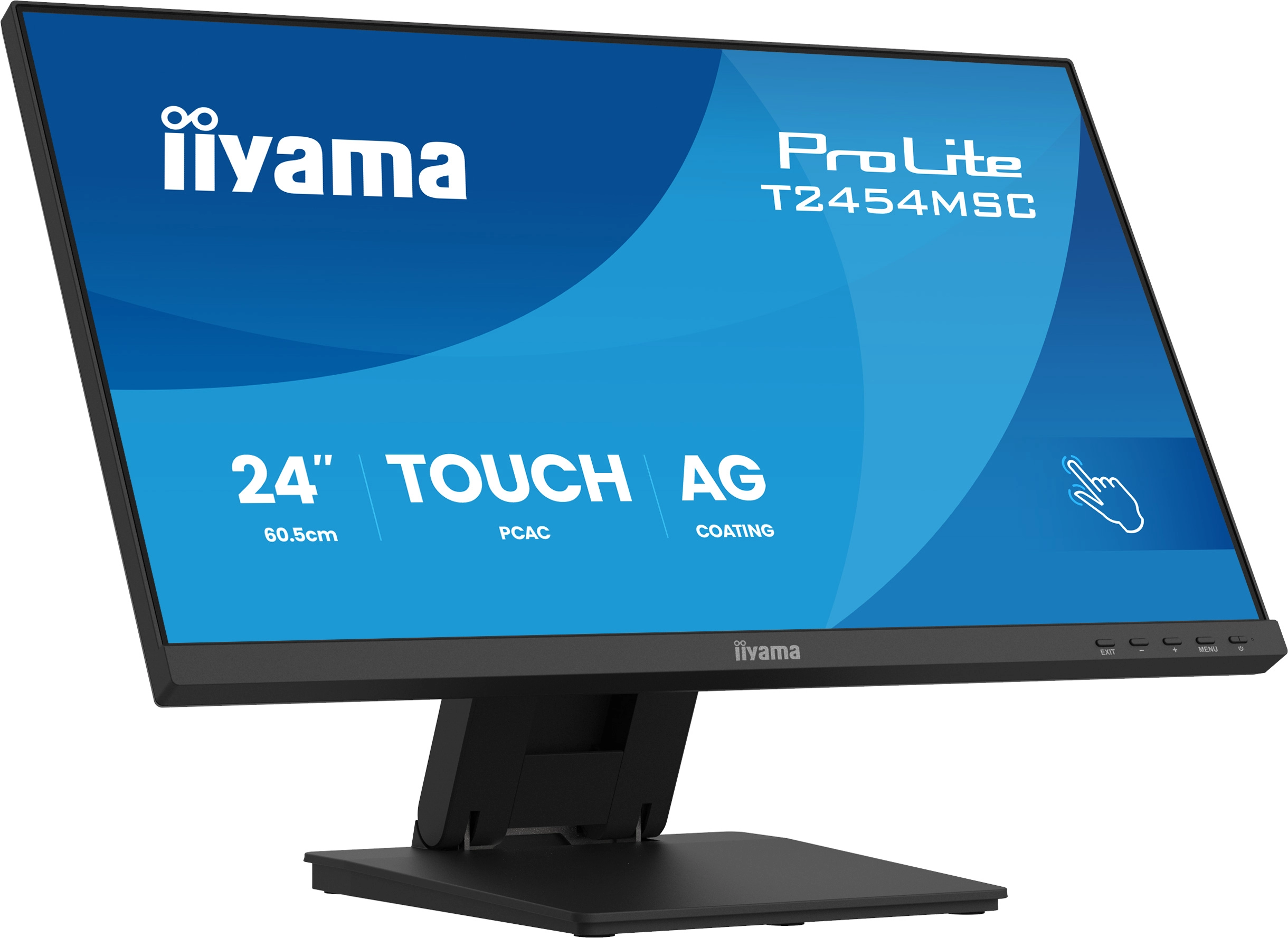

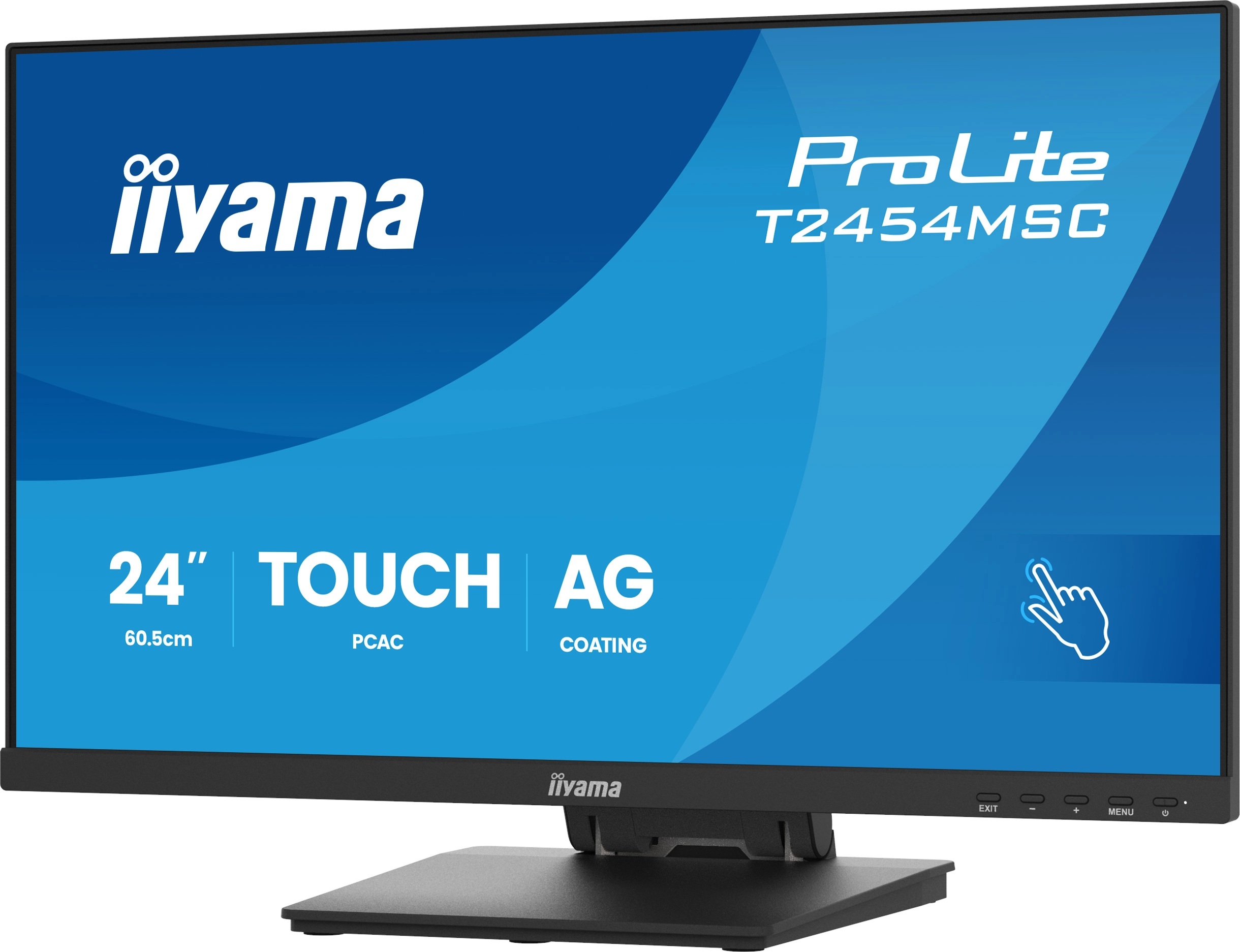

Immersive interaction and elegant design - Discover the ProLite T2454MSC-B3AG, a vibrant 24" Full HD touchscreen monitor designed for exceptional interactive experiences. Featuring intuitive 10-point Touch technology (InCell PCAP), which ensures smooth and precise touch response. The vibrant colours of the IPS panel will captivate users with precise and natural interaction from any angle. Its sleek and stylish design and anti-glare surface offer durability and ease of cleaning, perfect for busy commercial environments, hospitality spaces, healthcare facilities and public areas. With adjustable ergonomics, neat cable management, built-in audio and seamless connectivity (HDMI, DisplayPort, USB 3.2 hub), it is an ideal choice for POS, self-service solutions and interactive signage.

Specification

Product
Product id	1000832
Brand	iiyama
Partnr	T2454MSC-B3AG
EAN/UPC code	4948570125791
Warranty (months)	36 months
Technical details
Compliance certificates	RoHS
Display
Display diagonal	23.8 inch
Display resolution	1920 x 1080 Pixels
Native aspect ratio	16:9
Panel type	IPS
Touchscreen technology	Projected capacitive system
Display brightness (typical)	300 cd/m²
Response time	4 ms
Touch technology	Multi-touch
HD type	Full HD
Display technology	LED
LED backlight	Y
Screen shape	Flat screen
Supported graphics resolutions	640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)
Contrast ratio (typical)	1000:1
Contrast ratio (dynamic)	5000000:1
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Display number of colours	16.78 million colours
Display diagonal (metric)	60.5 cm
Pixel pitch	0.2745 x 0.2745 mm
Horizontal scan range	30 - 83 kHz
Viewable size, horizontal	527.04 mm
Viewable size, vertical	296.46 mm
Surface hardness	3H
Performance
NVIDIA G-SYNC	N
AMD FreeSync	N
Windows operating systems supported	Y
Linux operating systems supported	Y
Flicker-free technology	Y
Low Blue Light technology	Y
OmniTapps Multitouch compatibility	Y
Multimedia
Built-in speaker(s)	Y
Built-in camera	N
Number of speakers	2
RMS rated power	4 W
Megapixel	2.1 MP
Design
Market positioning	Business
Product colour	Black
Certification	CE, TÜV-Bauart, VCCI-B, EAC, ErP, WEEE, REACH, CB
Ports & interfaces
Built-in USB hub	Y
USB hub version	3.2 Gen 1 (3.1 Gen 1)
Number of upstream ports	1
USB Type-A downstream ports quantity	2
HDMI	Y
HDMI ports quantity	1
DisplayPorts quantity	1
USB Touch port	Y
HDCP	Y
Ergonomics

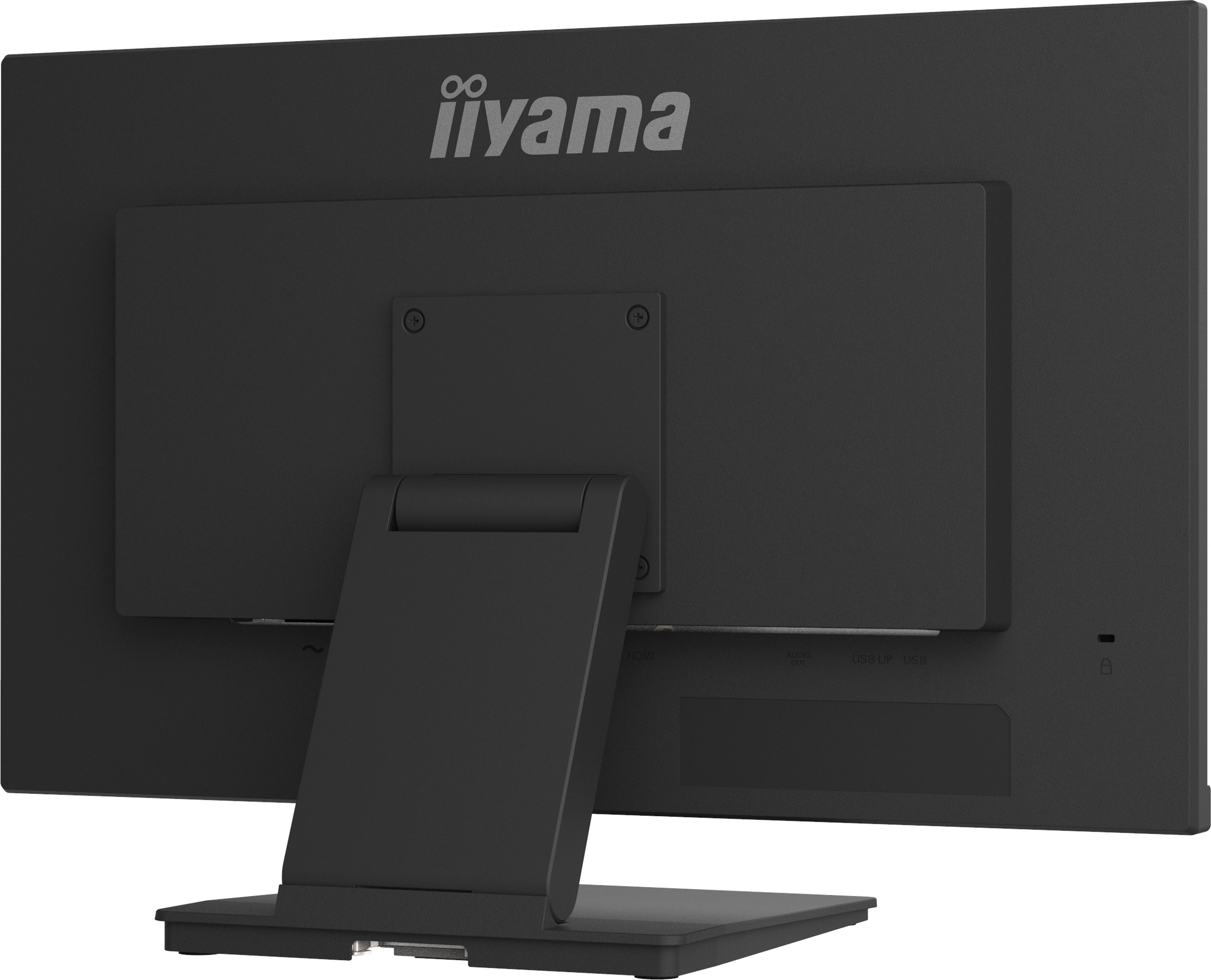

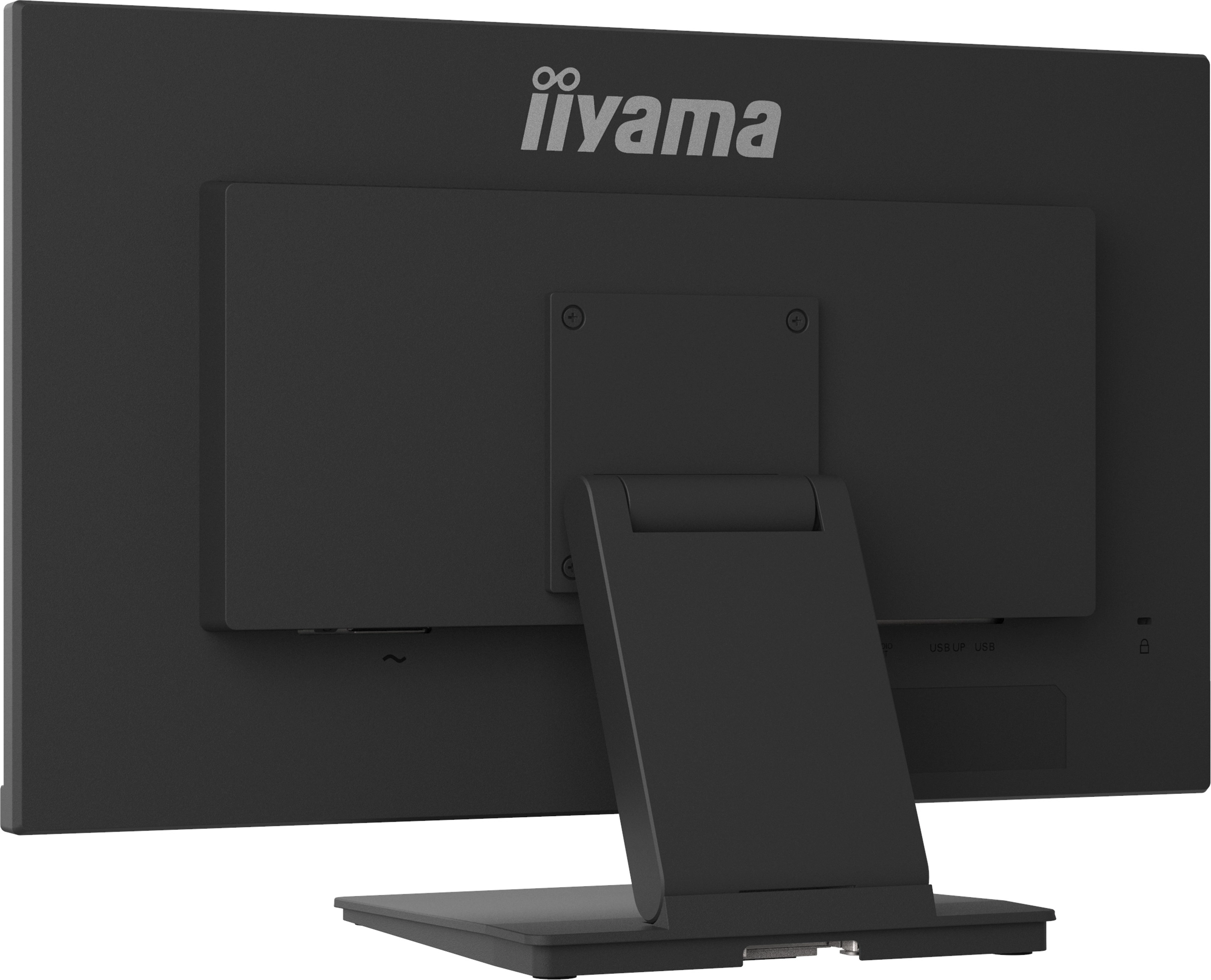

VESA mounting	Y
Panel mounting interface	100 x 100 mm
Cable lock slot	Y
Cable management	Y
Cable lock slot type	Kensington

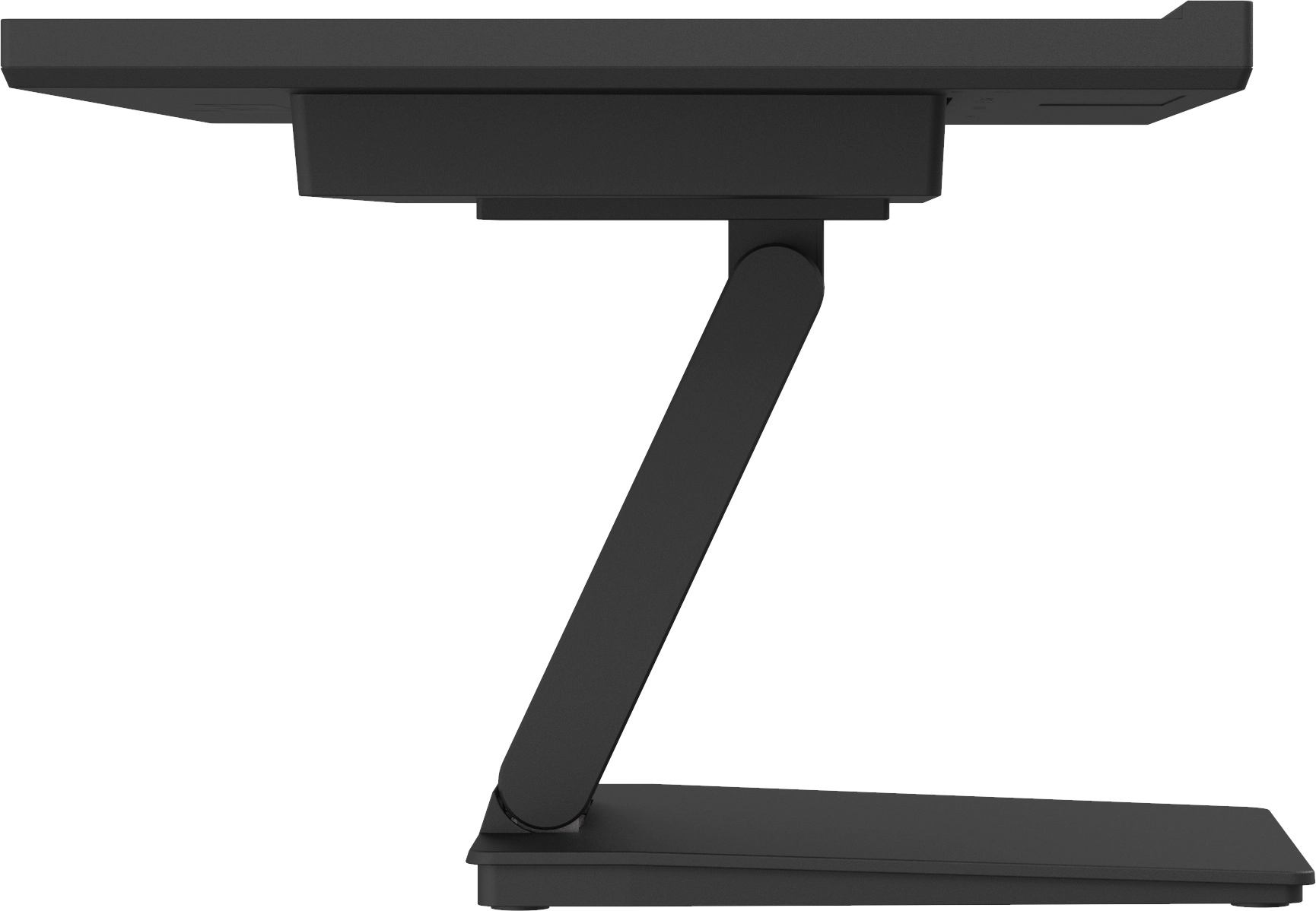

Adjustable height (max)	110 mm
Height adjustment	Y
Wall mountable	Y

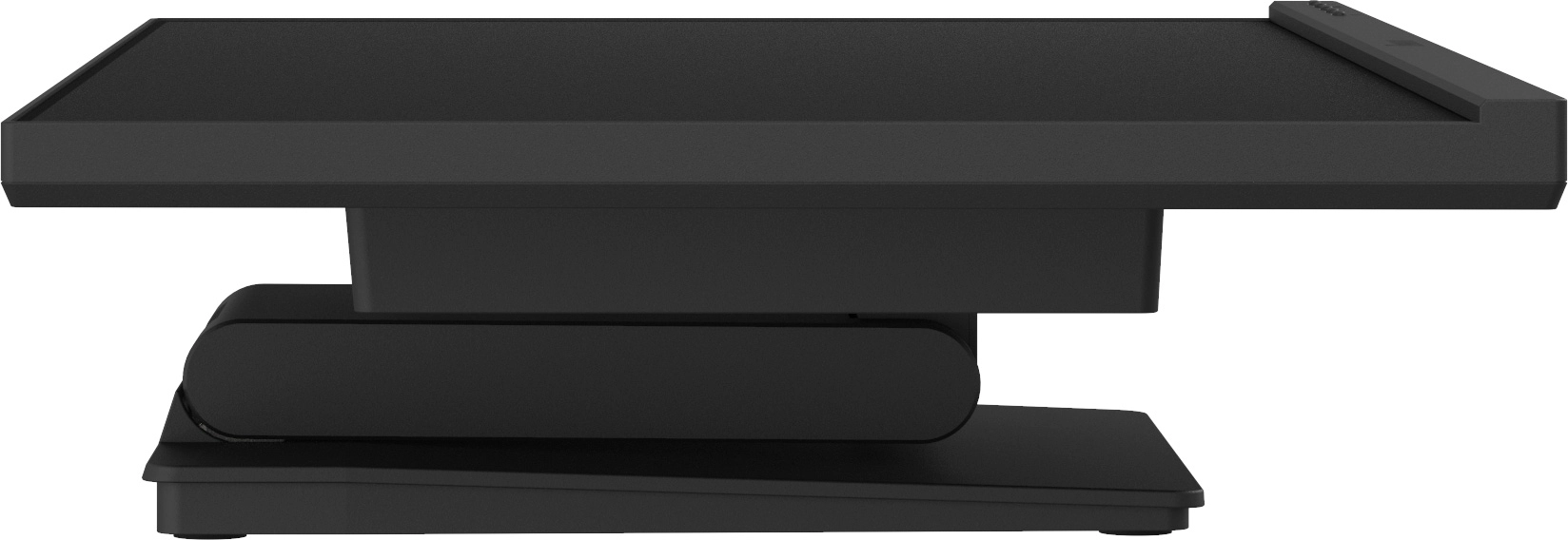

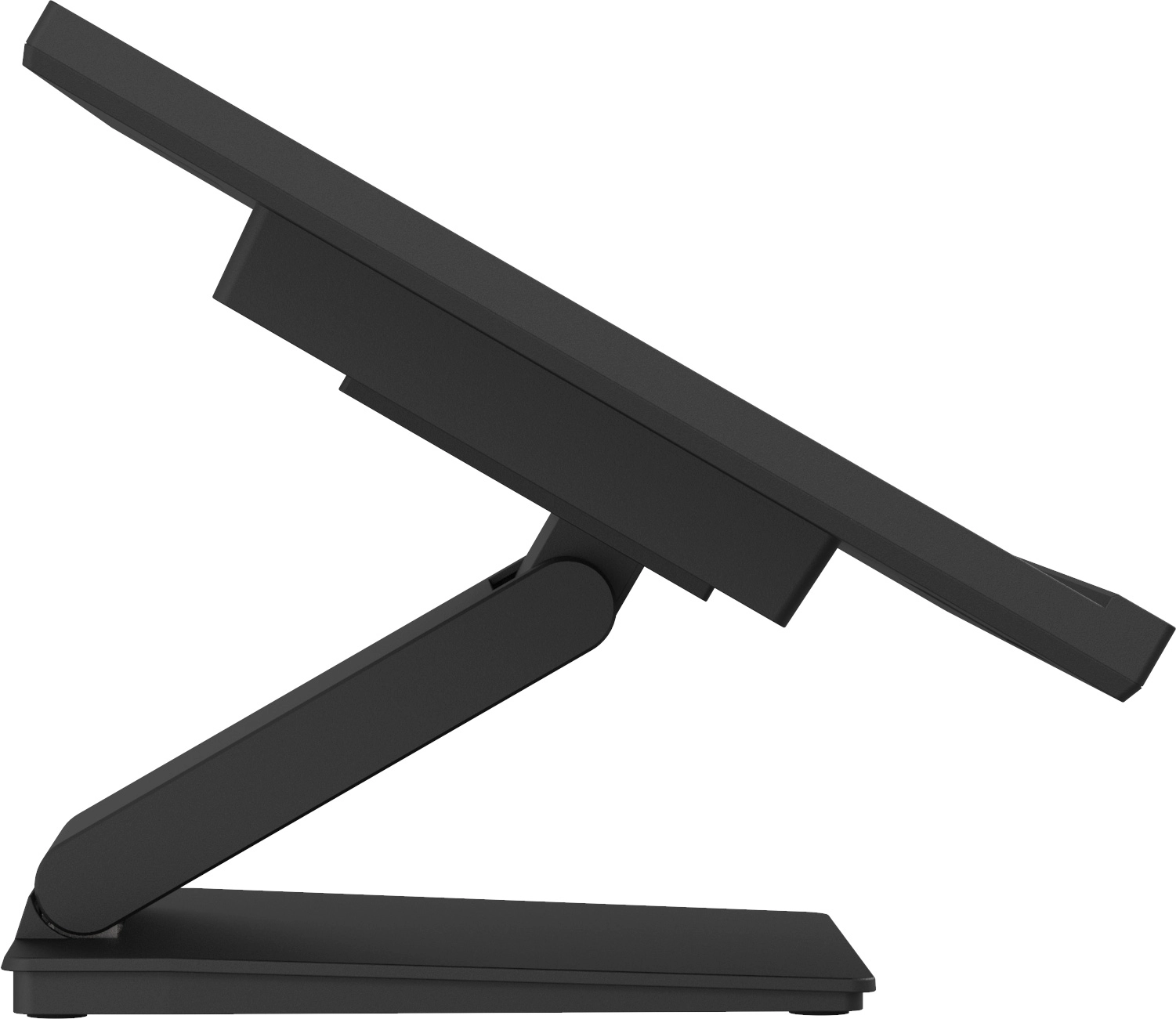

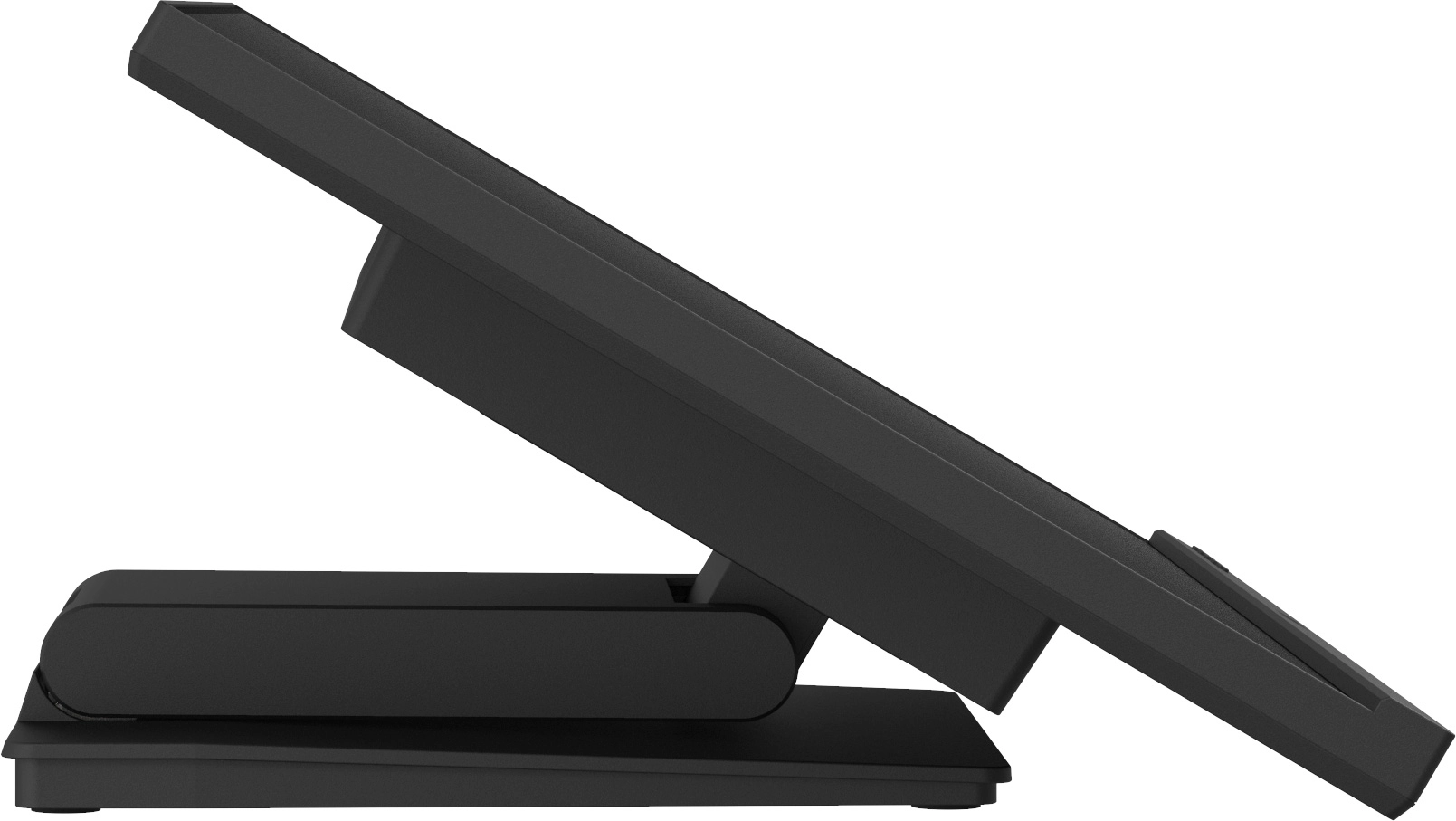

Tilt angle range	-5 - 90 °
Tilt adjustment	Y
On Screen Display (OSD) languages	DEU, DUT, ENG, ESP, FRE, ITA, JPN, POL, POR, RUS
Number of OSD languages	10
Plug and Play	Y
Packaging data
Cables included	AC, HDMI, USB
Quick start guide	Y
Package width	615 mm
Package depth	148 mm
Package height	420 mm
Package weight	7100 g
Power
Energy efficiency class (SDR)	E
Energy consumption (SDR) per 1000 hours	17 kWu
Power consumption (typical)	17 W
Power consumption (standby)	1.5 W
Power consumption (off)	0.3 W
Energy efficiency scale	A to G
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80 procent
Storage relative humidity (H-H)	10 - 90 procent
Weight & dimensions
Width (with stand)	540 mm
Depth (with stand)	241 mm
Height (with stand)	373 mm
Weight (with stand)	5400 g
Logistics data
Harmonized System (HS) code	85285210
Other features
Touchscreen	Y
Full HD	Y
Number of simultaneous touchpoints	10
Touchscreen type	Multi-user
Placement supported	Horizontal/Vertical
Mean time between failures (MTBF)	50000 uur
