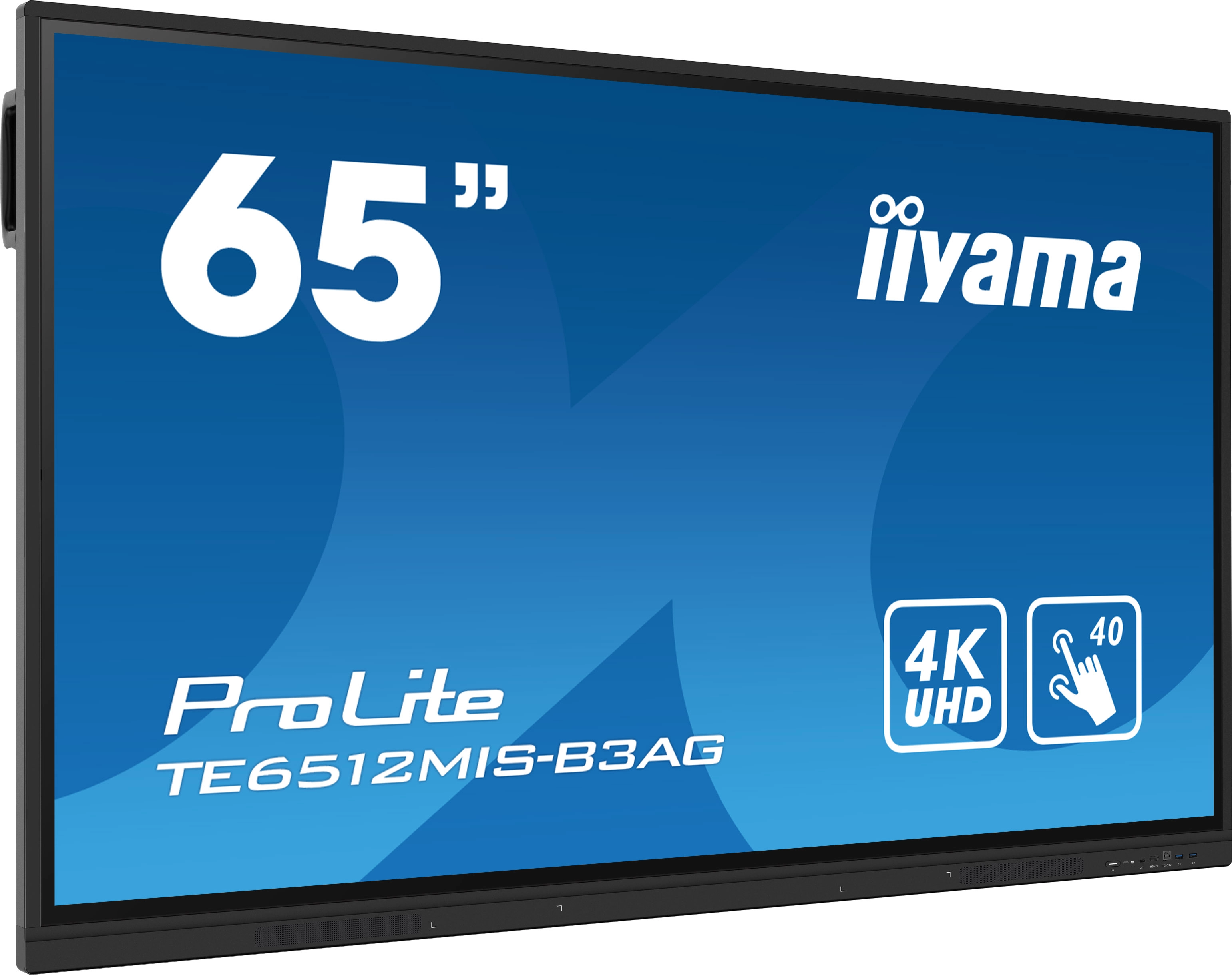

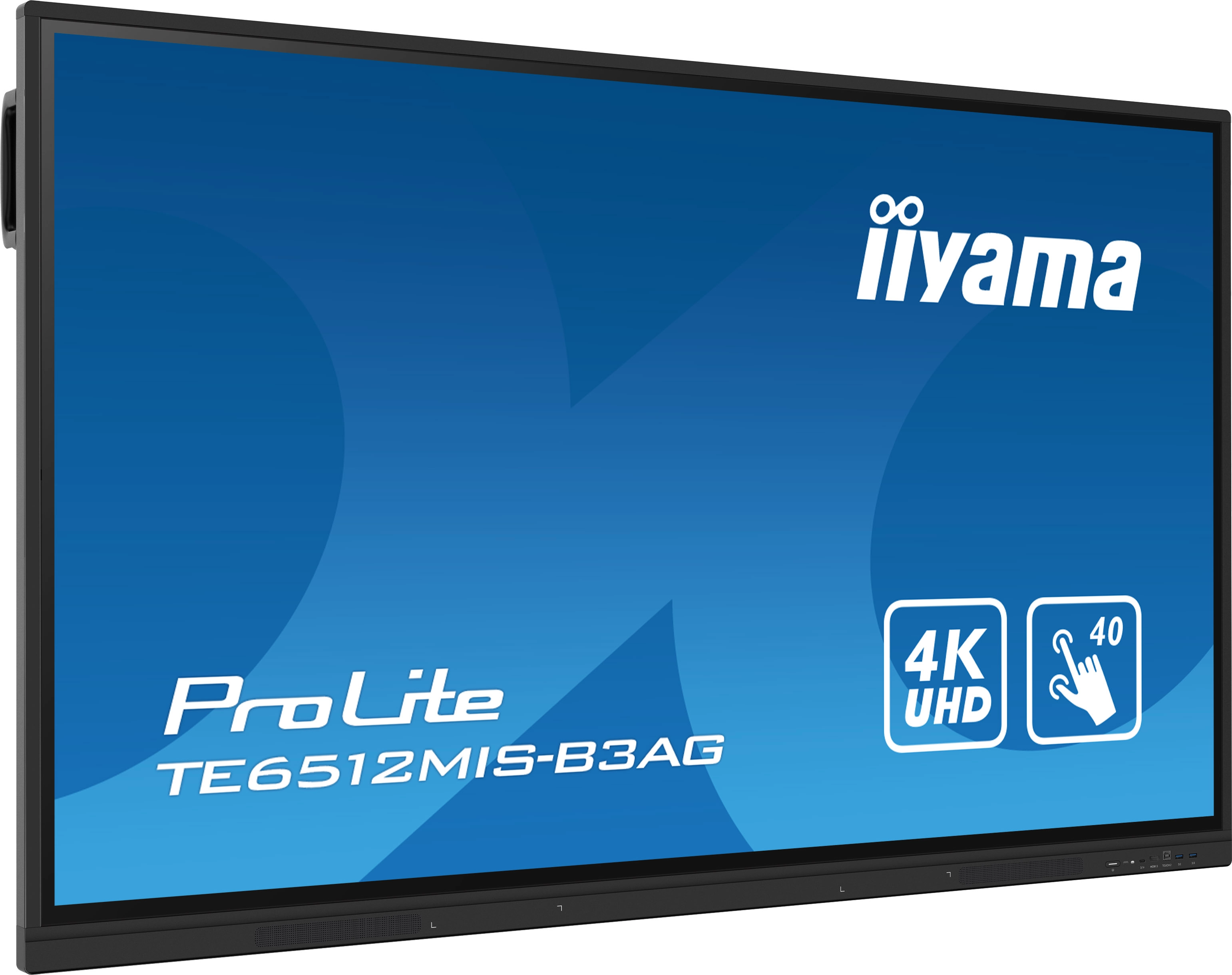

65" Interactive 4K UHD Touchscreen elevating interactive collaboration

The TE6512MIS-B3AG is an exceptional 4K UHD interactive display designed by iiyama to enhance collaboration, communication, and engagement. With key features like Zero Airgap LCD screen eliminating parallax, accurate PureTouch-IR, iiWare 10 with Android 11, WiFi, and the iiyama DMS (Device management System), this display transforms the way you engage with content, making it an indispensable tool for modern workspaces and educational settings.

Boasting a new 4K Interface with User Profiles for simple login and access to your very own bespoke application and Cloud Drives or harmonize with your existing estate and unleash the true power of Windows and Office applications. iiyama TE6512MIS-B3AG becomes a highly personalised & flexible device within a busy hybrid environment for multiple users.

Share wirelessly more easily than ever before with iiyama Share and EShare app, bringing effortless ideation and efficient collaboration in your enterprise or school. This affordable display transforms the modern workplaces, educational institutions, dynamic meeting spaces and beyond. Elevate your interactive experience with the iiyama TE12 SERIES displays and embrace the future of visual communication.

IIWARE
iiWare 10 features Note, Browser, Cloud Drive and the option for you to sideload relevant apps you require for your organisation.

Specification

Product
Product id	950105
Brand	iiyama
Partnr	TE6512MIS-B3AG
EAN/UPC code	4948570123698
Warranty (months)	36 months
Display
Display diagonal	65 inch
Display resolution	3840 x 2160 Pixels
Display brightness	400 cd/m²
HD type	4K Ultra HD
Touchscreen	Y
Touchscreen technology	PureTouch-IR
Number of simultaneous touchpoints	40
Native aspect ratio	16:9
Response time	8 ms
Contrast ratio (typical)	1200:1
Contrast ratio (dynamic)	4000:1
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Display number of colours	1.07 billion colours
Pixel pitch	0.372 x 0.372 mm
Active display area (W x H)	1428.5 x 803.5 mm
Display diagonal (metric)	163.9 cm
Surface hardness	7H
Horizontal scan range	30 - 135 kHz
Panel type	IPS
Glass thickness	3 mm
Glass film	AG/AR Film
Ports & interfaces
HDMI ports quantity	4
HDMI version	2.0
HDMI input ports quantity	3
HDMI output ports quantity	1
DVI port	N
VGA (D-Sub) input ports	1
USB port	Y
USB ports quantity	5
USB version	3.2 Gen 1 (3.1 Gen 1)
Ethernet LAN	Y
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Ethernet LAN (RJ-45) ports	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	3
Wi-Fi	Y
RS-232 interface	Y
RS-232C	Y
Remote (IR) input	1
Audio Return Channel (ARC)	Y
Audio
Built-in speaker(s)	Y
Number of built-in speakers	2
RMS rated power	32 W
Design
Design	Kiosk design
Product colour	Black
Placement supported	Indoor
Orientation	Horizontal
VESA mounting	Y
Panel mounting interface	600 x 400 mm
Bezel width (top)	16.5 mm
Bezel width (side)	16.5 mm
Bezel width (bottom)	45 mm
Performance
Purpose	Commercial
On Screen Display (OSD)	Y
On Screen Display (OSD) languages	CZE, DAN, DEU, ENG, ESP, FIN, FRE, ITA, POL, RUS, SLV
Operating hours (hours/days)	24/7
HDCP	Y
HDCP version	2.2
Mean time between failures (MTBF)	50000 uur
Power
Power consumption (typical)	138 W
Power consumption (standby)	0.5 W
Power consumption (off)	0.3 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Computer system
Built-in processor	Y
Processor manufacturer	ARM
Processor family	ARM Cortex
Processor model	A55
Processor architecture	ARM Cortex-A55
Processor cores	4
Internal memory	8 GB
Internal storage capacity	32 GB
On-board graphics adapter model	ARM Mali-G52
Operating system installed	Android 11
Weight & dimensions
Width (with stand)	1488.5 mm
Depth (with stand)	87.5 mm
Height (with stand)	896.5 mm
Weight (with stand)	35000 g
Packaging data
Package width	1628 mm
Package depth	208 mm
Package height	1005 mm
Package volume	44700 cm³
Packaging content
Handheld remote control	Y
Batteries included	Y
Cables included	HDMI, Power, USB
Wi-Fi module included	Y
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	-20 - 60 procent
Certificates
Certification	CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, EPA 8.0
Other features
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Display technology	LCD
