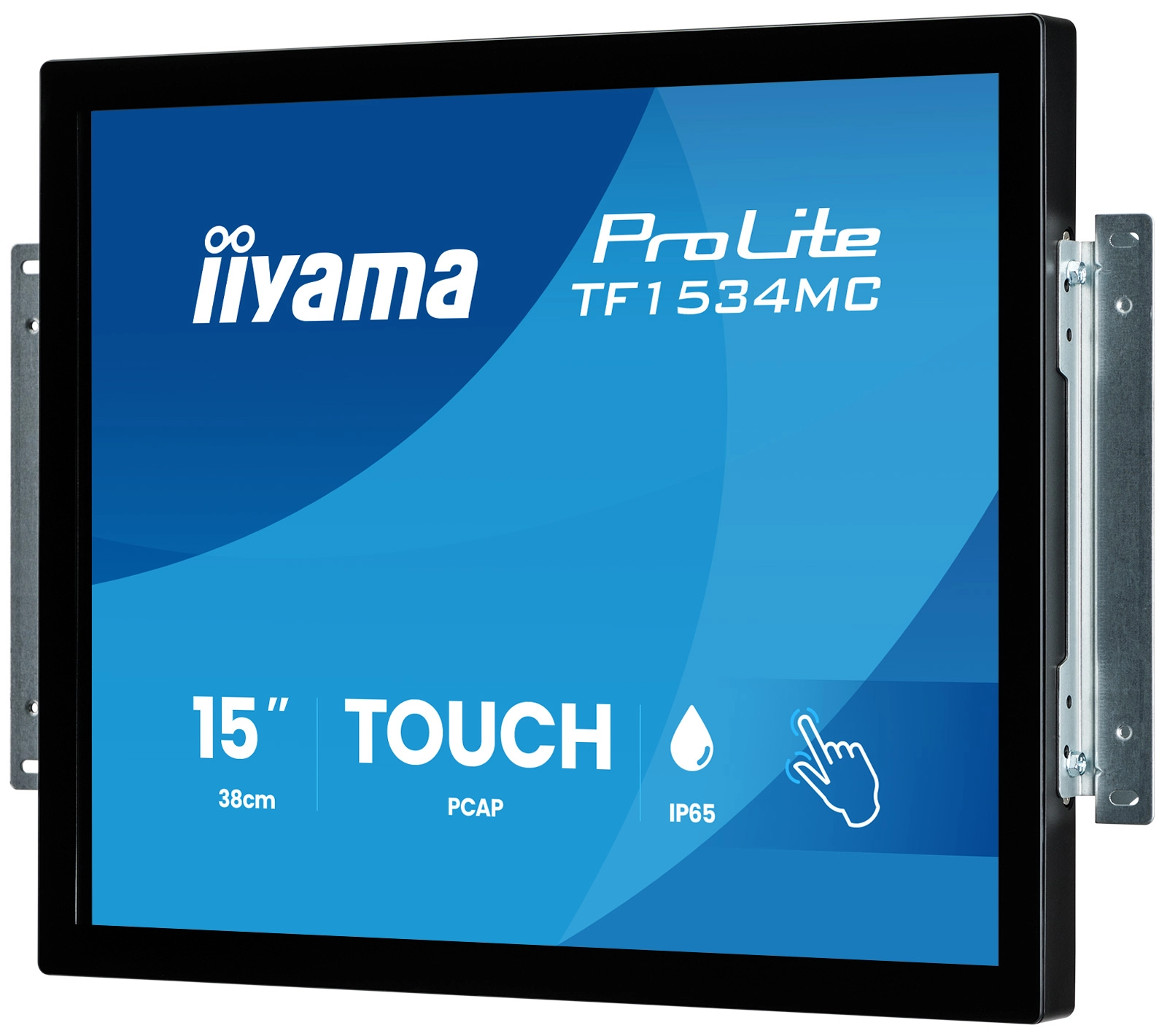

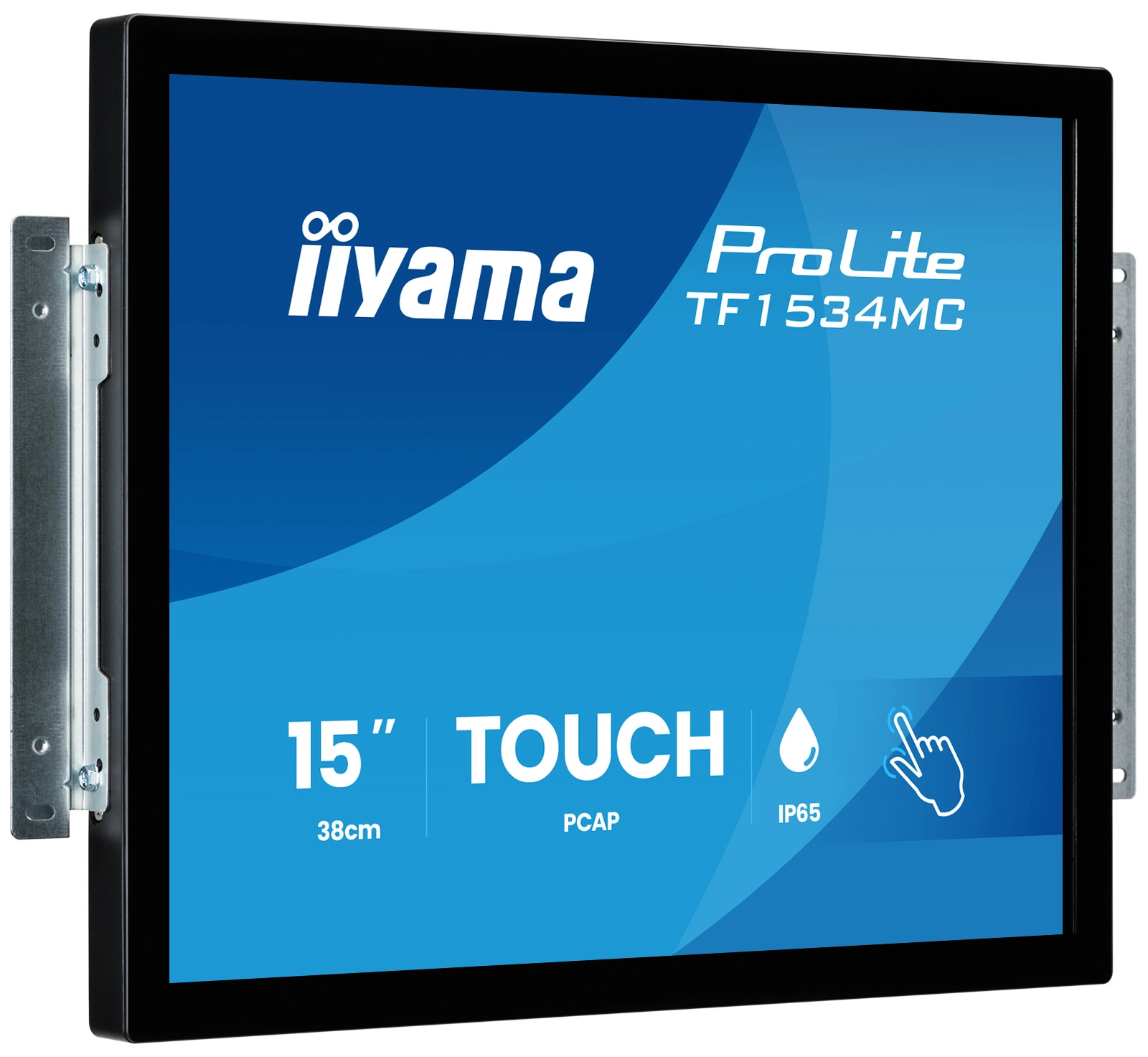

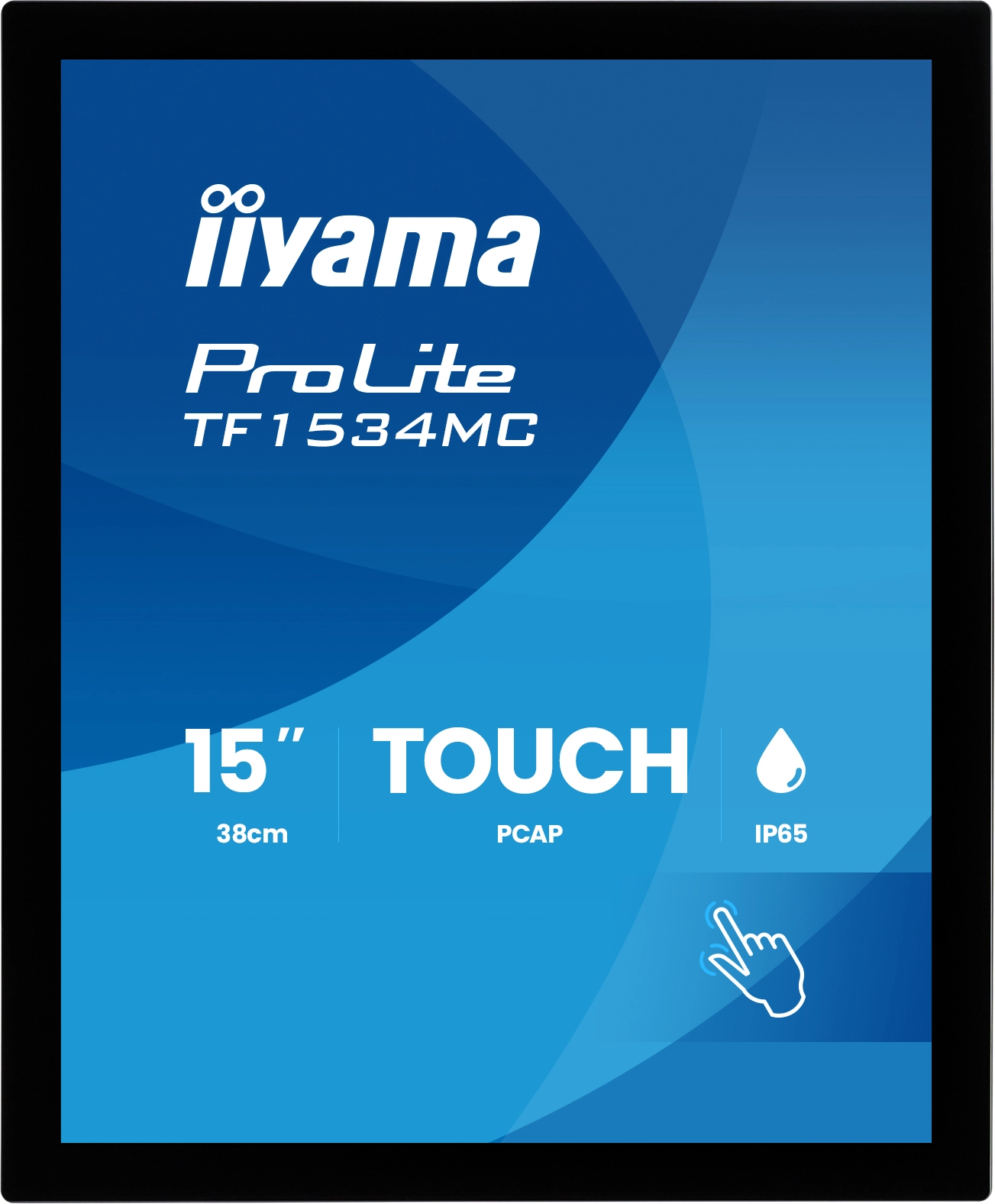

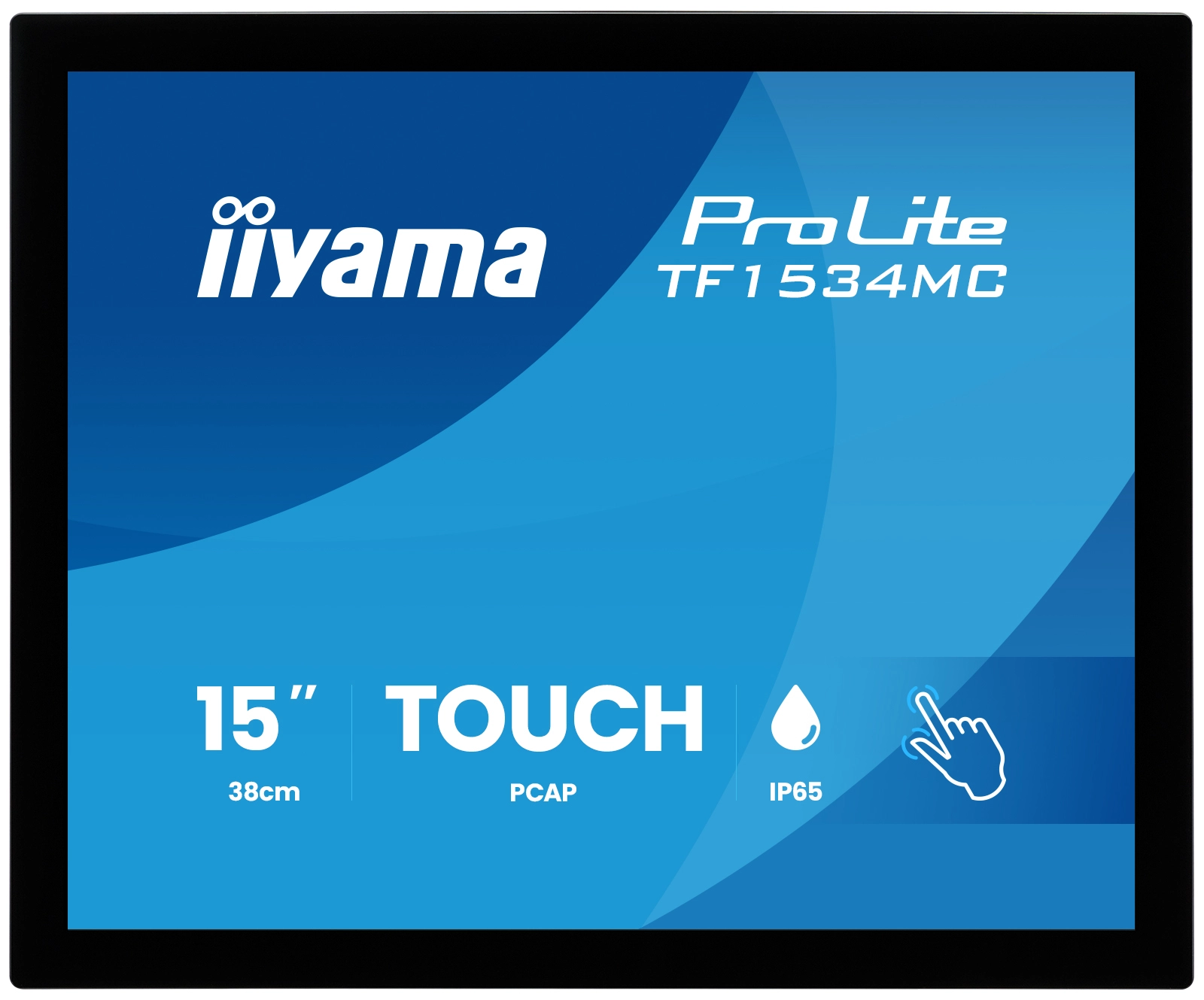

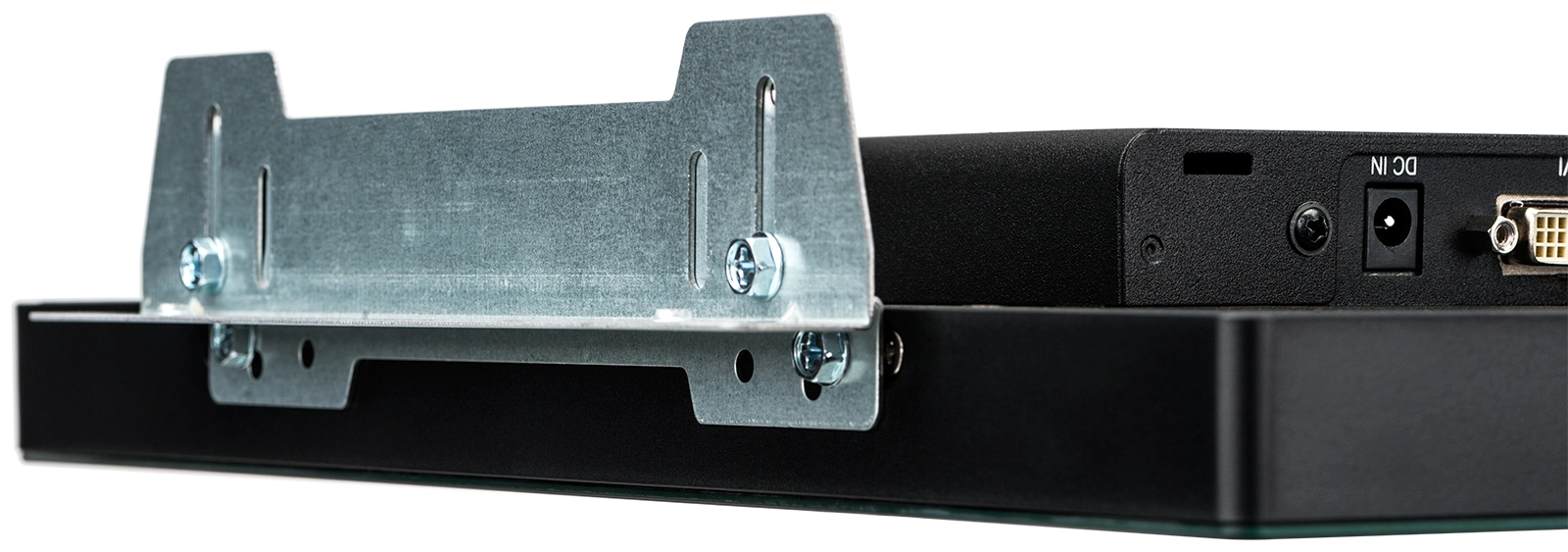

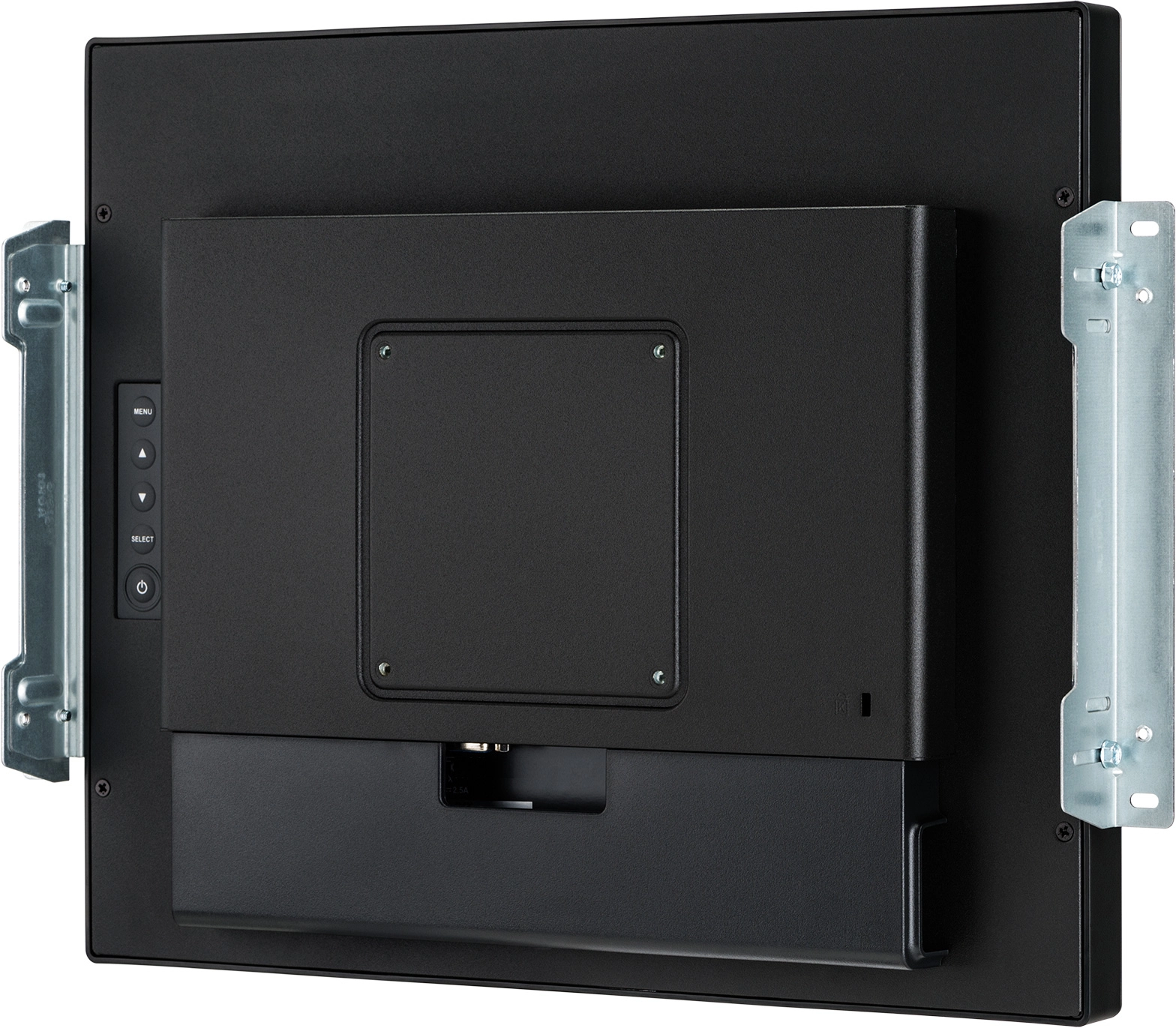

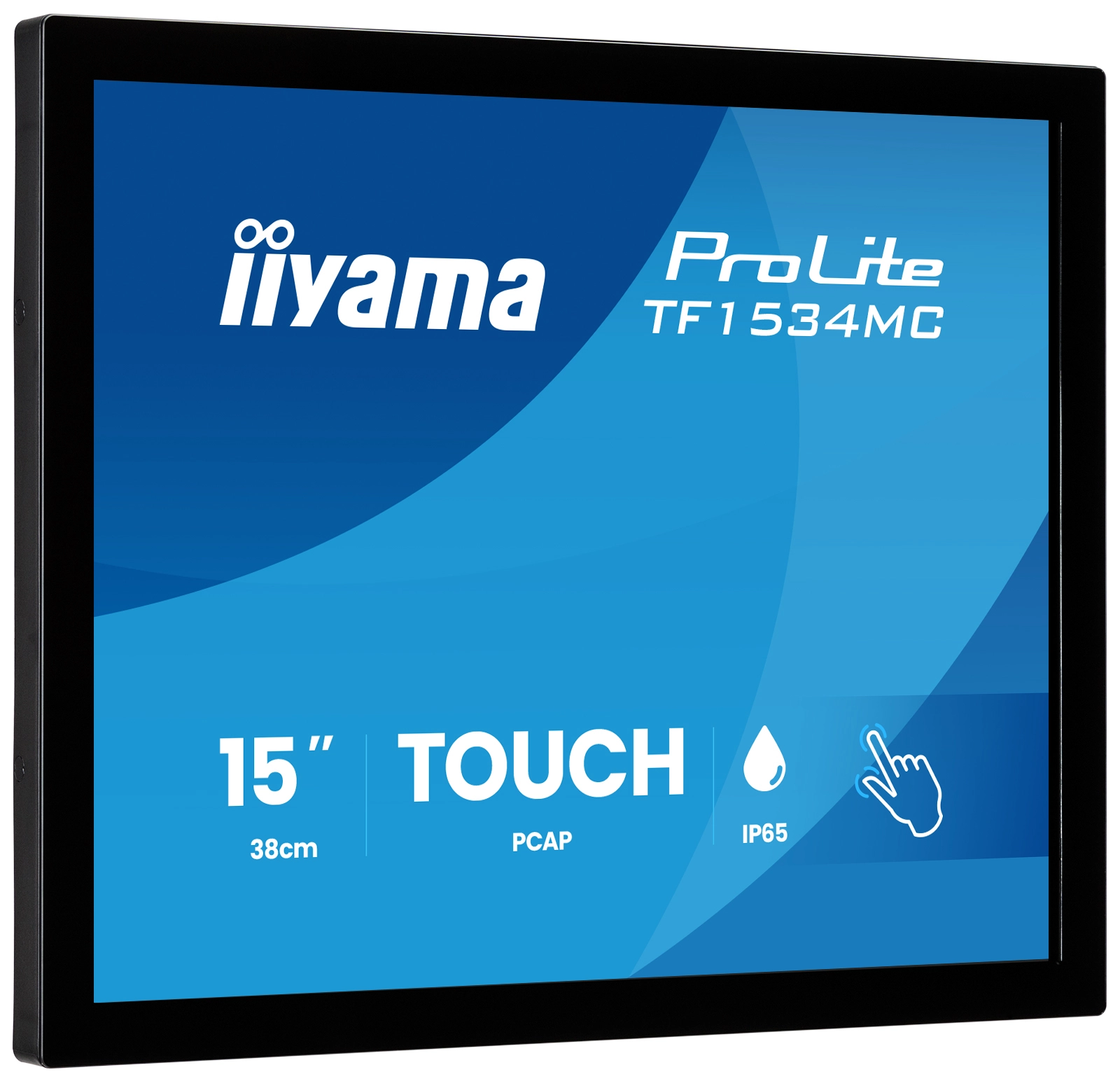

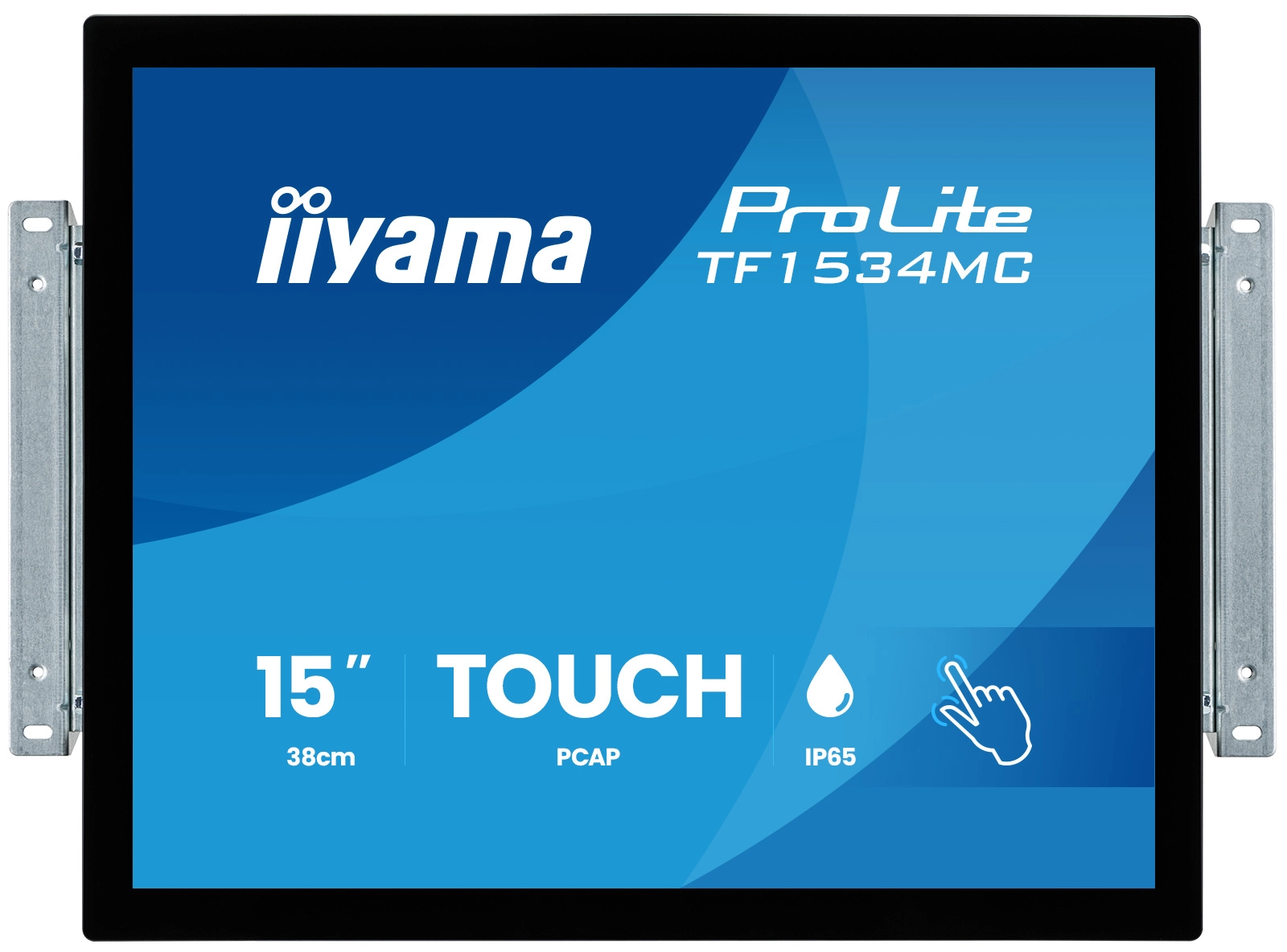

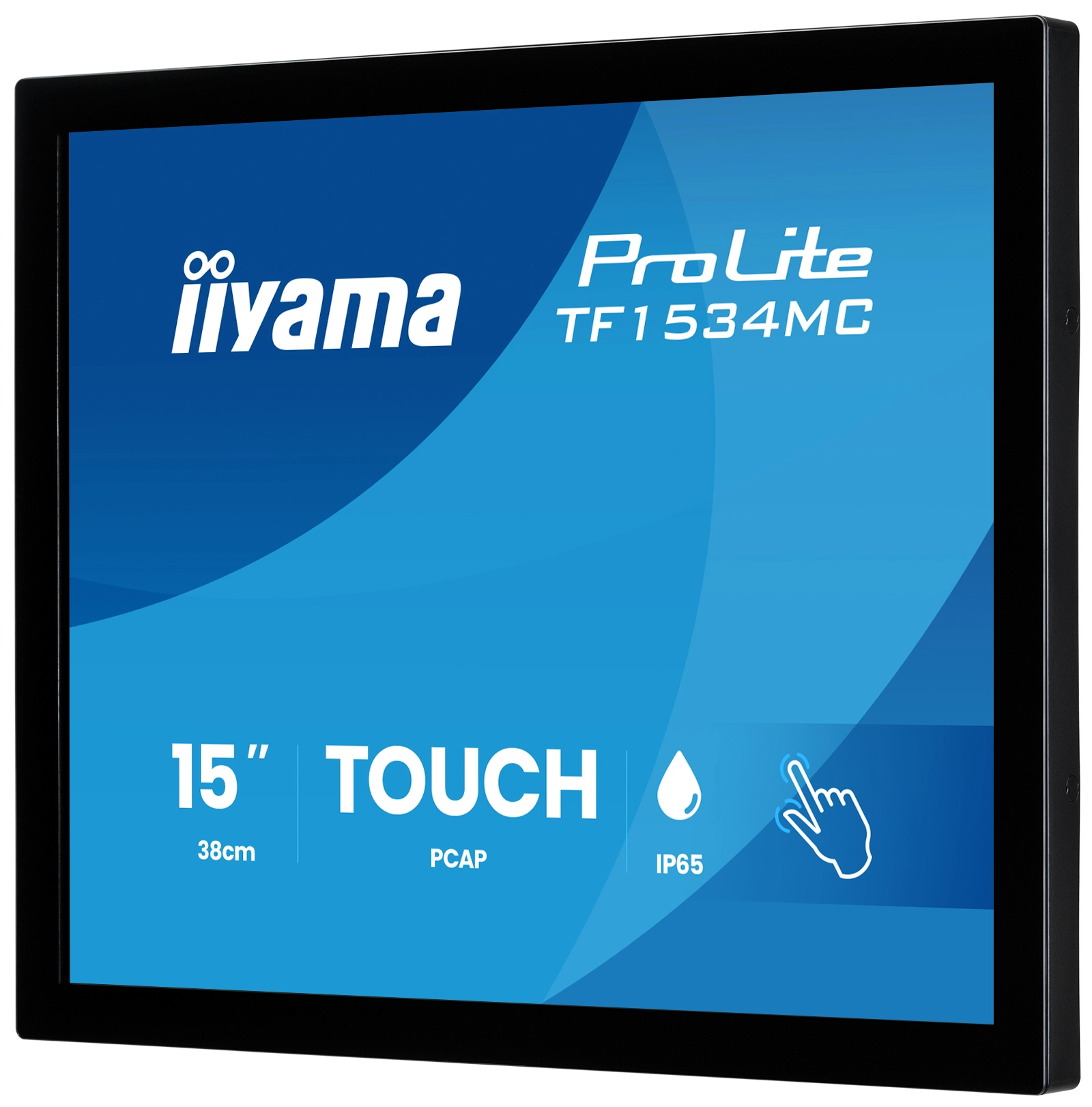

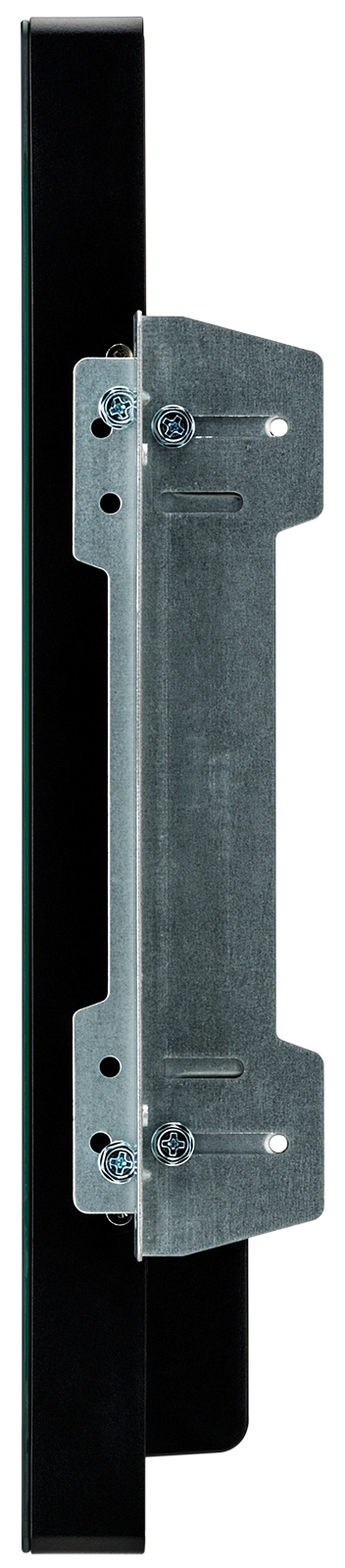

The ProLite TF1534MC-B8X is a 15” Open Frame touchscreen monitor designed for integration into kiosks, retail systems, interactive displays and custom installations. Its 10-point PCAP touch technology provides accurate multi-touch operation, while the edge-to-edge glass surface offers durability, scratch resistance and a clean, professional appearance. With IP65-rated front protection, the screen is resistant to dust and splashing water from the front, making it suitable for demanding public and commercial environments. The anti-fingerprint coating helps keep the display clear and easy to use, even with frequent interaction. For applications requiring additional protection, the Touch Through-Glass function allows reliable touch operation through a glass overlay up to 6 mm. The monitor can be installed in landscape, portrait or face-up orientation, while optional Open Frame mounting brackets support easy and secure integration into different installation designs. For ease of integration, the monitor can be equipped with optional external mounting brackets ( OMK1-1 ).

Specification

Product
Product id	1027254
Brand	iiyama
Partnr	TF1534MC-B8X
EAN/UPC code	4948570127801
Warranty (months)	36 months
Technical details
Brightness	300 cd/m²
Sustainability certificates	ErP
Compliance certificates	CE, cULus, EAC, REACH, RoHS, WEEE
Native refresh rate	75 Hz
Display
Display diagonal	15 inch
Display brightness	300 cd/m²
Display resolution	1024 x 768 Pixels
Native aspect ratio	4:3
Panel type	TN
Touchscreen technology	Projected capacitive system
Display brightness (typical)	300 cd/m²
Response time	8 ms
HD type	XGA
Display technology	LED
Positional accuracy	2 mm
Screen shape	Flat screen
Contrast ratio (typical)	800:1
Maximum refresh rate	75 Hz
Viewing angle, horizontal	170 °
Viewing angle, vertical	160 °
Display number of colours	16.2 million colours
Display diagonal (metric)	38 cm
Pixel pitch	0.297 x 0.297 mm
Horizontal scan range	31 - 60 kHz
Viewable size, horizontal	304 mm
Viewable size, vertical	228 mm
Surface hardness	7H
Performance
NVIDIA G-SYNC	N
AMD FreeSync	N
Low Blue Light technology	Y
Compatible operating systems	All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Palm rejection	Y
Multimedia
Built-in speaker(s)	N
Built-in camera	N
Design
Market positioning	Business
Product colour	Black
Front bezel colour	Black
International Protection (IP) code	IP65
Ports & interfaces
Built-in USB hub	N
VGA (D-Sub) ports quantity	1
HDMI	Y
HDMI ports quantity	1
DisplayPorts quantity	1
Headphone out	N
USB Touch port	Y
HDCP	Y
Ergonomics

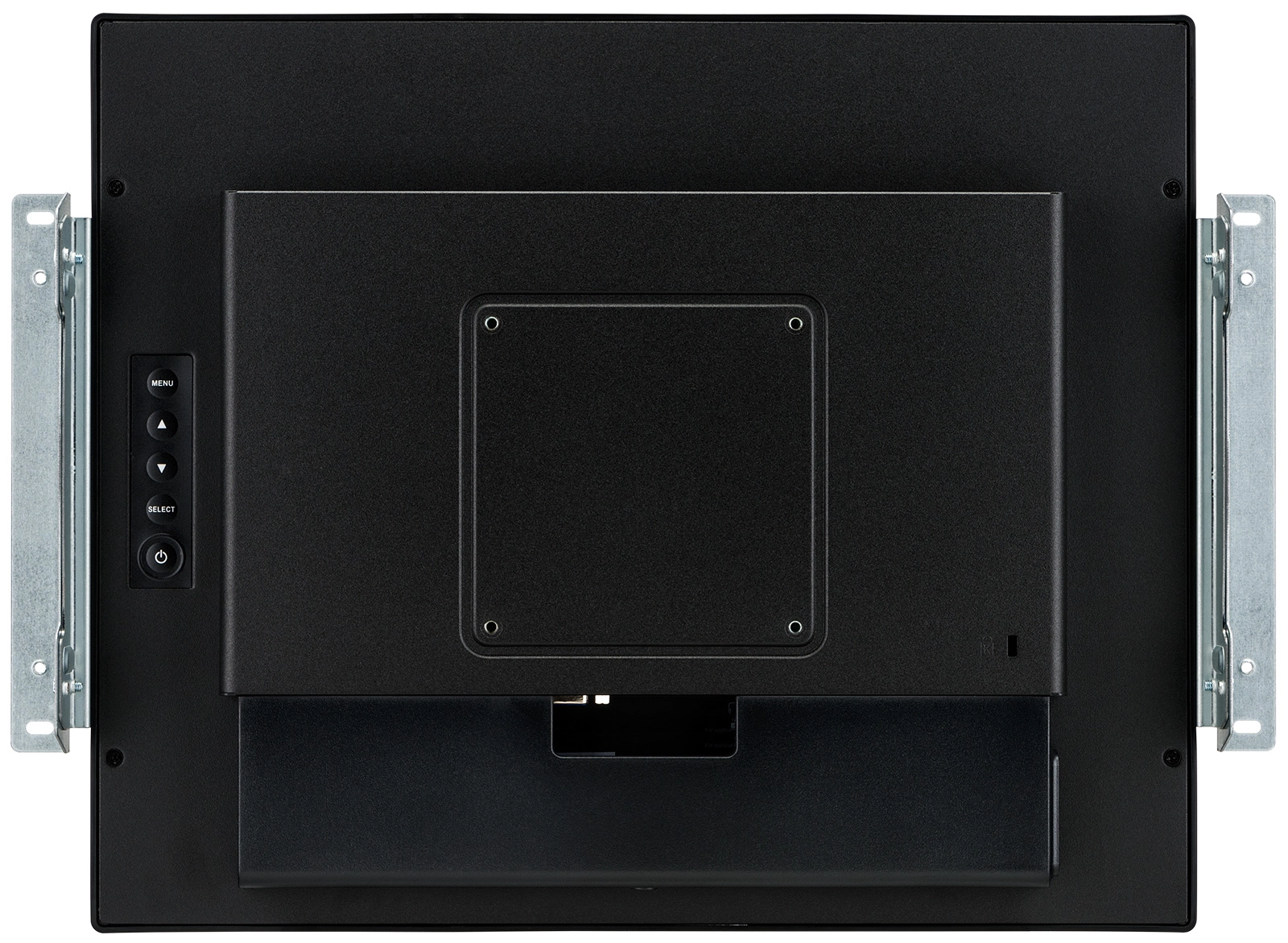

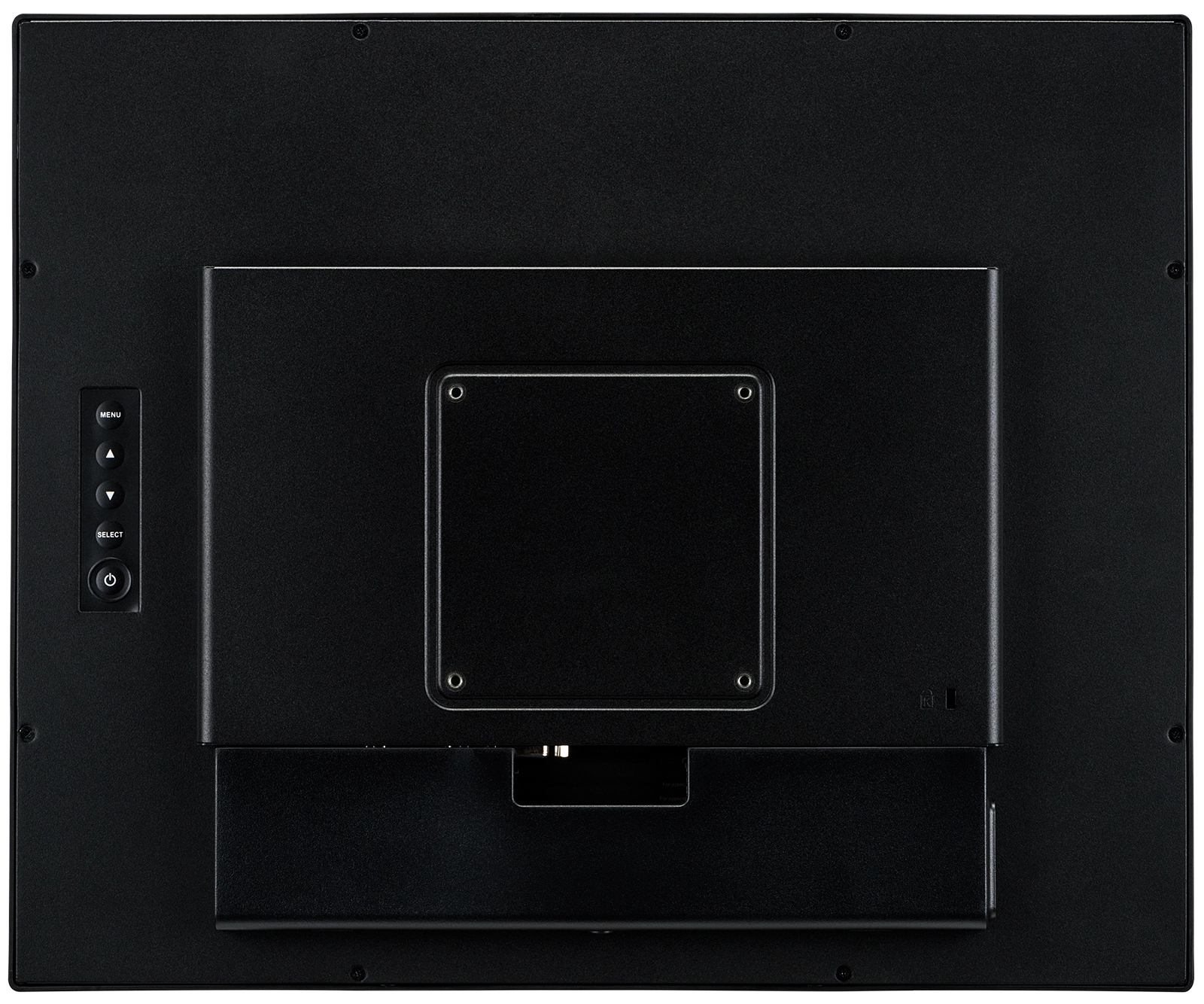

VESA mounting	Y
Panel mounting interface	100 x 100 mm
Cable lock slot	Y
Cable management	Y
Cable lock slot type	Kensington
Height adjustment	N
On Screen Display (OSD)	Y
On Screen Display (OSD) languages	CHI (TR), DEU, ENG, ESP, FRE, ITA, JPN
Packaging data

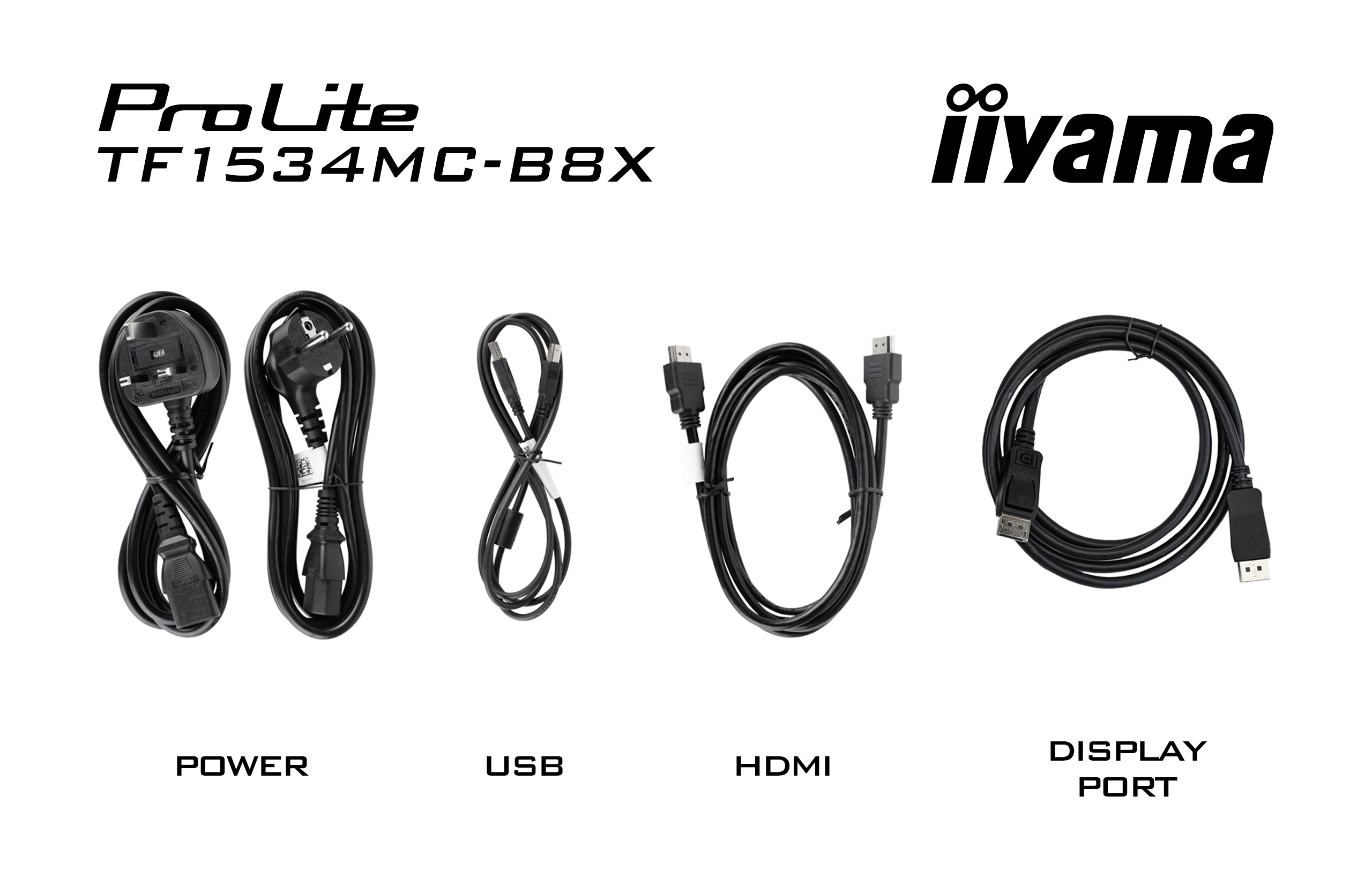

Cables included	AC, USB, HDMI, DisplayPort
Power cable length	1.8 m
DisplayPort cable length	1.8 m
HDMI cable length	1.8 m
USB cable length	1.8 m
Quick start guide	Y
Package width	355 mm
Package depth	435 mm
Package height	165 mm
Package weight	4000 g
Power
Energy efficiency class (SDR)	D
Energy consumption (SDR) per 1000 hours	9 kWu
Power consumption (typical)	9 W
Energy efficiency class (HDR)	Not available
Power consumption (standby)	1.5 W
Power consumption (off)	0.3 W
AC adapter output voltage	12 V
Weight & dimensions
Width (with stand)	338 mm
Depth (with stand)	45 mm
Height (with stand)	267 mm
Weight (with stand)	2700 g
Width	338 mm
Depth	45 mm
Height	267 mm
Weight	2700 g
Logistics data
Pallet net width	910 mm
Pallet net depth	1140 mm
Pallet net height	2430 mm
Other features
AC adapter included	Y
Display brightness (peak)	350 cd/m²
Active display area (W x H)	304 x 228 mm
Power supply type	External
Touchscreen	Y
Number of simultaneous touchpoints	10
Mean time between failures (MTBF)	50000 uur
Packaging content	AC adapter
Touch method	stylus, finger, glove (latex)
Control panel	Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power
User controls	picture (contrast, brightness, H. position, V. position, phase, clock, auto adjust), advanced (color temp. , sharpness), OSD (time out, position, H-position, V-position, Touch switch), option (reset, language, source select, display mode, factory)
