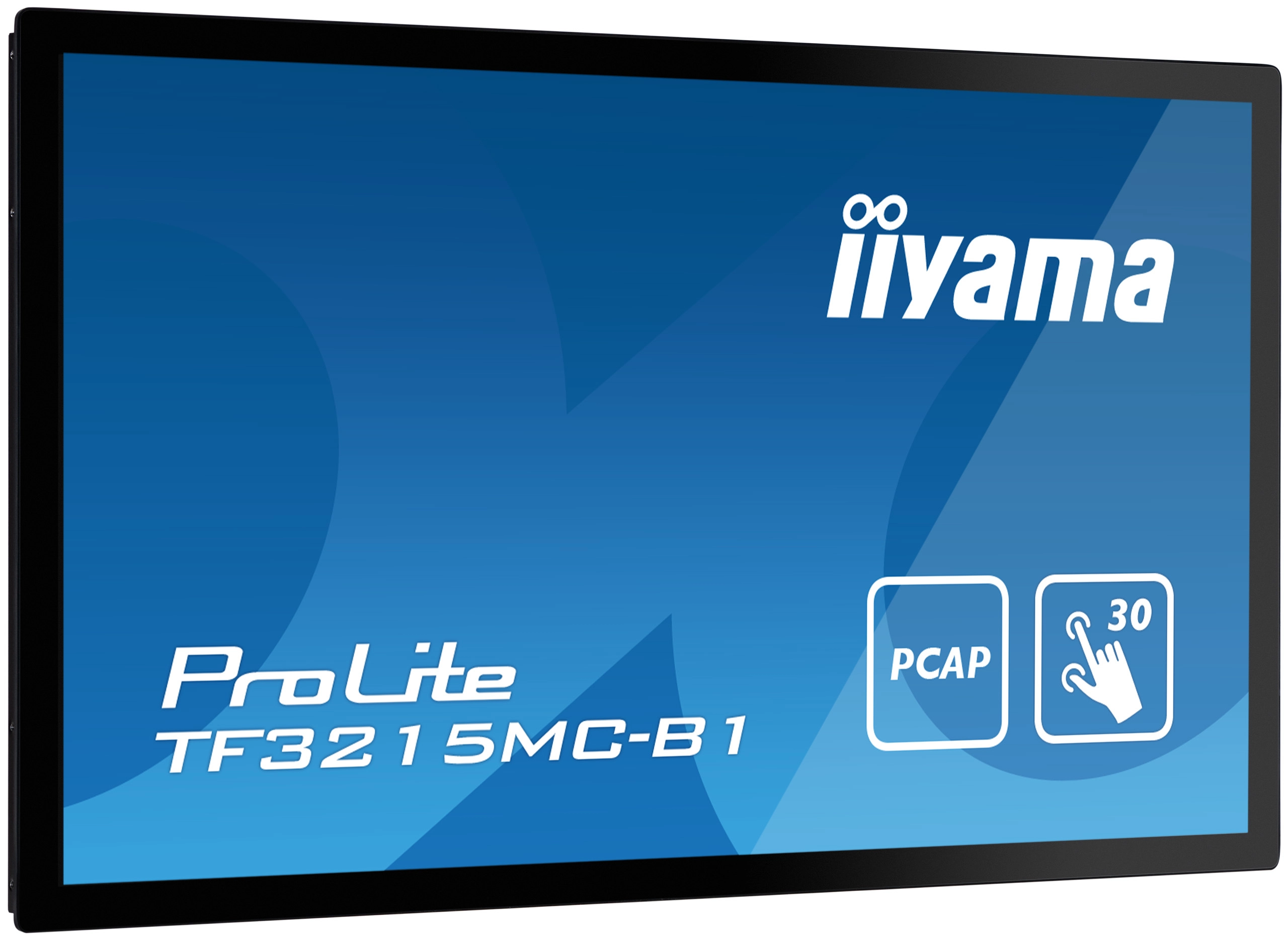

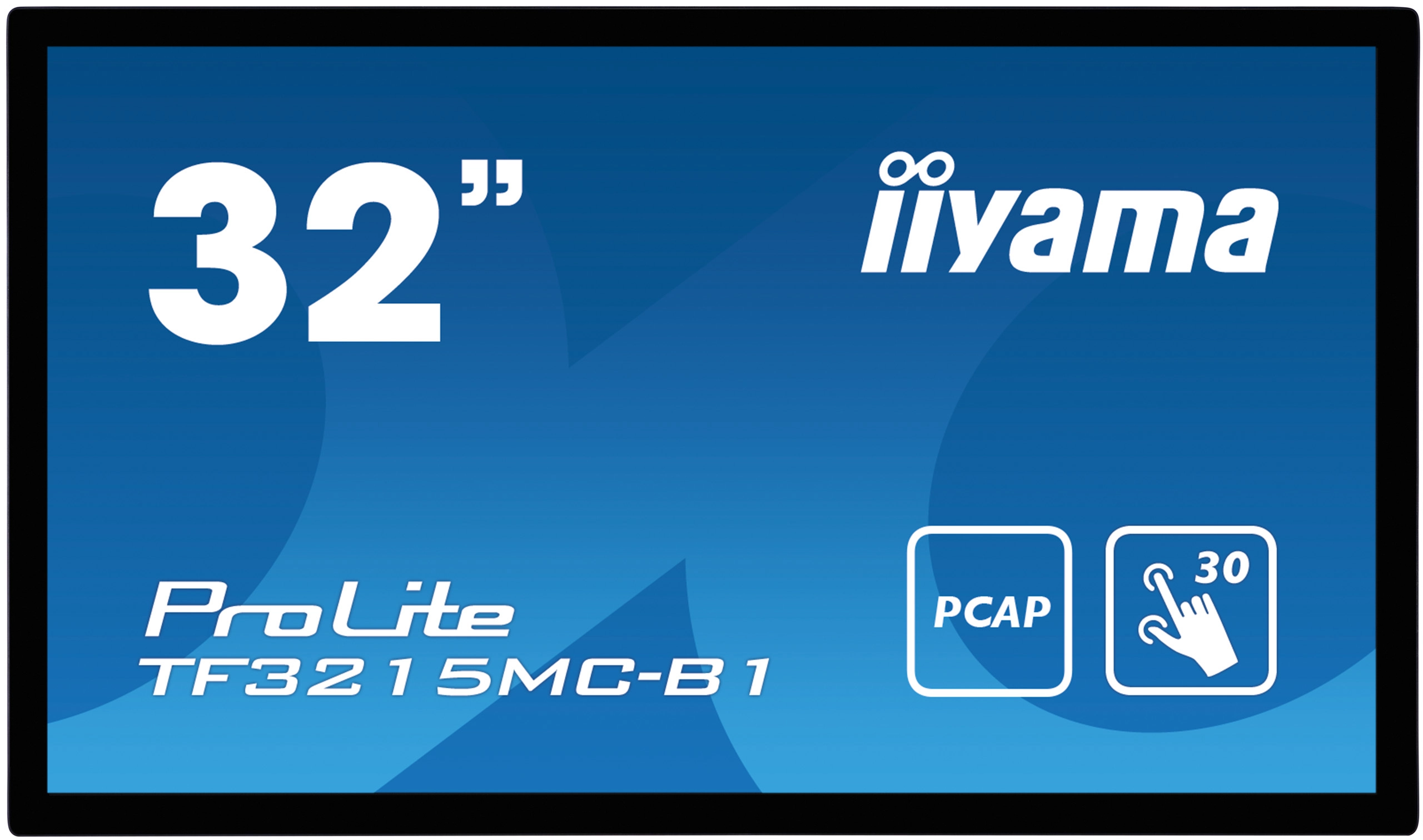

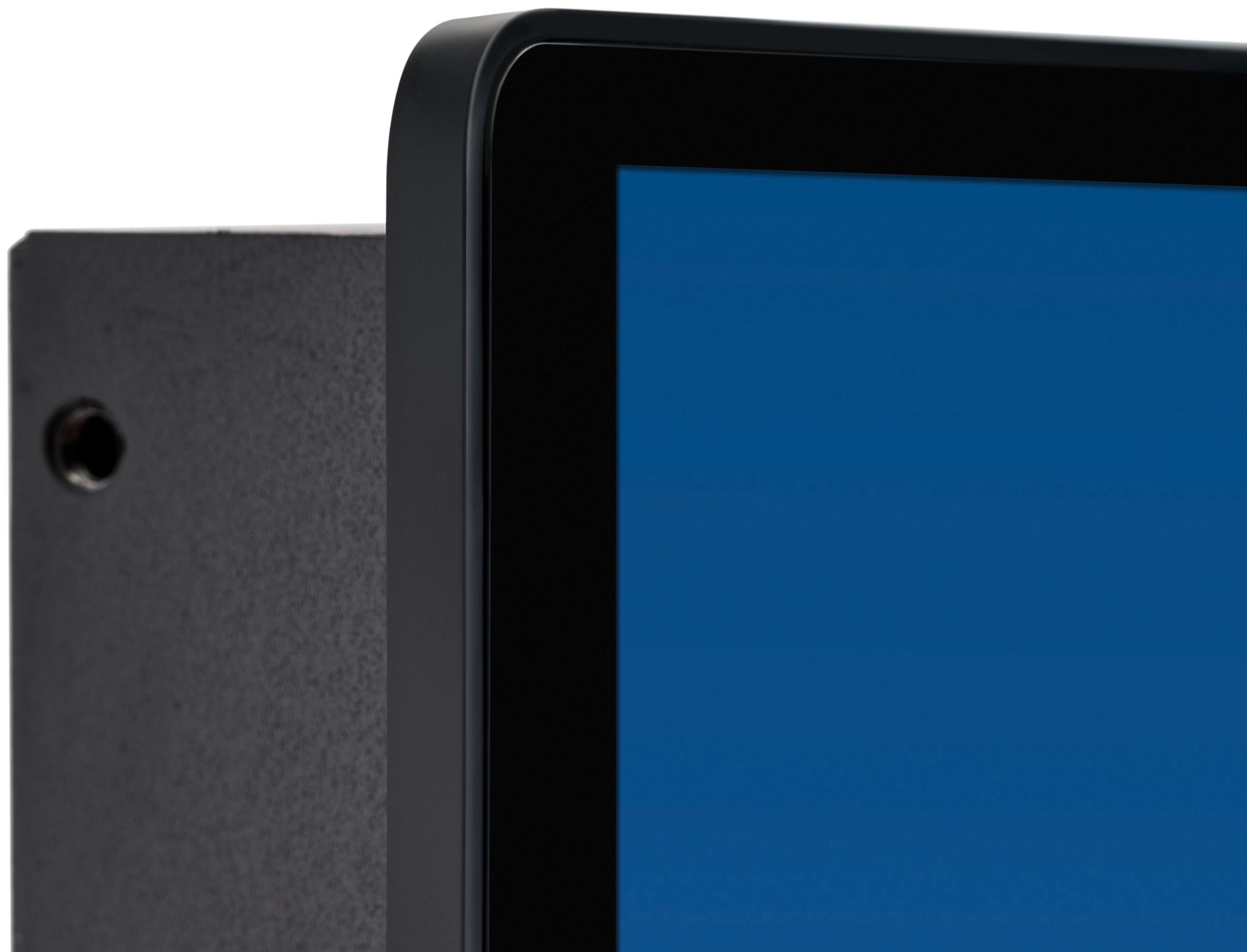

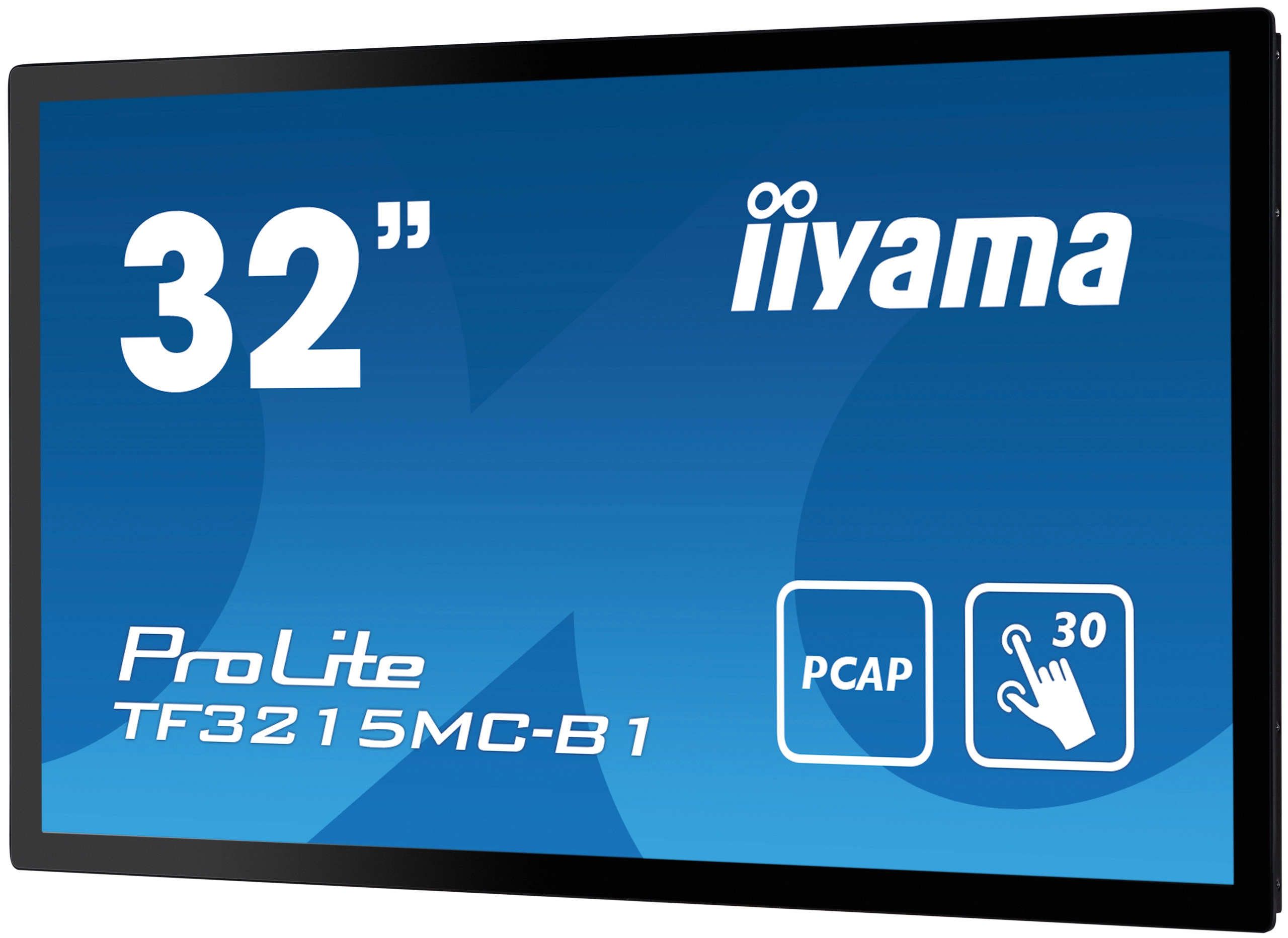

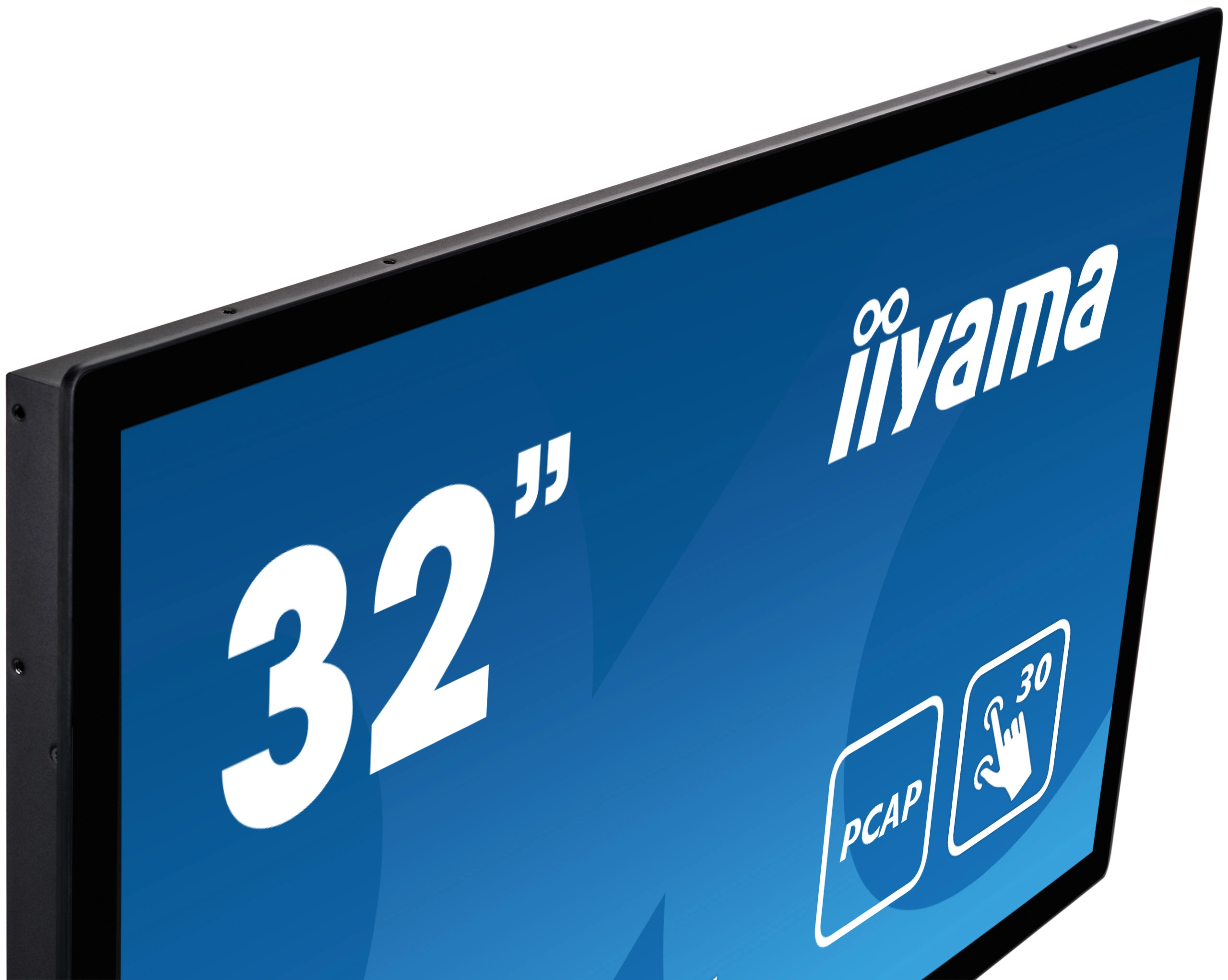

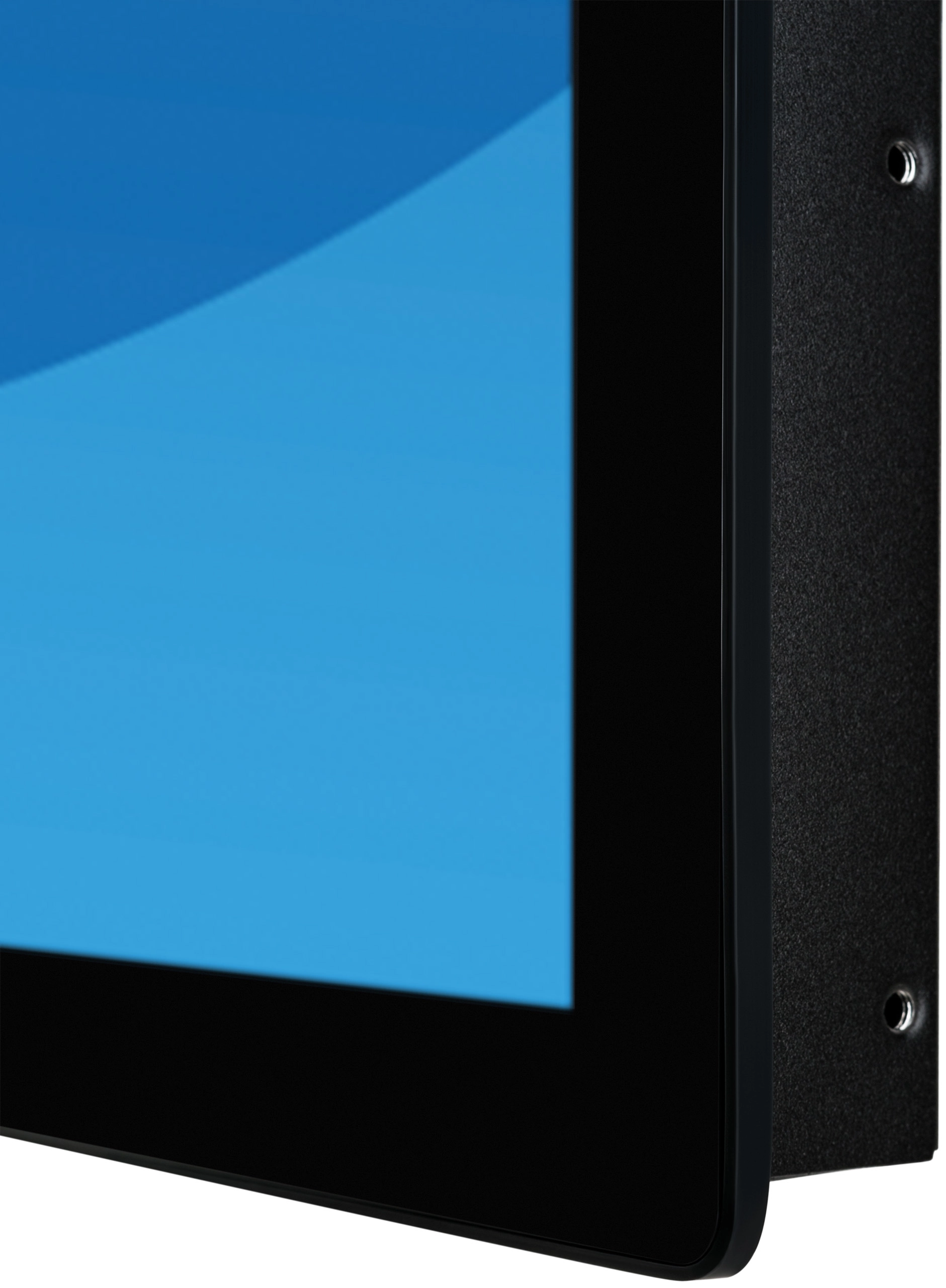

The ProLite TF3215MC-B2 with 30-point PCAP touch technology is a open frame monitor with an eye-catching edge-to-edge glass design. Thanks to this completely frame-less glass surface, it guarantees high durability and scratch resistance, making it perfect for kiosk systems and high-traffic public applications. The VA panel technology offers higher contrast and darker blacks.

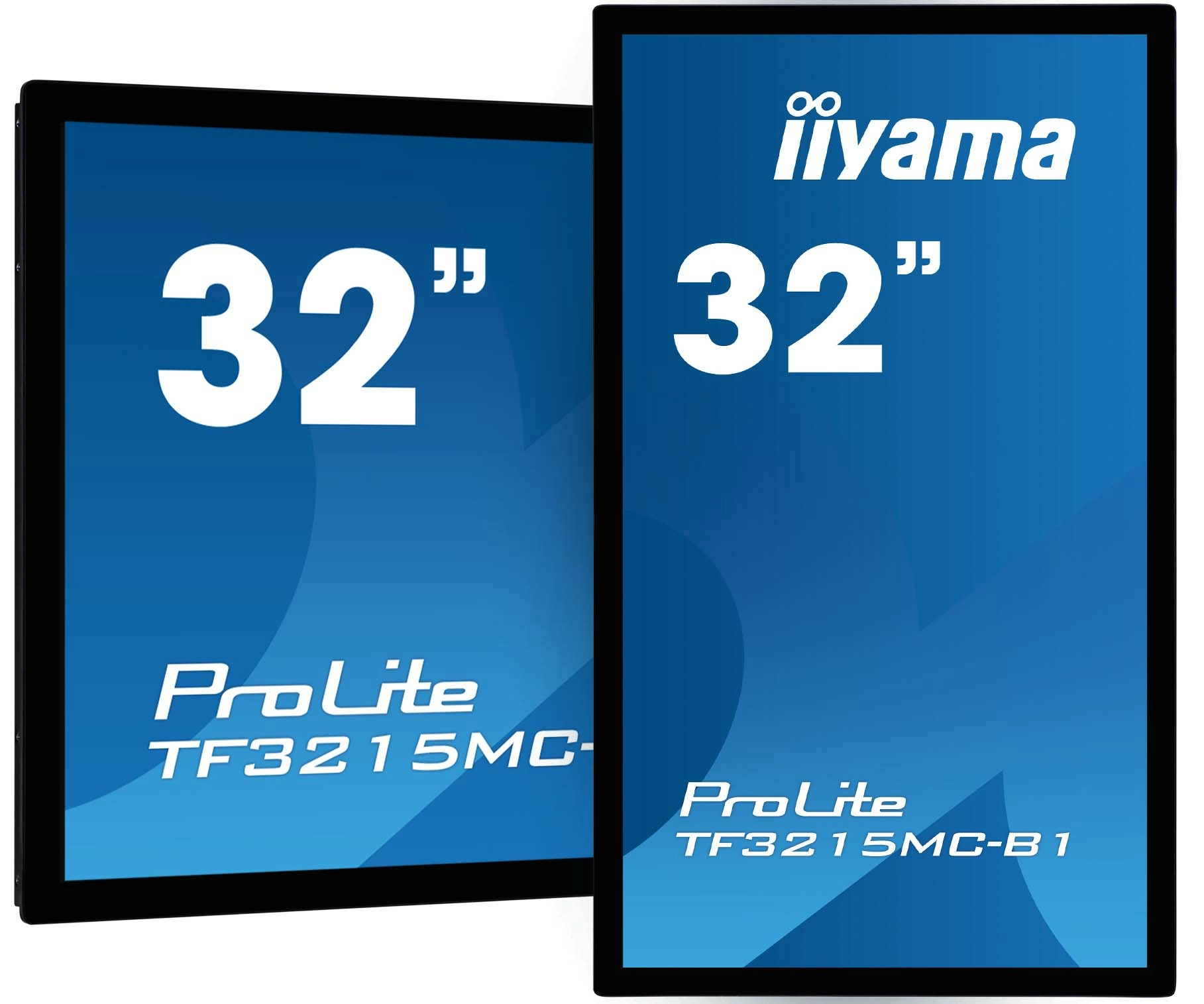

Equipped with a foam seal, the monitor supports seamless integration and the IP65 rating ensures dust and water resistance from the front. Portrait and landscape orientation ensures flexible mounting options for 24/7 operation in almost any installation. The TF3215MC-B2 is the ideal solution for kiosk integrators, industrial environments, control rooms and interactive multi-media applications.

TOUCH TECHNOLOGY - CAPACITIVE
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

Specification

Product
Product id	959255
Brand	iiyama
Partnr	TF3215MC-B2
EAN/UPC code	4948570123667
Warranty (months)	3 year
Display
Display diagonal	32 inch
Display resolution	1920 x 1080 Pixels
Native aspect ratio	16:9
Panel type	VA
Touchscreen technology	Projected capacitive system
Display brightness (typical)	460 cd/m²
Response time	8 ms
Touch technology	Multi-touch
HD type	Full HD
Display technology	LED
Screen shape	Flat screen
Contrast ratio (typical)	16:9
Contrast ratio (dynamic)	3000:1
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Display number of colours	16.78 million colours
Display diagonal (metric)	80 cm
Pixel pitch	0.3637 x 0.3637 mm
Horizontal scan range	30 - 68 kHz
Vertical scan range	47 - 63 Hz
Viewable size, horizontal	698.4 mm
Viewable size, vertical	392.8 mm
Surface hardness	7H
Performance
NVIDIA G-SYNC	N
AMD FreeSync	N
Operating hours (hours/days)	24/7
Multimedia
Built-in speaker(s)	N
Built-in camera	N
Design
Market positioning	Office
Product colour	Black
Housing material	Metal
Glass thickness	3 mm
International Protection (IP) code	IP65

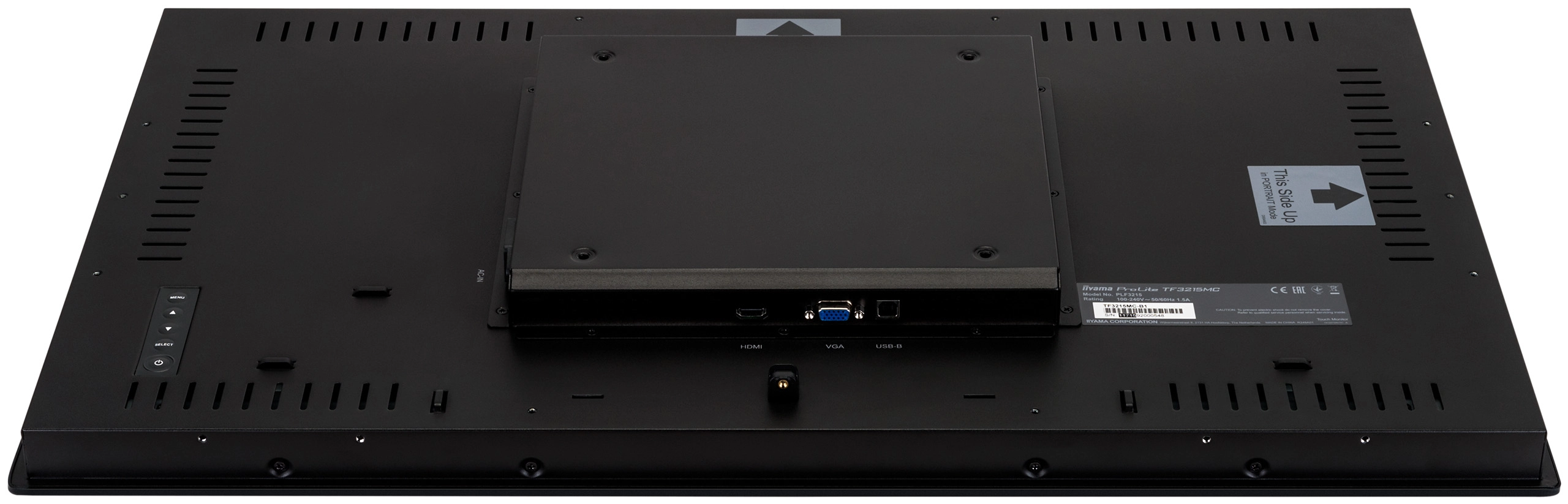

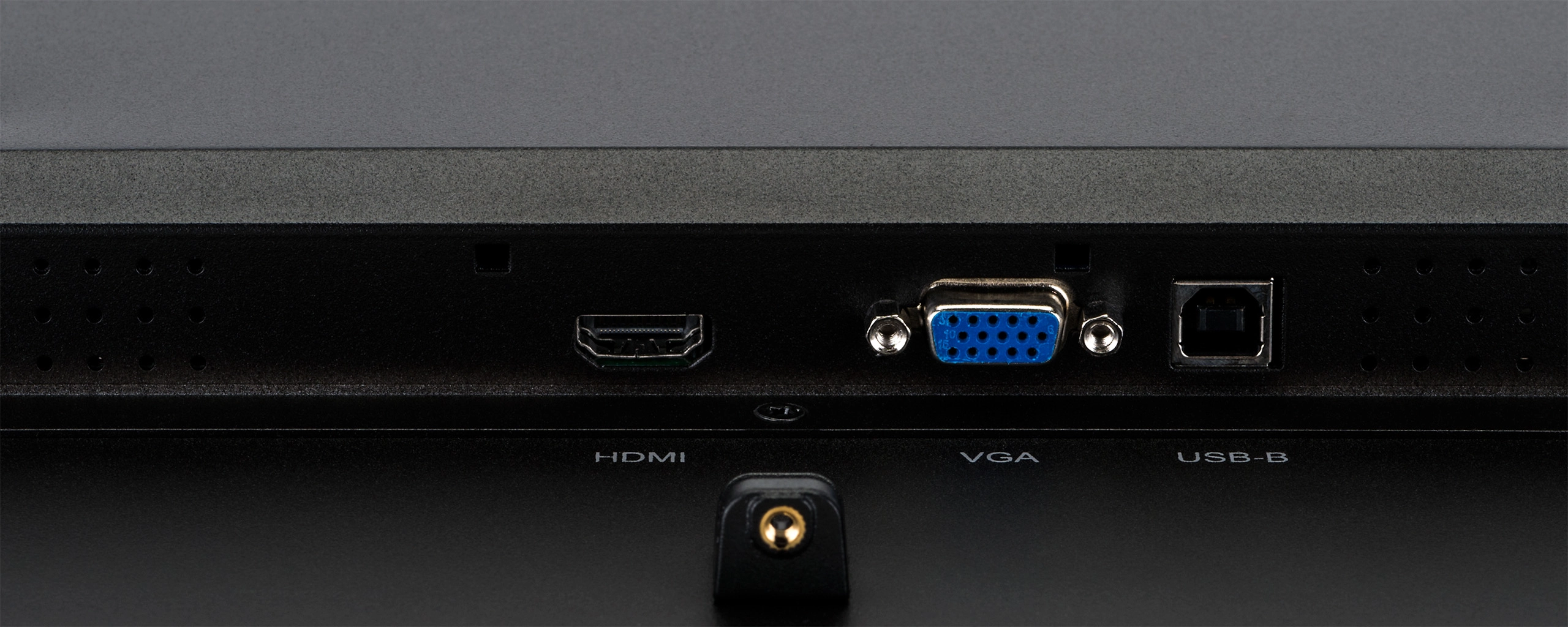

Ports & interfaces
VGA (D-Sub) ports quantity	1
HDMI	Y
HDMI ports quantity	1
HDCP	Y
Sustainability
European Product Registry for Energy Labelling (EPREL) code	466703
Ergonomics

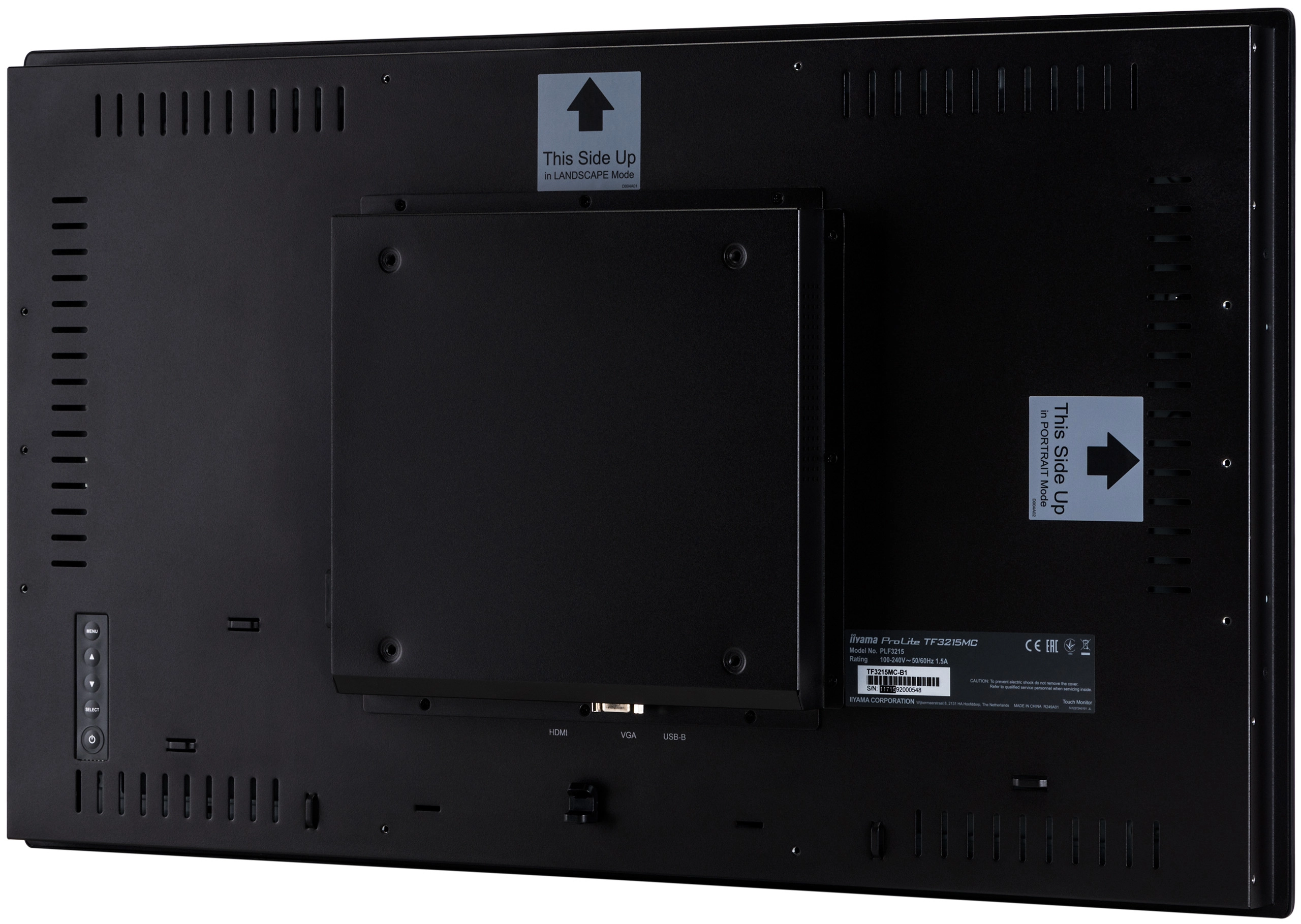

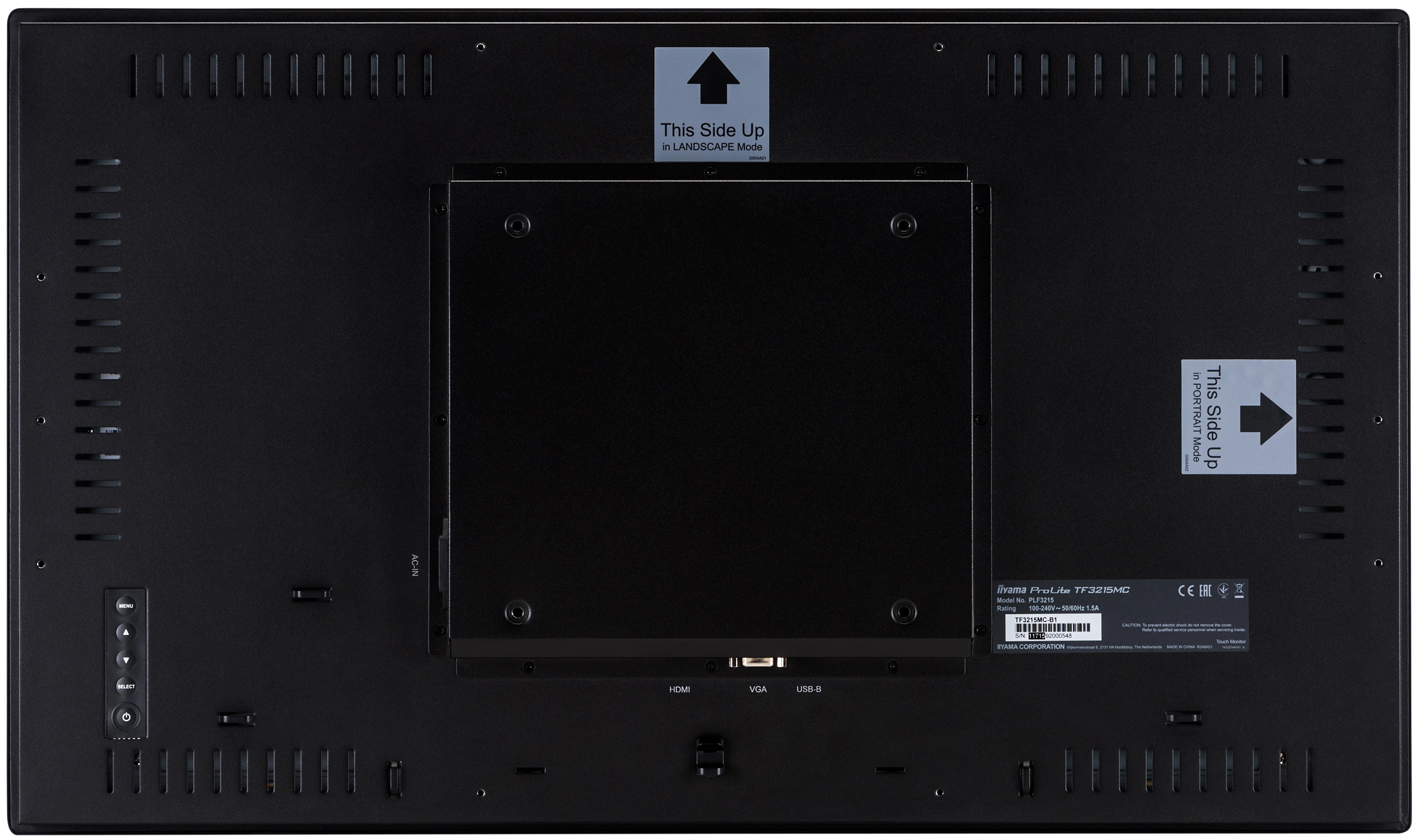

VESA mounting	Y
Panel mounting interface	200 x 200 mm
Cable lock slot	N

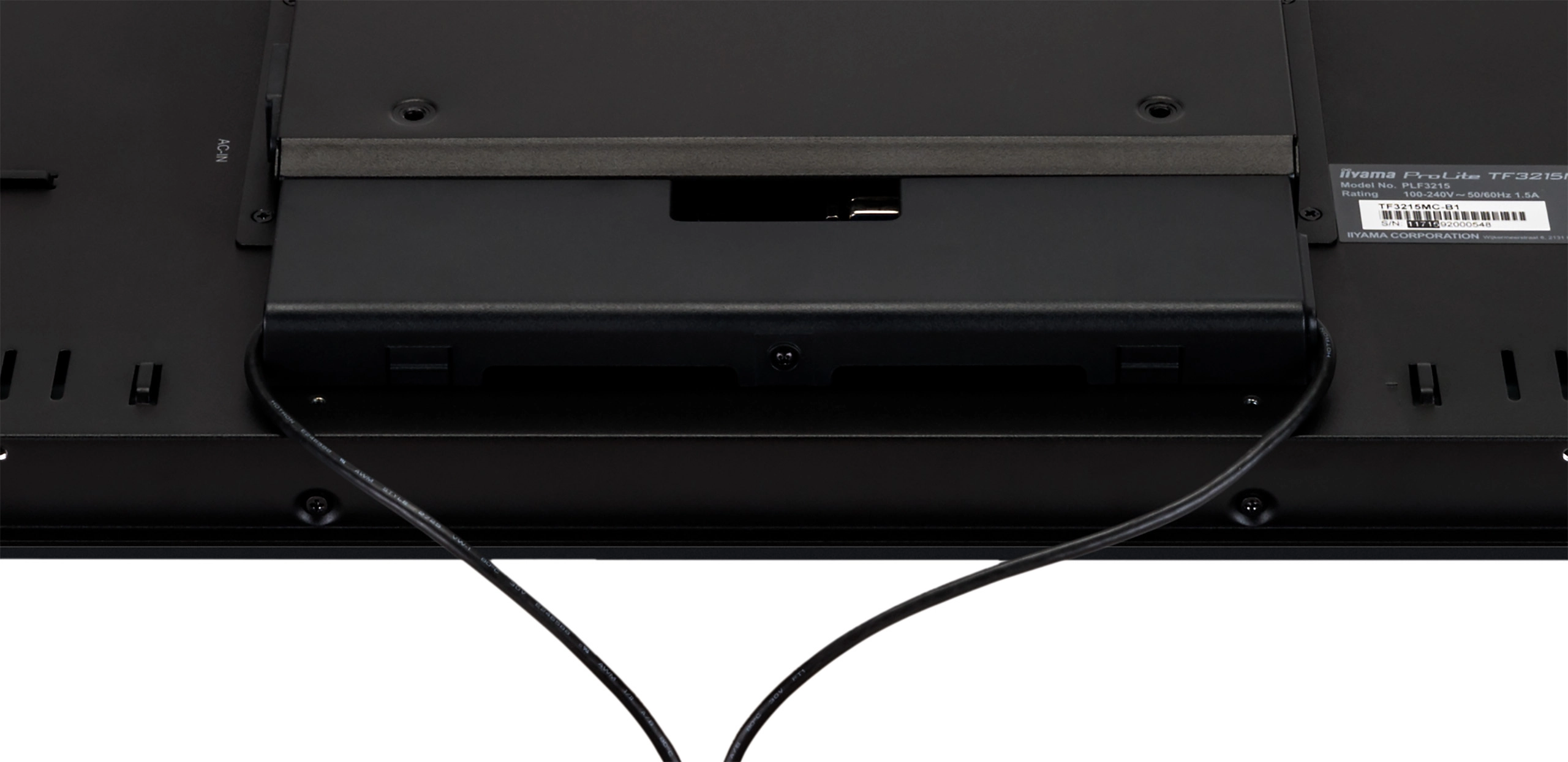

Cable management	Y
Wall mountable	Y
On Screen Display (OSD)	Y
On Screen Display (OSD) languages	DEU, ENG, ESP, FRE, ITA, JPN
Number of OSD languages	7
Plug and Play	Y
Packaging data

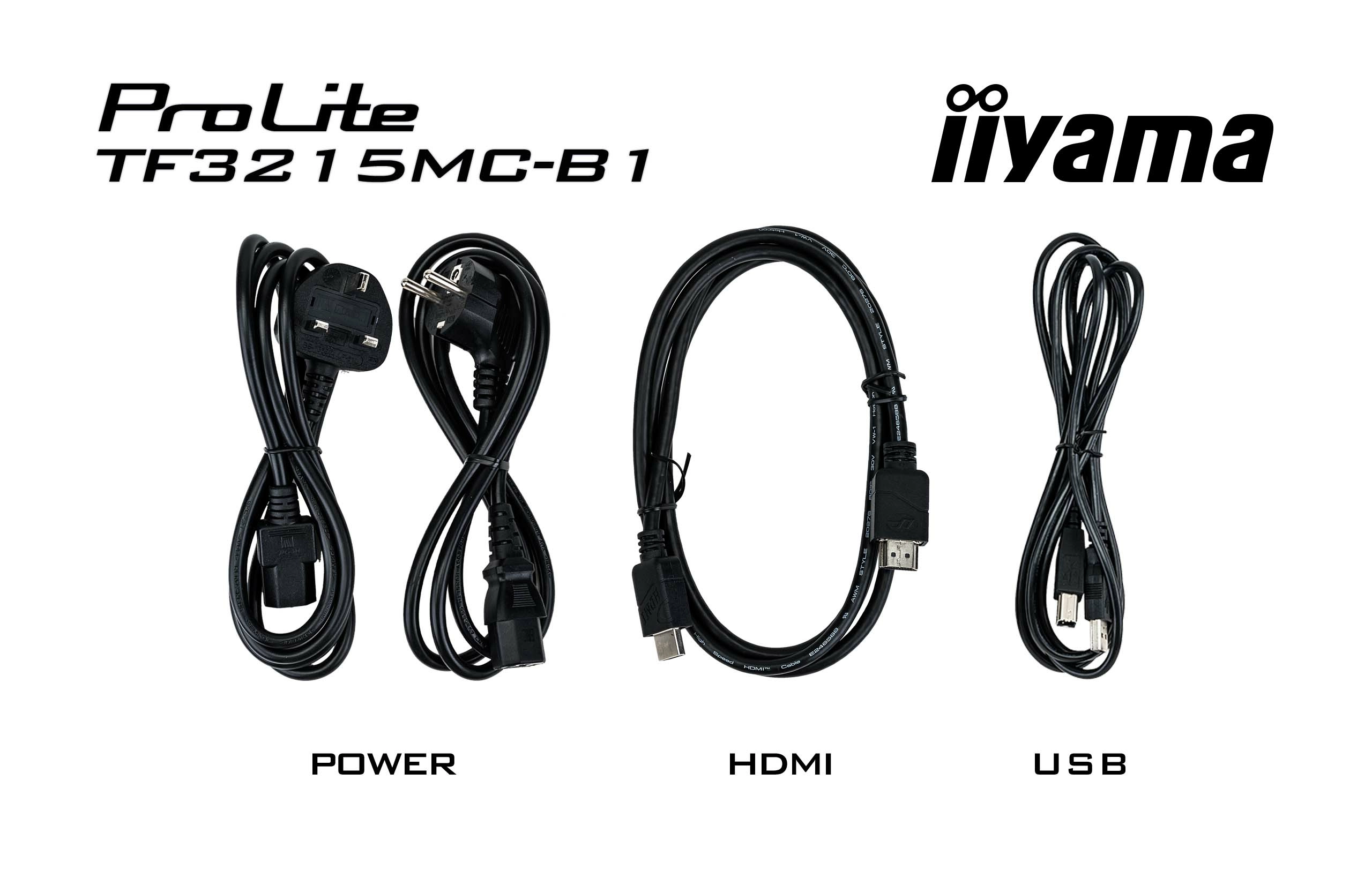

Cables included	AC, HDMI, USB
Quick start guide	Y
Package width	890 mm
Package depth	155 mm
Package height	630 mm
Package weight	13300 g
Power
Energy efficiency class (SDR)	F
Energy consumption (SDR) per 1000 hours	31 kWu
Power consumption (typical)	32 W
Power consumption (standby)	1.5 W
Power consumption (off)	0.3 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Energy efficiency scale	A to G
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Weight & dimensions
Width (without stand)	742.5 mm

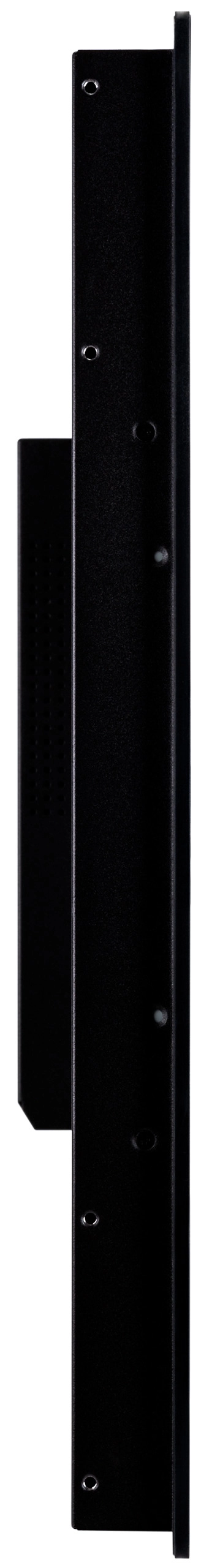

Depth (without stand)	61 mm
Height (without stand)	437 mm
Weight (without stand)	10000 g
Other features
Display brightness (peak)	500 cd/m²
Touchscreen	Y
Full HD	Y
Number of simultaneous touchpoints	30
Touchscreen type	Kiosk
