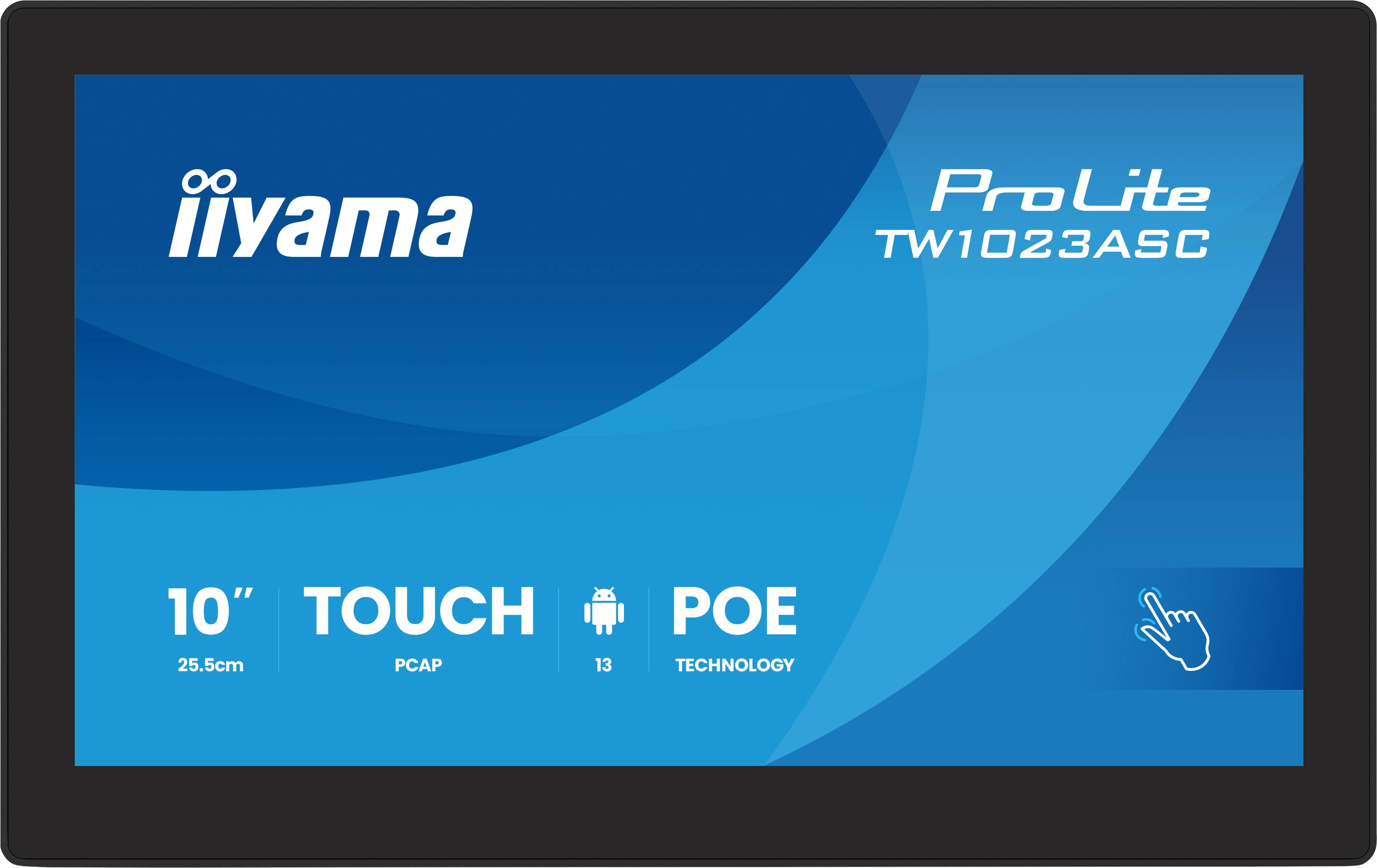

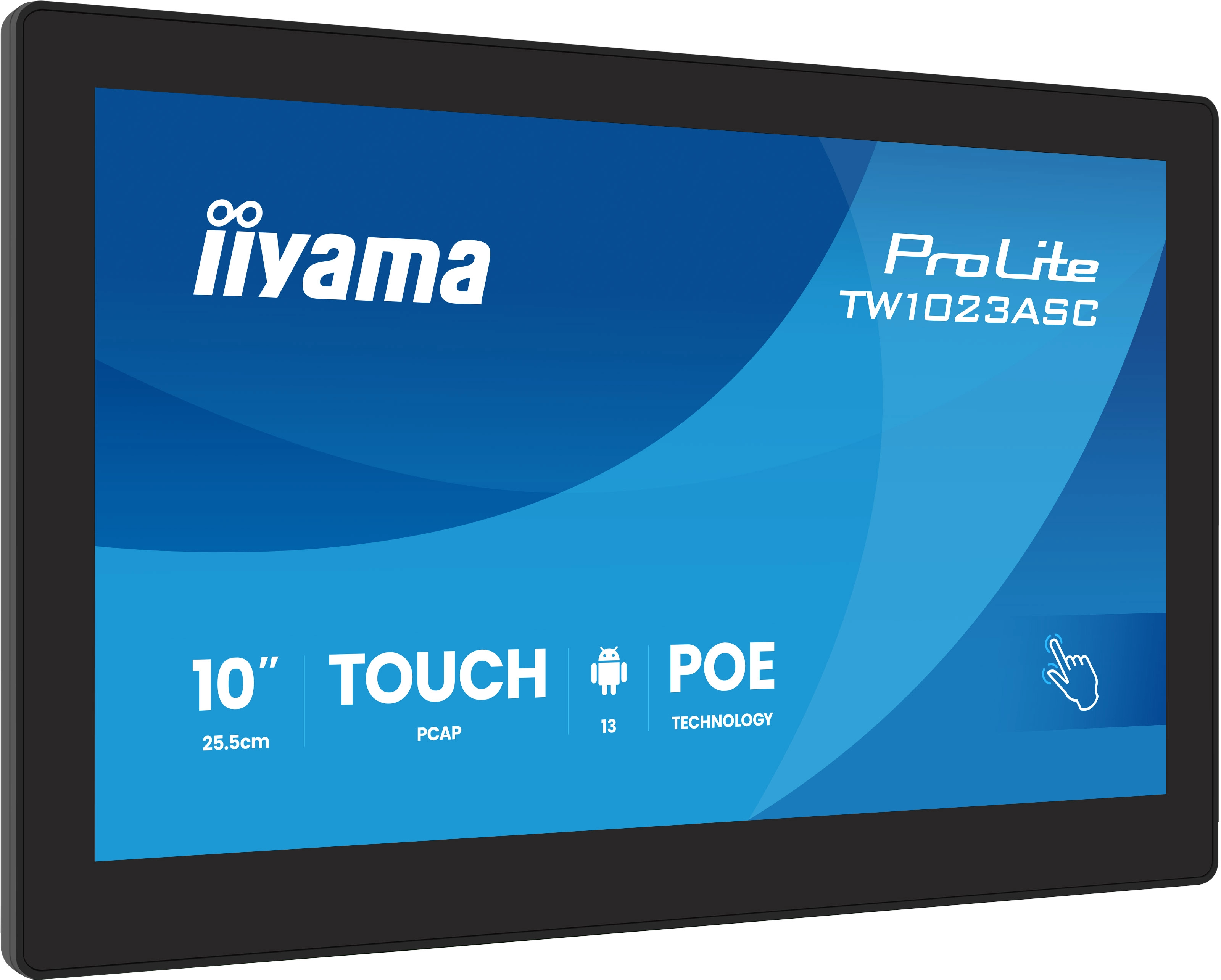

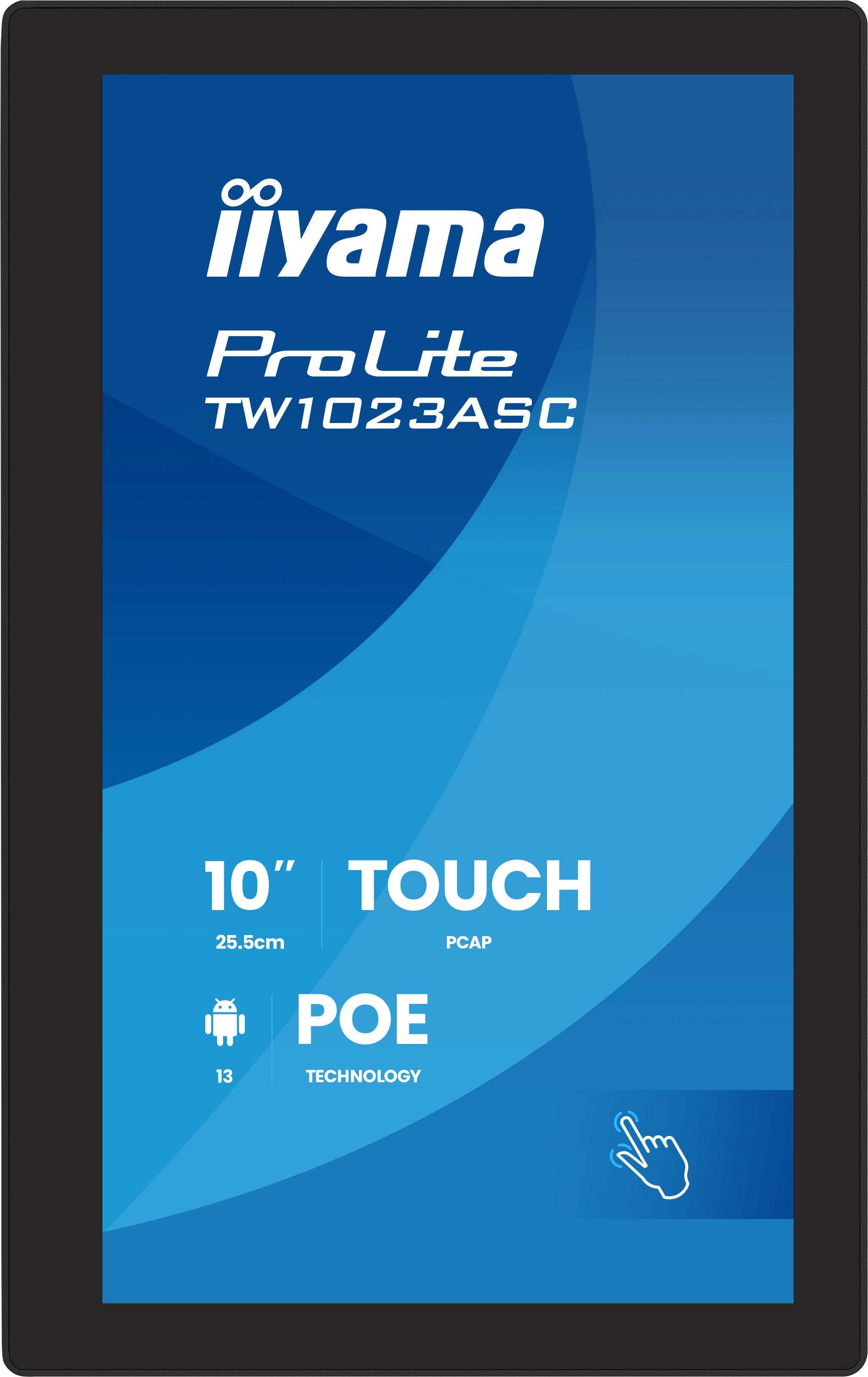

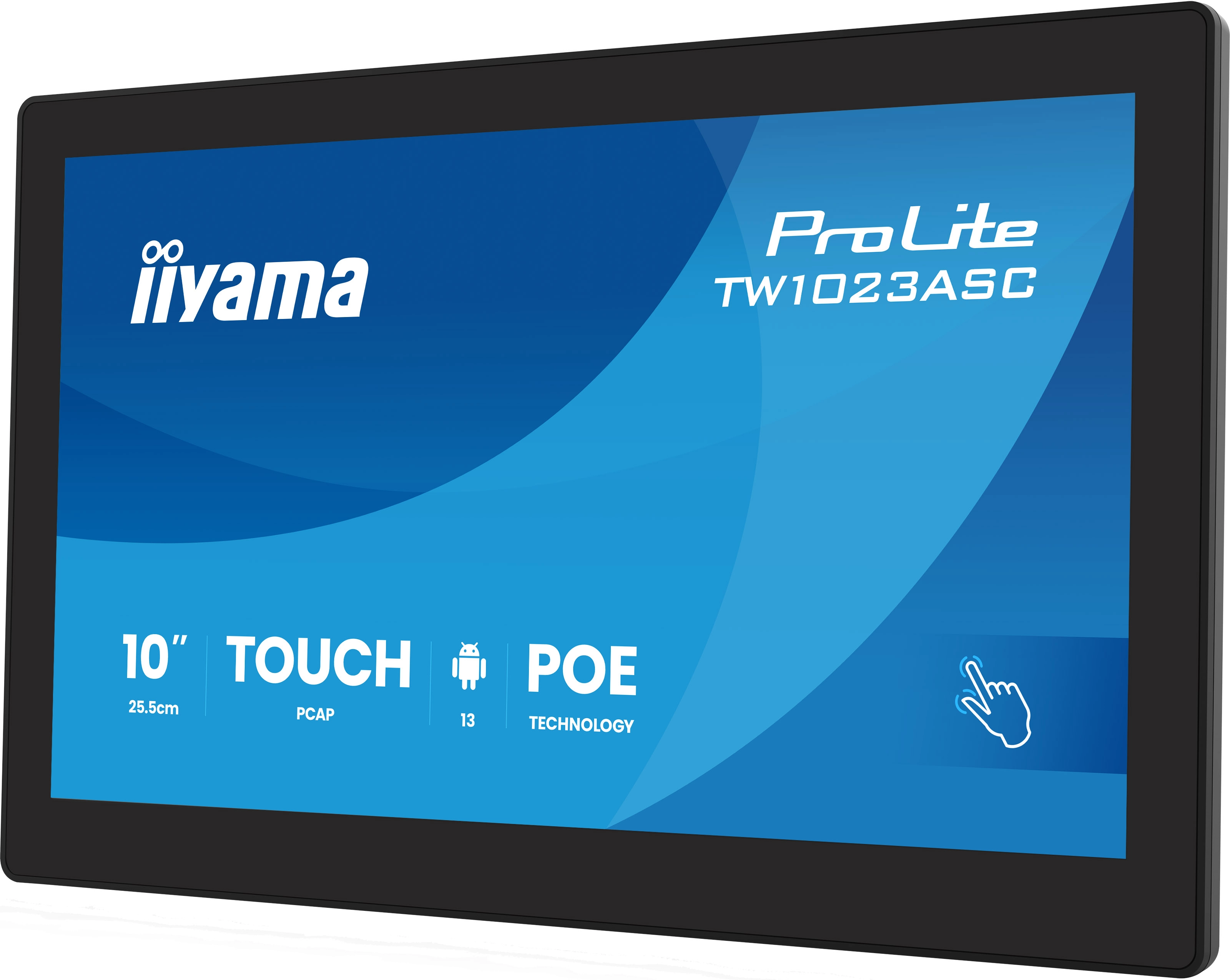

The ProLite TW1023AS-B3P is a smart and intuitive 10.1" Touch panel PC, designed for high-traffic environments such as meeting rooms, info points, or hospitality spaces. Its 10-point PCAP touch technology ensures smooth and precise interaction. Powered by Android 13, and equipped with powerful hardware, it allows easy installation of apps directly on the device - making it a all-in-one solution. Thanks to Power over Ethernet (PoE), both power and data are delivered through a single cable, simplifying installation and reducing additional cables. With a built-in camera, microphone and speakers, the TW1023AS-B3P delivers seamless, modern interaction in any smart space. Additionally, it integrates effortlessly with iiSignage² , iiyama’s Content Management System (CMS), giving you full control over your messages and advertising, in landscape portrait and face-up position. Together with the built-in 5 megapixel camera, microphone and speakers it offers limitless, interactive installation possibilities.

Specification

Product
Product id	1003569
Brand	iiyama
Partnr	TW1023ASC-B3P
EAN/UPC code	4948570126927
Warranty (months)	36 months
Network
Wi-Fi	Y
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Bluetooth	Y
Bluetooth version	5.2
Display
Display diagonal	10.1 inch
Display brightness	450 cd/m²
Display resolution	1280 x 800 Pixels
Native aspect ratio	16:10
Panel type	IPS
Touchscreen technology	Projected capacitive system
Display brightness (typical)	450 cd/m²
Response time	25 ms
Response time measurement type	GTG (Gray to Gray)
Display technology	LCD
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	160 °
Viewing angle, vertical	160 °
Display number of colours	16.7 million colours
Display diagonal (metric)	25.5 cm
Pixel pitch	0.1692 x 0.1692 mm
Viewable size, horizontal	216.6 mm
Viewable size, vertical	135.4 mm
Colour depth	8 Bit
Surface hardness	6H
Performance
Flicker-free technology	Y
Operating system installed	Android
Operating hours (hours/days)	24/7
Multimedia
Built-in speaker(s)	Y
Built-in camera	Y
Number of speakers	2
RMS rated power	3 W
Megapixel	5 MP
Built-in microphone	Y
Design
Product colour	Black
Glass thickness	1.25 mm
Front bezel colour	Black
Certification	CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA
Ports & interfaces
USB 2.0 Type-A ports quantity	2
HDMI ports quantity	1
USB Touch port	Y
Card reader integrated	Y
Compatible memory cards	SD
Ergonomics
Cable management	Y
Thin Client
Internal memory	32000 MB
Packaging data
Cables included	AC
Quick start guide	Y
Package width	398 mm
Package depth	398 mm
Package height	223 mm
Package weight	1360 g
Power
Power consumption (typical)	18 W
Power consumption (standby)	0.5 W
Power consumption (off)	0.3 W
AC adapter output voltage	12 V
Weight & dimensions
Width (with stand)	255 mm
Depth (with stand)	30.5 mm
Height (with stand)	172 mm
Weight (with stand)	800 g
Width	255 mm
Depth	30.5 mm
Height	172 mm
Weight	800 g
Logistics data
Quantity per pallet	256 stuk(s)
Pallet net width	1000 mm
Pallet net depth	2150 mm
Pallet net height	1200 mm
Other features
Power supply type	External
Touchscreen	Y
Number of simultaneous touchpoints	10
RJ-45 ports quantity	1
Ethernet LAN	Y
Ethernet LAN (RJ-45) ports	1
