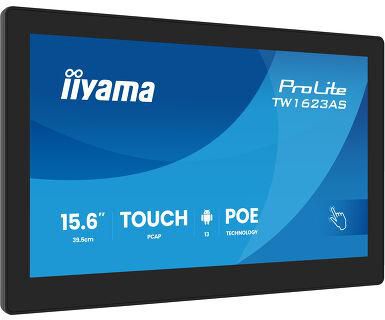

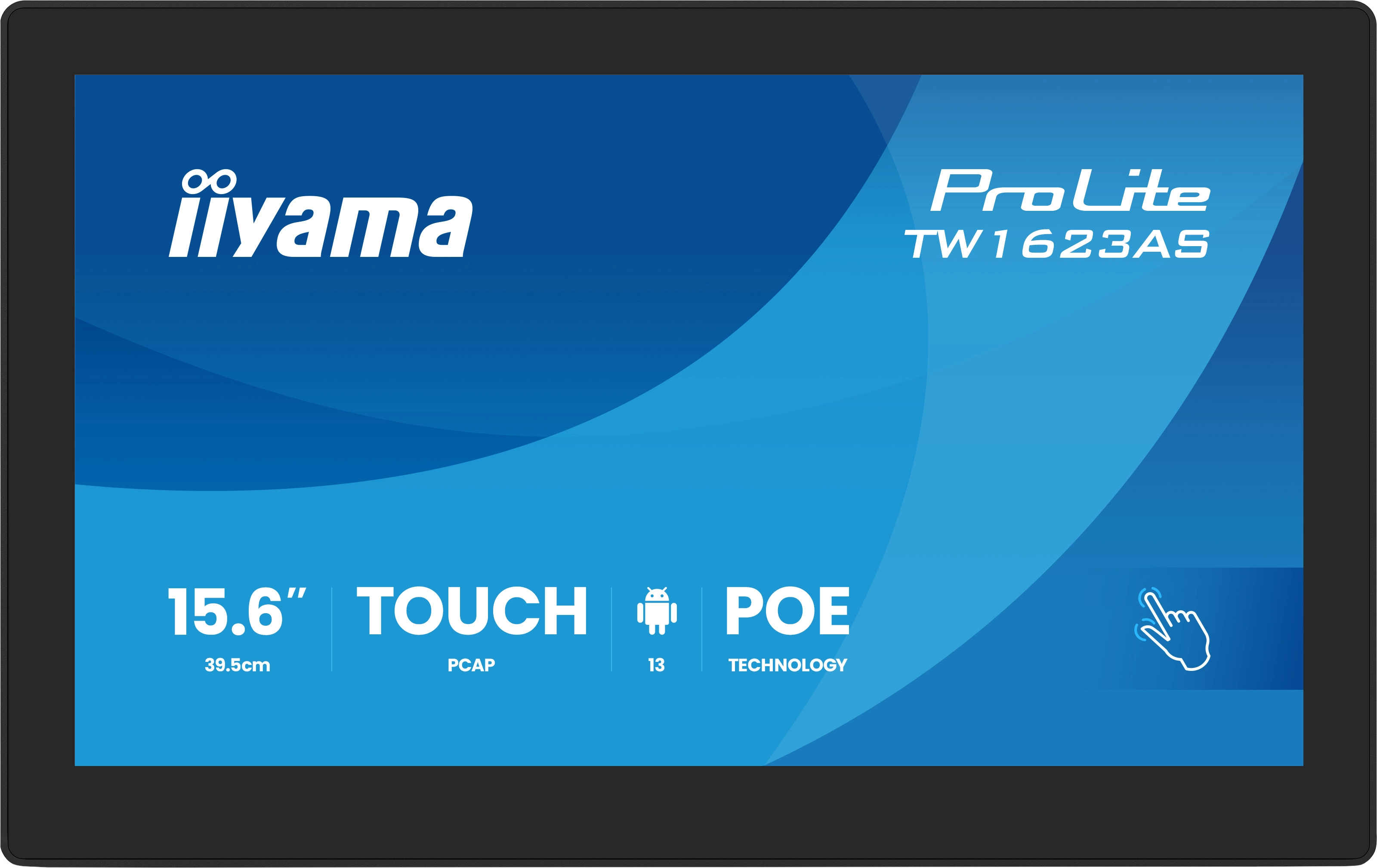

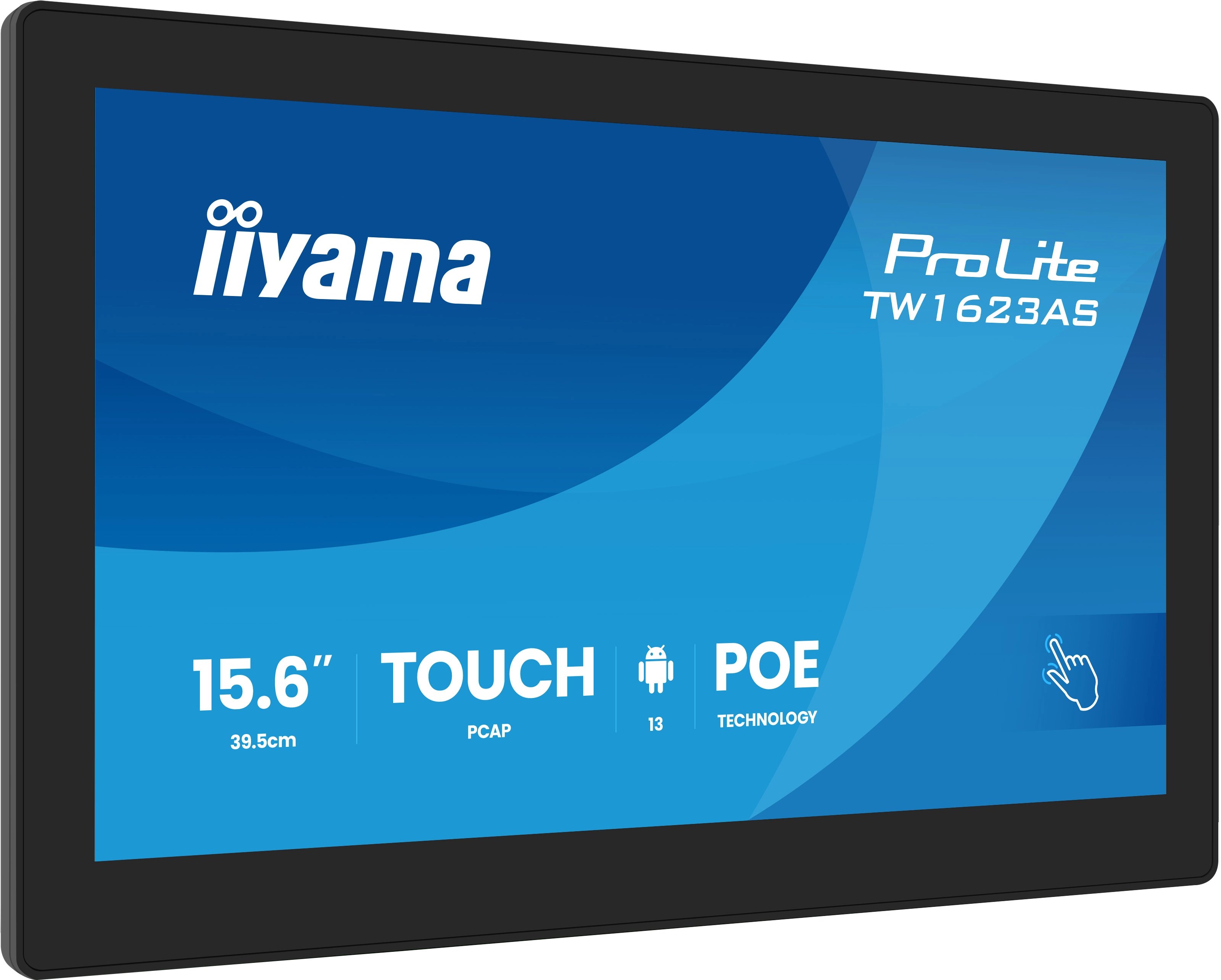

The ProLite TW1623AS-B3P is a smart and intuitive 15.6" touch panel PC, designed for high-traffic environments such as meeting rooms, info points, or hospitality spaces. Its 10-point PCAP touch technology ensures smooth and precise interaction. Powered by Android 13, and equipped with powerful hardware, it allows easy installation of apps directly on the device - making it a all-in-one solution. Thanks to Power over Ethernet (PoE), both power and data are delivered through a single cable, simplifying installation and reducing additional cables. With a built-in microphone and speakers, the TW1623AS-B3P delivers seamless, modern interaction in any smart space. Additionally, it integrates effortlessly with iiSignage² , iiyama’s Content Management System (CMS), giving you full control over your messages and advertising, in landscape portrait and face-up position.

Specification

Product
Product id	1000833
Brand	iiyama
Partnr	TW1623AS-B3P
EAN/UPC code	4948570126934
Warranty (months)	36 months
Display
Display diagonal	15.6 inch
Display resolution	1920 x 1080 Pixels
Display brightness	450 cd/m²
HD type	Full HD
Touchscreen	Y
Touchscreen technology	Projected capacitive system
Number of simultaneous touchpoints	10
Native aspect ratio	16:9
Response time	30 ms
Multi-touch	Y
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	170 °
Viewing angle, vertical	170 °
Display number of colours	16.7 million colours
Pixel pitch	0.17925 x 0.17925 mm
Active display area (W x H)	344.2 x 193.6 mm
Surface hardness	6H
Panel type	IPS
Glass thickness	1.8 mm

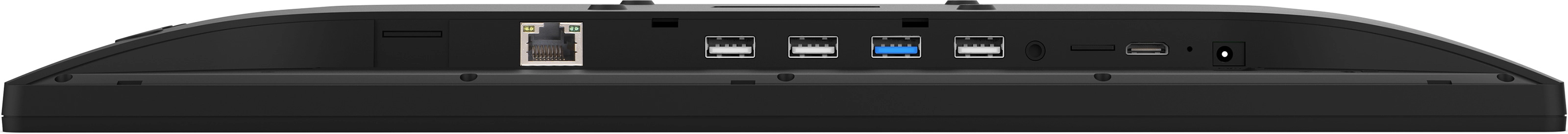

Ports & interfaces
HDMI ports quantity	1
Mini HDMI ports quantity	1
USB port	Y
USB ports quantity	3
USB version	2.0
Ethernet LAN	Y
Ethernet LAN (RJ-45) ports	1
Wi-Fi	Y
Microphone in	Y
Card reader integrated	Y
Compatible memory cards	SD
Audio
Built-in speaker(s)	Y
Number of built-in speakers	2
RMS rated power	4 W
Design
Design	Interactive flat panel
Product colour	Black
Placement supported	Indoor

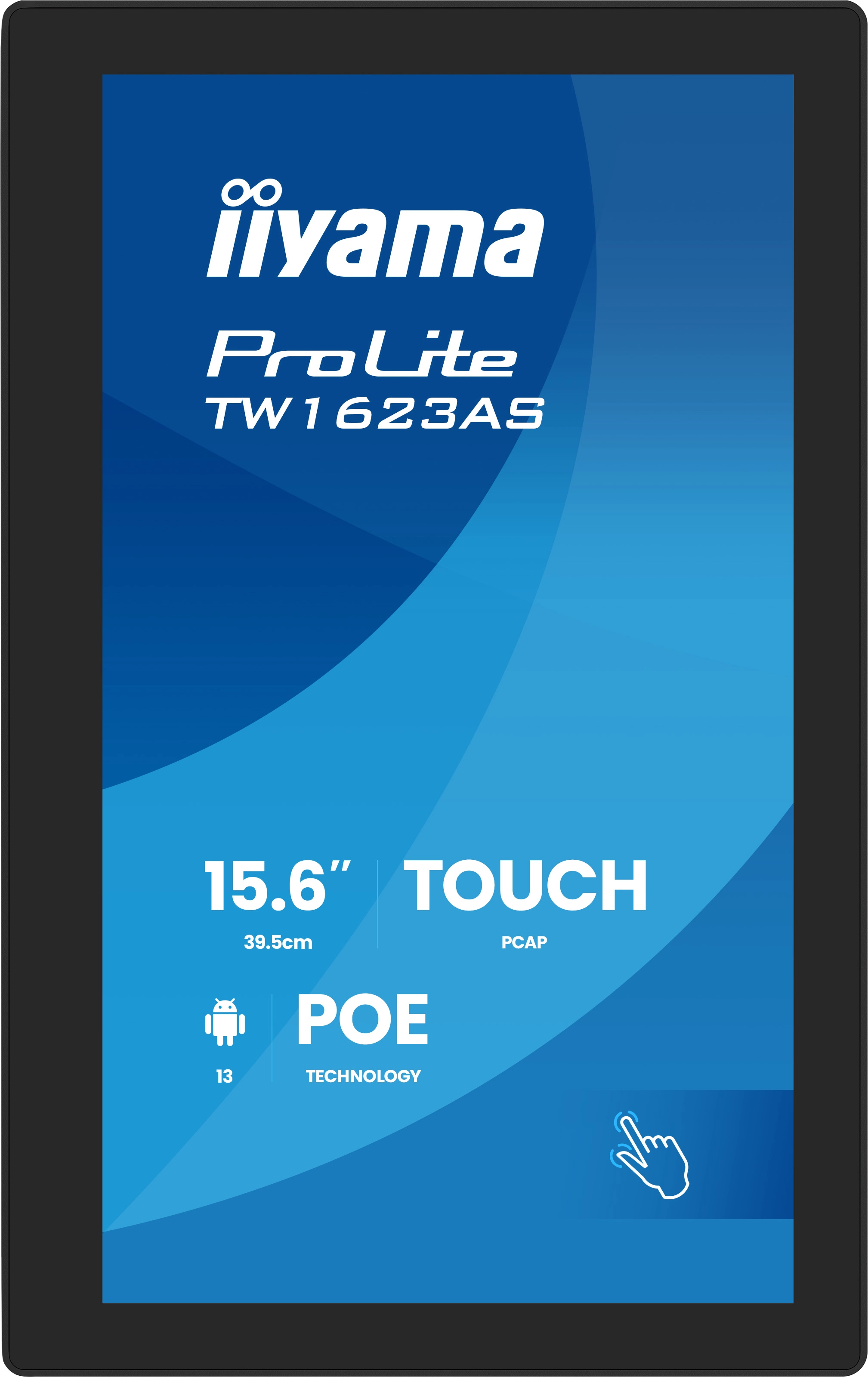

Orientation	Horizontal/Vertical

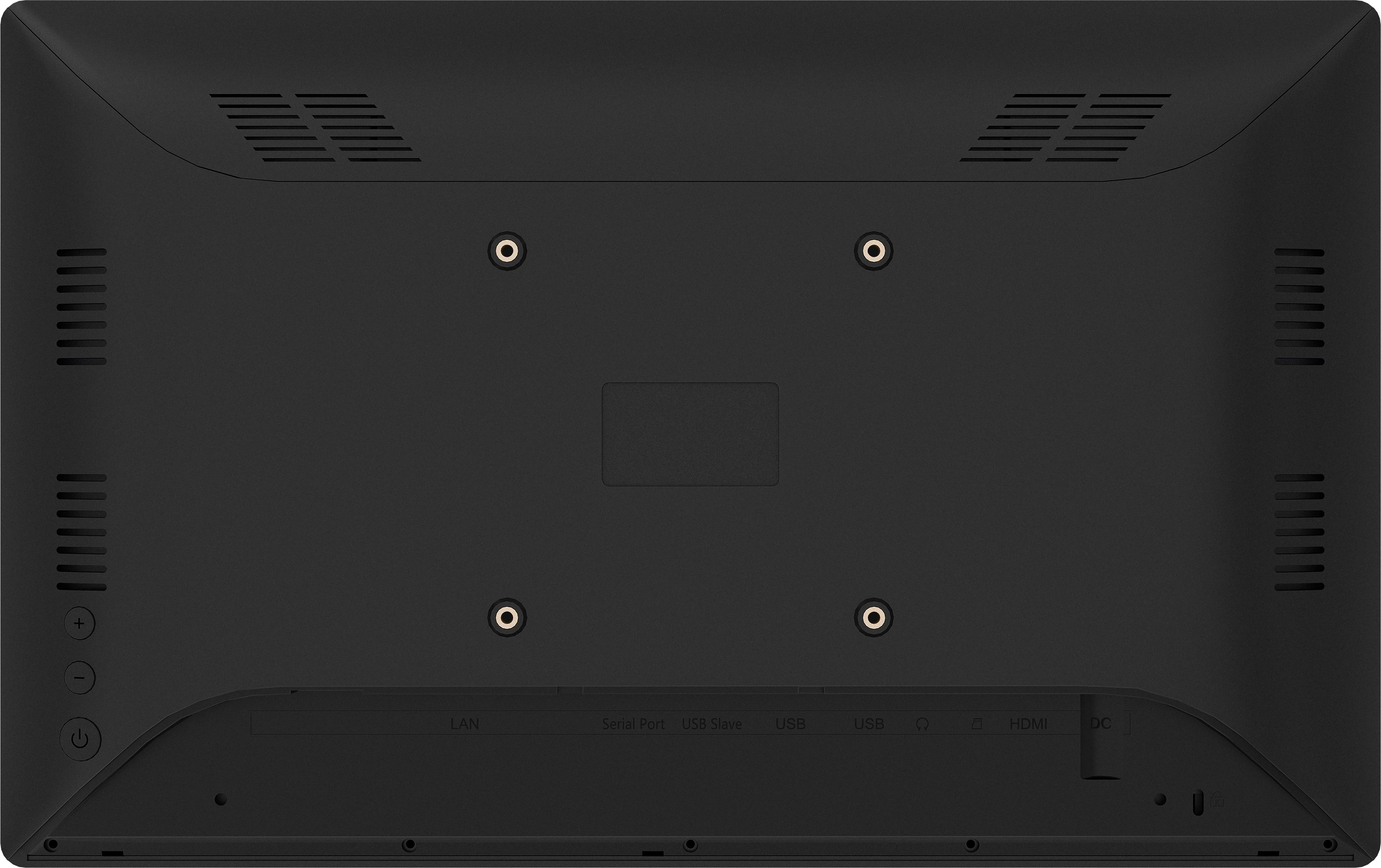

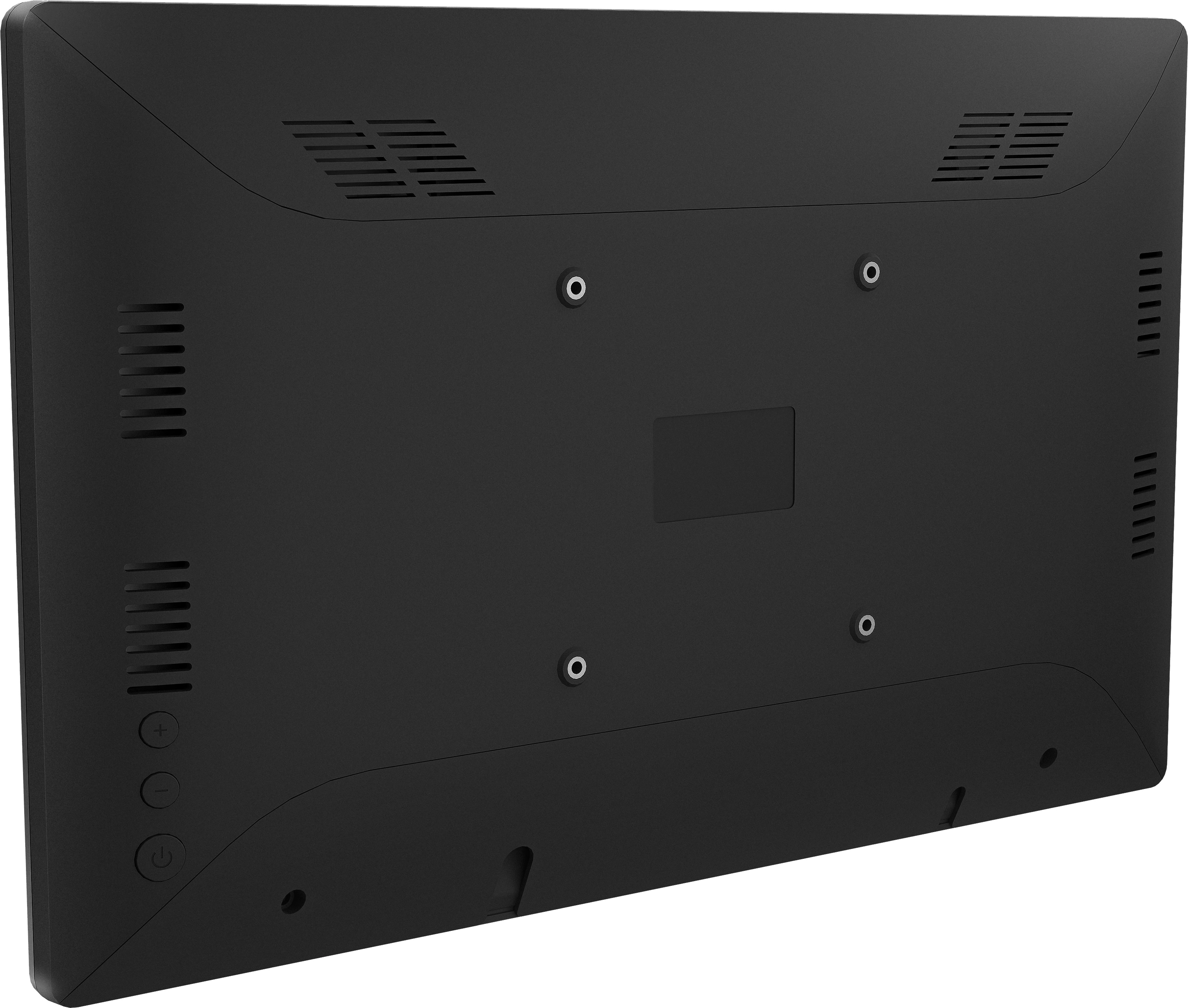

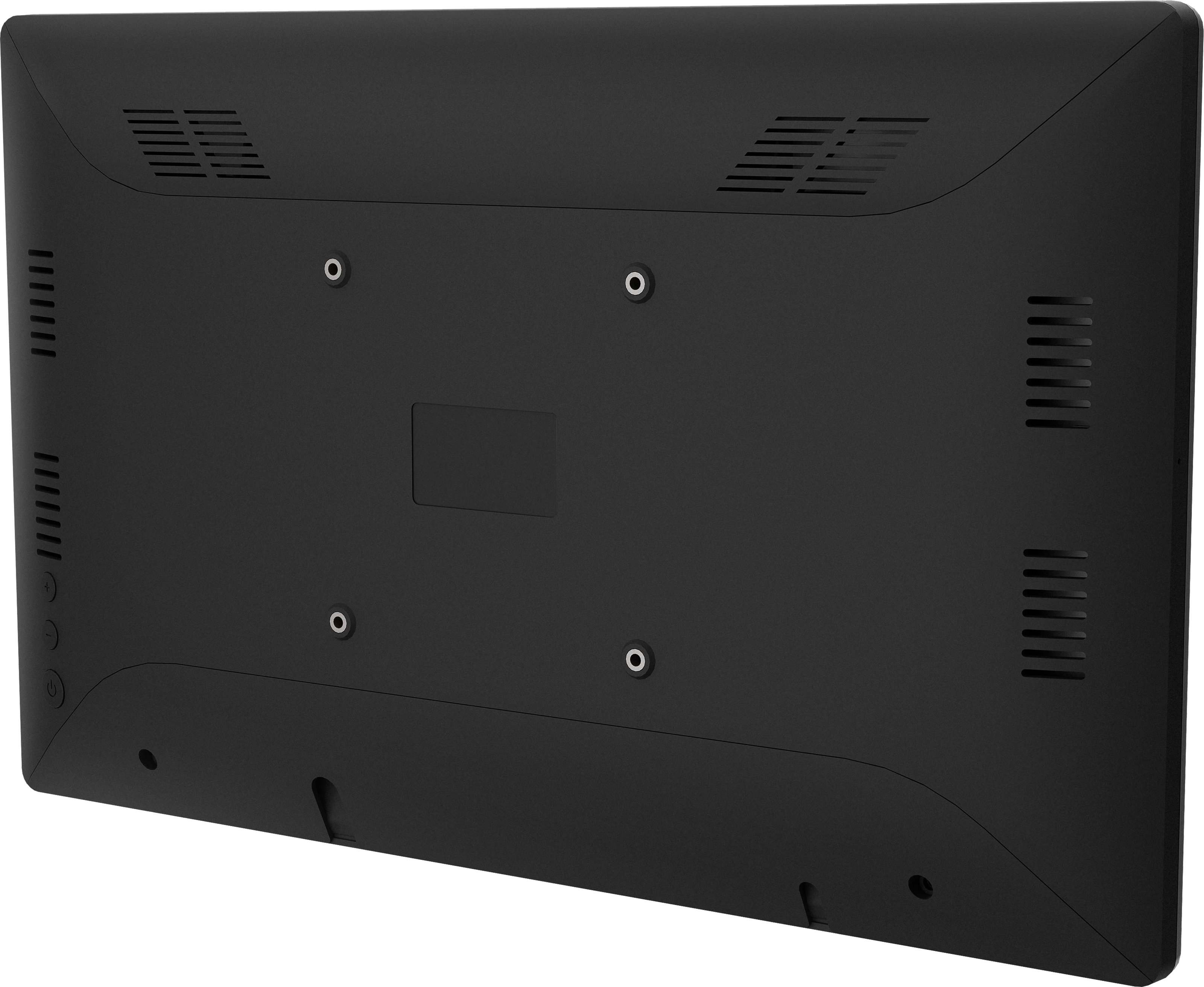

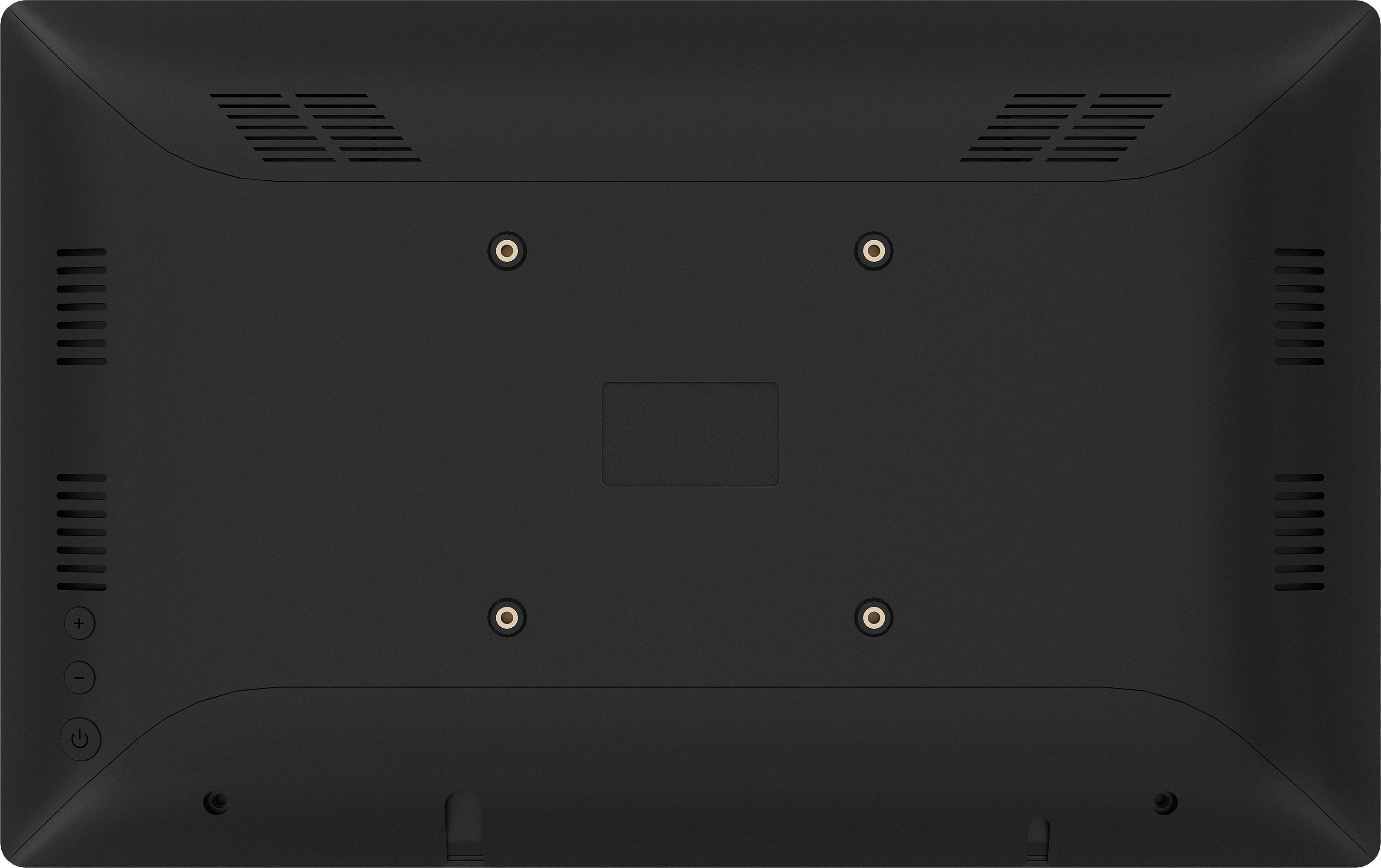

VESA mounting	Y
Panel mounting interface	100 x 100 mm
Fingerprint resistant	Y
Performance
Purpose	Commercial
On Screen Display (OSD)	Y
Operating hours (hours/days)	24/7
Power
Power consumption (typical)	9 W
Power consumption (standby)	0.5 W
Power consumption (off)	0.3 W
Computer system
Computer system	Y
Built-in processor	Y
Processor manufacturer	Rockchip
Processor family	ARM Rockchip
Processor model	RK3568
Processor architecture	ARM Cortex-A55
Processor frequency	2 GHz
Processor cores	4
Internal memory	4 GB
Internal storage capacity	32 GB
Operating system installed	Android
Operating system version	13
Weight & dimensions
Display width	387 mm
Display depth	30.5 mm
Display height	244 mm
Display weight	1500 g
Packaging data
Package width	477 mm
Package depth	75 mm
Package height	298 mm
Package weight	2450 g
Packaging content
Power adapter included	Y
Certificates
Certification	CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA
Other features
Bluetooth version	5.2
Bluetooth	Y
Audio input	Mini Jack
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Display technology	LED
