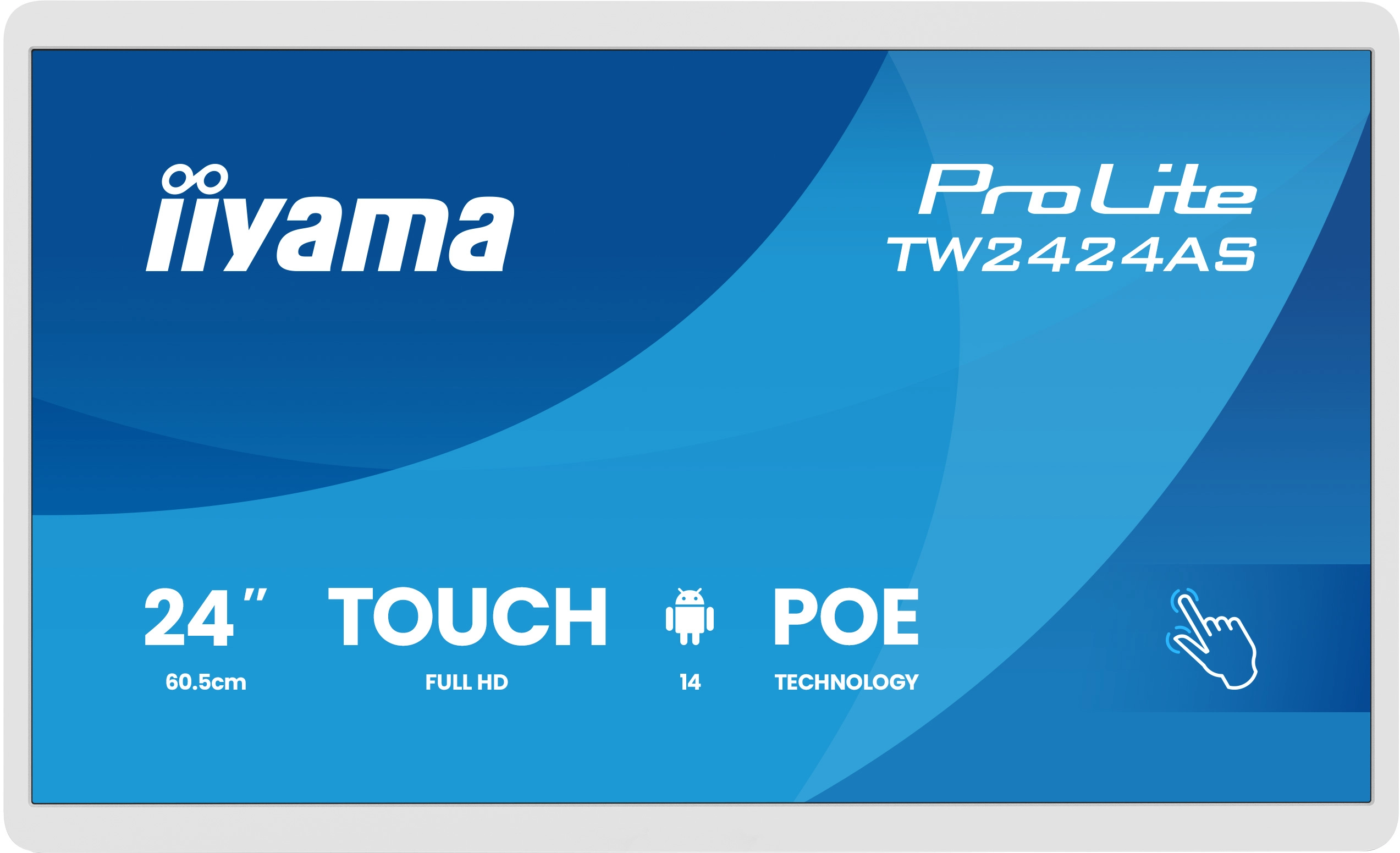

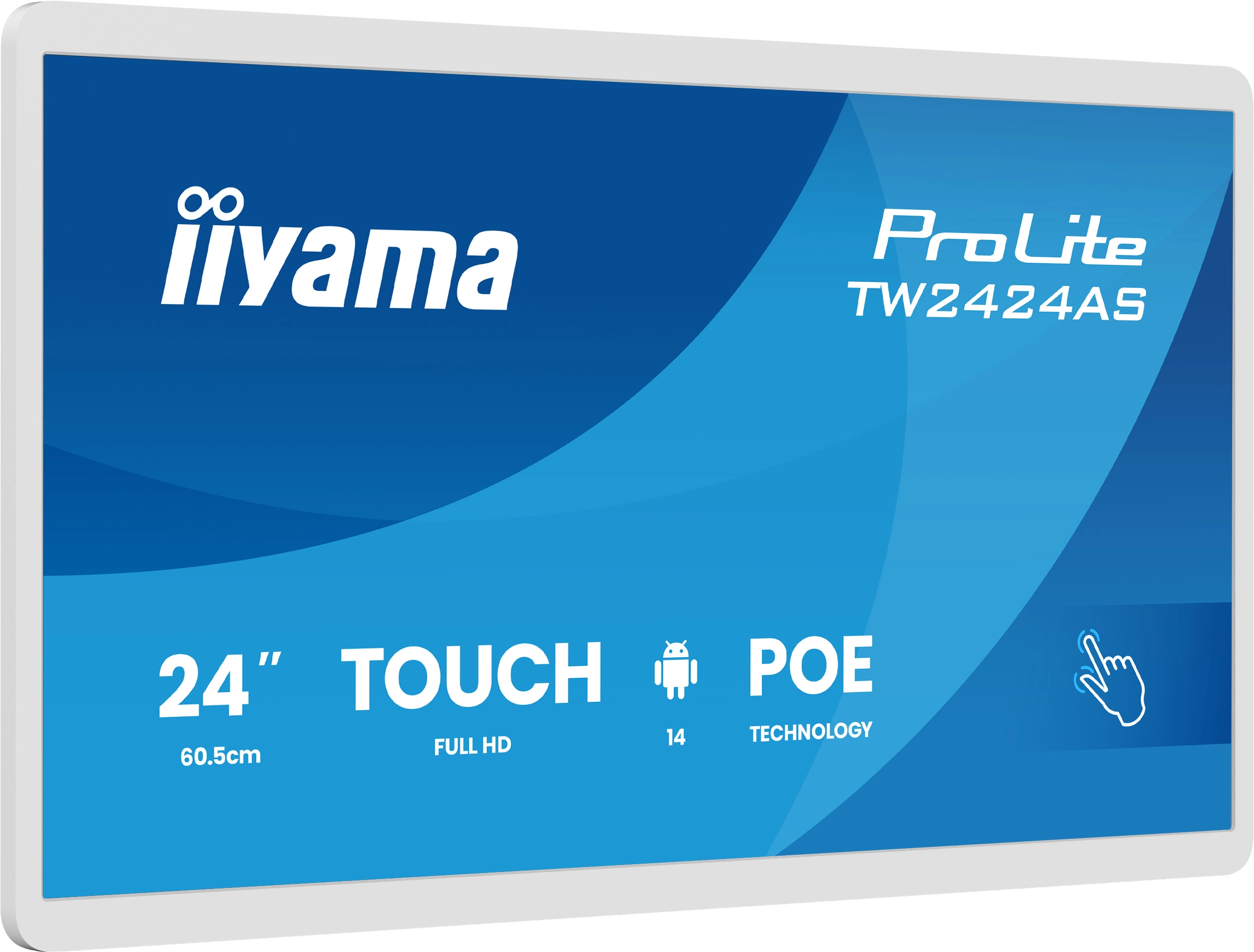

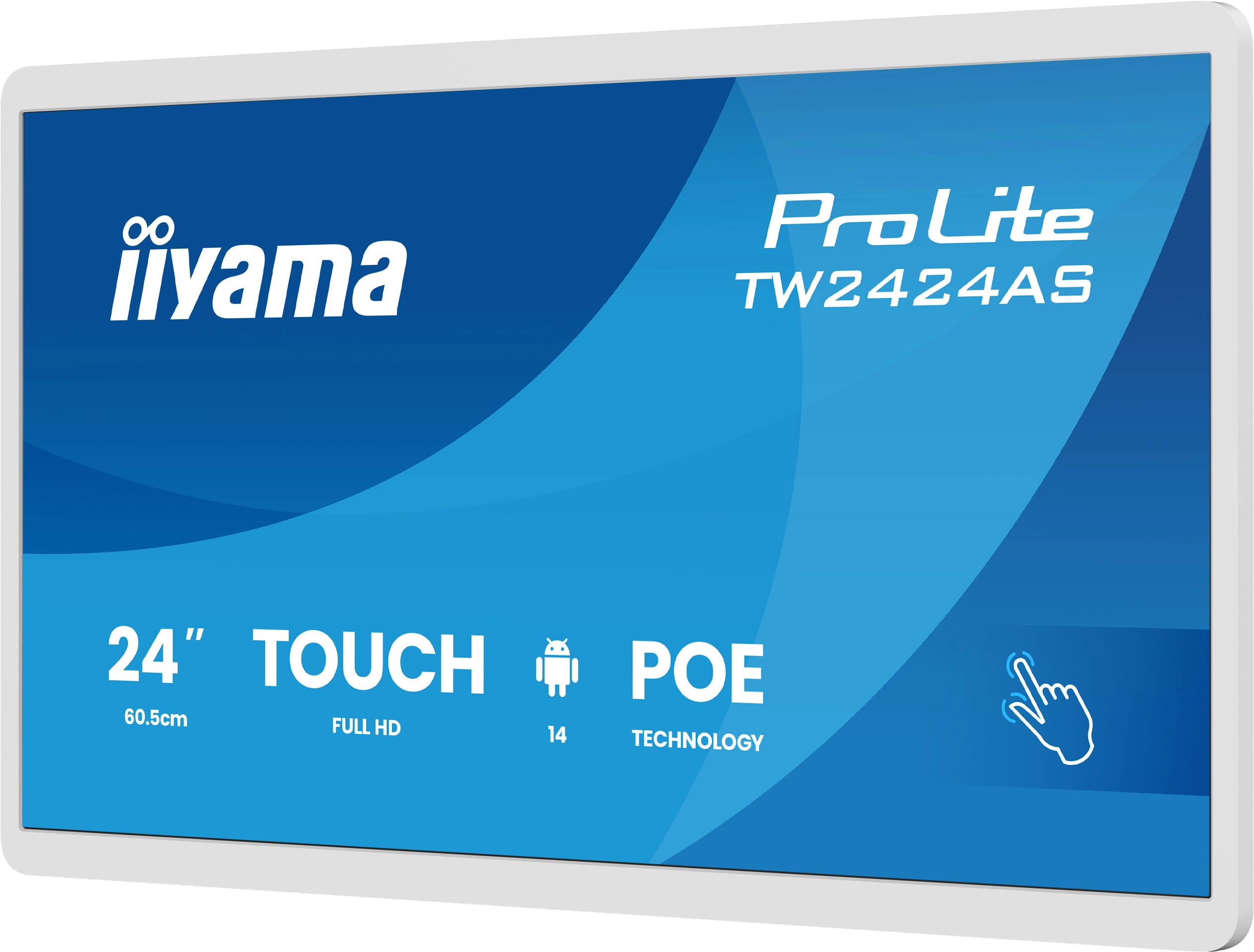

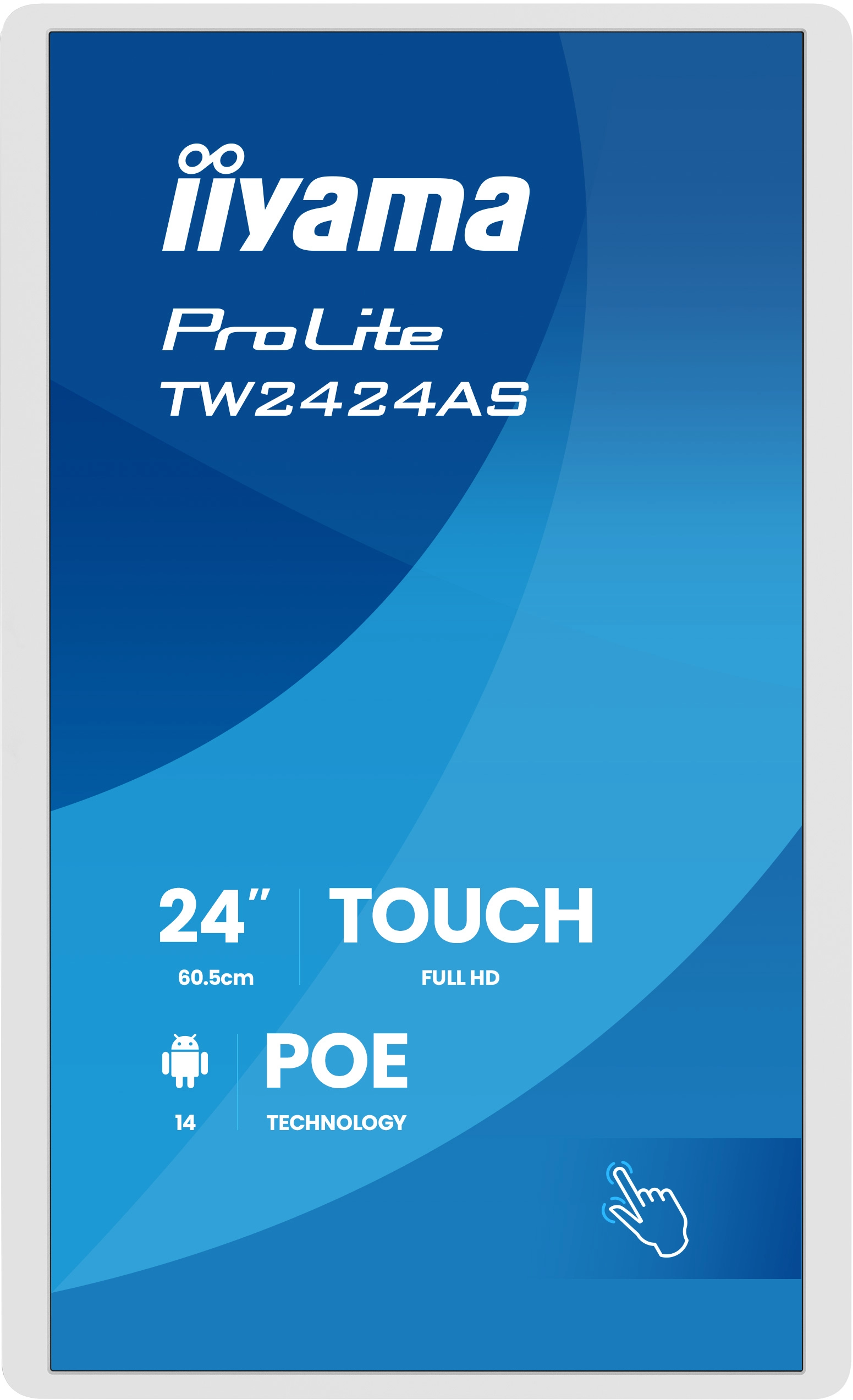

The ProLite TW2424AS-W3P interactive Touchpanel-PC is a perfect choice for high-use environments. The IPS panel, integrated in a slim and elegant bezel, delivers both excellent colour performance with wide viewing angles and noticeably sharper images. The In-cell 10tp PCAP touch technology ensures a fluid and natural touch experience. This monitor can operate in landscape, portrait and face-up orientation in 24/7 operating time. Thanks to the pre-installed Android 14 operating system, it is possible to easily customize the monitor by installing applications directly to it. In combination with the 32GB storage, Wi-Fi connection, LAN (RJ45) and Bluetooth connectors, it makes the monitor especially suited for POS systems or information points in retail shops to educate customers about your products, as well as virtually limitless smart home applications. Thanks to Power over Ethernet (PoE), both power and data are delivered through a single cable, simplifying installation and reducing additional cables. Additionally, it integrates effortlessly with iiSignage2 , iiyama’s Content Management System (CMS), giving you full control over your messages and advertising.

Specification

Product
Product id	1027255
Brand	iiyama
Partnr	TW2424AS-W3P
EAN/UPC code	4948570128273
Warranty (months)	36 months
Display
Display diagonal	23.8 inch
Display resolution	1920 x 1080 Pixels
Display brightness	450 cd/m²
HD type	Full HD
Touchscreen	Y
Touchscreen technology	Projected capacitive system
Number of simultaneous touchpoints	10
Native aspect ratio	16:9
Response time	14 ms
Multi-touch	Y
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Display number of colours	16.7 million colours
Pixel pitch	0.275 x 0.275 mm
Active display area (W x H)	527 x 296.5 mm
Display diagonal (metric)	60.5 cm
Surface hardness	6H
Colour depth	8 Bit
Panel type	IPS

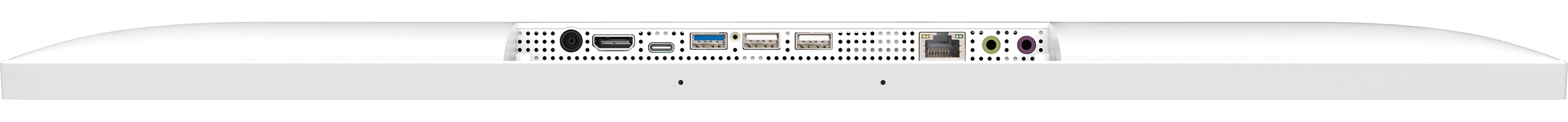

Ports & interfaces
HDMI ports quantity	1
DVI port	N
USB port	Y
USB ports quantity	2
USB version	3.2 Gen 1 (3.1 Gen 1)
Ethernet LAN	Y
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	1000 Mbit/s
Wi-Fi	Y
Audio
Built-in speaker(s)	Y
Number of built-in speakers	2
RMS rated power	10 W
Design
Design	Interactive flat panel
Product colour	White
Placement supported	Indoor

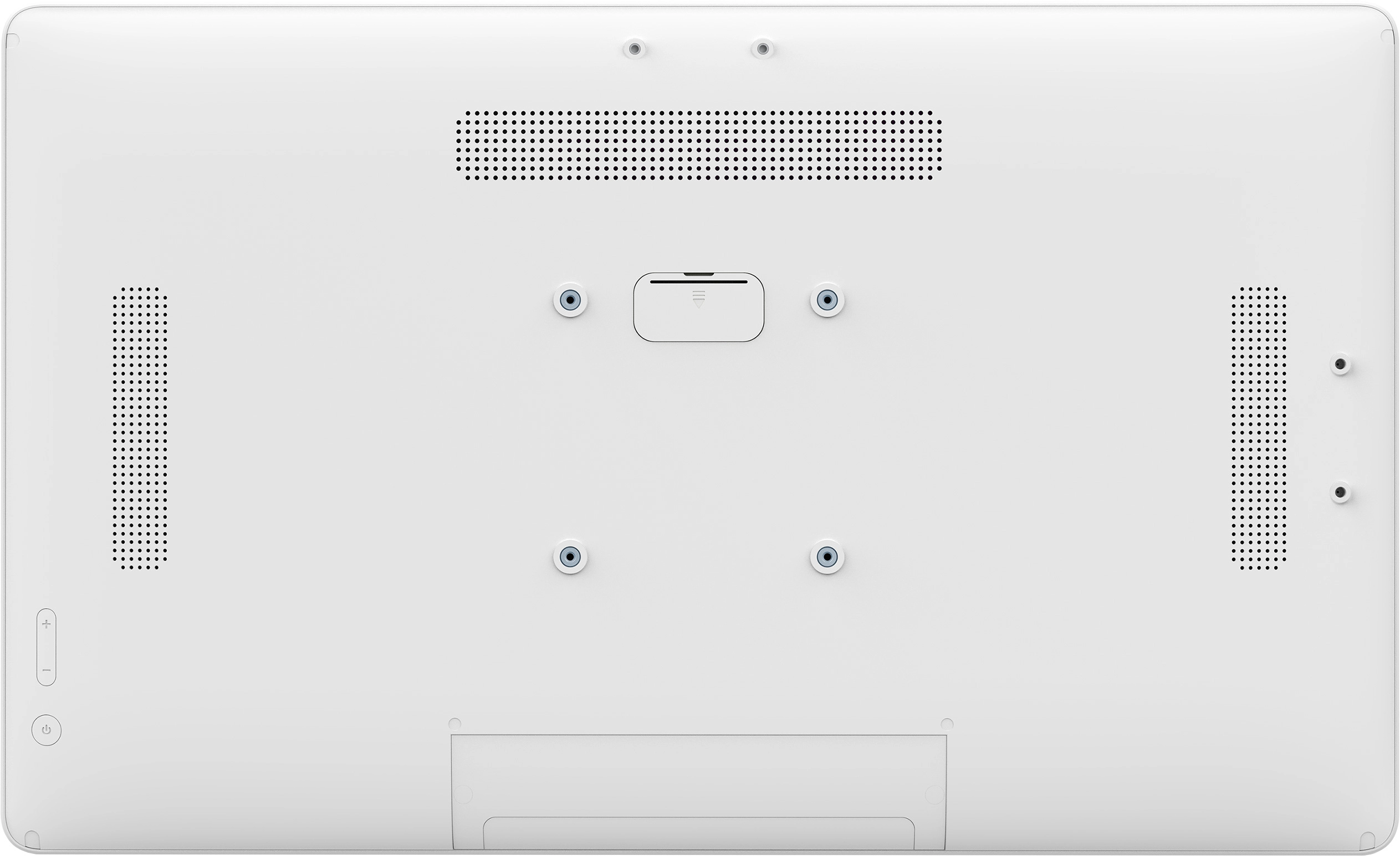

VESA mounting	Y

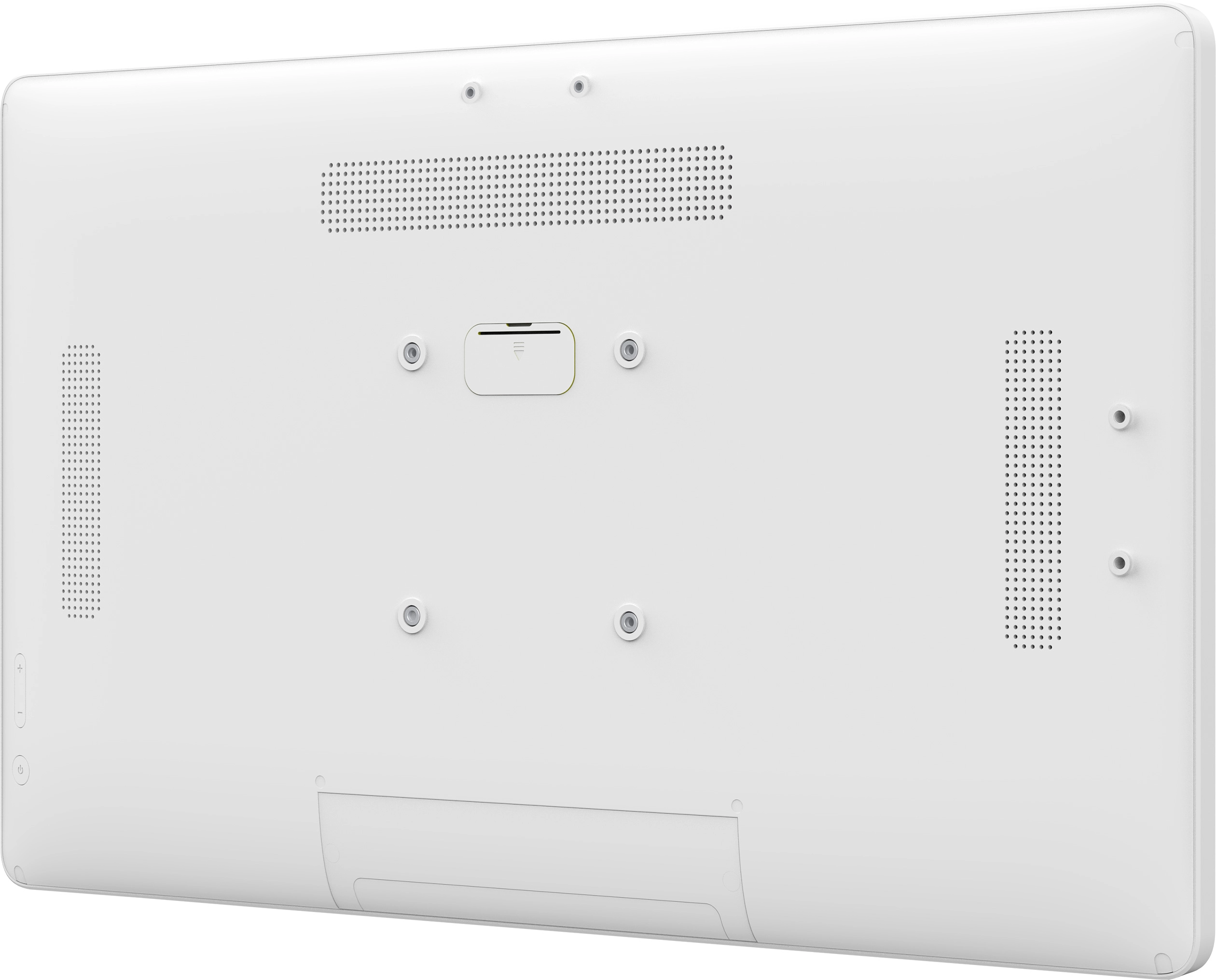

Panel mounting interface	100 x 100 mm
Bezel colour	White
Performance
Purpose	Commercial
Operating hours (hours/days)	24/7
HDCP	Y
Mean time between failures (MTBF)	50000 uur
Power
Power consumption (typical)	17.5 W
Input voltage	12 V
Power consumption (standby)	0.5 W
Power consumption (off)	0.3 W
Computer system
Computer system	Y
Computer system type	System on Chip (SoC)
Built-in processor	Y
Processor manufacturer	Rockchip
Processor family	ARM Rockchip
Processor model	RK3576
Processor architecture	ARM Cortex-A53+Cortex-A72
Processor cores	8
Internal memory	4 GB
Internal storage capacity	32 GB
Operating system installed	Android
Operating system version	14
Google applications	Google Chrome, Gmail, Google Calendar
Weight & dimensions
Display width	550 mm
Display depth	28 mm
Display height	336 mm
Display weight	4240 g
Width	550 mm
Depth	28 mm
Height	336 mm
Weight	4240 g
Width (with stand)	550 mm
Depth (with stand)	28 mm
Height (with stand)	336 mm
Weight (with stand)	4240 g
Packaging data
Package width	640 mm
Package depth	121 mm
Package height	410 mm
Package weight	6200 g
Packaging content
Cables included	AC
Technical details
Cable management	Y
Compliance certificates	CE, EAC, REACH, RoHS, UKCA, WEEE
Sustainability certificates	ErP

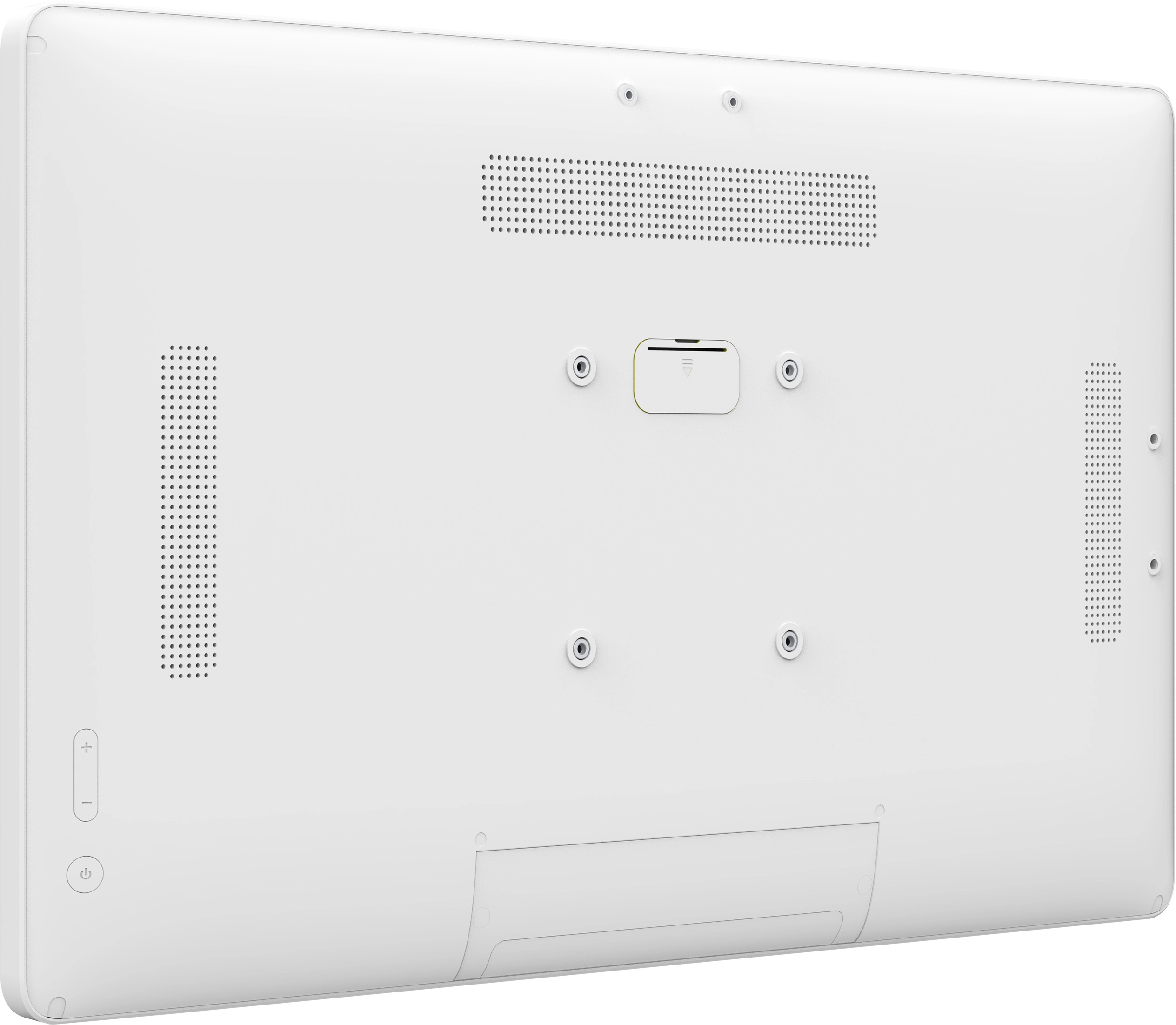

User controls	Power switch, volume/ button +, volume/ button -
Other features
Brightness	450 cd/m²
Power supply type	External
Built-in microphone	Y
Bluetooth version	5.3
Bluetooth	Y
Quick start guide	Y
Viewable size, horizontal	527 mm
Viewable size, vertical	296.5 mm
Wi-Fi standards	Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11a, 802.11b
Display technology	LCD
AC adapter included	Y
