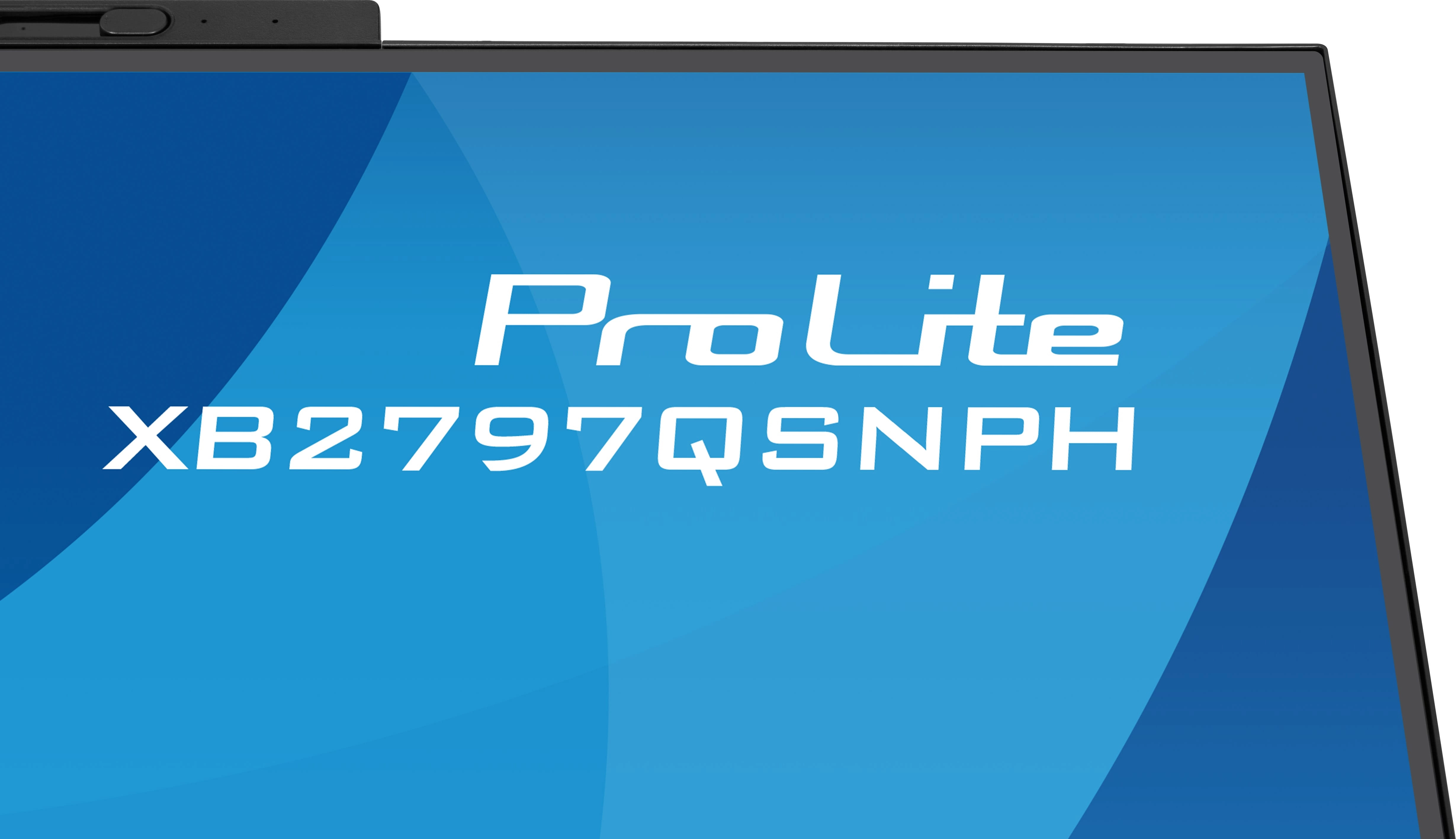

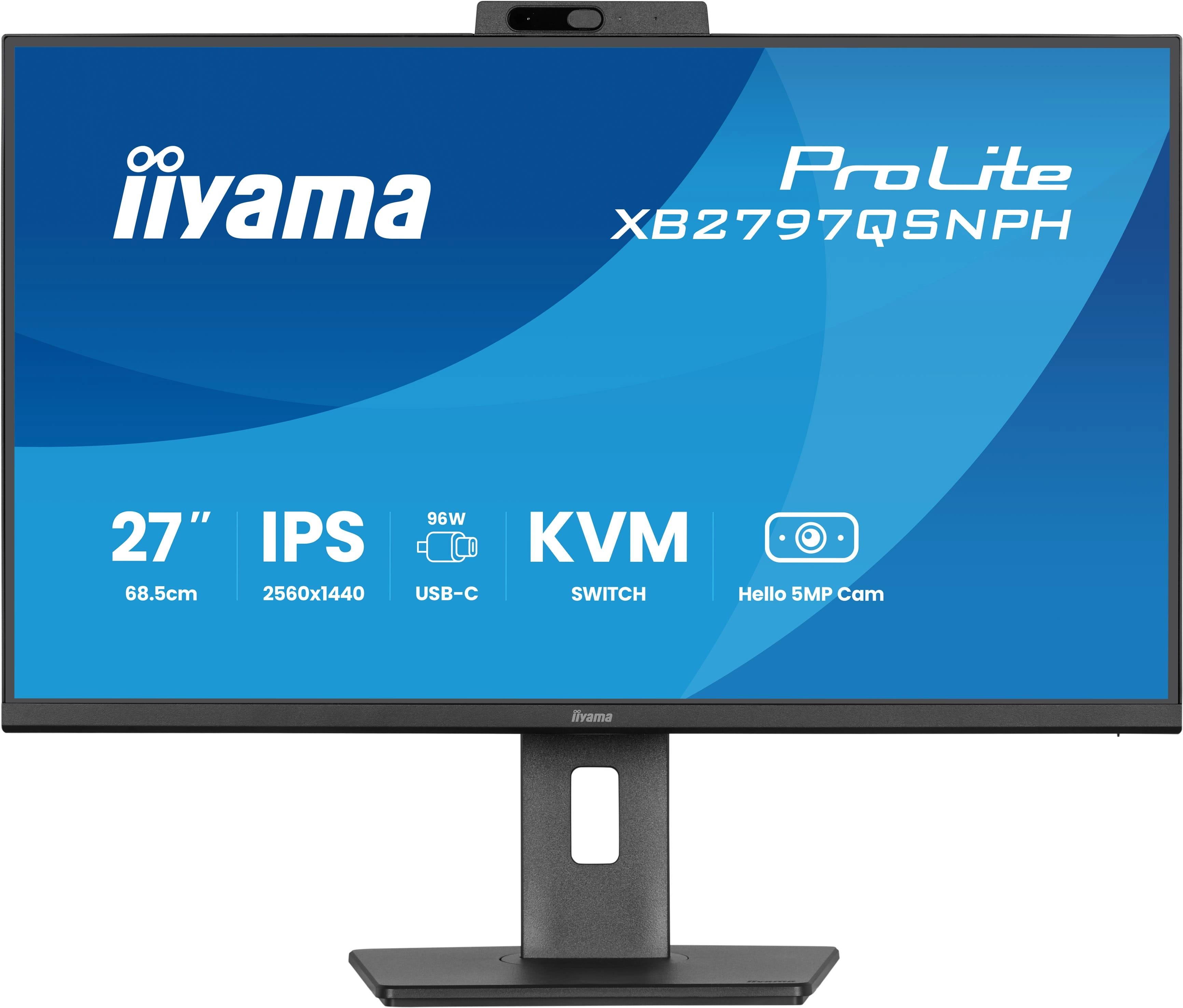

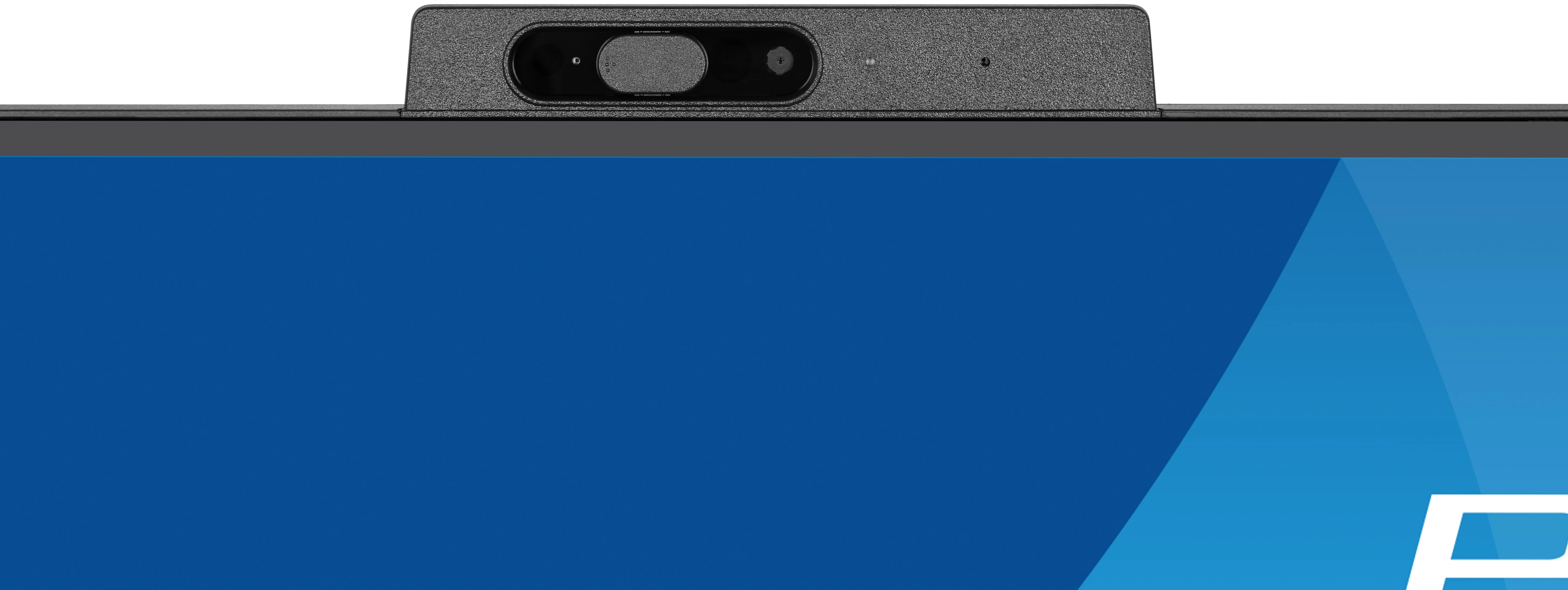

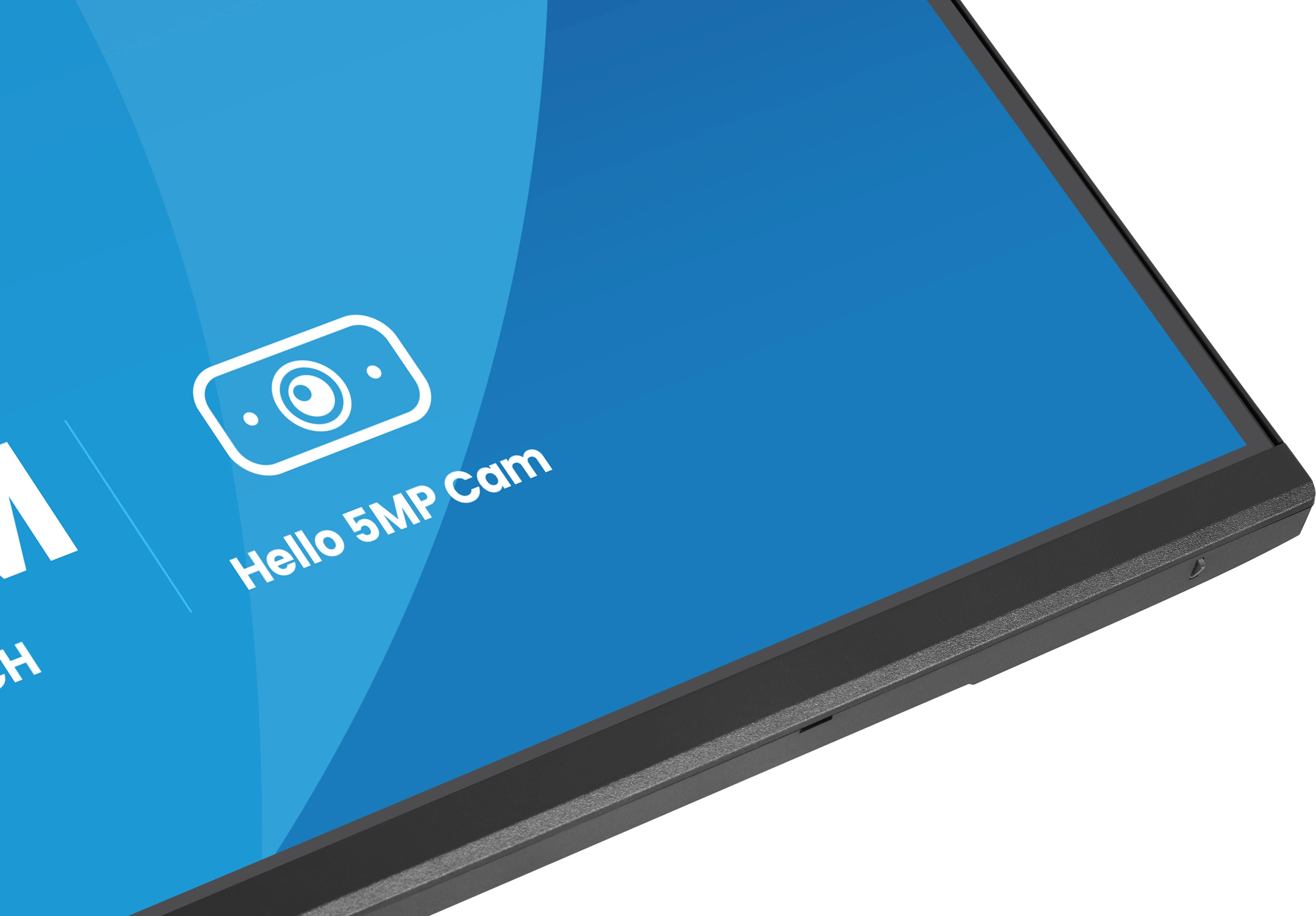

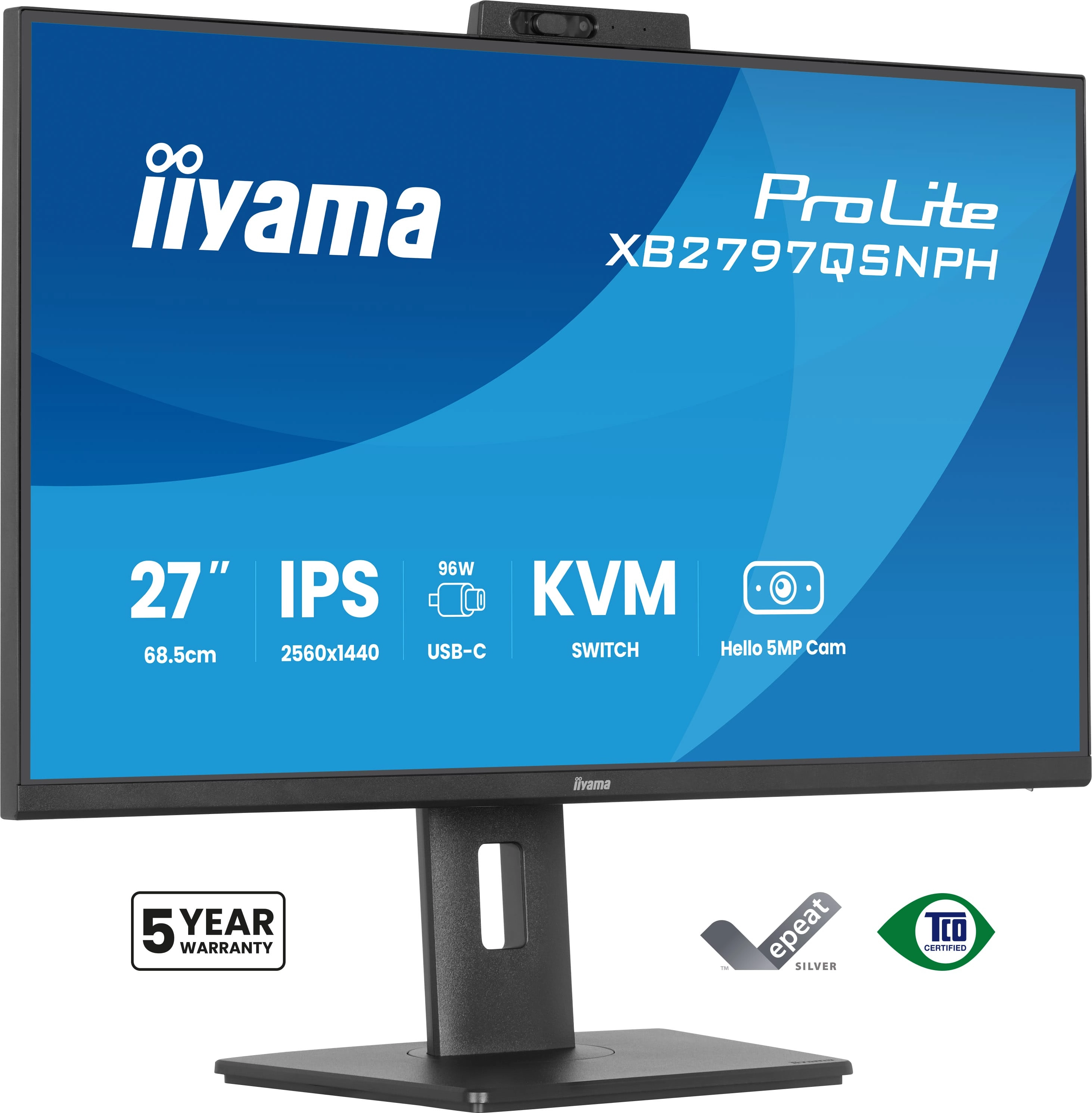

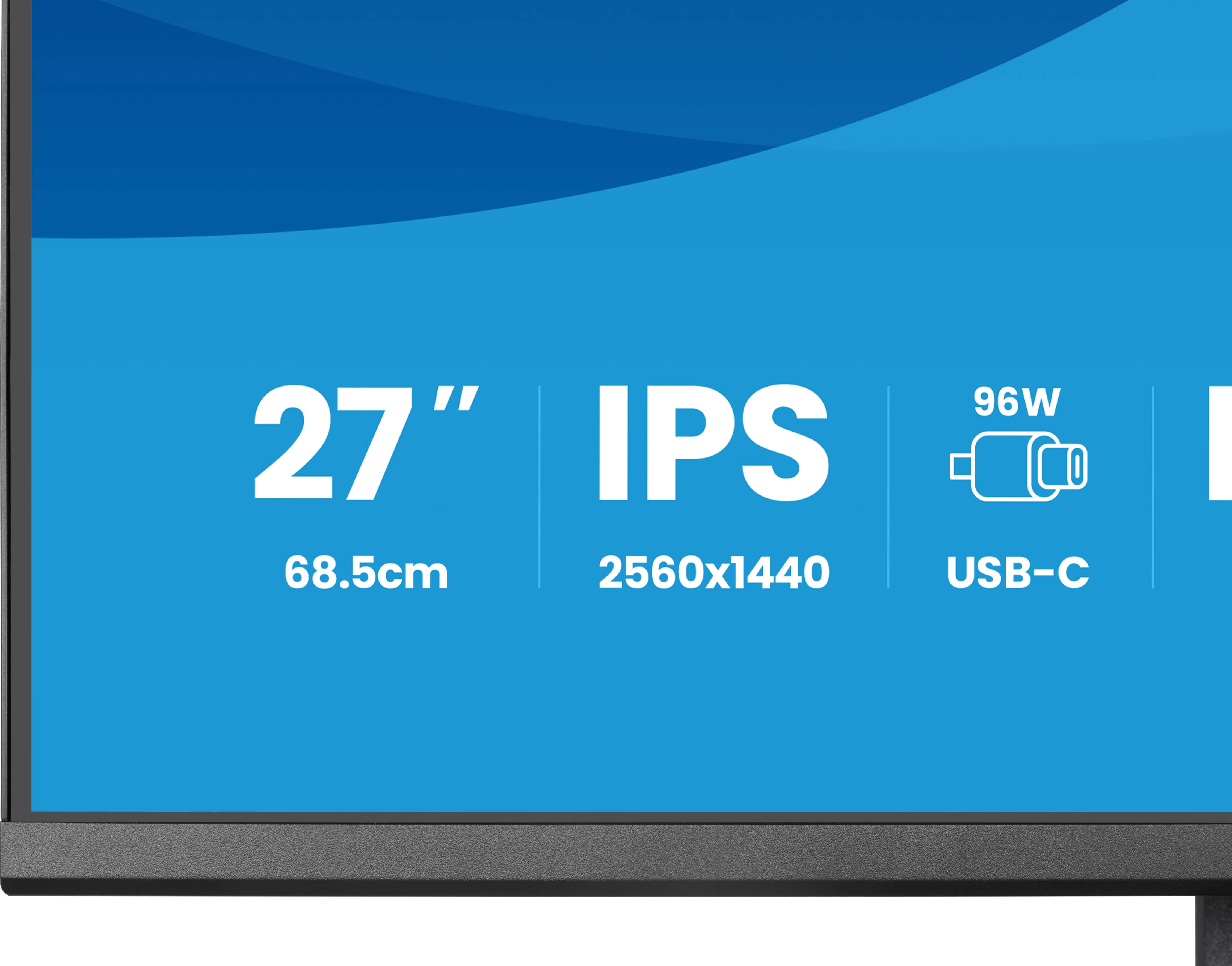

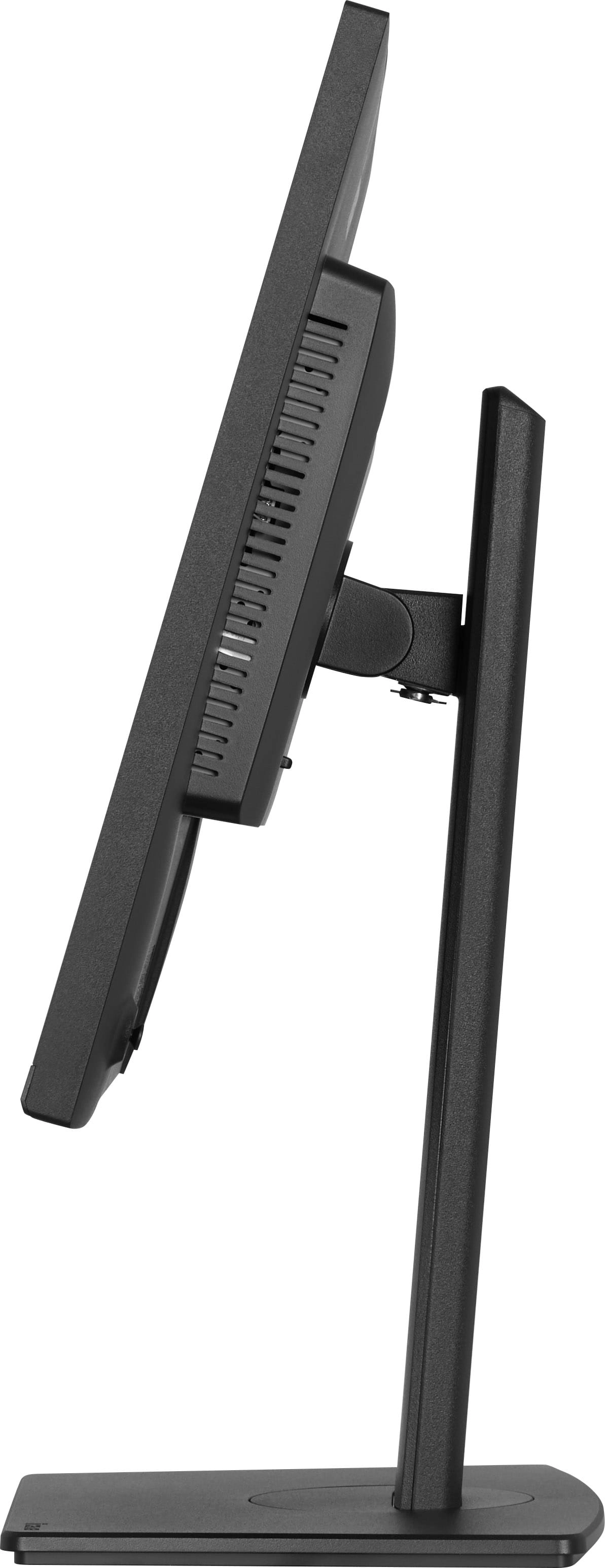

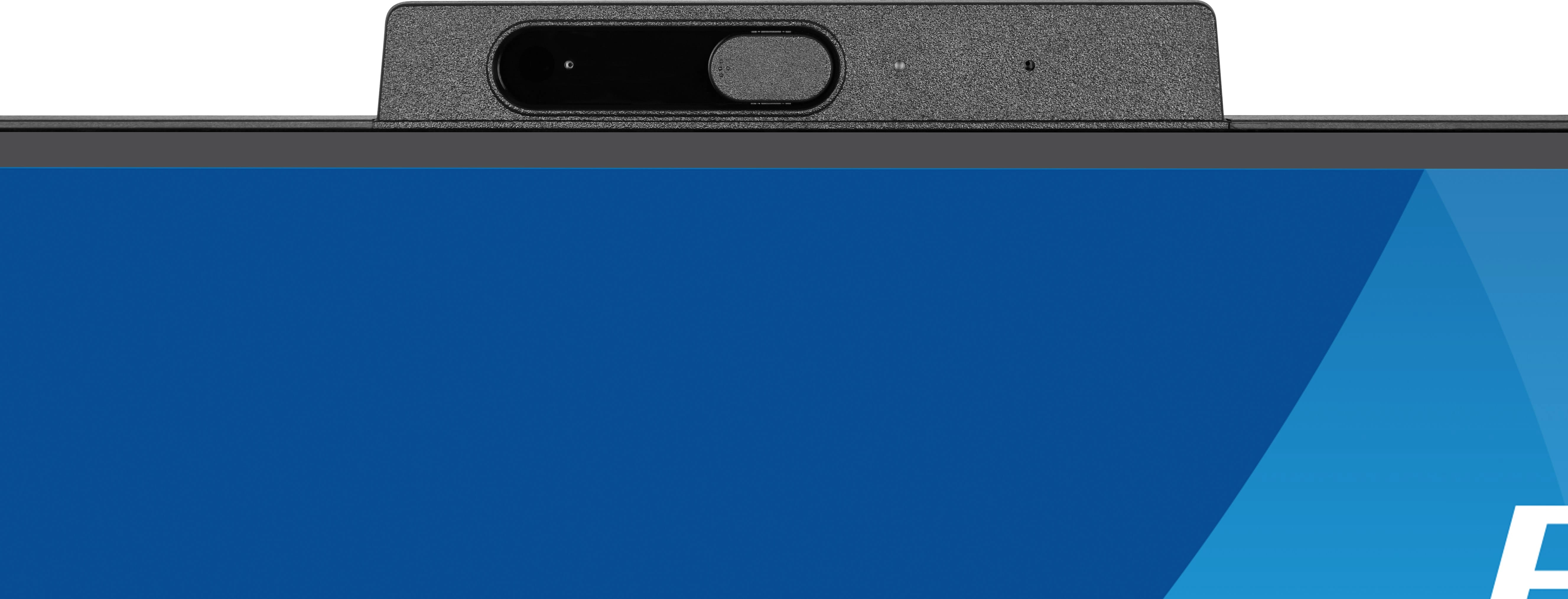

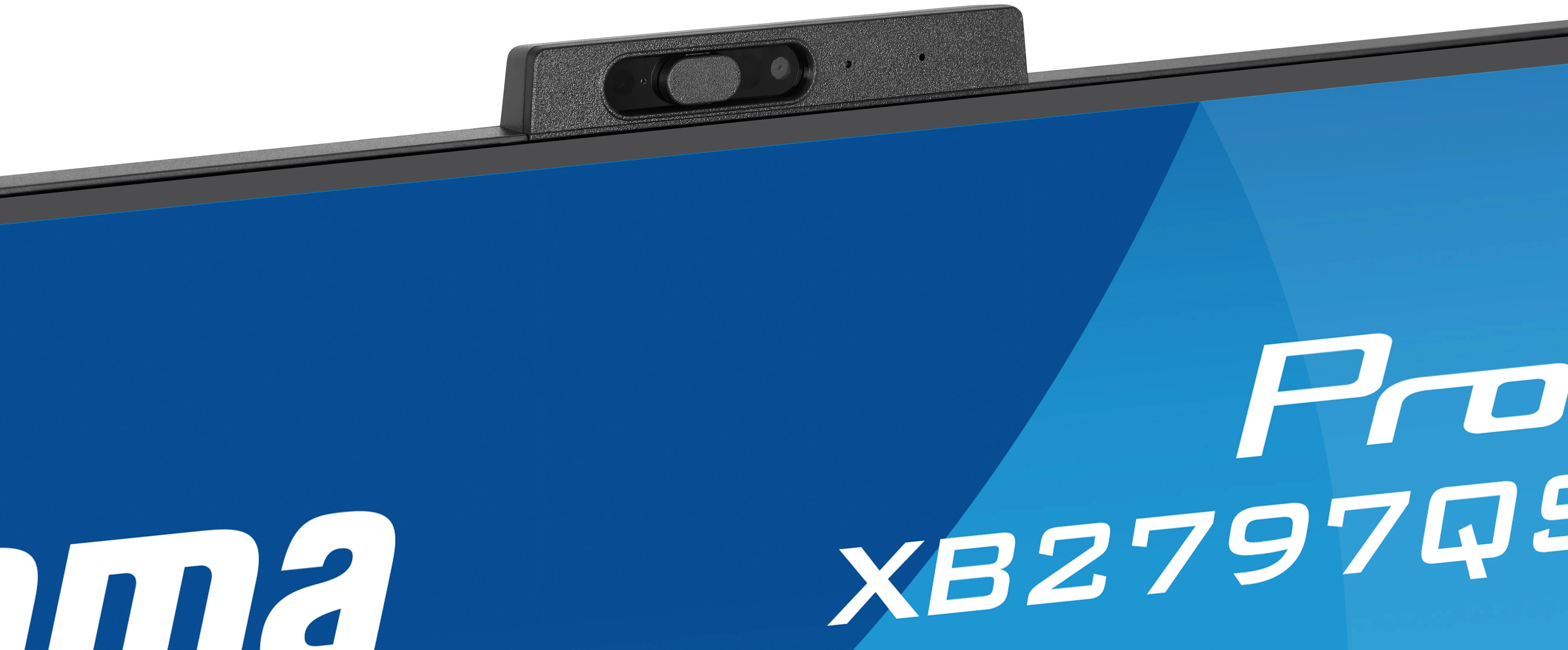

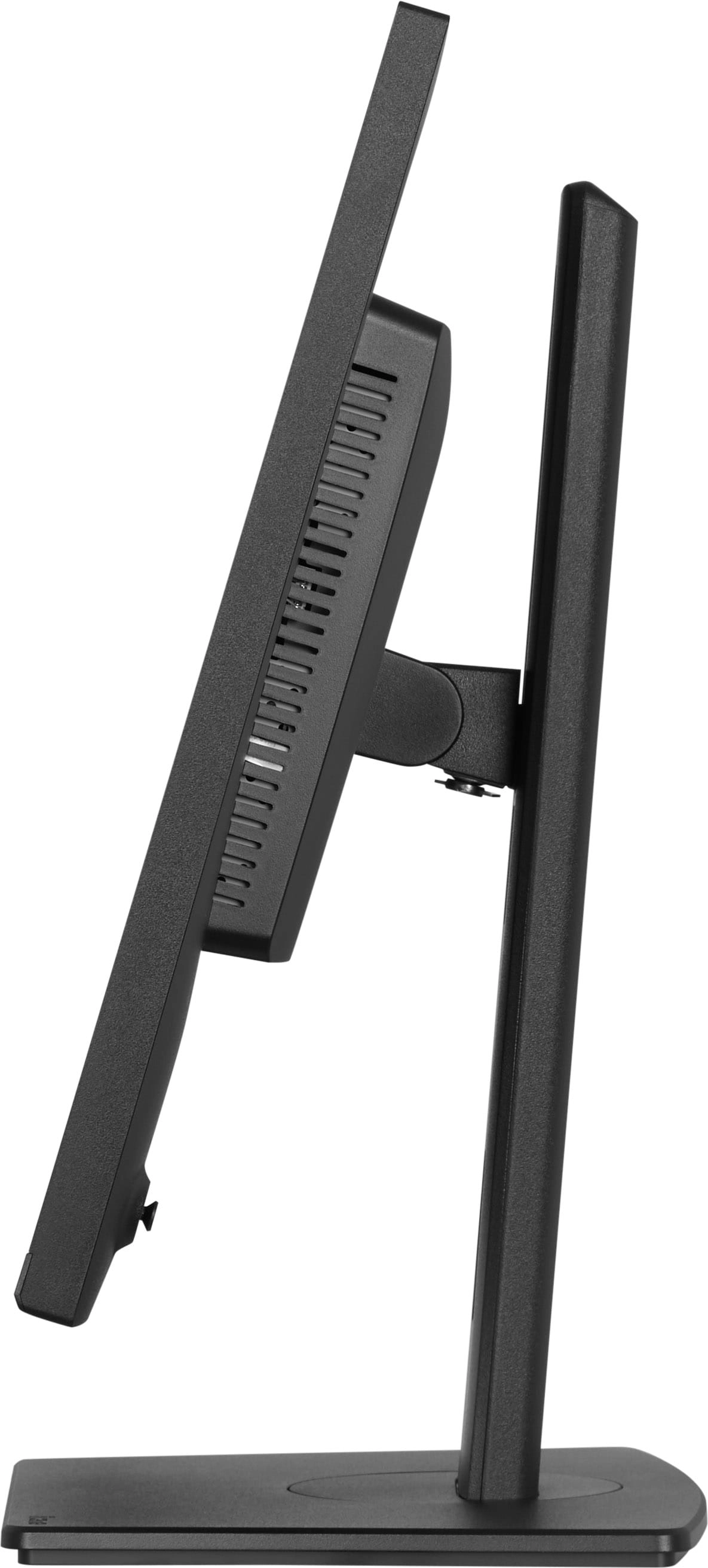

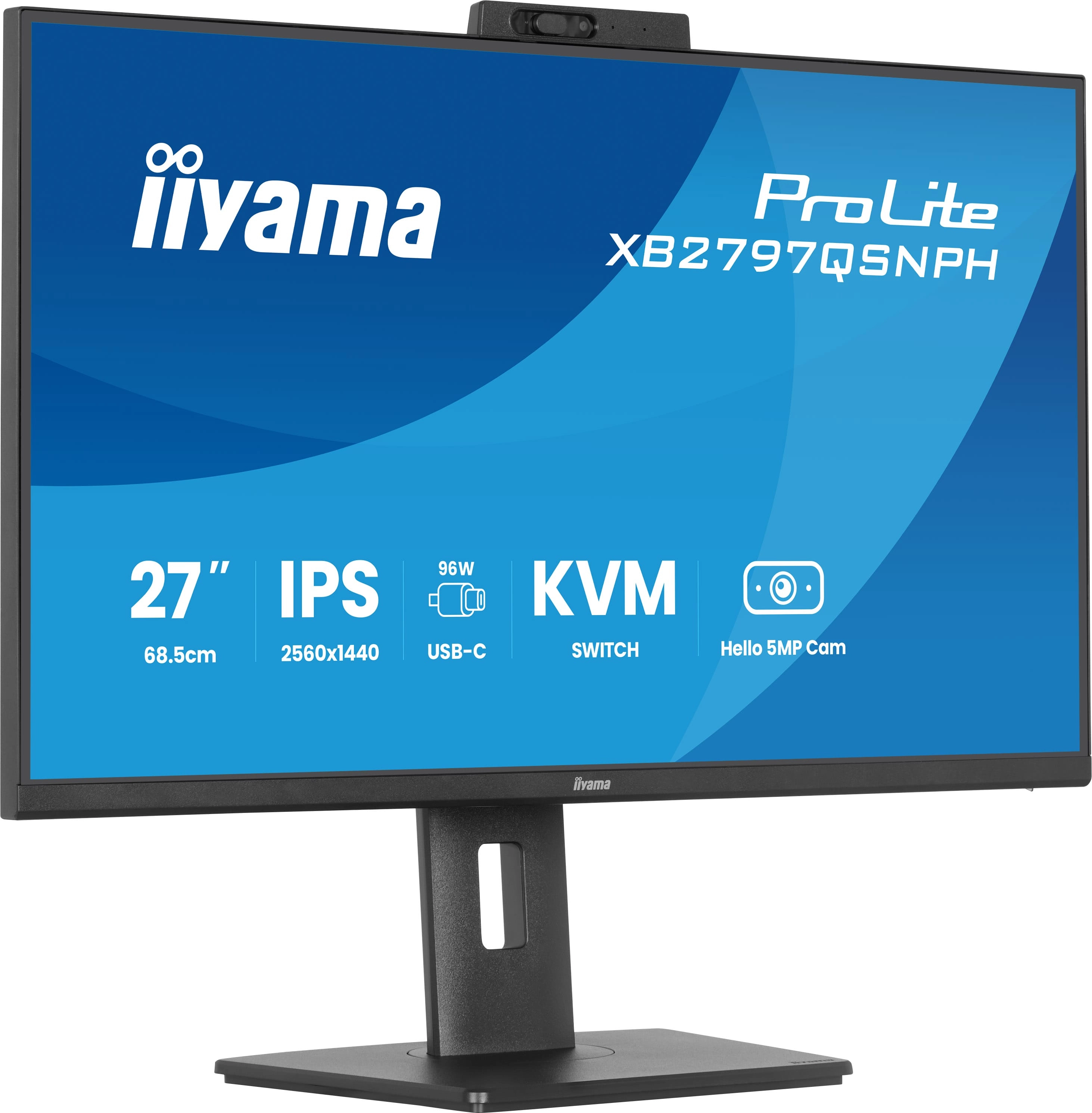

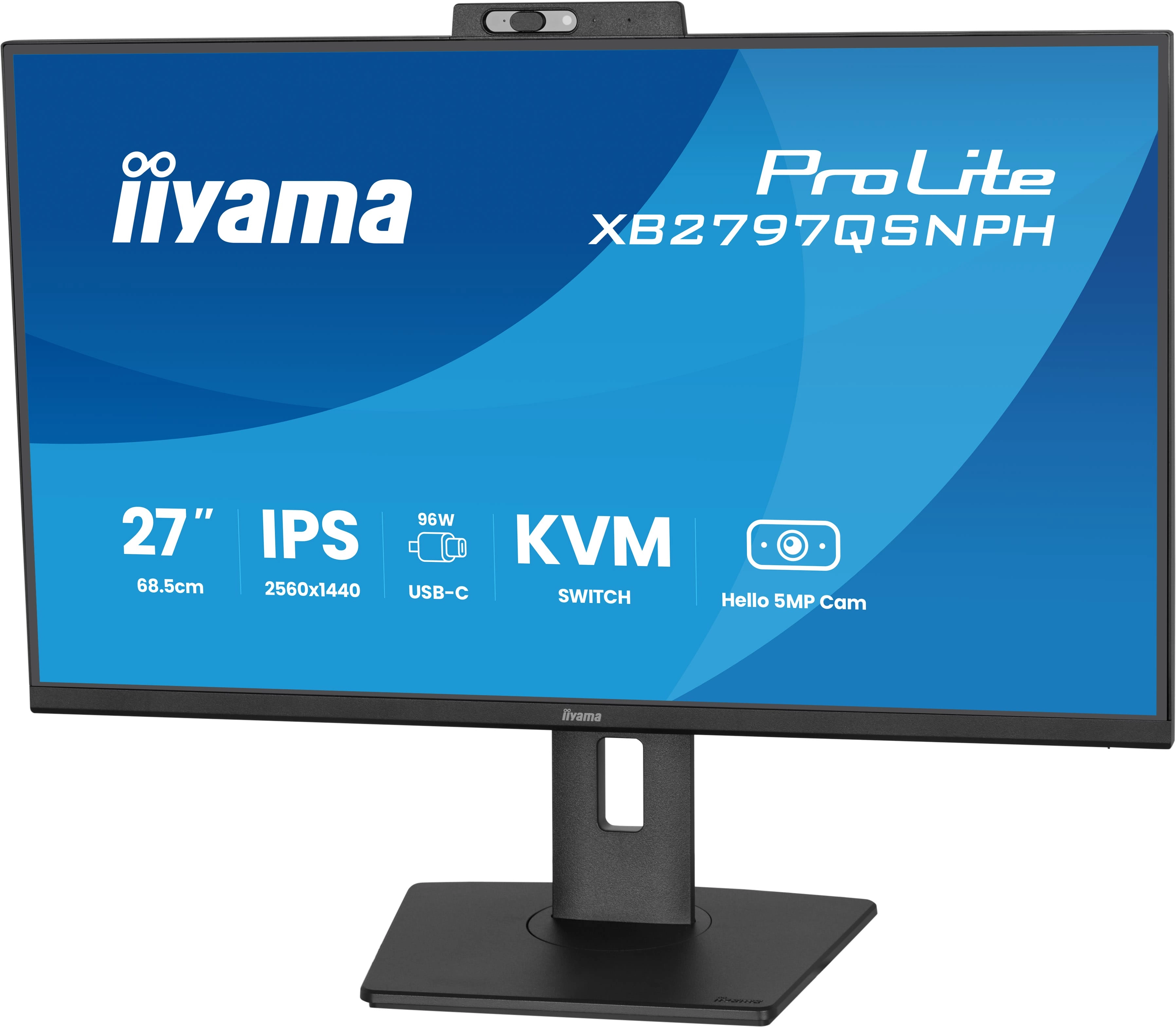

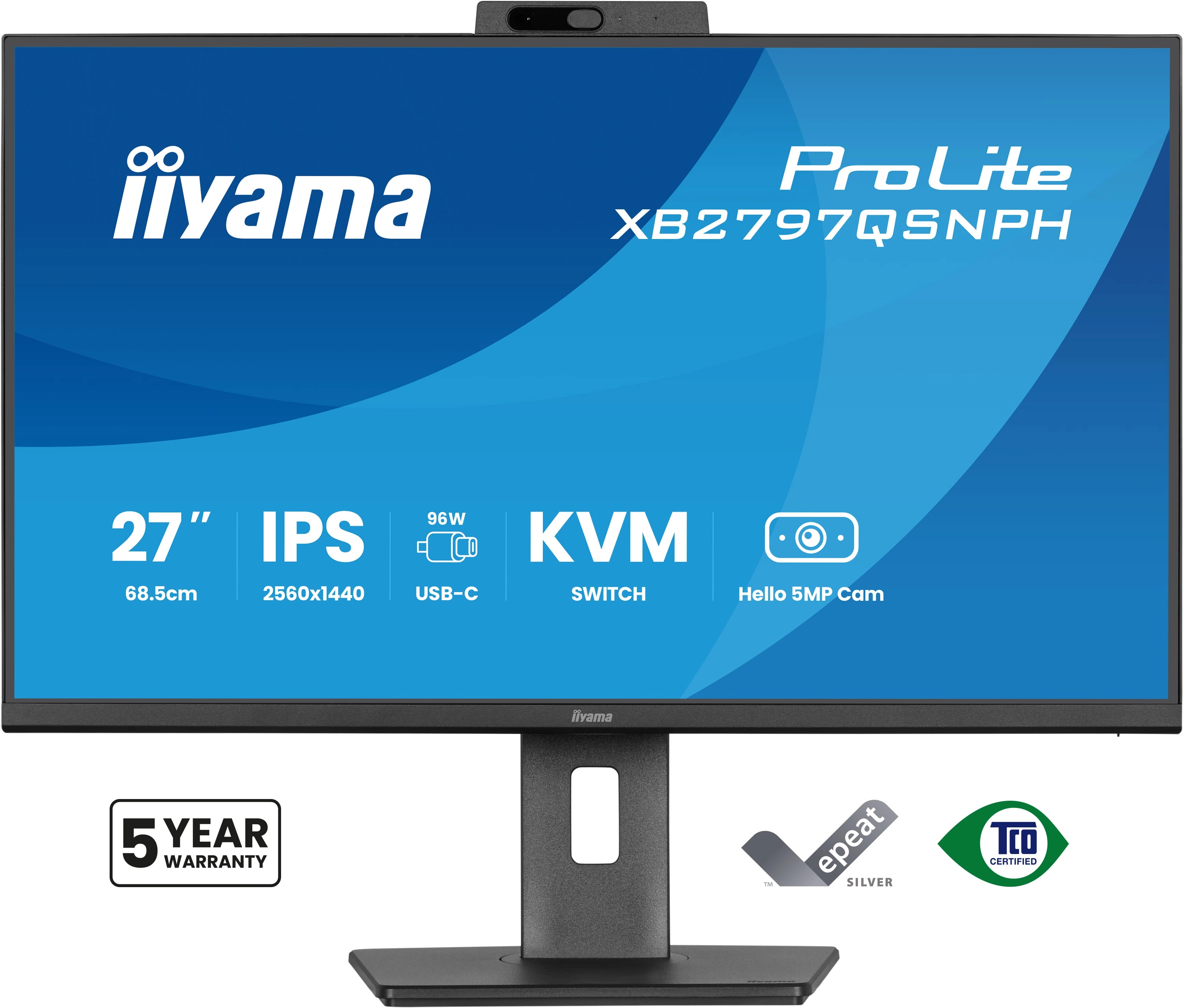

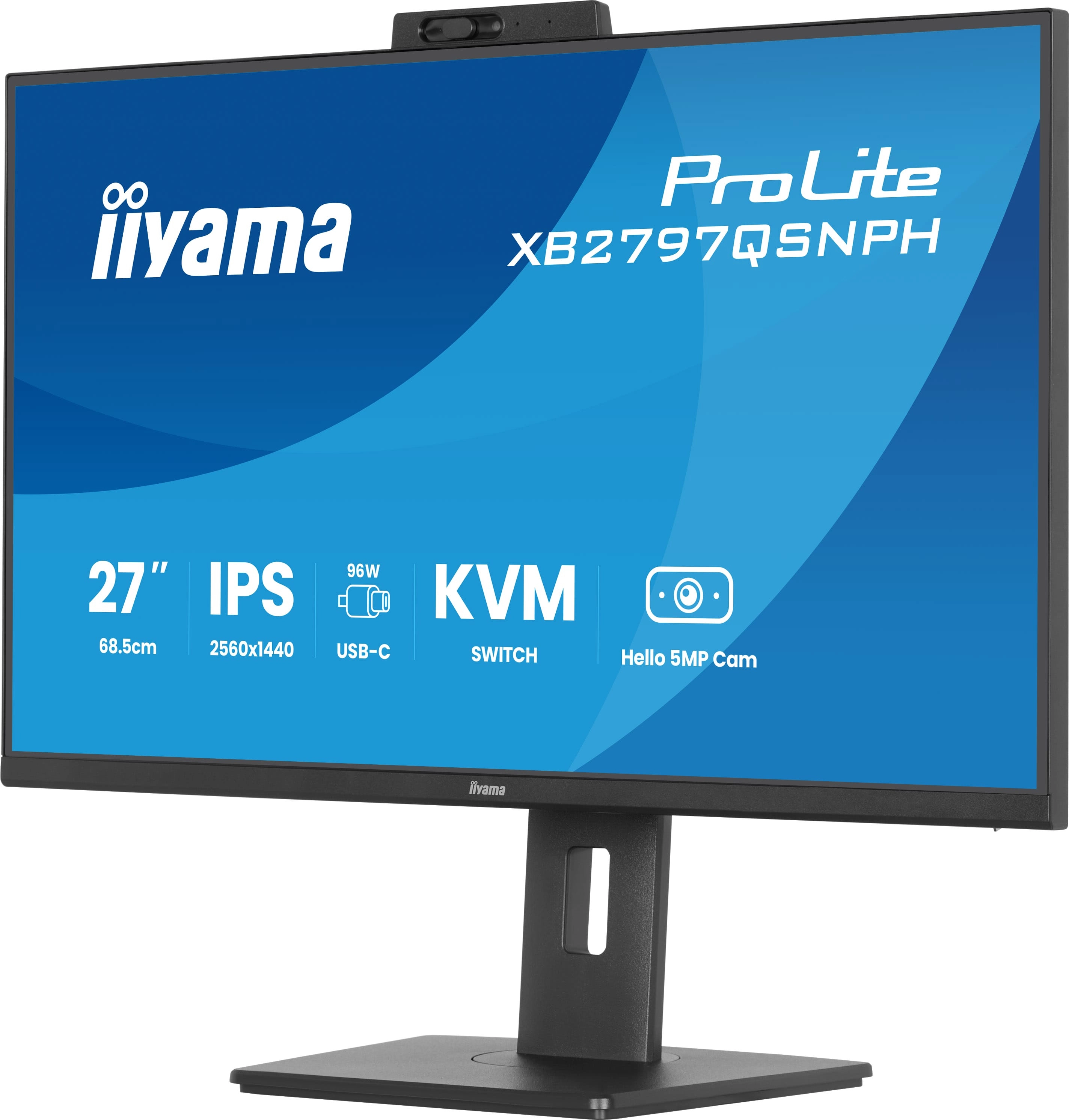

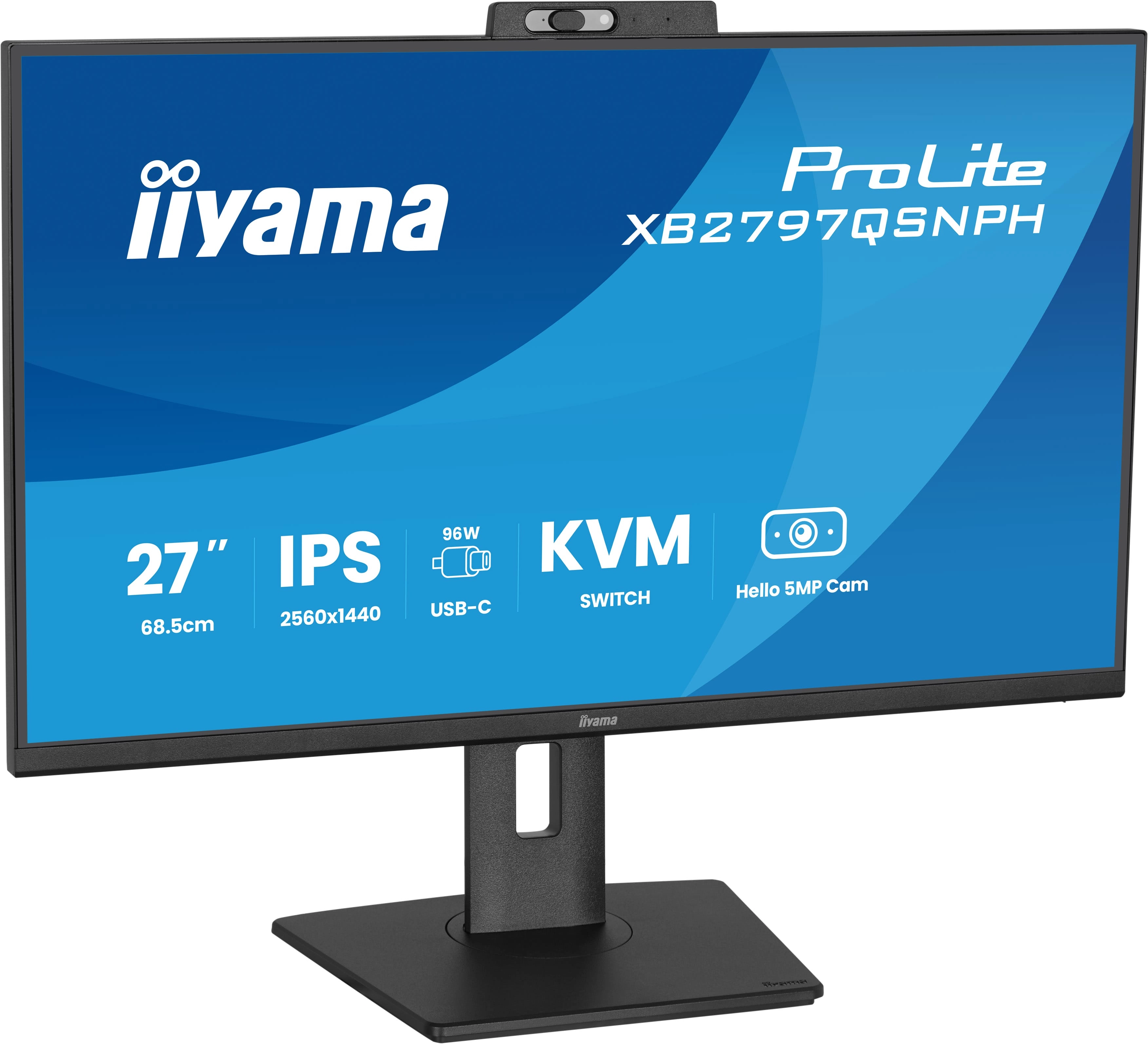

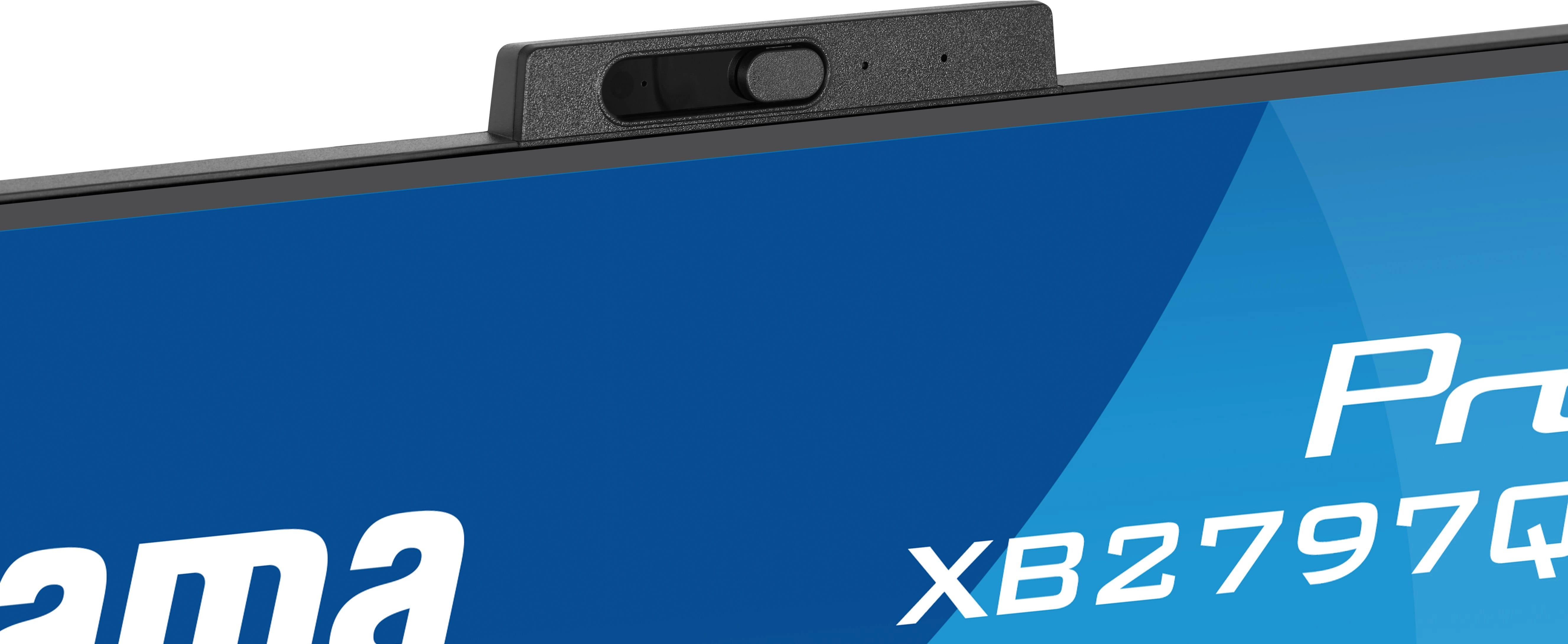

The ProLite XB2797QSNPH is a 27” QHD monitor built for professionals who want a tidier workspace, smoother multitasking and greater comfort throughout the day. The IPS panel delivers sharp detail, accurate colour and wide viewing angles, making it ideal for spreadsheets, creative work and detailed documents. A DisplayPort output also enables a quick dual-monitor setup for greater screen space and higher productivity. The integrated USB-C dock with 96W power delivery carries video, audio, data and power through a single cable, helping reduce desk clutter and making laptop connection fast and simple. An RJ45 port provides a stable wired network connection without extra adapters, while the built-in KVM switch allows control of two computers with one keyboard and mouse for a more seamless workflow. For modern collaboration, the monitor features a built-in 5MP autofocus webcam with Windows Hello for secure sign-in and professional-looking video calls. An ergonomic stand with 15cm height adjustment, tilt, swivel and pivot helps achieve a comfortable viewing position, while TÜV Rheinland Eye Comfort certification supports reduced visual fatigue during long working days.

Specification

Product
Product id	1021784
Brand	iiyama
Partnr	XB2797QSNPH-B1
EAN/UPC code	4948570125975
Warranty (months)	36 months
Technical details
Sustainability certificates	ErP, TCO
Compliance certificates	CE, EAC, PSE, REACH, RoHS, TÜV mark, UKCA, VCCI, WEEE
Display

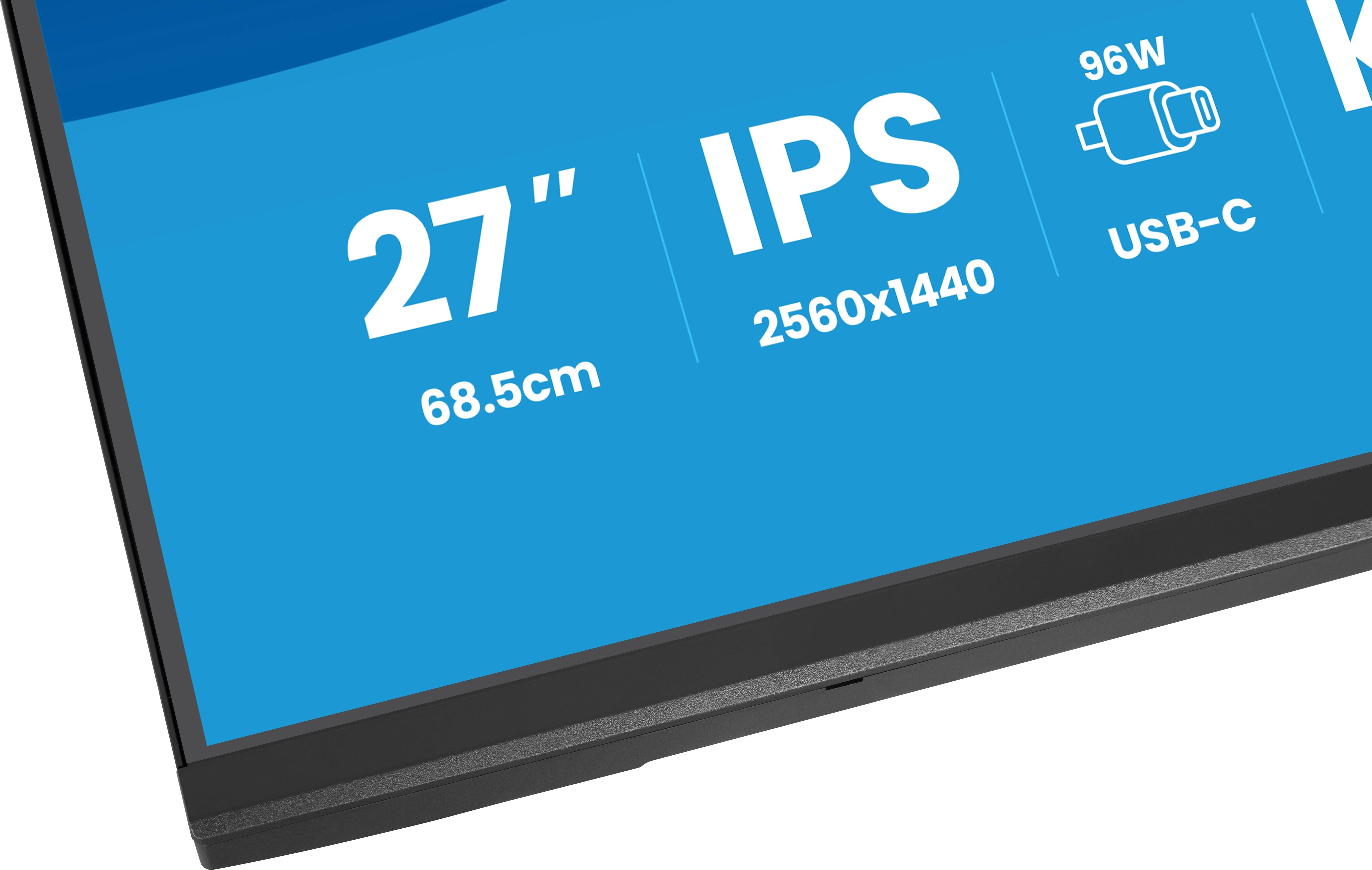

Display diagonal	27 inch
Display resolution	2560 x 1440 Pixels
Native aspect ratio	16:9
Panel type	IPS
Display brightness (typical)	350 cd/m²
HD type	Quad HD
Response time (MPRT)	1 ms
Display surface	Matt
Contrast ratio (typical)	1000:1
Maximum refresh rate	75 Hz
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Display number of colours	16.7 million colours
Display diagonal (metric)	68.5 cm
Pixel pitch	0.233 x 0.233 mm
Horizontal scan range	31 - 112 kHz
Viewable size, horizontal	596.7 mm
Viewable size, vertical	335.7 mm
sRGB coverage (typical)	99 procent
NTSC coverage (typical)	72 procent
Performance
AMD FreeSync	Y
Flicker-free technology	Y
Multimedia
Built-in speaker(s)	Y
Built-in camera	Y
Number of speakers	2
RMS rated power	4 W
Megapixel	5 MP
Built-in microphone	Y
Design
Product colour	Black

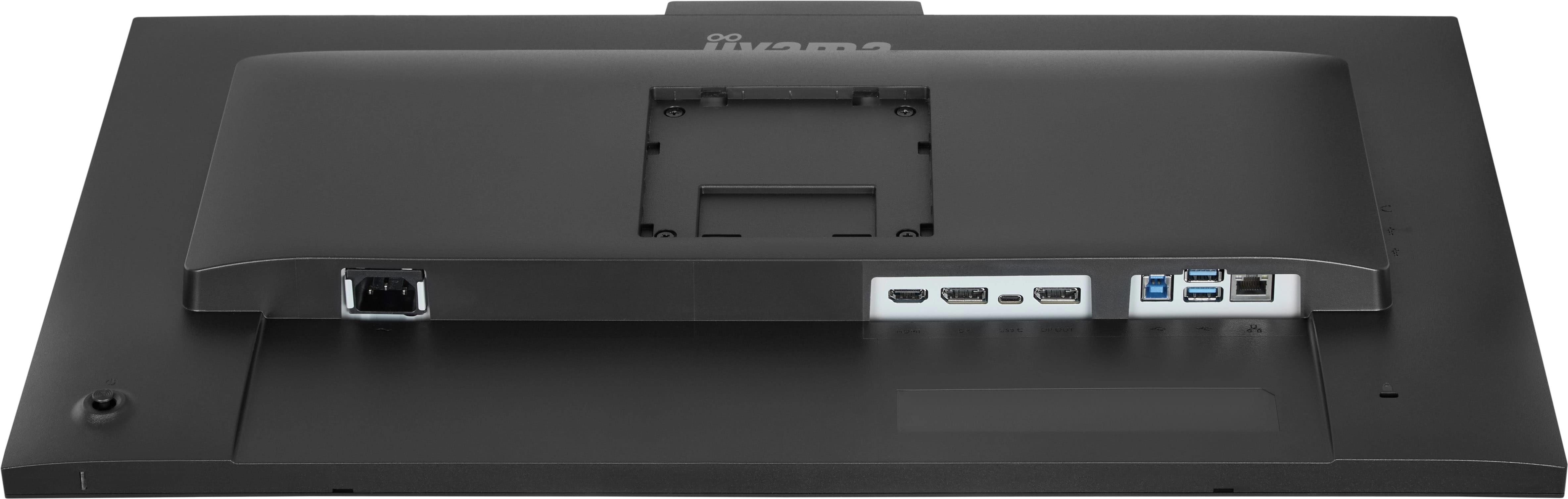

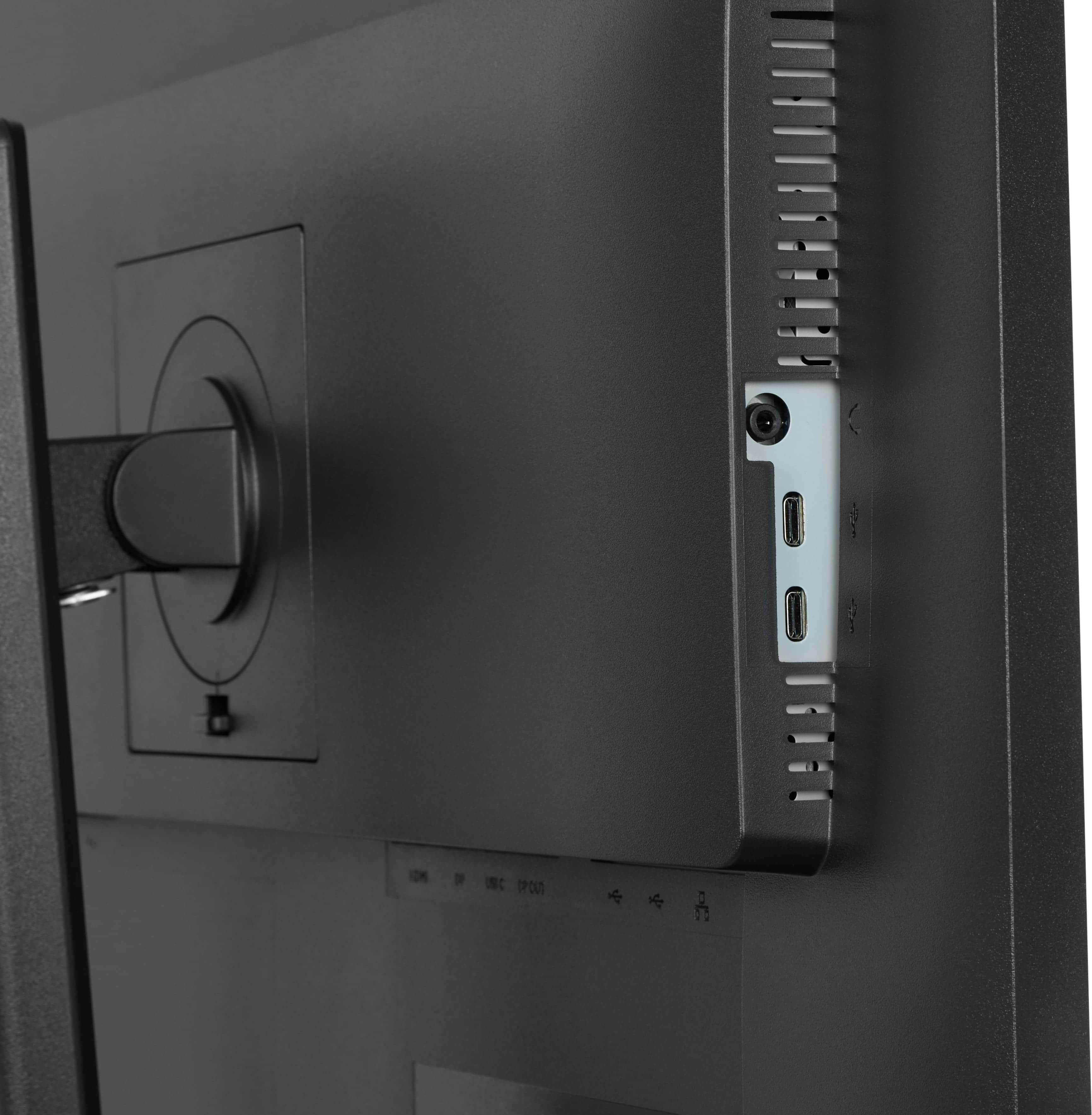

Ports & interfaces
Built-in USB hub	Y
USB hub version	3.2 Gen 1 (3.1 Gen 1)
USB upstream port type	USB Type-C
Number of USB Type-C upstream ports quantity	1
USB Power Delivery up to	96 W
HDMI ports quantity	1
DisplayPorts quantity	1
Headphone out	Y
Number of downstream ports	4
Built-in KVM switch	Y
DisplayPort out quantity	1
HDCP	Y

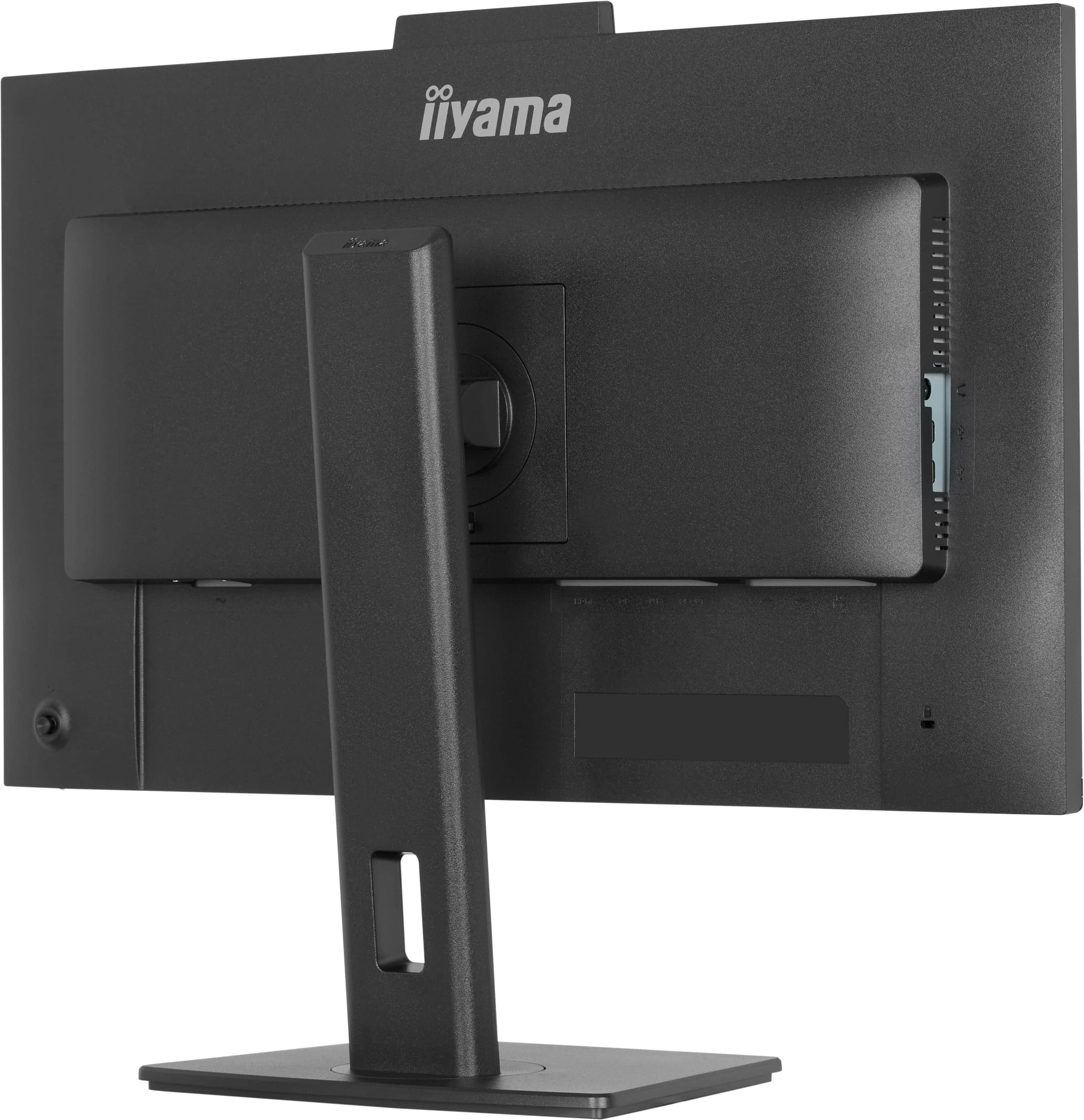

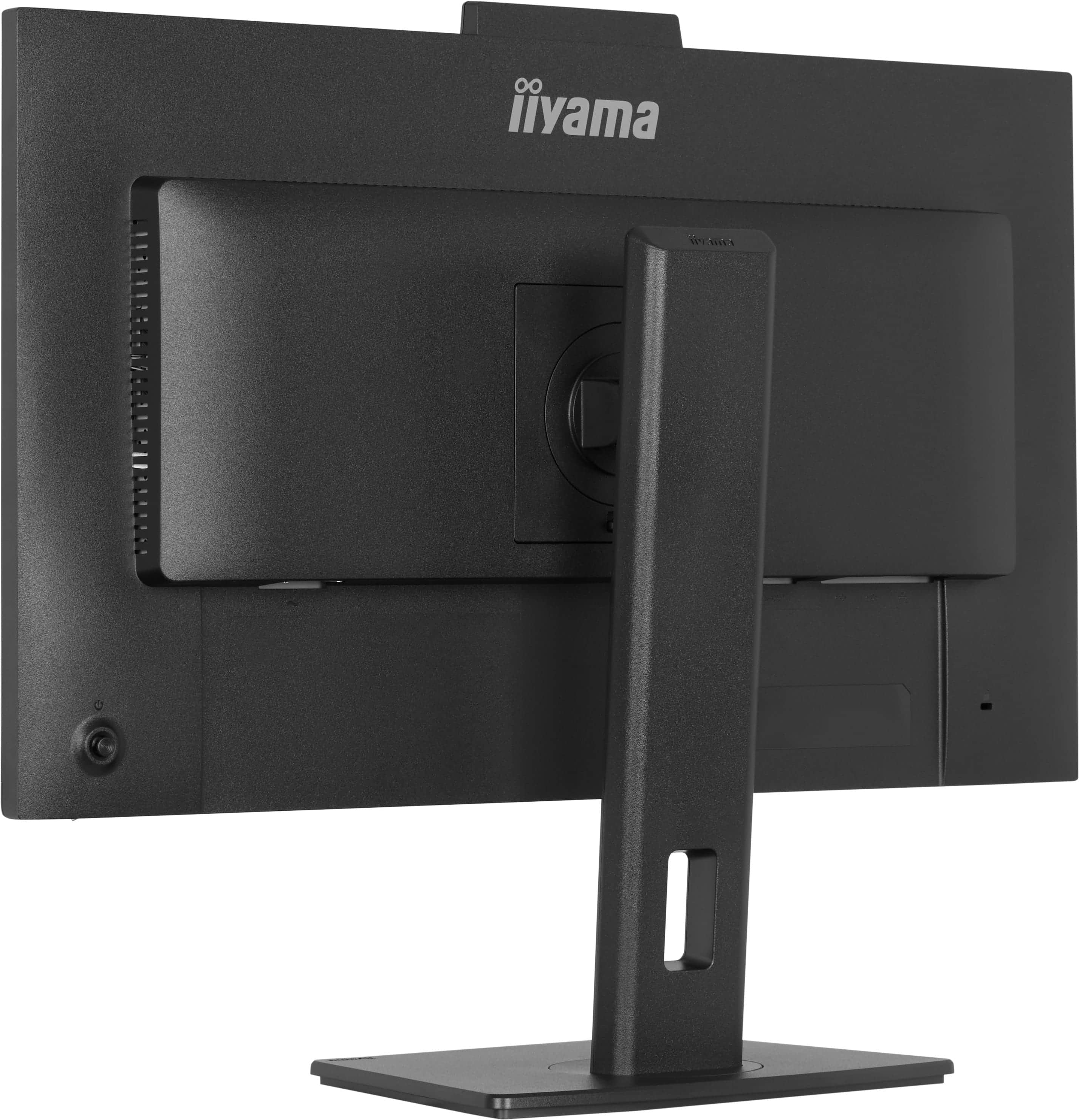

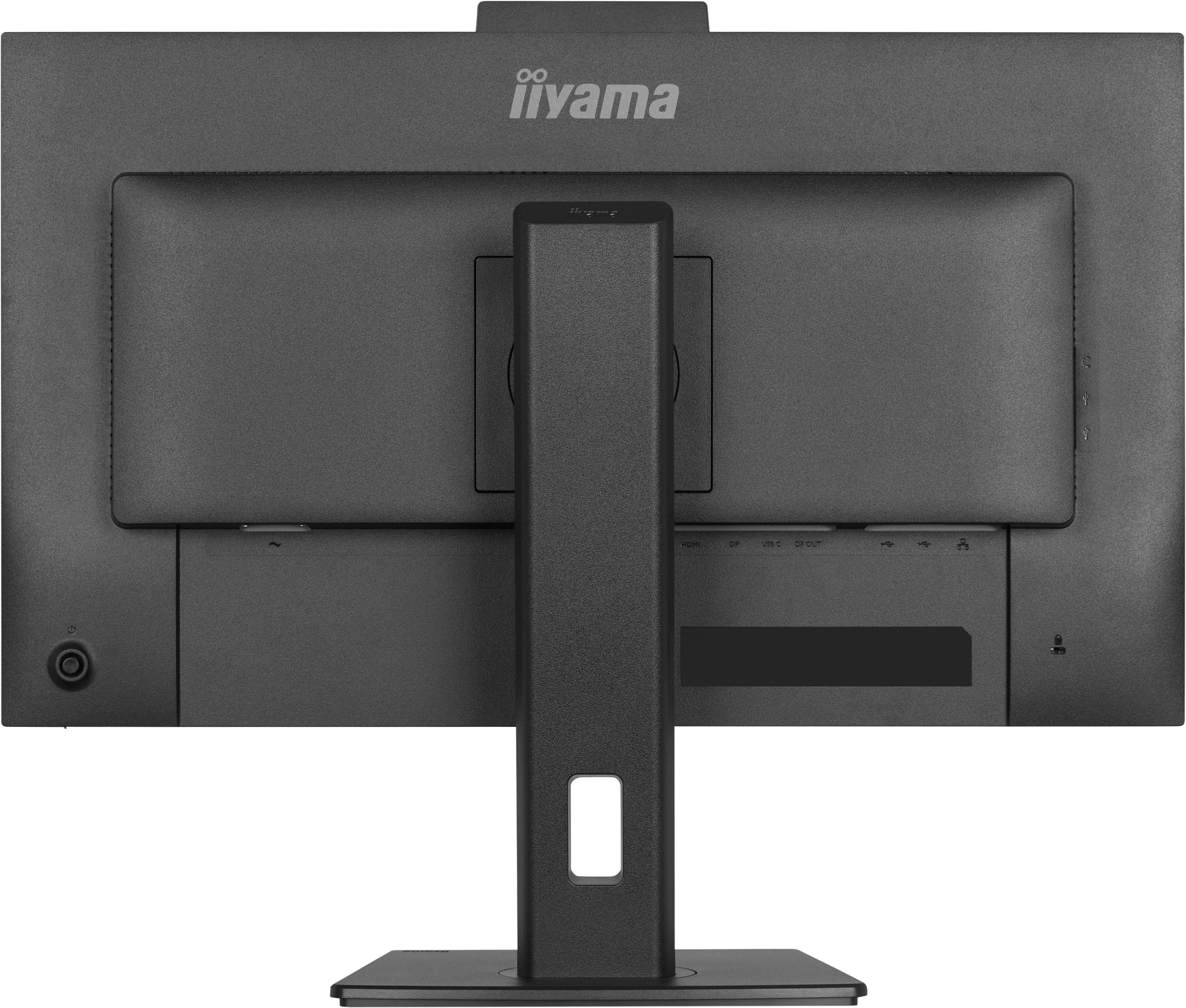

Ergonomics
VESA mounting	Y
Panel mounting interface	100 x 100 mm
Cable lock slot	Y
Cable management	Y
Cable lock slot type	Kensington

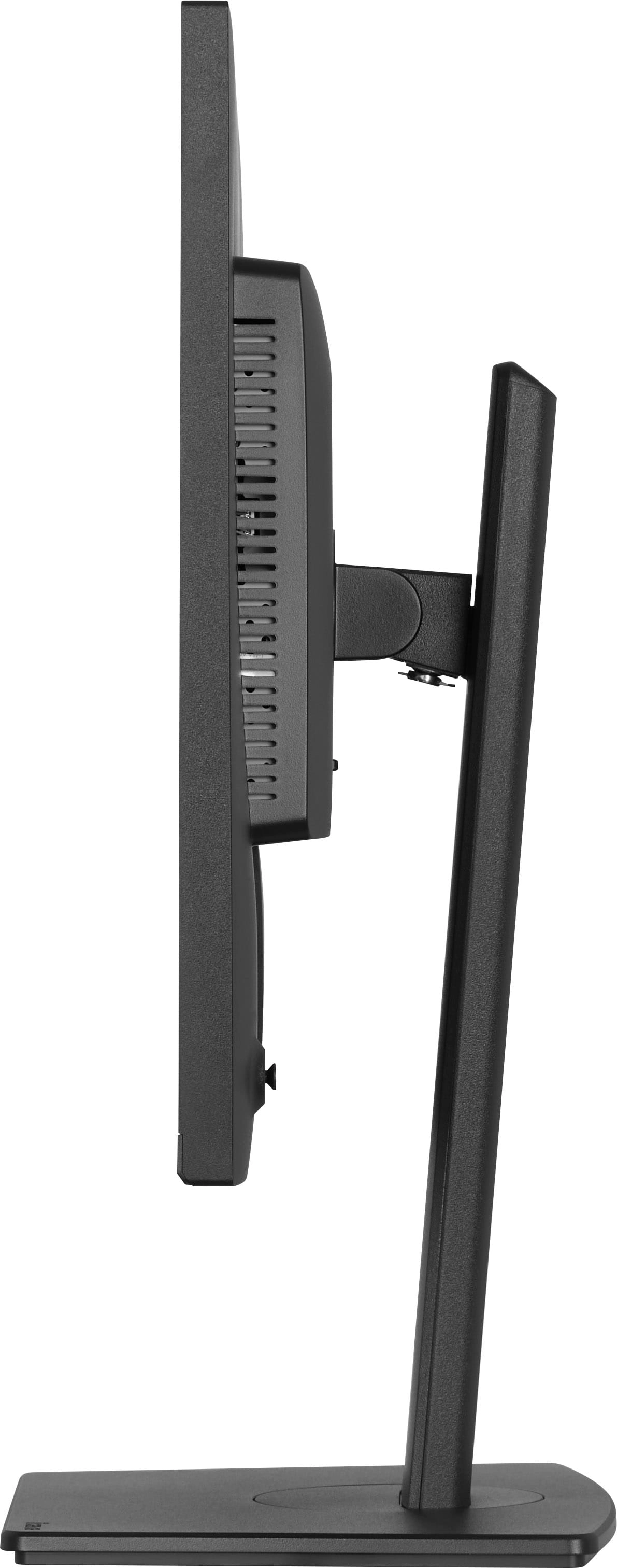

Adjustable height (max)	150 mm
Height adjustment	Y
Swivelling	Y

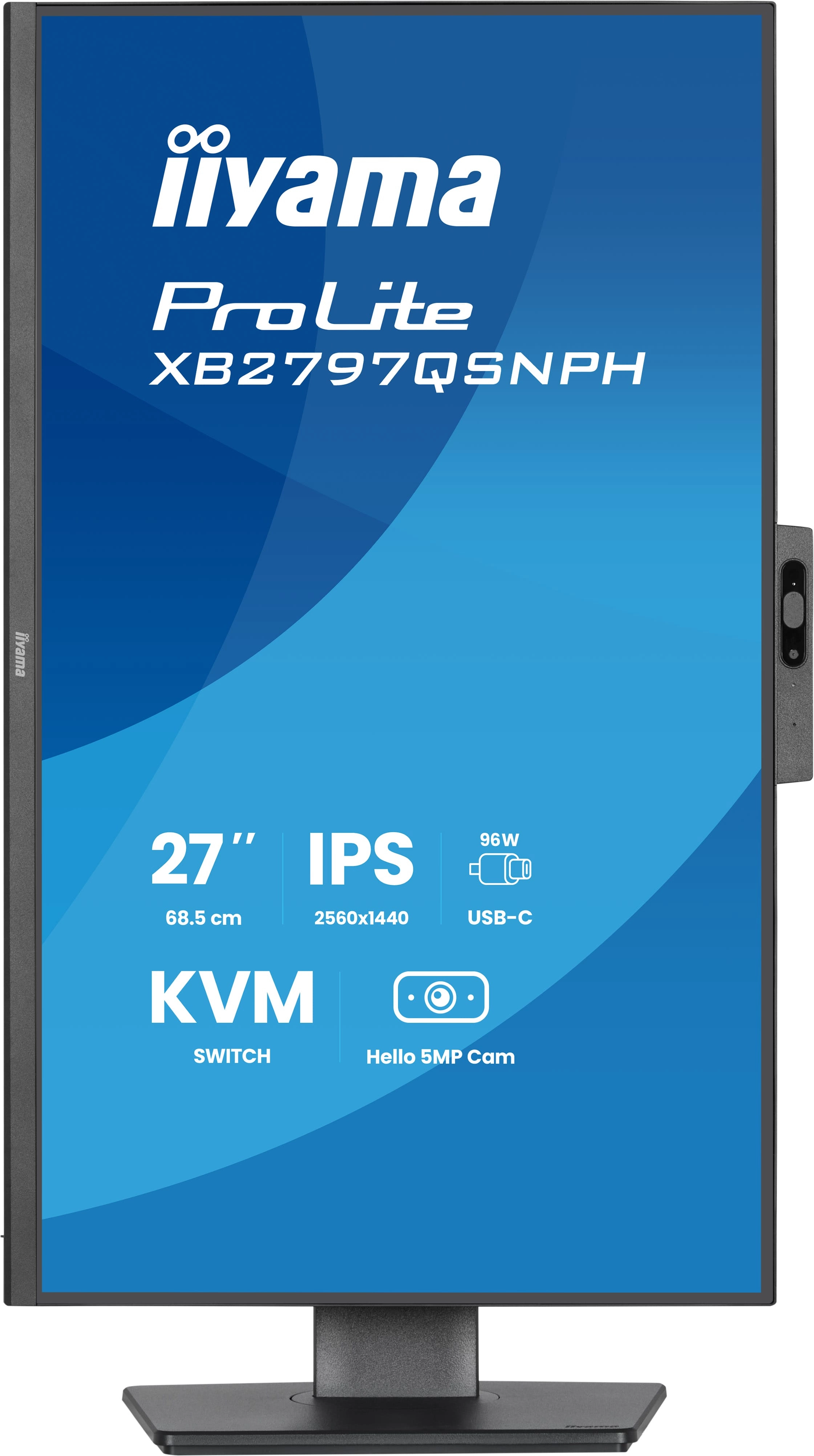

Pivot	Y
Swivel angle range	-60 - 60 °
Tilt adjustment	Y
On Screen Display (OSD) languages	CZE, DEU, ENG, ESP, FRE, ITA, JPN, DUT, POL, RUS, UKR
Packaging data

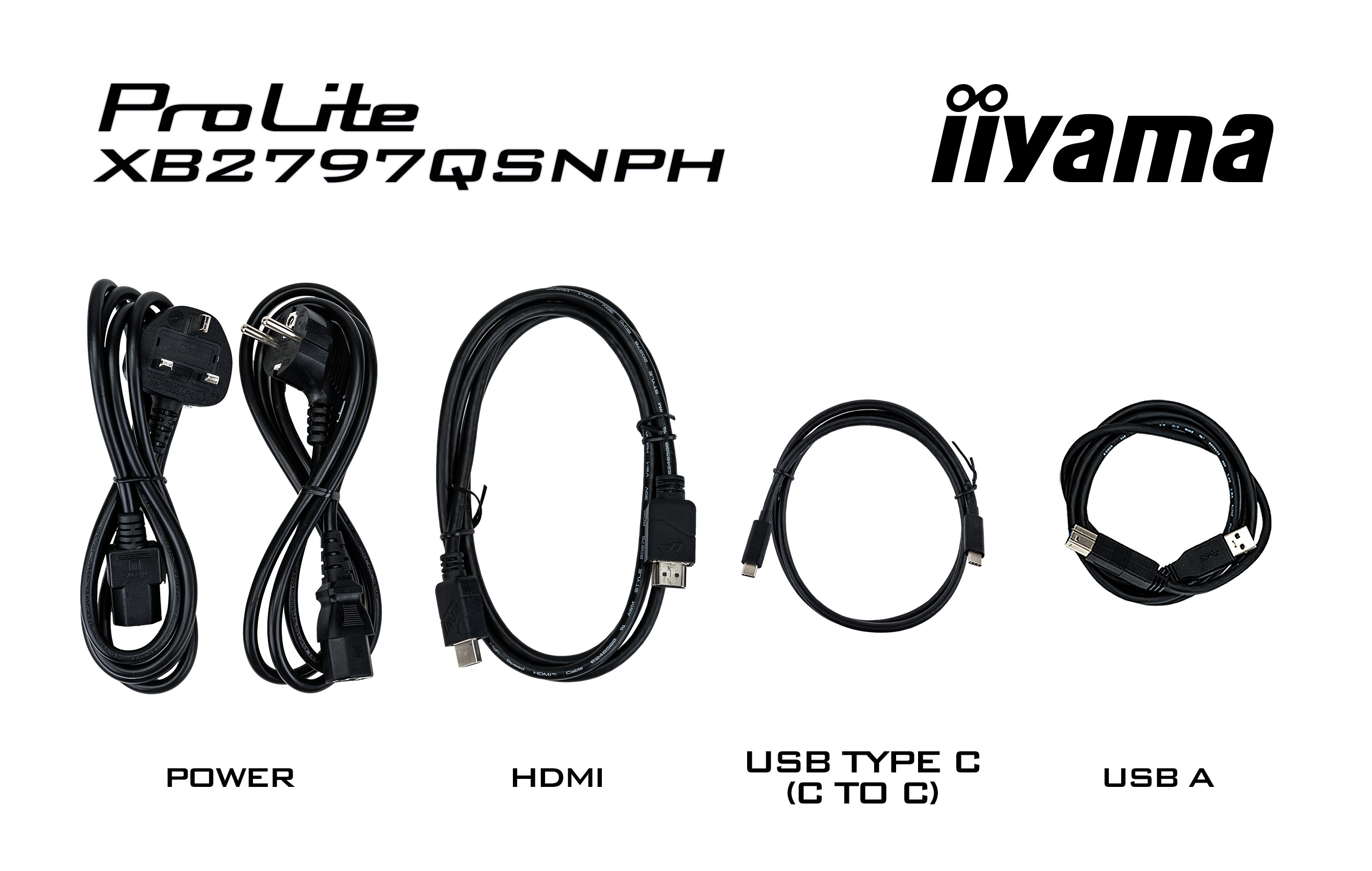

Cables included	AC, USB, HDMI, USB Type-C
Power cable length	1.5 m
HDMI cable length	1.5 m
USB cable length	1.5 m
Package width	691 mm
Package depth	142 mm
Package height	447 mm
Package weight	8200 g
Power
Energy efficiency class (SDR)	E
Power consumption (typical)	21 W
Power consumption (standby)	21 W
Power consumption (off)	0.3 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Weight & dimensions
Width (with stand)	613 mm
Depth (with stand)	209.5 mm
Height (with stand)	565.5 mm
Weight (with stand)	6000 g
Height (without stand)	415.5 mm
Width	613 mm
Depth	209.5 mm
Weight	6000 g
Other features
USB Power Delivery	Y
Power supply type	Internal
Manufacturer warranty	5 years (for details and eligible countries please check the Warranty section of our website)
Ethernet LAN	Y
Ethernet LAN (RJ-45) ports	1
Packaging content	quick start guide, safety guide
Control panel	Joystick: Power/Menu (Centre), Up/Signal Select, Down, Left/Shortcut, Right/Volume
User controls	picture adjust (brightness, contrast, ECO, ACR, OD, MBR, Adaptive Sync), colour settings (i-Style colour, RGB range, colour temp. , user preset), OSD (OSD H. position, OSD V. position, OSD rotate, OSD time, OSD background, DDC/CI control, display information), language, extra 1 (sharpness, video mode adjust, opening logo, power LED, USB charge, USB-C speed, MST DP-out), Extra 2 (shortcut key, Mac address, FW version), KVM (HDMI, DisplayPort, USB-C), input select, audio settings (volume, mute), reset (reset all?)
