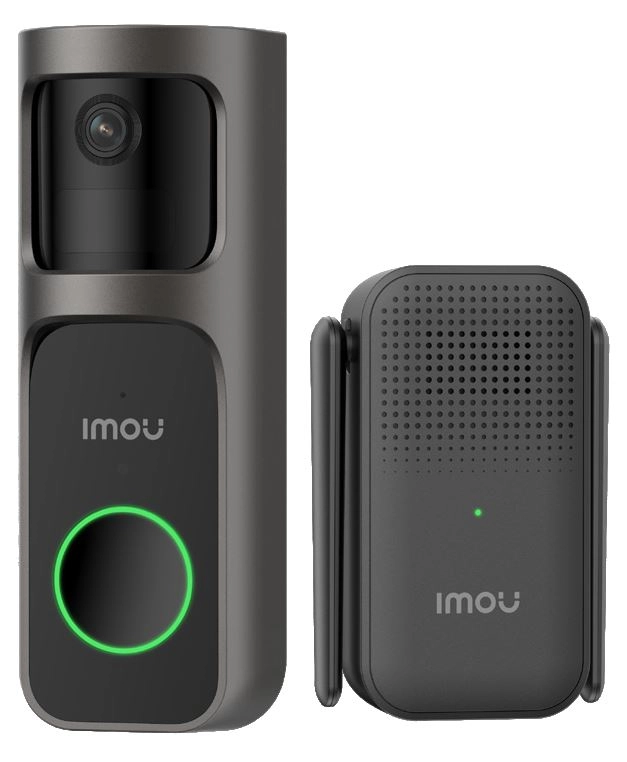

Doorbell 2S Kit

2K QHD Image | 5000mAh Large Battery166° D Wide-angle View | 30° Horizontal RotatableIR Night Vision | Works with Chime

See the world in 2K

Doorbell 2S delivers 2K QHD high resolution so you won't miss a single detail.

Large battery and USB-C fast charging

The large 5, 000mAh battery capacity can last up to 120 days¹ and is equipped with a USB-C port for fast charging.

No wiring needed

Simply stick the Doorbell 2S to where you need it, with no wiring work to think about, and you can quickly start protecting your home.

Remotely controllable panning lens

The lens of Doorbell 2S supports a 30° horizontal rotatable lens and can be controlled remotely via Imou Life app, giving you control over a more comprehensive view of the front door.

166° D ultra-wide view

The Doorbell 2S has a lens with a 166° D field of view and a 4:3 frame, making it more suitable for shooting deeper scenes.

IR night vision illuminates the unseen

Doorbell 2S features infrared night vision with a maximum range of 5 meters, which automatically opens and closes to guard your home around the clock.

Suspicious behavior detection

Tired of countless alarms every day? Doorbell 2S can help you, instead of pushing a notification as soon as it detects a humanoid target, it sends out an alert after a period of time that you have set, but all the footage of the humanoid target being detected will be stored.

Smarter detection and more privacy security

Works with Chime

Weather Resistance

Doorbell 2S is able to against dust penetration and can easily handle rain and wind, keeping you safe around the clock.

More amazing features

- Customizable detection setting
- Customizable quick reply
- Customizable alarm sound
- Auto power saving mode
- Supports 512GB SD card storage
- H.265 compression for longer recording
- 0.3s instant notification
- USB-C fast charging

Imou Protect - Level up your security

Imou Protect is a subscription service that is able to empower your IMOU products with advanced cloud computing technology and upgrade your security experiences.

Specification

Product
Product id	969021
Brand	Imou
Partnr	DB-2SP-3T0W/DS2S
EAN/UPC code	6976391039506
Features
Best uses	Home
Illuminated push button	Y
Motion detection supported	Y
Product colour	Black
Mounting type	Wall
Plug and Play	Y
Performance
Maximum memory card size	512 GB
Card reader integrated	Y
Compatible memory cards	MicroSD (TransFlash)
Built-in microphone	Y
Built-in speaker(s)	Y
Call notifications	Y
Video formats supported	H.265
Reset button	Y
PIR detector	Y
Camera
Built-in camera	Y
Megapixel	3 MP
Maximum video resolution	2048 x 1536 Pixels
Maximum frame rate	15 fps
Sensor type	CMOS
Image sensor size	1/2.8 "
Fixed focal length	2.3 mm
Night vision	Y
Night vision distance	5 m
Horizontal field of view	125 °
Diagonal field of view	166 °
Vertical field of view	98 °
Ports & interfaces
Connectivity technology	Wireless
Wi-Fi	Y
Wi-Fi standards	802.11b, Wi-Fi 4 (802.11n)
Mobile operating systems supported	Android, iOS
Power
Power source type	AC, Battery, DC
Input voltage	100 - 240 V
DC input voltage	8 - 24 V
Battery capacity	5000 mAh
Battery voltage	5 V
USB port type	USB Type-C
Battery current	1 A
USB charging port	Y
Rechargeable battery	Y
Technical details
Compliance certificates	CE
Weight & dimensions
Bell width	55 mm
Bell depth	50.3 mm
Bell height	150 mm
Transmitter width	65.1 mm
Transmitter depth	30.2 mm
Transmitter height	95.5 mm
Transmitter weight	79 g
Bell weight	237.5 g
Operational conditions
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	0 - 95 procent
Packaging content
Cables included	USB
Mounting bracket(s) included	Y
Extension cable	Y
Screws included	Y
Cable nut(s) included	Y
Quick start guide	Y
