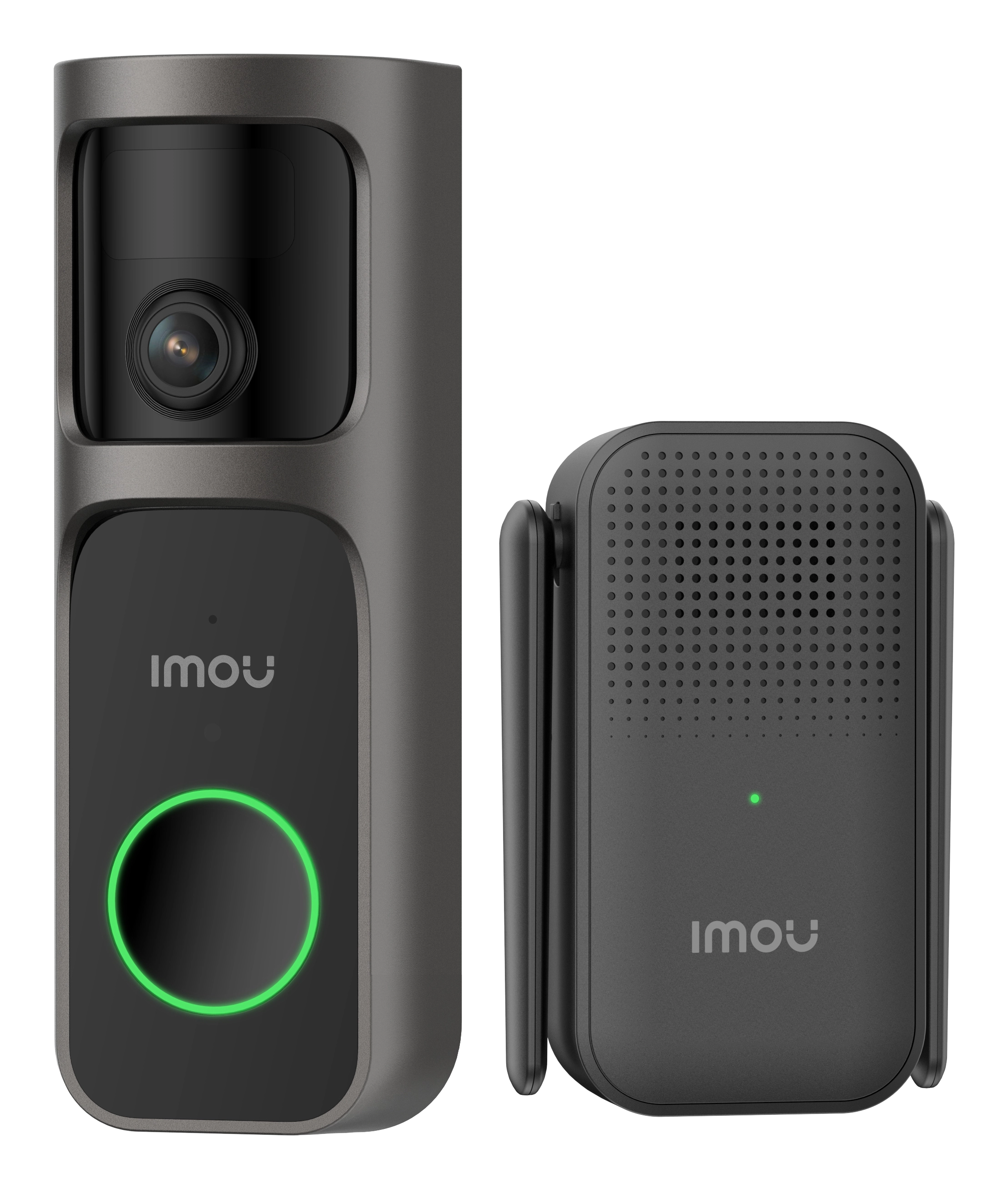

Doorbell 3 Kit

True 360° Panoramic View | 4MP QHD Image with Night Vision | AI Human & Package Detection | Secure Local Storage | Rechargeable Battery

True 360° Panoramic View, No Blind Spots

Doorbell 3's fisheye lens delivers a full 360° view, ensuring nothing is missed—no blind spots, no hidden risks.

Plus, We Have Other 3 Modes to Fit Your More Needs

Day or Night, Clarity That Never Fades

With 2K+ resolution for stunning detail and 5m IR night vision, you'll always have a clear view—whether day or night.

Intelligent Alerts, Your Way

With AI Human & Package Detection, Doorbell 3 accurately identifies people and deliveries, ensuring you always know what's happening at your doorstep.

SD Card on Chime – Reliable Data Protection

The SD card (up to 512GB) can be stored in the indoor Chime, can be protected from theft and tampering, unlike traditional doorbells, Imou Doorbell 3 Kit keeps your data safe at all times.

Stronger Wi-Fi, More Reliable Connection

The Chime doubles as a Wi-Fi extender, boosting the signal between your Doorbell 3 and router. Enjoy a stable connection for smoother live streaming and instant responses, even from a distance.

With Chime, Enjoy More Amazing Features

- Multiple alarm & ringtones available
- Support up to 4 Chimes with different ringtones
- 120dB adjustable bell volume

No More Power Anxiety!

- 5000mAh Rechargeable Battery – no need for frequent recharges
- Optional Hardwired Power Supply (8~24VAC) – always powered

Stay Connected, Stay Secure

- Two-way Talk
- Customizable Quick Voice Reply

Rain or Shine, Your Security Never Stops

Designed for long-term outdoor use, Doorbell 3 works perfectly in rain, heat, or snow.

Smart Linkage with Rex VT Series

Doorbell 3 can call the Rex VT camera which are in the same Local Area Network (LAN). The Rex VT will ring and display the live-view from Doorbell 3, and they can have a two-way talk between them.

Specification

Product
Product id	994891
Brand	Imou
Partnr	DB-3EP-4M0W/DS3
EAN/UPC code	6976391032453
Features
Best uses	Home
Illuminated push button	Y
Weatherproof	Y
Motion detection supported	Y
Human detection	Y
Product colour	Black
Package detection	Y
Mounting type	Wall
Plug and Play	Y
Performance
Maximum memory card size	512 GB
Card reader integrated	Y
Compatible memory cards	MicroSD (TransFlash)
Built-in microphone	Y
Built-in speaker(s)	Y
Call notifications	Y
Video formats supported	H.265
Reset button	Y
PIR detector	Y
Camera
Built-in camera	Y
Megapixel	4 MP
Maximum video resolution	1920 x 1920 Pixels
Maximum frame rate	15 fps
Sensor type	CMOS
Image sensor size	1/3 "
Night vision	Y
Night vision distance	5 m
Horizontal field of view	180 °
Vertical field of view	180 °
Ports & interfaces
Connectivity technology	Wireless
Wi-Fi	Y
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Mobile operating systems supported	Android, iOS
Power
Power source type	AC, Battery, DC
Input voltage	100 - 240 V
Power	3 W
Power consumption (transmission)	2.27 W
DC input voltage	8 - 24 V
Battery capacity	5000 mAh
Battery voltage	5 V
USB port type	USB Type-C
Battery current	1 A
USB charging port	Y
Rechargeable battery	Y
Technical details
Compliance certificates	CE
Weight & dimensions
Bell width	55 mm
Bell depth	50.3 mm
Bell height	150 mm
Transmitter width	65.1 mm
Transmitter depth	30.2 mm
Transmitter height	95.5 mm
Transmitter weight	79 g
Bell weight	220 g
Operational conditions
Operating temperature (T-T)	-20 - 50 °C
Packaging content
Cables included	USB
Mounting bracket(s) included	Y
Extension cable	Y
Screws included	Y
Cable nut(s) included	Y
Quick start guide	Y
