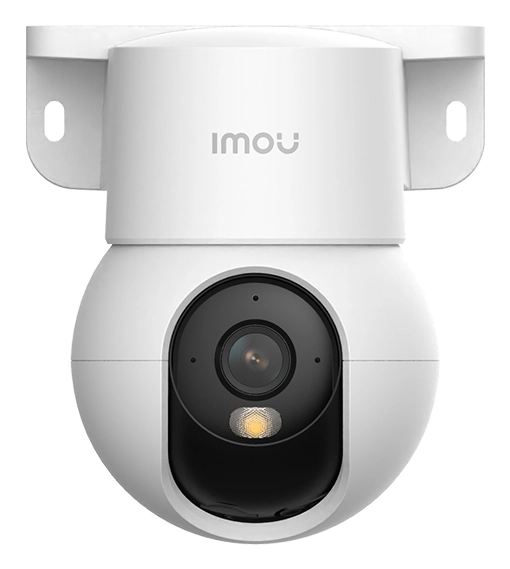

With 5MP/3K live monitoring and 0~355° pan & -5~50°tilt features, Ranger Mini 5MP ensures every corner of your home completely covered. The Integrated-Bracket design allows easy installation either Ceiling Mounting or Wall Mounting. Human Detection quickly finds human targets in images and immediately sends a notification to you. Privacy Mode helps protect your personal privacy when you are home, and Smart Tracking function lets the camera follows moving objects when it detects motion.

Specification

Product
Product id	984729
Brand	Imou
Partnr	IPC-K2MP-5H1WE
EAN/UPC code	6971927236305
Performance
Type	IP security camera
Placement supported	Indoor
Connectivity technology	Wired & Wireless
Auto-tracking	Y
Design
Form factor	Dome
Mounting type	Ceiling/Wall
Product colour	White
Camera
Lens viewing angle, horizontal	87 °
Lens viewing angle, vertical	48 °
Tilt angle range	-5 - 50 °
Lens viewing angle, diagonal	108 °
Pan range	0 - 355 °
Image sensor
Sensor type	CMOS
Number of sensors	1
Optical sensor size	1/3 "
Progressive scan	Y
Lens system
Number of lenses	1
Zoom capability	Y
Digital zoom	8 x
Fixed focal length	3.6 mm
Night vision
Night vision	Y
Night vision distance	10 m
Video
Maximum resolution	2688 x 1664 Pixels
Total megapixels	5 MP
Video compression formats	H.264, H.265
Frame rate	20 fps
Audio
Built-in speaker(s)	Y
Audio system	2-way
Built-in microphone	Y
Network
Ethernet LAN	Y
Wi-Fi	Y
Ethernet interface type	Fast Ethernet
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6 (802.11ax)
Storage
Built-in HDD	N
Card reader integrated	Y
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	512 GB
Technical details
Compliance certificates	CE
Security
Video motion detection	Y
Privacy protection	Y
Management features
Cloud-managed	Y
Reset button	Y
Power
Power source type	DC
Power consumption (max)	4.2 W
DC output voltage	5
DC output current	1 A
Operational conditions
Operating temperature (T-T)	-10 - 45 °C
System requirements
Mobile operating systems supported	Android, iOS
Weight & dimensions
Width	95 mm
Depth	96 mm
Height	109.2 mm
Weight	200 g
Packaging content
Number of cameras	1
Mounting brackets included	Y
Screws included	Y
