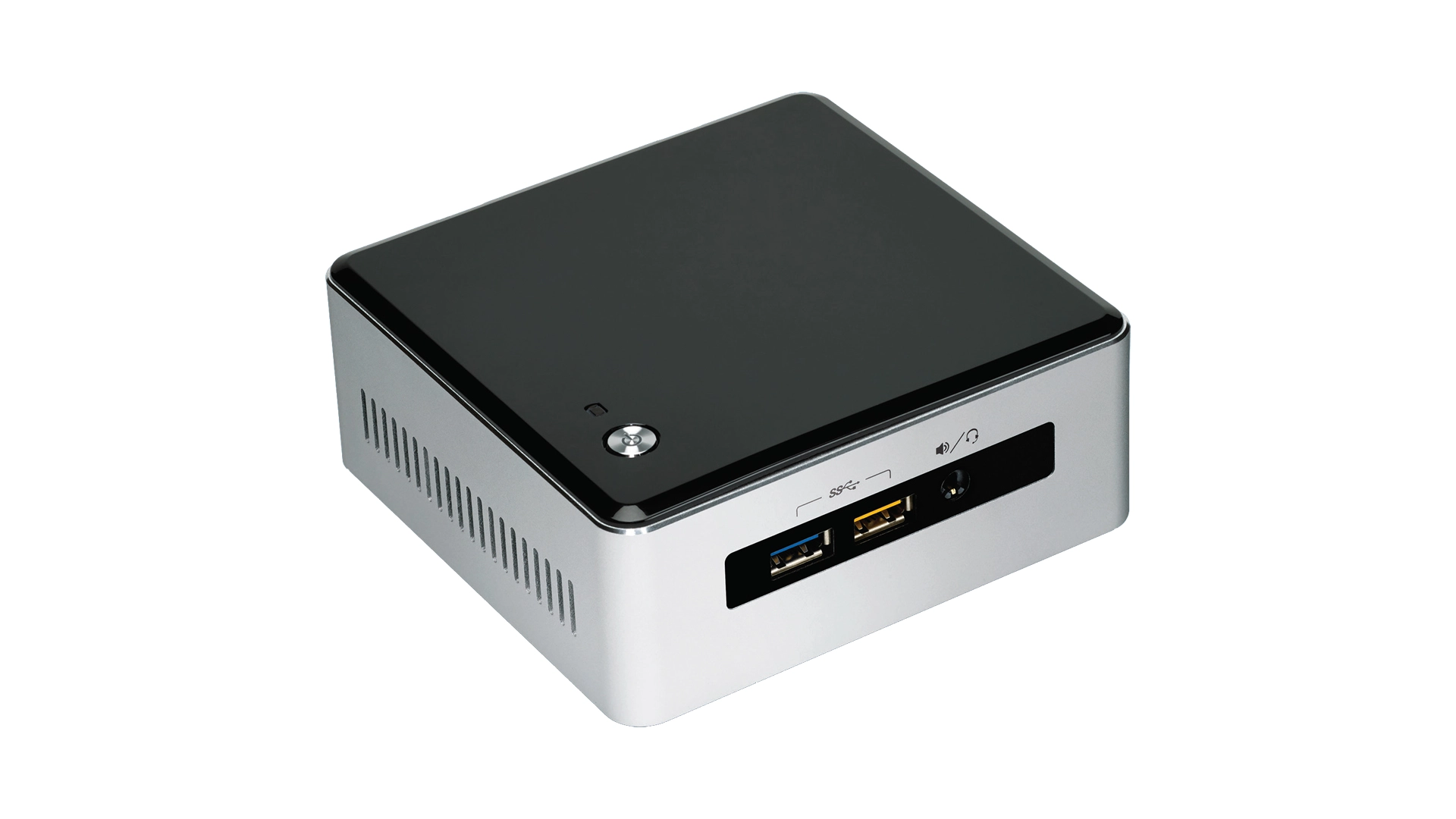

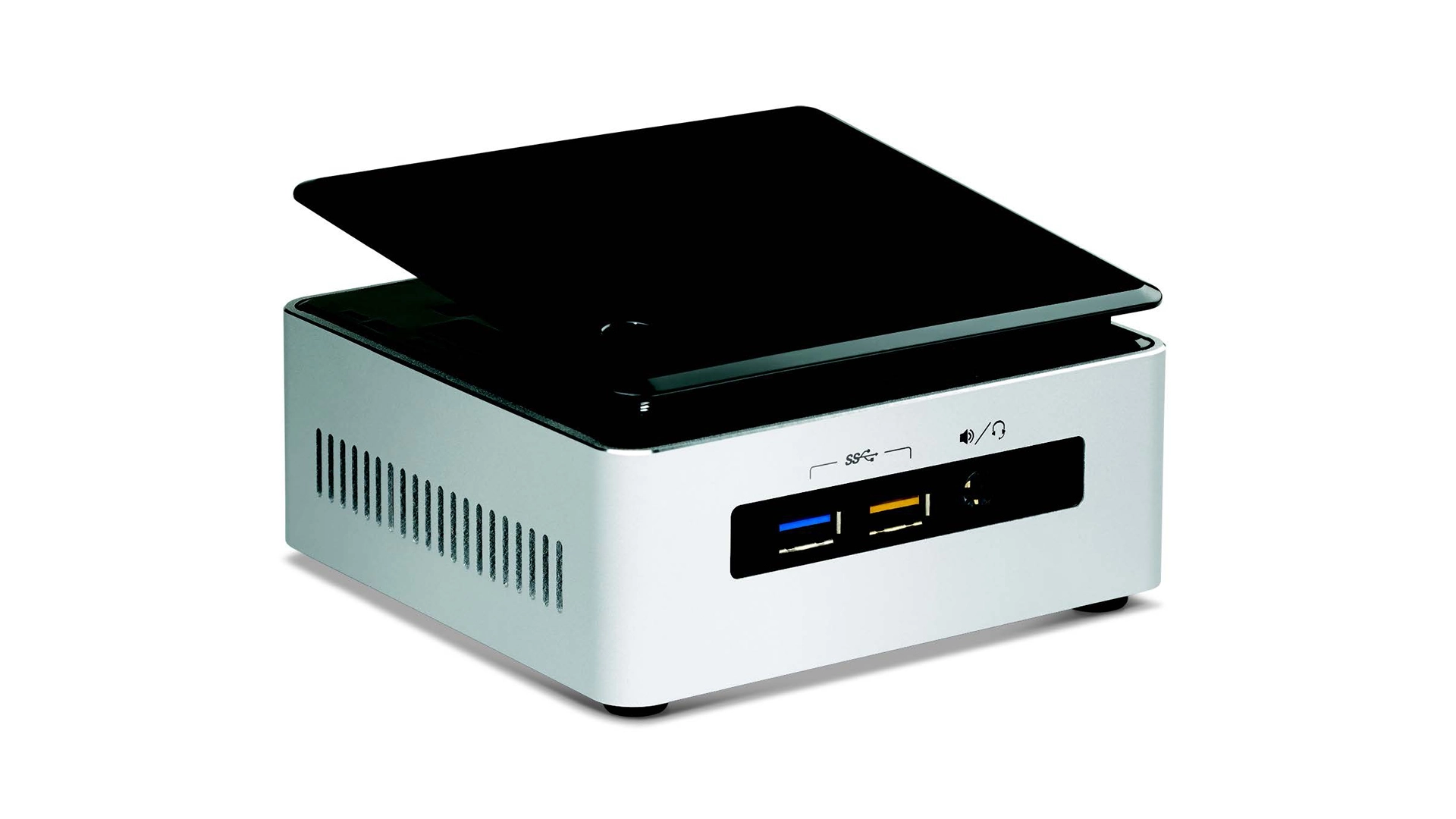

For small business, the Intel® NUC5i3RYHS and the Intel® NUC5i3RYHSN kits meet the needs of users who want the powerful capabilities of the 5th Gen Intel® Core™ i3 processor at an affordable price—all in a small package that fits in the palm of your hand.

The NUC5i3RYHS and the NUC5i3RYHSN kits are built with a dual-core Intel® Core™ i3 processor which delivers the performance to get work done at a price that won’t break the budget. With enhancements like Intel® Rapid Start Technology to get quickly up and running, and hardware-level security features, the Mini PC kits deliver performance and protection.

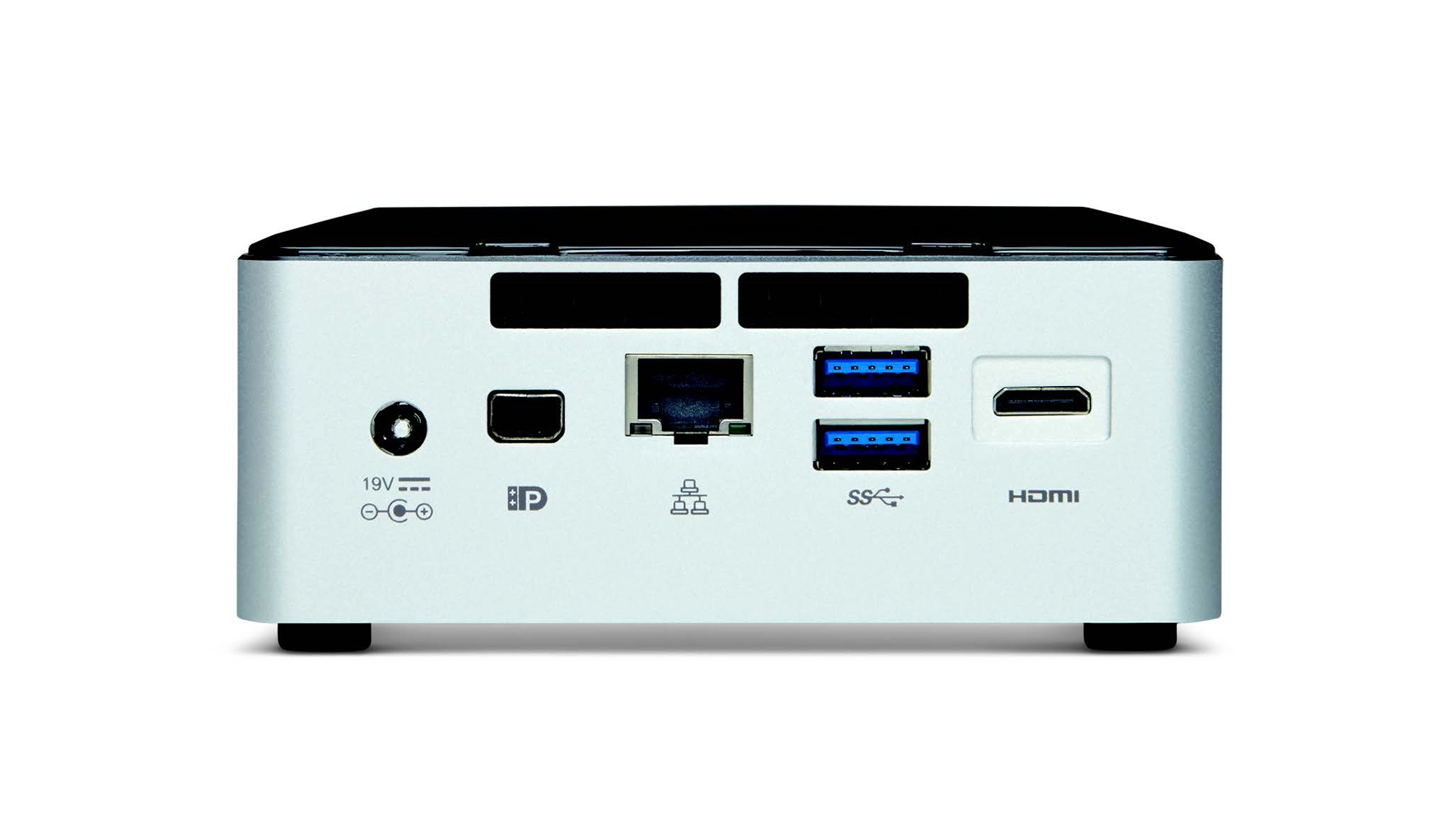

Both come with WiFi 802.11ac, Bluetooth® 4.2, Intel® Gigabit LAN, and 7.1 surround sound. The chassis have a mini DisplayPort* 1.2 and a mini HDMI* 1.4a interface to connect to 4K displays. Intel® HD Graphics displays information in brilliant 4K and keeps eyes from tiring on systems used as PC replacements. 4K also adds crisp definition and clarity to images and messages on entry-level digital signage.

The Intel® NUC5i3RYHSN kit: Add the Operating System and Go
Whether it’s a small business PC to handle basic office productivity or a kit for 4K digital signage or kiosks with eye-catching graphics, the NUC5i3RYHSN Mini PC kit with a 1 TB HDD and 4 GB of DDR3L RAM is up to the task. There’s room for business files, media, and more. The system comes without an operating system but is designed to be Windows* 10, Windows* 7, and Linux* compatible. The ability to choose the right OS allows for maximum flexibility for unique usages.

The Intel® NUC5i3RYHS Kit Allows for Additional Customization
The NUC5i3RYHS kit is also designed for Windows* 10, but offers the choice to install the OS, memory, and hard drive for the exact system needed. From PC replacement to entry-level digital signage, digital kiosks to intelligent vending, the NUC5i3RYHS kit can be configured exactly.

With support for up to 16 GB of DDR3L RAM, media streams without stuttering and multitasking becomes easier. There are 4 USB 3.0 ports including a USB charging port. Internal headers, including AUX_PWR and CEC, allow for customization for PC-like embedded systems.

Specification

Product
Product id	628523
Brand	Intel
Partnr	BOXNUC5I3RYHSN
EAN/UPC code	5032037141307
Warranty (months)	3 Years
Processor
Processor manufacturer	Intel
Processor family	Intel Core i3-5xxx
Processor model	i3-5005U
Processor cores	2
Processor frequency	2 GHz
Processor socket	BGA 1168
Processor cache	3 MB
Processor cache type	Smart Cache
Processor threads	4
System bus rate	5 GT/s
Bus type	DMI2
Processor lithography	14 nm
Processor operating modes	32-bit, 64-bit
Processor series	Intel Core i3-5000 Mobile series
Thermal Design Power (TDP)	15 W
Processor codename	Broadwell
Configurable TDP-down	10 W
Configurable TDP-down frequency	0.6 GHz
Tjunction	105 °C
Maximum number of PCI Express lanes	12
PCI Express slots version	2.0
PCI Express configurations	2x4, 4x1
Number of processors installed	1
Stepping	F0
Maximum internal memory supported by processor	16 GB
Memory types supported by processor	DDR3L-SDRAM
Memory clock speeds supported by processor	1333, 1600 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
ECC supported by processor	N
Memory
Internal memory	4 GB
Internal memory type	DDR3L-SDRAM
Maximum internal memory	16 GB
Memory layout (slots x size)	2 x 2 GB
Memory slots	2x SO-DIMM
Number of DIMM slots	2
Memory clock speed	1600 MHz
Supported memory types	DDR3L-SDRAM
Memory channels	Dual-channel
ECC	N
Storage
Total storage capacity	1000 GB
Optical drive type	N
Card reader integrated	N
Storage media	HDD
Number of storage drives supported	2
Number of HDDs installed	1
HDD capacity	1000 GB
HDD interface	SATA III
HDD size	2.5
SSD form factor	M.2
Graphics
Discrete graphics adapter	N
On-board graphics adapter	Y
Discrete graphics adapter model	Not available
On-board graphics adapter family	Intel HD Graphics
On-board graphics adapter model	Intel HD Graphics 5500
Maximum on-board graphics adapter memory	16 GB
Number of displays supported (on-board graphics)	3
On-board graphics adapter dynamic frequency (max)	850 MHz
On-board graphics adapter base frequency	300 MHz
On-board graphics adapter ID	0x1616
On-board graphics adapter DirectX version	11.2
Network
Ethernet LAN	Y
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
LAN controller	Intel I218-V
Wi-Fi	Y
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
WLAN controller model	Intel Dual Band Wireless-AC 7265
Wi-Fi data rate (max)	867 Mbit/s
Antenna type	2x2
Bluetooth	Y
Bluetooth version	4.2
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
DVI port	N
HDMI version	1.4a
Mini HDMI ports quantity	1
Mini DisplayPorts quantity	1
Ethernet LAN (RJ-45) ports	1
Microphone in	N
Combo headphone/mic port	Y
DC-in jack	Y
USB version	2.0/3.2 Gen 1 (3.1 Gen 1)
M.2 card slot (storage)	2242/2260/2280
Total number of SATA connectors	1
Number of SATA III connectors	1
On/off button	Y
Graphics output	Mini-DP 1.2; Mini-HDMI 1.4a
Design
Chassis type	UCFF
Placement supported	Horizontal/Vertical
Cable lock slot	Y
Cable lock slot type	Kensington
Product colour	Black, White
Product family	Intel® NUC Kits
Product series	Intel® NUC Kit with 5th Generation Intel® Core™ Processors
Product codename	Rock Canyon
Performance
Product type	Mini PC (<= 3L)
Market positioning	Business
Motherboard form factor	UCFF
Audio output channels	7.1 kanalen
BIOS memory size	64 Mbit
BIOS type	EEPROM
Trusted Platform Module (TPM)	N
Status	Discontinued
Software
Operating system installed	N
Compatible operating systems	Windows 10, 32-bit*, Windows 10, 64-bit*, Windows 8.1, 32-bit*, Windows 8.1, 64-bit*, Windows 7, 32-bit*, Windows 7, 64-bit*
Processor special features
Intel® vPro™ Platform Eligibility	N
Graphics & IMC lithography	14 nm
CPU configuration (max)	1
Processor code	SR27G
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Processor package size	40 x 24x 1.3 mm
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Y
Intel Enhanced Halt State	Y
Intel® Smart Cache	Y
Intel Fast Memory Access	Y
Intel Virtualization Technology for Directed I/O (VT-d)	Y
Intel® Platform Trust Technology (Intel® PTT)	Y
Processor ARK ID	84695
Intel Rapid Storage Technology	Y
Intel TSX-NI version	0.00
Intel Smart Response Technology version	1.00
Intel Small Business Advantage (SBA) version	1.00
Intel Virtualization Technology (VT-x)	Y
Intel Secure Key Technology version	1.00
Intel Stable Image Platform Program (SIPP) version	0.00
Intel Identity Protection Technology version	1.00
Intel Flex Memory Access	Y
Intel FDI Technology	Y
Enhanced Intel SpeedStep Technology	Y
Intel 64	Y
Intel® High Definition Audio (Intel® HD Audio)	Y
Intel® Wireless Display (Intel® WiDi)	Y
Intel® Small Business Advantage (Intel® SBA)	Y
Intel® InTru™ 3D Technology	Y
Intel® Insider™	Y
Intel® Clear Video HD Technology (Intel® CVT HD)	Y
Execute Disable Bit	Y
Intel Trusted Execution Technology	N
Intel® OS Guard	Y
Intel® Secure Key	Y
Intel® AES New Instructions (Intel® AES-NI)	Y
Intel Stable Image Platform Program (SIPP)	N
Thermal Monitoring Technologies	Y
Embedded options available	N
Intel Clear Video Technology	Y
Intel VT-x with Extended Page Tables (EPT)	Y
Intel TSX-NI	N
Idle States	Y
Intel® Smart Response Technology	Y
Intel® Turbo Boost Technology	N
Intel® Hyper Threading Technology (Intel® HT Technology)	Y
Intel® Quick Sync Video Technology	Y
Intel® Identity Protection Technology (Intel® IPT)	Y
Conflict-Free processor	Y
Power
Power supply	65 W
Power supply input voltage	12 - 19
DC input voltage	12 - 19 V
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Certificates
Certification	IEC, UL, EN, CAN/CSA, WEEE, CISPR, FCCC CFR, ICES, VCCI, KN, CNS
Weight & dimensions
Width	115 mm
Depth	111 mm
Height	49 mm
Packaging content
Display included	N
AC adapter included	Y
Power cord included	Y
Manual	Y
Processor included	Intel® Core™ i3-5005U Processor (3M Cache, 2.00 GHz)
Technical details
Sustainability certificates	RoHS
Other features
Consumer infrared Rx sensor	Y
ARK ID	184690
Number of displays supported	3
USB ports quantity	6
Number of SATA connectors	1
Form factor	UCFF (4" x 4")
Additional headers	2x USB2.0, AUX_PWR
Maximum internal memory	16384 MB
Harmonized System (HS) code	8471500150
Export Control Classification Number (ECCN)	5A992C
Commodity Classification Automated Tracking System (CCATS)	G157815L2
