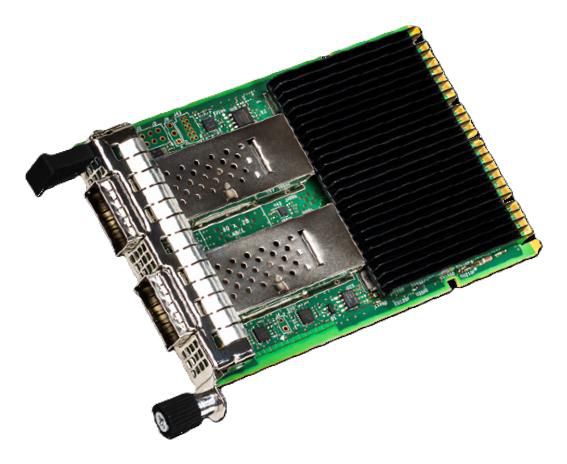

Intel E810CQDA2OCPV3. Internal. Host interface: PCI Express

Specification

Product
Product id	809762
Brand	Intel
Partnr	E810CQDA2OCPV3
EAN/UPC code	8592978327613
Warranty (months)	36 months
Ports & interfaces
Host interface	PCI Express
Ethernet LAN (RJ-45) ports	2
Fiber optic connector	QSFP28
PCI version	4.0
Network
Ethernet LAN data rates	1000, 10000, 25000, 50000, 100000 Mbit/s
LAN controller	Intel E810
Design
Internal	Y
Other features
Cable type	QSFP28 ports - DAC, Optics, AOC's
Intel Data Direct I/O Technology	Y
Intel Virtualization Technology for Connectivity (VT-c)	Y
Commodity Classification Automated Tracking System (CCATS)	NA
Export Control Classification Number (ECCN)	5A991
Harmonized System (HS) code	8517620090
Processor family	800 Network Adapters (up to 100GbE)-800 Network Adapters (up to 100GbE)
Bracket height	OCP 3.0
PCI-SIG* SR-IOV Capable	Y
Intel Virtual Machine Device Queues (VMDq)	Y
On-chip QoS and Traffic Management	Y
Intel Flexible Port Partitioning	Y
Speed & slot width	16.0 GT/s, x16 Lane
iWARP/RDMA	Y
Intelligent Offloads	Y
Status	Launched
Network interface card type	Server
Network interface card cable medium	Copper
Launch date	Q3'20
Storage Over Ethernet	iSCSI, NFS
Product series	800 Series Network Adapters (up to 100GbE)
