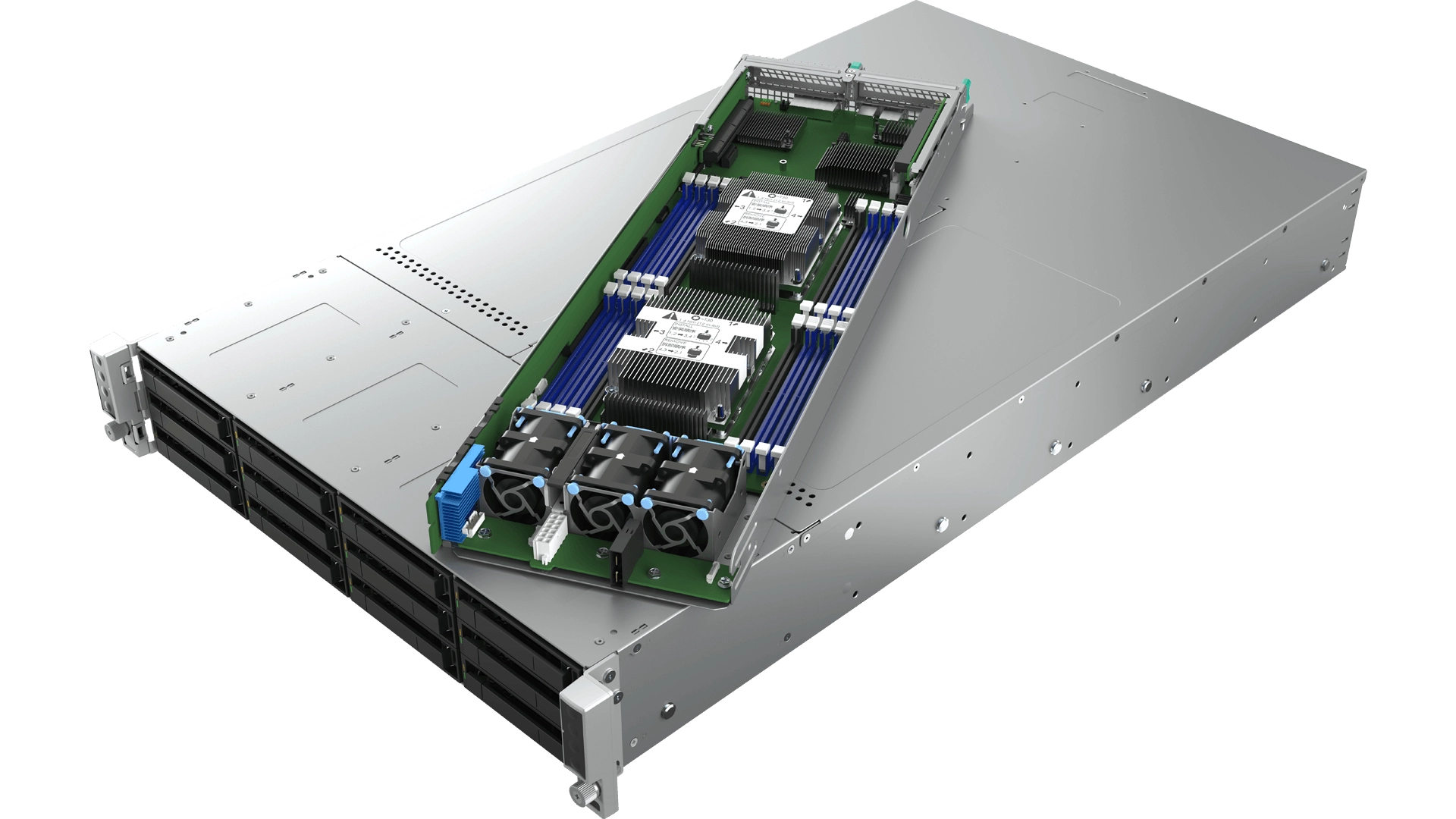

Intel HNS2600BPQ24R. Thermal Design Power (TDP): 165 W, Memory types supported by processor: DDR4-SDRAM. Maximum internal memory: 2800 GB, Memory channels: Dodeca-channel, Supported memory types: DDR4-SDRAM. USB version: 3.2 Gen 1 (3.1 Gen 1). Motherboard chipset: Intel® C628, Export Control Classification Number (ECCN): 5A992C, Commodity Classification Automated Tracking System (CCATS): G157815L2. Compatible operating systems: Windows Server 2016*|VMware*|Ubuntu*

Specification

Product
Product id	648675
Brand	Intel
Partnr	HNS2600BPQ24R
EAN/UPC code	735858406710
Processor
PCI Express slots version	3.0
Number of QPI links	2
Thermal Design Power (TDP)	165 W
Maximum number of PCI Express lanes	64
Memory types supported by processor	DDR4-SDRAM
ECC supported by processor	Y
Memory
Maximum internal memory	2800 GB
ECC	Y
Memory channels	Dodeca-channel
Supported memory types	DDR4-SDRAM
Graphics
On-board graphics adapter	N
Graphics output	VGA
Ports & interfaces
VGA (D-Sub) ports quantity	1
Ethernet LAN (RJ-45) ports	2
Serial ports quantity	1
USB version	3.2 Gen 1 (3.1 Gen 1)
USB ports quantity	2
Performance
Motherboard chipset	Intel C628
Trusted Platform Module (TPM)	Y
Trusted Platform Module (TPM) version	2.0
Harmonized System (HS) code	8473301180
Export Control Classification Number (ECCN)	5A992C
Commodity Classification Automated Tracking System (CCATS)	G157815L2
Status	Launched
Software
Compatible operating systems	Windows Server 2016*|VMware*|Ubuntu*
Processor special features
Intel® AES New Instructions (Intel® AES-NI)	Y
Intel Trusted Execution Technology	Y
Embedded options available	N
Intel Virtualization Technology for Directed I/O (VT-d)	Y
Intel® Optane™ Memory Ready	Y
