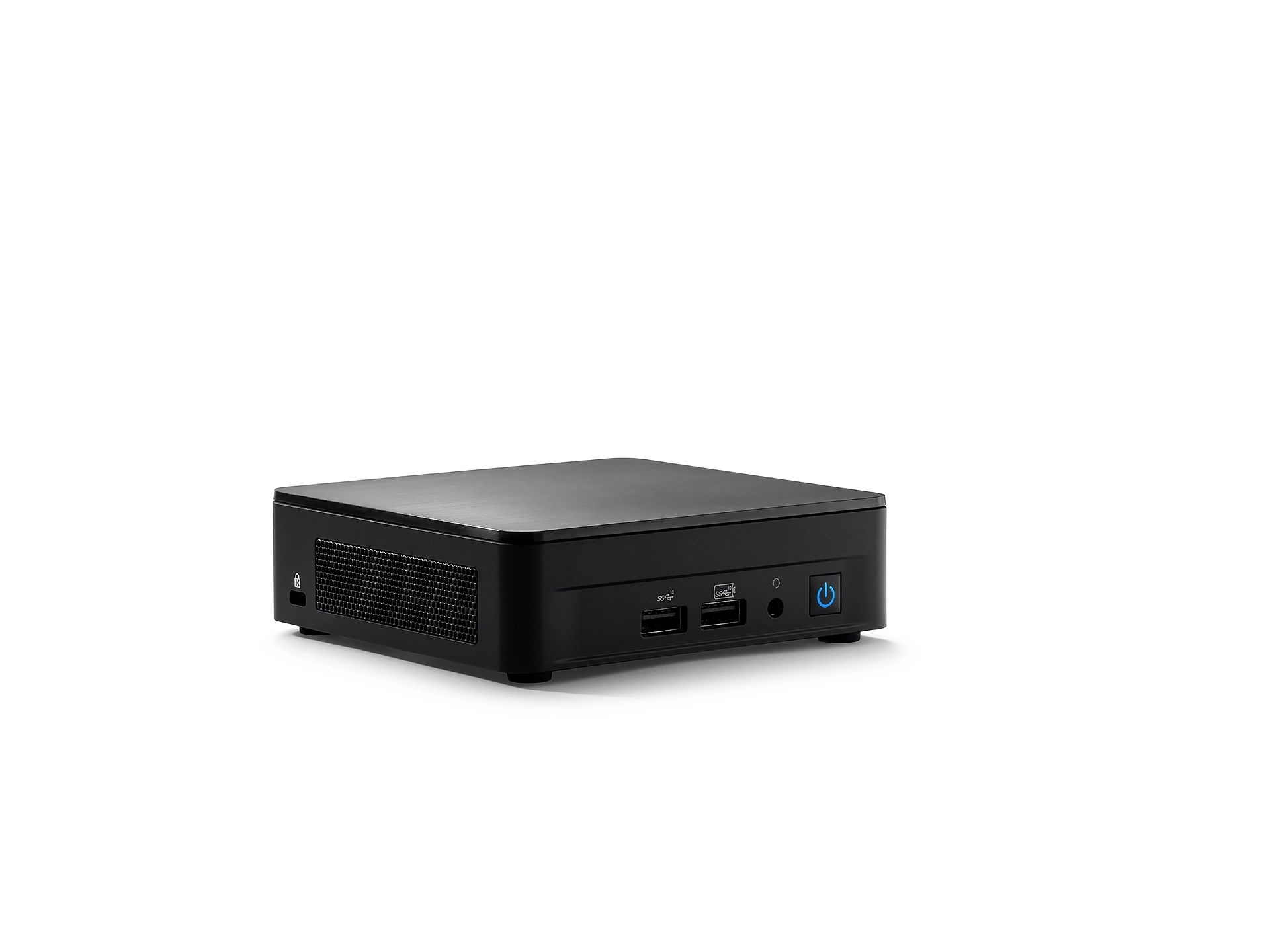

NUC Pro Mini PC NUC12WSKi50YC Intel Core i5-1240P 8GB RAM 500GB SSD Windows 11 Pro EU cord

Intel® Virtualization Technology for Directed I/O (VT-d)
Intel® Virtualization Technology for Directed I/O (VT-d) continues from the existing support for IA-32 (VT-x) and Itanium® processor (VT-i) virtualization adding new support for I/O-device virtualization. Intel VT-d can help end users improve security and reliability of the systems and also improve performance of I/O devices in virtualized environments.

Intel® Virtualization Technology (VT-x)
Intel® Virtualization Technology (VT-x) allows one hardware platform to function as multiple “virtual” platforms. It offers improved manageability by limiting downtime and maintaining productivity by isolating computing activities into separate partitions.

Intel® AES New Instructions
Intel® AES New Instructions (Intel® AES-NI) are a set of instructions that enable fast and secure data encryption and decryption. AES-NI are valuable for a wide range of cryptographic applications, for example: applications that perform bulk encryption/decryption, authentication, random number generation, and authenticated encryption.

Intel® ME Firmware Version
Intel® Management Engine Firmware (Intel® ME FW) uses built-in platform capabilities and management and security applications to remotely manage networked computing assets out-of-band.

Max Turbo Frequency
Max Turbo Frequency is the maximum single-core frequency at which the processor is capable of operating using Intel® Turbo Boost Technology and, if present, Intel® Turbo Boost Max Technology 3.0 and Intel® Thermal Velocity Boost. Frequency is typically measured in gigahertz (GHz), or billion cycles per second.

Intel® HD Audio Technology
Intel® High Definition Audio (Intel® HD Audio) is capable of playing back more channels at higher quality than previous integrated audio formats. In addition, Intel® HD Audio has the technology needed to support the latest and greatest audio content.

Integrated Graphics
Integrated graphics allow for incredible visual quality, faster graphic performance and flexible display options without the need for a separate graphics card.

Intel® Optane™ Memory Supported
Intel® Optane™ memory is a revolutionary new class of non-volatile memory that sits in between system memory and storage to accelerate system performance and responsiveness. When combined with the Intel® Rapid Storage Technology Driver, it seamlessly manages multiple tiers of storage while presenting one virtual drive to the OS, ensuring that data frequently used resides on the fastest tier of storage. Intel® Optane™ memory requires specific hardware and software configuration.

Intel® Platform Trust Technology (Intel® PTT)
Intel® Platform Trust Technology (Intel® PTT) is a platform functionality for credential storage and key management used by Windows 8* and Windows® 10. Intel® PTT supports BitLocker* for hard drive encryption and supports all Microsoft requirements for firmware Trusted Platform Module (fTPM) 2.0.


Product id 885418
Brand Intel
Partnr RNUC12WSKI50YC2
EAN/UPC code 5032037248761
Warranty (months) 36 months
Processor manufacturer Intel
Processor family Intel Core i5
Processor generation Intel Core i5-12xxx
Processor model i5-1240P
Processor cores 12
Processor boost frequency 4.4 GHz
Processor cache 12 MB
Processor threads 16
Thermal Design Power (TDP) 35 W
Configurable TDP-down 20 W
PCI Express slots version 4.0
Number of processors installed 1
Number of processors supported 1
Memory types supported by processor DDR4-SDRAM
Internal memory 8 GB
Internal memory type DDR4-SDRAM
Maximum internal memory 64 GB
Memory layout (slots x size) 2 x 4 GB
Memory slots 2x SO-DIMM
Number of DIMM slots 2
Memory clock speed 3200 MHz
Supported memory types DDR4-SDRAM
Memory channels Dual-channel
Total storage capacity 500 GB
Optical drive type N
Card reader integrated N
Storage media SSD
Number of storage drives supported 2
Total SSDs capacity 500 GB
Number of SSDs installed 1
SSD capacity 500 GB
SSD interface PCI Express 4.0
SSD form factor M.2
Discrete graphics adapter N
On-board graphics adapter N
Discrete graphics adapter model Not available
On-board graphics adapter model Intel Iris Xe Graphics
Ethernet LAN Y
Ethernet LAN data rates 2500 Mbit/s
LAN controller Intel I225-V
Wi-Fi Y
Top Wi-Fi standard Wi-Fi 6E (802.11ax)
WLAN controller manufacturer Intel
Wi-Fi standards Wi-Fi 6E (802.11ax)
WLAN controller model Intel Wi-Fi 6E AX211
Antenna type 2x2
Bluetooth Y
Bluetooth version 5.3
Ports & interfaces
USB 2.0 ports quantity 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 3
HDMI ports quantity 1
HDMI version 2.1
Ethernet LAN (RJ-45) ports 1
Combo headphone/mic port Y
DC-in jack Y
Serial port via internal header N
M.2 card slot (storage) 2280 NVMe (M); 2242 SATA (B)
M.2 card slot (wireless) 2230 (E-key) (E)
Chassis type UCFF
Water cooling system N
Cable lock slot Y
Cable lock slot type Kensington
Product colour Black
Introduction year 2022
Product type Mini PC (<= 3L)
Market positioning Business
Motherboard form factor UCFF
Audio output channels 7.1 kanalen
Built-in speaker(s) N
Trusted Platform Module (TPM) Y
Trusted Platform Module (TPM) version 2.0
Status Launched
Operating system installed Windows 11 Pro
Operating system architecture 64-bit
Compatible operating systems Windows 10 IoT Enterprise*|Linux*
Processor special features
CPU configuration (max) 1
Intel Virtualization Technology for Directed I/O (VT-d) Y
Intel® Platform Trust Technology (Intel® PTT) Y
Intel® Optane™ Memory Ready N
Intel ME Firmware Version 16
Intel Virtualization Technology (VT-x) Y
Intel Flex Memory Access Y
Intel® High Definition Audio (Intel® HD Audio) Y
Execute Disable Bit Y
Intel Trusted Execution Technology Y
Intel® AES New Instructions (Intel® AES-NI) Y
Thermal Monitoring Technologies Y
Embedded options available N
Intel VT-x with Extended Page Tables (EPT) Y
Intel® Hyper Threading Technology (Intel® HT Technology) Y
Power supply 120 W
DC input voltage 12 - 20 V
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -20 - 60 °C
Weight & dimensions
Width 117 mm
Depth 112 mm
Height 37 mm
Packaging content
Display included N
Technical details
Sustainability certificates China Energy Label (CEL), ENERGY STAR, ErP, REACH, RoHS
Other features
Power supply type External AC adapter
ARK ID 121625
Number of displays supported 2
USB ports quantity 4
Number of SATA connectors 1
Additional headers Front_panel (PWR, RST, 5V, 5Vsby, 3.3Vsby); Internal 2x2 power connector
Graphics adapter family Intel
Cooling type Active
Harmonized System (HS) code 8471500150
Export Control Classification Number (ECCN) 5A992C
Commodity Classification Automated Tracking System (CCATS) G157815L2
