Cloud Inspired. Storage Optimized.

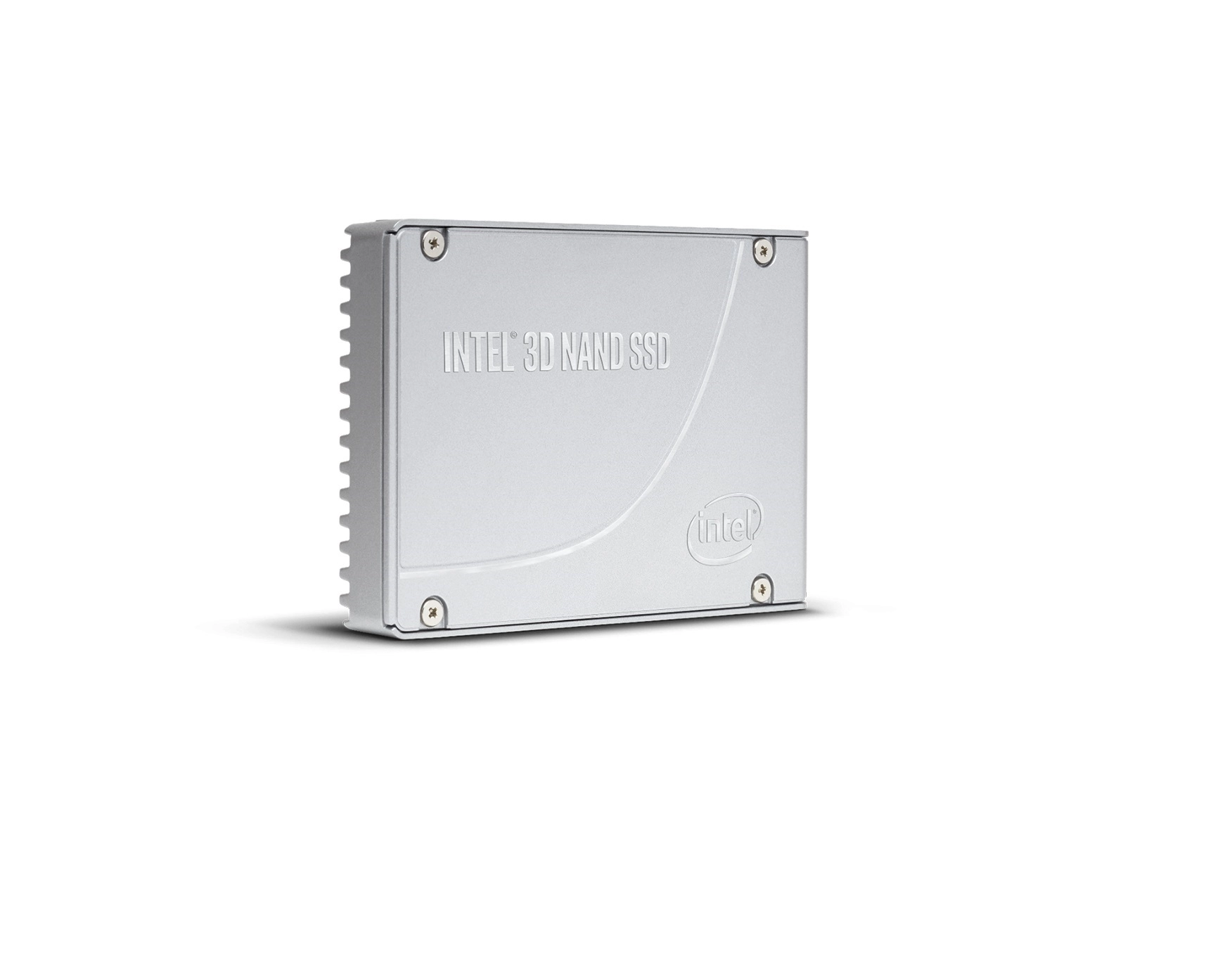

The DC P4510 meets the requirements of the modern data center. It significantly increases server agility and utilization, and accelerates applications across a wide range of workloads.

Do More Per Server
Intel’s 64-layer, TLC, 3D NAND technology enables the DC P4510 to double the capacity available compared to its predecessor, the DC P4500. This increased density is key to supporting broader cloud workloads, allowing cloud service providers to increase users and improve data service levels.

Optimized QoS, Bandwidth, and Performance
With the increased density of Intel 64-layer 3D NAND and enhanced firmware features, the DC P4510 is built to handle read-intensive workloads and beyond. The DC P4510 creates greater Quality of Service, bandwidth, and performance to lead data centers through their evolving transformation.

Minimize Service Disruptions
Enhanced SMART monitoring of the drive health and status coupled with industry-leading end-to-end data path protection and power loss imminent (PLI) features ensures telemetry information without disrupting ongoing I/Os.

Specification

Product
Product id	581040
Brand	Intel
Partnr	SSDPE2KX020T801
EAN/UPC code	735858343848
Warranty (months)	5 Years
Features
SSD form factor	U.2
SSD capacity	2000 GB
Interface	PCI Express 3.1
Memory type	TLC 3D NAND
NVMe	Y
NVMe version	3.1
Component for	Server/Workstation
Hardware encryption	Y
Security algorithms	256-bit AES
Read speed	3200 MB/s
Write speed	2000 MB/s
Random read (100% span)	637000 IOPS
Random write (100% span)	81500 IOPS
Read latency	77 µs
Write latency	18 µs
PCI Express interface data lanes	x4
End-to-End Data Protection	Y
Enhanced Power Loss Data Protection technology	Y
SSD temperature monitoring	Y
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^17 bits read
Mean time between failures (MTBF)	2000000 uur
TBW rating	2610
Market segment	Server
SSD usage tag	Data center
SSD ARK ID	122580
Harmonized System (HS) code	8523510000
Export Control Classification Number (ECCN)	5A992C
Commodity Classification Automated Tracking System (CCATS)	G162706
Temperature monitoring and logging	Y
Power
Power consumption (read)	12 W
Power consumption (idle)	5 W
Brand-specific features
Intel® Rapid Start Technology	N
Intel® Remote Secure Erase	N
Intel® Smart Response Technology	N
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Maximum operating temperature	70 °C
Operating vibration	2.17 G
Non-operating vibration	3.13 G
Operating shock	1000 G
Non-operating shock	1000 G
Operating / non-operating shock	1000G (0.5ms)
Weight & dimensions
Height	15 mm
Weight	139 g
Other features
Product colour	Silver
SSD weight	139 g
Sequential reading	3200 MB/s
Sequential writing speed	2000 MB/s
Last change	63903513
Status	Launched
SSD shock	1000G (0.5ms)
SSD power consumption (idle)	5W
SSD power consumption (active)	12
Power consumption (active)	12 W
Drive capacity	2000 GB
Launch date	03'17
SSD endurance rating	2.61 PBW
SSD hardware encryption	AES 256 bit
Product family	Data center SSD
Product series	Intel® SSD DC P4510 Series
Product codename	Cliffdale Refresh
