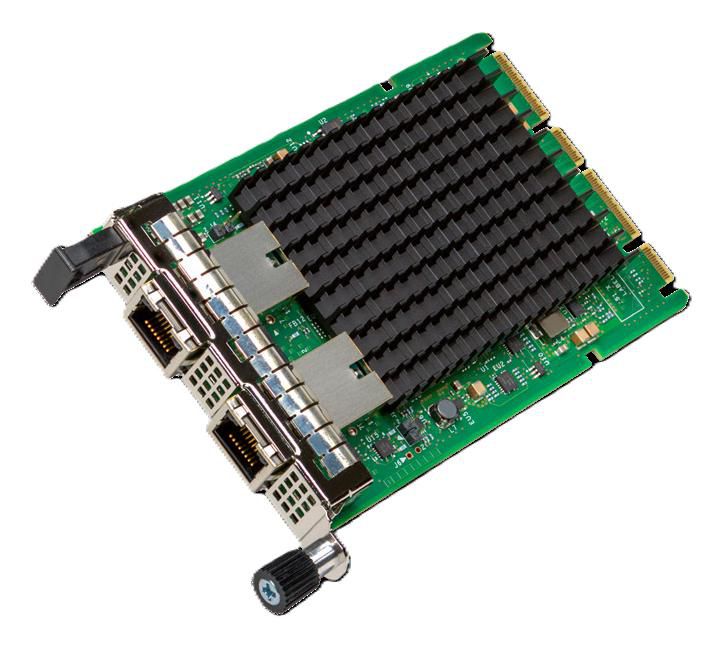

ETHERNETADAPTER OCP3.0 X710-T2L SINGLE RETAIL



Intel
Not in stock
€ 239,89
€ 290,26 incl 21% VAT
iWARP/RDMA
iWARP delivers converged, low-latency fabric services to data centers through Remote Direct Memory Access (RDMA) over Ethernet. The key iWARP components that deliver low-latency are Kernel Bypass, Direct Data Placement, and Transport Acceleration.

Intel® Data Direct I/O Technology
Intel® Data Direct I/O Technology is a platform technology that improves I/O data processing efficiency for data delivery and data consumption from I/O devices. With Intel DDIO, Intel® Server Adapters and controllers talk directly to the processor cache without a detour via system memory, reducing latency, increasing system I/O bandwidth, and reducing power consumption.

PCI-SIG* SR-IOV Capable
Single-Root I/O Virtualization (SR-IOV) involves natively (directly) sharing a single I/O resource between multiple virtual machines. SR-IOV provides a mechanism by which a Single Root Function (for example a single Ethernet Port) can appear to be multiple separate physical devices.

Flexible Port Partitioning
Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR-IOV to efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth.

Virtual Machine Device Queues (VMDq)
Virtual Machine Device Queues (VMDq) is a technology designed to offload some of the switching done in the VMM (Virtual Machine Monitor) to networking hardware specifically designed for this function. VMDq drastically reduces overhead associated with I/O switching in the VMM which greatly improves throughput and overall system performance

Specification

Product
Product id 815652
Brand Intel
Partnr X710T2LOCPV3
EAN/UPC code 5032037188111
Warranty (months) 24 months
Ports & interfaces
Host interface PCI Express
Ethernet LAN (RJ-45) ports 2
PCI version 3.0
Network
Ethernet LAN data rates 100, 1000, 2500, 5000, 10000 Mbit/s
Maximum operating distance 100 m
LAN controller Intel X710-AT2
Design
Internal Y
System requirements
Compatible operating systems https://www. intel. com/content/www/us/en/support/articles/000025890/ethernet-products. html
Other features
Cable type RJ45 Category 6, Category 6A, Category 5e up to 100m
Intel Data Direct I/O Technology Y
Intel Virtualization Technology for Connectivity (VT-c) Y
Interface type PCIe v3.0 (8.0GT/s)
Product type Network Interface Card
Cabling type RJ45 Category 6, Category 6A, Category 5e up to 100m
Controller type Intel(R) Ethernet Controller X710-AT2
Commodity Classification Automated Tracking System (CCATS) NA
Export Control Classification Number (ECCN) 5A991
Harmonized System (HS) code 85176990
Processor family 700 Network Adapters (up to 40GbE)-700 Network Adapters (up to 40GbE)
Bracket height OCP 3.0
PCI-SIG* SR-IOV Capable Y
Intel Virtual Machine Device Queues (VMDq) Y
On-chip QoS and Traffic Management Y
Intel Flexible Port Partitioning Y
Speed & slot width 8.0 GT/s, x8 Lane
iWARP/RDMA N
Intelligent Offloads Y
Target market Artificial Intelligence, High Performance Computing
Status Launched
Network interface card type Server
Network interface card cable medium Copper
Launch date Q2'20
Storage Over Ethernet iSCSI, NFS
Product series 700 Series Network Adapters (up to 40GbE)
