The highest performance docking station possible! Supports up to five external monitors* with 4K/60Hz resolution. And one monitor can even run at 8K/60Hz! The ideal dock product for users who require multiple monitors without compromising on image stability, resolution and refresh rate. The dock also features two USB-C fast charging ports (with up to 15W charging power), especially for charging smartphones and tablets, as well as fast USB ports, a 2.5Gbps LAN port, and other peripherals.

The docking station can be connected to virtually any notebook regardless of make, model or operating system type. Any USB port* is sufficient.

The dock can be installed behind the monitor (if it supports a standard VESA mount), using the i-tec VESA mount.

- Support for up to 5 external monitors* with 1x 8k/60Hz or 5x 4K/60Hz resolution

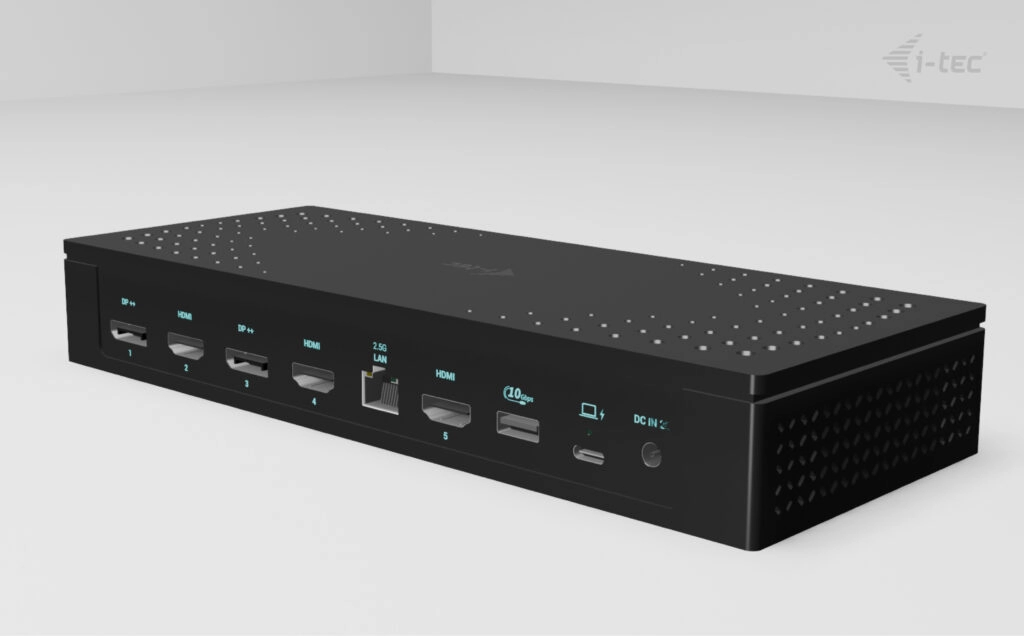

- Video ports: 3x HDMI* and 2x DP
- 2x USB-C (10 Gbps), with up to 15W charging support
- 3x USB-A (10 Gbps)
- LAN port with up to 2.5 Gbps (10/100/1000/2500 Mbit)
- 5 mm audio/microphone port
- Laptop power up to 100 W
- Docking station on/off button
- Support for installation behind a monitor

* If connected via USB-A, only four monitors via DP and HDMI ports (video ports 1-4) will be supported and notebook/tablet charging will not be possible.

Specification

Product
Product id	976716
Brand	I-tec
Partnr	CA5MONITORDOCKPD
EAN/UPC code	8595611707001
Ports & interfaces
Connectivity technology	Wired
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
USB Power Delivery	Y
USB Power Delivery up to	100 W
HDMI ports quantity	3
DisplayPorts quantity	2
Combo headphone/mic port	Y
DC-in jack	Y
USB Type-C DisplayPort Alternate Mode	Y
Network
Ethernet LAN	Y
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10, 100, 1000, 2500 Mbit/s
Performance
Product colour	Black
Card reader integrated	N
Data transfer rate	10 Gbit/s
HD type	8K Ultra HD
Maximum digital resolution	7680 x 4320 Pixels
Number of displays supported	5
Cable lock slot	Y
Cable lock slot type	Kensington
Maximum refresh rate	60 Hz
VESA mounting	Y
On/off switch	Y
LED indicators	Y
Power
Power supply	130 W
Output current	6.5 A
Output voltage	20 V
Compatible power plug types	EU
USB cable length	1 m
Software
Windows operating systems supported	Y
Mac operating systems supported	Y
Linux operating systems supported	Y
Other operating systems supported	Android, ChromeOS
Weight & dimensions
Width	245 mm
Depth	98 mm
Height	37 mm
Weight	495 g
Packaging data
Package width	259 mm
Package depth	142 mm
Package height	89 mm
Package weight	1280 g

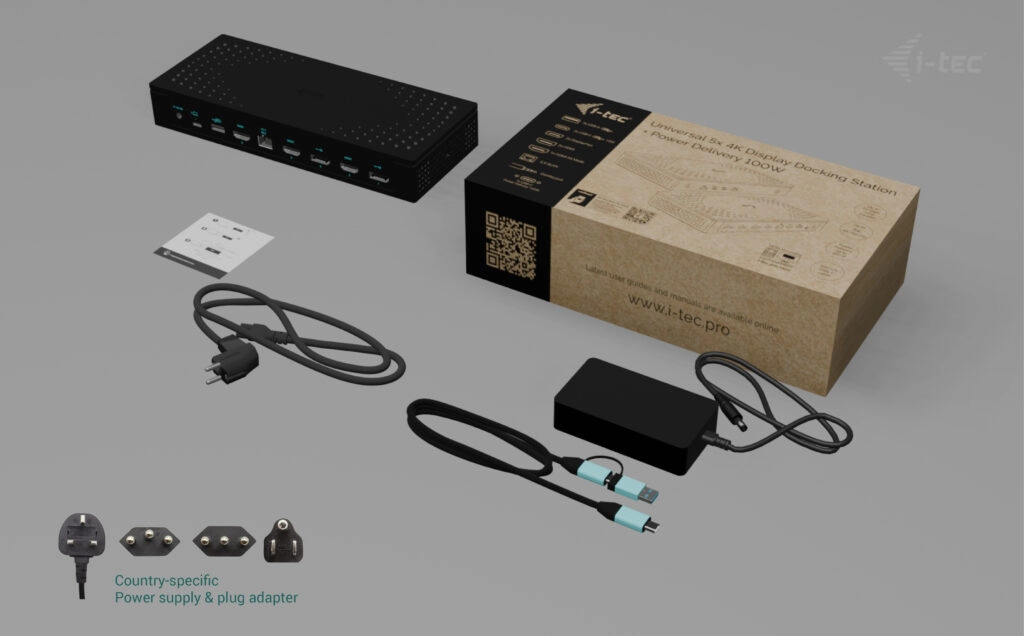

Packaging content
Manual	Y
AC adapter included	Y
Cables included	USB Type-A to USB Type-C
