The latest and fastest generation of USB technology is finally here. The most powerful USB docking station, super-fast data transfer and support for up to 8K* resolution.

Crystal clear image quality, fast internet and the ability to transfer data at speeds of over 1GB per second even when using multiple USB ports simultaneously. You can also, of course, connect your headphones or audio and charge your laptop (80W), all using one single cable.

Thanks to the integrated DP 1.4 protocol, you can connect this dock to a monitor with a resolution of up to 8K (7680 x 4320)* with a refresh rate of 30 Hz, which is equivalent to the resolution of four monitors, each at 4K resolution. This makes it the ideal solution for graphic designers, analysts, developers, film editors, or high-definition video enthusiasts and lovers.

Since USB4 technology is backwards compatible, you can connect this dock not only to laptops and tablets with USB4, but also ThunderboltTM 3/4 and USB-C (must support video transfer). This makes the dock an ideal and flexible solution for businesses and users who run laptops and tablets with different ports.

* 8K resolution must be supported by the connected laptop or tablet.

Please note: macOS only supports one external monitor

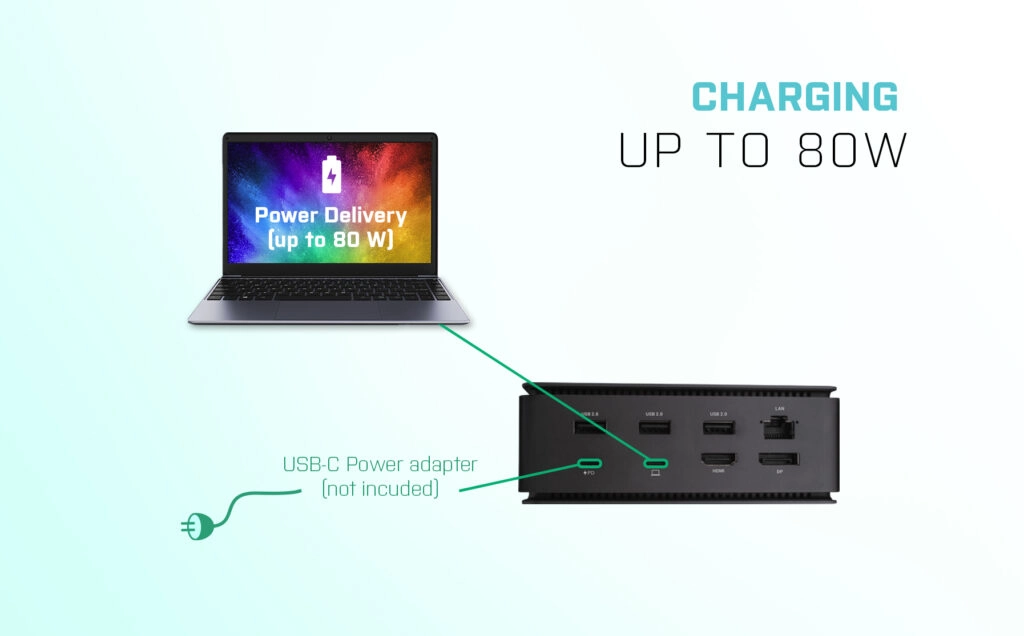

Note: Power supply is not included. The dock can be used with the power supply supplied with the laptop or a power supply can be purchased separately, e. g. 100W: P/N CHARGER-C112W/UK.

Specification

Product
Product id	824030
Brand	I-tec
Partnr	USB4DUAL4KDOCKPD
EAN/UPC code	8595611705434
Warranty (months)	24 months

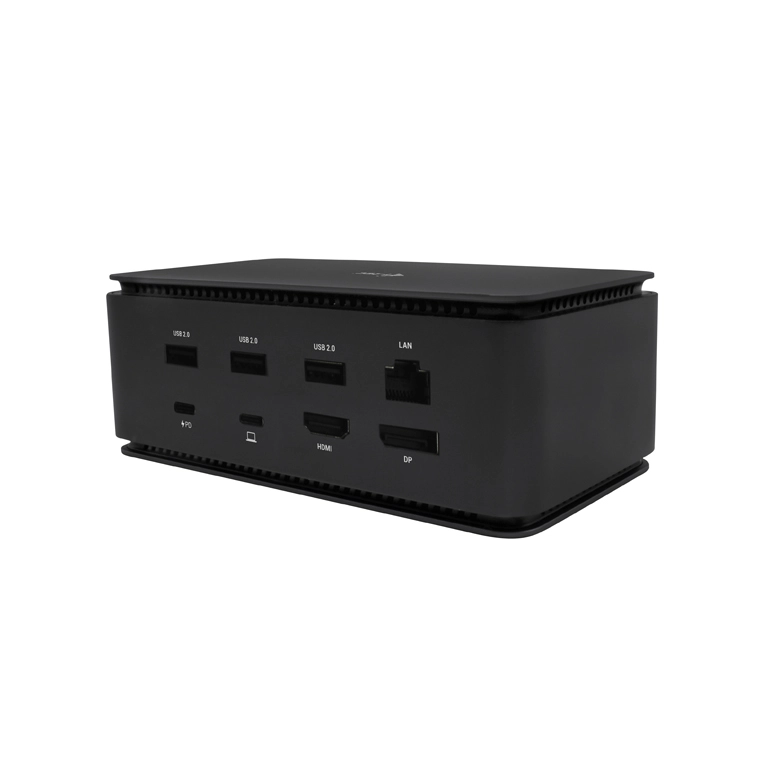

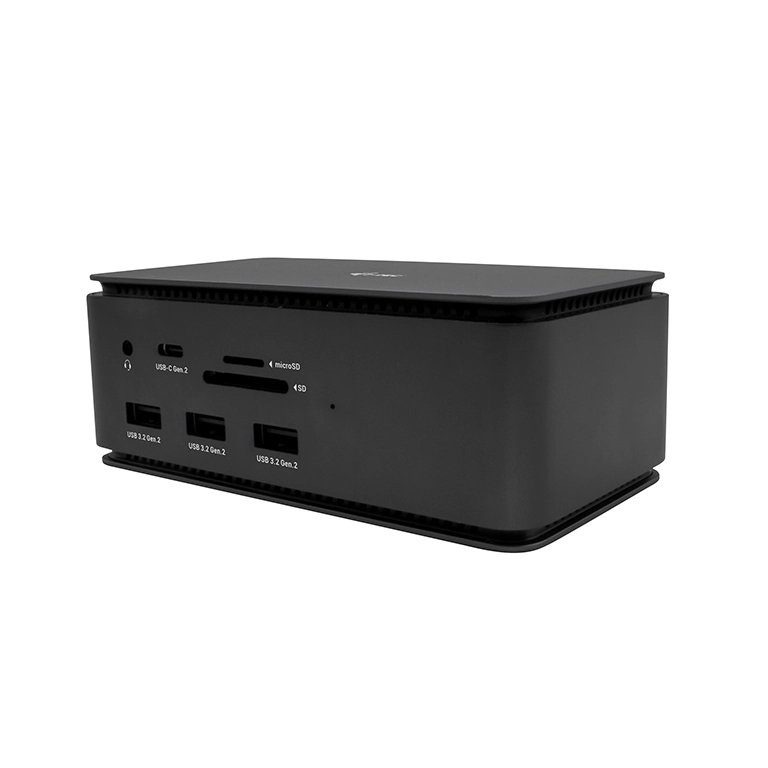

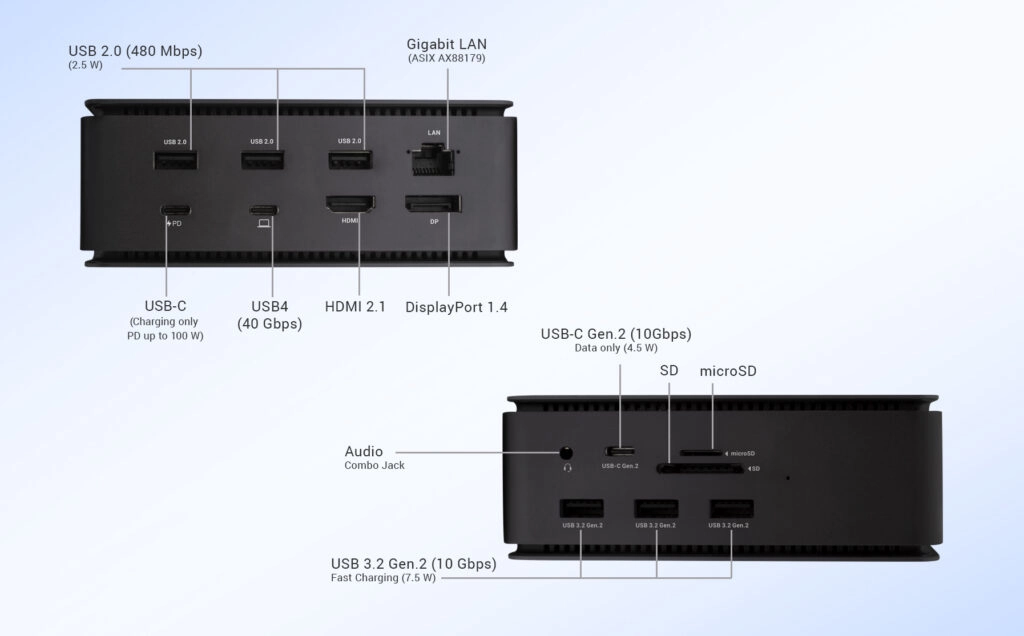

Ports & interfaces
Connectivity technology	Wired
Host interface	USB4
USB 2.0 ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB4 ports quantity	1
USB Power Delivery	Y
USB Power Delivery up to	80 W
HDMI ports quantity	1
DisplayPorts quantity	1
Combo headphone/mic port	Y
Headphone connectivity	3.5 mm
Network
Ethernet LAN	Y
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Performance
Product colour	Black
Card reader integrated	Y
Compatible memory cards	MicroSD (TransFlash), SD
Data transfer rate	40 Gbit/s
Software
Windows operating systems supported	Y
Mac operating systems supported	Y
Linux operating systems supported	Y
Other operating systems supported	iOS
Weight & dimensions
Width	128 mm
Depth	69 mm
Height	48 mm
Weight	314 g
Packaging data
Package width	173 mm
Package depth	150 mm
Package height	56 mm
Packaging content
Quick start guide	Y
Cables included	USB
Technical details
Harmonized System (HS) code	84733020
