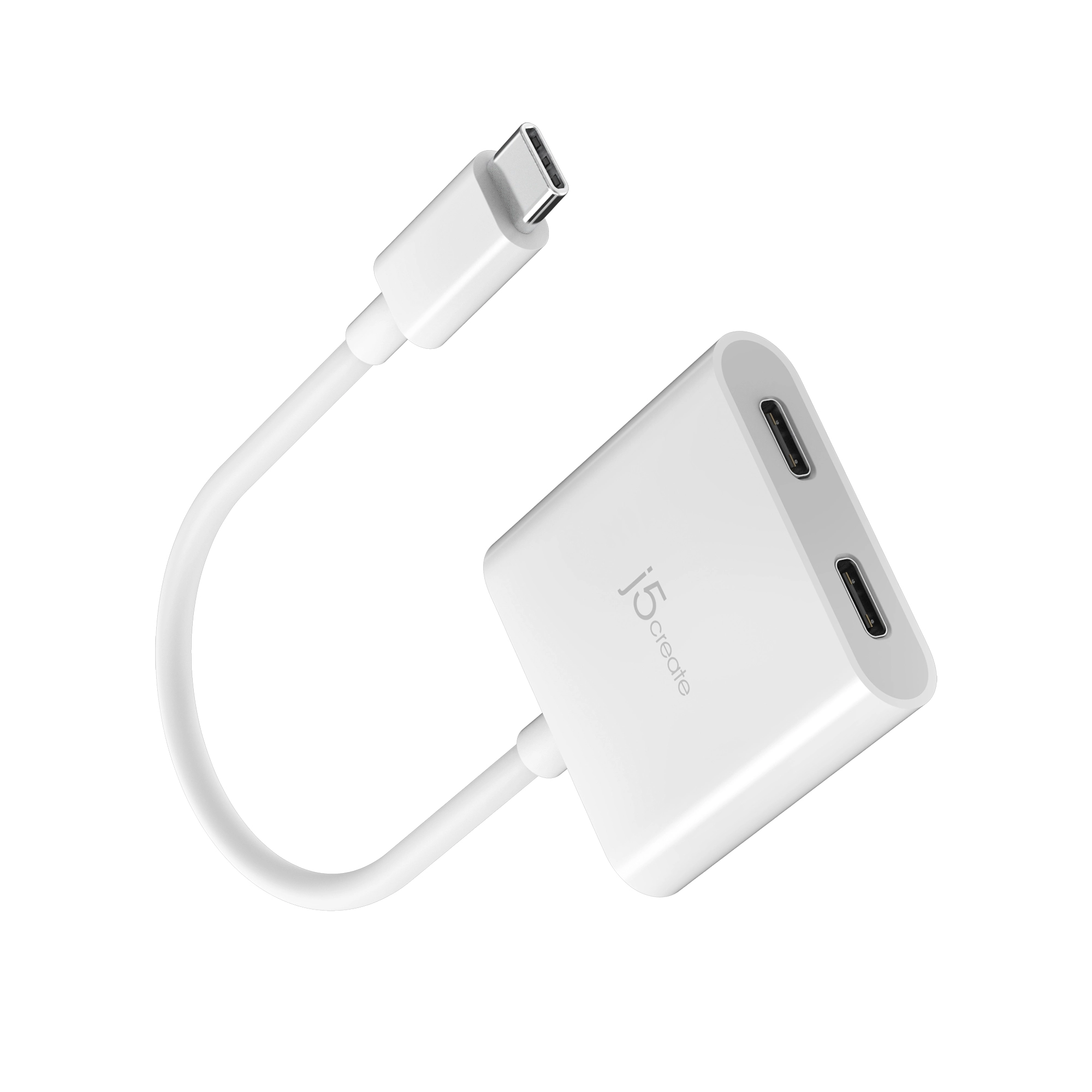

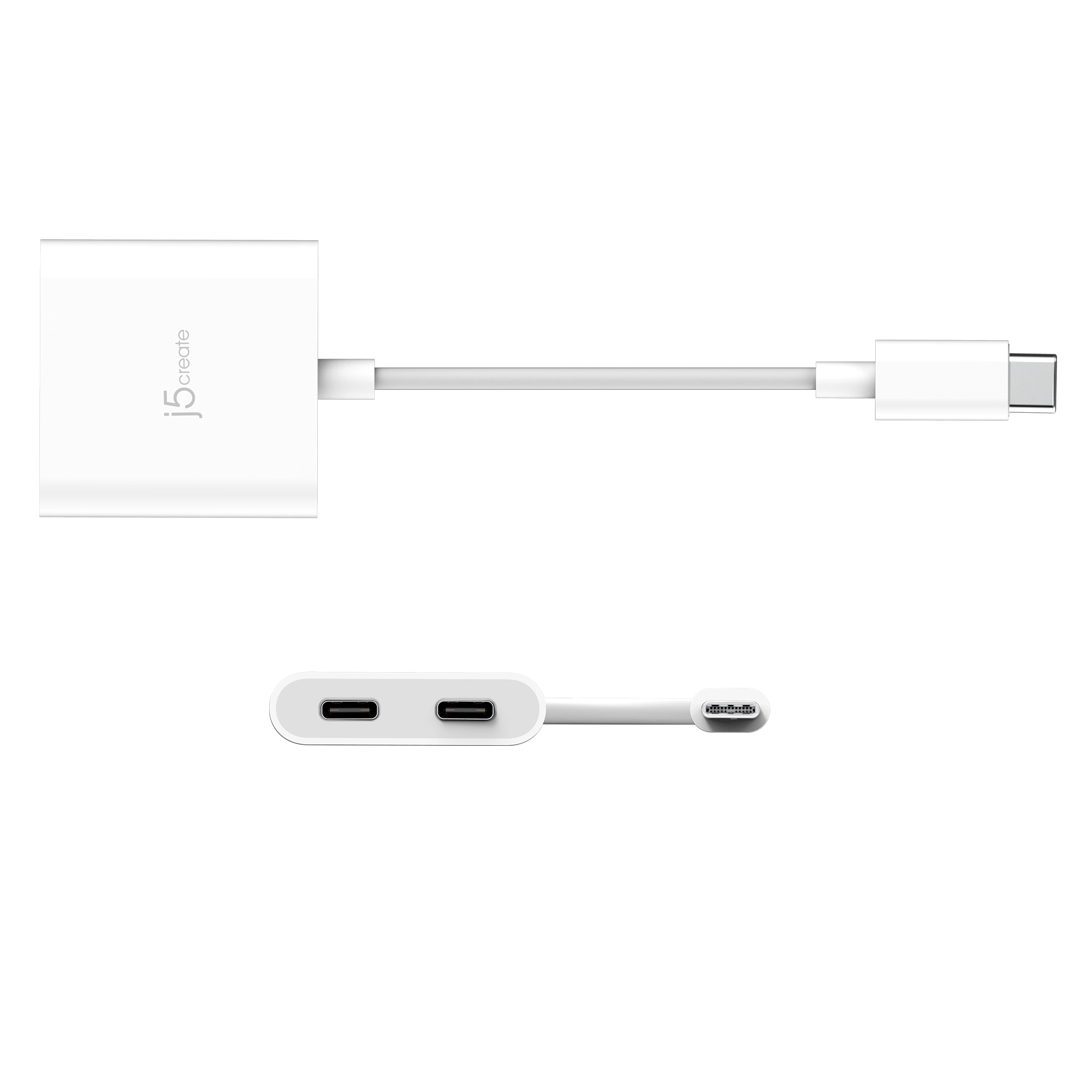

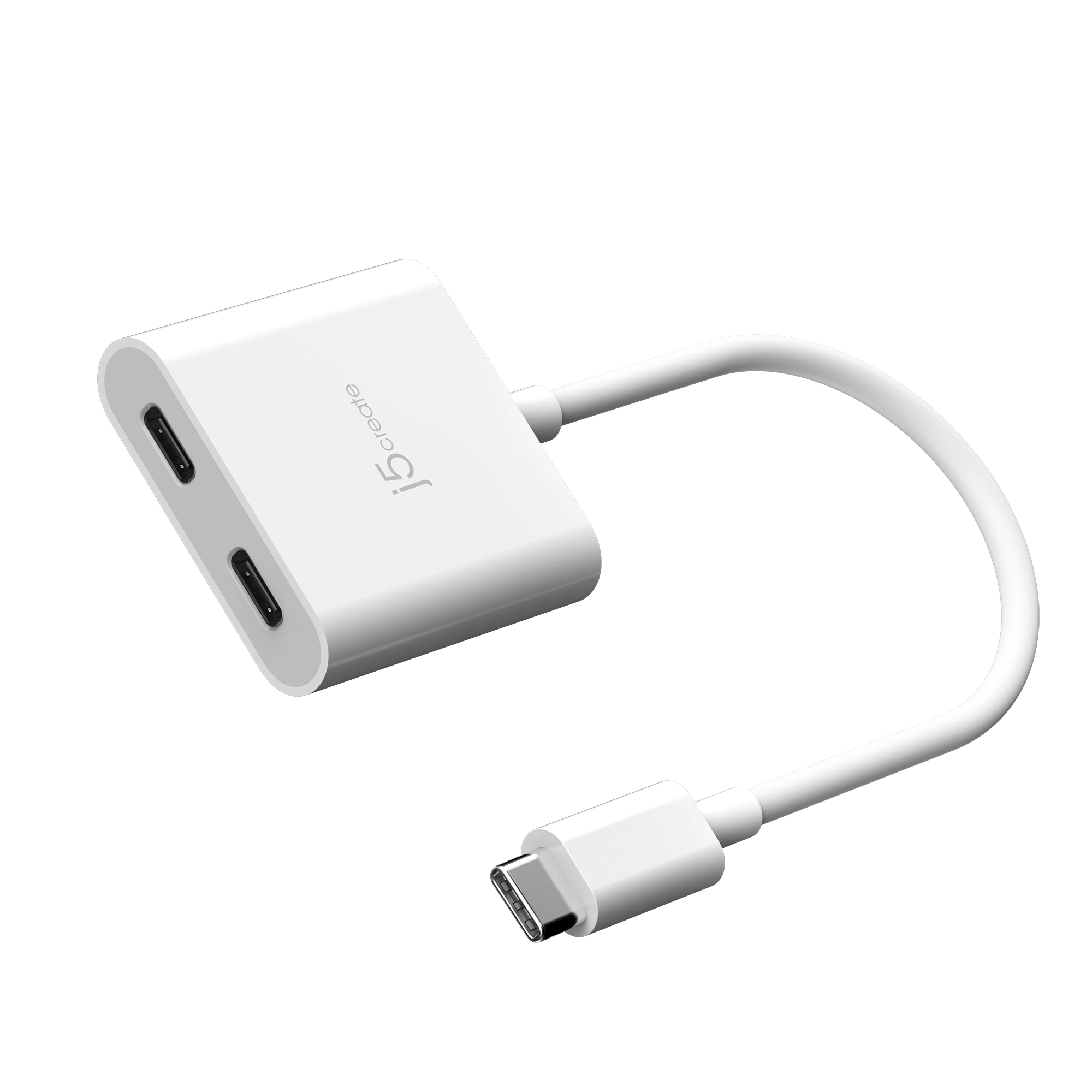

The JCA164 adapter could separate video/data/power function form your laptop, tablet, or smartphone. The adapter’s small size makes it easy to transport and place on a desk while saving space. This adapter allows you to connect a display such as a VR/AR glasses or portable USB-C® monitor to your device and supports resolutions up to 4K 240 Hz and it also support a 480 Mbps data transport. Another USB-C® Power Delivery port that can be used to charge your host when a USB-C® power adapter is connected. The 4K240 Hz USB-C® port supports Extended, and Mirrored display modes. This USB-C® port also support 480 Mbps data transport that allows you to connect USB™ peripherals such as a USB™ flash drive, keyboard, or mouse. Another USB-C® port supports upstream charging and Power Delivery 3.0 100W to keep your connected mobile device powered up while in use.

Specification

Product
Product id	990374
Brand	j5create
Partnr	JCA164-N
EAN/UPC code
Warranty (months)	Two Years
Features
Cable length	0.1 m
Connector 1	USB Type-C
Connector 2	USB Type-C
Connector 1 gender	Male connector
Connector 2 gender	Female connector
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Power source	USB
Maximum resolution	3840 x 2160 Pixels
Supported video modes	1080p, 1440p, 2160p
Supported graphics resolutions	1920 x 1080 (HD 1080), 2560 x 1440, 3840 x 2160
Maximum refresh rate	240 Hz
Voltage rating	20 V
Refresh rate at maximum resolution	30 Hz
Product colour	White
Jacket material	Acrylonitrile butadiene styrene (ABS), Plastic
Country of origin	Taiwan
Windows operating systems supported	Y
Cable type	Round cable
Mac operating systems supported	Y
Other operating systems supported	ChromeOS
Operational conditions
Operating temperature (T-T)	-1 - 41 °C
Storage temperature (T-T)	-17 - 68 °C
Operating relative humidity (H-H)	0 - 85 procent
Storage relative humidity (H-H)	0 - 85 procent
Sustainability
Sustainability compliance	Y
Packaging data
Quantity per pack	1 stuk(s)
Package width	145 mm
Package depth	95 mm
Package height	25 mm
Package type	Box
Package weight	55.5 g
Technical details
Compliance certificates	CE, REACH, RoHS
Weight & dimensions
Weight	23.2 g
Width	42 mm
Depth	42 mm
Height	11 mm
Logistics data
Shipping (inner) case net weight	400 g
Master (outer) case width	225 mm
Master (outer) case length	321 mm
Export Control Classification Number (ECCN)	EAR99
Master (outer) case height	180 mm
Quantity per master (outer) case	20 stuk(s)
Master (outer) case weight	2500 g
Shipping (inner) case width	105 mm
Warranty period	2 jaar
Shipping (inner) case length	150 mm
Shipping (inner) case height	160 mm
Quantity per shipping (inner) case	5 stuk(s)
Master (outer) case GTIN (EAN/UPC)	24712795088773
