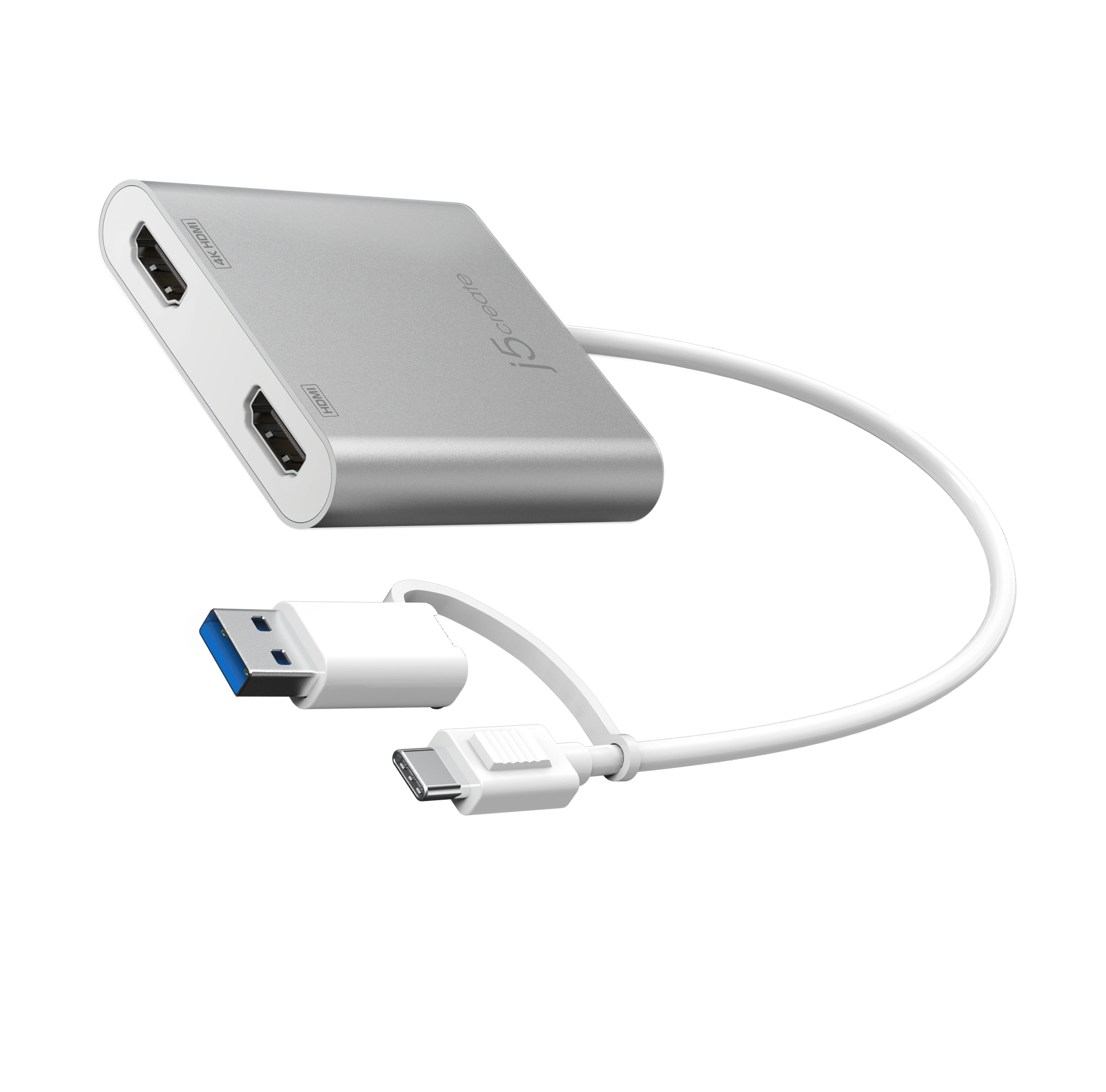

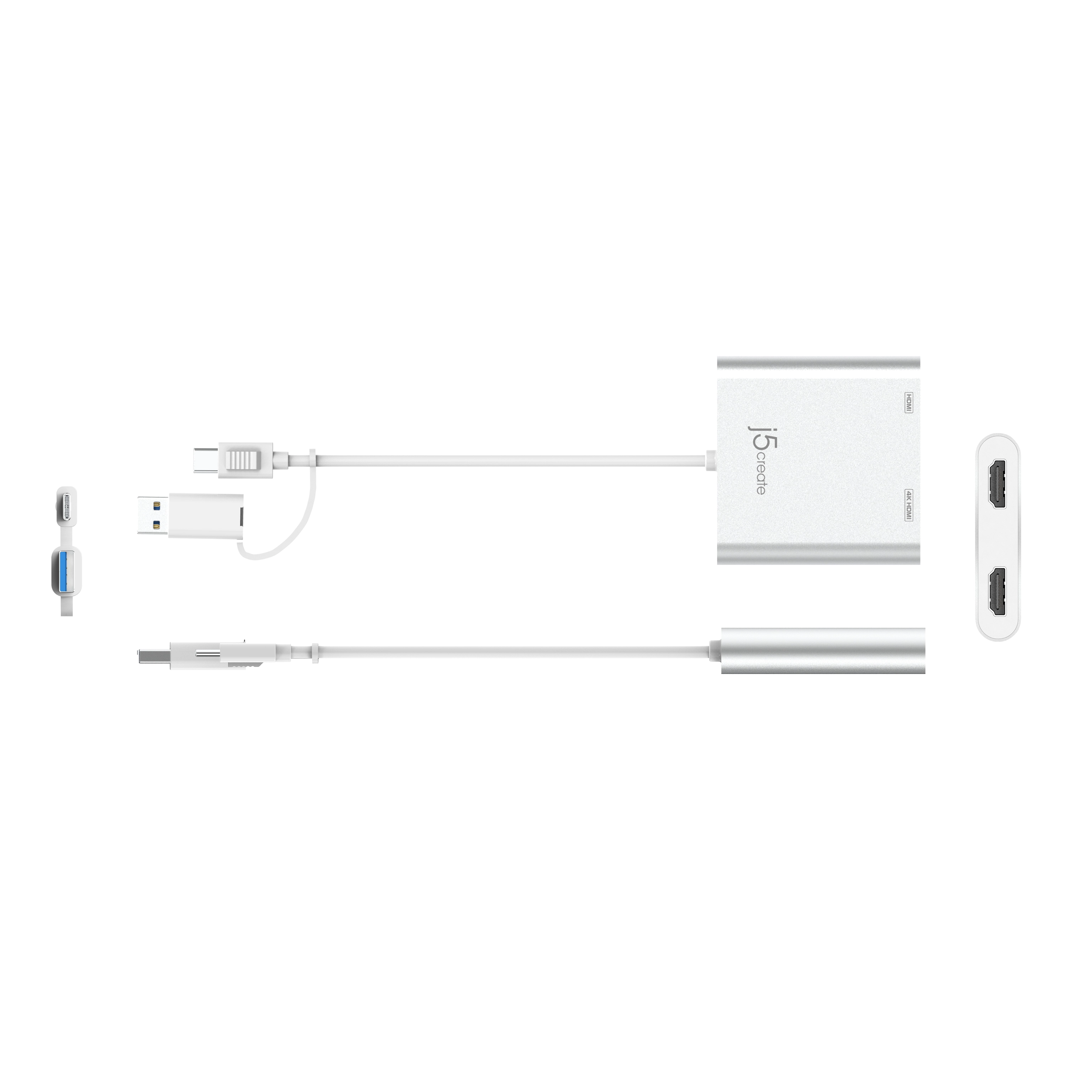

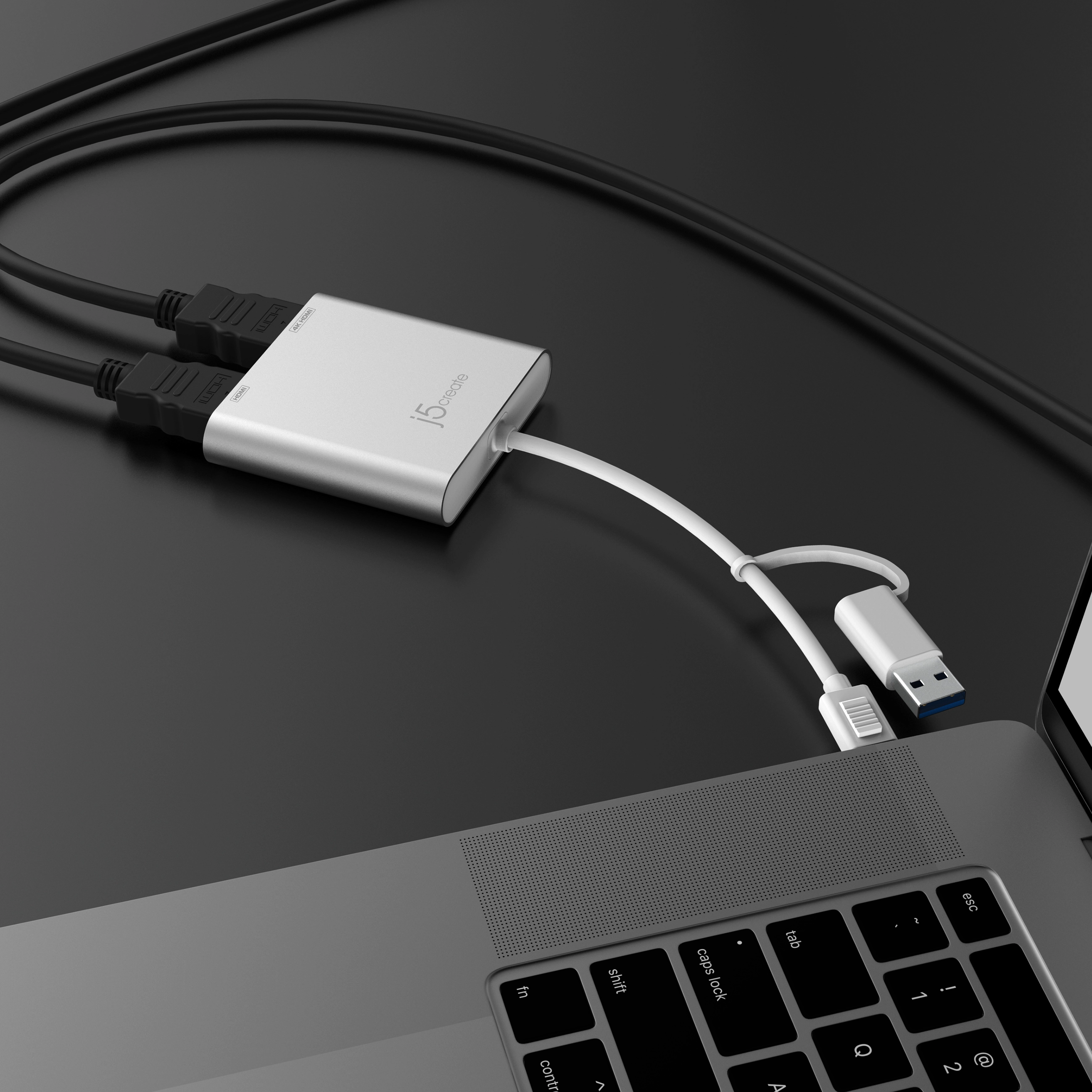

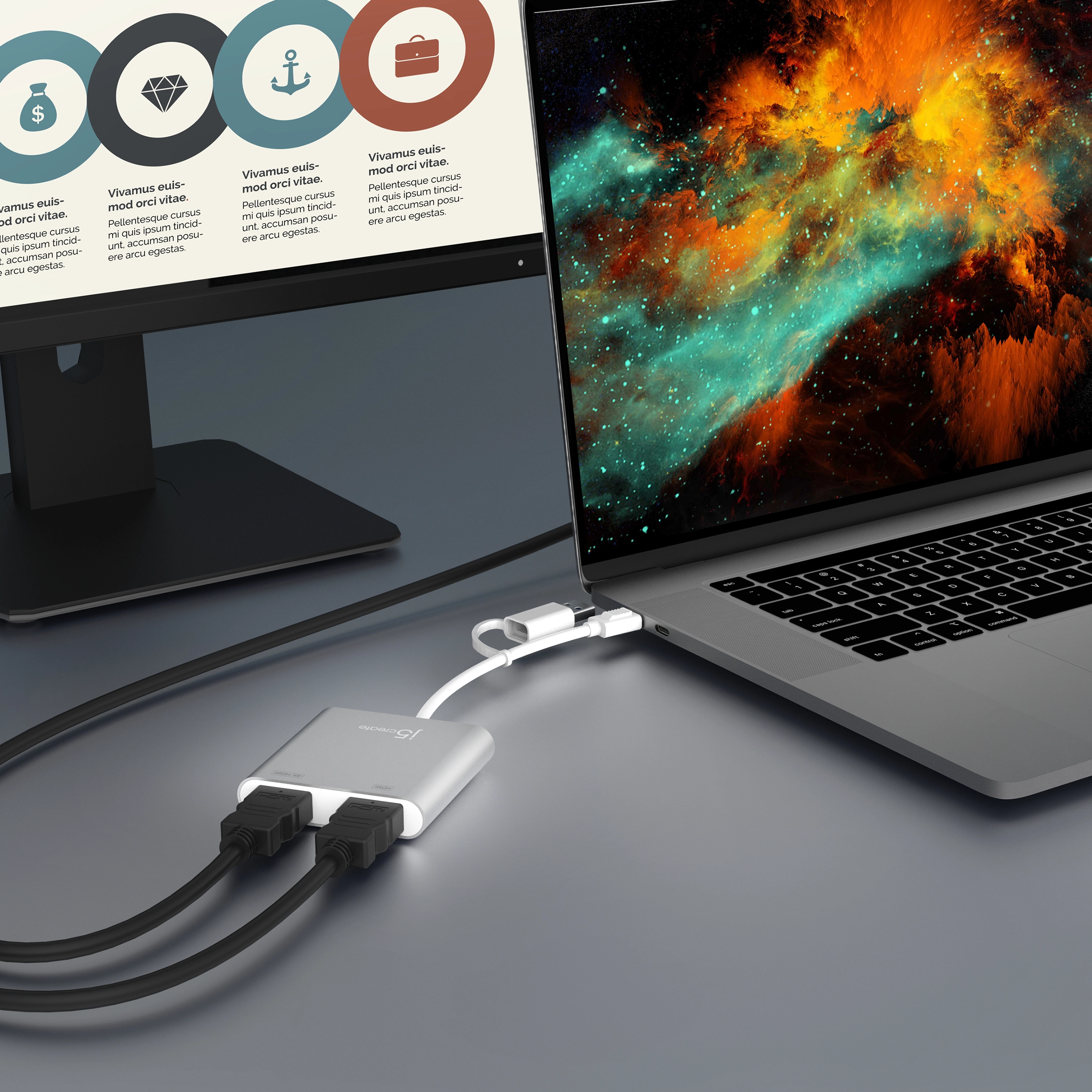

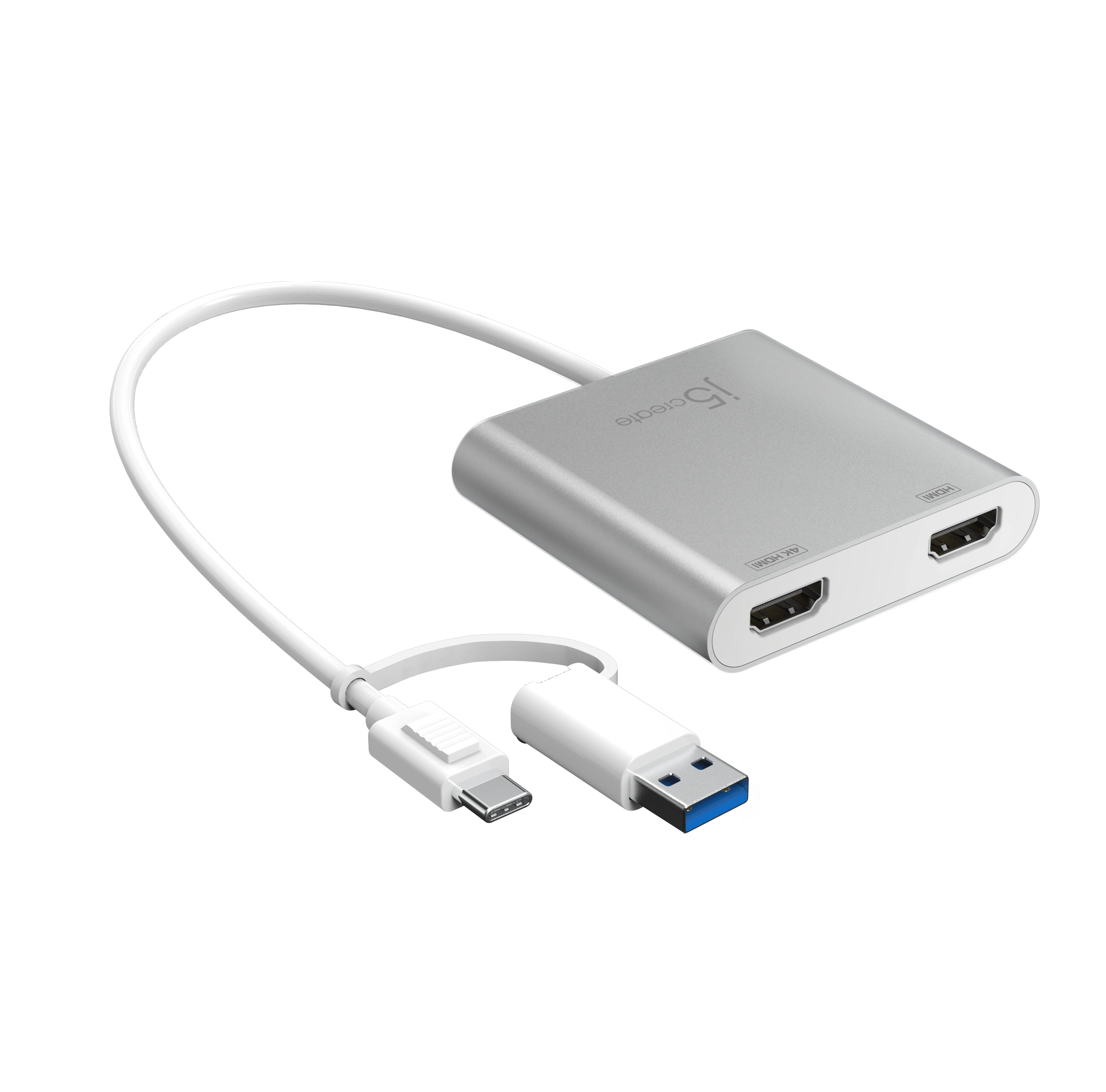

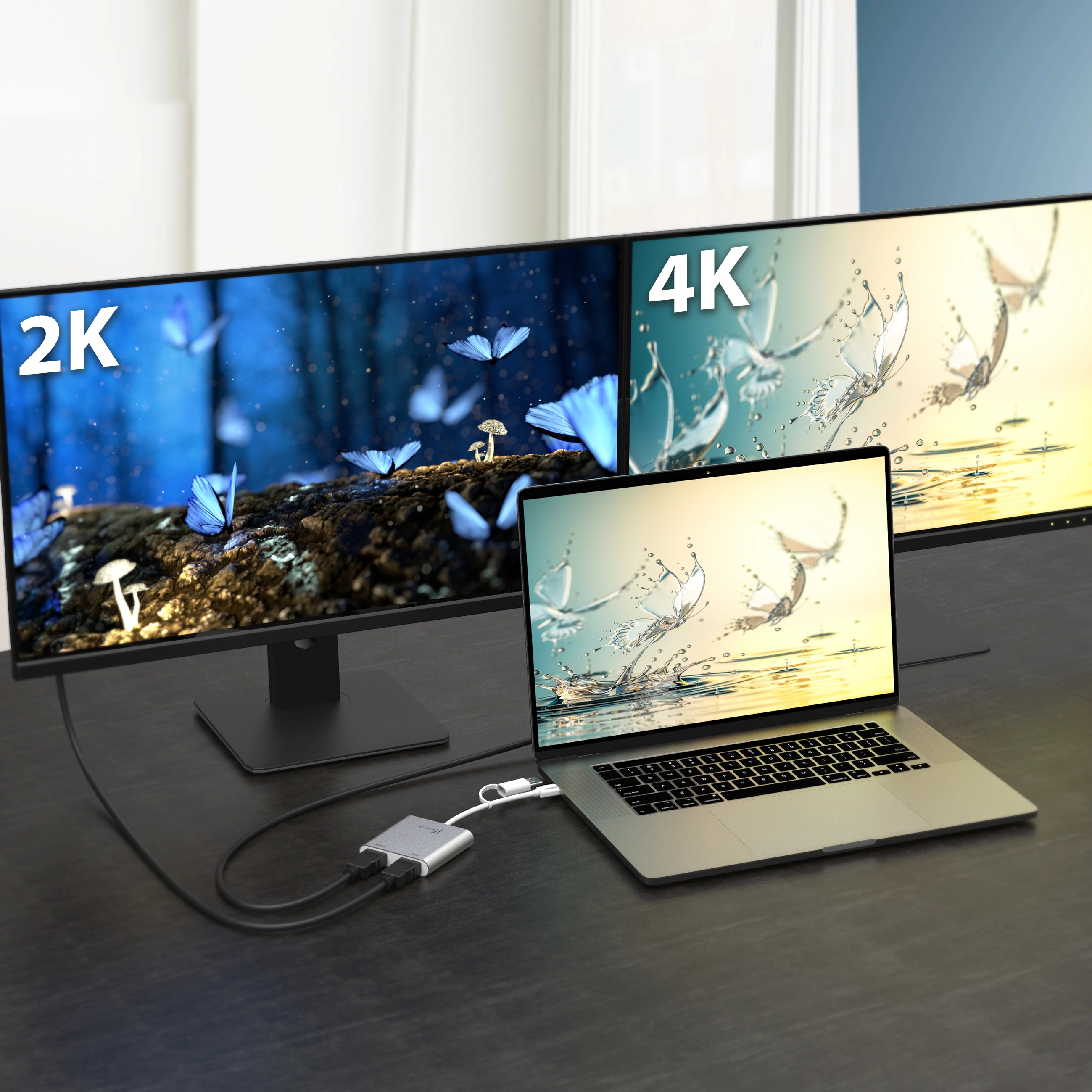

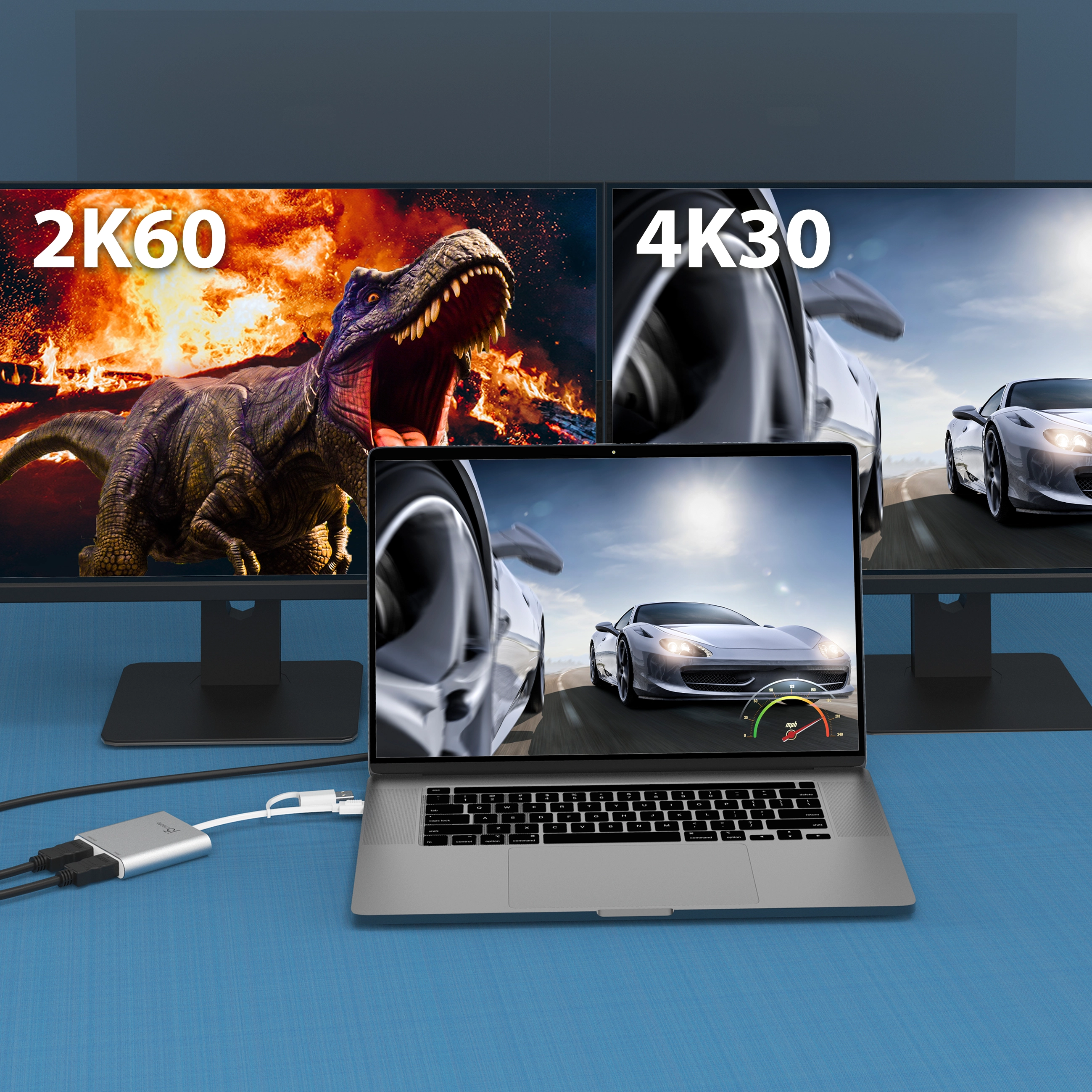

The JCA365 USB-C® to Dual HDMI™ Multi-Monitor Adapter acts as an external video card for your MacBook® or Windows® laptops. It allows you to add two additional displays through your USB-C® port, boosting your productivity by giving you more screen space to work from. One of the HDMI™ ports can output resolutions up to 4K, while the other can output resolutions up to 2048 x 1152.

Simply install the driver for the USB-C® to Dual HDMI™ Multi-Monitor Adapter by plugging-in the adapter and then connect your monitors using HDMI™ cables for a dual-display workstation!

Specification

Product
Product id	990336
Brand	j5create
Partnr	JCA365-N
EAN/UPC code	4712795086416
Warranty (months)	2 year manufacturer warranty
Performance
USB version	3.2 Gen 1 (3.1 Gen 1)
USB connector type	USB Type-A, USB Type-C
USB connector gender	Male connector
DVI output	N
USB connector form factor	Straight
HDMI output	Y
DisplayPort output	N
Number of displays supported	2
HDMI ports quantity	2
Maximum resolution	3840 x 2160 Pixels
Refresh rate at maximum resolution	30 Hz
Supported graphics resolutions	2048 x 1152, 3840 x 2160
Mirror display mode	Y
Extended display mode	Y
Current	0.29 A
Design
Product colour	Silver
Housing material	Aluminium
Integrated USB cable	Y
USB cable length	0.2 m
Cable type	USB-C/USB 3.0
Power
Power consumption (max)	1.46 W
Output voltage	5 V
System requirements
Windows operating systems supported	Windows 10, Windows 7, Windows 8.1, Y
Mac compatibility	Y
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Y
Minimum processor family	Core i3, Core i5, Core i7
Minimum processor speed	1.8 GHz
Minimum RAM	4 GB
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 65 °C
Operating relative humidity (H-H)	0 - 85 procent
Storage relative humidity (H-H)	0 - 85 procent
Weight & dimensions
Width	68 mm
Depth	15 mm
Height	61 mm
Weight	84 g
Package width	145 mm
Package depth	95 mm
Package height	25 mm
Package weight	114.5 g
Packaging content
Cables included	USB Type-C
Quick installation guide	Y
Manual	Y
Packaging content	1 x USB-C® to Dual HDMI™ Multi-Monitor Adapter (JCA365) 1 x Quick Installation Guide (QIG)
Technical details
Warranty period	2 jaar
Logistics data
Quantity per master (outer) case	20 stuk(s)
Master (outer) case GTIN (EAN/UPC)	24712795086410
Master (outer) case width	225 mm
Master (outer) case length	321 mm
Export Control Classification Number (ECCN)	EAR99
Master (outer) case height	180 mm
Master (outer) case weight	2910 g
Country of origin	Taiwan
