Increase your productivity with the M.2 NVMe USB-C Gen 2 Docking Station, transforming your Thunderbolt 3 or USB-C compatible laptop into a dual 4K workstation with up to 10 Gbps. This high-performance dock features a M.2 NVMe/SATA PCIe SSD Slot to expand your internal storage space, three SuperSpeed USB™ 10 Gbps ports (one USB-C and two USB™ Type-A), a Gigabit Ethernet port, SD & microSD™ memory card reader/writer, and a USB™ Type-A 5 Gbps port.

This USB-C Gen 2 docking station supports 100W Power Delivery pass-through to power and charge your laptop, while powering all connected devices. With the built-in PCIe M.2 SSD enclosure and extra storage you can access through an SD™ and microSD™ card, this is a must-have for creative professionals using a Mac.

Dual 4K Monitor Setup
Supports up to dual 4K @ 60 Hz monitors, allowing resource-demanding applications to run on independent displays without affecting system performance
*Dual displays via two USB-C ports supporting DP Alt Mode or a single 4K HDMI™ display with one USB-C port supporting DP Alt Mode

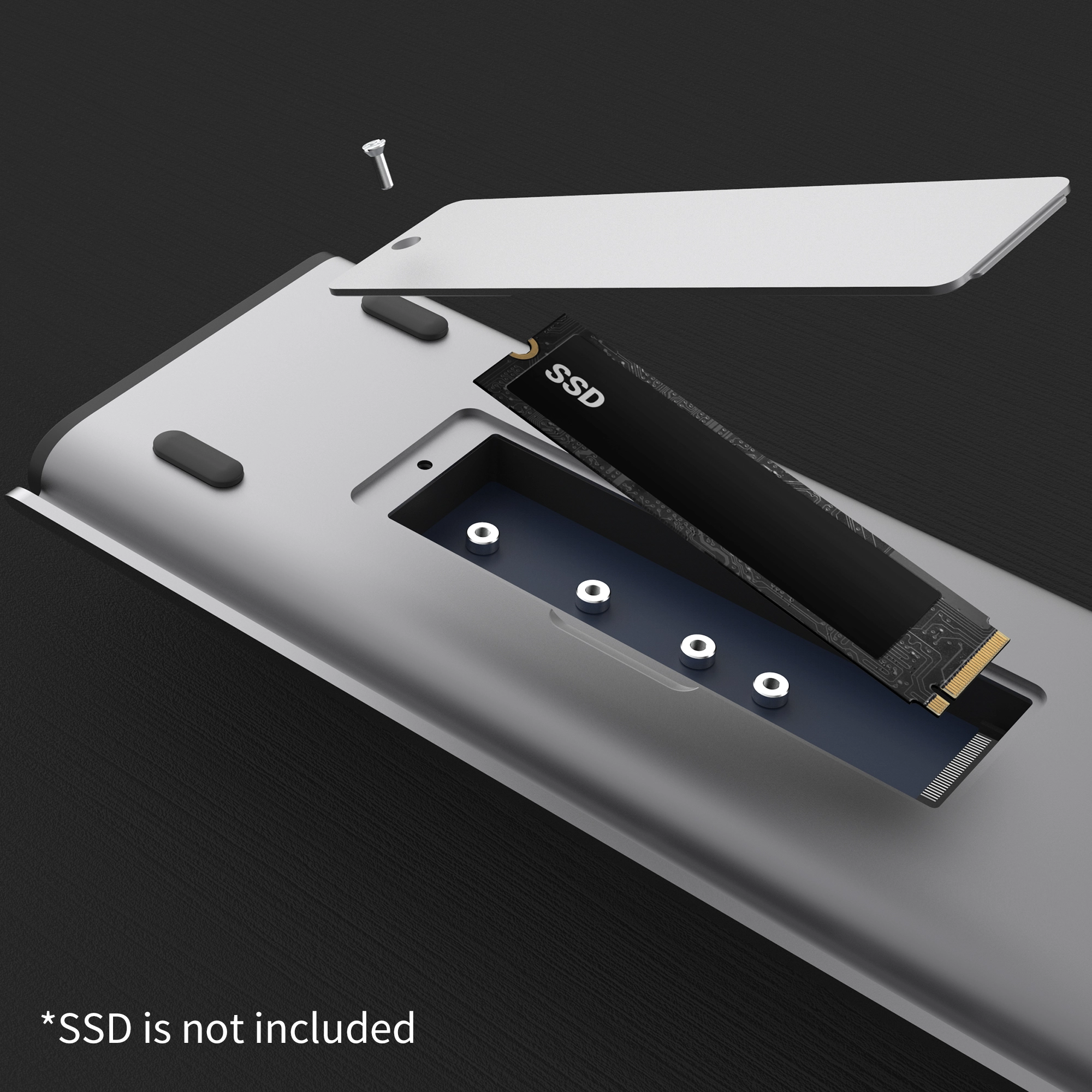

Enhanced Data Storage
Built-in M.2 expansion SSD slot supports 2230, 2242, 2260, and 2280 M.2 NVMe® SSD with ultra-fast read and write speeds

High-Speed Performance
Connect your latest and legacy devices with three SuperSpeed USB™ 10 Gbps ports (1 USB-C® and 2 USB™ Type-A) and a SuperSpeed USB™ 5 Gbps port

100W Power Delivery Pass-Through
Use with a USB-C power adapter for the added ability to charge your laptop and power connected peripherals

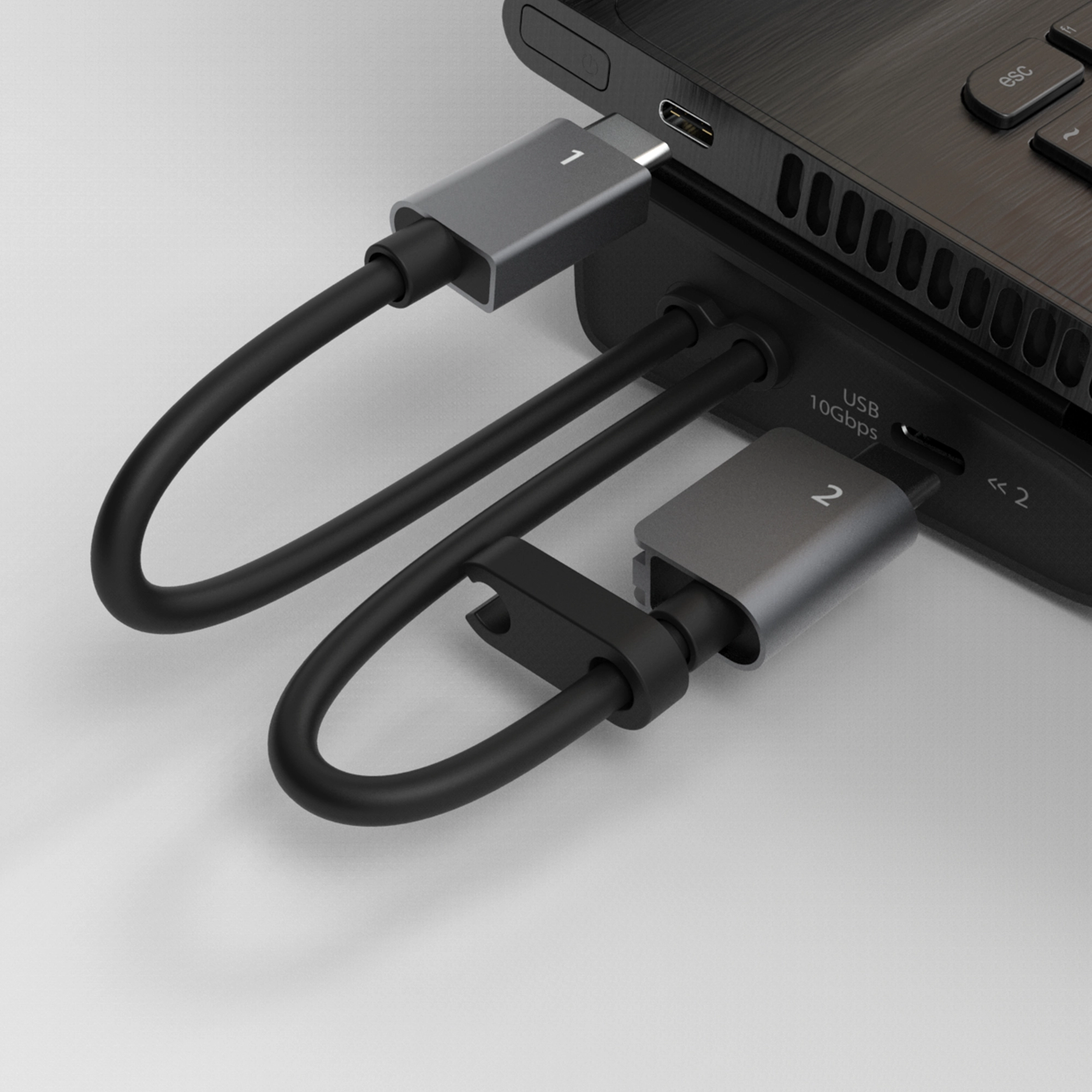

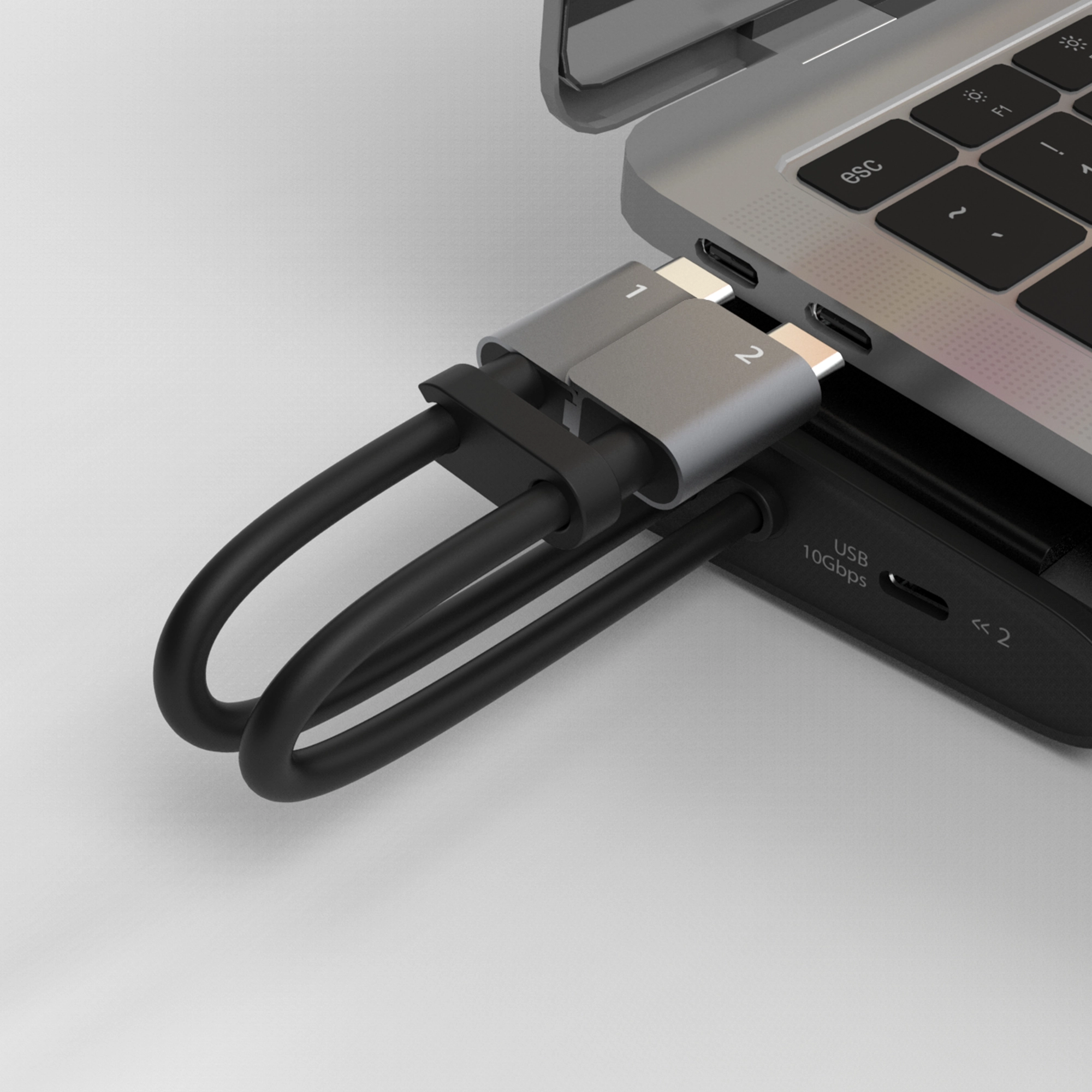

Detachable Magnetic Connectors
Its flexible design and universal USB-C connectors (Thunderbolt 3 compatible) make the docking station compatible with a wide range of devices and operating systems

Flexible Display Connections
DisplayPort alternate mode allows you to connect two 4K 60 Hz displays via HDMI and DisplayPort or add a single 4K HDMI™ display when the docking station is connected to only one USB-C host

Anti-Theft Protection
Security slot to prevent equipment theft in a wide range of business or institutional environments.

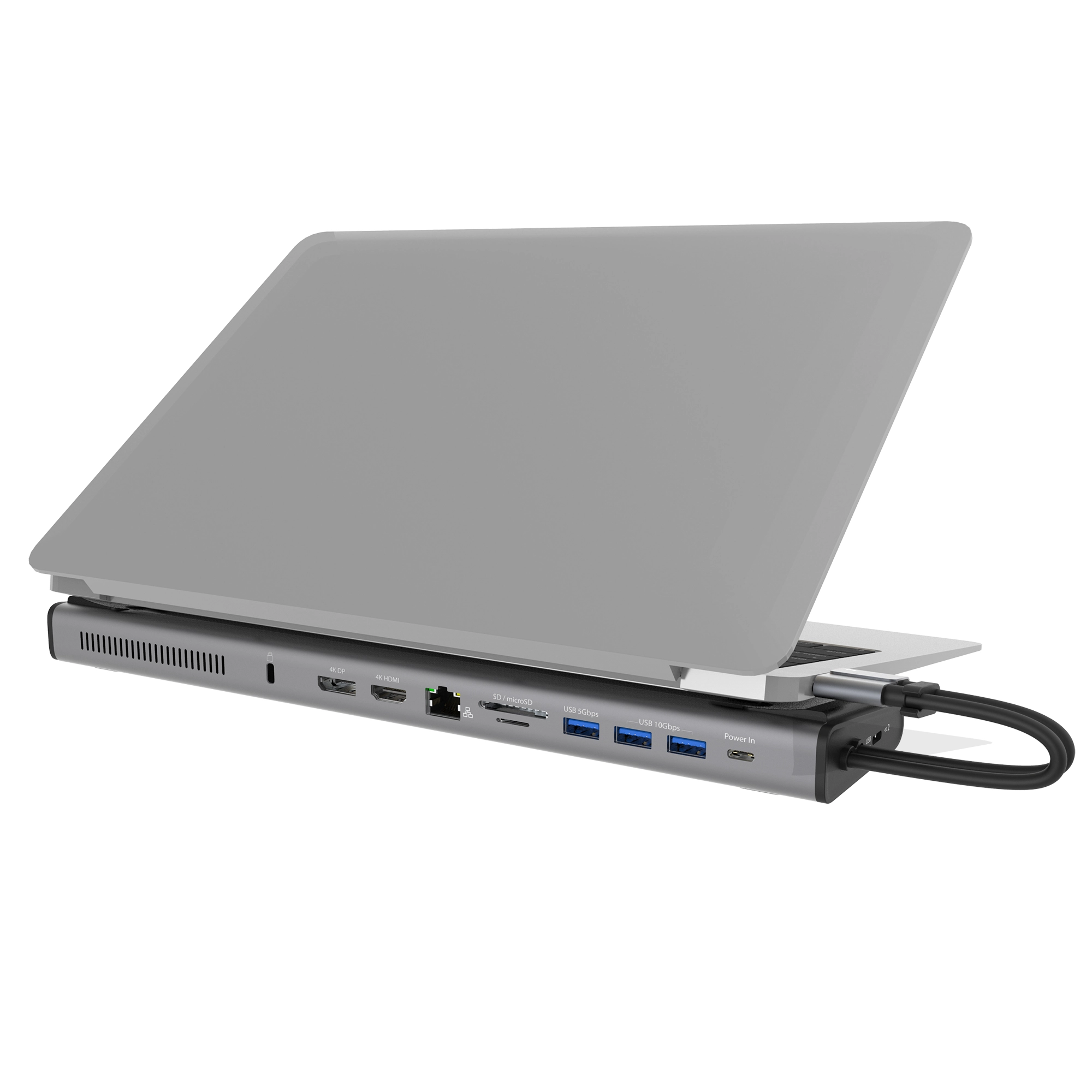

Ideal Accessory for MacBook Pro/Macbook Air
Great for working with graphics-intensive images and video editing

Specification

Product
Product id	990433
Brand	j5create
Partnr	JCD552-N
EAN/UPC code	4712795086133
Warranty (months)	2 Year Limited
Ports & interfaces
Connectivity technology	Wired
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB Power Delivery	Y
USB Power Delivery revision	3.0
HDMI ports quantity	1
HDMI version	2.1
DisplayPorts quantity	1
Microphone in	N
Network
Ethernet LAN	Y
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Performance
Product colour	Black, Silver
Card reader integrated	Y
Colour name	Silver & Black
Compatible memory cards	MicroSD (TransFlash)
Number of storage drives supported	1
Supported storage drive types	SSD
Built-in SSD	N
Data transfer rate	10 Gbit/s
HD type	4K Ultra HD
Maximum digital resolution	3840 x 2160 Pixels
NVMe	Y
SSD enclosure	Y
Number of displays supported	2
Maximum refresh rate	60 Hz
Compatibility	Mac / Windows laptop
Housing material	Aluminium
Country of origin	Taiwan
Storage
Supported SSD sizes	M.2
Power
Power source type	USB
Power connector	USB Type-C
Output current	0.75 A
Output voltage	5 V
Power consumption (typical)	3.75 W
Power cable length	0.15 m
USB cable length	0.15 m
Software
Windows operating systems supported	Y
Mac operating systems supported	Y
Weight & dimensions
Width	80 mm
Depth	318 mm
Height	26 mm
Weight	480.5 g
Packaging data
Quantity per pack	1 stuk(s)
Package width	90 mm
Package depth	377.5 mm
Package height	33 mm
Package weight	606.5 g
Packaging content
Manual	Y
Quick start guide	Y
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 65 °C
Operating relative humidity (H-H)	0 - 85 procent
Storage relative humidity (H-H)	0 - 85 procent
Technical details
Master (outer) case GTIN (EAN/UPC)	24712795086137
Warranty period	2 jaar
Logistics data
Export Control Classification Number (ECCN)	EAR99
Master (outer) case weight	2700 g
Master (outer) case height	123 mm
Master (outer) case length	398 mm
Master (outer) case width	150 mm
Quantity per master (outer) case	4 stuk(s)
Other features
Special features	12-in-1 functions, M.2 Expansion slot, USB 3.2, HDMI/DP 4K @ 60, 100W power delivery Passthrough
