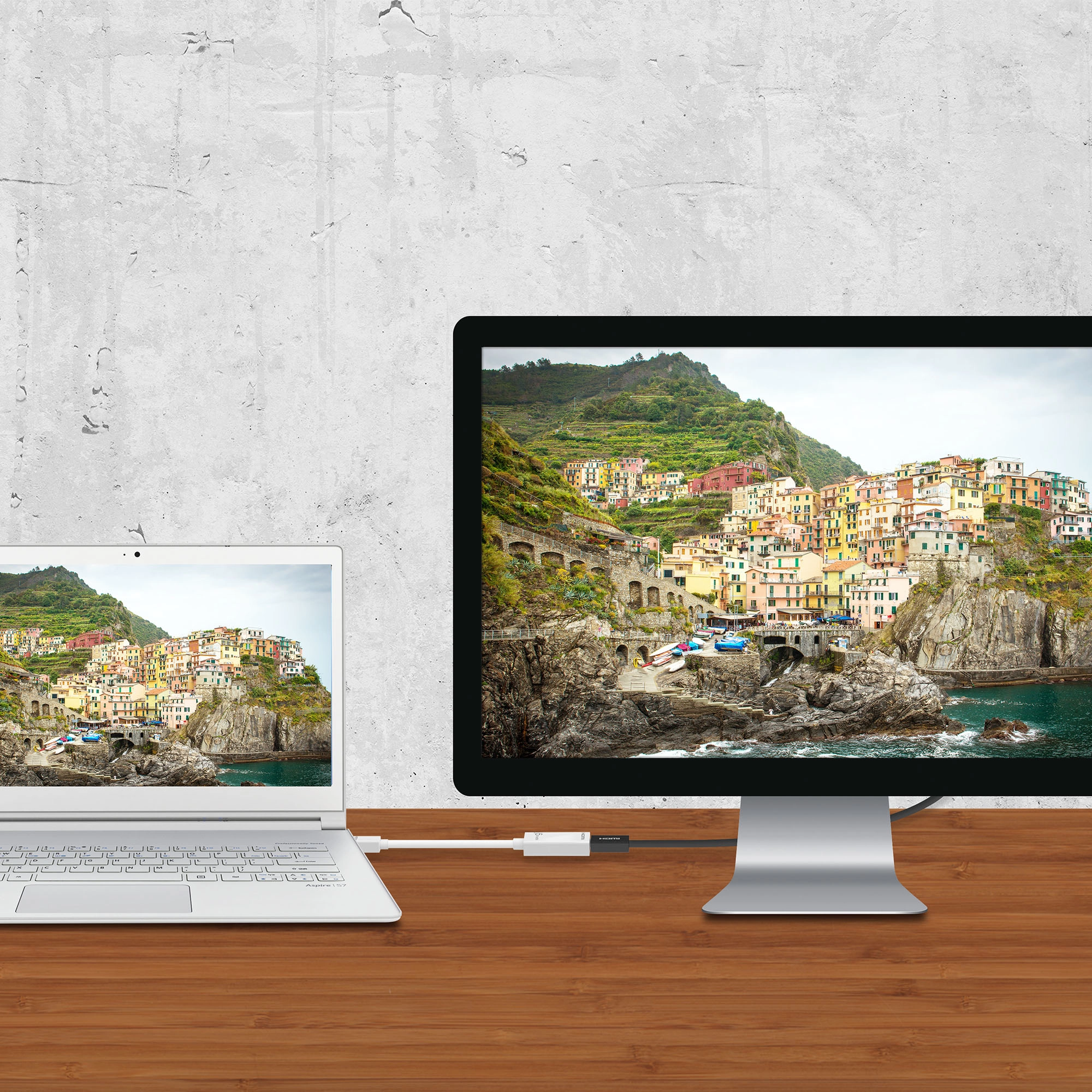

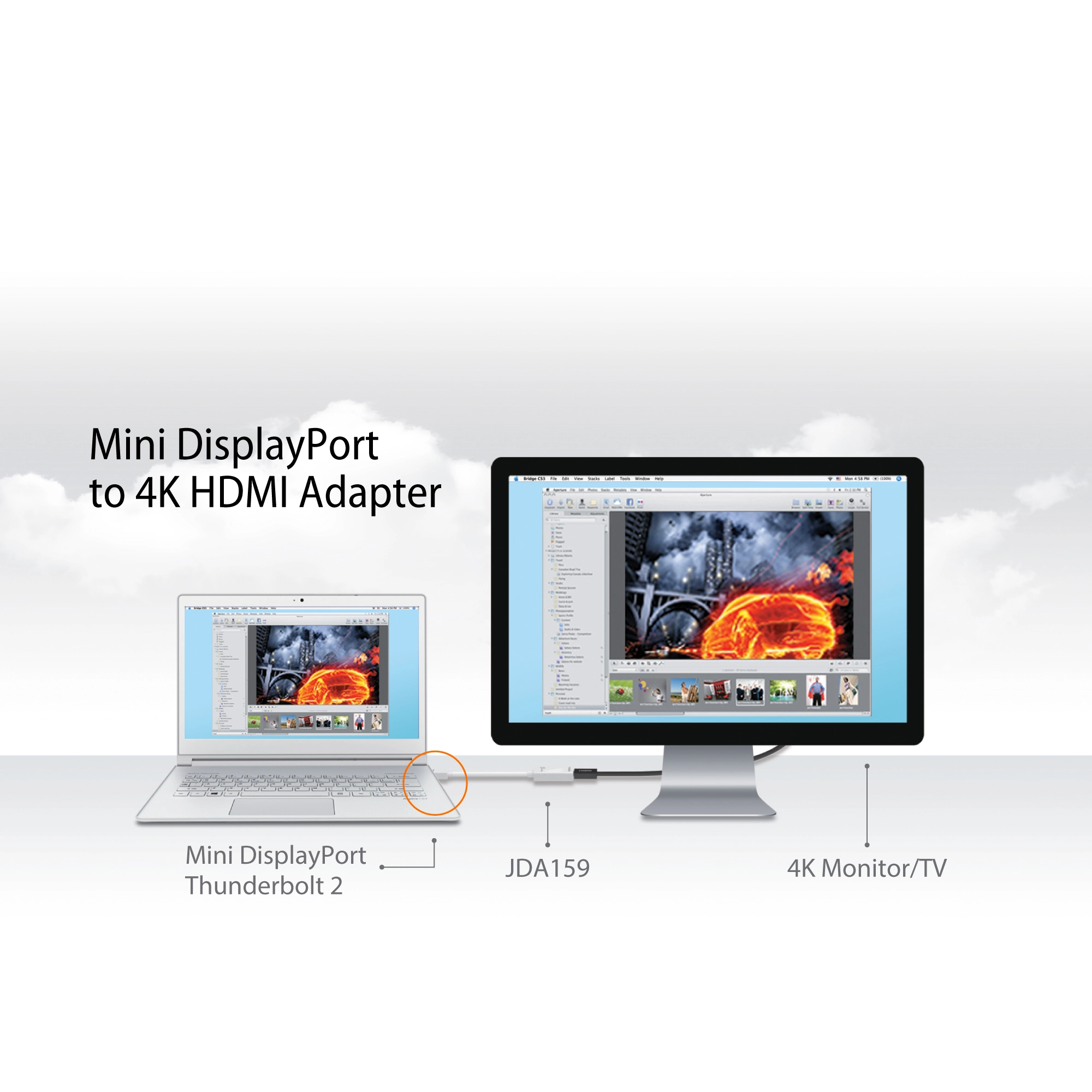

The JDA159 adapter allows you to quickly and easily connect your Mac® or PC to a 4K HDTV or other display device using an HDMI™ input. First connect the JDA159 to your computer. Then plug your existing HDMI™ cable from your display into the mini DisplayPort™ adapter. Compatible with both DisplayPort™ 1.2 and Thunderbolt™ 2, our JDA159 quickly converts the DisplayPort™ video signal into an HDMI™ signal, and with its plug-and-play technology there is no need to download any drivers.

Once you’ve experienced multiple monitors, you’ll never want to go back to a single monitor again.

Specification

Product
Product id	990346
Brand	j5create
Partnr	JDA159-N
EAN/UPC code	4712795080445
Warranty (months)	2 year manufacturer warranty
Features
Cable length	0.125 m
Connector 1	Mini DisplayPort
Connector 2	HDMI
Connector 1 gender	Male connector
Connector 2 gender	Female connector
Maximum resolution	3840 x 2160 Pixels
Supported video modes	2160p
Supported graphics resolutions	3840 x 2160
Data transfer rate	21.6 Gbit/s
Maximum refresh rate	60 Hz
Voltage rating	5 V
Product colour	White
Jacket material	Plastic
Plug and Play	Y
Country of origin	Taiwan
Windows operating systems supported	Y
Mac operating systems supported	Y
Packaging data
Quantity per pack	1 stuk(s)
Package width	120 mm
Package depth	97 mm
Package height	25 mm
Package type	Box
Package weight	60.5 g
Packaging content	1 x JDA159 mini DisplayPort™ to 4K HDMI™ adapter
Other features
Material	Plastic
Cable colour	White
Power consumption	130 mA
Compatible products	• Mac® models with Thunderbolt™ 2 • MacBook Pro® (Retina, Late 2013 and later) • Mac Pro® (Late 2013) • iMac® (Retina 5K, 27-inch, Late 2014) • Mac® mini (Late 2014)
Supported resolutions	3840*2160 @60 Hz
Quantity per box	1 stuk(s)
Technical features	Dual-Mode DisplayPort™ Adapter Supports Audio Easy-to-use cable
Technical details
Connector type	mini DisplayPort™ to 4K HDMI™ Adapter
Box contents	1 x JDA159 mini DisplayPort™ to 4K HDMI™ adapter
Weight & dimensions
Weight	19 g
Width	21 mm
Depth	12 mm
Height	45 mm
Logistics data
Master (outer) case width	280 mm
Master (outer) case length	210 mm
Export Control Classification Number (ECCN)	EAR99
Master (outer) case height	145 mm
Quantity per master (outer) case	20 stuk(s)
Master (outer) case weight	1600 g
Warranty period	2 jaar
Master (outer) case GTIN (EAN/UPC)	24712795080449
