The JDC43 is an 8K DisplayPort™ cable that transmits both audio and video. DisplayPort™ v1.4 supports 8K UHD (7680 × 4320) at 60 Hz with 30 bit/px RGB color and HDR, or 4K UHD (4096 × 2160) at 120 Hz. It also supports 3D. The theoretical bandwidth is up to 32.4 Gbps.

The JDC43 features a tinned copper conductor and aluminum + braided shielding, giving you a stable picture without distortion. Its gold-plated connectors allow for a seamless connection & reliable transmission.

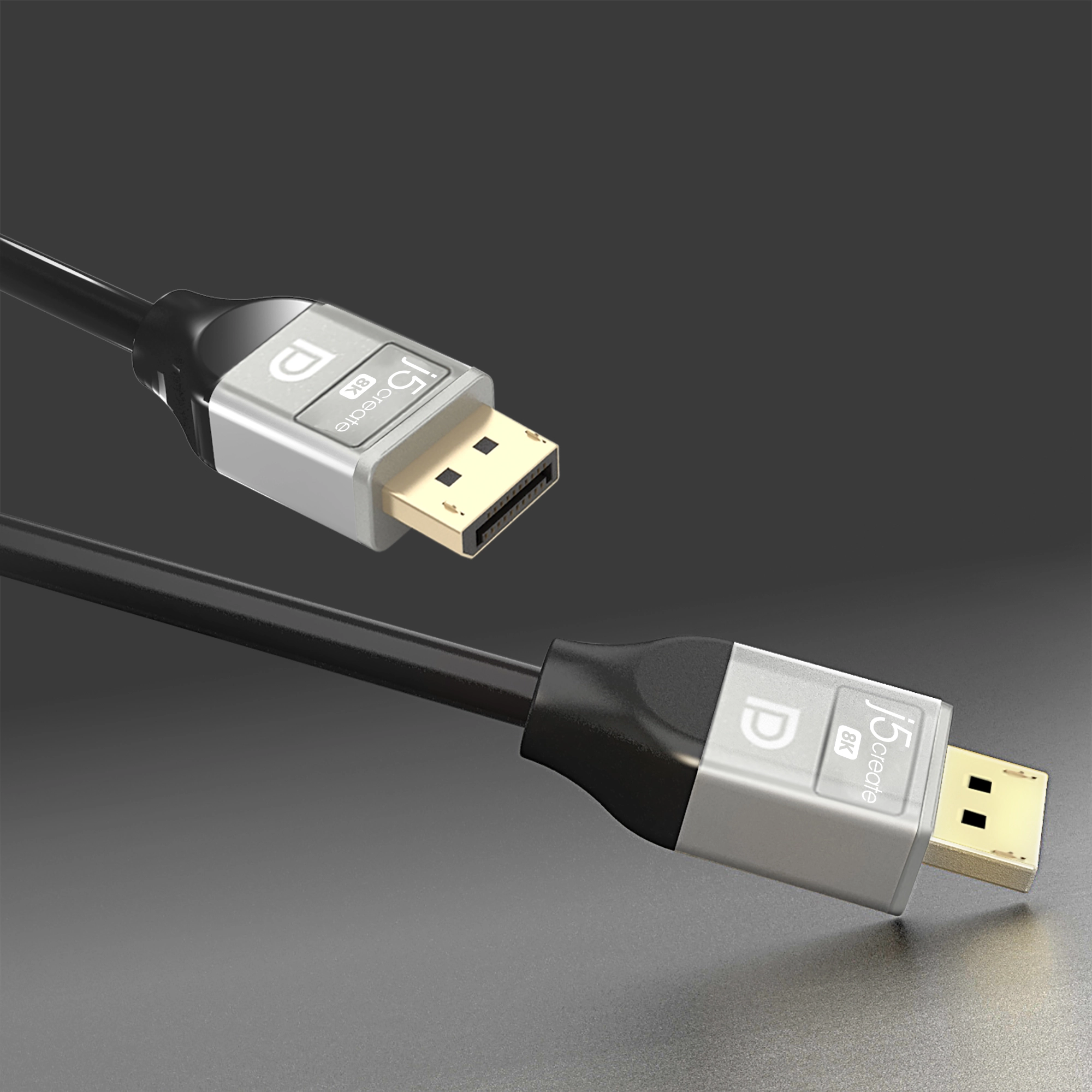

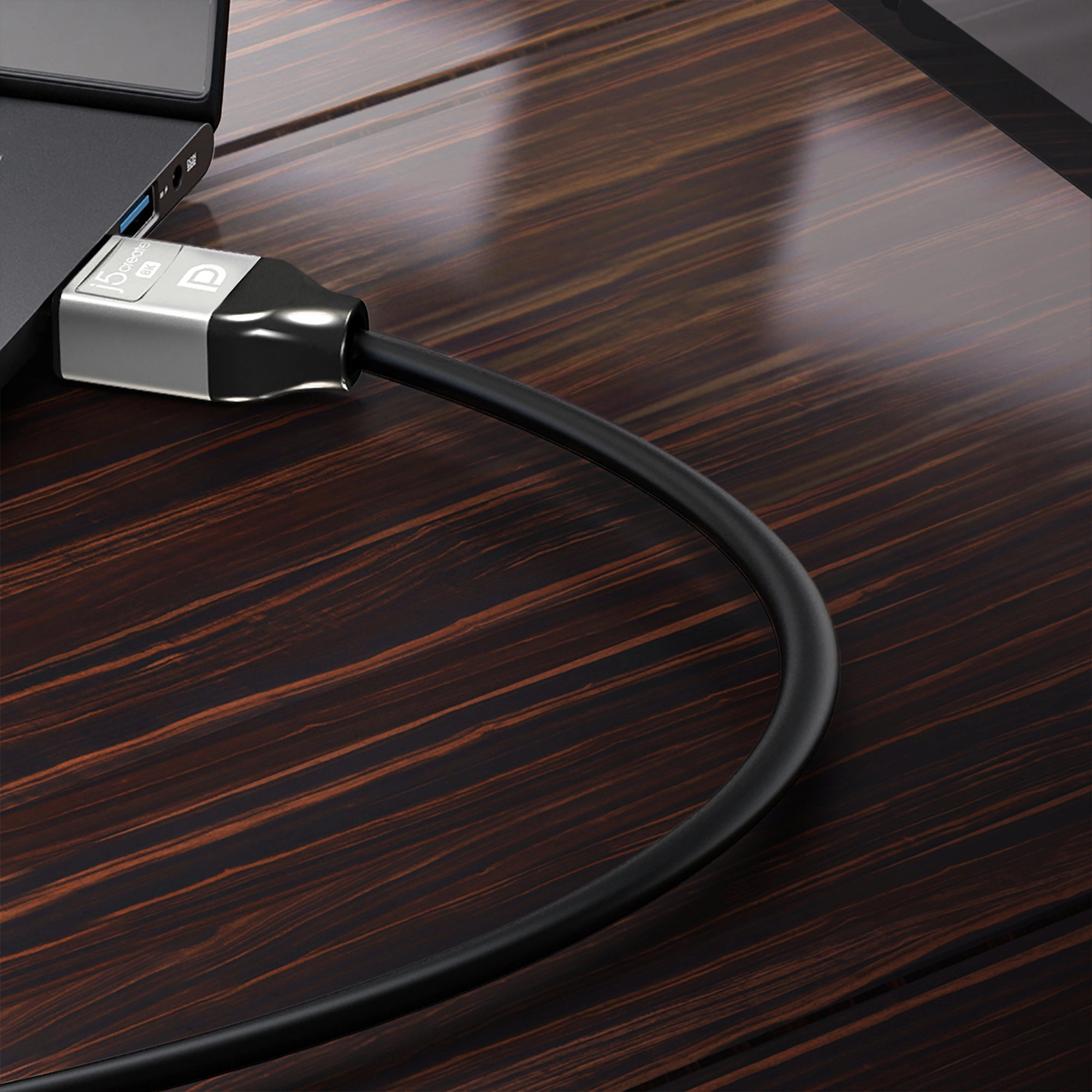

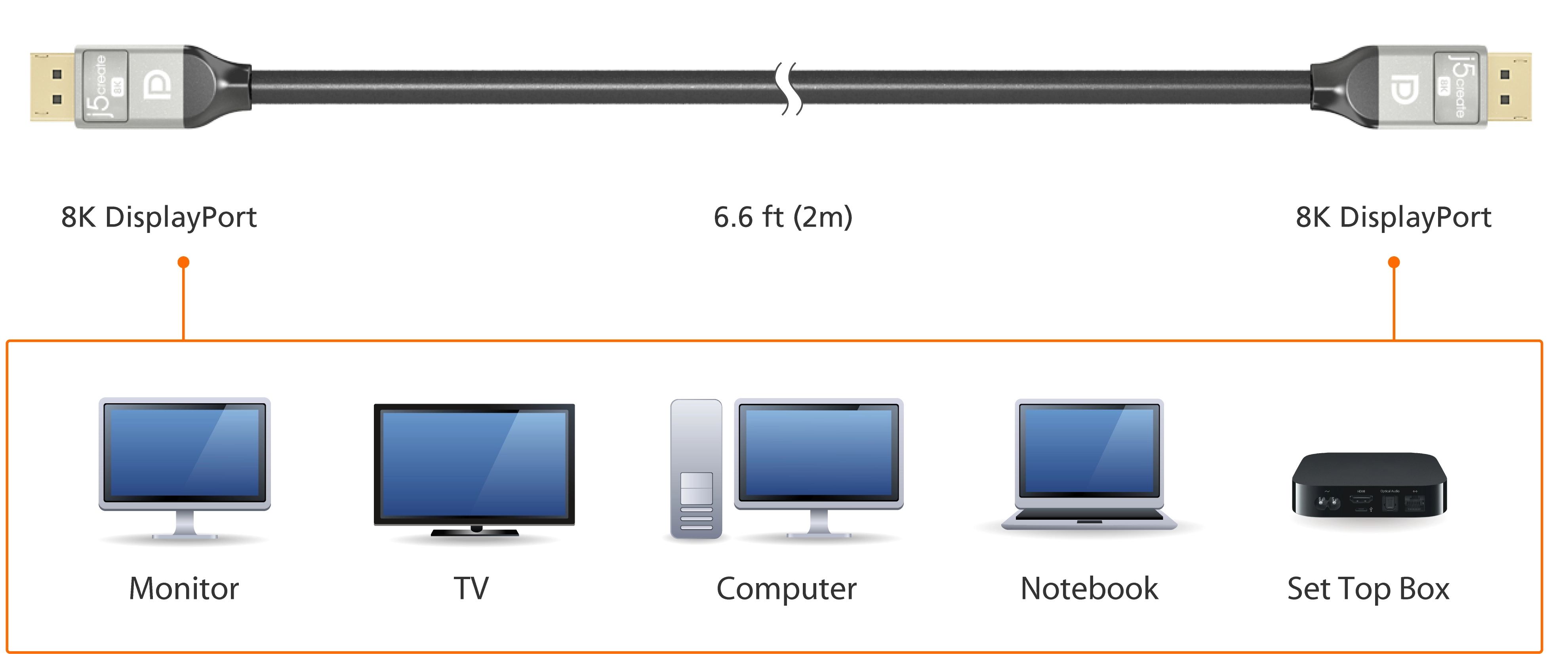

Latched connectors give the 8K DisplayPort™ cable a more secure connection. The JDC43 8K DisplayPort™ Cable allows you to connect a DisplayPort™ from a laptop, desktop or set-top box to a high-res monitor, HDTV or projector with DisplayPort™ input.

Specification

Product
Product id	990361
Brand	j5create
Partnr	JDC43-N
EAN/UPC code	847626002762
Warranty (months)	2 year manufacturer warranty
Features
Cable length	2 m
Connector 1	DisplayPort
Connector 2	DisplayPort
Connector 1 gender	Male connector
Connector 2 gender	Male connector
Connector contacts plating	Gold
DisplayPort version	1.4
Maximum resolution	7680 x 4320 Pixels
Supported graphics resolutions	1920 x 1080 (HD 1080), 4096 x 2160, 7680 x 4320
Supported video modes	1080p, 2160p, 4320p
Maximum refresh rate	60 Hz
Latching connectors	Y
Product colour	Black, Grey
Cable material	Copper
Cable shielding	Aluminum mylar foil
Number of shielding layers	3
Jacket material	Polyvinyl chloride (PVC)
AWG wire size	28
Data transfer rate	32.4 Gbit/s
Connector housing material	Plastic
Country of origin	Taiwan
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Packaging data
Weight	156 g
Quantity per pack	1 stuk(s)
Package width	193 mm
Package depth	125 mm
Package height	39 mm
Package type	Box
Package weight	210 g
Logistics data
Warranty period	2 jaar
Master (outer) case width	280 mm
Master (outer) case length	430 mm
Master (outer) case GTIN (EAN/UPC)	24712795082108
Master (outer) case height	235 mm
Export Control Classification Number (ECCN)	EAR99
Quantity per master (outer) case	18 stuk(s)
Master (outer) case weight	5440 g
