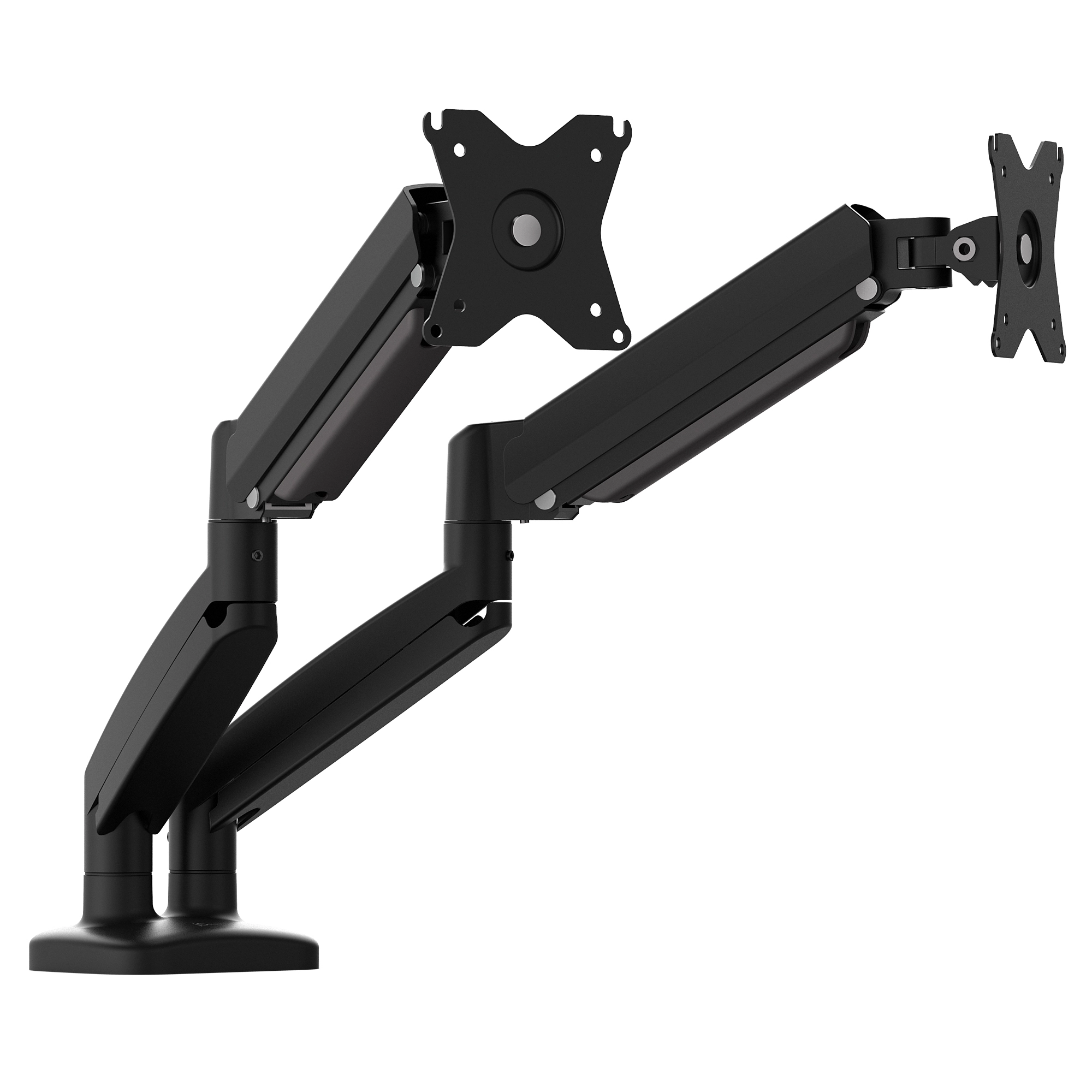

The JTSA102 is a gas spring dual monitor mount. The single arm can hold max two 32” screens weighing up to 8kg/17.6 lbs. Easily adjust your screens to any height. The gas spring allows the screen to swivel 180°, tilt -45° to +90°and rotate 360°. Conveniently set your monitor at an optimal angle. This monitor mount gives you the ability to create a more efficient workspace, whether you need extra space or a standing desk setup.

Specification

Product
Product id	990440
Brand	j5create
Partnr	JTSA102-N
EAN/UPC code	4712795088274
Warranty (months)	2 Years
Mounting
Maximum weight capacity	16 kg
Maximum weight capacity (per display)	8 kg
Minimum screen size compatibility	17 "
Maximum screen size	32
Mounting type	Desk

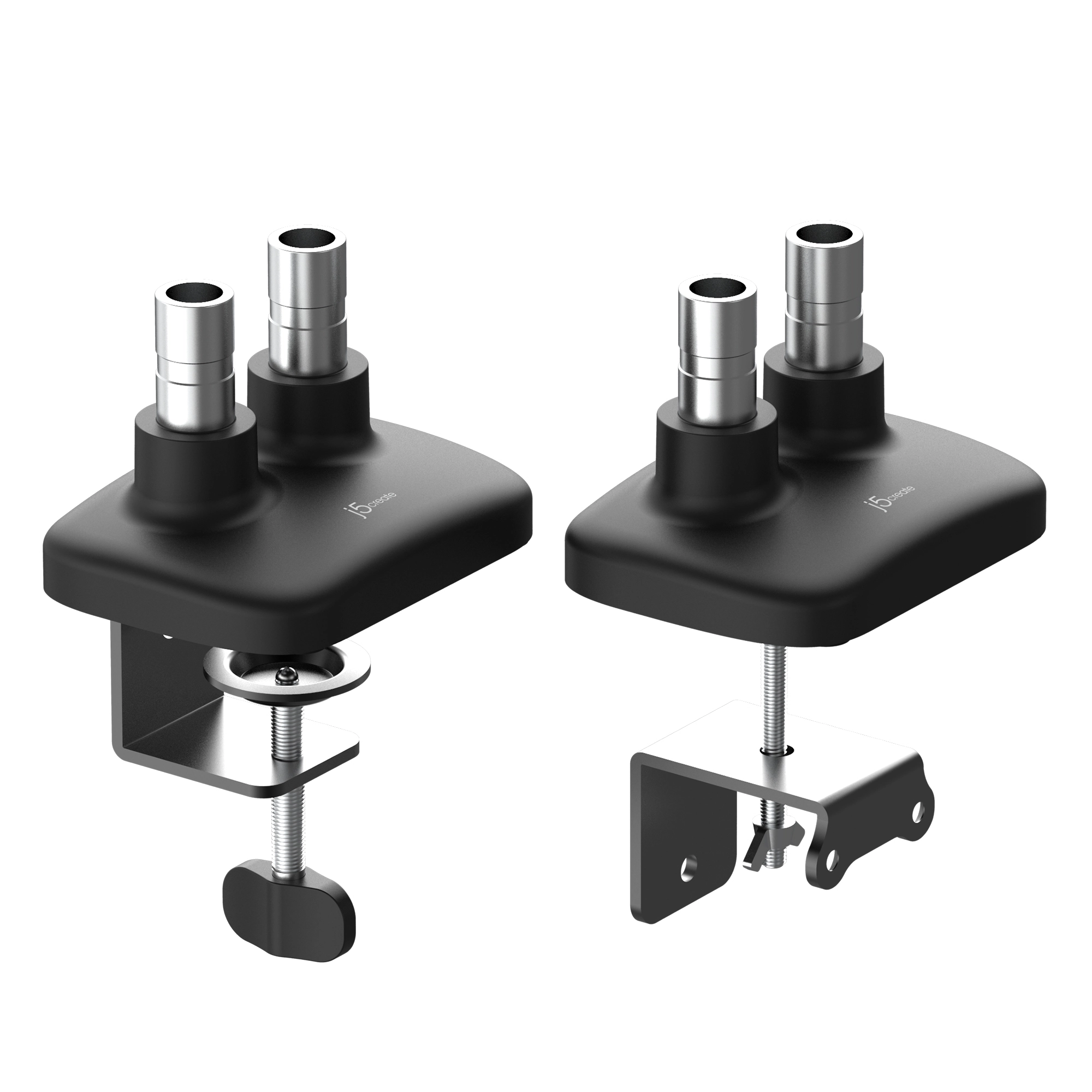

Mounting	Clamp/Grommet
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	100 x 100 mm
Number of displays supported	2
Desk thickness (min)	10 mm
Grommet mount desk thickness (max)	50 mm
Ergonomics
Height adjustment	Y
Adjustable depth	Y
Tilt angle range	-45 - 90 °
Swivelling	Y
Swivel angle	180 °
Angle of rotation	360 °
Cable management	Y
Rotating	Y
Tilt adjustment	Y
Design
Product colour	Black
Housing material	Aluminium, Plastic, Steel
Orientation	Landscape/Portrait
Easy to install	Y
Technical details
Sustainability compliance	Y
Warranty period	2 jaar
Packaging content
Mounting kit	Y
Weight & dimensions
Width	140 mm
Depth	320 mm
Height	465 mm
Weight	3400 g
Package width	243 mm
Package depth	515 mm
Package height	127 mm
Package weight	4247 g
Package type	Box
Packaging data
Quantity per pack	1 stuk(s)
Operational conditions
Operating temperature (T-T)	0 - 30 °C
Operating relative humidity (H-H)	0 - 85 procent
Maximum operating temperature	30 °C
Storage temperature (T-T)	-10 - 65 °C
Storage relative humidity (H-H)	0 - 85 procent
Logistics data
Master (outer) case width	148 mm
Master (outer) case length	536 mm
Master (outer) case height	275 mm
Quantity per master (outer) case	1 stuk(s)
Master (outer) case GTIN (EAN/UPC)	24712795088278
Master (outer) case net weight	4600 g
Export Control Classification Number (ECCN)	EAR99
Other features
Country of origin	China
Compliance certificates	CE, REACH, RoHS
