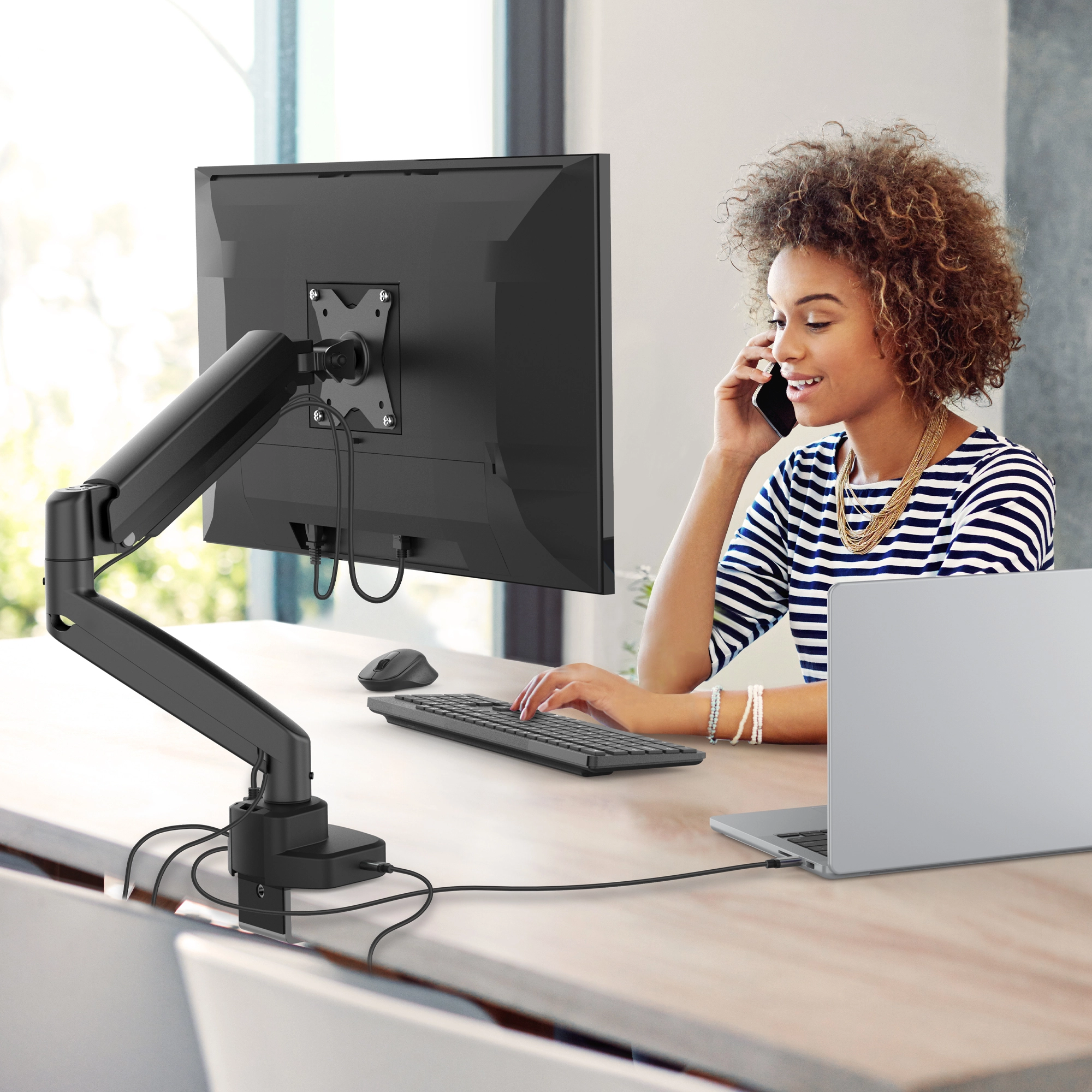

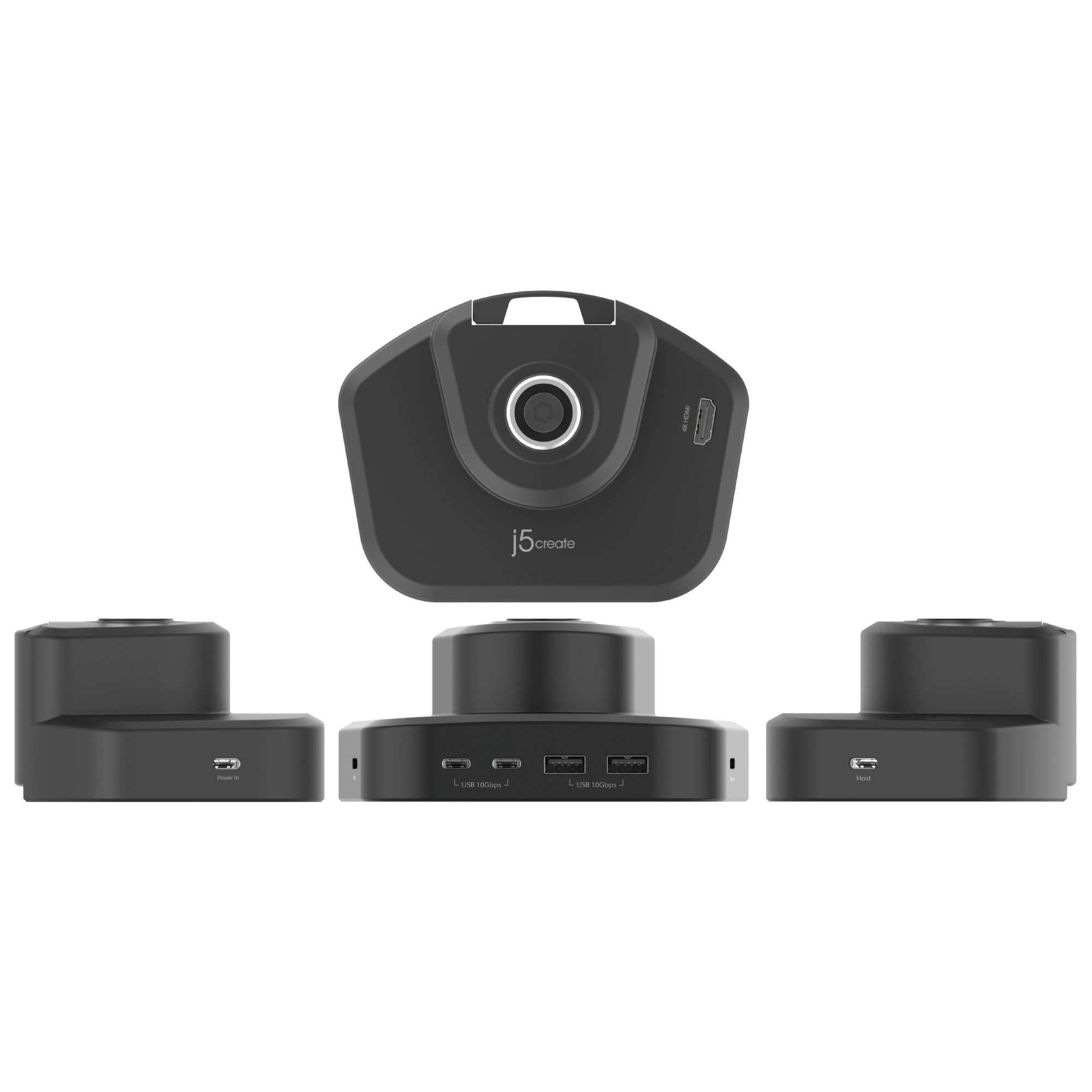

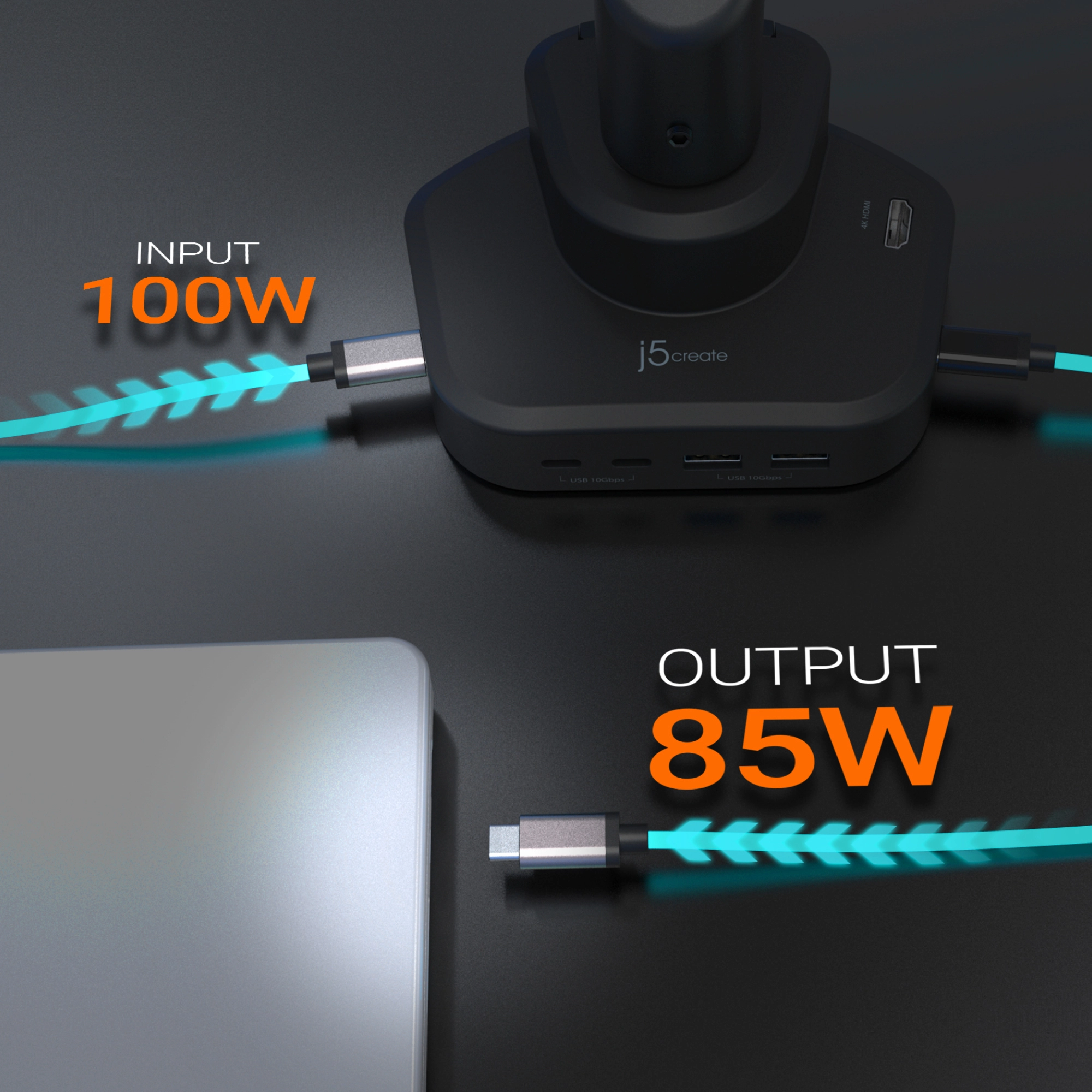

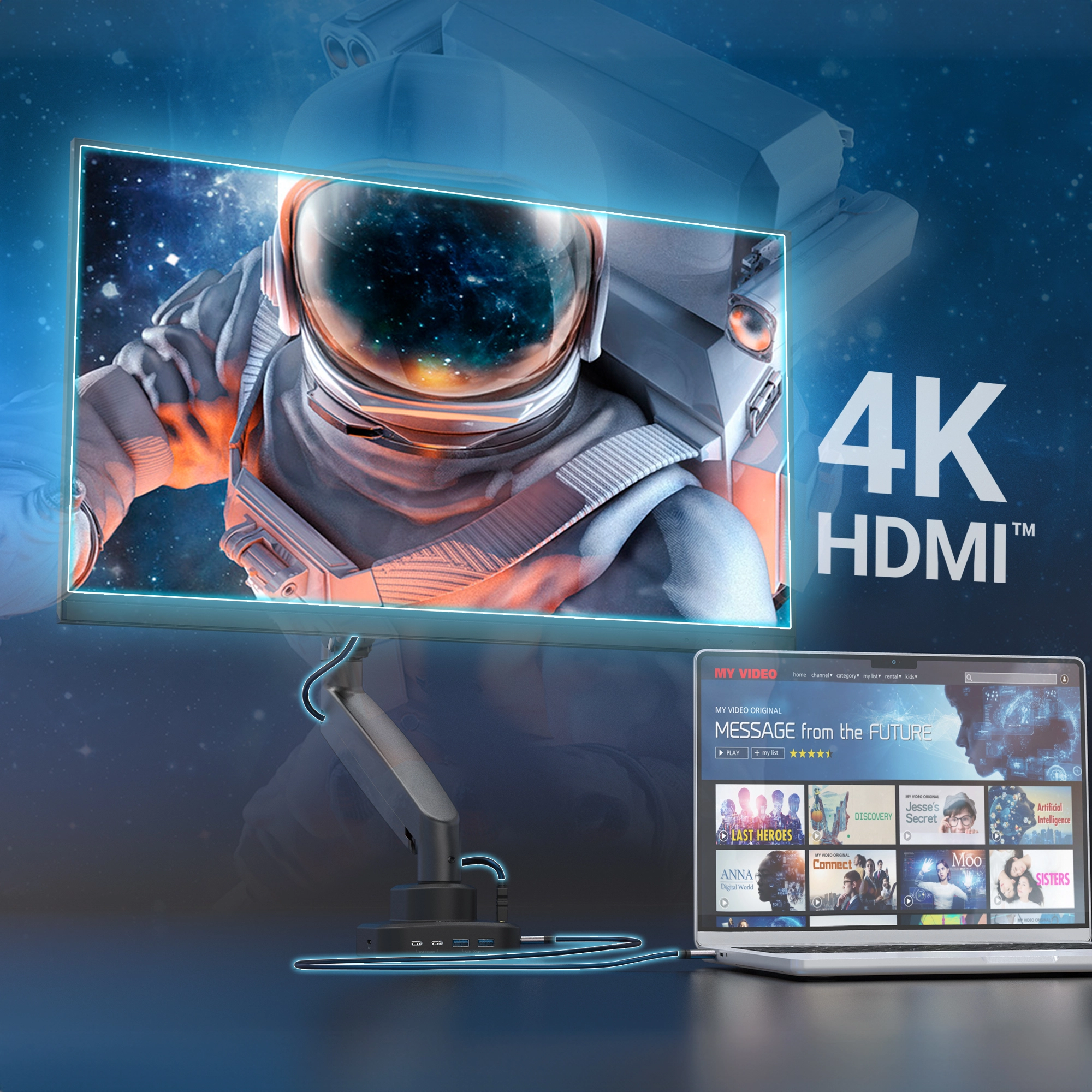

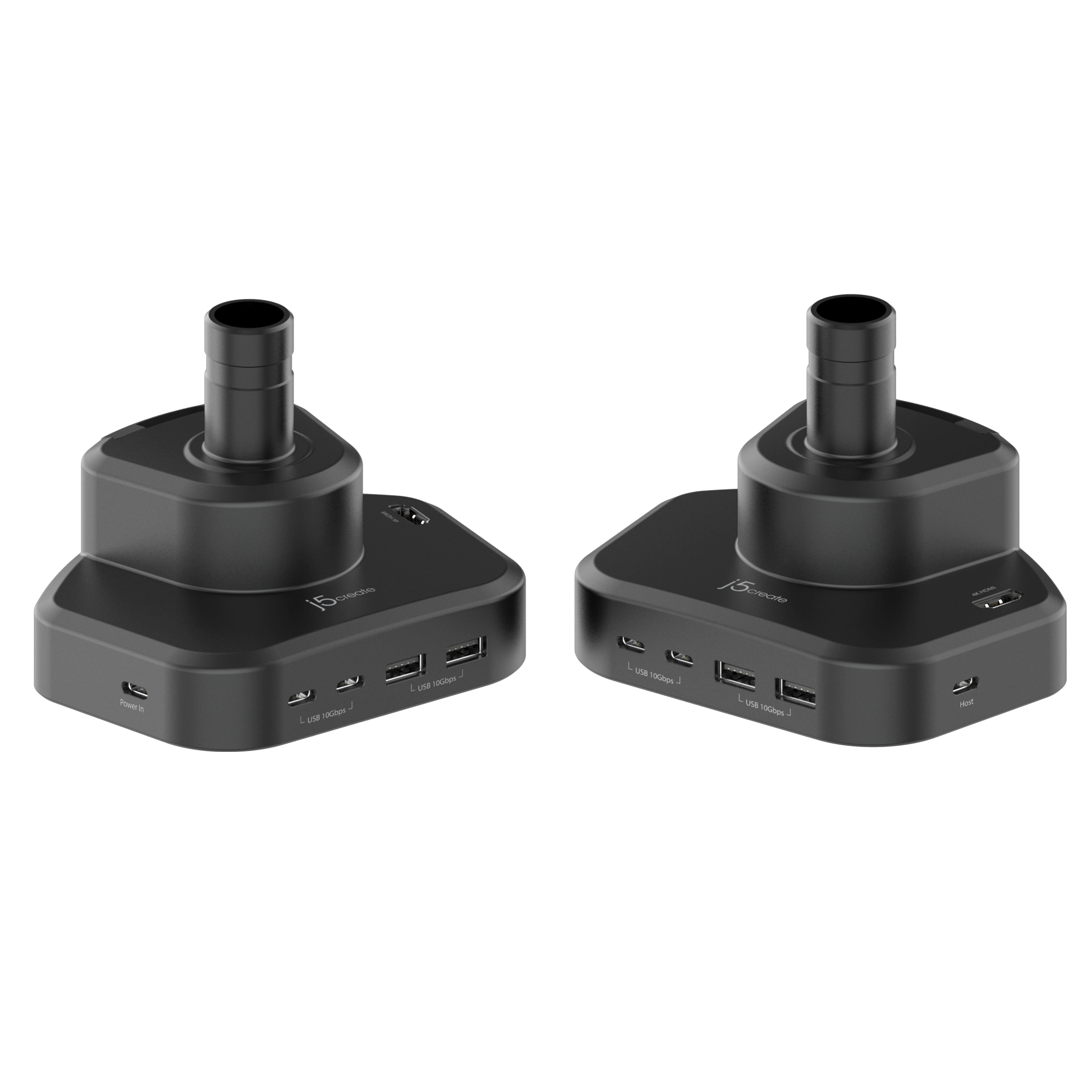

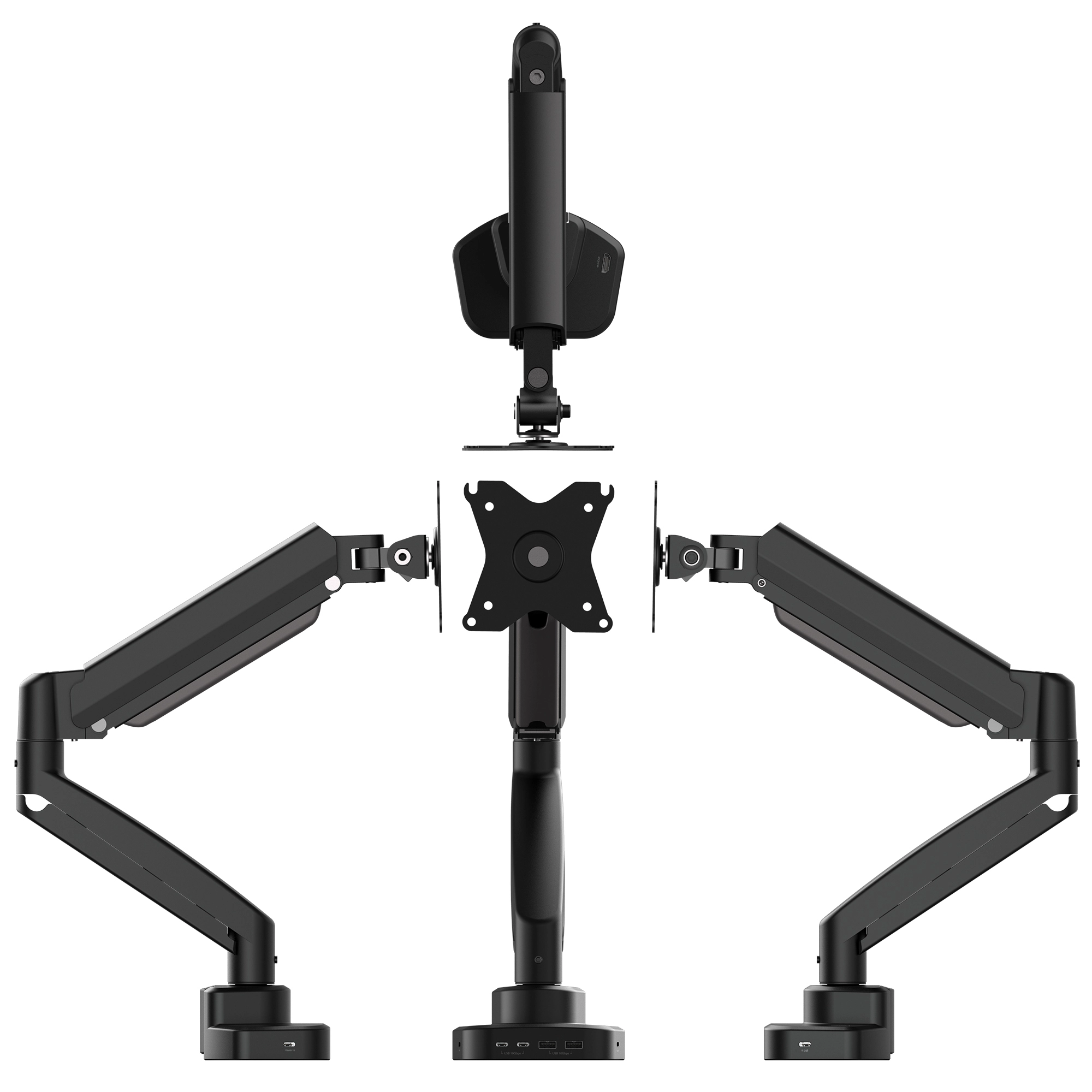

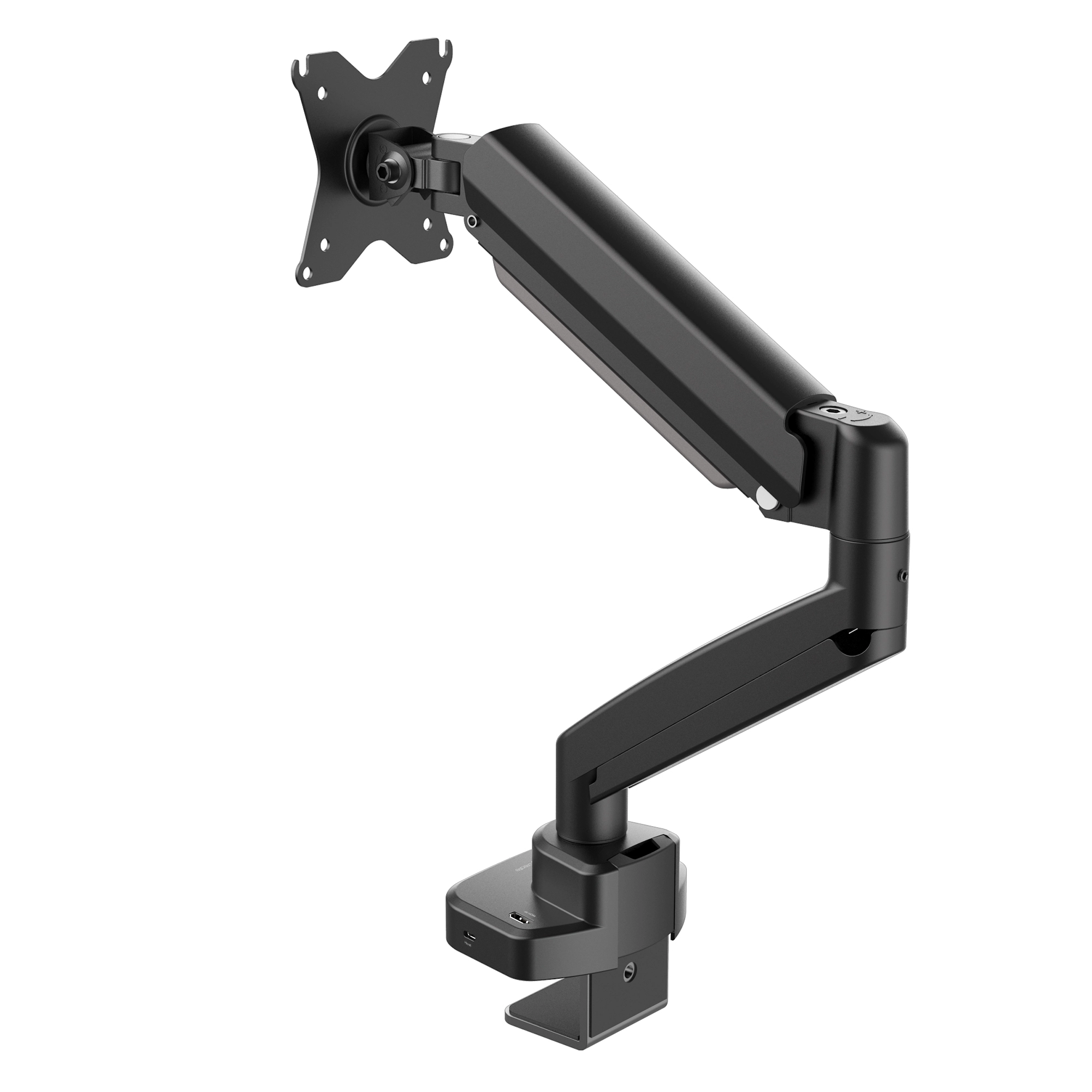

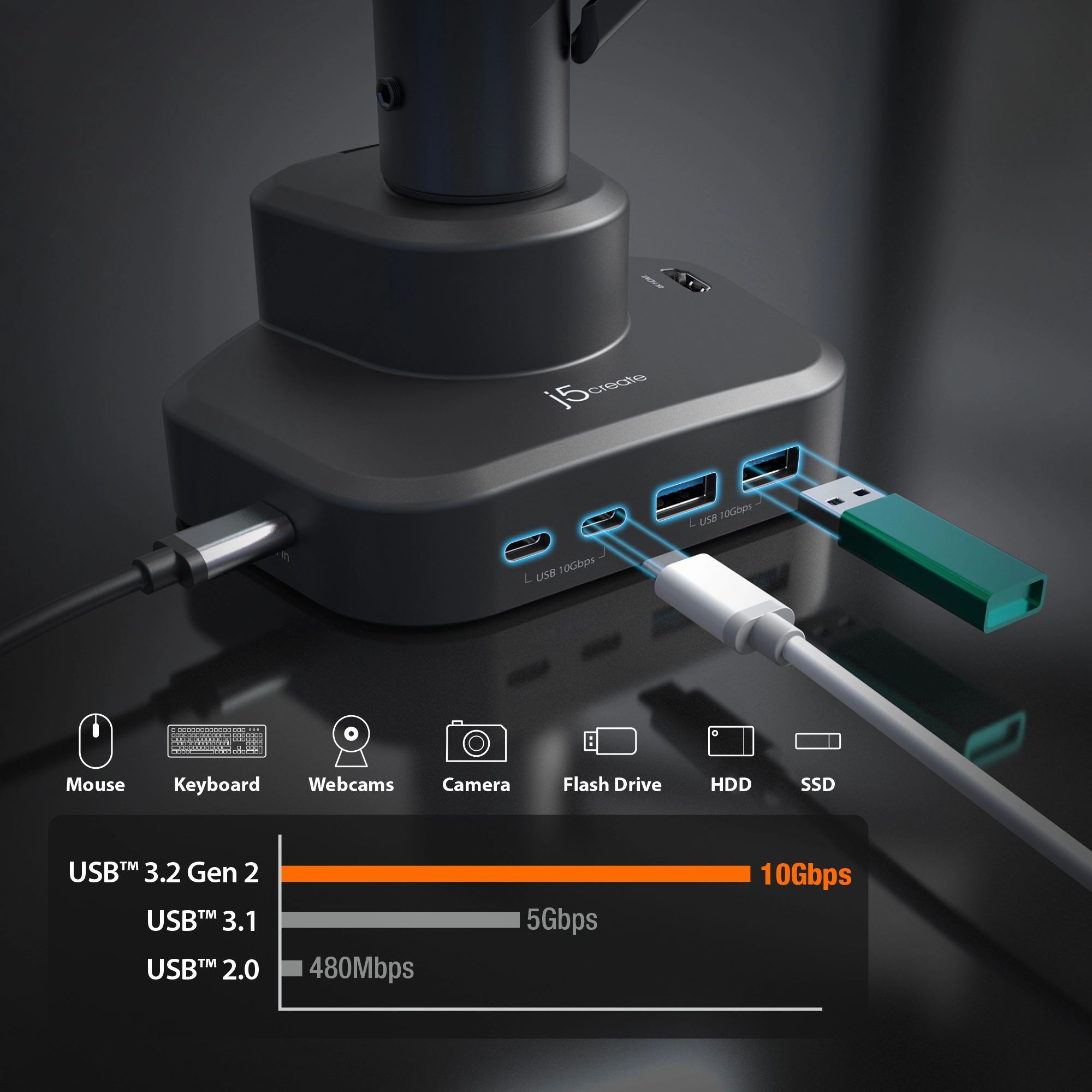

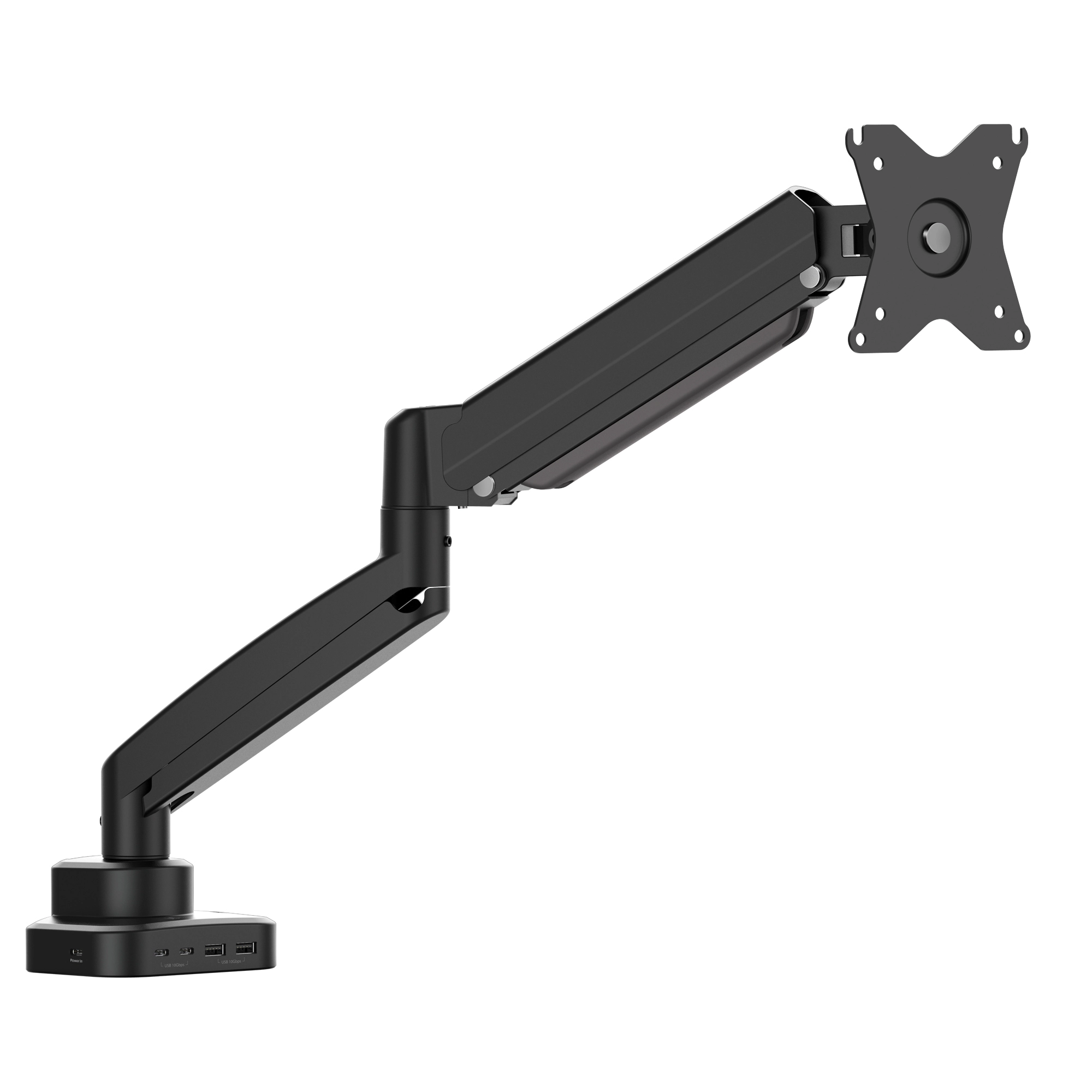

The JTSA301 is a gas spring monitor mount. Equipped a 6-in-1 dock with 4K60Hz HDMI™, 2 x USB™ Type-A 10Gbps, 2 x USB-C® 10Gbps, and up to 100W PD pass through charging. The arm can hold max a 32” screen weighting up to 8kg/17.6 lbps. Easily adjust your screen to any height. The gas spring allows the screen to swivel 180°, tilt -45° to +90°and rotate 360°. Conveniently set your monitor at an optimal angle. This monitor mount gives you the ability to create a more efficient workspace, whether you need extra space or a standing desk setup.

Specification

Product
Product id	990407
Brand	j5create
Partnr	JTSA301-N
EAN/UPC code	4712795088281
Warranty (months)	2 Years
Mounting
Maximum weight capacity	8 kg
Minimum screen size compatibility	17 "
Maximum screen size	32
Mounting type	Desk

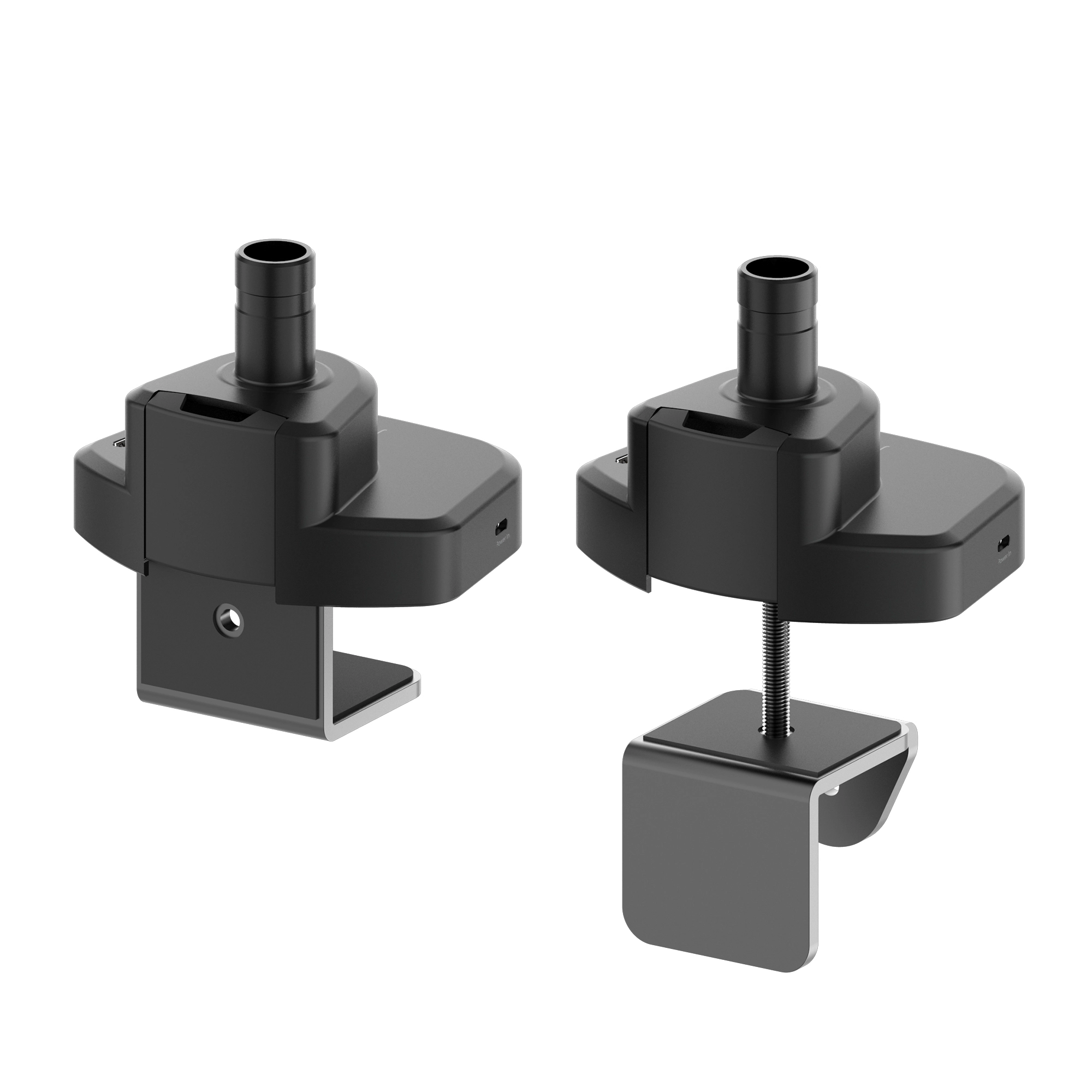

Mounting	Clamp/Grommet
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	100 x 100 mm
Number of displays supported	1
Desk thickness (min)	10 mm
Clamp mount desk thickness (max)	50 mm
Grommet mount desk thickness (max)	50 mm
Ergonomics
Height adjustment	Y
Adjustable depth	Y
Tilt angle range	-45 - 90 °
Swivelling	Y
Swivel angle	180 °
Angle of rotation	360 °
Cable management	Y
Rotating	Y
Tilt adjustment	Y
Built-in USB hub	Y
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB hub version	3.2 Gen 2 (3.1 Gen 2)
Data transfer rate	10 Gbit/s
Design
Product colour	Black
Housing material	Aluminium, Plastic, Steel
Orientation	Landscape/Portrait
Easy to install	Y
Technical details
Compatible operating systems	Windows® macOS®
Display resolution	3840 x 2160 Pixels
Sustainability compliance	Y
Warranty period	2 jaar
Power
Input voltage	20 V
Ports & interfaces
HDMI ports quantity	1
Weight & dimensions
Width	130 mm
Depth	320 mm
Height	465 mm
Weight	2112 g
Package width	208 mm
Package depth	465 mm
Package height	106 mm
Package weight	2740 g
Package type	Box
Packaging data
Quantity per pack	1 stuk(s)
Operational conditions
Operating temperature (T-T)	0 - 30 °C
Operating relative humidity (H-H)	0 - 85 procent
Maximum operating temperature	30 °C
Storage temperature (T-T)	-10 - 65 °C
Storage relative humidity (H-H)	0 - 85 procent
Logistics data
Master (outer) case width	233 mm
Master (outer) case length	486 mm
Master (outer) case height	240 mm
Quantity per master (outer) case	2 stuk(s)
Master (outer) case GTIN (EAN/UPC)	24712795088285
Master (outer) case net weight	5900 g
Export Control Classification Number (ECCN)	EAR99
Other features
Country of origin	China
Compliance certificates	CE, REACH, RoHS
