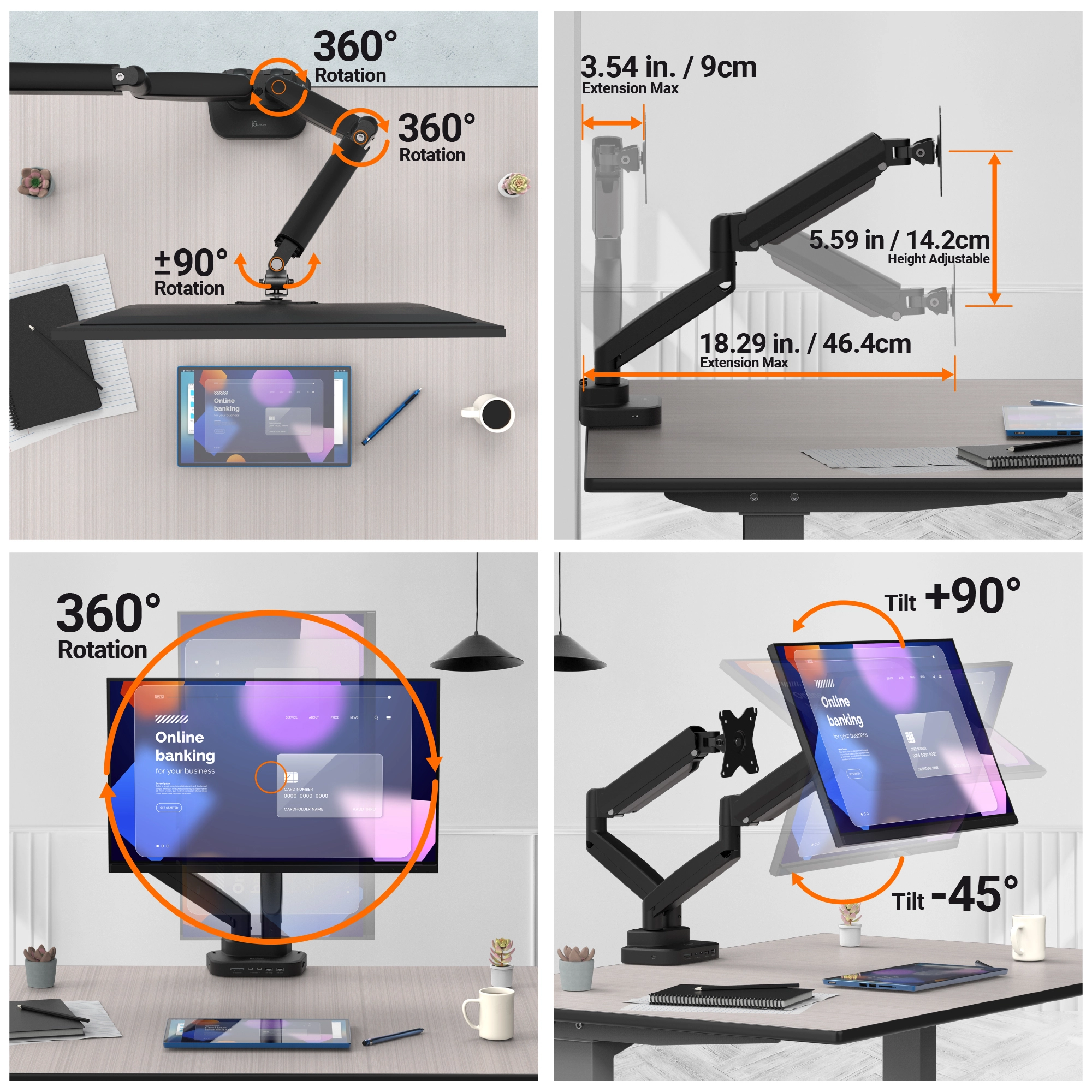

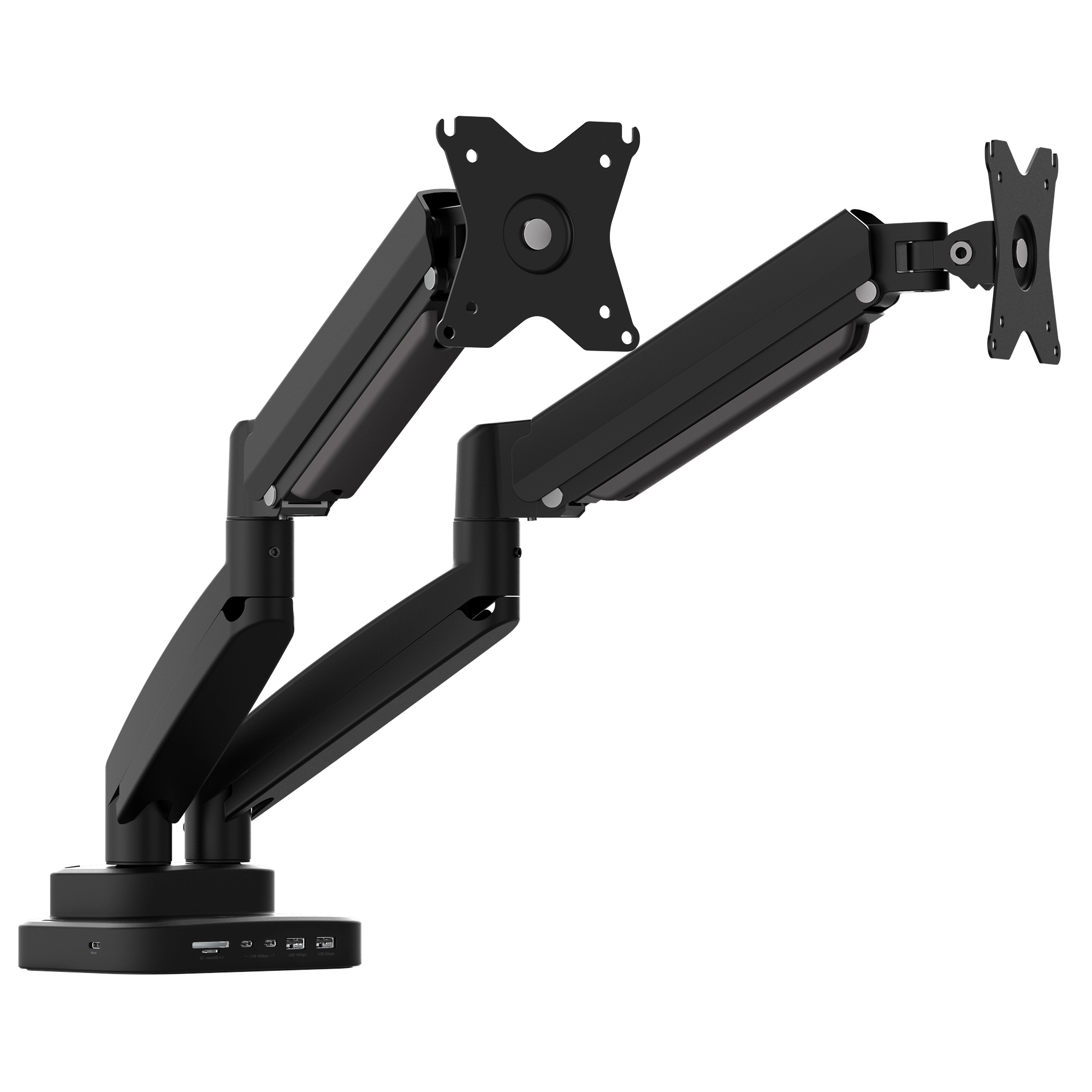

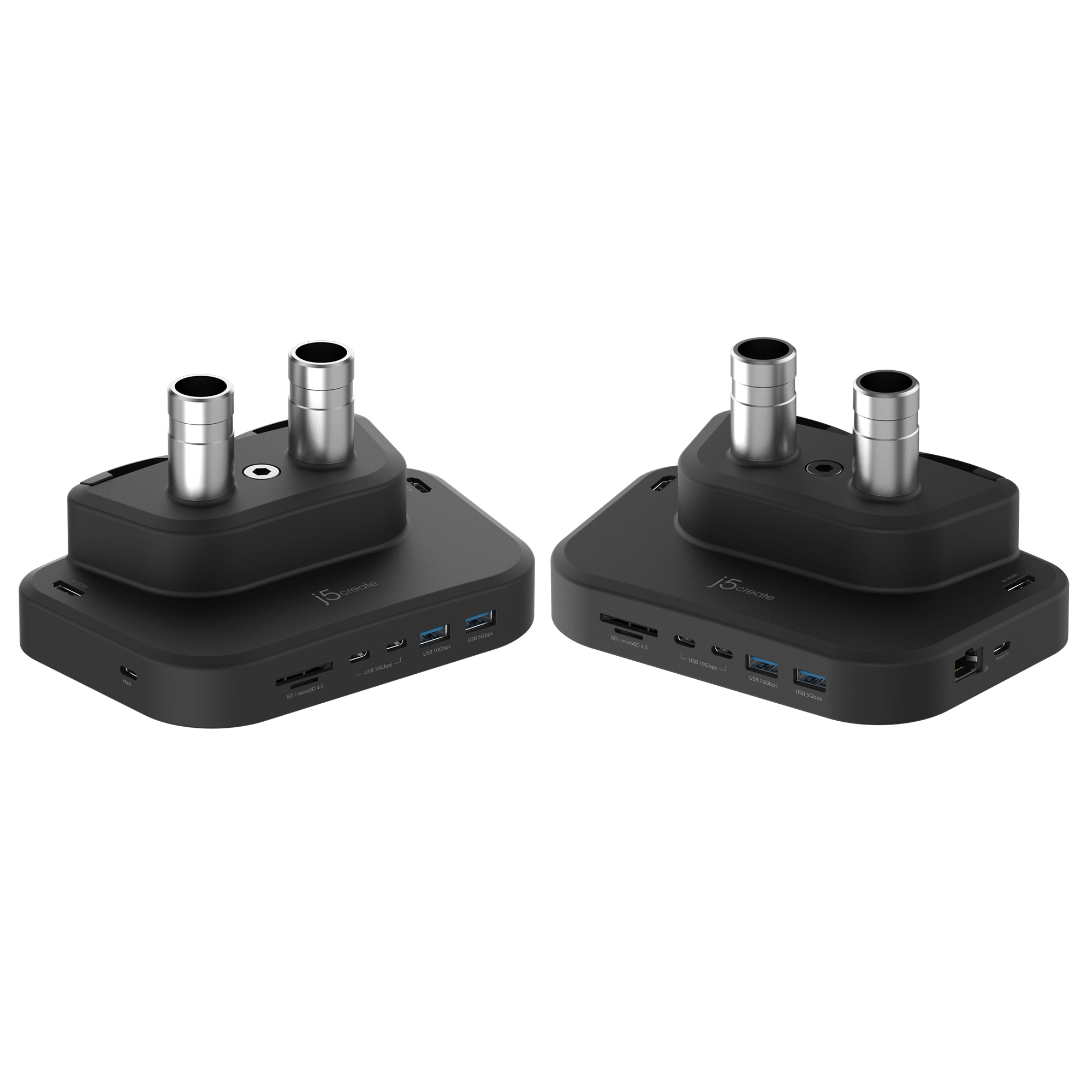

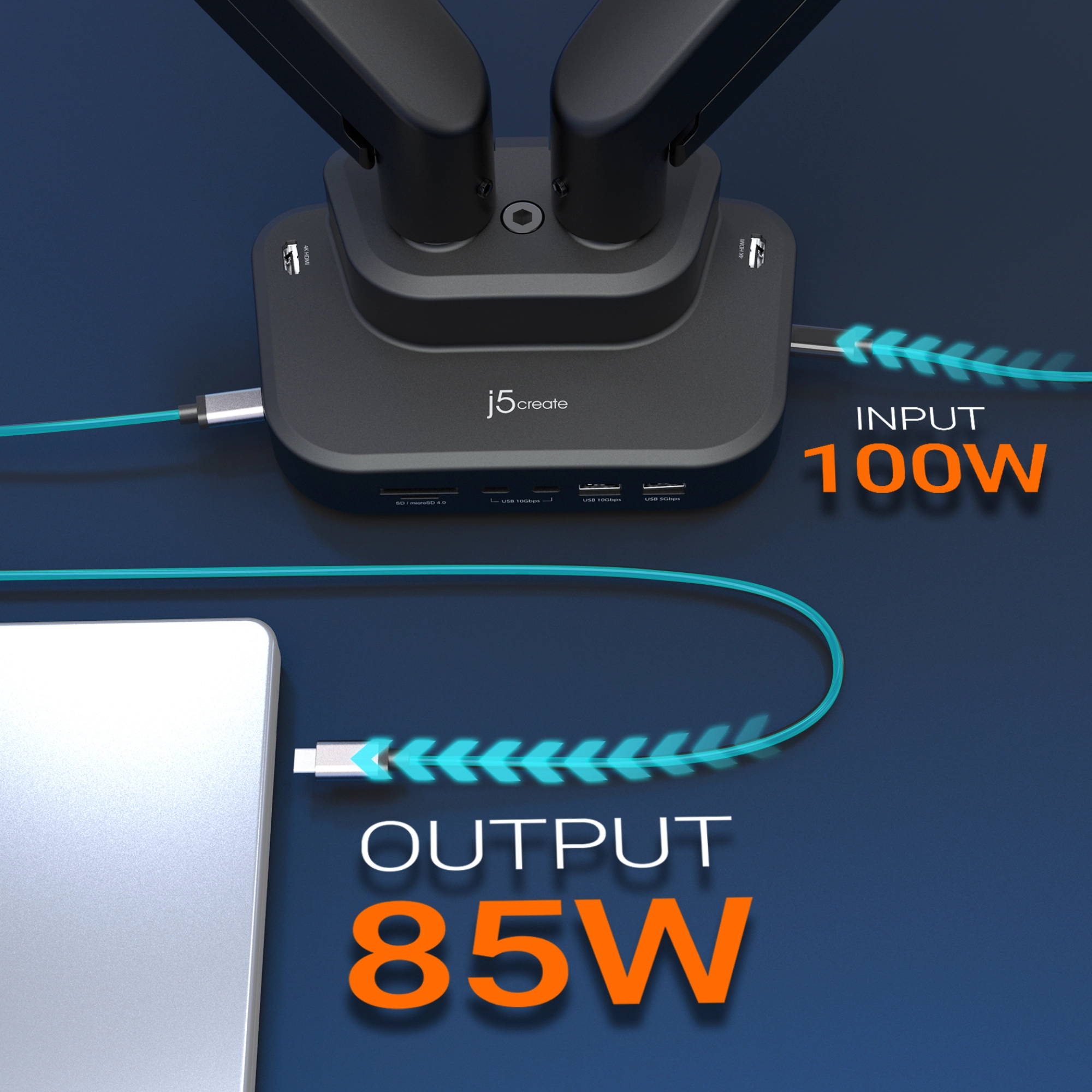

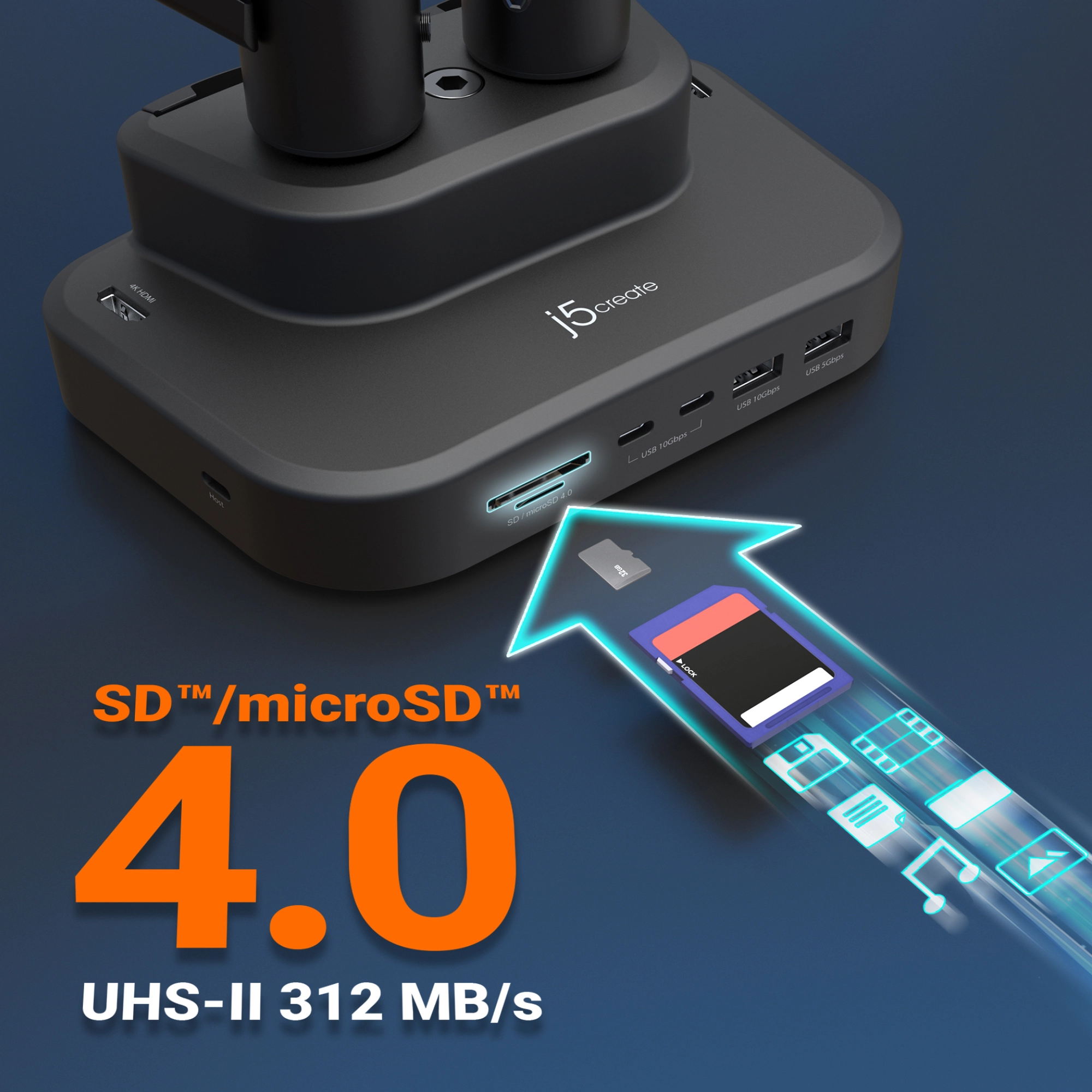

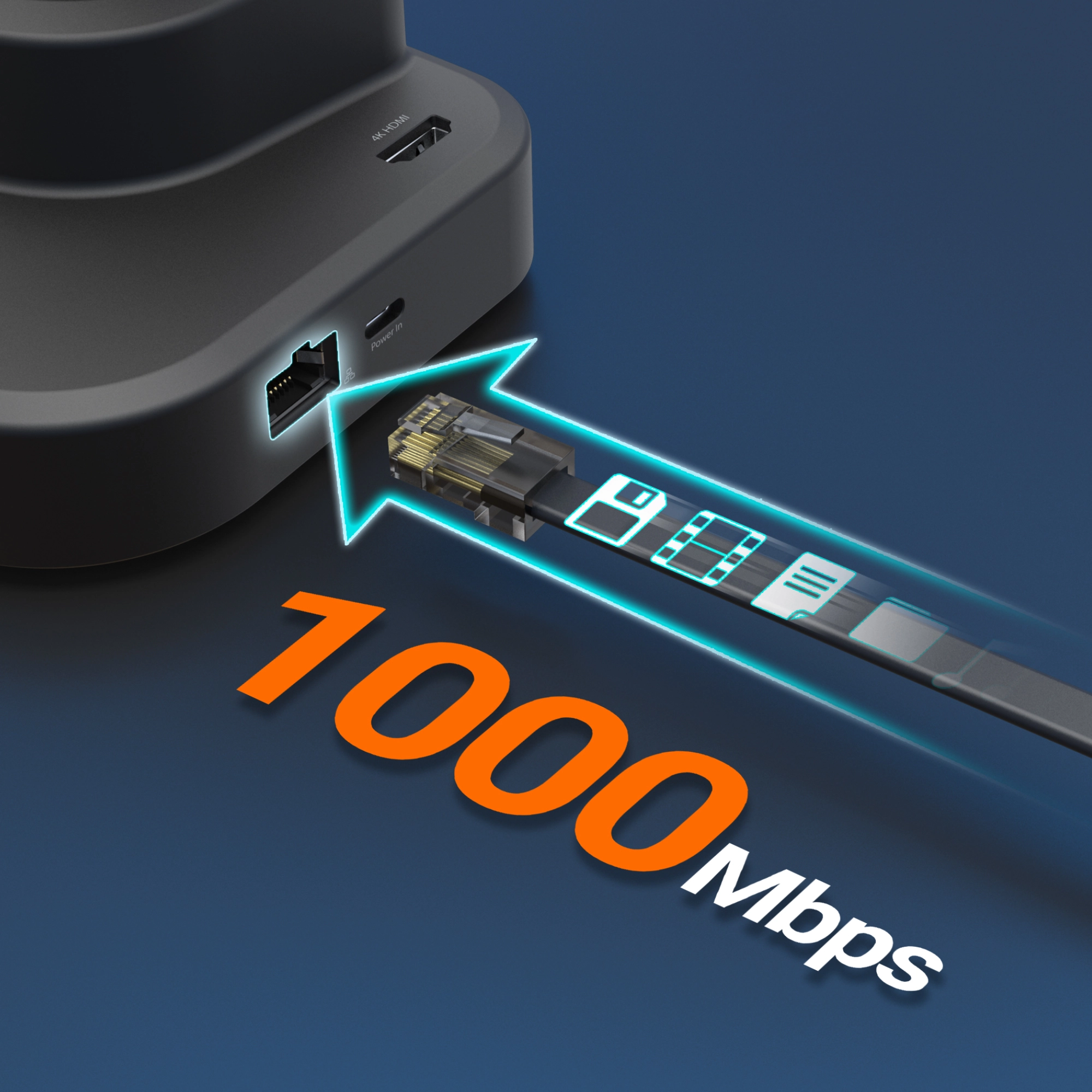

The JTSA302 is a gas spring monitor mount. Equipped with a 10-in-1 MST dual-display dock with two 4K60Hz HDMI™, Gigabit Ethernet, 1 x USB™ Type-A 10Gbps, 1 x USB™ Type-A 5Gbps 2 x USB-C® 10Gbps, SD™ /microSD ™ 4.0, and up to 100W PD pass through charging. The arm can hold max two 32” screens weighing up to 8kg/17.6 lbs. Easily adjust your screen to any height. The gas spring allows the screen to swivel 180°, tilt -45° to +90°and rotate 360°. Conveniently set your monitor at an optimal angle. This monitor mount gives you the ability to create a more efficient workspace, whether you need extra space or a standing desk setup.

Specification

Product
Product id	990416
Brand	j5create
Partnr	JTSA302-N
EAN/UPC code	4712795088298
Warranty (months)	2 Years
Mounting
Maximum weight capacity	16 kg
Maximum weight capacity (per display)	8 kg
Minimum screen size compatibility	17 "
Maximum screen size	32
Mounting type	Desk
Mounting	Clamp/Grommet
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	100 x 100 mm
Number of displays supported	2
Desk thickness (min)	10 mm
Clamp mount desk thickness (max)	50 mm
Grommet mount desk thickness (max)	50 mm
Ergonomics
Height adjustment	Y
Adjustable depth	Y
Tilt angle range	-45 - 90 °
Swivelling	Y
Swivel angle	180 °
Angle of rotation	360 °
Cable management	Y
Tilt adjustment	Y
Built-in USB hub	Y
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB hub version	3.2 Gen 2 (3.1 Gen 2)
Data transfer rate	10 Gbit/s
Design
Product colour	Black
Housing material	Aluminium, Plastic, Steel

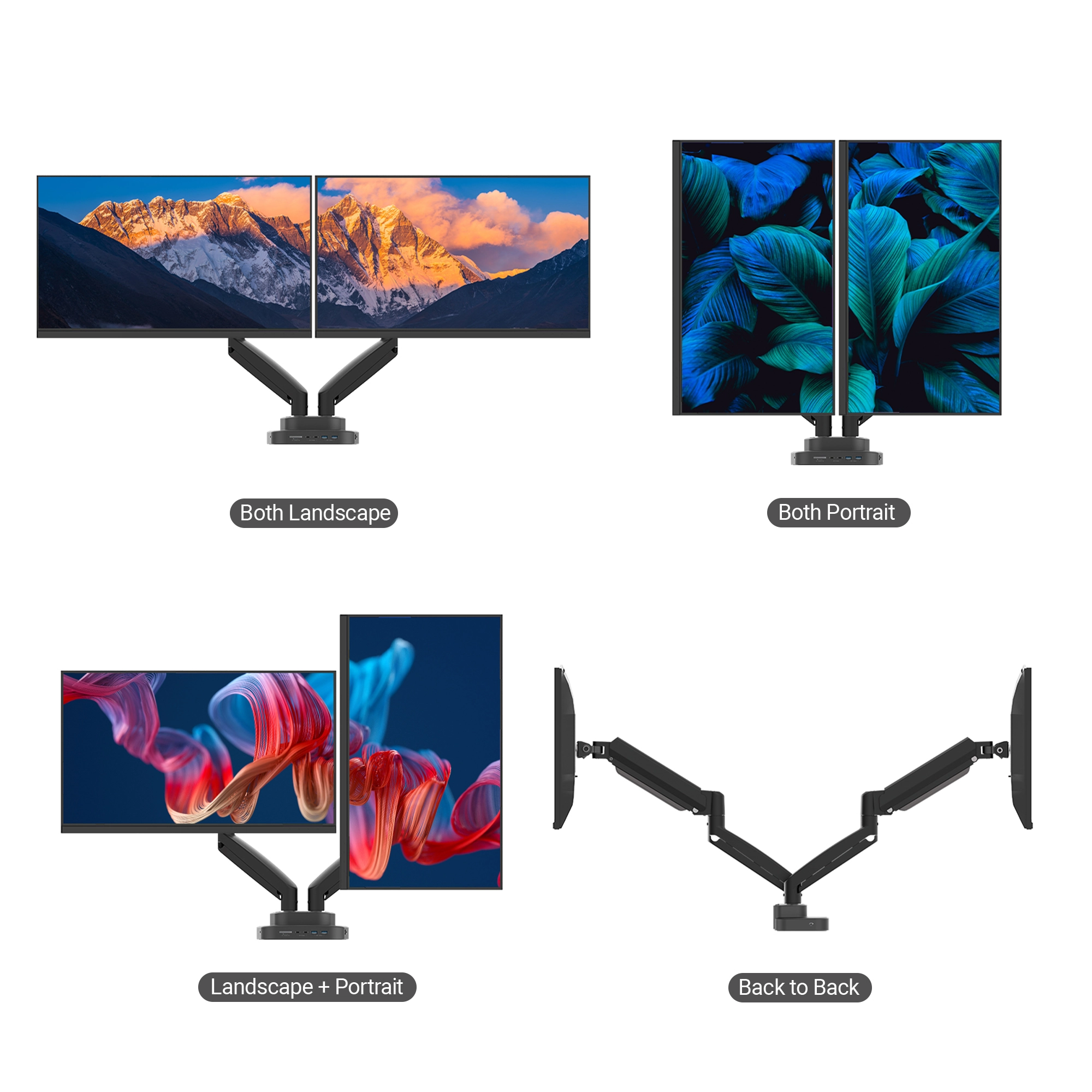

Orientation	Landscape/Portrait
Easy to install	Y
Technical details

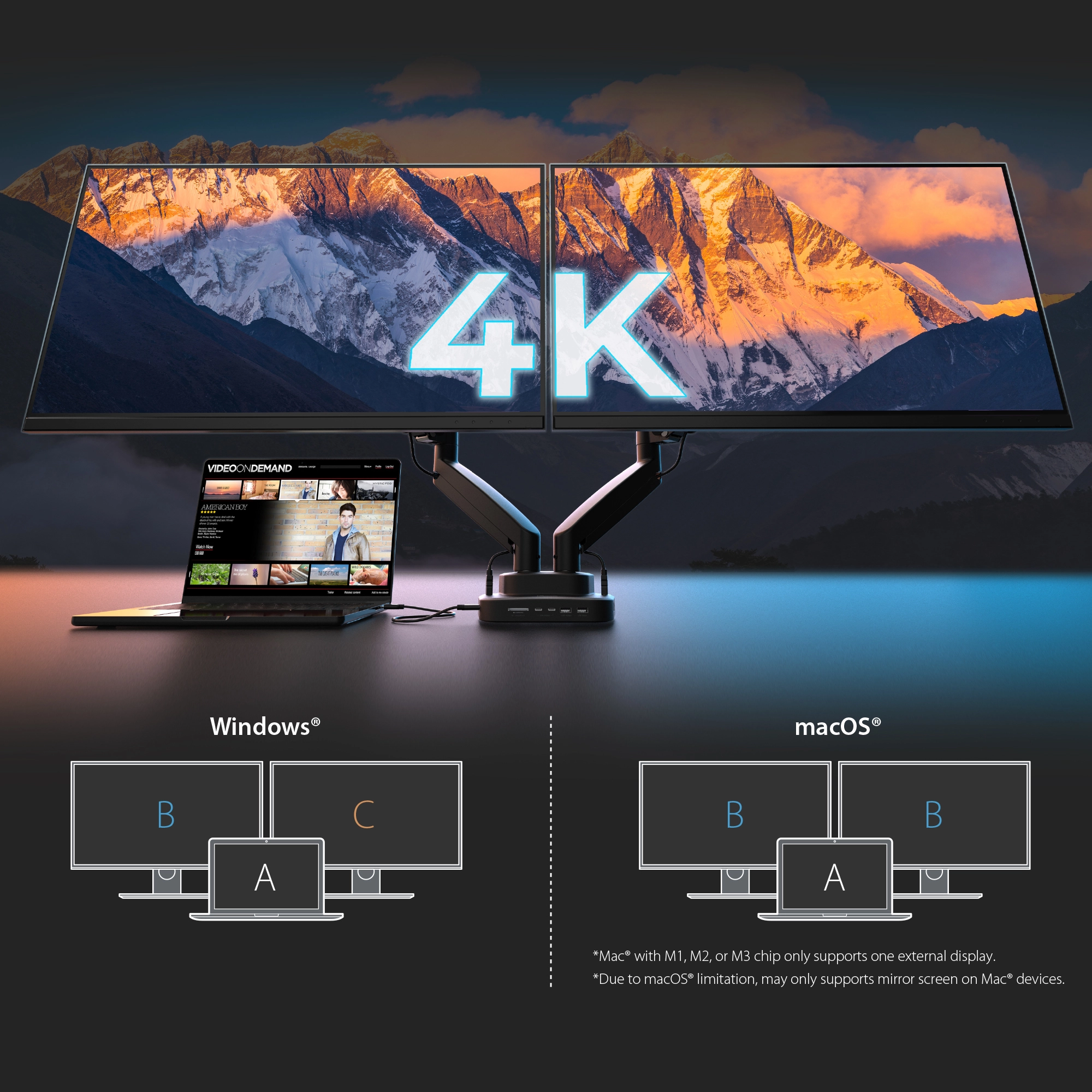

Compatible operating systems	Windows® macOS®
Display resolution	3840 x 2160 Pixels
Sustainability compliance	Y
Warranty period	2 jaar
Power
Input voltage	20 V
Ports & interfaces
HDMI ports quantity	2
Weight & dimensions
Width	180 mm
Depth	320 mm
Height	465 mm
Weight	3699 g
Package width	243 mm
Package depth	515 mm
Package height	127 mm
Package weight	4438 g
Package type	Box
Packaging data
Quantity per pack	1 stuk(s)
Operational conditions
Operating temperature (T-T)	0 - 30 °C
Operating relative humidity (H-H)	0 - 85 procent
Maximum operating temperature	30 °C
Storage temperature (T-T)	-10 - 65 °C
Storage relative humidity (H-H)	0 - 85 procent
Logistics data
Master (outer) case width	275 mm
Master (outer) case length	536 mm
Master (outer) case height	145 mm
Quantity per master (outer) case	1 stuk(s)
Master (outer) case GTIN (EAN/UPC)	24712795088292
Master (outer) case net weight	4800 g
Export Control Classification Number (ECCN)	EAR99
Other features
Country of origin	China
Compliance certificates	CE, REACH, RoHS
