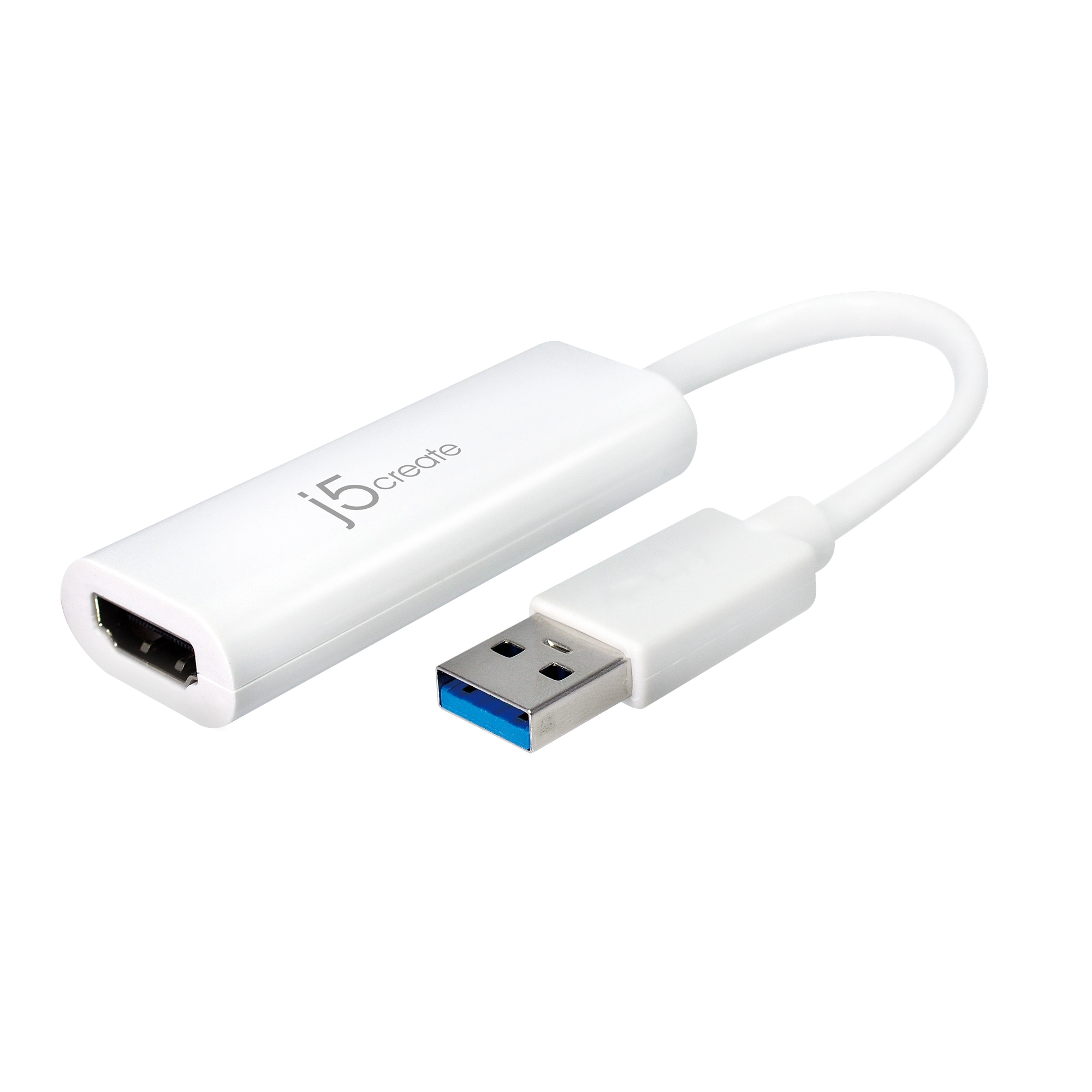

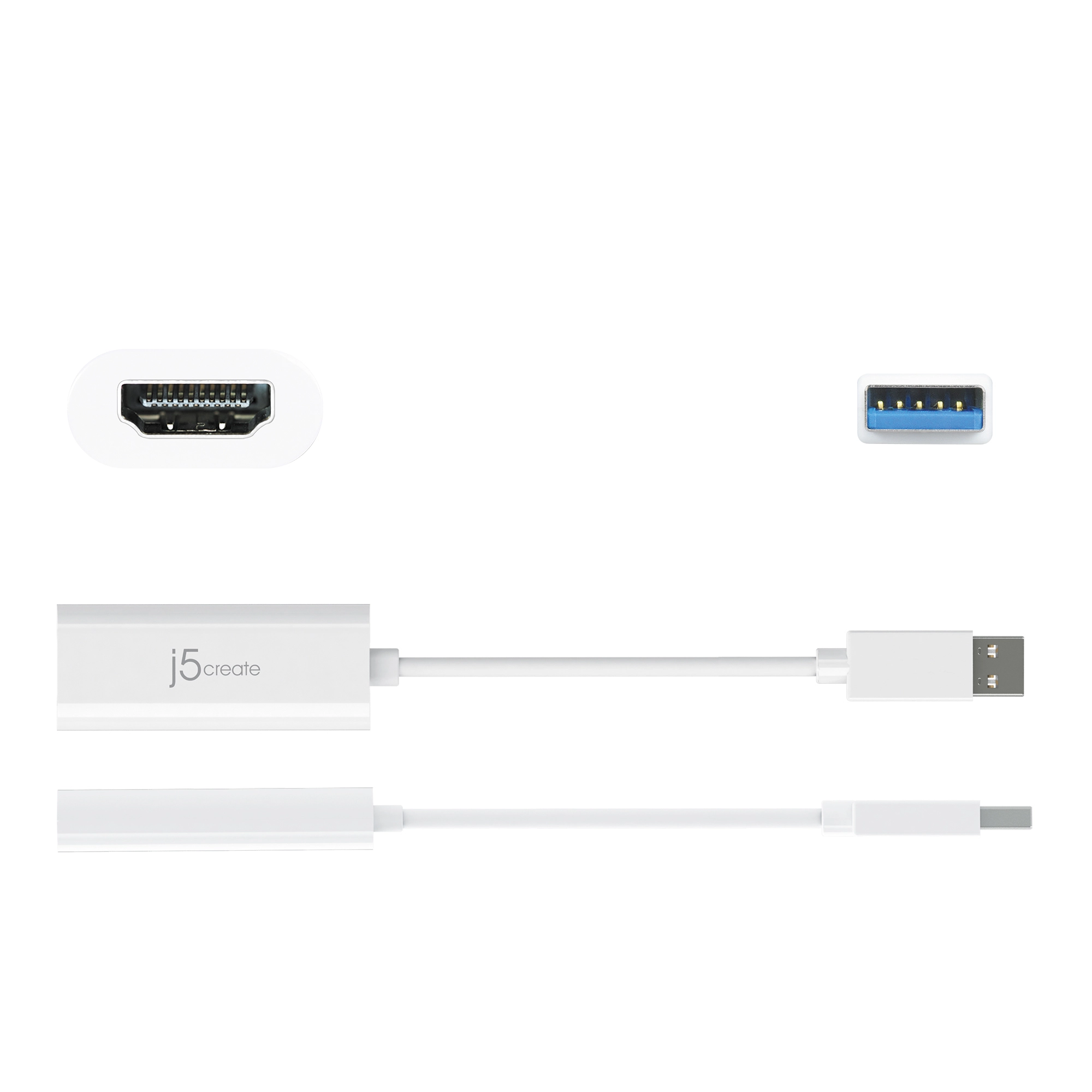

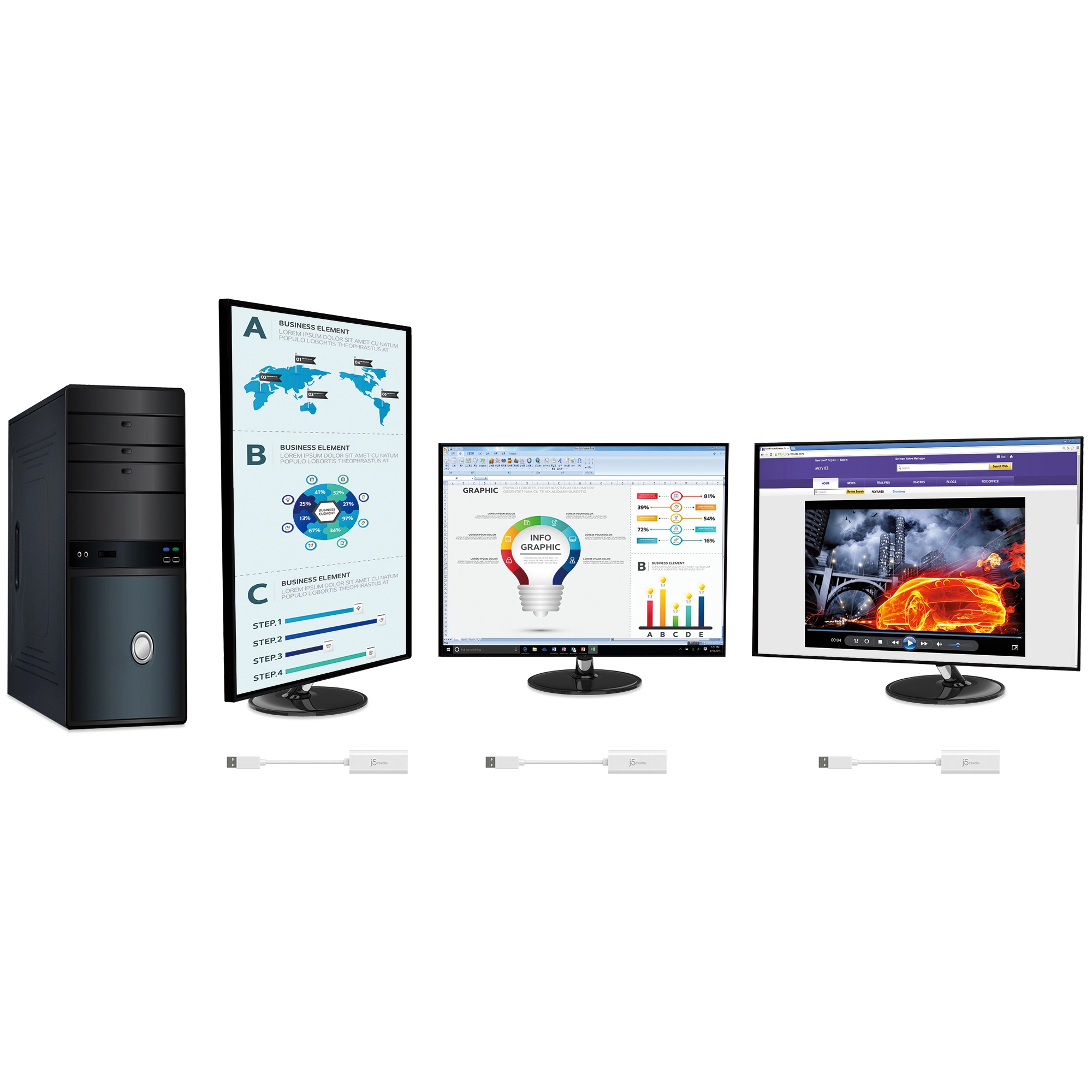

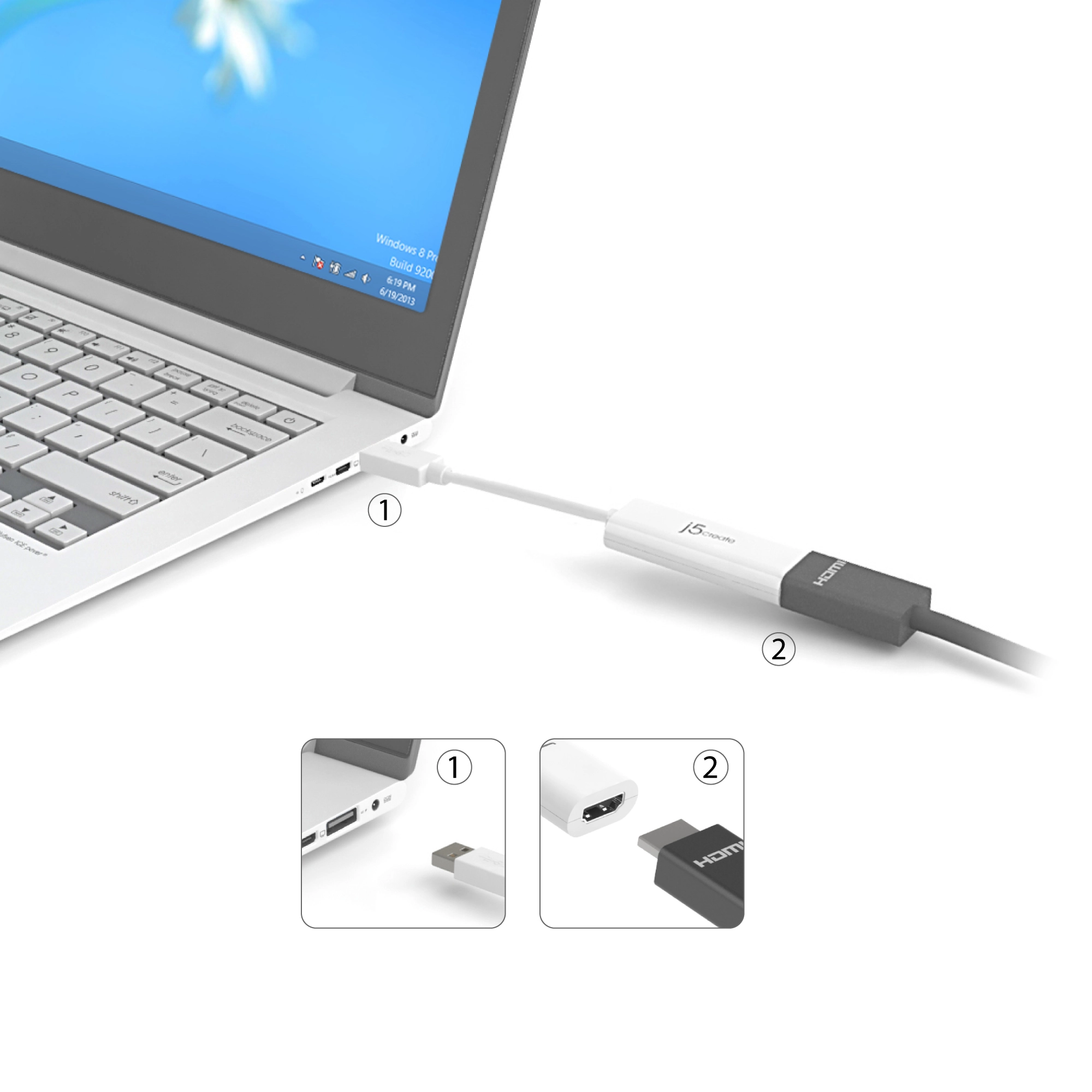

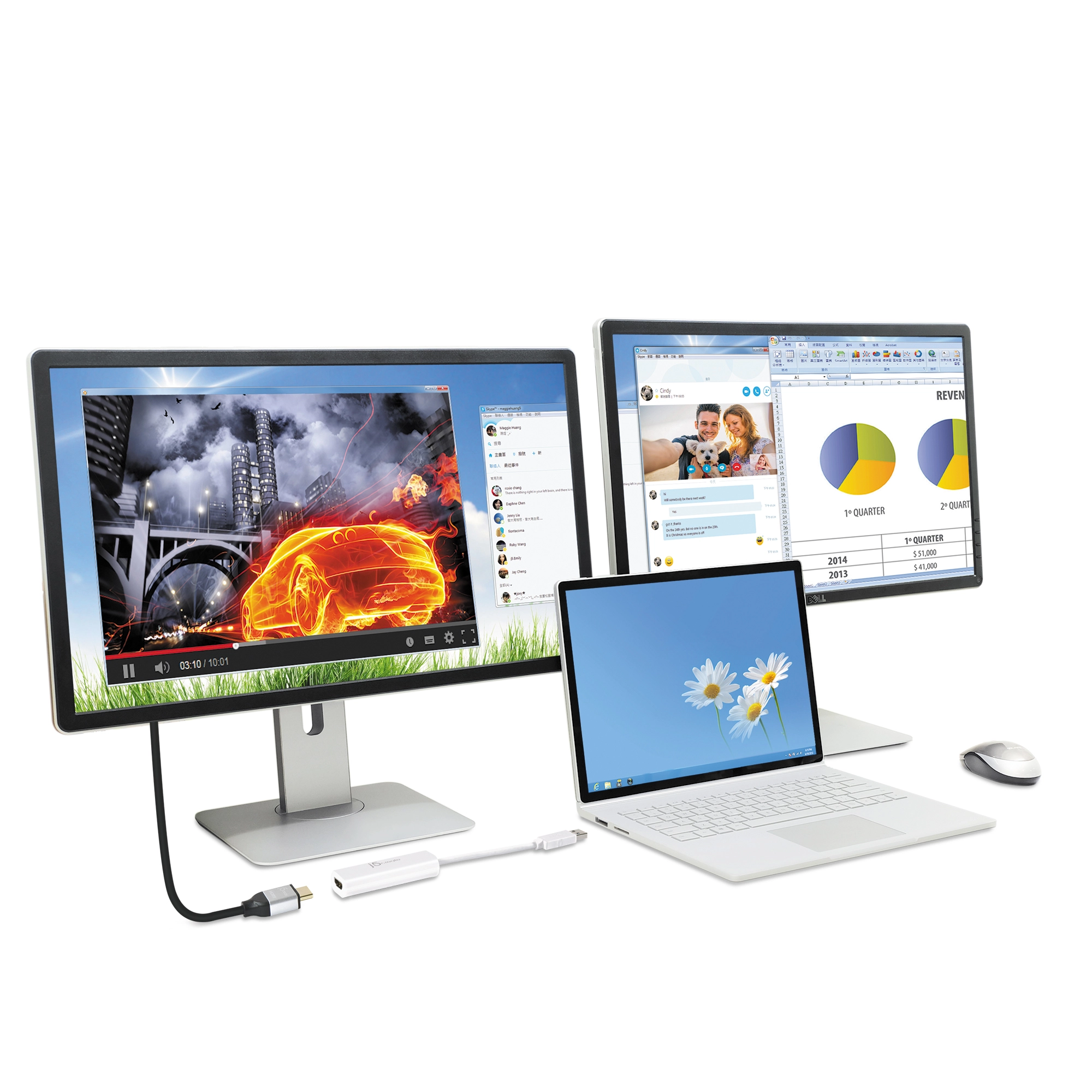

The JUA254 USB™ to HDMI™ Multi-Monitor Adapter works as an external video card, instantly allowing users to attach additional displays via HDMI™ connection without the hassle of a lengthy setup or having to install additional hardware. The USB™ 3.0 Display Adapter can support up to four displays running on the same computer, turning your workstation into a fully-functioning, multi-display powerhouse. This USB™ adapter works as an external video card, instantly allowing additional displays without the hassle of opening the computer casing and installing an external graphics card. You can have a second monitor with an extended display, a mirrored display, a rotational display (rotation mode not available for Mac®), or make it your primary monitor. Now enjoy true 1080p HD resolution through any Windows® or Mac® computer with a USB™ 3.0 port. These adapters are also backwards compatible with USB™ 2.0 resolutions and playback, which are ideal for office applications. The simple plug-and-play function allows you to connect your computer to a second monitor or projector within seconds to create a new visual environment on Windows® 10.

Specification

Product
Product id	990349
Brand	j5create
Partnr	JUA254-N
EAN/UPC code	4712795081077
Warranty (months)	2 year manufacturer warranty
Performance
USB version	3.2 Gen 1 (3.1 Gen 1)
USB connector type	USB Type-A
USB connector gender	Male connector
DVI output	N
HDMI output	Y
DisplayPort output	N
Number of displays supported	1
HDMI ports quantity	1
Maximum resolution	2048 x 1152 Pixels
Maximum resolution (HDMI)	2048 x 1152 Pixels
Supported video modes	1080p
Output colour depth	32 Bit
Mirror display mode	Y
Extended display mode	Y
Current	0.18 A
Design
Product colour	White
Housing material	Acrylonitrile butadiene styrene (ABS)
Integrated USB cable	Y
USB cable length	0.08 m
Cable type	USB 3.0
Power
Power consumption (max)	0.93 W
Output voltage	5 V
System requirements
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Weight & dimensions
Width	68.3 mm
Depth	15 mm
Height	26 mm
Weight	25 g
Package width	120 mm
Package depth	97 mm
Package height	25 mm
Package weight	73.5 g
Packaging content
Quick installation guide	Y
Batteries included	N
Packaging content	1 x JUA254 USB™ to HDMI™ Multi-Monitor Adapter, 1 x Quick Installation Guide
Technical details
Warranty period	2 jaar
Logistics data
Quantity per master (outer) case	20 stuk(s)
Master (outer) case GTIN (EAN/UPC)	24712795081071
Master (outer) case width	225 mm
Master (outer) case length	321 mm
Export Control Classification Number (ECCN)	EAR99
Master (outer) case height	180 mm
Shipping (inner) case height	160 mm
Master (outer) case weight	2160 g
Shipping (inner) case width	105 mm
Country of origin	Taiwan
Shipping (inner) case length	150 mm
Quantity per shipping (inner) case	5 stuk(s)
