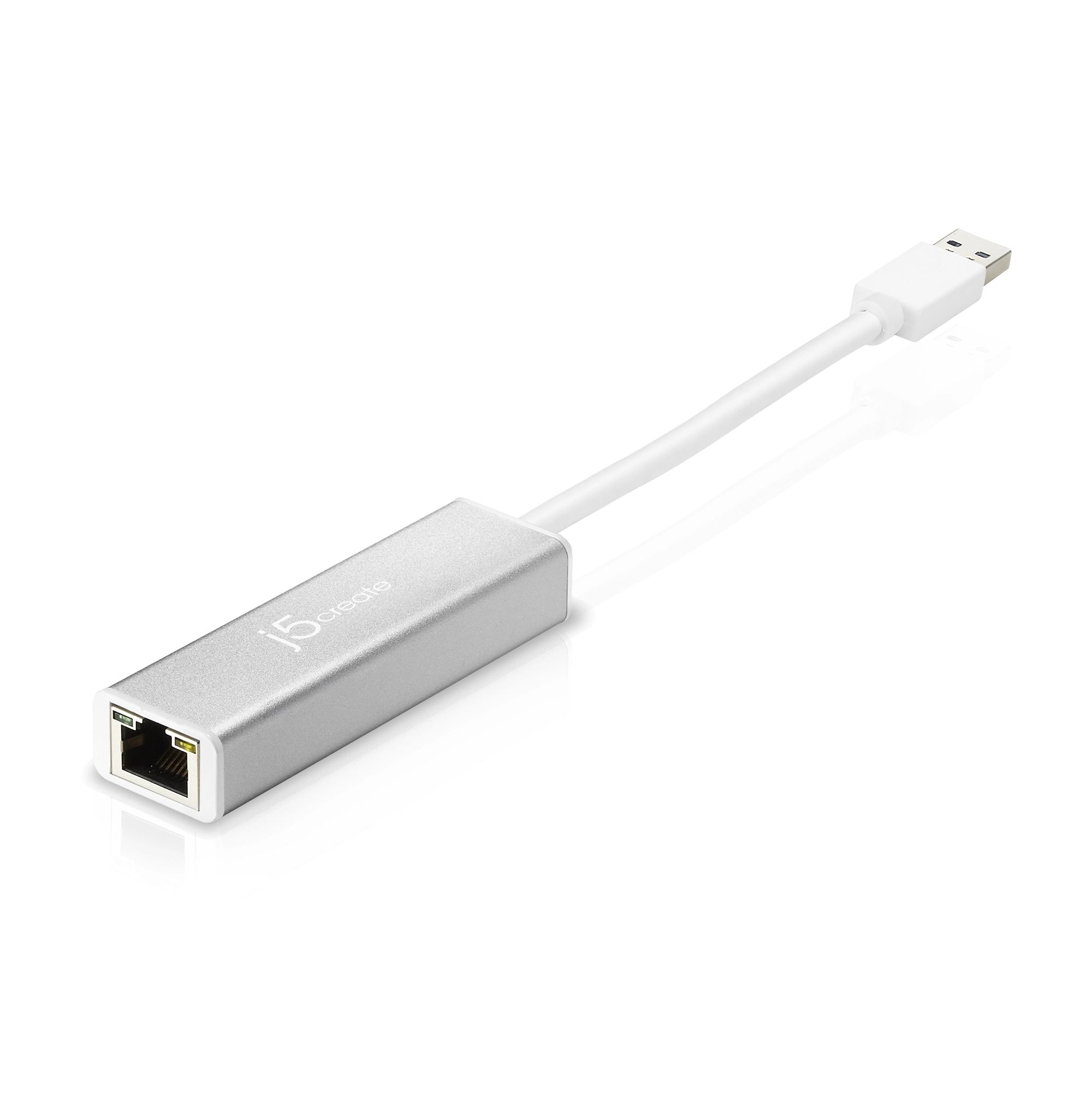

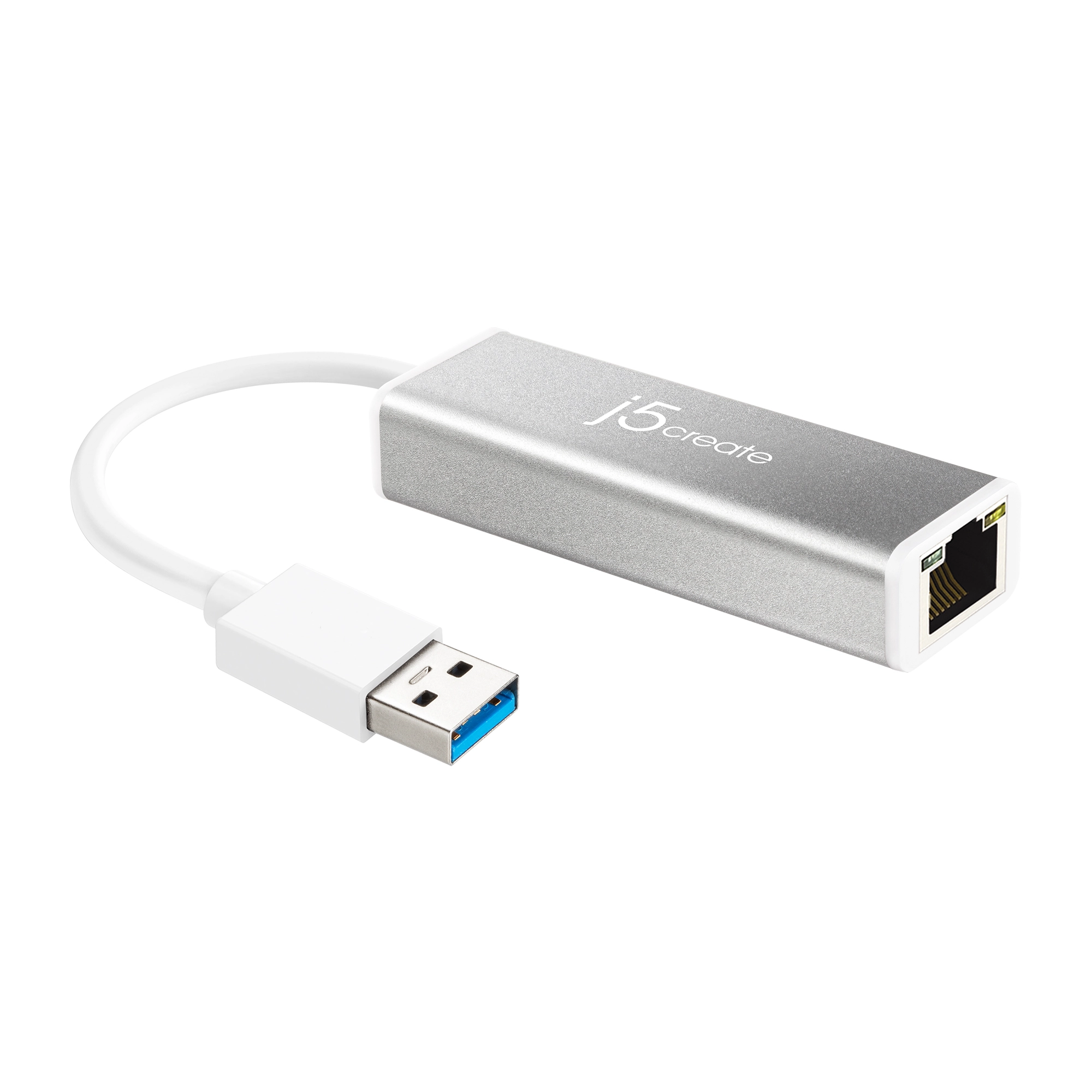

The USB™ 3.0 Gigabit Ethernet Adapter gives you the ability to add a Gigabit Ethernet port to your laptop or MacBook® though a single USB™ 3.0 Type-A port, supporting 10/100/1000 Mbps Ethernet and is fully compatible with IEEE 802.3/az/u/ab/x standards.

This ethernet adapter provides full gigabit bandwidth and offers backward compatibility with USB™ 2.0. It also supports features such as IPv4/IPv6/TCP/UDP packet Checksum Offload Engine (COE) and TCP Large Send Offload to reduce the load on your CPU. Jumbo Frames, full-duplex operation, VLAN tagging and 2 VLAN ID filtering are also supported, making this an ideal replacement LAN adapter or laptop accessory in areas without Wi-Fi® or if you just want to increase your Internet speed.

Specification

Product
Product id	990348
Brand	j5create
Partnr	JUE130-N
EAN/UPC code	4712795080247
Warranty (months)	2 year manufacturer warranty
Bandwidth
Data transfer rate	5 Gbit/s
Technical details
Warranty period	2 jaar
Ports & interfaces
Connectivity technology	Wired
Host interface	USB
Interface	Ethernet
Ethernet LAN	Y
Ethernet LAN (RJ-45) ports	1
USB version	3.2 Gen 1 (3.1 Gen 1)
USB connector form factor	Straight
Network
Maximum data transfer rate	1000 Mbit/s
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet interface type	Gigabit Ethernet
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Design
Internal	N
Component for	PC/Notebook
Product colour	Silver, White
LED indicators	Activity, Link
Country of origin	Taiwan
Power
Output voltage	5 V
Output current	0.2 A
Power consumption (typical)	1 W
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-42 - 82 °C
Packaging content
Batteries included	N
Packaging content	1 x JUE130 USB™ 3.0 Gigabit Ethernet Adapter, 1 x Quick Installation Guide, 1 x Driver Installation CD
Packaging data
Package width	120 mm
Package depth	97 mm
Package height	25 mm
Package weight	76.5 g
System requirements
Compatible operating systems	Microsoft® Windows® 7 or later macOS® 10.8 or later (Driver required) Linux® Kernel up to 5. x Chrome OS™
Windows operating systems supported	Y
Mac operating systems supported	Y
Linux operating systems supported	Y
Other operating systems supported	ChromeOS
Weight & dimensions
Width	68 mm
Depth	14.5 mm
Height	23 mm
Weight	35 g
Logistics data
Master (outer) case GTIN (EAN/UPC)	24712795080241
Master (outer) case width	280 mm
Master (outer) case length	210 mm
Master (outer) case height	145 mm
Master (outer) case weight	2170 g
Quantity per master (outer) case	20 stuk(s)
Minimum order quantity	60 stuk(s)
Other features
Housing material	Aluminium
Cable type	USB 3.0
Quick start guide	Y
Quantity per pack	1 stuk(s)
Commodity Classification Automated Tracking System (CCATS)	8471.80.0000
Export Control Classification Number (ECCN)	EAR99
Compatibility	Backwards compatible with USB™ 3.0, 2.0, and 1.1 hosts and devices, Instant connection to a wired network over USB™ Devices include: Macbook™ Pro (Up to model year 2015) Macbook™ Air (Up to model year 2017) Surface Pro™ 7 Surfacebook™
Cable length	0.145 m
Contents	1 x JUE130 USB™ 3.0 Gigabit Ethernet Adapter, 1 x Quick Installation Guide
Recommended operating temperature range (T-T)	0 - 40 °C
